ForewordForewordCongratulations on choosing a SUBARU vehi cle. This Owner’s
Manual has all the information necessary to keep your SUBARU in
excellent condition and to properly maintain the emission control
system for minimizing emission pollutants. We urge you to read
this manual carefully so that you may understand your vehicle and
its operation. For information not found in this Owner’s Manual,
such as details concerning repairs or adjustments, please contact
the SUBARU dealer from whom you purchased your SUBARU or
the nearest SUBARU dealer.
The information, specifications and illustrations found in this
manual are those in effect at the time of printing. SUBARU
CORPORATION reserves the right to change specifications and
designs at any time without prior notice and without incurring any
obligation to make the same or similar changes on vehicles
previously sold. This Owner’s Manual applies to all models and
covers all equipment, including factory installed options. Some
explanations, therefore may be for equipment not installed in your
vehicle.
Please leave this manual in the vehicle at the time of resale. The next
owner will need the information found herein.
SUBARU CORPORATION, TOKYO, JAPAN“SUBARU” and the six-star cluster design are registered trademarks of SUBARU CORPORATION. Copyright 2021 SUBARU CORPORATION©
B 5 = B 8. E R R N 1 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 2 of 432
B 5 = B 8. E R R N 2 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 3 of 432

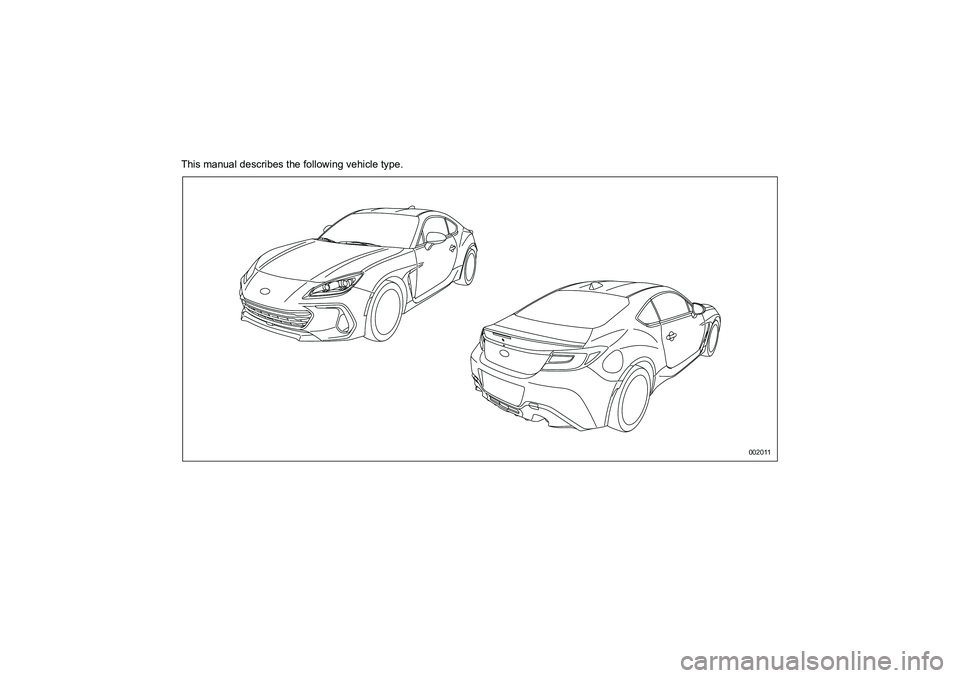

This manual describes the following vehicle type.
002011
B 5 = B 8. E R R N 3 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 4 of 432
B 5 = B 8. E R R N 4 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 5 of 432

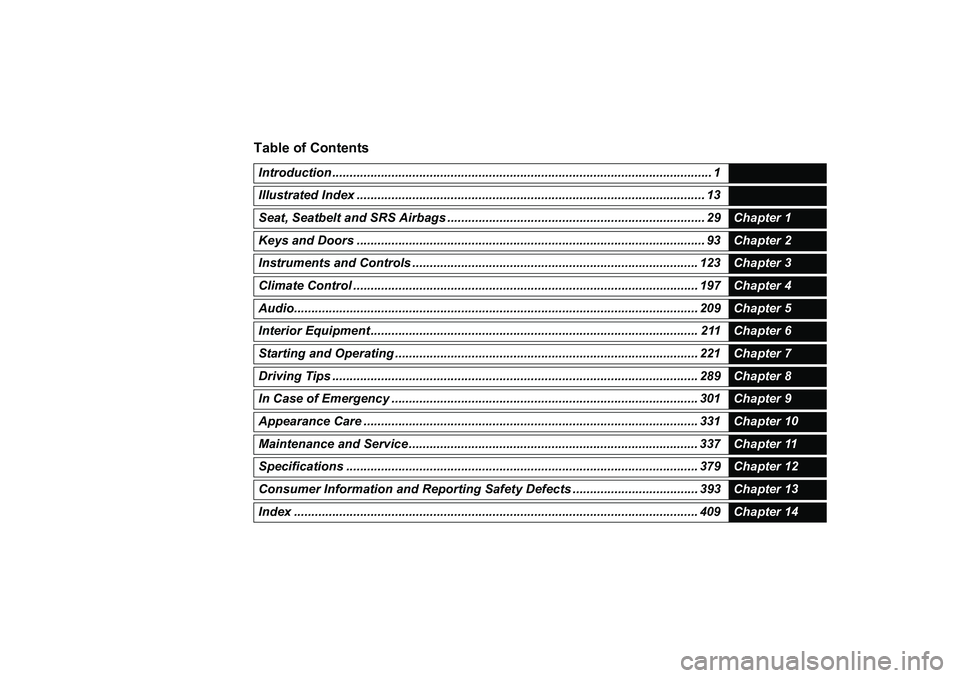

Table of ContentsIntroduction ............................................................................................................. 1Illustrated Index .................................................................................................... 13Seat, Seatbelt and SRS Airbags .......................................................................... 29
Chapter 1
Keys and Doors .................................................................................................... 93Chapter 2
Instruments and Controls .................................................................................. 123Chapter 3
Climate Control ................................................................................................... 197Chapter 4
Audio.................................................................................................................... 209Chapter 5
Interior Equipment .............................................................................................. 211Chapter 6
Starting and Operating ....................................................................................... 221Chapter 7
Driving Tips ......................................................................................................... 289Chapter 8
In Case of Emergency ........................................................................................ 301Chapter 9
Appearance Care ................................................................................................ 331Chapter 10
Maintenance and Service ................................................................................... 337Chapter 11
Specifications ..................................................................................................... 379Chapter 12
Consumer Information and Reporting Safety Defects .................................... 393Chapter 13
Index .................................................................................................................... 409Chapter 14
B 5 = B 8. E R R N 1 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 6 of 432
B 5 = B 8. E R R N 2 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 7 of 432
Introduction
Introduction
z
Warranties ...............................................................2Warranties for U.S.A.........................................................2
Warranties for Canada .....................................................2
Warranties except for U.S.A. and Canada ......................2
z
How to Use This Owner’s Manual .........................2Using Your Owner’s Manual ............................................2
Safety Warnings ...............................................................3
Safety Symbol ...................................................................4
Abbreviation List ..............................................................4
z
Vehicle Symbols .....................................................5
zSafety Precautions When Driving .........................5Seatbelt and SRS Airbag .................................................5
Child Safety .......................................................................6
Engine Exhaust Gas (Carbon Monoxide) .......................7 Drinking and Driving ....................................................... 7
Drugs and Driving............................................................ 8
Driving When Tired or Sleepy......................................... 8
Modification of Your Vehicle .......................................... 8
Use of Cell Phones/Texting and Driving........................ 9
Driving Vehicles Equipped with Audio System ............ 9
Driving with Pets.............................................................. 9
Tire Pressures .................................................................. 9
Attaching Accessories ..............
...................................... 9
z
General Information ..............................................10California Perchlorate Advisory ................................... 10
Noise from under the Vehicle ....................................... 10
Vehicle Data Recorder................................................... 10
Event Data Recorder ..................................................... 11
B 5 = B 8. E R R N 1 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 8 of 432

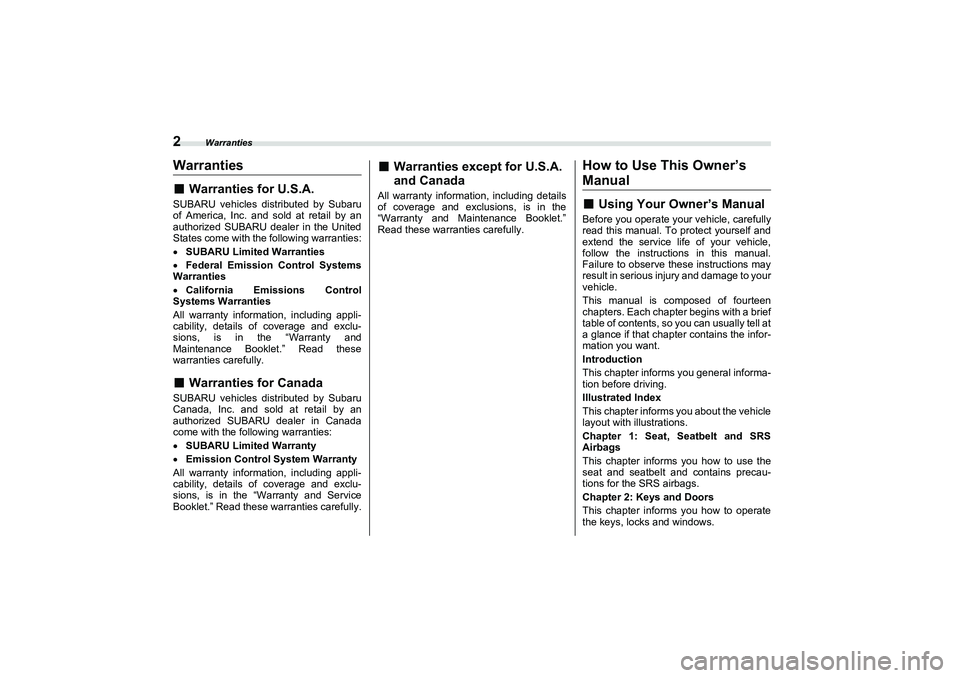

Warranties
2Warranties■
Warranties for U.S.A.
SUBARU vehicles distributed by Subaru
of America, Inc. and sold at retail by an
authorized SUBARU dealer in the United
States come with the following warranties:
SUBARU Limited Warranties
Federal Emission Control Systems
Warranties
California Emissions Control
Systems Warranties
All warranty information, including appli-
cability, details of coverage and exclu-
sions, is in the “Warranty and
Maintenance Booklet.” Read these
warranties carefully.■
Warranties for Canada
SUBARU vehicles distributed by Subaru
Canada, Inc. and sold at retail by an
authorized SUBARU dealer in Canada
come with the following warranties:
SUBARU Limited Warranty
Emission Control System Warranty
All warranty information, including appli-
cability, details of coverage and exclu-
sions, is in the “Warranty and Service
Booklet.” Read these warranties carefully.
■
Warranties except for U.S.A.
and Canada
All warranty information, including details
of coverage and exclusions, is in the
“Warranty and Maintenance Booklet.”
Read these warranties carefully.
How to Use This Owner’s Manual■
Using Your Owner’s Manual
Before you operate your vehicle, carefully
read this manual. To protect yourself and
extend the service life of your vehicle,
follow the instructions in this manual.
Failure to observe these instructions may
result in serious injury and damage to your
vehicle.
This manual is composed of fourteen
chapters. Each chapter begins with a brief
table of contents, so you can usually tell at
a glance if that chapter contains the infor-
mation you want.
Introduction
This chapter informs you general informa-
tion before driving.
Illustrated Index
This chapter informs you about the vehicle
layout with illustrations.
Chapter 1: Seat, Seatbelt and SRS
Airbags
This chapter informs you how to use the
seat and seatbelt and contains precau-
tions for the SRS airbags.
Chapter 2: Keys and Doors
This chapter informs you how to operate
the keys, locks and windows.
B 5 = B 8. E R R N 2 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 9 of 432

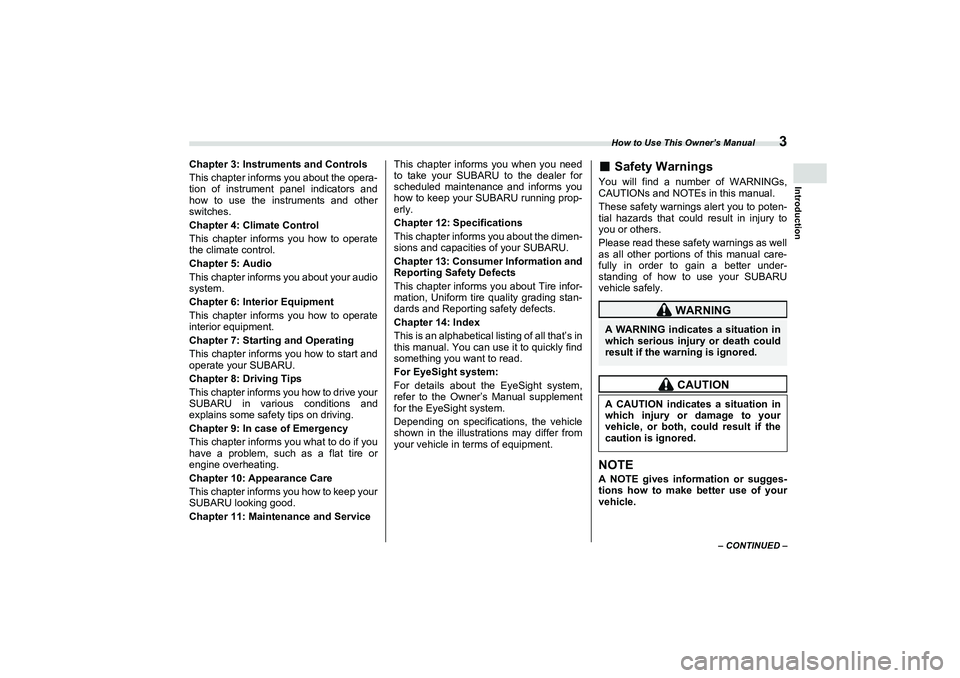

How to Use This Owner’s Manual
3
Introduction
– CONTINUED –
Chapter 3: Instruments and Controls
This chapter informs you about the opera-
tion of instrument panel indicators and
how to use the instruments and other
switches.
Chapter 4: Climate Control
This chapter informs you how to operate
the climate control.
Chapter 5: Audio
This chapter informs you about your audio
system.
Chapter 6: Interior Equipment
This chapter informs you how to operate
interior equipment.
Chapter 7: Starting and Operating
This chapter informs you how to start and
operate your SUBARU.
Chapter 8: Driving Tips
This chapter informs you how to drive your
SUBARU in various conditions and
explains some safety tips on driving.
Chapter 9: In case of Emergency
This chapter informs you what to do if you
have a problem, such as a flat tire or
engine overheating.
Chapter 10: Appearance Care
This chapter informs you how to keep your
SUBARU looking good.
Chapter 11: Maintenance and ServiceThis chapter informs you when you need
to take your SUBARU to the dealer for
scheduled maintenance and informs you
how to keep your SUBARU running prop-
erly.
Chapter 12: Specifications
This chapter informs you about the dimen-
sions and capacities of your SUBARU.
Chapter 13: Consumer
Information and
Reporting Safety Defects
This chapter informs you about Tire infor-
mation, Uniform tire quality grading stan-
dards and Reporting safety defects.
Chapter 14: Index
This is an alphabetical listing of all that’s in
this manual. You can use it to quickly find
something you want to read.
For EyeSight system:
For details about the EyeSight system,
refer to the Owner’s Manual supplement
for the EyeSight system.
Depending on specifications, the vehicle
shown in the illustrations may differ from
your vehicle in terms of equipment.
■
Safety Warnings
You will find a number of WARNINGs,
CAUTIONs and NOTEs in this manual.
These safety warnings alert you to poten-
tial hazards that could result in injury to
you or others.
Please read these safety warnings as well
as all other portions of this manual care-
fully in order to gain a better under-
standing of how to use your SUBARU
vehicle safely.NOTEA NOTE gives information or sugges-
tions how to make better use of your
vehicle.
WARNING
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in
which injury or damage to your
vehicle, or both, could result if the
caution is ignored.
B 5 = B 8. E R R N 3 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 10 of 432

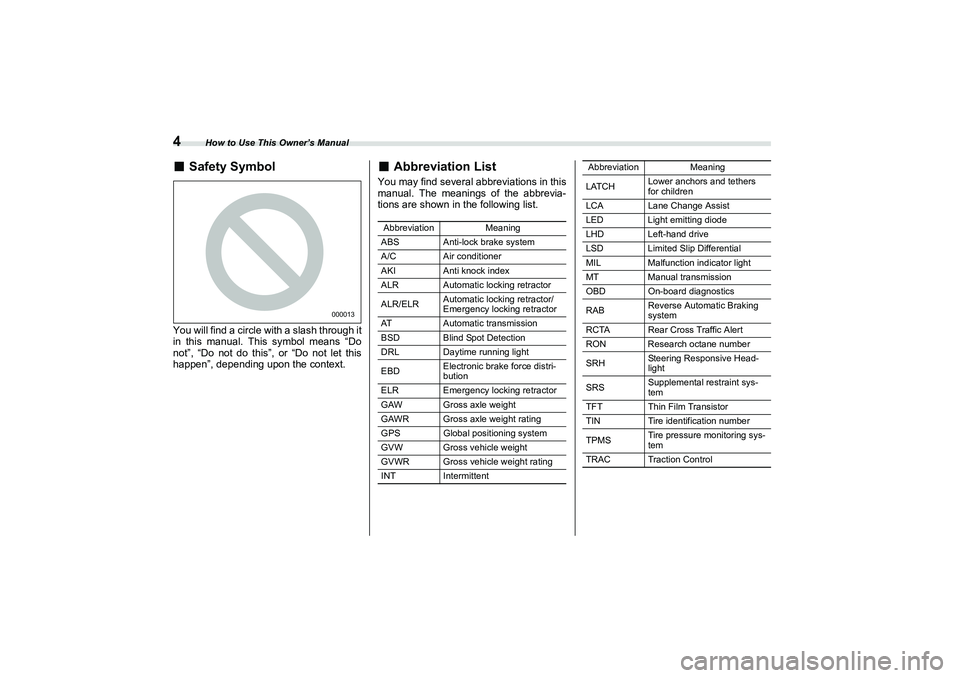

How to Use This Owner’s Manual
4■
Safety Symbol
You will find a circle with a slash through it
in this manual. This symbol means “Do
not”, “Do not do this”, or “Do not let this
happen”, depending upon the context.
■
Abbreviation List
You may find several abbreviations in this
manual. The meanings of the abbrevia-
tions are shown in the following list.
000013
AbbreviationMeaning
ABS Anti-lock brake system
A/C Air conditioner
AKI Anti knock index
ALR Automatic locking retractor
ALR/ELR Automatic locking retractor/
Emergency locking retractor
AT Automatic transmission
BSD Blind Spot Detection
DRL Daytime running light
EBD Electronic brake force distri-
bution
ELR Emergency locking retractor
GAW Gross axle weight
GAWR Gross axle weight rating
GPS Global positioning system
GVW Gross vehicle weight
GVWR Gross vehicl e weight rating
INT Intermittent
LATCHLower anchors and tethers
for children
LCA Lane Change Assist
LED Light emitting diode
LHD Left-hand drive
LSD Limited Slip Differential
MIL Malfunction indicator light
MT Manual transmission
OBD On-board diagnostics
RAB Reverse Automatic Braking
system
RCTA Rear Cross Traffic Alert
RON Research octane number
SRH Steering Responsive Head-
light
SRS Supplemental restraint sys-
tem
TFT Thin Film Transistor
TIN Tire identification number
TPMS Tire pressure monitoring sys-
tem
TRAC Traction Control Abbreviation
Meaning
