SUBARU BRZ 2023 Owners Manual

Center Information Display (CID)
165
Instruments and Controls3
– CONTINUED –

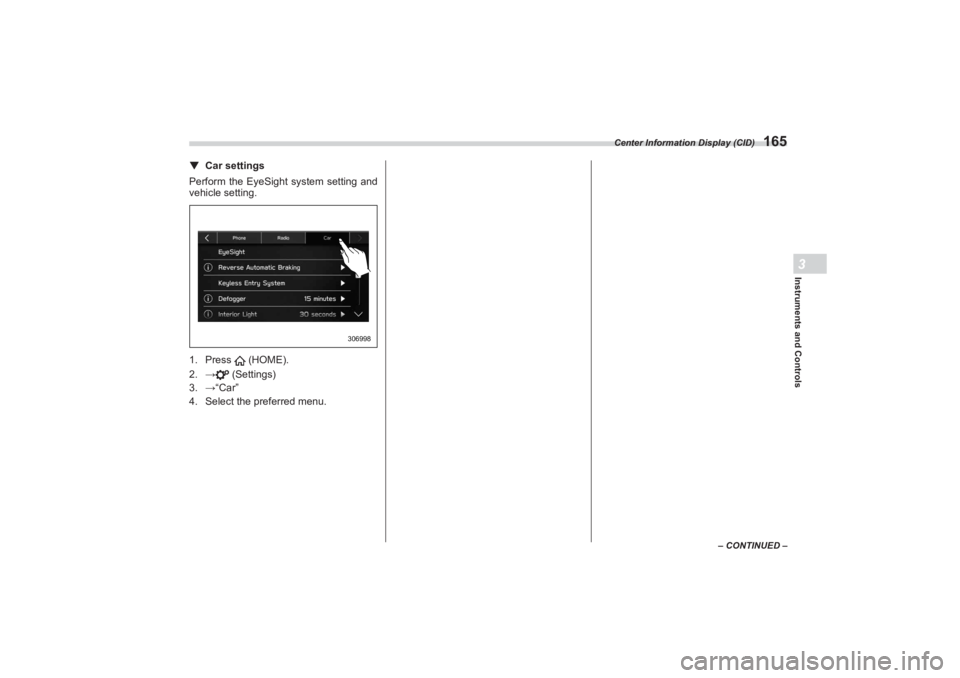

▼Car settingsPerform the EyeSight system setting and
vehicle setting.
1. Press (HOME).
2. → (Settings)
3. →“Car”
4. Select the preferred menu.
306998
BRZ_U.book 165 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)

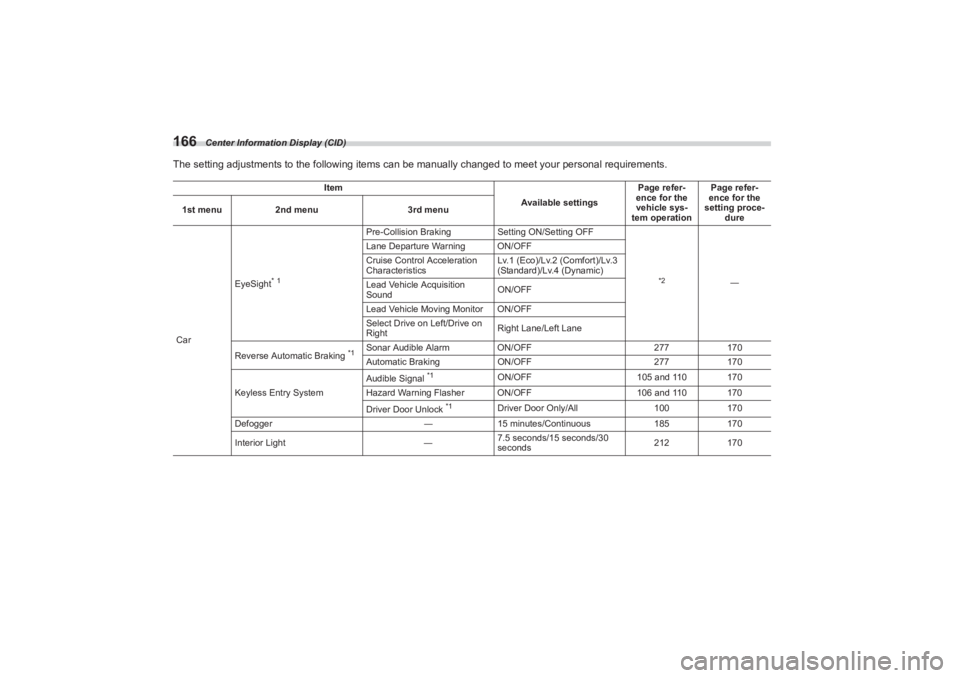

166The setting adjustments to the following items can be manually changed to meet your personal requirements.
Item
Available settingsPage refer-
ence for the
vehicle sys-
tem operation Page refer-
ence for the
setting proce- dure
1st menu
2nd menu 3rd menu
Car EyeSight
* 1
Pre-Collision Braking
Setting ON/Setting OFF
*2
―
Lane Departure Warning ON/OFF
Cruise Control Acceleration
Characteristics
Lv.1 (Eco)/Lv.2 (Comfort)/Lv.3
(Standard)/Lv.4 (Dynamic)
Lead Vehicle Acquisition
Sound ON/OFF
Lead Vehicle Moving Monitor ON/OFF
Select Drive on Left/Drive on
Right Right Lane/Left Lane
Reverse Automatic Braking
*1
Sonar Audible Alarm ON/OFF 277170
Automatic Braking ON/OFF 277170
Keyless Entry System Audible Signal
*1
ON/OFF
105 and 110 170
Hazard Warning Flasher ON/OFF 106 and 110 170
Driver Door Unlock
*1
Driver Door Only/All 100170
Defogger ―15 minutes/Continuous 185170
Interior Light ―7.5 seconds/15 seconds/30
seconds 212
170
BRZ_U.book 166 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)
167
Instruments and Controls3
– CONTINUED –
*1: If equipped
*2: For details about EyeSight system, refer to the
Owner’s Manual supplement for the EyeSight system.

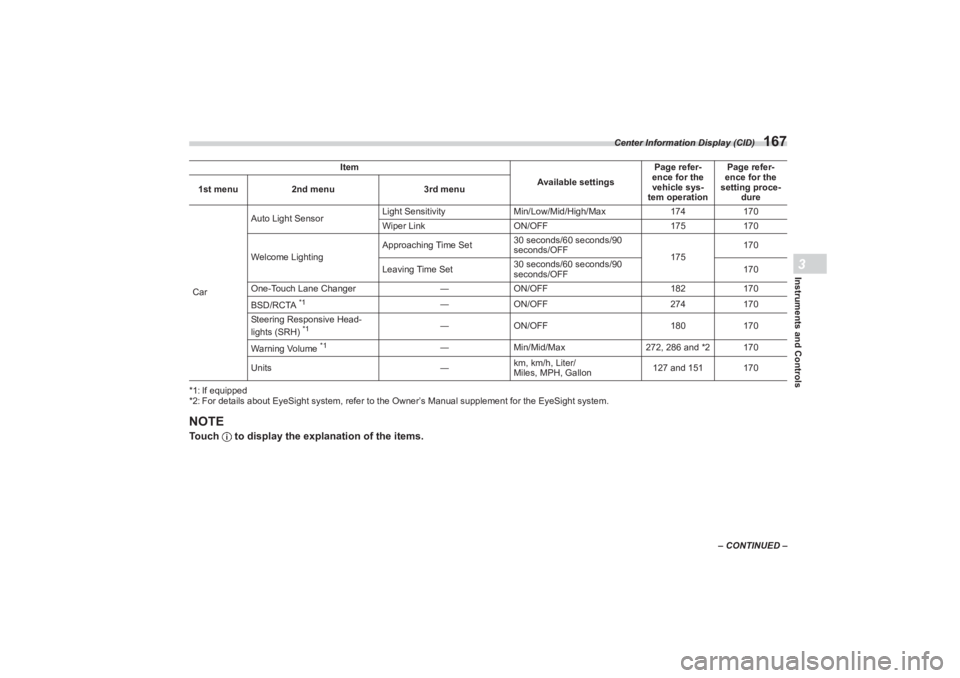

NOTETouch to display the explanation of the items.CarAuto Light Sensor
Light Sensitivity
Min/Low/Mid/High/Max 174170
Wiper Link ON/OFF 175170
Welcome Lighting Approaching Time Set
30 seconds/60 seconds/90
seconds/OFF
175170
Leaving Time Set 30 seconds/60 seconds/90
seconds/OFF 170
One-Touch Lane Changer ―ON/OFF 182170
BSD/RCTA
*1
― ON/OFF 274170
Steering Responsive Head-
lights (SRH)
*1
― ON/OFF 180170
Warning Volume
*1
― Min/Mid/Max 272, 286 and *2 170
Units ―km, km/h, Liter/

Miles, MPH, Gallon 127 and 151 170
Item
Available settingsPage refer-
ence for the
vehicle sys-
tem operation Page refer-
ence for the
setting proce-
dure
1st menu
2nd menu 3rd menu
BRZ_U.book 167 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)

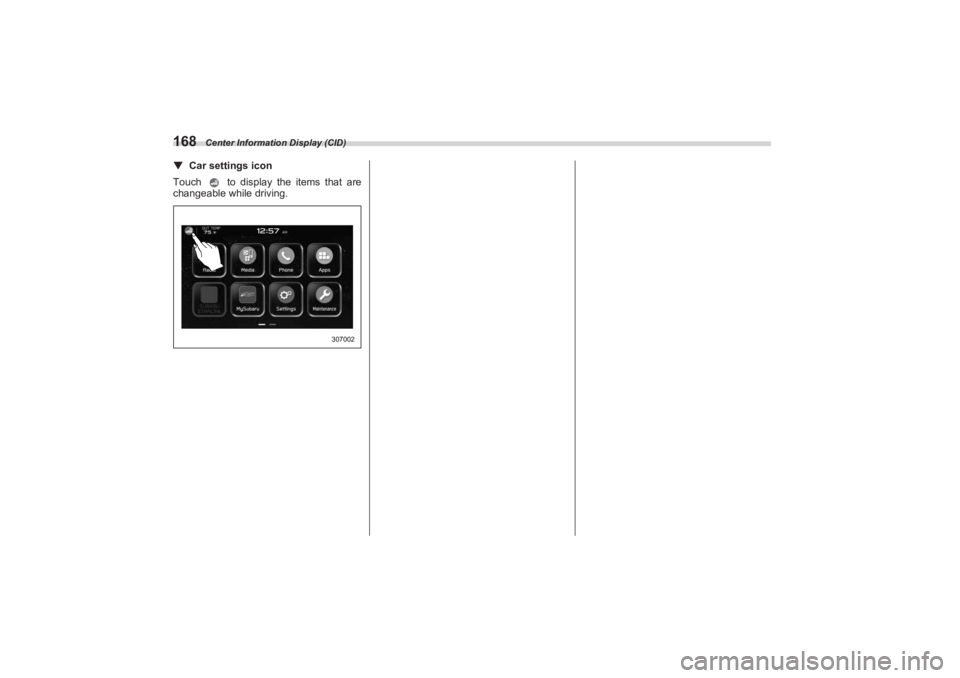

168▼Car settings iconTouch to display the items that are
changeable while driving.
307002
BRZ_U.book 168 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)
169
Instruments and Controls3
– CONTINUED –
*1: If equipped
*2: For details about EyeSight system, refer to the
Owner’s Manual supplement for the EyeSight system.

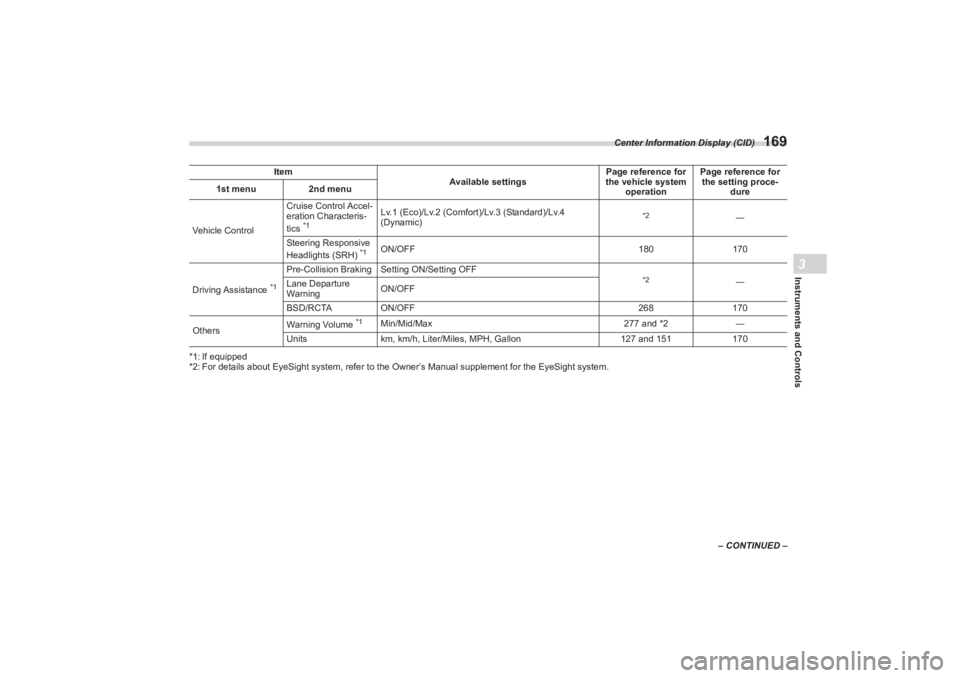

Item
Available settingsPage reference for
the vehicle system
operation Page reference for
the setting proce-
dure
1st menu
2nd menu
Vehicle Control Cruise Control Accel-
eration Characteris-
tics
*1
Lv.1 (Eco)/Lv.2 (Comfort)/Lv.3 (Standard)/Lv.4
(Dynamic)
*2
―
Steering Responsive
Headlights (SRH)
*1
ON/OFF 180170
Driving Assistance
*1
Pre-Collision Braking S etting ON/Setting OFF
*2
―
Lane Departure
Warning ON/OFF
BSD/RCTA ON/OFF 268170
Others Warning Volume
*1
Min/Mid/Max
277 and *2―
Units km, km/h, Liter/Miles, MPH, Gallon 127 and 151170
BRZ_U.book 169 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)

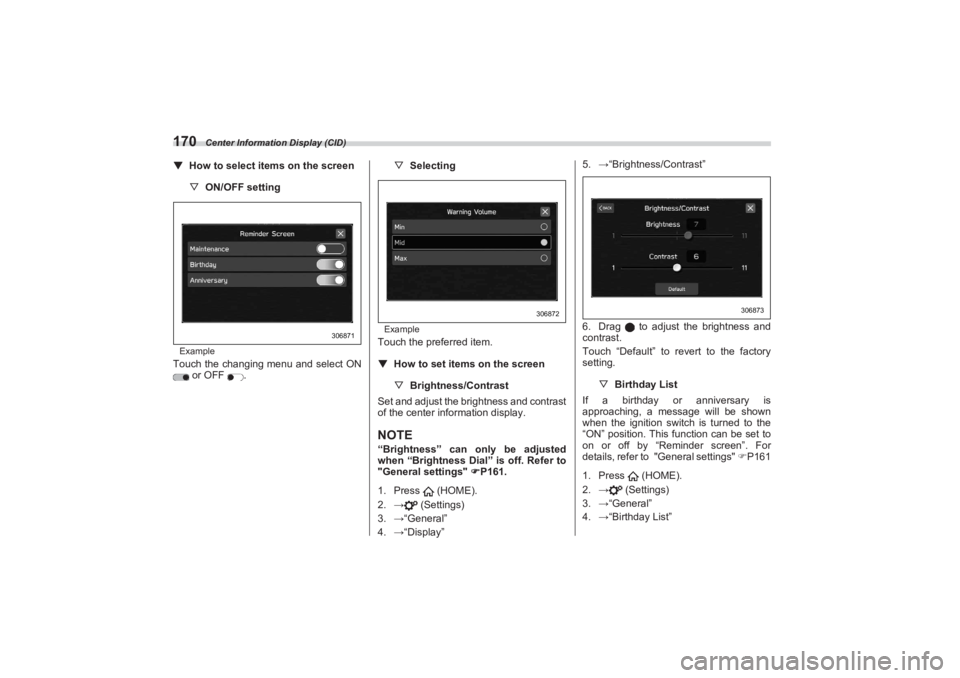

170▼How to select items on the screen
▽ ON/OFF settingExampleTouch the changing menu and select ON
or OFF . ▽
Selecting
ExampleTouch the preferred item.
▼ How to set items on the screen
▽ Brightness/Contrast
Set and adjust the brightness and contrast
of the center information display.NOTE“Brightness” can only be adjusted
when “Brightness Dial” is off. Refer to
"General settings" P161.
1. Press (HOME).
2. → (Settings)
3. →“General”
4. →“Display” 5.
→“Brightness/Contrast”
6. Drag to adjust the brightness and
contrast.
Touch “Default” to revert to the factory
setting.
▽ Birthday List
If a birthday or anniversary is
approaching, a message will be shown
when the ignition switch is turned to the
“ON” position. This function can be set to
on or off by “Reminder screen”. For
details, refer to "General settings" P161
1. Press (HOME).
2. → (Settings)
3. →“General”
4. →“Birthday List”
306871
306872
306873
BRZ_U.book 170 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)
171
Instruments and Controls3
– CONTINUED –

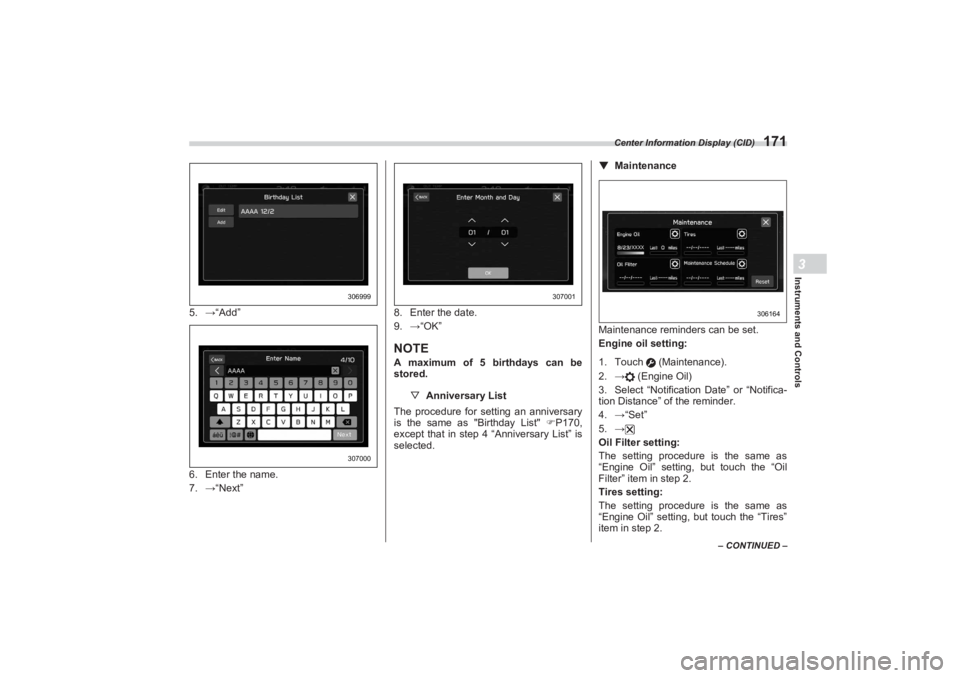

5.→“Add”
6. Enter the name.
7. →“Next” 8. Enter the date.
9.
→“OK”
NOTEA maximum of 5 birthdays can be
stored.
▽ Anniversary List
The procedure for setting an anniversary
is the same as "Birthday List" P170,
except that in step 4 “Anniversary List” is
selected. ▼
Maintenance
Maintenance reminders can be set.
Engine oil setting:
1. Touch (Maintenance).
2.→ (Engine Oil)
3. Select “Notificatio n Date” or “Notifica-
tion Distance” of the reminder.
4. →“Set”
5. →
Oil Filter setting:
The setting procedure is the same as
“Engine Oil” setting, but touch the “Oil
Filter” item in step 2.
Tires setting:
The setting procedure is the same as
“Engine Oil” setting, but touch the “Tires”
item in step 2.
306999307000
307001
XXXX
306164
BRZ_U.book 171 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Clock
172Maintenance Schedule setting:
The setting procedure is the same as
“Engine Oil” setting, but touch the “Mainte-
nance Schedule” item in step 2.NOTE Touch “Reset” to reset each setting.
 Touch “Update” to revert to the
default value.

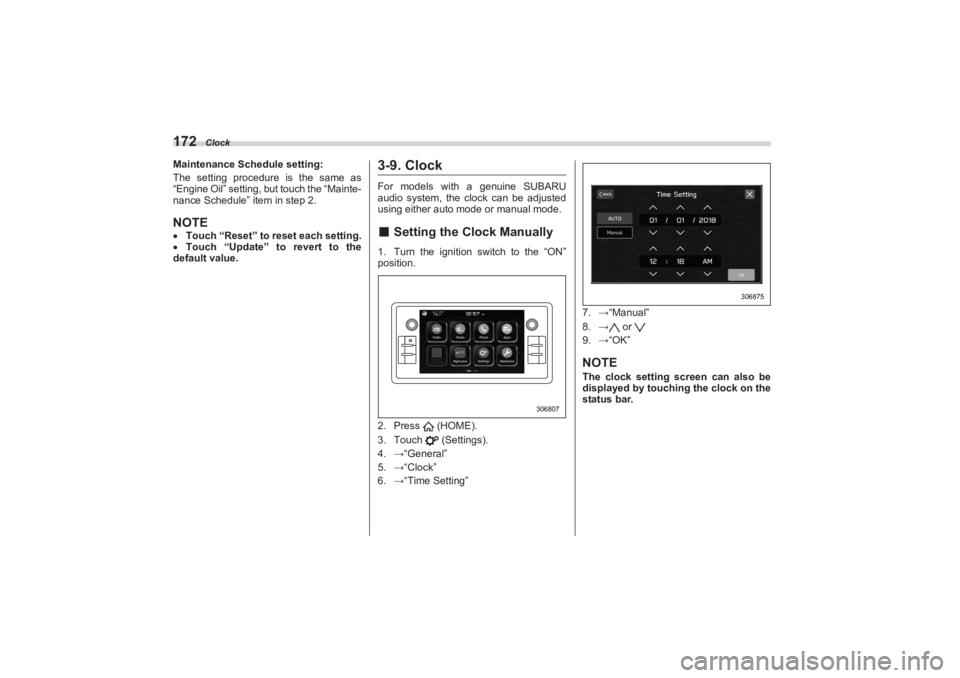

3-9. ClockFor models with a genuine SUBARU
audio system, the clock can be adjusted
using either auto mode or manual mode.■ Setting the Clock Manually1. Turn the ignition switch to the “ON”
position.
2. Press (HOME).
3. Touch (Settings).
4. →“General”
5. →“Clock”
6. →“Time Setting” 7.
→“Manual”
8. → or
9. →“OK”
NOTEThe clock setting screen can also be
displayed by touching the clock on the
status bar.
306807
306875
BRZ_U.book 172 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Clock
173
Instruments and Controls3
■Setting the Clock Automati-
cally1. Turn the ignition switch to the “ON”
position.
2. Press (HOME).
3. Touch (Settings).
4. →“General”
5. →“Clock”
6. →“Time Setting” 7. Models with SUBARU STARLINK

Safety and Security: 
→ “AUTO” 
Models without SUBARU STARLINK
Safety and Security: 
→ “Sync With Phone”
▼ Models without SUBARU STAR -
LINK Safety and Security
The clock will be set and adjusted auto-
ma tically when a smartphone is

connected via Bluetooth
® for transferring
phonebook data.
1. Register the smartphone to the audio
system. For details, refer to “Bluetooth
SETTINGS” in the supplemental Owner’s
Manual for the audio system.
2. Transfer phonebook data to the
system. For details, refer to “Bluetooth SETTINGS” in the supplemental Owner’s

Manual for the audi o system. The clock
will be adjusted automatically.
NOTEFor models with out SUBARU STAR-
LINK Safety and Security: Depending
on the model of smartphone, the set-
tings of the connected smartphone
may need to be changed. (ex: For iOS
or other models, notification settings
may need to be activated.) For details,
check the instructions on connecting
smartphones.
▼ Models with SUBAR U STARLINK
Safety and SecurityThe clock will be set automatically where
a DCM (Data Communication Module in
vehicle cellular connection) signal is avail-
able.
306807
306875
BRZ_U.book 173 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Light Control Switch

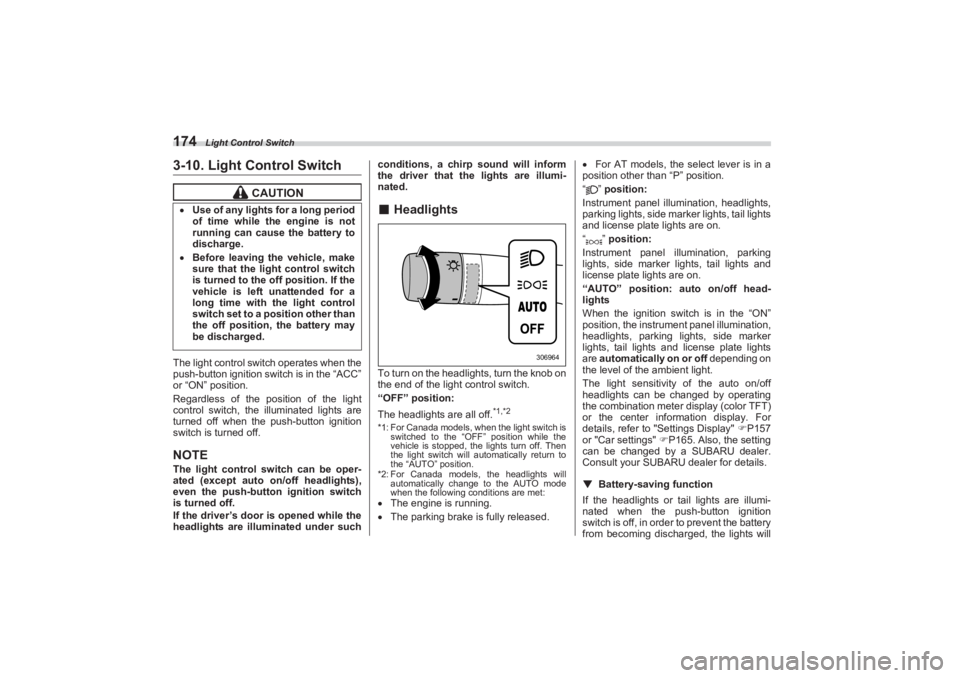

1743-10. Light Control SwitchThe light control switch operates when the
push-button ignition switch is in the “ACC”
or “ON” position.
Regardless of the pos ition of the light
control switch, the illuminated lights are
turned off when the push-button ignition
switch is turned off.NOTEThe light control switch can be oper-
ated (except auto on/off headlights),
even the push-button ignition switch
is turned off.
If the driver’s door is opened while the
headlights are illuminated under such conditions, a chirp sound will inform

the driver that the lights are illumi-
nated.
■ HeadlightsTo turn on the headlights, turn the knob on
the end of the light control switch.
“OFF” position:
The headlights are all off.
*1,*2
*1: For Canada models, when the light switch is
switched to the “OFF” position while the
vehicle is stopped, the lights turn off. Then
the light switch will automatically return to
the “AUTO” position.
*2: For Canada models, the headlights will automatically change to the AUTO mode
when the following conditions are met: The engine is running.
 The parking brake is fully released. 
For AT models, the select lever is in a
position other than “P” position.
“” position:
Instrument panel illumination, headlights,
parking lights, side marker lights, tail lights
and license plate lights are on.
“” position:
Instrument panel illumination, parking
lights, side marker lights, tail lights and
license plate lights are on.
“AUTO” position: auto on/off head-
lights
When the ignition switch is in the “ON”
position, the instrum ent panel illumination,
headlights, parking lights, side marker
lights, tail lights and license plate lights
are automatically on or off depending on
the level of the ambient light.
The light sensitivity of the auto on/off
headlights can be changed by operating
the combination meter display (color TFT)
or the center information display. For
details, refer to "Settings Display" P157
or "Car settings" P165. Also, the setting
can be changed by a SUBARU dealer.
Consult your SUBARU dealer for details.
▼ Battery-saving function
If the headlights or tail lights are illumi-
nated when the push-button ignition
switch is off, in order to prevent the battery
from becoming discharg ed, the lights will
CAUTION
Use of any lights for a long period
of time while the engine is not
running can cause the battery to
discharge. Before leaving the vehicle, make
sure that the light control switch
is turned to the off position. If the
vehicle is left unattended for a
long time with the light control
switch set to a position other than
the off position, the battery may
be discharged.
306964
