Push-Button Ignition Switch
125
Instruments and Controls3
– CONTINUED –

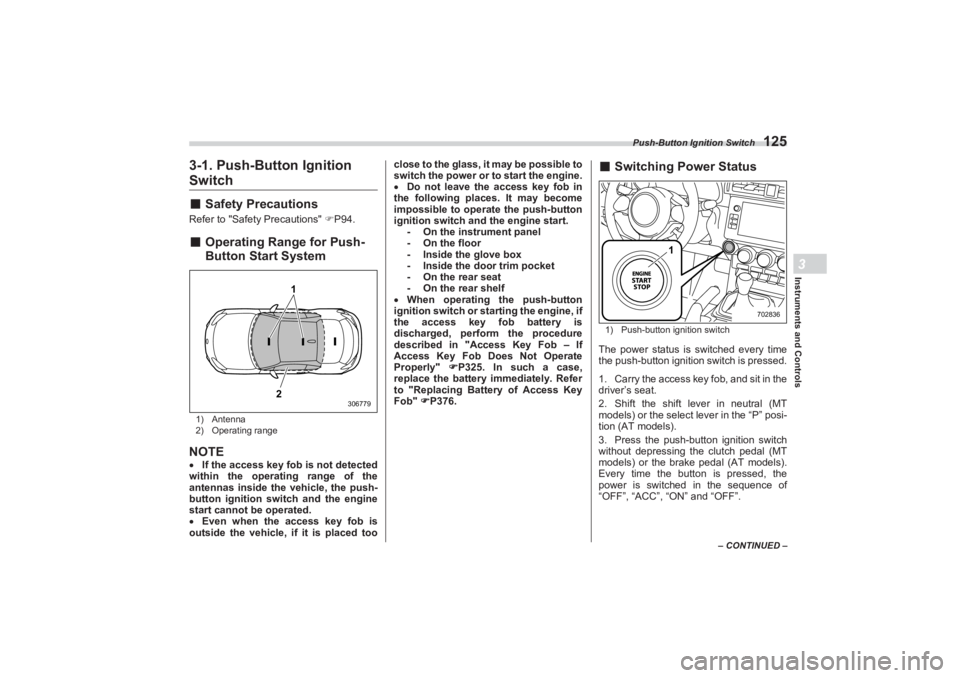

3-1. Push-Button Ignition Switch■Safety PrecautionsRefer to "Safety Precautions" P94.■ Operating Range for Push-
Button Start System1) Antenna
2) Operating rangeNOTEIf the access key fob is not detected
within the operating range of the
antennas inside the vehicle, the push-
button ignition switch and the engine
start cannot be operated.
 Even when the access key fob is
outside the vehicle, if it is placed too close to the glass, it may be possible to

switch the power or to start the engine.
 Do not leave the access key fob in
the following places. It may become
impossible to operate the push-button
ignition switch and the engine start. - On the instrument panel
- On the floor
- Inside the glove box
- Inside the door trim pocket
- On the rear seat
- On the rear shelf
 When operating the push-button
ignition switch or starting the engine, if
the access key fob battery is
discharged, perform the procedure
described in "Access Key Fob – If
Access Key Fob Does Not Operate
Properly" P325. In such a case,
replace the battery immediately. Refer
to "Replacing Battery of Access Key
Fob" P376.
■ Switching Power Status1) Push-button ignition switchThe power status is switched every time
the push-button ignition switch is pressed.
1. Carry the access key fob, and sit in the
driver’s seat.
2. Shift the shift lever in neutral (MT
models) or the select lever in the “P” posi-
tion (AT models).
3. Press the push-button ignition switch
without depressing the clutch pedal (MT
models) or the brak e pedal (AT models).
Every time the button is pressed, the
power is switched in the sequence of
“OFF”, “ACC”, “ON” and “OFF”.
1
2
306779
1
702836
BRZ_U.book 125 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Push-Button Ignition Switch
126

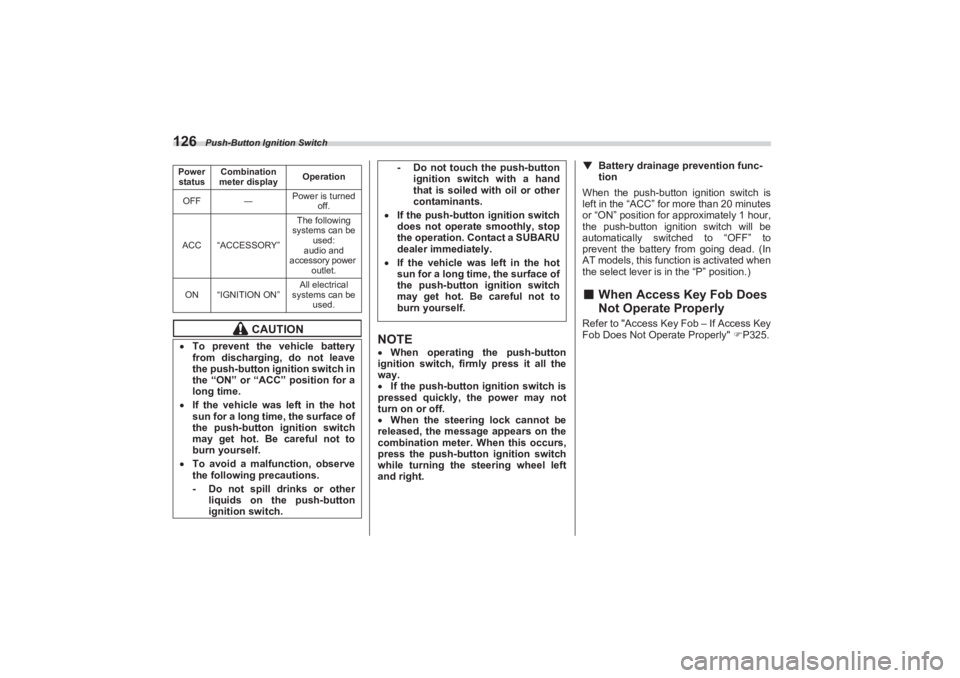

NOTEWhen operating the push-button
ignition switch, firmly press it all the
way.
 If the push-button ignition switch is
pressed quickly, the power may not
turn on or off.
 When the steering lock cannot be
released, the message appears on the
combination meter. When this occurs,
press the push-butto n ignition switch
while turning the steering wheel left
and right.
▼ Battery drainage prevention func -
tion
When the push-button ignition switch is
left in the “ACC” for more than 20 minutes
or “ON” position for approximately 1 hour,
the push-button ignition switch will be
automatically switched to “OFF” to
prevent the battery from going dead. (In
AT models, this function is activated when
the select lever is in the “P” position.)■ When Access Key Fob Does
Not Operate ProperlyRefer to "Access Key Fob – If Access Key
Fob Does Not Operate Properly" P325.
Power
status Combination
meter display Operation
OFF ―Power is turned
off.
ACC “ACCESSORY” The following
systems can be
used:
audio and
accessory power
outlet.
ON “IGNITION ON” All electrical
systems can be used.
CAUTION
To prevent the vehicle battery
from discharging, do not leave
the push-button ig nition switch in
the “ON” or “ACC” position for a
long time. If the vehicle was left in the hot
sun for a long time, the surface of
the push-button ignition switch
may get hot. Be careful not to
burn yourself. To avoid a malfunction, observe
the following precautions.
- Do not spill drinks or other
liquids on the push-button
ignition switch.
- Do not touch the push-button
ignition switch with a hand
that is soiled with oil or other
contaminants.
 If the push-button ignition switch
does not operate smoothly, stop
the operation. Contact a SUBARU
dealer immediately. If the vehicle was left in the hot
sun for a long time, the surface of
the push-button ignition switch
may get hot. Be careful not to
burn yourself.
BRZ_U.book 126 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Hazard Warning Flasher
127
Instruments and Controls3
– CONTINUED –

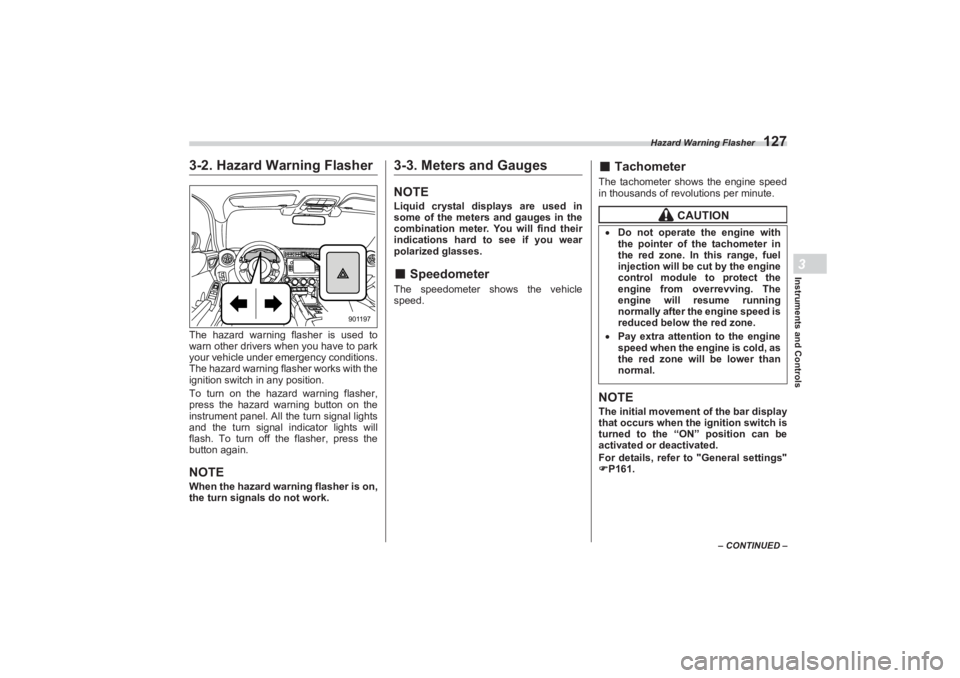

3-2. Hazard Warning FlasherThe hazard warning flasher is used to
warn other drivers when you have to park
your vehicle under emergency conditions.
The hazard warning fl asher works with the
ignition switch in any position.
To turn on the hazard warning flasher,
press the hazard warning button on the
instrument panel. All the turn signal lights
and the turn signal indicator lights will
flash. To turn off the flasher, press the
button again.NOTEWhen the hazard warning flasher is on,
the turn signals do not work.
3-3. Meters and GaugesNOTELiquid crystal displays are used in
some of the meters and gauges in the
combination meter. You will find their
indications hard to see if you wear
polarized glasses.■ SpeedometerThe speedometer shows the vehicle
speed.
■ TachometerThe tachometer shows the engine speed
in thousands of revolutions per minute.NOTEThe initial movement of the bar display
that occurs when the ignition switch is
turned to the “ON” position can be
activated or deactivated.
For details, refer to "General settings"
 P161.
901197
CAUTION
 Do not operate the engine with
the pointer of the tachometer in
the red zone. In this range, fuel
injection will be cut by the engine
control module to protect the
engine from overrevving. The
engine will resume running
normally after the engine speed is
reduced below the red zone. Pay extra attention to the engine
speed when the engine is cold, as
the red zone will be lower than
normal.
BRZ_U.book 127 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Meters and Gauges

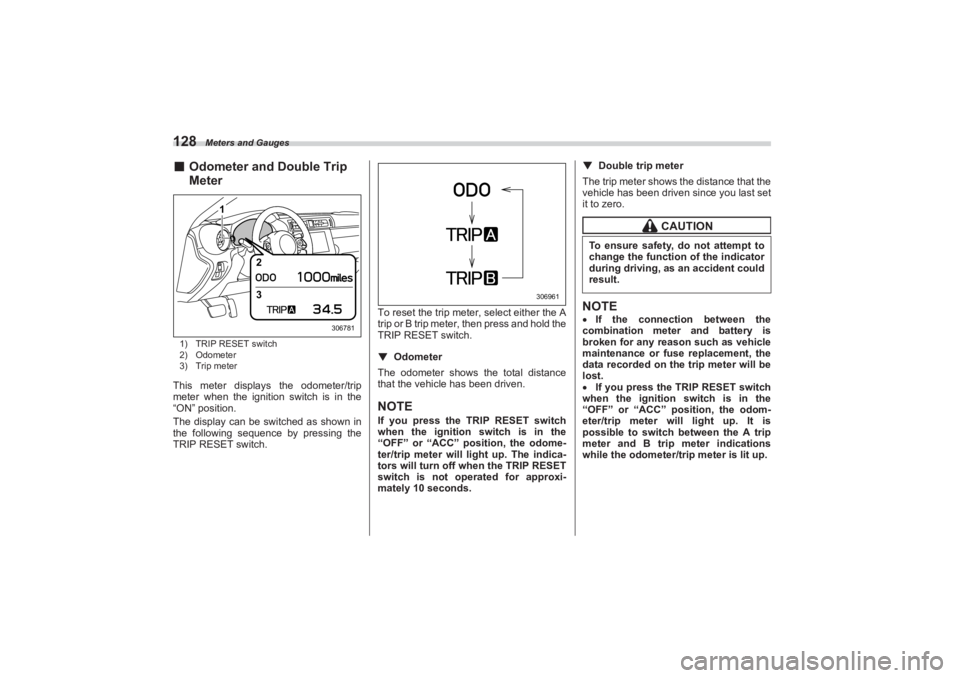

128■Odometer and Double Trip
Meter1) TRIP RESET switch
2) Odometer
3) Trip meterThis meter displays the odometer/trip
meter when the ignition switch is in the
“ON” position.
The display can be switched as shown in
the following sequence by pressing the
TRIP RESET switch. To reset the trip meter, select either the A

trip or B trip meter, then press and hold the
TRIP RESET switch.
▼ Odometer
The odometer shows the total distance
that the vehicle has been driven.
NOTEIf you press the TRIP RESET switch
when the ignition switch is in the
“OFF” or “ACC” po sition, the odome-
ter/trip meter will light up. The indica-
tors will turn off when the TRIP RESET
switch is not operated for approxi-
mately 10 seconds. ▼
Double trip meter
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.NOTE If the connection between the
combination meter and battery is
broken for any reason such as vehicle
maintenance or fuse replacement, the
data recorded on the trip meter will be
lost.
 If you press the TRIP RESET switch
when the ignition switch is in the
“OFF” or “ACC” position, the odom-
eter/trip meter will light up. It is
possible to switch between the A trip
meter and B trip meter indications
while the odometer/trip meter is lit up.
1
23
306781
306961
CAUTION
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.
BRZ_U.book 128 ページ ２０２２年３月２９日　火曜日　午後３時５９分

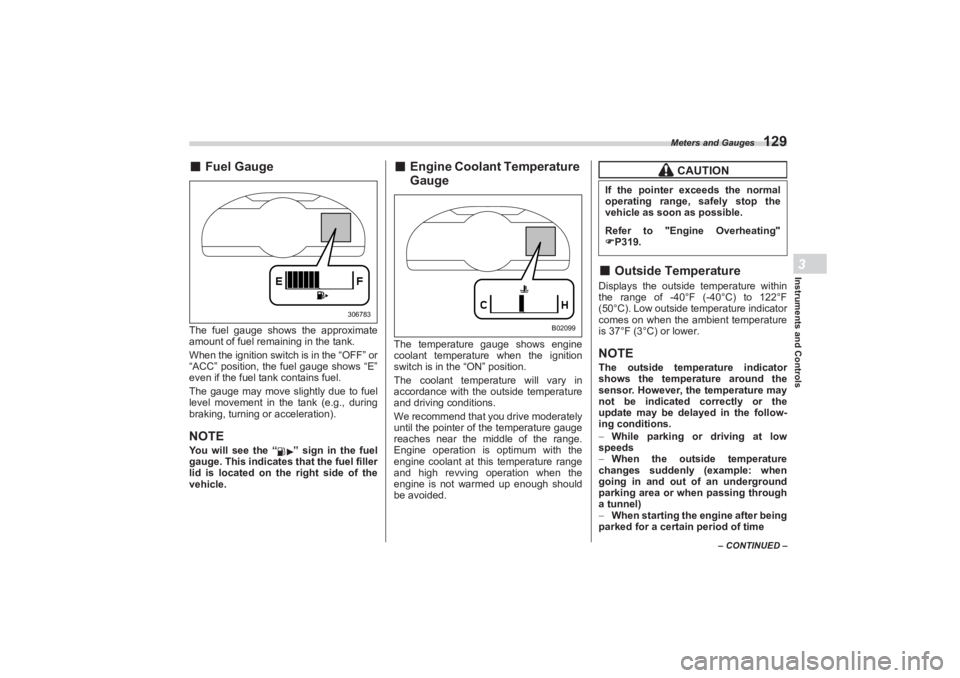

Meters and Gauges
129
Instruments and Controls3
– CONTINUED –
■Fuel GaugeThe fuel gauge shows the approximate
amount of fuel remaining in the tank.
When the ignition switch is in the “OFF” or
“ACC” position, the fuel gauge shows “E”
even if the fuel tank contains fuel.
The gauge may move slightly due to fuel
level movement in the tank (e.g., during
braking, turning or acceleration).NOTEYou will see the “ ” sign in the fuel
gauge. This indicates that the fuel filler
lid is located on the right side of the
vehicle.
■ Engine Coolant Temperature
GaugeThe temperature gauge shows engine
coolant temperature when the ignition
switch is in the “ON” position.
The coolant temperature will vary in
accordance with the outside temperature
and driving conditions.
We recommend that you drive moderately
until the pointer of the temperature gauge
reaches near the middle of the range.
Engine operation is optimum with the
engine coolant at this temperature range
and high revving operation when the
engine is not warmed up enough should
be avoided.
■ Outside TemperatureDisplays the outside temperature within
the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator
comes on when the ambient temperature
is 37°F (3°C) or lower.NOTEThe outside temperature indicator
shows the temperature around the
sensor. However, the temperature may
not be indicated correctly or the
update may be delayed in the follow-
ing conditions.
 While parking or driving at low
speeds
 When the outside temperature
changes suddenly (example: when
going in and out of an underground
parking area or when passing through
a tunnel)
 When starting the engine after being
parked for a certain period of time
306783
B02099
CAUTION
If the pointer exceeds the normal
operating range, safely stop the
vehicle as soon as possible.Refer to "Engine Overheating"
 P319.
BRZ_U.book 129 ページ ２０２２年３月２９日　火曜日　午後３時５９分

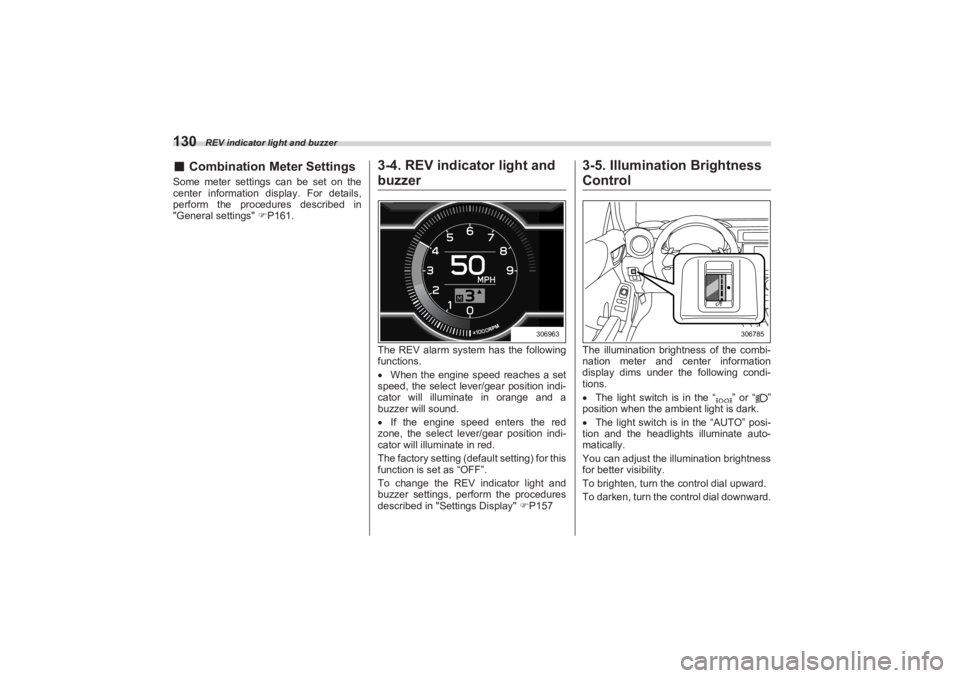

REV indicator light and buzzer
130■Combination Meter SettingsSome meter settings can be set on the
center information display. For details,
perform the procedures described in
"General settings" P161.
3-4. REV indica tor light and buzzerThe REV alarm system has the following
functions.
 When the engine speed reaches a set
speed, the select lever/gear position indi-
cator will illuminate in orange and a
buzzer will sound.
 If the engine speed enters the red
zone, the select lever/gear position indi-
cator will illuminate in red.
The factory setting (default setting) for this
function is set as “OFF”.
To change the REV indicator light and
buzzer settings, perform the procedures
described in "Settings Display" P157
3-5. Illumination Brightness ControlThe illumination brightness of the combi-
nation meter and center information
display dims under the following condi-
tions.
 The light switch is in the “ ” or “ ”
position when the ambient light is dark.
 The light switch is in the “AUTO” posi-
tion and the headlights illuminate auto-
matically.
You can adjust the illumination brightness
for better visibility.
To brighten, turn the control dial upward.
To darken, turn the control dial downward.
306963
306785
BRZ_U.book 130 ページ ２０２２年３月２９日　火曜日　午後３時５９分

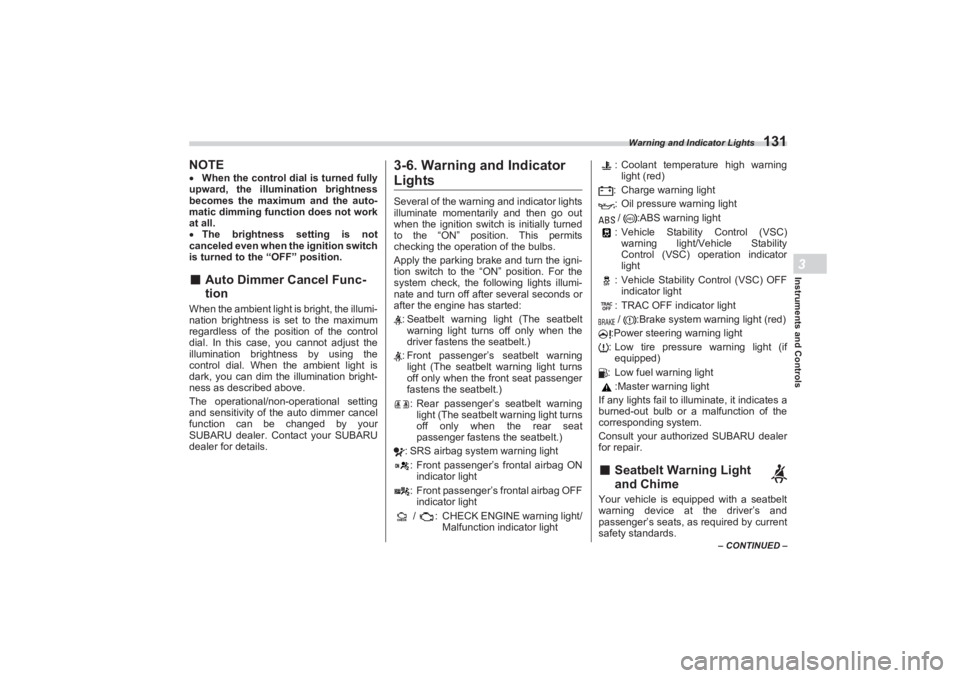

Warning and Indicator Lights
131
Instruments and Controls3
– CONTINUED –
NOTEWhen the control dial is turned fully
upward, the illumination brightness
becomes the maximum and the auto-
matic dimming function does not work
at all.
 The brightness setting is not
canceled even when the ignition switch
is turned to th e “OFF” position.■Auto Dimmer Cancel Func -
tionWhen the ambient light is bright, the illumi-
nation brightness is set to the maximum
regardless of the position of the control
dial. In this case, you cannot adjust the
illumination brightness by using the
control dial. When the ambient light is
dark, you can dim the illumination bright-
ness as described above.
The operational/non-operational setting
and sensitivity of the auto dimmer cancel
function can be changed by your
SUBARU dealer. Contact your SUBARU
dealer for details.
3-6. Warning and Indicator LightsSeveral of the warning and indicator lights
illuminate momentarily and then go out
when the ignition switch is initially turned
to the “ON” position. This permits
checking the operation of the bulbs.
Apply the parking brake and turn the igni-
tion switch to the “ON” position. For the
system check, the following lights illumi-
nate and turn off after several seconds or
after the engine has started:
: Seatbelt warning light (The seatbelt
warning light turns off only when the
driver fastens the seatbelt.)
: Front passenger’s seatbelt warning
light (The seatbelt warning light turns
off only when the front seat passenger
fastens the seatbelt.)
: Rear passenger’s seatbelt warning
light (The seatbelt warning light turns
off only when the rear seat
passenger fastens the seatbelt.)
: SRS airbag system warning light
: Front passenger’s frontal airbag ON
indicator light
: Front passenger’s frontal airbag OFF
indicator light
/ : CHECK ENGINE warning light/ Malfunction indicator light : Coolant temperature high warning

light (red)
: Charge warning light : Oil pressure warning light
/ :ABS warning light
: Vehicle Stability Control (VSC)
warning light/Vehicle Stability
Control (VSC) operation indicator
light
: Vehicle Stability Control (VSC) OFF
indicator light
: TRAC OFF indicator light / :Brake system warning light (red)
:Power steering warning light
: Low tire pressure warning light (if
equipped)
: Low fuel warning light :Master warning light
If any lights fail to i lluminate, it indicates a
burned-out bulb or a malfunction of the
corresponding system.
Consult your authorized SUBARU dealer
for repair.
■ Seatbelt Warning Light
and ChimeYour vehicle is equipped with a seatbelt
warning device at the driver’s and
passenger’s seats, as required by current
safety standards.
BRZ_U.book 131 ページ ２０２２年３月２９日　火曜日　午後３時５９分

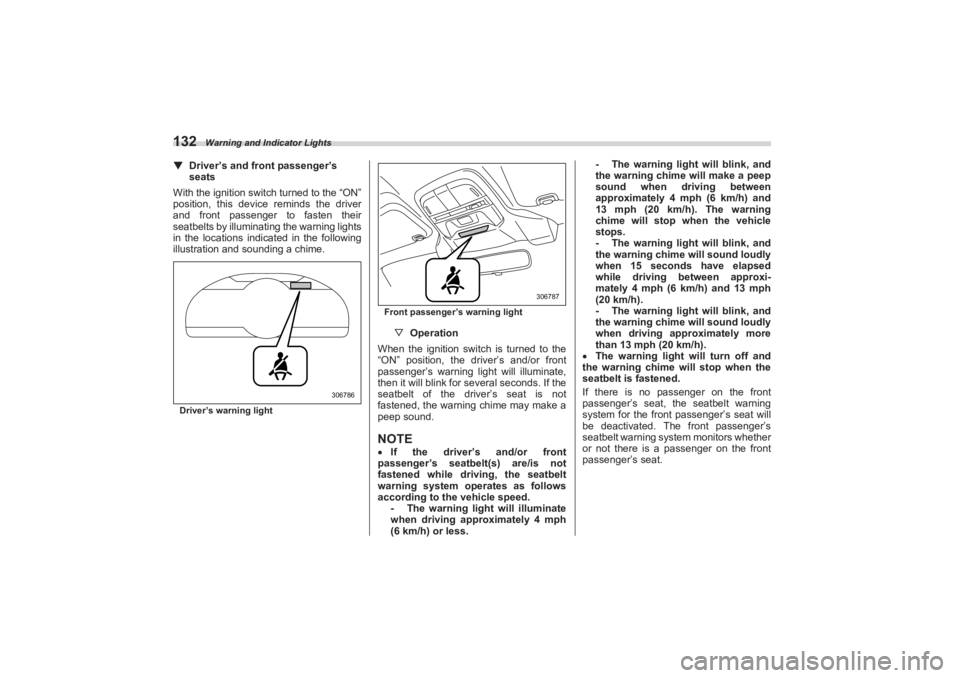

Warning and Indicator Lights
132▼Driver’s and front passenger’s
seats
With the ignition switch turned to the “ON”
position, this device reminds the driver
and front passenger to fasten their
seatbelts by illuminating the warning lights
in the locations indicated in the following
illustration and sounding a chime.Driver’s warning light Front passenger’s warning light
▽
Operation
When the ignition switch is turned to the
“ON” position, the dr iver’s and/or front
passenger’s warning light will illuminate,
then it will blink for several seconds. If the
seatbelt of the driver’s seat is not
fastened, the warning chime may make a
peep sound.NOTE If the driver’s and/or front
passenger’s seatbelt(s) are/is not
fastened while driving, the seatbelt
warning system operates as follows
according to the vehicle speed. - The warning light will illuminate
when driving approximately 4 mph
(6 km/h) or less. - The warning light will blink, and

the warning chime will make a peep
sound when driving between
approximately 4 mph (6 km/h) and
13 mph (20 km/h). The warning
chime will stop when the vehicle
stops.
- The warning light will blink, and
the warning chime will sound loudly
when 15 seconds have elapsed
while driving between approxi-
mately 4 mph (6 km/h) and 13 mph
(20 km/h).
- The warning light will blink, and
the warning chime will sound loudly
when driving approximately more
than 13 mph (20 km/h).
 The warning light will turn off and
the warning chime will stop when the
seatbelt is fastened.
If there is no passenger on the front
passenger’s seat, the seatbelt warning
system for the front passenger’s seat will
be deactivated. The front passenger’s
seatbelt warning system monitors whether
or not there is a passenger on the front
passenger’s seat.
306786
306787
BRZ_U.book 132 ページ ２０２２年３月２９日　火曜日　午後３時５９分

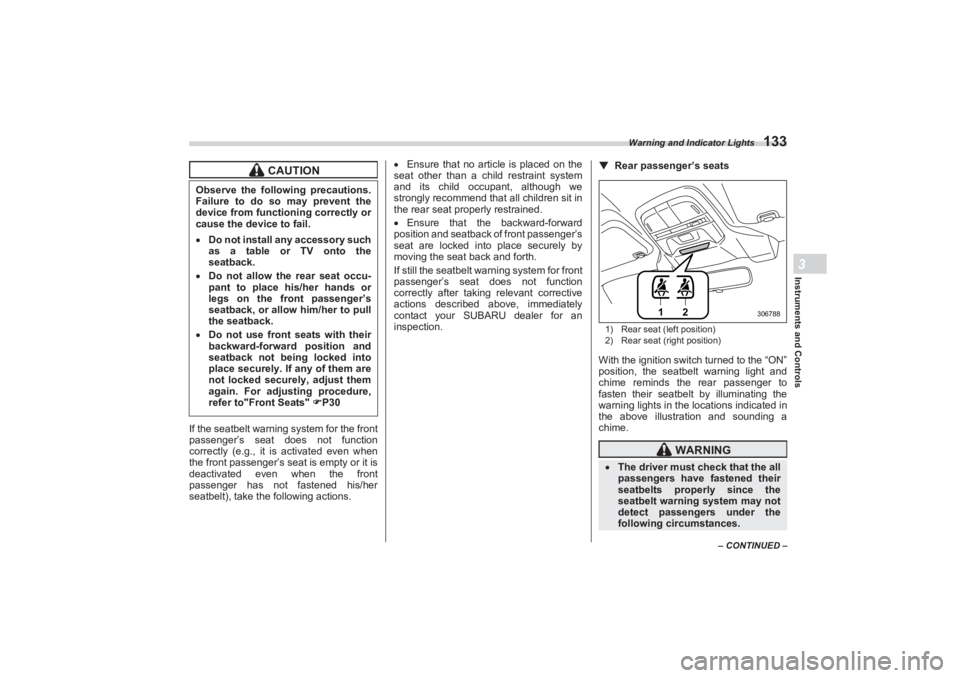

Warning and Indicator Lights
133
Instruments and Controls3
– CONTINUED –
If the seatbelt warning system for the front
passenger’s seat does not function
correctly (e.g., it is activated even when
the front passenger’s seat is empty or it is
deactivated even when the front
passenger has not fastened his/her
seatbelt), take the following actions. 
Ensure that no article is placed on the
seat other than a ch ild restraint system
and its child occupant, although we
strongly recommend th at all children sit in
the rear seat properly restrained.
 Ensure that the backward-forward
position and seatback of front passenger’s
seat are locked into place securely by
moving the seat back and forth.
If still the s eatbelt warning system for front
passenger’s seat does not function
correctly after taking relevant corrective
actions described above, immediately
contact your SUBARU dealer for an
inspection.
▼ Rear passenger’s seats1) Rear seat (left position)
2) Rear seat (right position)With the ignition switch turned to the “ON”
position, the seatbelt warning light and
chime reminds the rear passenger to
fasten their seatbelt by illuminating the
warning lights in the locations indicated in
the above illustration and sounding a
chime.
CAUTION
Observe the following precautions.
Failure to do so may prevent the
device from functioning correctly or
cause the device to fail. Do not install any accessory such
as a table or TV onto the
seatback. Do not allow the rear seat occu-
pant to place his/her hands or
legs on the front passenger’s
seatback, or allow him/her to pull
the seatback. Do not use front seats with their
backward-forward position and
seatback not being locked into
place securely. If any of them are
not locked securely, adjust them
again. For adjusting procedure,
refer to"Front Seats" P30
WARNING
 The driver must check that the all
passengers have fastened their
seatbelts properly since the
seatbelt warning system may not
detect passengers under the
following circumstances.
2
1
306788
BRZ_U.book 133 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Warning and Indicator Lights
134NOTEThe seatbelt warning system of the
rear seat detects if the seat is occupied
by a passenger. Heavy cargo or large
pets on the rear seat may result in the
activation of the passenger seatbelt
warning light and chime. Fastening the
rear seatbelt prior to loading cargo or
large pets will avoid activating the
passenger seatbelt warning light and
chime.
 When folding the rear seat, ensure
that the seat is empty prior to folding. Items caught between the seat bottom

and seatback, when folded, may
damage the seat surface or activate the
passenger seatbelt warning light and
chime.
▽ Operation
If passengers in the rear seats do not
fasten their seatbelts while the ignition
switch is turned to the “ON” position, the
seatbelt warning lights will illuminate or
blink to indicate that their seatbelts are not
fastened.NOTE If the rear passenger’s seatbelt(s)
are/is still not fast ened while driving,
the seatbelt warning system operates
as follows according to the vehicle
speed. - The warning light will illuminate
when driving approximately 4 mph
(6 km/h) or less.
- When driving approximately
between 4 mph (6 km/h) and 13 mph
(20 km/h), if the seatbelts are not
fastened for 50 seconds, the
seatbelt warning lights will blink and
a warning chime will sound. 
The chime will make a peep sound
for 15 seconds, and it then will
become louder and continue for 35
seconds. The warning light will blink for 50 seconds, then it will illuminate

steadily and the chime will stop.
- When driving more than approxi-
mately 13 mph (20 km/h), if seatbelts
are not fastened for 35 seconds, the
warning lights of the unfastened
seatbelts will blink and a chime will
sound loudly. If the rear seatbelts
are not fastened after 35 seconds,
the blinking warning light will illumi-
nate steadily and the chime will
stop. The warning lights will
continue to illuminate until their
seatbelts are fastened.
 The warning light will turn off and
the warning chime will stop when the
seatbelt is fastened.
- When cushions or child
restraint systems, etc., are
used.- When a child or small adult is
sitting in the seat.
 Observe the following precau-
tions
- Do not apply any strong
impact to the rear seat.- Do not fold the seatback
forward when objects are on
the seat.- Do not spill liquid on the rear
seat. If liquid is spilled, wipe it
off immediately.- Do not remove or disassemble
the rear seat.
BRZ_U.book 134 ページ ２０２２年３月２９日　火曜日　午後３時５９分
