Page 199 of 306
BASIC OPERATION
198
BASIC OPERATION
QUICK REFERENCE

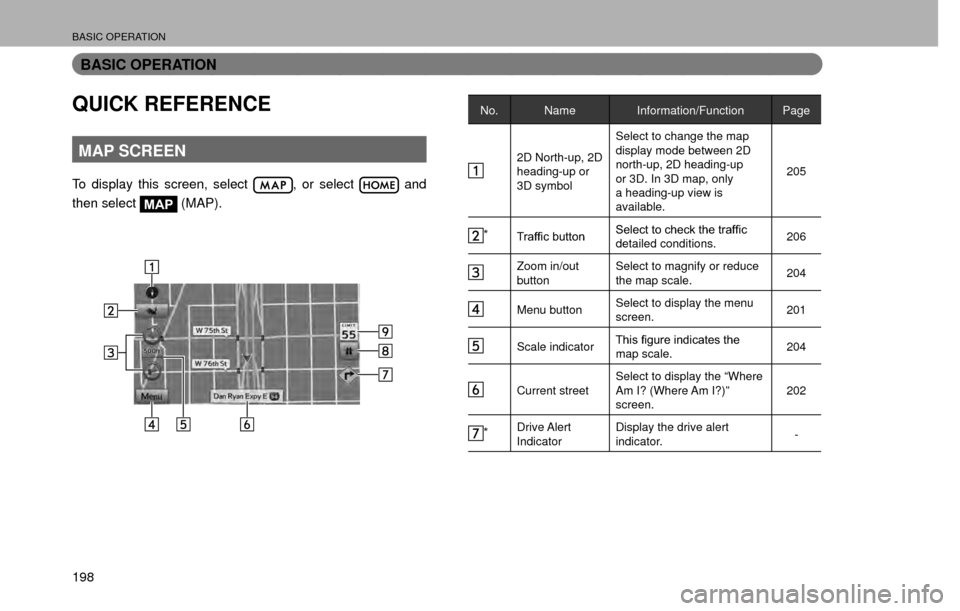

MAP SCREEN
To display this screen, select , or select and
then select
MAP (MAP).
No. Name
Information/Function Page
2D North-up, 2D
heading-up or
3D symbolSelect to change the map
display mode between 2D
north-up, 2D heading-up
or 3D. In 3D map, only
a heading-up view is
available.
205
*
7 U D I
Page 224 of 306
ROUTE GUIDANCE
223
NAVIGATION SYSTEM
8
2.Select to display the desired item.
NOTE
OWhen the vehicle is on the guidance route, the distance
measured along the route is displayed. Travel time and arrival
W L P H D U H F D O F X O D W H G E D V H G R Q W K H D Y H U D J H V S H H G I R U W K H V S H F L ¿ H G
speed limit.

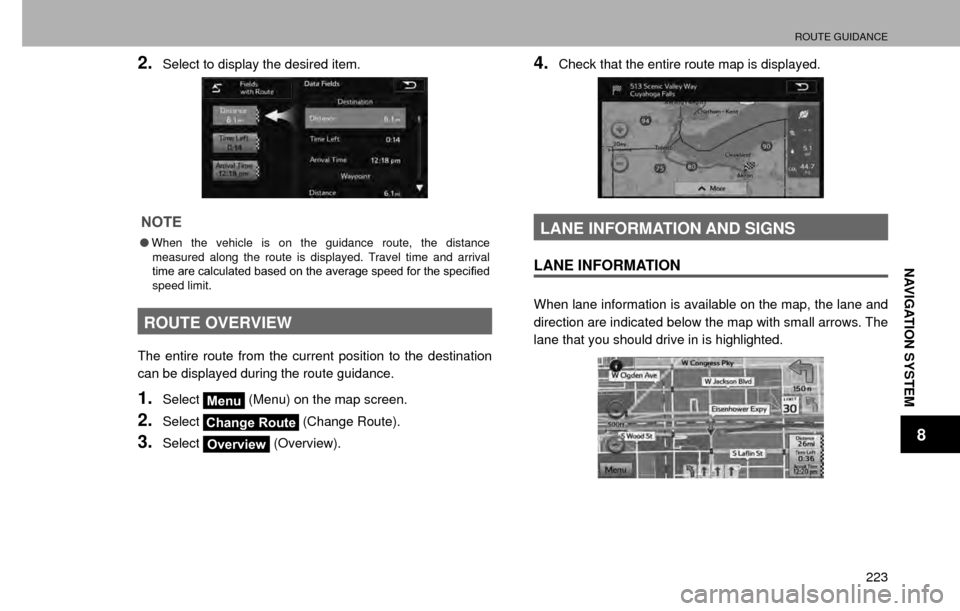

ROUTE OVERVIEW
The entire route from the current position to the destination
can be displayed during the route guidance.
1.SelectMenu (Menu) on the map screen.
2.SelectChange Route (Change Route).
3.SelectOverview (Overview).
4.Check that the entire route map is displayed.
LANE INFORMATION AND SIGNS
LANE INFORMATION
When lane information is available on the map, the lane and
direction are indicated below the map with small arrows. The
lane that you should drive in is highlighted.
Page 231 of 306
ROUTE GUIDANCE
230

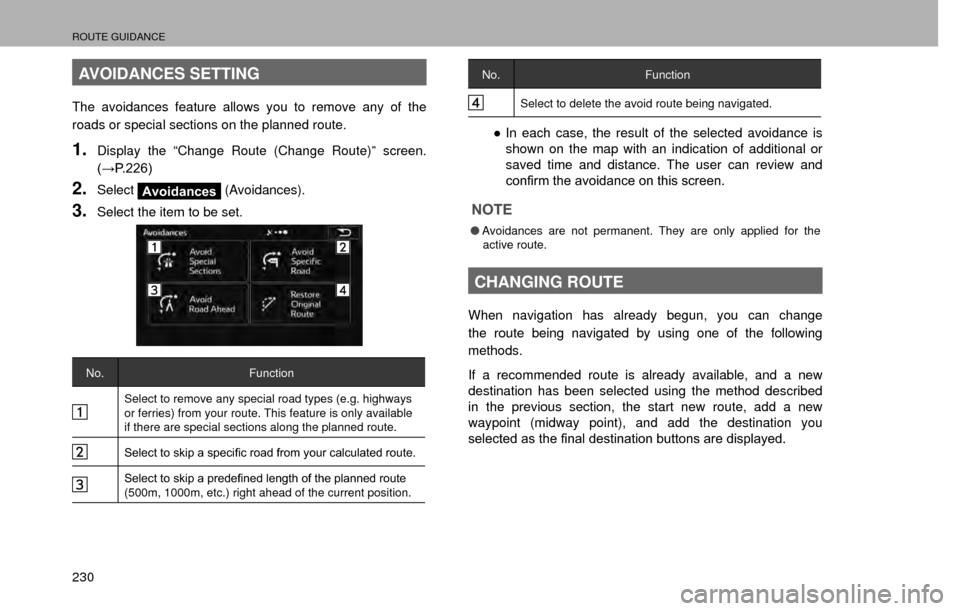

AVOIDANCES SETTING
The avoidances feature allows you to remove any of the
roads or special sections on the planned route.
1.Display the “Change Route (Change Route)” screen.
: 3
2.SelectAvoidances (Avoidances).
3.Select the item to be set.
No.
Function
Select to remove any special road types (e.g. highways
or ferries) from your route. This feature is only available
if there are special sections along the planned route.
6 H O H F W W R V N L S D V S H F L ¿ F U R D G I U R P \ R X U F D O F X O D W H G U R X W H
6 H O H F W W R V N L S D S U H G H ¿ Q H G O H Q J W K R I W K H S O D Q Q H G U R X W H
(500m, 1000m, etc.) right ahead of the current position.
No.Function
Select to delete the avoid route being navigated.
”In each case, the result of the selected avoidance is
shown on the map with an indication of additional or
saved time and distance. The user can review and
F R Q ¿ U P W K H D Y R L G D Q F H R Q W K L V V F U H H Q
NOTE
O Avoidances are not permanent. They are only applied for the
active route.
CHANGING ROUTE
When navigation has already begun, you can change
the route being navigated by using one of the following
methods.
If a recommended route is already available, and a new
destination has been selected using the method described
in the previous section, the start new route, add a new
waypoint (midway point), and add the destination you
V H O H F W H G D V W K H ¿ Q D O G H V W L Q D W L R Q E X W W R Q V D U H G L V S O D \ H G
Page 237 of 306
SETUP
236
SETUP
NAVIGATION SETTINGS
OPTIONAL FUNCTIONS

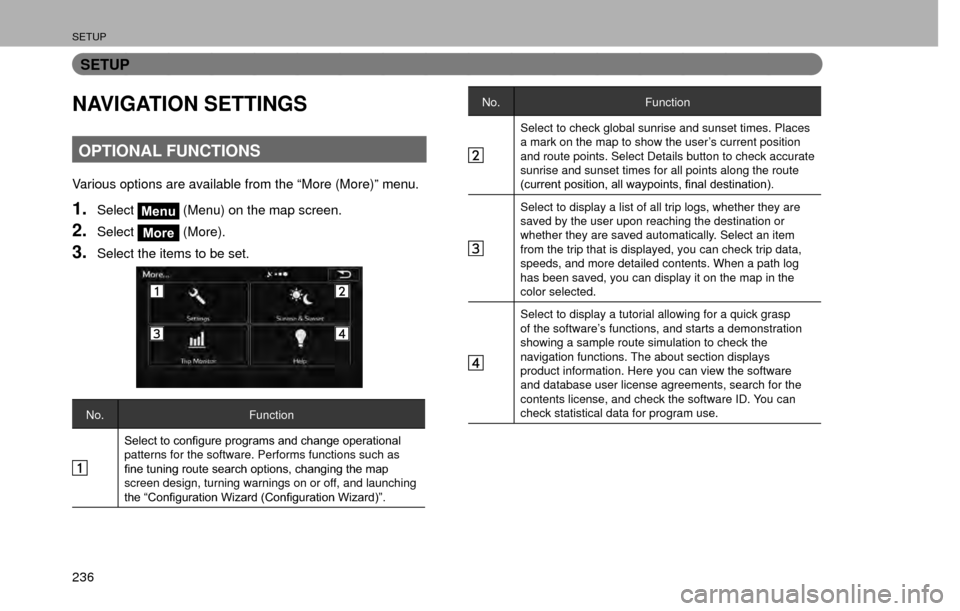

Various options are available from the “More (More)” menu.
1.SelectMenu (Menu) on the map screen.
2.SelectMore (More).
3.Select the items to be set.
No.
Function
6 H O H F W W R F R Q ¿ J X U H S U R J U D P V D Q G F K D Q J H R S H U D W L R Q D O
patterns for the software. Performs functions such as
¿ Q H W X Q L Q J U R X W H V H D U F K R S W L R Q V F K D Q J L Q J W K H P D S
screen design, turning warnings on or off, and launching
W K H ³ & R Q ¿ J X U D W L R Q : L ] D U G & R Q ¿ J X U D W L R Q : L ] D U G ´
No.Function
Select to check global sunrise and sunset times. Places
a mark on the map to show the user’s current position
and route points. Select Details button to check accurate
sunrise and sunset times for all points along the route
F X U U H Q W S R V L W L R Q D O O Z D \ S R L Q W V ¿ Q D O G H V W L Q D W L R Q
Select to display a list of all trip logs, whether they are
saved by the user upon reaching the destination or
whether they are saved automatically. Select an item
from the trip that is displayed, you can check trip data,
speeds, and more detailed contents. When a path log
has been saved, you can display it on the map in the
color selected.
Select to display a tutorial allowing for a quick grasp
of the software’s functions, and starts a demonstration
showing a sample route simulation to check the
navigation functions. The about section displays
product information. Here you can view the software
and database user license agreements, search for the
contents license, and check the software ID. You can
check statistical data for program use.
Page 242 of 306
SETUP
241
NAVIGATION SYSTEM
8
No.Function
Select to adjust the standard zoom and the angle of tilt.
You can set the level in three stages.
Select to turn the auto zoom function on or off.
Select to automatically reduce the scale of the 2D map
to display the entire route.
Select to select the screen color used in daytime mode.
Select to select the screen color used in nighttime mode.
Select to select the switches that display on the map.
Select to turn the path log save function on or off (saves
in positional order for each trip).
Select a spot displayed on the map during navigation.
Select the check box to show or hide the spot category.
Select the spot category name to open a sub-category.
More (More): Select to save the currently displayed
spot position, or read spot displays saved previously.
You can also restore the default display settings.
” By turning ON the “Auto Zoom (Auto Zoom)” function,
“Viewpoint (Viewpoint)” and “Automatic Overview
(Automatic Overview)” cannot be set.
UNITS AND FORMATS
Sets the units used by the program to measure distance.
You can select to display the time in various international
date formats.
1. ' L V S O D \ W K H
Page 298 of 306
INDEX
297
APPENDIX/WHAT TO DO IF/INDEX
10
I
“INFO (INFO)” screen ..................................................................... 24
Info screen operation ...................................................................... 46 Reordering the menu icons......................................................... 46
Initial screen ........................................................................\
........... 38
iPod ...................................................................\
............................. 84
L
Loading/unloading an SD card ....................................................... 42 Loading ................................................................\
....................... 42
Unloading........................................................................\
............ 43
M
Map screen operation ................................................................... 203Current position display ............................................................ 203
Map scale ........................................................................\
......... 204
Orientation of the map .............................................................. 205
Position marker ........................................................................\
. 206
Show map ........................................................................\
......... 203
Memory points settings..................................................\
............... 234 Saving destinations................................................................... 235
Setting up home........................................................................\
234
MirrorLink
TM........................................................................\
........... 154
O
Operating information ................................................................... 102 CD player/disc ........................................................................\
.. 104
File information ........................................................................\
. 108
iPod........................................................................\
................... 107
Radio ..................................................................\
...................... 102
SD card ........................................................................\
............. 108
Terms ....................................................................\
.................... 112
Overview buttons ........................................................................\
.... 20
P
Pandora ................................................................\
........................ 162
Phone/message settings .............................................................. 136 “Contact/Call History Settings (Contact/Call History Settings)” screen ................................. 138
“Messaging Settings (Messaging Settings)” screen ................. 145
“Phone Display Settings (Phone Display Settings)” screen ...... 146
“Phone/Message Settings (Phone/Message Settings)” screen ...................................... 136
“Sound Settings (Sound Settings)” screen ............................... 137
