Page 202 of 308
BASIC OPERATION
200

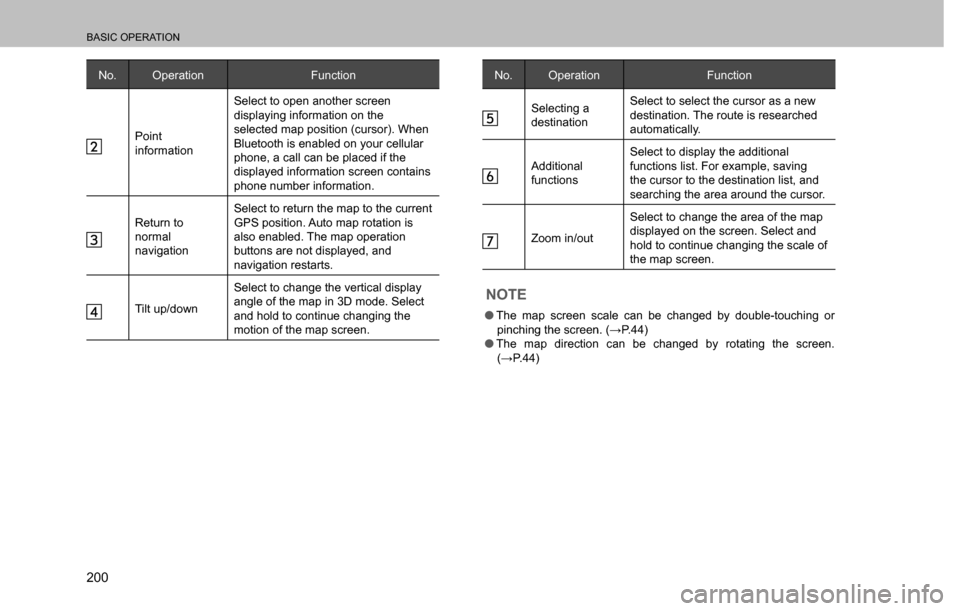

No. Operation Function
Point
informationSelect to open another screen
displaying information on the
selected map position (cursor). When
Bluetooth is enabled on your cellular
phone, a call can be placed if the
displayed information screen contains
phone number information.
Return to
normal
navigationSelect to return the map to the current
GPS position. Auto map rotation is
also enabled. The map operation
buttons are not displayed, and
navigation restarts.
Tilt up/downSelect to change the vertical display
angle of the map in 3D mode. Select
and hold to continue changing the
motion of the map screen.
No. Operation Function
Selecting a
destinationSelect to select the cursor as a new
destination. The route is researched
automatically.
Additional
functionsSelect to display the additional
functions list. For example, saving
the cursor to the destination list, and
searching the area around the cursor.
Zoom in/outSelect to change the area of the map
displayed on the screen. Select and
hold to continue changing the scale of
the map screen.
NOTE
OThe map screen scale can be changed by double-touching or
S L Q F K L Q J W K H V F U H H Q : 3
OThe map direction can be changed by rotating the screen.
: 3
Page 203 of 308
BASIC OPERATION
201
NAVIGATION SYSTEM
8

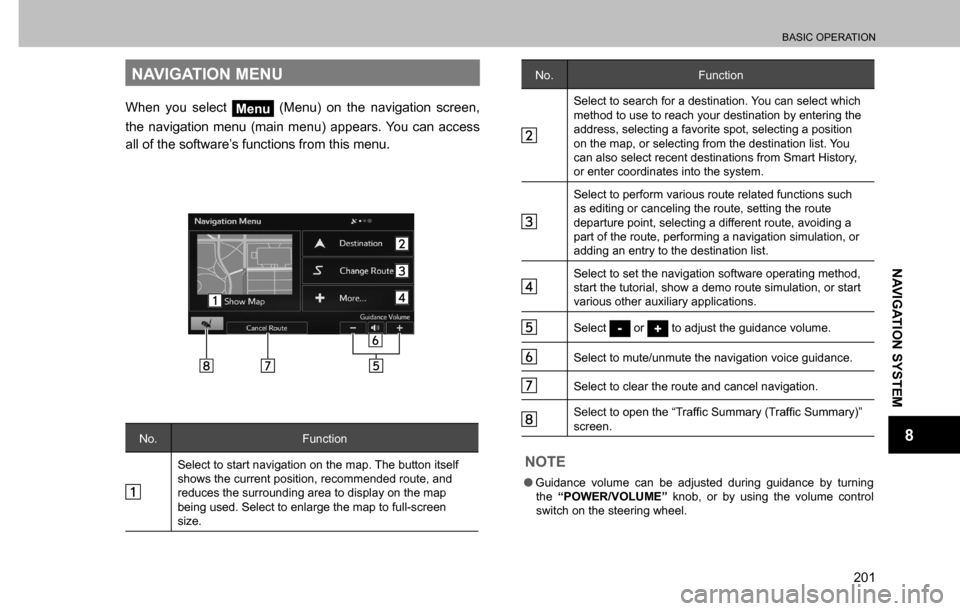

NAVIGATION MENU
When you select Menu (Menu) on the navigation screen,
the navigation menu (main menu) appears. You can access
all of the software’s functions from this menu.
No. Function
Select to start navigation on the map. The button itself
shows the current position, recommended route, and
reduces the surrounding area to display on the map
being used. Select to enlarge the map to full-screen
size.
No. Function
Select to search for a destination. You can select which
method to use to reach your destination by entering the
address, selecting a favorite spot, selecting a position
on the map, or selecting from the destination list. You
can also select recent destinations from Smart History,
or enter coordinates into the system.
Select to perform various route related functions such
as editing or canceling the route, setting the route
departure point, selecting a different route, avoiding a
part of the route, performing a navigation simulation, or
adding an entry to the destination list.
Select to set the navigation software operating method,
start the tutorial, show a demo route simulation, or start
various other auxiliary applications.
Select or to adjust the guidance volume.
Select to mute/unmute the navigation voice guidance.
Select to clear the route and cancel navigation.
6 H O H F W W R R S H Q W K H ³ 7 U D I ¿ F 6 X P P D U \ 7 U D I ¿ F 6 X P P D U \ ´
screen.
NOTE
OGuidance volume can be adjusted during guidance by turning
the “POWER/VOLUME” knob, or by using the volume control
switch on the steering wheel.
Page 205 of 308
BASIC OPERATION
203
NAVIGATION SYSTEM
8

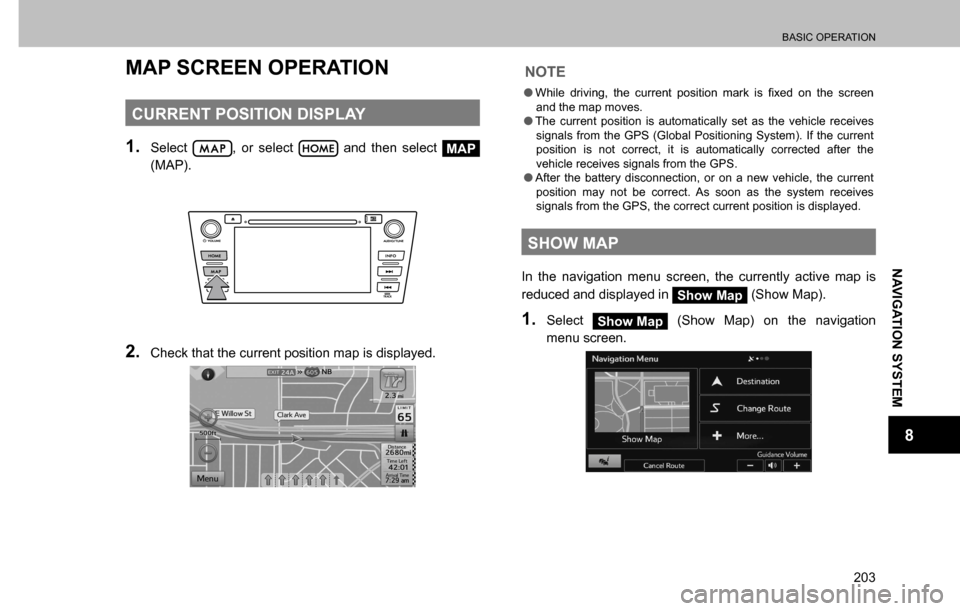

MAP SCREEN OPERATION
CURRENT POSITION DISPLAY
1. Select , or select and then select MAP
(MAP).
2. Check that the current position map is displayed.
NOTE
O : K L O H G U L Y L Q J W K H F X U U H Q W S R V L W L R Q P D U N L V
Page 208 of 308
BASIC OPERATION
206

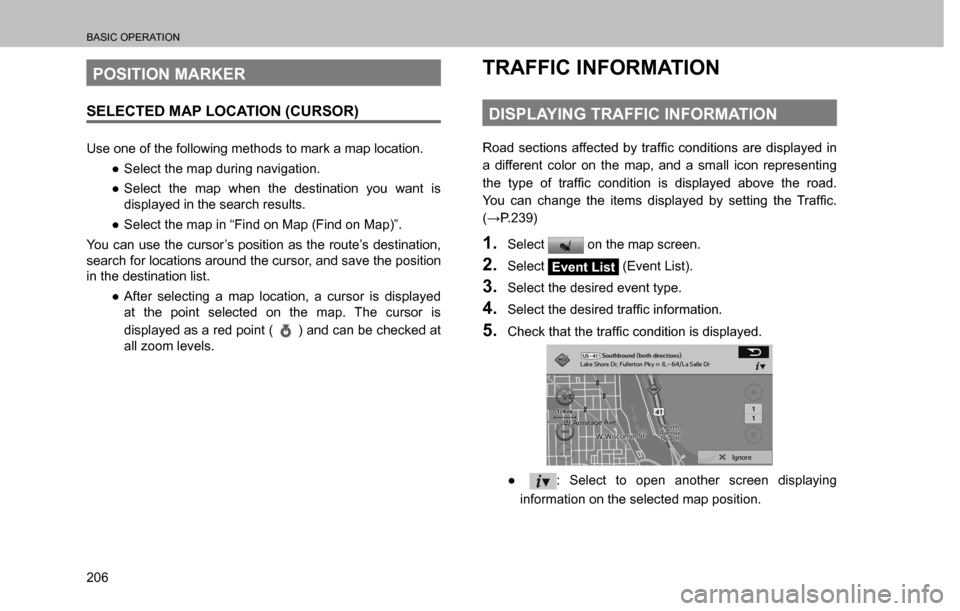

POSITION MARKER
SELECTED MAP LOCATION (CURSOR)
Use one of the following methods to mark a map location.
”Select the map during navigation.
”Select the map when the destination you want is
displayed in the search results.
”Select the map in “Find on Map (Find on Map)”.
You can use the cursor’s position as the route’s destination,
search for locations around the cursor, and save the position
in the destination list.
”After selecting a map location, a cursor is displayed
at the point selected on the map. The cursor is
displayed as a red point (
) and can be checked at
all zoom levels.
TRAFFIC INFORMATION
DISPLAYING TRAFFIC INFORMATION
5 R D G V H F W L R Q V D I I H F W H G E \ W U D I
Page 209 of 308
DESTINATION SEARCH
207
NAVIGATION SYSTEM
8

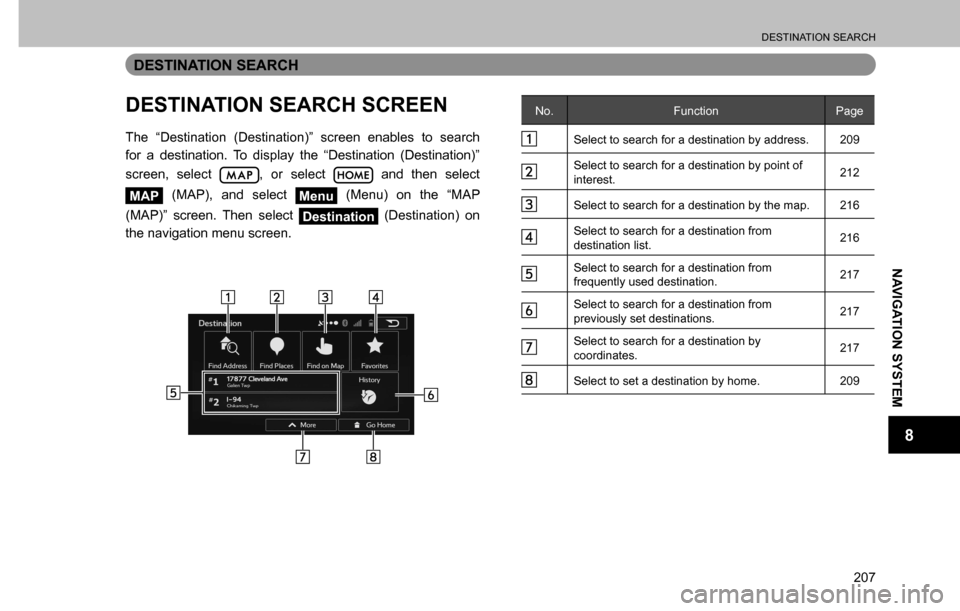

DESTINATION SEARCH
DESTINATION SEARCH SCREEN
The “Destination (Destination)” screen enables to search
for a destination. To display the “Destination (Destination)”
screen, select
, or select and then select
MAP (MAP), and select Menu (Menu) on the “MAP
(MAP)” screen. Then select
Destination (Destination) on
the navigation menu screen.
No. Function Page
Select to search for a destination by address. 209
Select to search for a destination by point of
interest.212
Select to search for a destination by the map. 216
Select to search for a destination from
destination list.216
Select to search for a destination from
frequently used destination.217
Select to search for a destination from
previously set destinations.217
Select to search for a destination by
coordinates.217
Select to set a destination by home. 209
Page 210 of 308
DESTINATION SEARCH
208

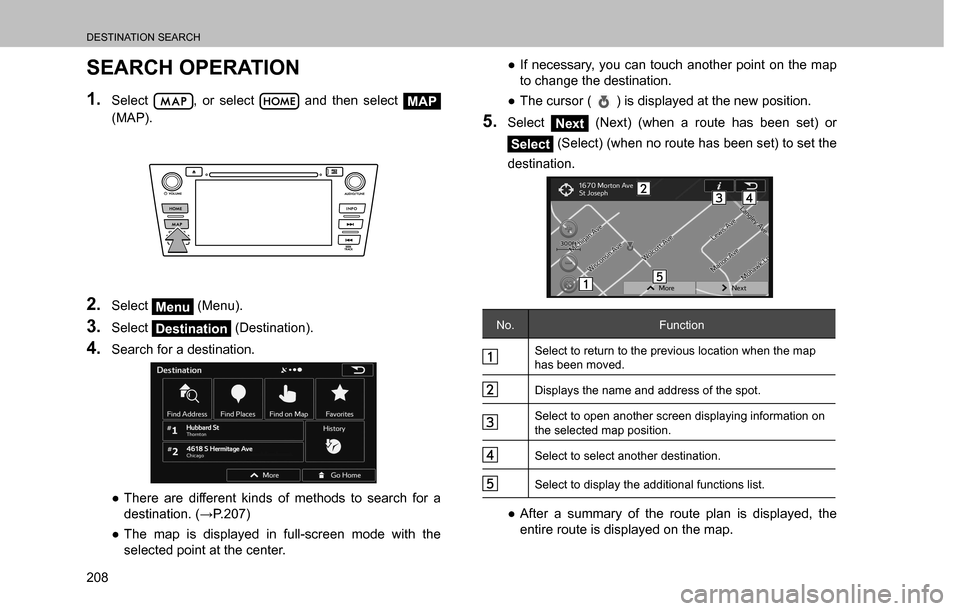

SEARCH OPERATION
1. Select , or select and then select MAP
(MAP).
2. Select Menu (Menu).
3. Select Destination (Destination).
4. Search for a destination.
”There are different kinds of methods to search for a
G H V W L Q D W L R Q : 3
”The map is displayed in full-screen mode with the
selected point at the center. ”If necessary, you can touch another point on the map
to change the destination.
”The cursor (
) is displayed at the new position.
5. Select Next (Next) (when a route has been set) or
Select (Select) (when no route has been set) to set the
destination.
No. Function
Select to return to the previous location when the map
has been moved.
Displays the name and address of the spot.
Select to open another screen displaying information on
the selected map position.
Select to select another destination.
Select to display the additional functions list.
”After a summary of the route plan is displayed, the
entire route is displayed on the map.
Page 211 of 308
DESTINATION SEARCH
209
NAVIGATION SYSTEM
8

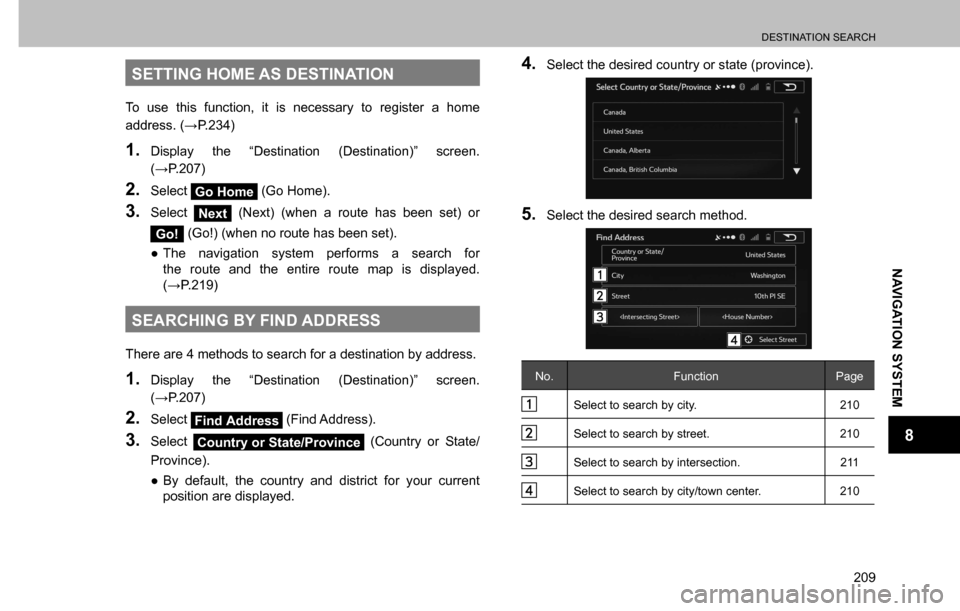

SETTING HOME AS DESTINATION
To use this function, it is necessary to register a home
D G G U H V V : 3
1. Display the “Destination (Destination)” screen.
: 3
2. Select Go Home (Go Home).
3. Select Next (Next) (when a route has been set) or
Go! (Go!) (when no route has been set).
”The navigation system performs a search for
the route and the entire route map is displayed.
: 3
SEARCHING BY FIND ADDRESS
There are 4 methods to search for a destination by address.
1. Display the “Destination (Destination)” screen.
: 3
2. Select Find Address (Find Address).
3. Select Country or State/Province (Country or State/
Province).
”By default, the country and district for your current
position are displayed.
4. Select the desired country or state (province).
5. Select the desired search method.
No. Function Page
Select to search by city. 210
Select to search by street. 210
Select to search by intersection. 211
Select to search by city/town center. 210
Page 212 of 308
DESTINATION SEARCH
210

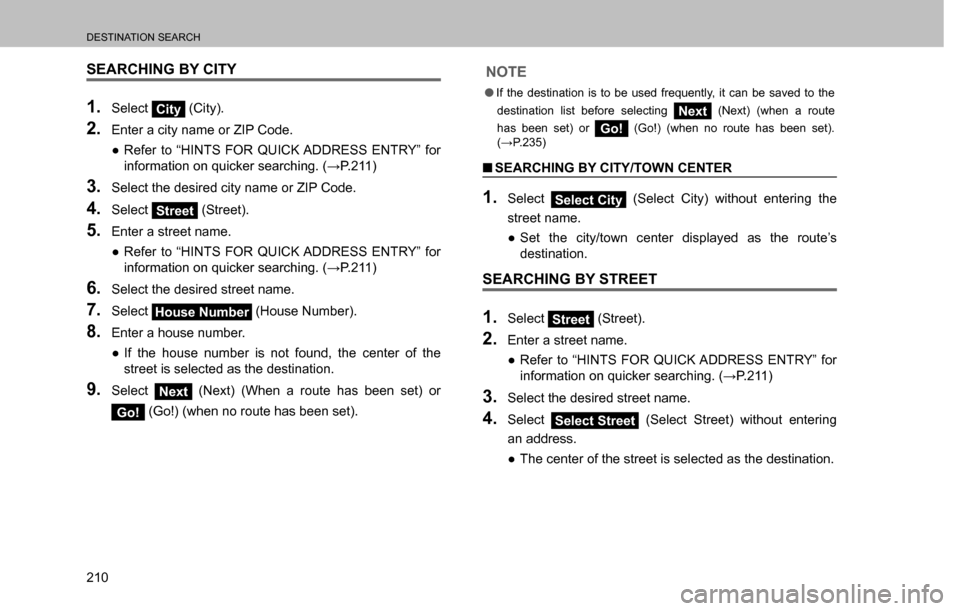

SEARCHING BY CITY
1. Select City (City).
2. Enter a city name or ZIP Code.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
3. Select the desired city name or ZIP Code.
4. Select Street (Street).
5. Enter a street name.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
6. Select the desired street name.
7. Select House Number (House Number).
8. Enter a house number.
”If the house number is not found, the center of the
street is selected as the destination.
9. Select Next (Next) (When a route has been set) or
Go! (Go!) (when no route has been set).
NOTE
OIf the destination is to be used frequently, it can be saved to the
destination list before selecting
Next (Next) (when a route
has been set) or
Go! (Go!) (when no route has been set).
: 3
QSEARCHING BY CITY/TOWN CENTER
1. Select Select City (Select City) without entering the
street name.
”Set the city/town center displayed as the route’s
destination.
SEARCHING BY STREET
1. Select Street (Street).
2. Enter a street name.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
3. Select the desired street name.
4. Select Select Street (Select Street) without entering
an address.
”The center of the street is selected as the destination.
Page 213 of 308
DESTINATION SEARCH
211
NAVIGATION SYSTEM
8

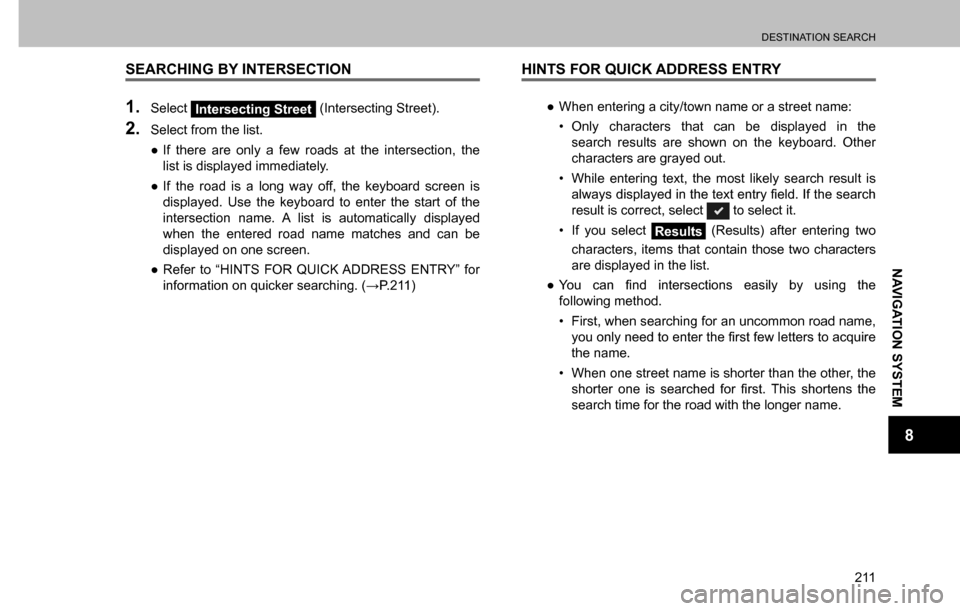

SEARCHING BY INTERSECTION
1. Select Intersecting Street (Intersecting Street).
2. Select from the list.
”If there are only a few roads at the intersection, the
list is displayed immediately.
”If the road is a long way off, the keyboard screen is
displayed. Use the keyboard to enter the start of the
intersection name. A list is automatically displayed
when the entered road name matches and can be
displayed on one screen.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
HINTS FOR QUICK ADDRESS ENTRY
”When entering a city/town name or a street name:
‡ Only characters that can be displayed in the
search results are shown on the keyboard. Other
characters are grayed out.
‡ While entering text, the most likely search result is
D O Z D \ V G L V S O D \ H G L Q W K H W H [ W H Q W U \
Page 216 of 308
DESTINATION SEARCH
214

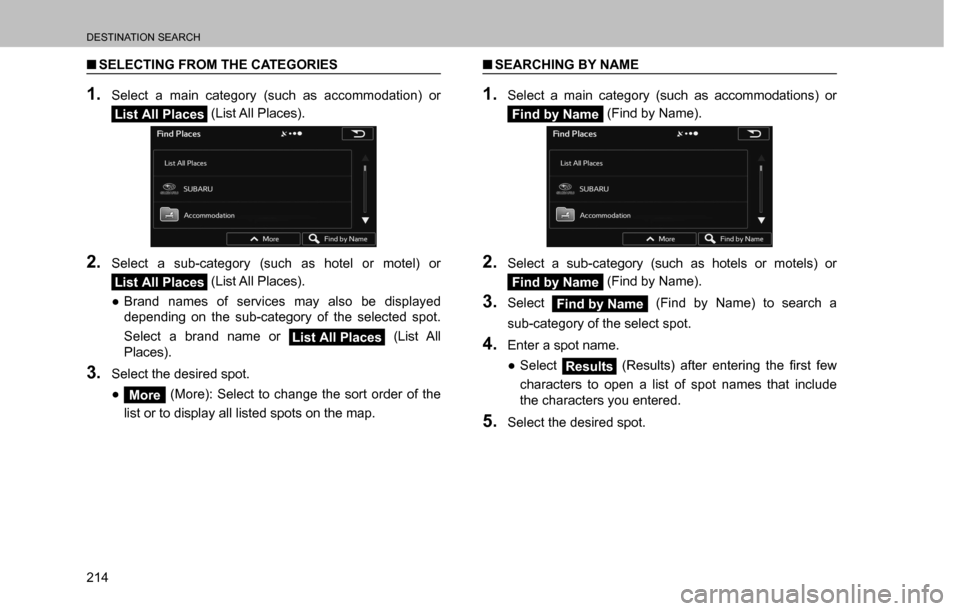

QSELECTING FROM THE CATEGORIES
1. Select a main category (such as accommodation) or
List All Places (List All Places).
2. Select a sub-category (such as hotel or motel) or
List All Places (List All Places).
”Brand names of services may also be displayed
depending on the sub-category of the selected spot.
Select a brand name or
List All Places (List All
Places).
3. Select the desired spot.
”
More (More): Select to change the sort order of the
list or to display all listed spots on the map.
QSEARCHING BY NAME
1. Select a main category (such as accommodations) or
Find by Name (Find by Name).
2. Select a sub-category (such as hotels or motels) or
Find by Name (Find by Name).
3. Select Find by Name (Find by Name) to search a
sub-category of the select spot.
4. Enter a spot name.
”Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H
