SUBARU CROSSTREK 2017 1.G Driving Assist Manual

FUJI HEAVY INDUSTRIES LTD.TOKYO, JAPAN
MSA5M1718A
B1292BE-A
Issued August 2016
Printed in USA 08/16
2017A
Love. It’s what makes a Subaru, a Subaru.
CROSSTREK
2017
OWNER

Foreword
Congratulations on choosing a SUBARU vehicle equipped with EyeSightTM.
EyeSight incorporates the latest driver assistance features available from
SUBARU, including such features as Adaptive Cruise Control, a Lead Vehicle Start
Alert and a Lane Departure and Lane Sway Warning, all of which are designed to
assist the driver in making decisions and increase driver comfort and
convenience. Initially, the operation and use of the various EyeSight features may
be unfamiliar to you. That is why we urge you to read this manual carefully before
using EyeSight. We also recommend that you first take the time to test EyeSight in
order to experience its features for yourself so that you can become familiar with
their operation.
Please keep in mind that it is the responsibility of drivers to operate their vehicles
safely at all times. Drivers should always remain alert and should never become
complacent while operating their vehicles because of the presence of EyeSight.
EyeSight is never a substitute for active driver involvement and it may not operate
optimally under all driving conditions.
This booklet is a supplement to the Owner’s Manual for your SUBARU vehicle and
contains a detailed description of EyeSight. It should be read in conjunction with
your Owner’s Manual so that you will gain a thorough understanding of the proper
operation of your vehicle.
The information, specifications and illustrations found in this booklet are those in
effect at the time of printing. FUJI HEAVY INDUSTRIES LTD. reserves the right to
change specifications and designs at any time without prior notice and without
incurring any obligation to make the same or similar changes on vehicles
previously sold.
Please keep this booklet together with your Owner’s Manual and leave it in the
vehicle at the time of resale. The next owner will need the information it contains.
FUJI HEAVY INDUSTRIES LTD., TOKYO, JAPAN
is a registered trademark of FUJI HEAVY INDUSTRIES LTD.
© Copyright 2016 FUJI HEAVY INDUSTRIES LTD.

3 1
2
4
5
6
7
8

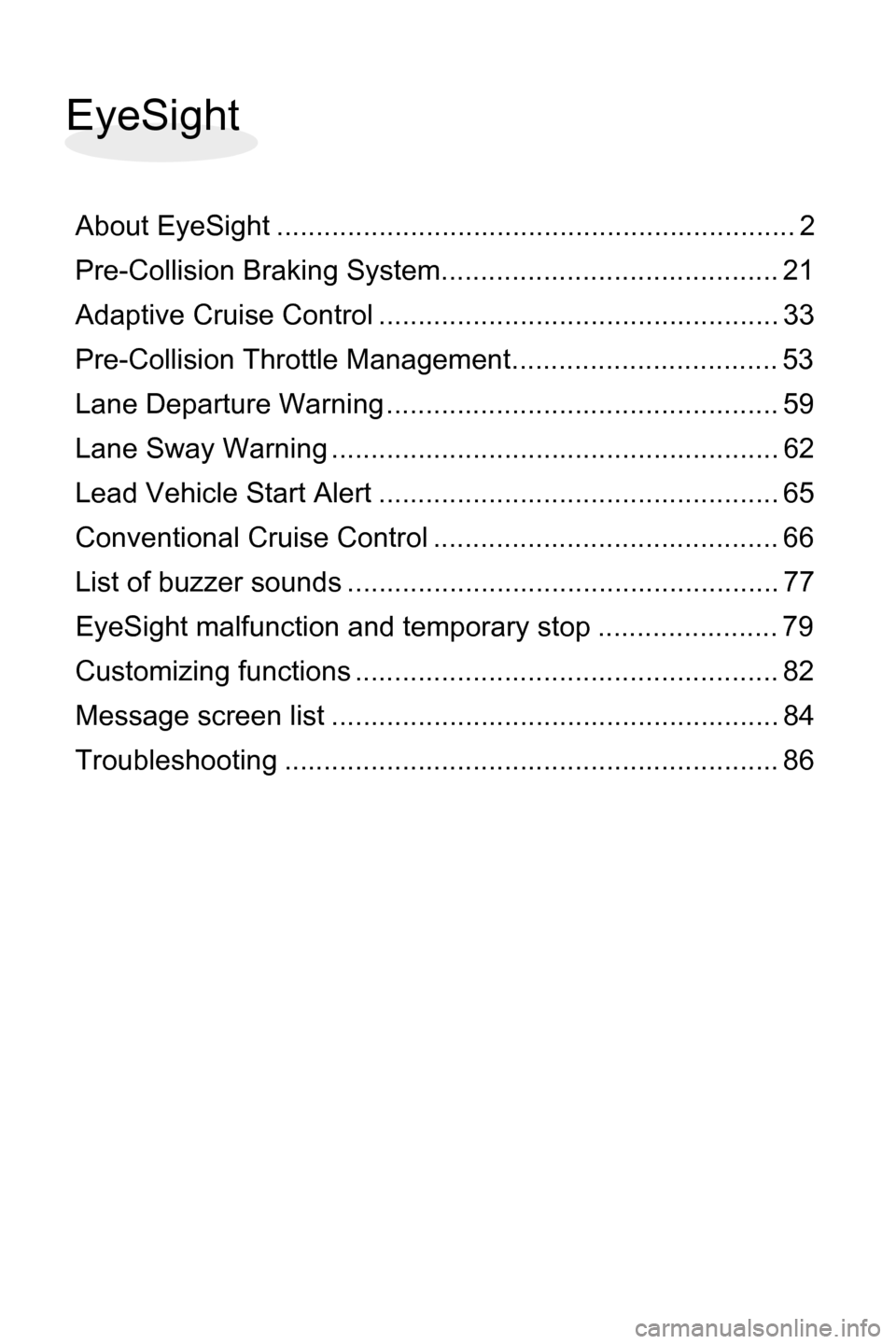

EyeSight
About EyeSight .................................................................. 2
Pre-Collision Braking System........................................... 21
Adaptive Cruise Control ................................................... 33
Pre-Collision Throttle Management.................................. 53
Lane Departure Warning .................................................. 59
Lane Sway Warning ......................................................... 62
Lead Vehicle Start Alert ................................................... 65
Conventional Cruise Control ............................................ 66
List of buzzer sounds ....................................................... 77
EyeSight malfunction and temporary stop ....................... 79
Customizing functions ...................................................... 82
Message screen list ......................................................... 84
Troubleshooting ............................................................... 86

2

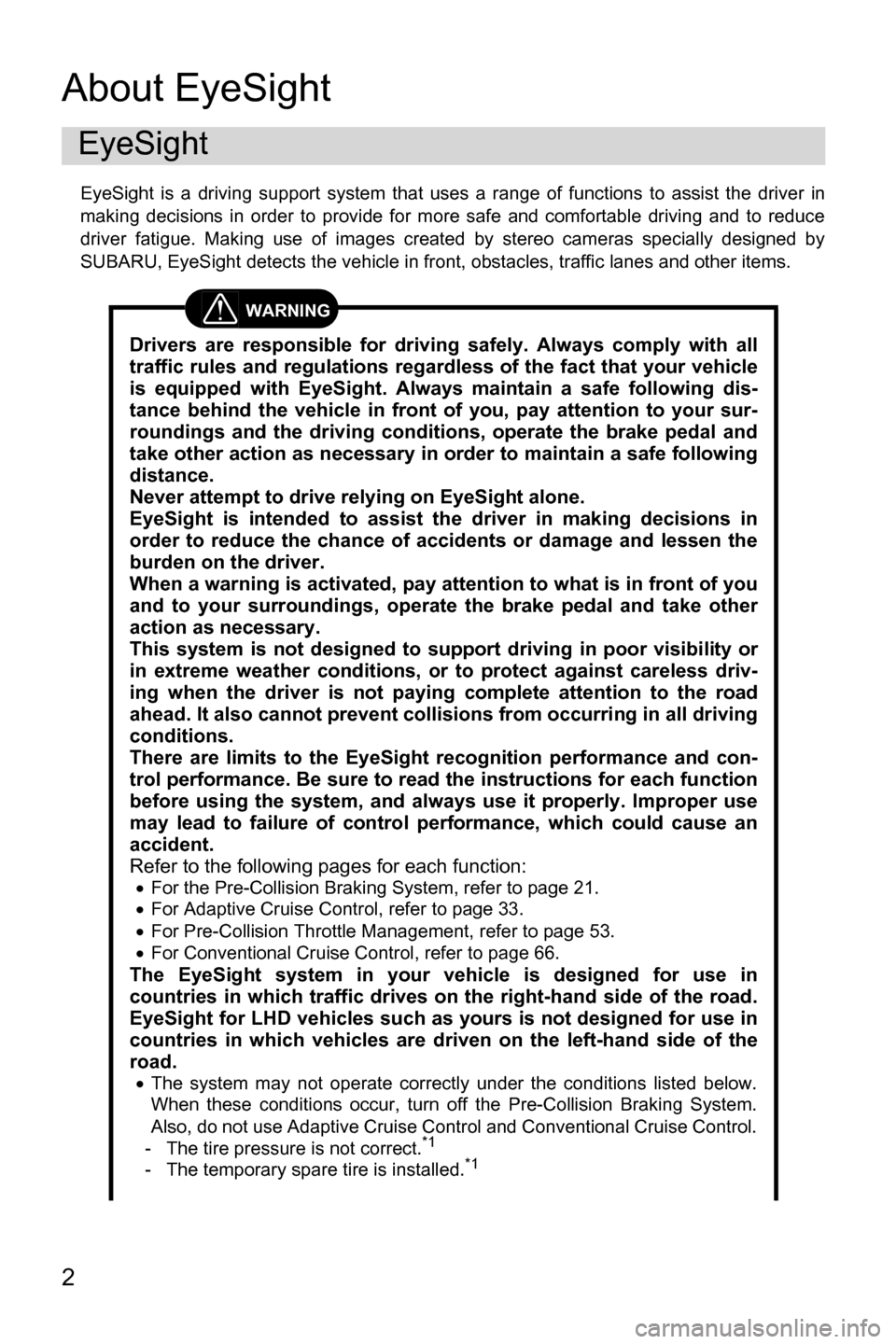

About EyeSight
EyeSight is a driving support system that uses a range of functions to assist the driver in
making decisions in order to provide for more safe and comfortable driving and to reduce
driver fatigue. Making use of images created by stereo cameras specially designed by
SUBARU, EyeSight detects the vehicle in front, obstacles, traffic lanes and other items.
EyeSight
WARNING
Drivers are responsible for driving safely. Always comply with all
traffic rules and regulations regardless of the fact that your vehicle
is equipped with EyeSight. Always maintain a safe following dis-
tance behind the vehicle in front of you, pay attention to your sur-
roundings and the driving conditions, operate the brake pedal and
take other action as necessary in order to maintain a safe following
distance.
Never attempt to drive relying on EyeSight alone.
EyeSight is intended to assist the driver in making decisions in
order to reduce the chance of accidents or damage and lessen the
burden on the driver.
When a warning is activated, pay attention to what is in front of you
and to your surroundings, operate the brake pedal and take other
action as necessary.
This system is not designed to support driving in poor visibility or
in extreme weather conditions, or to protect against careless driv-
ing when the driver is not paying complete attention to the road
ahead. It also cannot prevent collisions from occurring in all driving
conditions.
There are limits to the EyeSight recognition performance and con-
trol performance. Be sure to read the instructions for each function
before using the system, and always use it properly. Improper use
may lead to failure of control performance, which could cause an
accident.
Refer to the following pages for each function:
xFor the Pre-Collision Braking System, refer to page 21.
xFor Adaptive Cruise Control, refer to page 33.
xFor Pre-Collision Throttle Management, refer to page 53.
xFor Conventional Cruise Control, refer to page 66.
The EyeSight system in your vehicle is designed for use in
countries in which traffic drives on the right-hand side of the road.
EyeSight for LHD vehicles such as yours is not designed for use in
countries in which vehicles are driven on the left-hand side of the
road.
xThe system may not operate correctly under the conditions listed below.
When these conditions occur, turn off the Pre-Collision Braking System.
Also, do not use Adaptive Cruise Control and Conventional Cruise Control.
- The tire pressure is not correct.
*1
- The temporary spare tire is installed.*1

About EyeSight
3

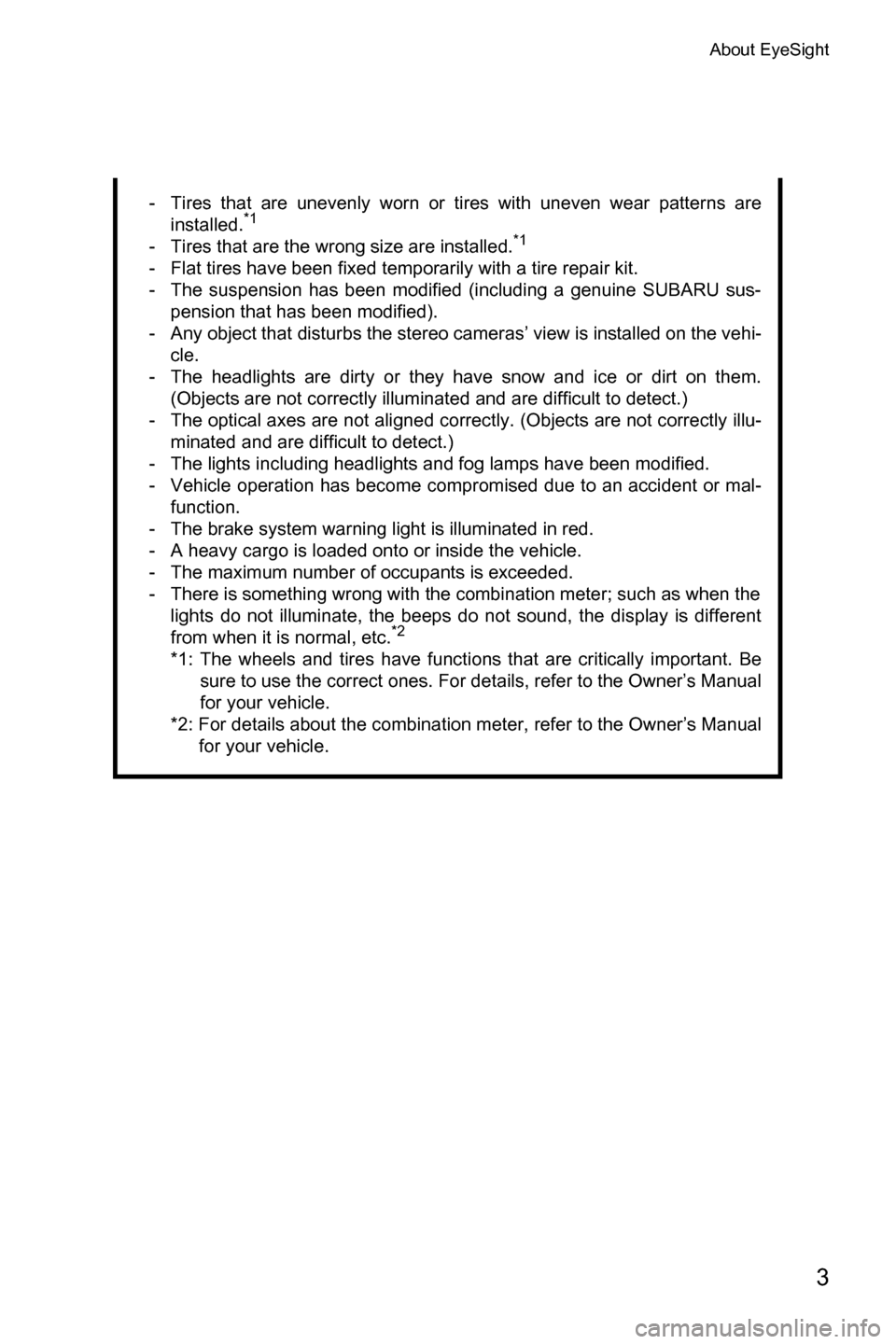

- Tires that are unevenly worn or tires with uneven wear patterns are
installed.*1
- Tires that are the wrong size are installed.*1
- Flat tires have been fixed temporarily with a tire repair kit.
- The suspension has been modified (including a genuine SUBARU sus-
pension that has been modified).
- Any object that disturbs the stereo cameras’ view is installed on the vehi-
cle.
- The headlights are dirty or they have snow and ice or dirt on them.
(Objects are not correctly illuminated and are difficult to detect.)
- The optical axes are not aligned correctly. (Objects are not correctly illu-
minated and are difficult to detect.)
- The lights including headlights and fog lamps have been modified.
- Vehicle operation has become compromised due to an accident or mal-
function.
- The brake system warning light is illuminated in red.
- A heavy cargo is loaded onto or inside the vehicle.
- The maximum number of occupants is exceeded.
- There is something wrong with the combination meter; such as when the
lights do not illuminate, the beeps do not sound, the display is different
from when it is normal, etc.
*2
*1: The wheels and tires have functions that are critically important. Be
sure to use the correct ones. For details, refer to the Owner’s Manual
for your vehicle.
*2: For details about the combination meter, refer to the Owner’s Manual
for your vehicle.

About EyeSight
4

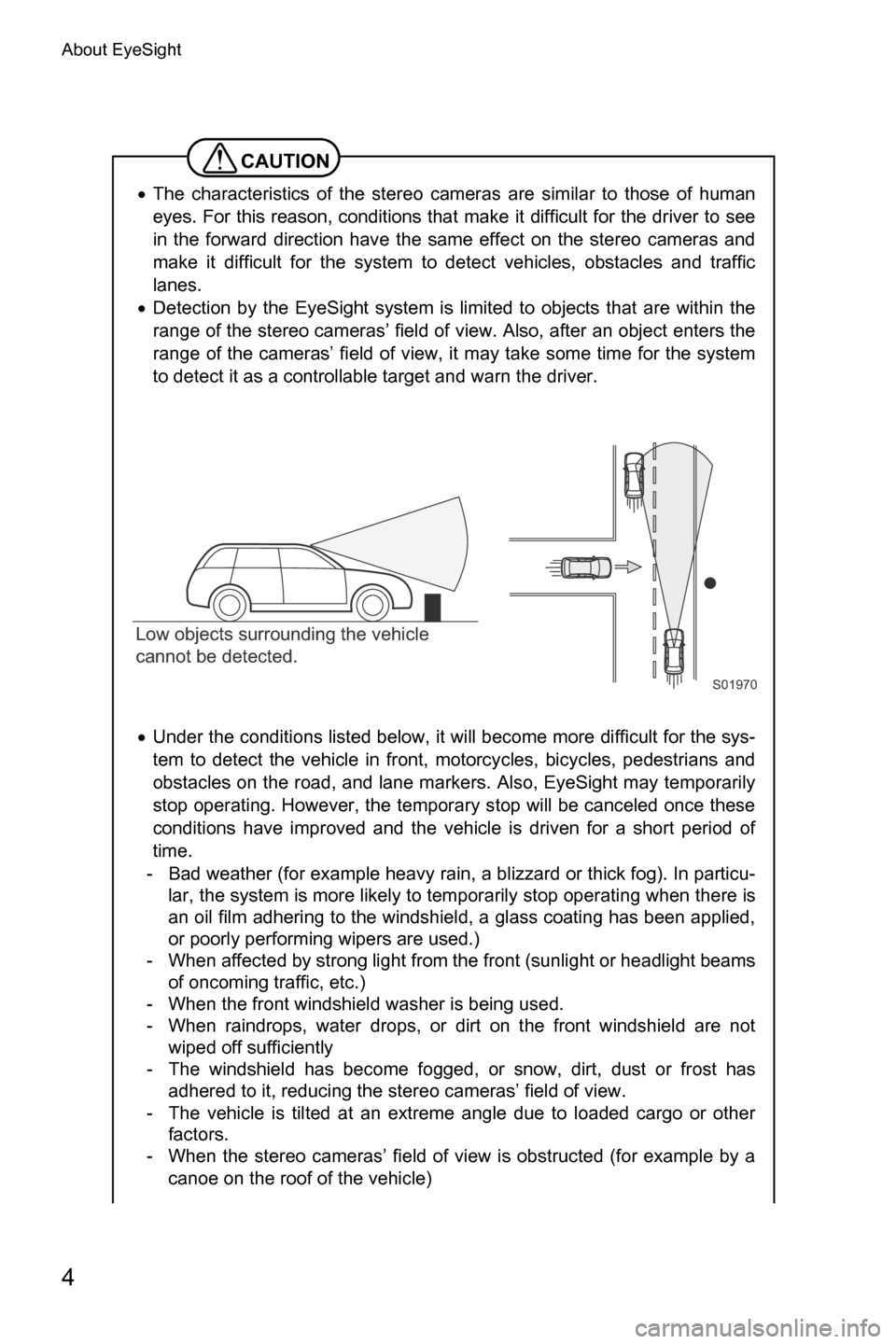

CAUTION
xThe characteristics of the stereo cameras are similar to those of human
eyes. For this reason, conditions that make it difficult for the driver to see
in the forward direction have the same effect on the stereo cameras and
make it difficult for the system to detect vehicles, obstacles and traffic
lanes.
xDetection by the EyeSight system is limited to objects that are within the
range of the stereo cameras’ field of view. Also, after an object enters the
range of the cameras’ field of view, it may take some time for the system
to detect it as a controllable target and warn the driver.
xUnder the conditions listed below, it will become more difficult for the sys-
tem to detect the vehicle in front, motorcycles, bicycles, pedestrians and
obstacles on the road, and lane markers. Also, EyeSight may temporarily
stop operating. However, the temporary stop will be canceled once these
conditions have improved and the vehicle is driven for a short period of
time.
- Bad weather (for example heavy rain, a blizzard or thick fog). In particu-
lar, the system is more likely to temporarily stop operating when there is
an oil film adhering to the windshield, a glass coating has been applied,
or poorly performing wipers are used.)
- When affected by strong light from the front (sunlight or headlight beams
of oncoming traffic, etc.)
- When the front windshield washer is being used.
- When raindrops, water drops, or dirt on the front windshield are not
wiped off sufficiently
- The windshield has become fogged, or snow, dirt, dust or frost has
adhered to it, reducing the stereo cameras’ field of view.
- The vehicle is tilted at an extreme angle due to loaded cargo or other
factors.
- When the stereo cameras’ field of view is obstructed (for example by a
canoe on the roof of the vehicle)
S01970
Low objects surrounding the vehicle
cannot be detected.

About EyeSight
5

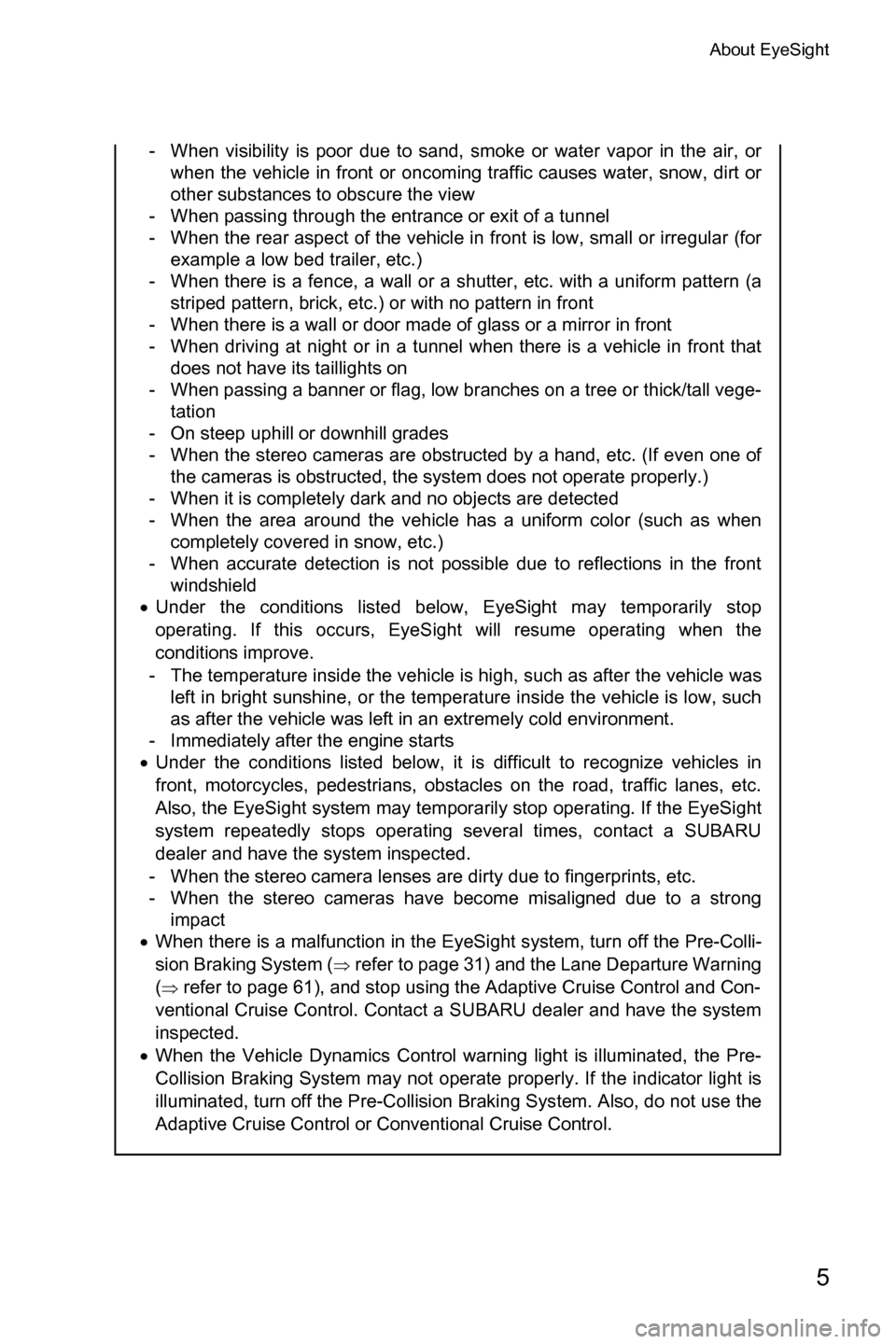

- When visibility is poor due to sand, smoke or water vapor in the air, or
when the vehicle in front or oncoming traffic causes water, snow, dirt or
other substances to obscure the view
- When passing through the entrance or exit of a tunnel
- When the rear aspect of the vehicle in front is low, small or irregular (for
example a low bed trailer, etc.)
- When there is a fence, a wall or a shutter, etc. with a uniform pattern (a
striped pattern, brick, etc.) or with no pattern in front
- When there is a wall or door made of glass or a mirror in front
- When driving at night or in a tunnel when there is a vehicle in front that
does not have its taillights on
- When passing a banner or flag, low branches on a tree or thick/tall vege-
tation
- On steep uphill or downhill grades
- When the stereo cameras are obstructed by a hand, etc. (If even one of
the cameras is obstructed, the system does not operate properly.)
- When it is completely dark and no objects are detected
- When the area around the vehicle has a uniform color (such as when
completely covered in snow, etc.)
- When accurate detection is not possible due to reflections in the front
windshield
xUnder the conditions listed below, EyeSight may temporarily stop
operating. If this occurs, EyeSight will resume operating when the
conditions improve.
- The temperature inside the vehicle is high, such as after the vehicle was
left in bright sunshine, or the temperature inside the vehicle is low, such
as after the vehicle was left in an extremely cold environment.
- Immediately after the engine starts
xUnder the conditions listed below, it is difficult to recognize vehicles in
front, motorcycles, pedestrians, obstacles on the road, traffic lanes, etc.
Also, the EyeSight system may temporarily stop operating. If the EyeSight
system repeatedly stops operating several times, contact a SUBARU
dealer and have the system inspected.
- When the stereo camera lenses are dirty due to fingerprints, etc.
- When the stereo cameras have become misaligned due to a strong
impact
xWhen there is a malfunction in the EyeSight system, turn off the Pre-Colli-
sion Braking System (
Ÿ refer to page 31) and the Lane Departure Warning
(
Ÿ refer to page 61), and stop using the Adaptive Cruise Control and Con-
ventional Cruise Control. Contact a SUBARU dealer and have the system
inspected.
xWhen the Vehicle Dynamics Control warning light is illuminated, the Pre-
Collision Braking System may not operate properly. If the indicator light is
illuminated, turn off the Pre-Collision Braking System. Also, do not use the
Adaptive Cruise Control or Conventional Cruise Control.

About EyeSight
6

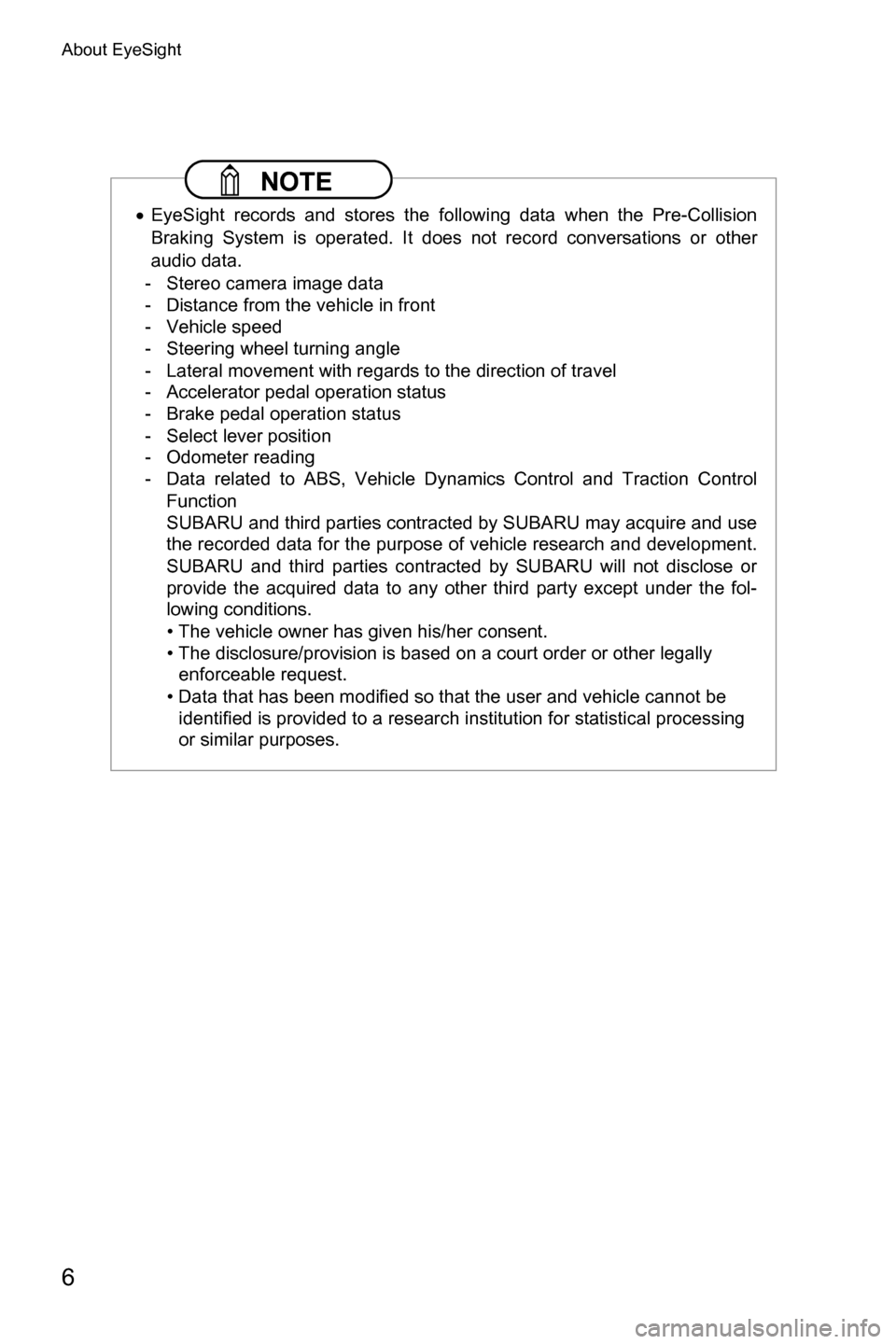

NOTE
xEyeSight records and stores the following data when the Pre-Collision
Braking System is operated. It does not record conversations or other
audio data.
- Stereo camera image data
- Distance from the vehicle in front
- Vehicle speed
- Steering wheel turning angle
- Lateral movement with regards to the direction of travel
- Accelerator pedal operation status
- Brake pedal operation status
- Select lever position
- Odometer reading
- Data related to ABS, Vehicle Dynamics Control and Traction Control
Function
SUBARU and third parties contracted by SUBARU may acquire and use
the recorded data for the purpose of vehicle research and development.
SUBARU and third parties contracted by SUBARU will not disclose or
provide the acquired data to any other third party except under the fol-
lowing conditions.
• The vehicle owner has given his/her consent.
• The disclosure/provision is based on a court order or other legally
enforceable request.
• Data that has been modified so that the user and vehicle cannot be
identified is provided to a research institution for statistical processing
or similar purposes.
