SUBARU CROSSTREK 2018 Owners Manual

(124,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
direction that the grooved side is facing
and insert it again.
!How to lock the vehicle without
using the key
To lock the door from outside without the
key, the following methods are available.
!Locking using lock lever1) Rotate the lock lever forward.
2) Close the door.In this way, only the door that was operated
will be locked.!Locking using power door lock-
ing switch
1) Press the lock side of the power door
locking switch.*
2) Close the door.
*: For details about the power door locking
switch, refer to“How to operate the power
door locking switches”F2-23.In this case, all closed doors and the rear
gate are locked at the same time.NOTEMake sure that you do not leave the key
inside the vehicle when locking the
doors from the outside without the key.
&Locking and unlocking from
the inside!How to use the lock lever1) Rotate the lock lever rearward to unlock.
2) Rotate the lock lever forward to lock.Always make sure that all doors and the
rear gate are closed before starting to
drive.
The red mark on the lock lever appears
when the door is unlocked.
WARNING
Keep all doors locked when you
drive, especially when small chil-
dren are in your vehicle.
Along with the proper use of seat-
Keys and doors/Door locks
2-22

(125,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
belts and child restraints, locking
the doors reduces the chance of
being thrown out of the vehicle in an
accident.
It also helps prevent passengers
from falling out if a door is acciden-
tally opened, and intruders from
unexpectedly opening doors and
entering your vehicle.
!How to operate the power door
locking switches
All doors and the rear gate can be locked
and unlocked using the power door locking
switches located at the driver’s side and
the front passenger’s side doors.
Example
1) Press to lock
2) Press to unlockNOTEMake sure that you do not leave the key
inside the vehicle before locking the
doors from the outside using the power
door locking switches.&Key lock-in prevention func-
tionUnder the following conditions, all the
doors will not lock when the door lock
switch is pushed with the driver door open.
.The key is still in the ignition switch
(models without“keyless access with
push-button start system”).The ignition switch is in the“ACC”or
“ON”position (models with“keyless ac-
cess with push-button start system”)
NOTE.When leaving the vehicle, make sure
you are holding the key before locking
the doors.
.The factory setting (default setting)
for this function is set as“operational”.
This function’s operational/non-opera-
tional setting can be changed by a
SUBARU dealer. Contact a SUBARU
dealer for details.
!Non-operation of key lock-in pre-
vention function
When the system is set so that it does not
operate, the doors are locked by the
following operation.
.If the lock lever is turned to the front
(“LOCK”) position with the driver’s door
open and the driver’s door is then closed
with the lock lever in that position, the
driver’s door is locked.
.If the spare key is used to lock the
driver’s door from the outside of the
vehicle, the door is locked.
–CONTINUED–
Keys and doors/Door locks
2-23
2

(126,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Battery drainage prevention
functionIf a door or the rear gate is not completely
closed, the interior lights will remain
illuminated as a result. However, several
lights are automatically turned off by the
battery drainage prevention function to
prevent the battery from discharging. The
following interior lights are affected by this
function.
ItemSwitch
positionAutomatically turning
off
Map lights DOORApproximately 20
minutes later
Dome light DOORApproximately 20
minutes later
Ignition
switch light—Approximately 20
minutes later
Cargo area
lightDOORApproximately 20
minutes later
NOTE.The default setting for this function
is set as“operational”. The operational/
non-operational setting of this function
can be changed by a SUBARU dealer.
Contact your SUBARU dealer to
change the setting.
.When leaving the vehicle, please
make sure that all doors and the rear
gate are completely closed.
.The battery drainage prevention
function does not operate while the
key is in the ignition switch.
Alarm systemThe alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the hazard warning flashers
flash if someone attempts to break into
your vehicle.
For models with“keyless access with
push-button start system”:
The system can be armed or disarmed
with the keyless access function or access
key fob.
The system will not be activated when the
push-button ignition switch is in the“ACC”
or“ON”position.
For models without“keyless access
with push-button start system”:
The system can be armed or disarmed
with the remote transmitter.
The system will not be activated when the
key is inserted into the ignition switch.
Your vehicle’s alarm system has been set
for activation at the time of shipment from
the factory. You can set the system for
deactivation yourself or have it done by
your SUBARU dealer.
Keys and doors/Alarm system
2-24

(127,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Alarm system operationWhen the alarm system is armed, it is
triggered by the opening any of the doors
or the rear gate.
The alarm system will activate the follow-
ing alarms when triggered.
.The vehicle’s horn will sound for 30
seconds.
.The hazard warning flashers will flash
for 30 seconds.
If any of the doors or the rear gate remains
open after the 30-second period, the horn
will continue to sound for a maximum of 3
minutes. If the door or the rear gate is
closed while the horn is sounding, the horn
will stop sounding with a delay of up to 30
seconds.NOTEThe alarm system can be set to trigger
the illumination of the following interior
lights.
.Map lights (illuminates only when
the door interlock switch is in the
“DOOR”position)
.Dome light (illuminates only when
the dome light switch is in the“DOOR”
position)
.Cargo area light (illuminates only
when the cargo area light switch is in
the“DOOR”position)The notifications regarding the map
lights, dome light and cargo area light
are deactivated as the factory setting. A
SUBARU dealer can activate the sys-
tem. Contact your SUBARU dealer for
details.
&Arming the systemThe alarm system becomes armed when
the following operation is performed.
1. Close all windows and the moonroof (if
equipped) and turn the ignition switch to
the“OFF”position.
2. Carry the key and get out of the
vehicle.
3. Lock the doors using any of the
following methods.
.Locking using the remote keyless
entry system. For details, refer to
“Remote keyless entry system”F2-17.
.Locking using the keyless access
function (if equipped). For details, refer
to“Locking with the door lock sensor”
F2-8.
.Locking using the power door lock-
ing switch. For details, refer to“Locking
using power door locking switch”F2-
22.
NOTESecurity indicator lightAll doors and the rear gate will lock, an
electronic chirp will sound once, the
hazard warning flashers will flash once,
and the security indicator light will start
flashing rapidly.
4. Approximately 30 seconds later, the
system will enter surveillance state.
When the system is in surveillance state,
the security indicator light will then flash
slowly (twice approximately every 2 sec-
onds), indicating that the system has been
armed for surveillance.
–CONTINUED–
Keys and doors/Alarm system
2-25
2

(128,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
NOTE.The system can be armed even if the
engine hood, windows and/or moon-
roof are open. Always make sure that
they are fully closed before arming the
system.
.When arming the system, if any of
the doors or the rear gate is not fully
closed, an electronic chirp sounds five
times, the hazard warning flashers
flash five times to alert you that the
doors (or the rear gate) are not properly
closed. When you close the door, doors
will automatically lock and the system
will automatically arm in 30 seconds.
.The 30-second standby time can be
eliminated if you prefer. Have it per-
formed by your SUBARU dealer.
.If any of the following actions is
done during the standby period, the
system will not switch to the surveil-
lance state.
–Doors (including the rear gate)
are unlocked using the access key
fob/remote transmitter.
–Doors (including the rear gate)
are unlocked using the keyless
access function (models with“key-
less access with push-button start
system”).
–Any door (including the rear gate)
is opened.–The ignition switch is turned to
the“ON”position (models without
“keyless access with push-button
start system”).
–Push-button ignition switch is
turned to the“ACC”position (mod-
els with“keyless access with push-
button start system”).
&Disarming the systemPerform either of the following procedures.
.Briefly press a button (for less than 2
seconds) on the access key fob/remote
transmitter.
.Carry the access key fob and perform
either of the following procedures (models
with“keyless access with push-button
start system”).
–Grip the front door handle.
–Press the rear gate opener button.
–Unlock using the PIN code access.
The flashing of the security indicator light
will then change slowly (once approxi-
mately every 3 seconds from twice ap-
proximately every 2 seconds), indicating
that the alarm system has been disarmed.
!Emergency disarming
If you cannot disarm the system using the
access key fob/transmitter (i.e. the trans-
mitter is lost, broken or the transmitterbattery is too weak), you can disarm the
system without using the access key fob/
remote transmitter.
The system can be disarmed if you turn the
ignition switch from the“LOCK”/“OFF”to
the“ON”position with a registered key/
access key fob.
NOTEFor models with“keyless access with
push-button start system”, if the ac-
cess key fob battery is discharged,
perform the procedure described in
“Switching power status”F9-17. In
such a case, replace the battery im-
mediately. Refer to“Replacing battery
of access key fob”F11-43.&Alarm system settingTo change the setting of your vehicle’s
alarm system for activation or deactiva-
tion, do the following.
1. Disarm the alarm system. Refer to
“Disarming the system”F2-26.
2. Sit in the driver’s seat and shut all
doors and the rear gate.
3. Turn the ignition switch to the“ON”
position.
4. Hold down“
”of the driver’s power
door locking switch, open the driver’s door
within the following 1 second, and wait 10
Keys and doors/Alarm system
2-26

(129,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
seconds without releasing the switch. The
setting will then be changed as follows.
.Type A combination meterSetting
statusCombination
meter displayHorn
Activate ALon Once
Deactivate ALoFTwice.Type B combination meter
Setting
statusCombination
meter displayHorn
Activate AL ON Once
Deactivate AL OFFTwice
NOTEYou may have the above setting change
done by your SUBARU dealer.
&If you have accidentally trig-
gered the alarm system!To stop the alarm
Do any of the following operations:
.Press any button on the access key fob/
remote transmitter.
.Turn the ignition switch to the“ON”
position (models without“keyless access
with push-button start system”).
.Turn the push-button ignition to the
“ACC”position (models with“keyless
access with push-button start system”).NOTEOnly registered keys will stop the
alarm. If the immobilizer transponder
is not registered, the alarm will not
stop.
&Valet modeWhen you choose the valet mode, the
alarm system does not operate. In valet
mode, the remote transmitter is used only
for locking and unlocking the doors and
rear gate and panic activation.
To enter the valet mode, change the
setting of your vehicle’s alarm system for
deactivation mode. Refer to“Alarm system
setting”F2-26. The security indicator light
will continue to flash once every 3 seconds
indicating that the system is in the valet
mode.
To exit valet mode, change the setting of
your vehicle’s alarm system for activation
mode. Refer to“Alarm system setting”F2-
26.
Keys and doors/Alarm system
2-27
2

(130,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

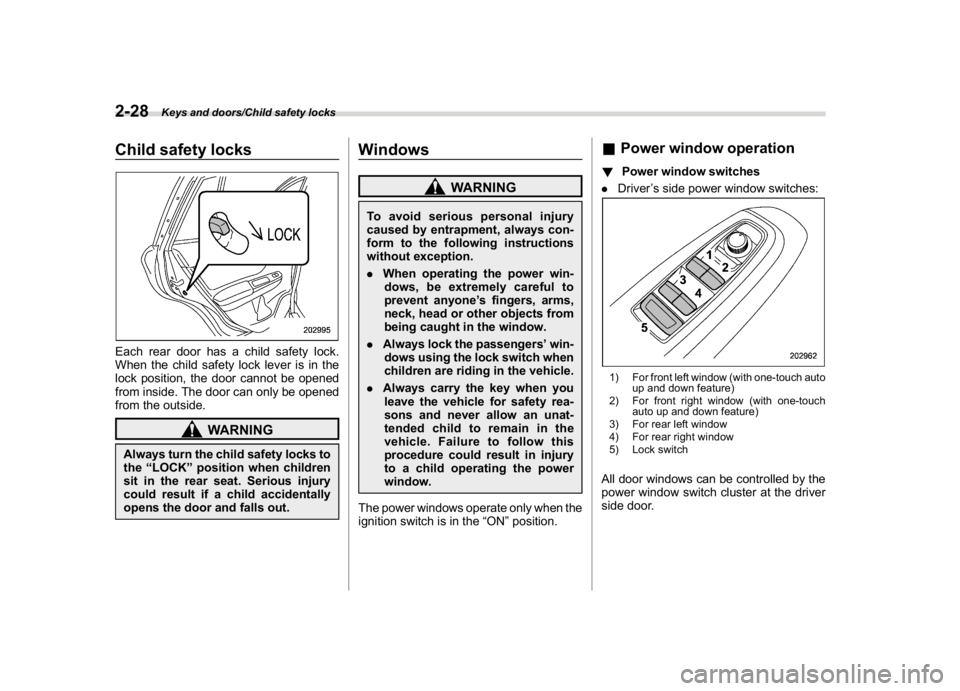

Child safety locksEach rear door has a child safety lock.
When the child safety lock lever is in the
lock position, the door cannot be opened
from inside. The door can only be opened
from the outside.
WARNING
Always turn the child safety locks to
the“LOCK”position when children
sit in the rear seat. Serious injury
could result if a child accidentally
opens the door and falls out.
Windows
WARNING
To avoid serious personal injury
caused by entrapment, always con-
form to the following instructions
without exception.
.When operating the power win-
dows, be extremely careful to
prevent anyone’s fingers, arms,
neck, head or other objects from
being caught in the window.
.Always lock the passengers’win-
dows using the lock switch when
children are riding in the vehicle.
.Always carry the key when you
leave the vehicle for safety rea-
sons and never allow an unat-
tended child to remain in the
vehicle. Failure to follow this
procedure could result in injury
to a child operating the power
window.
The power windows operate only when the
ignition switch is in the“ON”position.
&Power window operation!Power window switches
.Driver’s side power window switches:1) For front left window (with one-touch auto
up and down feature)
2) For front right window (with one-touch
auto up and down feature)
3) For rear left window
4) For rear right window
5) Lock switchAll door windows can be controlled by the
power window switch cluster at the driver
side door.
Keys and doors/Child safety locks
2-28

(131,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
.Passenger’s side power window
switches:Each passenger’s window can be con-
trolled by the power window switch located
on the door.!Operating the window
.With one-touch auto up and down
feature:
1) Automatically close*
2) Close
3) Open
4) Automatically open*
*: To stop the window halfway, operate the
switch to opposite side.NOTEAvoid the following.
.After the driver’s window is fully
closed or fully opened, the switch is
continuously operated in the same
direction for a few seconds.
.After the windows for three or more
seats are fully closed or fully opened,
each switch is continuously operatedin the same direction simultaneously
for a few seconds.
Either of the operations described
above may cause the power window
breaker to operate making it impossible
to open or close the window. Be sure to
initialize the power windows. If they are
not initialized, the one-touch auto up/
down function will not operate. Refer to
“Initialization of power window with
one-touch auto up/down function”
F2-30.
.Without one-touch auto up and down
feature:
1) Close
2) Open
–CONTINUED–
Keys and doors/Windows
2-29
2

(132,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
!Anti-entrapment function (windows
with one-touch auto up/down func-
tion)
While closing the driver’s and front pas-
senger’s windows automatically, if the
window senses a substantial enough
object trapped between the window and
the window frame, it automatically moves
down slightly and stops.
If a foreign object is caught while the
driver’s window or passenger’s window is
opening automatically, the window will
stop.
CAUTION
.Never attempt to test this func-
tion using fingers, hands or other
parts of your body.
.The anti-entrapment function
may not operate properly if some
object gets trapped just before
the window fully closes.NOTE.If a window detects an impact similar
to that caused by trapping an object (for
example, when the vehicle encounters
a deep pothole), the anti-entrapment
function may operate.
.The window cannot be operated for afew seconds after the anti-entrapment
function operates.
!Off delay function (windows with
one-touch auto up/down function)
The front windows can be operated for
approximately 45 seconds even after the
ignition switch is turned to the“ACC”or
“OFF”position. If a front door is opened
within 45 seconds, the off delay function is
canceled.
!Locking the passengers’windows
1) Lock
2) UnlockWhen the lock switch is in the lock position,
the rear passenger’s window switches on
the driver side door and the passengers’
window switches cannot be operated.
&Initialization of power window
with one-touch auto up/down
functionIf the power window automatic function
(one-touch auto up and down function)
does not operate properly, operate each
window according to the following proce-
dure in order to initialize the power window
system.
1. Close the door.
2. Turn the ignition switch to the“ON”
position.
3. Open the window completely and then
press and hold down the power window
switch for approximately 1 second.
4. Close the window completely and then
pull and hold the power window switch for
approximately 1 second.
Keys and doors/Windows
2-30

(133,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

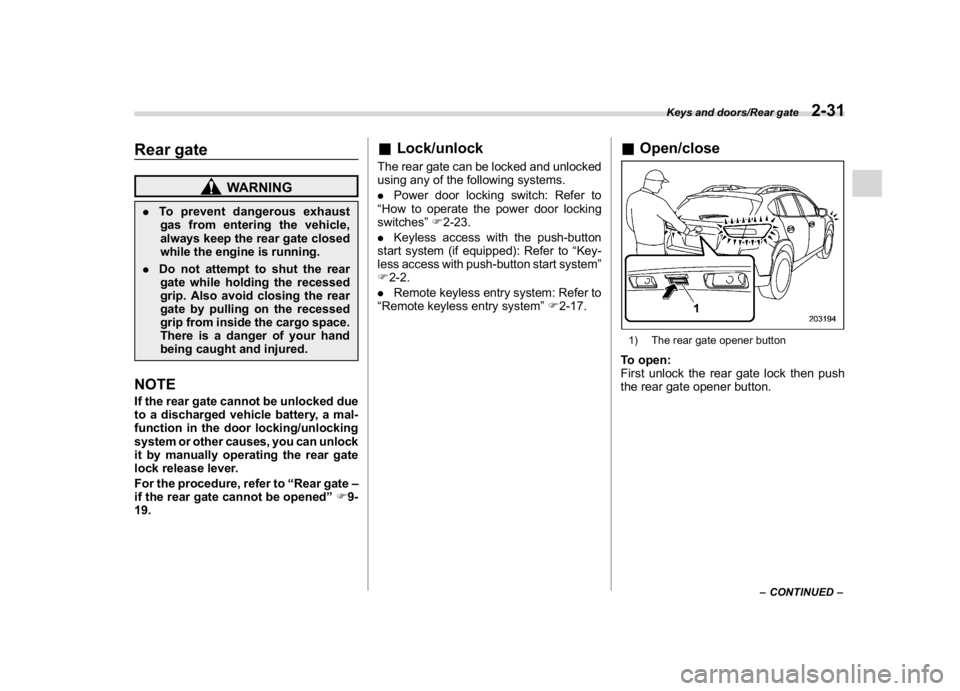

Rear gate
WARNING
.To prevent dangerous exhaust
gas from entering the vehicle,
always keep the rear gate closed
while the engine is running.
.Do not attempt to shut the rear
gate while holding the recessed
grip. Also avoid closing the rear
gate by pulling on the recessed
grip from inside the cargo space.
There is a danger of your hand
being caught and injured.NOTEIf the rear gate cannot be unlocked due
to a discharged vehicle battery, a mal-
function in the door locking/unlocking
system or other causes, you can unlock
it by manually operating the rear gate
lock release lever.
For the procedure, refer to“Rear gate–
if the rear gate cannot be opened”F9-
19.
&Lock/unlockThe rear gate can be locked and unlocked
using any of the following systems.
.Power door locking switch: Refer to
“How to operate the power door locking
switches”F2-23.
.Keyless access with the push-button
start system (if equipped): Refer to“Key-
less access with push-button start system”
F2-2.
.Remote keyless entry system: Refer to
“Remote keyless entry system”F2-17.
&Open/close1) The rear gate opener buttonTo open:
First unlock the rear gate lock then push
the rear gate opener button.
–CONTINUED–
Keys and doors/Rear gate
2-31
2
