SUBARU CROSSTREK 2019 Quick Guide

9
Gauges
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal airbag ON
(Located on overhead console)
Front passenger frontal airbag OFF
(Located on overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline start assist Keyless Access with
Push Button Start System
(if equipped)
Turn signals
Front fog light indicator
light (if equipped)
Hill descent control
(if equipped)
Fuel gauge
Speedometer
Trip meter and odometer
ECO gauge
3640014_19b_Crosstrek_QG_072318.indd 97/23/18 3:34 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

10
Brake system
Hot coolant temperature/
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Vehicle Dynamics Control/
Vehicle Dynamics
Control operation

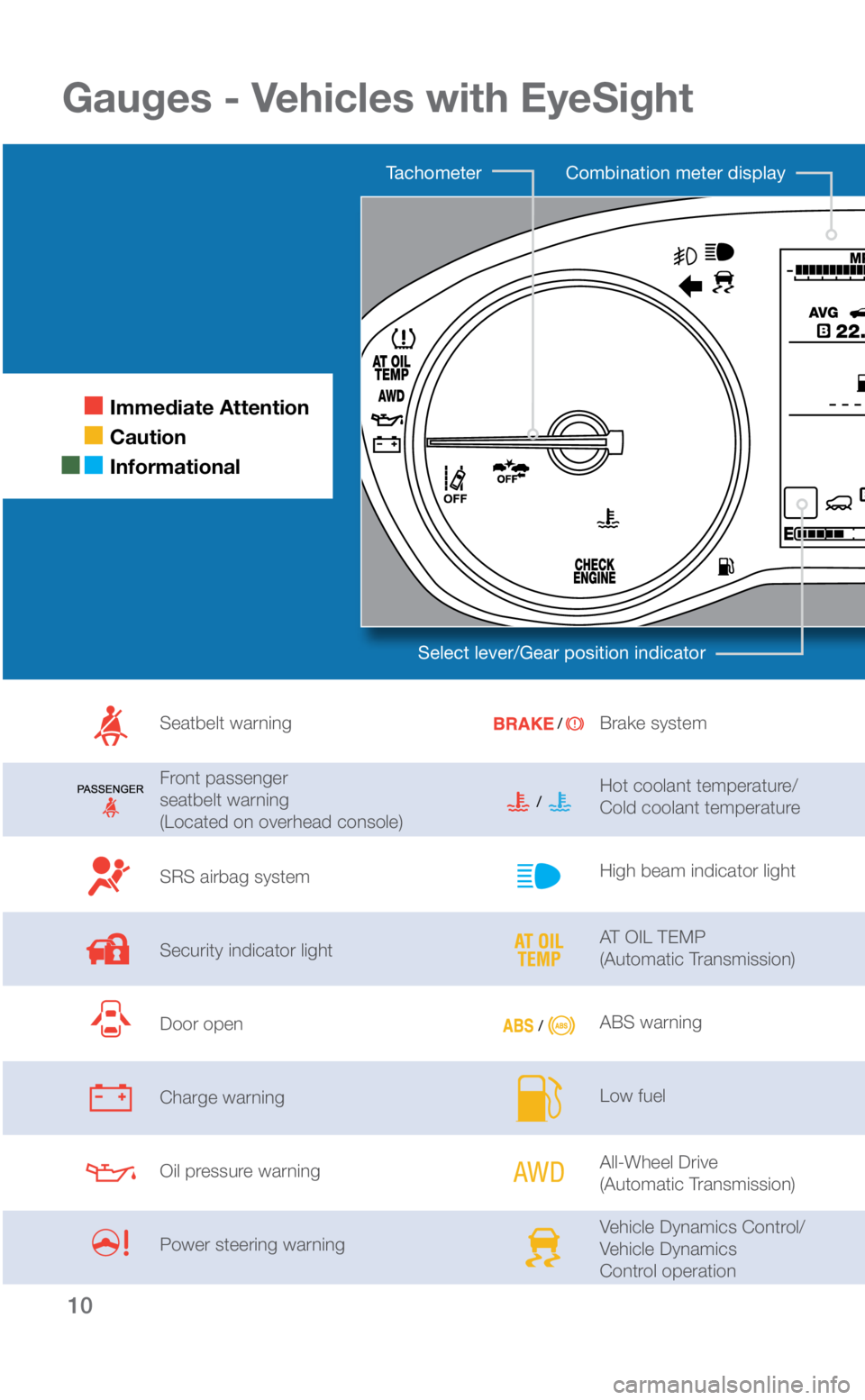

Gauges - Vehicles with EyeSight
Immediate Attention

Caution
Informational
Seatbelt warning
Front passenger
seatbelt warning
(Located on overhead console)
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning
Tachometer Combination meter display
Select lever/Gear position indicator
3640014_19b_Crosstrek_QG_072318.indd 107/23/18 3:34 PM

11
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal airbag ON
(Located on overhead console)
Front passenger frontal airbag OFF
(Located on overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline start assist Pre-Collision Braking
System OFF light
Lane Departure Warning
OFF light
Keyless Access with
Push Button Start System
(if equipped)
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Gauges
Fuel gauge Speedometer
Trip meter and odometer
3640014_19b_Crosstrek_QG_072318.indd 117/23/18 3:34 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

12

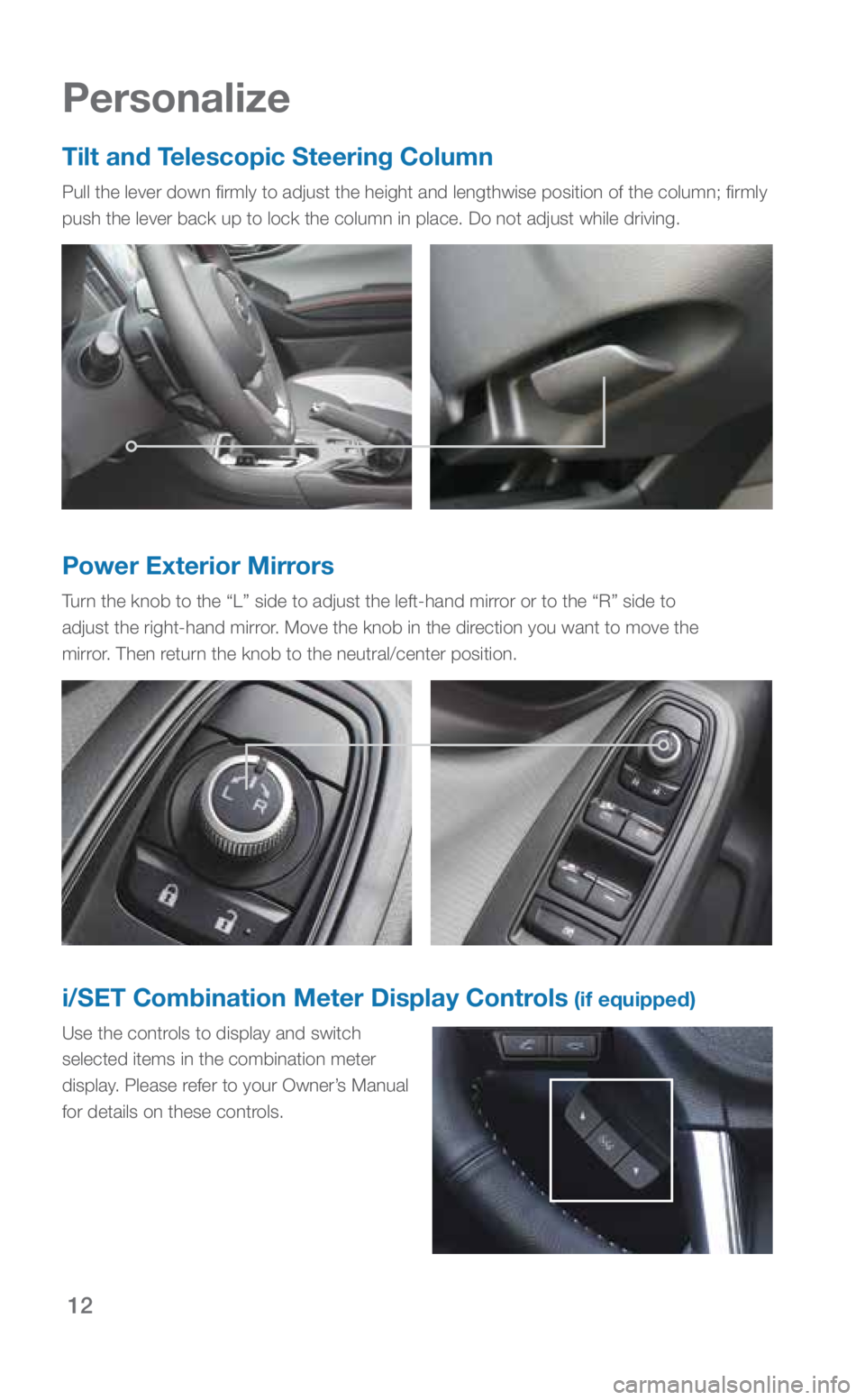

Personalize
Tilt and Telescopic Steering Column
Pull the lever down firmly to adjust the height and lengthwise positio\
n of the column; firmly
push the lever back up to lock the column in place. Do not adjust while \
driving.
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to
adjust the right-hand mirror. Move the knob in the direction you want to move the
mirror. Then return the knob to the neutral/center position.
i/SET Combination Meter Display Controls (if equipped)
Use the controls to display and switch
selected items in the combination meter
display. Please refer to your Owner’s Manual
for details on these controls.
3640014_19b_Crosstrek_QG_072318.indd 127/23/18 3:34 PM

13
Personalize
HomeLink® 5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror provides three buttons to replace up to three
hand-held radio frequency remotes used to activate devices such as garage
door openers, gate openers, entry door locks, security systems and home \
lighting. Please see your Owner’s Manual for programming instructions or visit
www.subaru.com/homelink to view a how-to video.
Power Moonroof (if equipped)
With the moonroof in the fully closed position, press and hold the switch 1 to tilt
the rear of the moonroof up. Press and hold the switch
2 to lower the moonroof.
Press and hold the switch
3 to fully open the moonroof. Press and hold the switch
4 to close the moonroof. To stop the moonroof in a midway position while opening
or closing, momentarily press the switch to side
3 or side 4.
13
24
3640014_19b_Crosstrek_QG_072318.indd 137/23/18 3:34 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

14
Controls

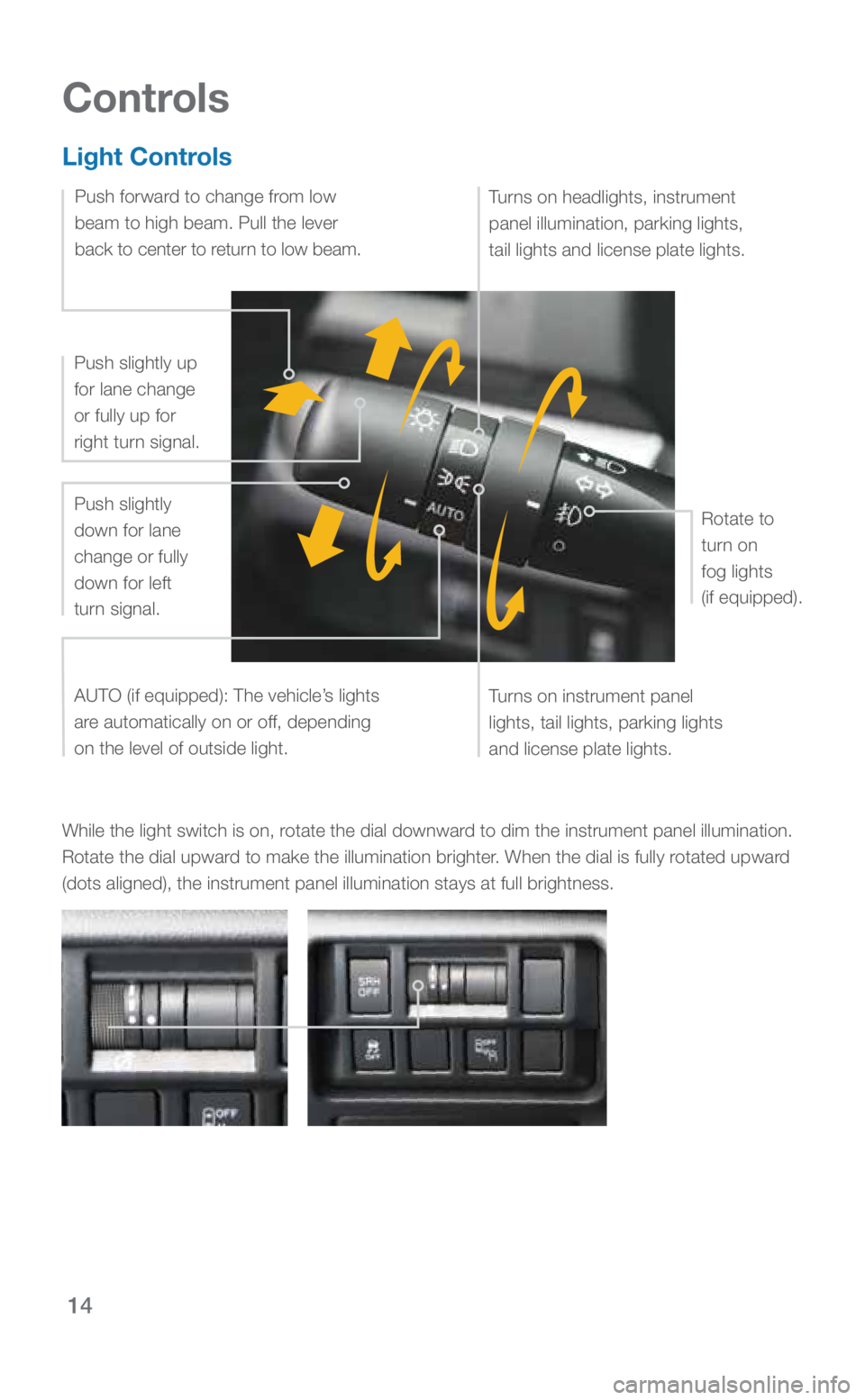

Light Controls
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward
(dots aligned), the instrument panel illumination stays at full bright\
ness.

Turns on instrument panel
lights, tail lights, parking lights
and license plate lights.
Turns on headlights, instrument
panel illumination, parking lights,
tail lights and license plate lights.
Rotate to
turn on
fog lights
(if equipped).
Push slightly up
for lane change
or fully up for
right turn signal.
Push slightly
down for lane
change or fully
down for left
turn signal.
AUTO (if equipped): The vehicle’s lights
are automatically on or off, depending
on the level of outside light.
Push forward to change from low
beam to high beam. Pull the lever
back to center to return to low beam.
3640014_19b_Crosstrek_QG_072318.indd 147/23/18 3:34 PM

15

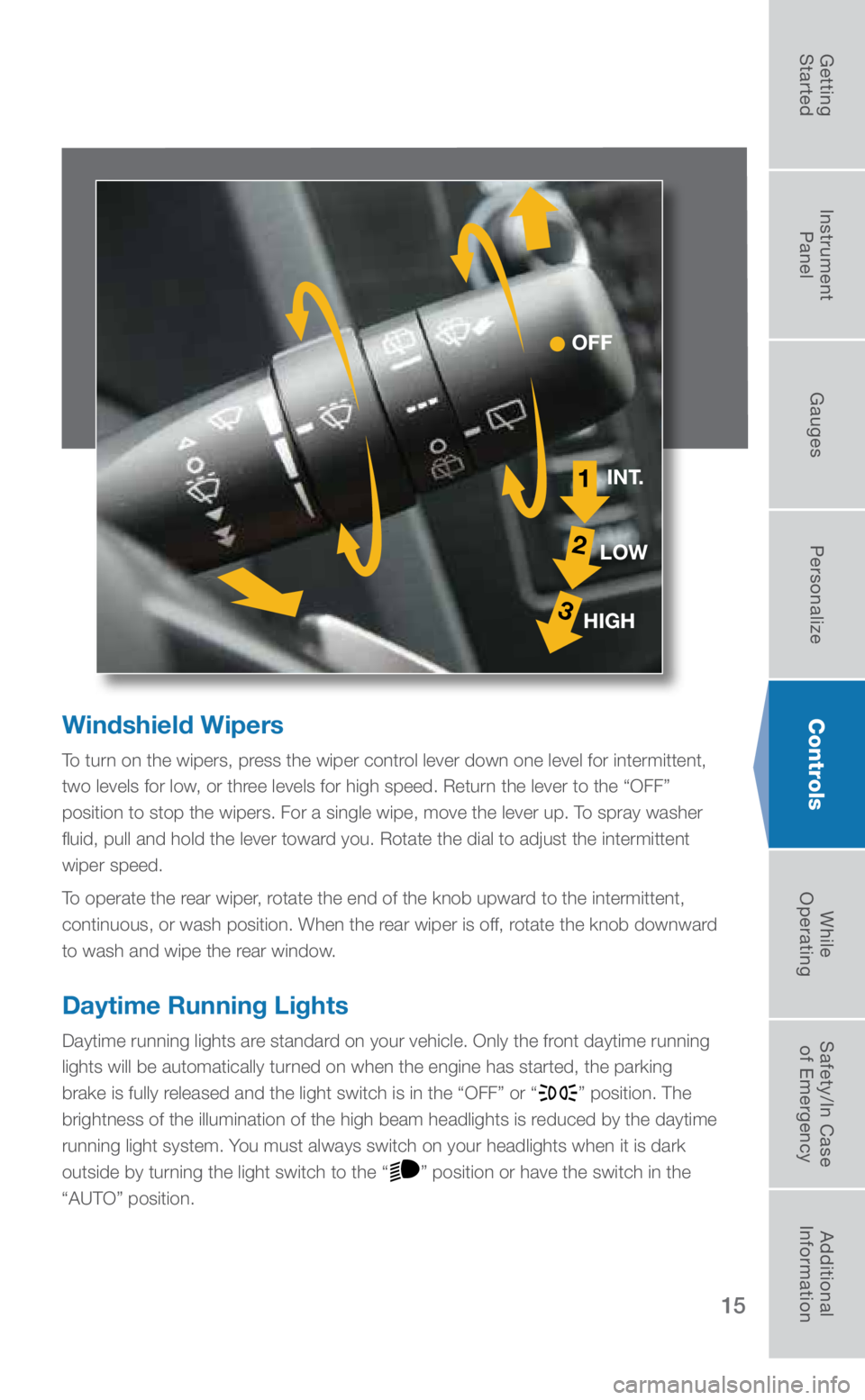

Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
To operate the rear wiper, rotate the end of the knob upward to the intermittent,
continuous, or wash position. When the rear wiper is off, rotate the knob downward
to wash and wipe the rear window.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only the front daytime running
lights will be automatically turned on when the engine has started, the parking
brake is fully released and the light switch is in the “OFF” or “
” position. The
brightness of the illumination of the high beam headlights is reduced by the daytime
running light system. You must always switch on your headlights when it is dark
outside by turning the light switch to the “
” position or have the switch in the
“AUTO” position.
1
2
3
INT.
LOW
HIGH
OFF
Controls
3640014_19b_Crosstrek_QG_072318.indd 157/23/18 3:34 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

16
Controls

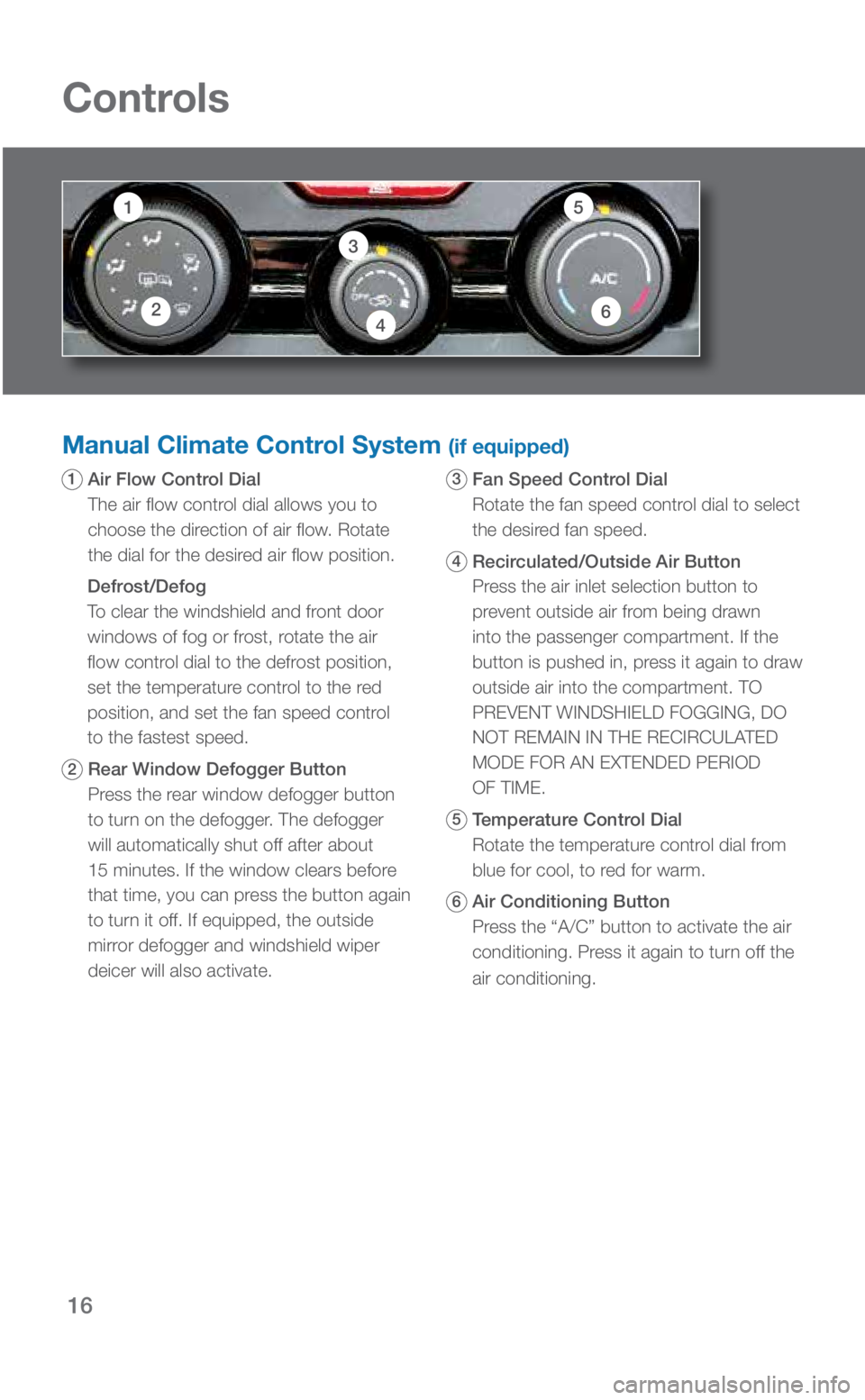

Manual Climate Control System (if equipped)
1 Air Flow Control Dial
The air flow control dial allows you to
choose the direction of air flow. Rotate
the dial for the desired air flow position.

Defrost/Defog
To clear the windshield and front door
windows of fog or frost, rotate the air
flow control dial to the defrost position,
set the temperature control to the red
position, and set the fan speed control
to the fastest speed.
2 Rear Window Defogger Button
Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about
15 minutes. If the window clears before
that time, you can press the button again
to turn it off. If equipped, the outside
mirror defogger and windshield wiper
deicer will also activate.
3 Fan Speed Control Dial
Rotate the fan speed control dial to select
the desired fan speed.
4 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment. If the
button is pushed in, press it again to draw
outside air into the compartment. TO
PREVENT WINDSHIELD FOGGING, DO
NOT REMAIN IN THE RECIRCULATED
MODE FOR AN EXTENDED PERIOD
OF TIME.
5 Temperature Control Dial
Rotate the temperature control dial from
blue for cool, to red for warm.
6 Air Conditioning Button
Press the “A/C” button to activate the air
conditioning. Press it again to turn off the
air conditioning.
3
51
246
3640014_19b_Crosstrek_QG_072318.indd 167/23/18 3:34 PM

17
Controls
Automatic Climate
Control System
(if equipped)
1 Automatic On and Off
This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2 Temperature Control Dial
Rotate the dial clockwise to
increase the temperature or
rotate the dial counterclockwise
to decrease the temperature and
maintain a comfortable climate
within the driver and passenger
compartment. The temperature is
displayed digitally on the screen.
Operation in Manual Mode
3 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN
THE RECIRCULATED MODE FOR
AN EXTENDED PERIOD OF TIME.
4 Fan Speed Control Knob
Rotate the fan speed control knob
to select the desired fan speed.
5 Air Flow Mode Selection Dial
Turn the “MODE” dial to select
the desired air flow mode. The
selected air flow mode – either
ventilation, bi-level, heat or heat-
defrost – is shown on the display.
6 Air Conditioner Button
Press the “A/C” button to activate
the air conditioning. Press it again
to turn off the air conditioning.
7 Defroster Button
Press the button to defrost
or dehumidify the windshield
and front door windows.
8 Rear Window Defogger Button
Press the button to turn on the
defogger. It will automatically shut
off after about 15 minutes. If the
window clears before that time,
you can press the button again to
turn it off. If equipped, the outside
mirror defogger and windshield
wiper deicer will also activate.
9 Maximum Air Conditioner Button
For quicker cooling, press
the “MAX A/C” button.
Located in the multi-function
display; top center of dash
1
3
4
582
796
3640014_19b_Crosstrek_QG_072318.indd 177/23/18 3:35 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

18
Controls
Steering Wheel Audio Controls (if equipped)
Voice recognition switch;
please refer to your SUBARU
STARLINK
™ Owner’s Manual.
Press the button to select the
desired audio mode – FM, AM,
SXM, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to toggle
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
USB Port
The USB port is located in the front of the center console.
You can connect a portable music player to the USB
port and hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located on the
audio system repeatedly until the USB mode is selected.
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located on
the audio system to select the auxiliary mode.
