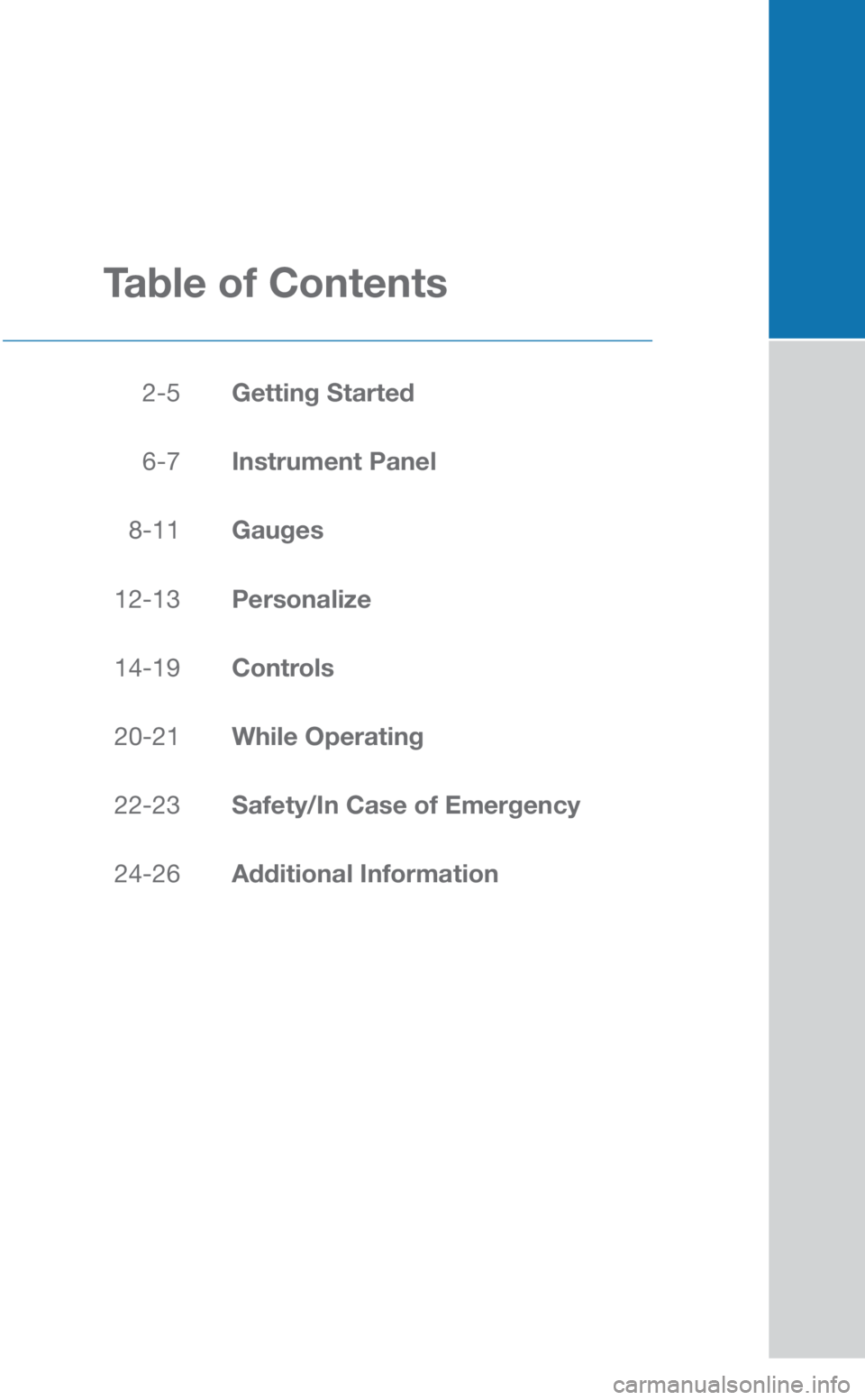

2-5 Getting Started

6-7 Instrument Panel

8-11 Gauges

12-13 Personalize

14-19 Controls

20-21 While Operating

22-23 Safety/In Case of Emergency

24-26 Additional Information
Table of Contents
3640014_19b_Crosstrek_QG_072318.indd 57/23/18 3:33 PM

2

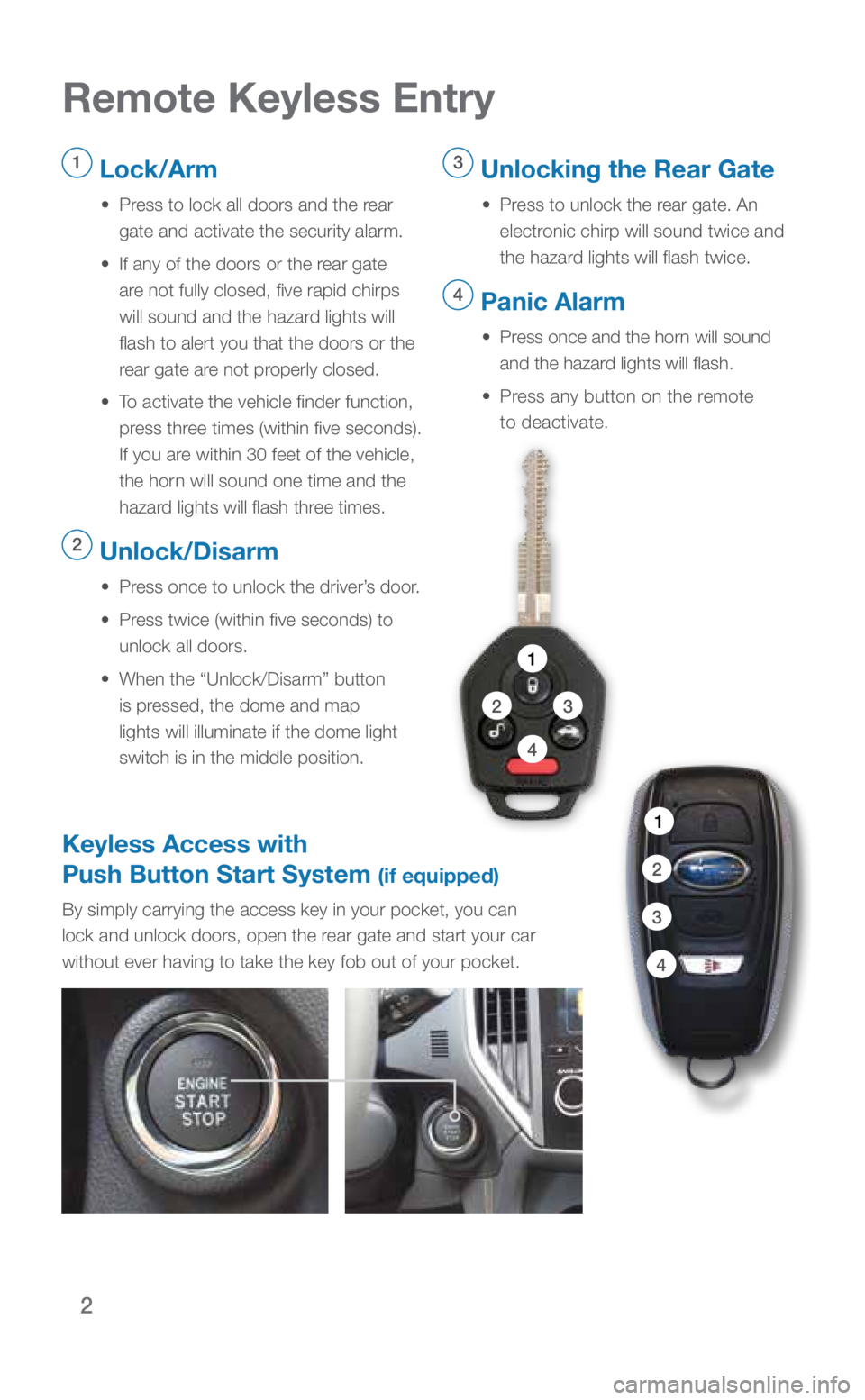

Remote Keyless Entry
1 Lock/Arm
• Press to lock all doors and the rear
gate and activate the security alarm.
• If any of the doors or the rear gate
are not fully closed, five rapid chirps
will sound and the hazard lights will
flash to alert you that the doors or the
rear gate are not properly closed.
• To activate the vehicle finder function,
press three times (within five seconds).
If you are within 30 feet of the vehicle,
the horn will sound one time and the
hazard lights will flash three times.
2 Unlock/Disarm
• Press once to unlock the driver’s door.
• Press twice (within five seconds) to
unlock all doors.
• When the “Unlock/Disarm” button
is pressed, the dome and map
lights will illuminate if the dome light
switch is in the middle position.
3 Unlocking the Rear Gate
• Press to unlock the rear gate. An
electronic chirp will sound twice and
the hazard lights will flash twice.
4 Panic Alarm
• Press once and the horn will sound
and the hazard lights will flash.
• Press any button on the remote
to deactivate.
1
23
4
Keyless Access with
Push Button Start System
(if equipped)
By simply carrying the access key in your pocket, you can
lock and unlock doors, open the rear gate and start your car
without ever having to take the key fob out of your pocket.
1
2
3
4
3640014_19b_Crosstrek_QG_072318.indd 27/23/18 3:33 PM

3
Getting
Started
Seat Controls
Do not adjust the seat while driving.
1 Forward/Backward
Pull up on the lever below the
front of the driver’s seat to move
the seat forward or backward.
2 Raise/Lower Seat Cushion
To adjust the height of the
driver’s seat, pull up or push down the seat height adjustment
lever, located on the lower left side front of the seat.
3 Recline Seatback
To adjust the seatback to the desired position, pull up on the recline lever,
located on the lower left rear of the driver’s seat or lower right rear of the
passenger’s seat.
1
23
Seating
3640014_19b_Crosstrek_QG_072318.indd 37/23/18 3:33 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

4

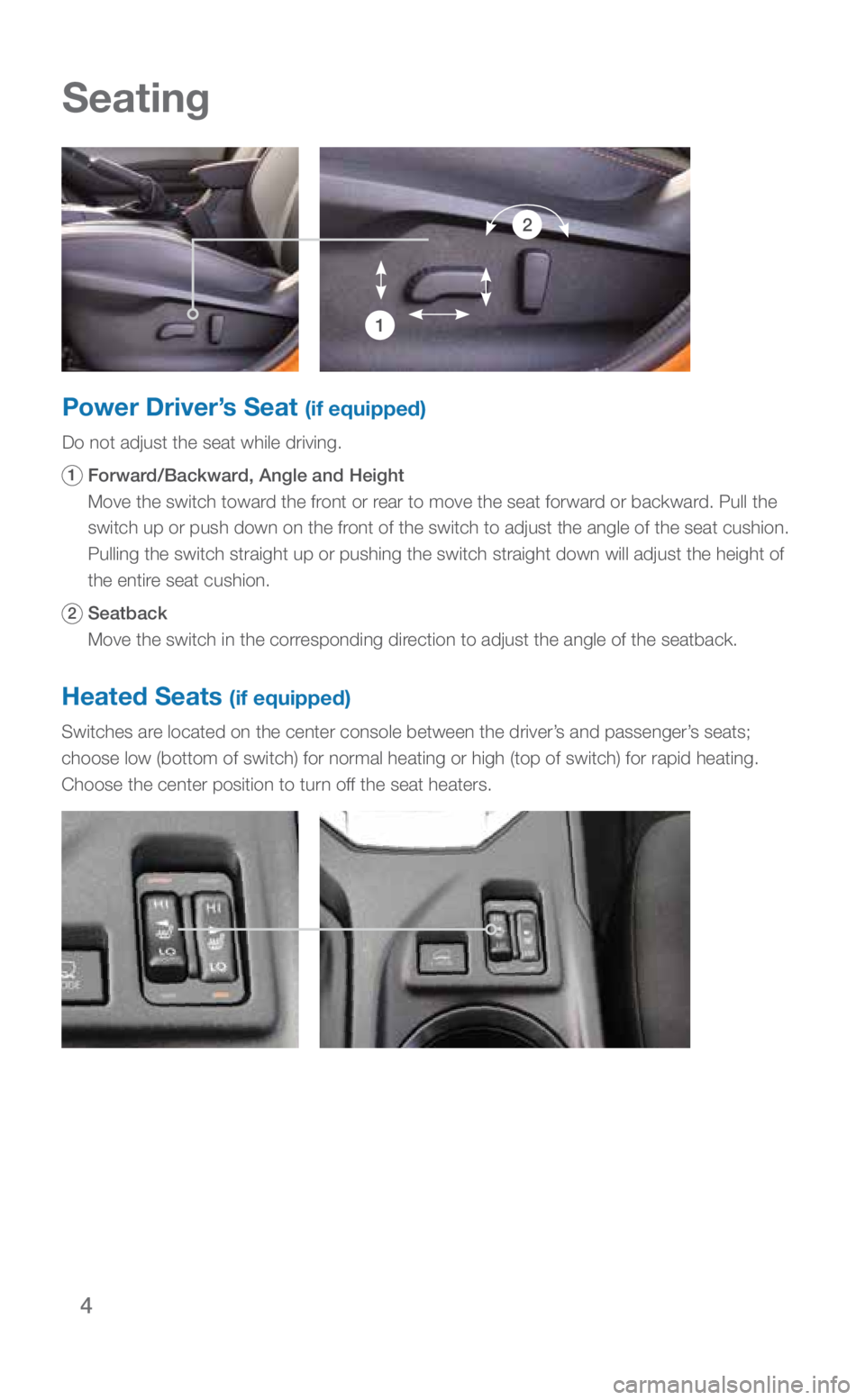

Power Driver’s Seat (if equipped)
Do not adjust the seat while driving.
1 Forward/Backward, Angle and Height
Move the switch toward the front or rear to move the seat forward or backward. Pull the
switch up or push down on the front of the switch to adjust the angle of the seat cushion.
Pulling the switch straight up or pushing the switch straight down will \
adjust the height of
the entire seat cushion.
2 Seatback
Move the switch in the corresponding direction to adjust the angle of the seatback.
1
2
Heated Seats (if equipped)
Switches are located on the center console between the driver’s and passenger’s seats;
choose low (bottom of switch) for normal heating or high (top of swit\
ch) for rapid heating.
Choose the center position to turn off the seat heaters.
Seating
3640014_19b_Crosstrek_QG_072318.indd 47/23/18 3:33 PM

5
Getting
Started
Folding the Rear Seat
Lower the headrests. Pull up on the release
knob on the seat side that you want to fold
down. To return the seatback to its original
position, raise the seatback until it locks into
place, making sure that it is securely locked.
3640014_19b_Crosstrek_QG_072318.indd 57/23/18 3:33 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

6

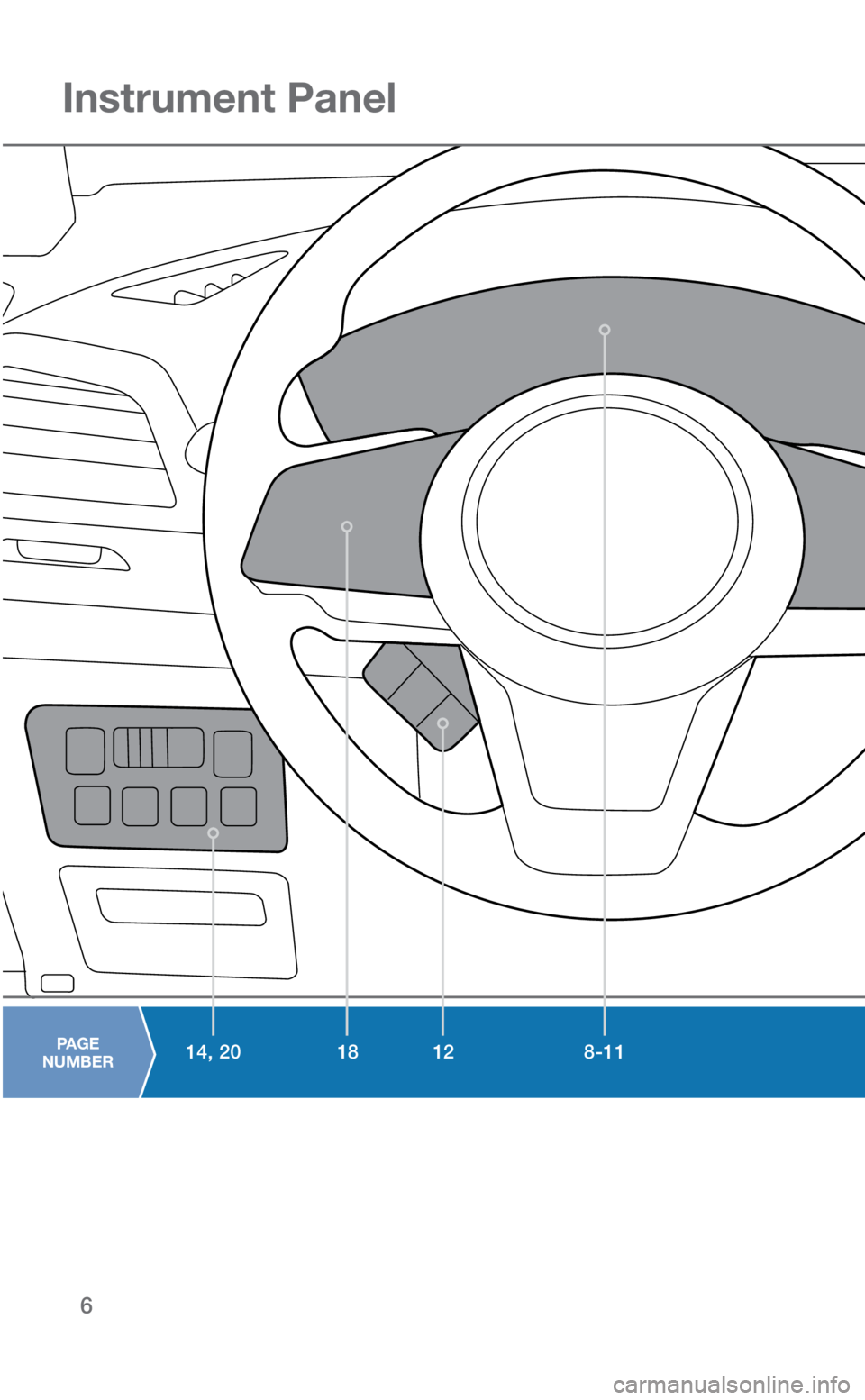

Instrument Panel
8-11
18 12
14, 20PAGE
NUMBER
3640014_19b_Crosstrek_QG_072318.indd 67/23/18 3:33 PM

7

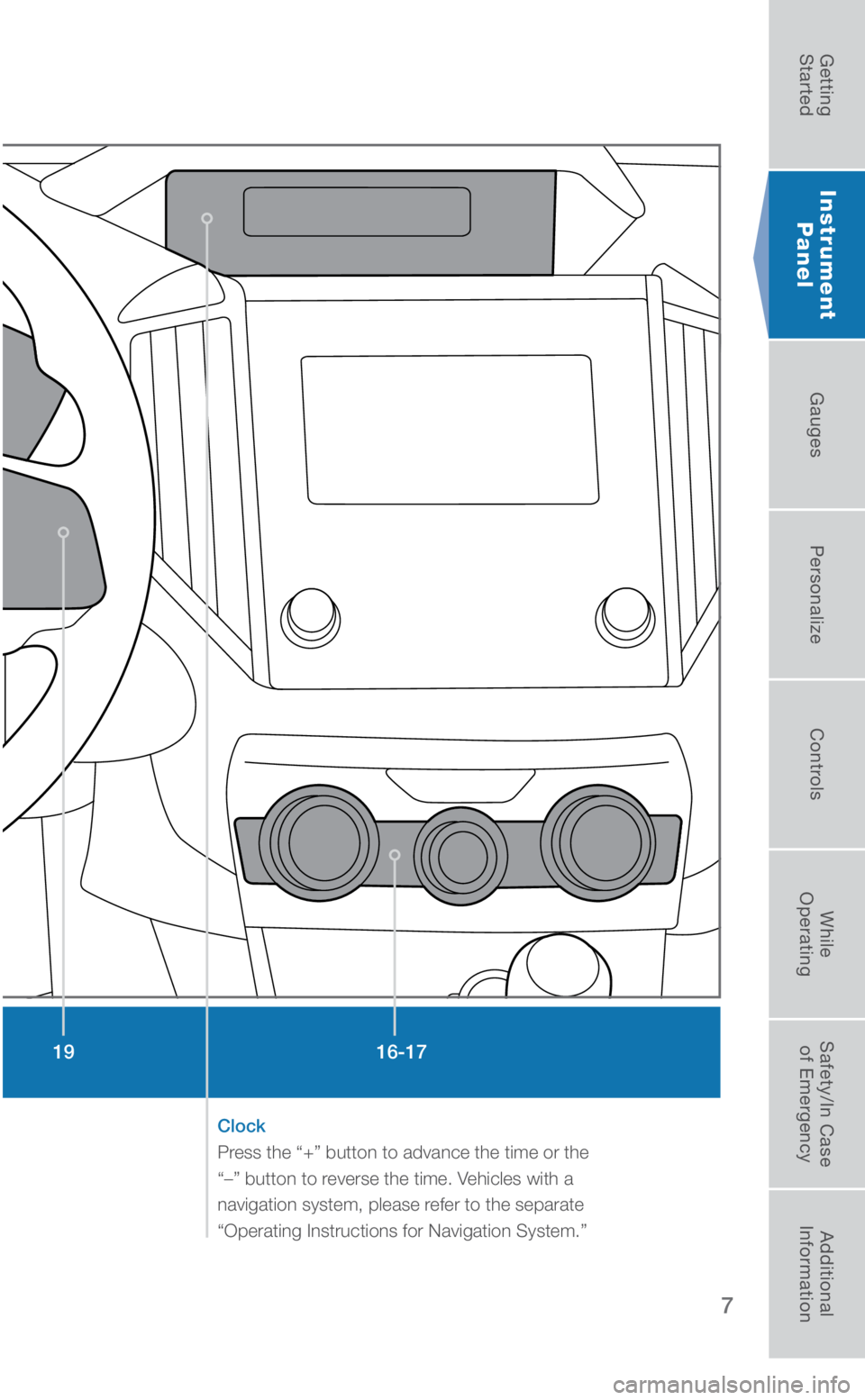

Instrument Panel
Instrument
Panel
16-17
19
Clock
Press the “+” button to advance the time or the
“–” button to reverse the time. Vehicles with a
navigation system, please refer to the separate
“Operating Instructions for Navigation System.”
3640014_19b_Crosstrek_QG_072318.indd 77/23/18 3:33 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

8
Seatbelt warning
Front passenger
seatbelt warning
(Located on overhead console)
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning Brake system
Hot coolant temperature/
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Vehicle Dynamics Control/
Vehicle Dynamics
Control operation
Immediate Attention

Caution
Informational
Gauges - Vehicles without EyeSight
Tachometer Select lever/Gear position indicator
