buttons SUBARU CROSSTREK 2019 Quick Guide

13
Personalize

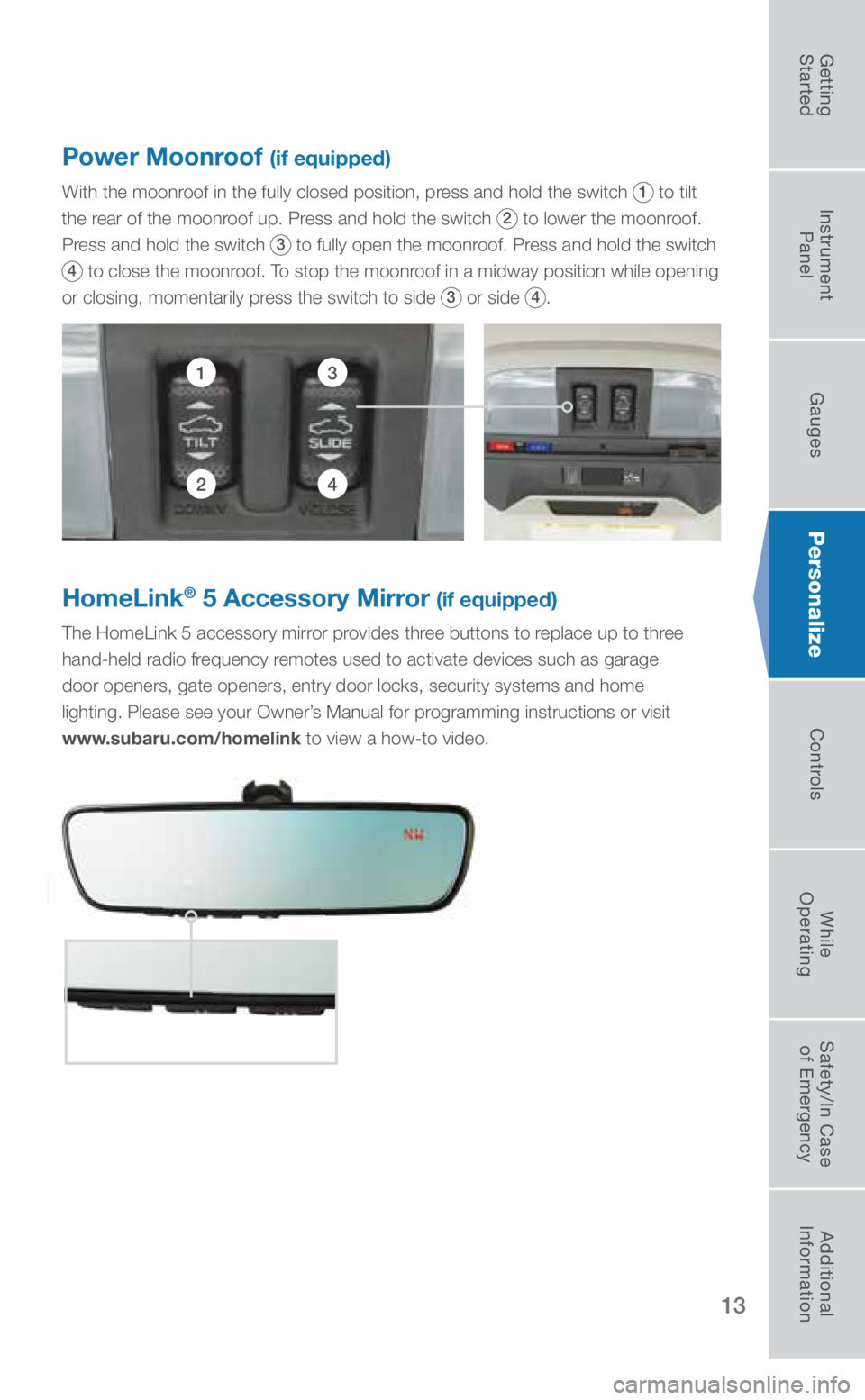

HomeLink® 5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror provides three buttons to replace up to three
hand-held radio frequency remotes used to activate devices such as garage
door openers, gate openers, entry door locks, security systems and home \
lighting. Please see your Owner’s Manual for programming instructions or visit
www.subaru.com/homelink to view a how-to video.
Power Moonroof (if equipped)
With the moonroof in the fully closed position, press and hold the switch 1 to tilt
the rear of the moonroof up. Press and hold the switch
2 to lower the moonroof.
Press and hold the switch
3 to fully open the moonroof. Press and hold the switch
4 to close the moonroof. To stop the moonroof in a midway position while opening
or closing, momentarily press the switch to side
3 or side 4.
13
24
3640014_19b_Crosstrek_QG_072318.indd 137/23/18 3:34 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

18

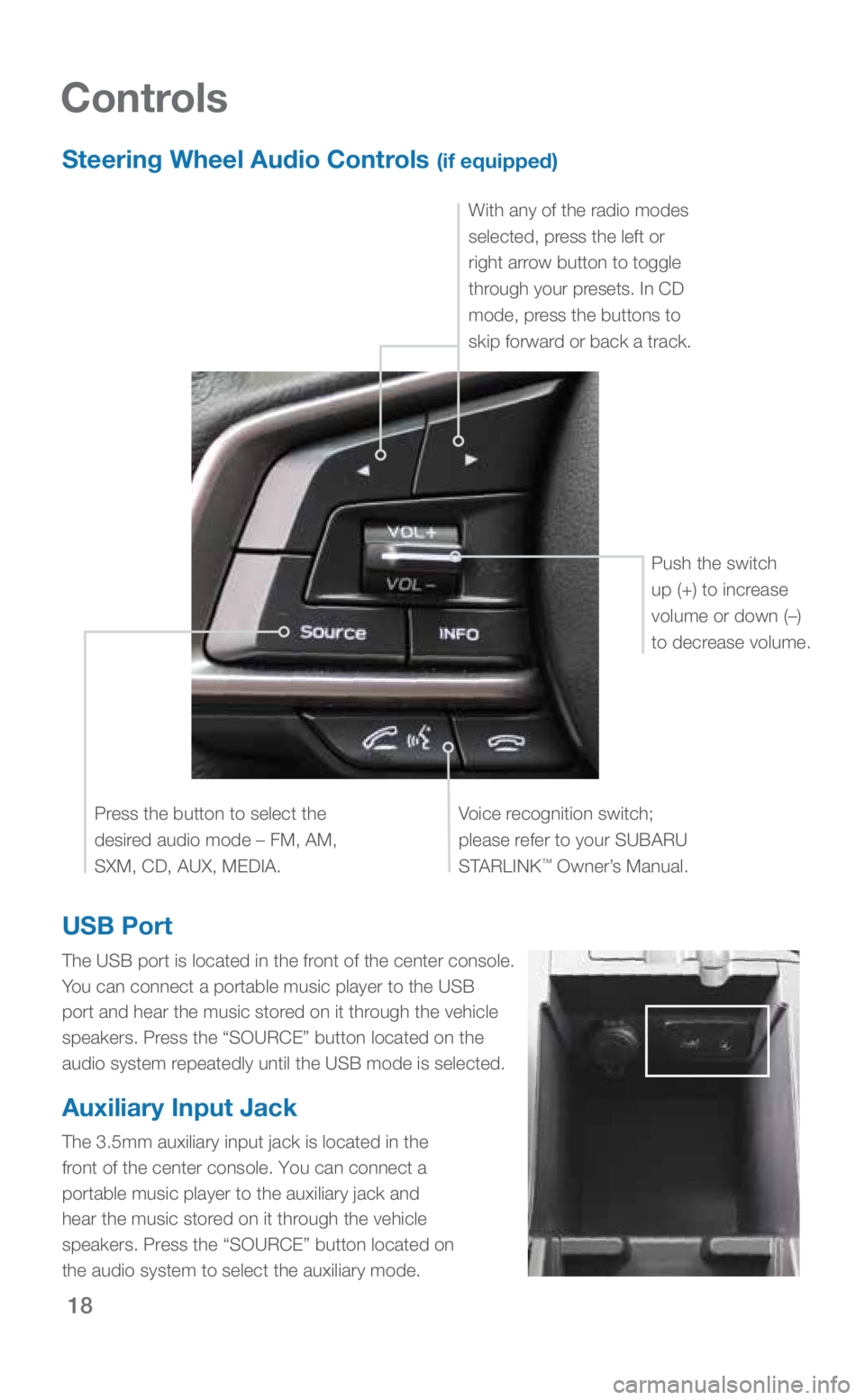

Controls
Steering Wheel Audio Controls (if equipped)
Voice recognition switch;
please refer to your SUBARU
STARLINK
™ Owner’s Manual.
Press the button to select the
desired audio mode – FM, AM,
SXM, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to toggle
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
USB Port
The USB port is located in the front of the center console.
You can connect a portable music player to the USB
port and hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located on the
audio system repeatedly until the USB mode is selected.
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located on
the audio system to select the auxiliary mode.
