ECO mode SUBARU CROSSTREK 2021 Getting Started Guide

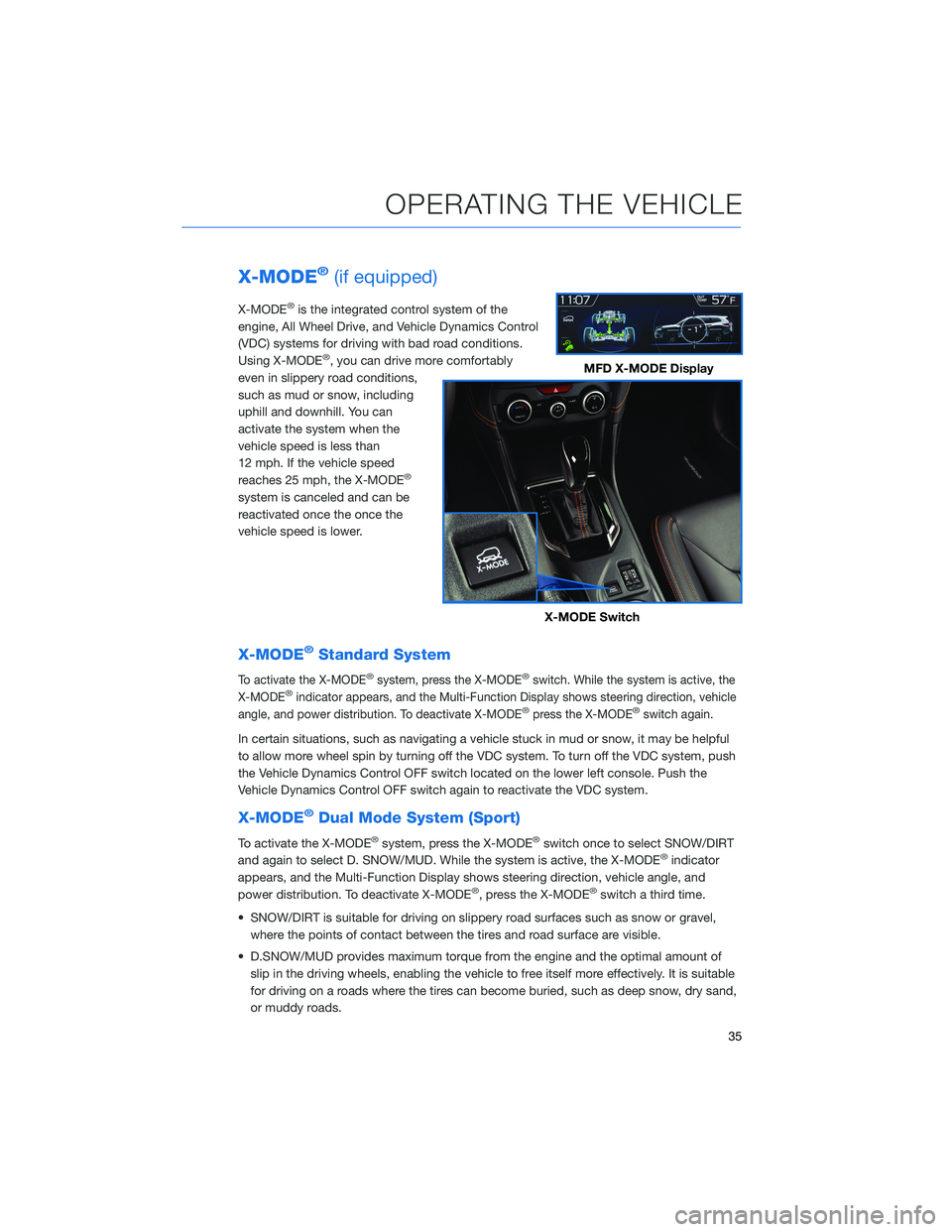

X-MODE®(if equipped)
X-MODE®is the integrated control system of the
engine, All Wheel Drive, and Vehicle Dynamics Control
(VDC) systems for driving with bad road conditions.
Using X-MODE
®, you can drive more comfortably
even in slippery road conditions,
such as mud or snow, including
uphill and downhill. You can
activate the system when the
vehicle speed is less than
12 mph. If the vehicle speed
reaches 25 mph, the X-MODE
®
system is canceled and can be
reactivated once the once the
vehicle speed is lower.
X-MODE®Standard System
To activate the X-MODE®system, press the X-MODE®switch. While the system is active, the
X-MODE®indicator appears, and the Multi-Function Display shows steering direction, vehicle
angle, and power distribution. To deactivate X-MODE®press the X-MODE®switch again.
In certain situations, such as navigating a vehicle stuck in mud or snow, it may be helpful
to allow more wheel spin by turning off the VDC system. To turn off the VDC system, push
the Vehicle Dynamics Control OFF switch located on the lower left console. Push the
Vehicle Dynamics Control OFF switch again to reactivate the VDC system.
X-MODE®Dual Mode System (Sport)
To activate the X-MODE®system, press the X-MODE®switch once to select SNOW/DIRT
and again to select D. SNOW/MUD. While the system is active, the X-MODE®indicator
appears, and the Multi-Function Display shows steering direction, vehicle angle, and
power distribution. To deactivate X-MODE
®, press the X-MODE®switch a third time.
• SNOW/DIRT is suitable for driving on slippery road surfaces such as snow or gravel,
where the points of contact between the tires and road surface are visible.
• D.SNOW/MUD provides maximum torque from the engine and the optimal amount of
slip in the driving wheels, enabling the vehicle to free itself more effectively. It is suitable
for driving on a roads where the tires can become buried, such as deep snow, dry sand,
or muddy roads.
MFD X-MODE Display
X-MODE Switch
OPERATING THE VEHICLE
35

Hill Descent Control (HDC)
This function helps maintain a constant vehicle speed when driving down steep hills or
declines. HDC is automatically engaged with X-MODE®and functions with the select lever
in the “D” or “R” position.
TURNING OFF THE VEHICLE
Without Push-button Ignition
To stop the engine:
1. Stop your Subaru completely.
2. Move the select lever to the “P” position or set the parking brake for manual
transmission vehicles.
3. Turn the ignition switch to “OFF”.
NOTE: The front windows will remain active for about 40 seconds and the SUBARU
STARLINK
®Multimedia System will remain on for about three minutes or until a door is
opened, whichever occurs first.
With Push-button Ignition
To stop the engine:
1. Stop your Subaru completely.
2. Move the select lever to the “P” position or set the parking brake for manual
transmission vehicles.
3. Press the ignition switch.
NOTE: The front windows will remain active for about 40 seconds and the SUBARU
STARLINK
®Multimedia System will remain on for about three minutes or until a door is
opened, whichever occurs first.
OPERATING THE VEHICLE
36

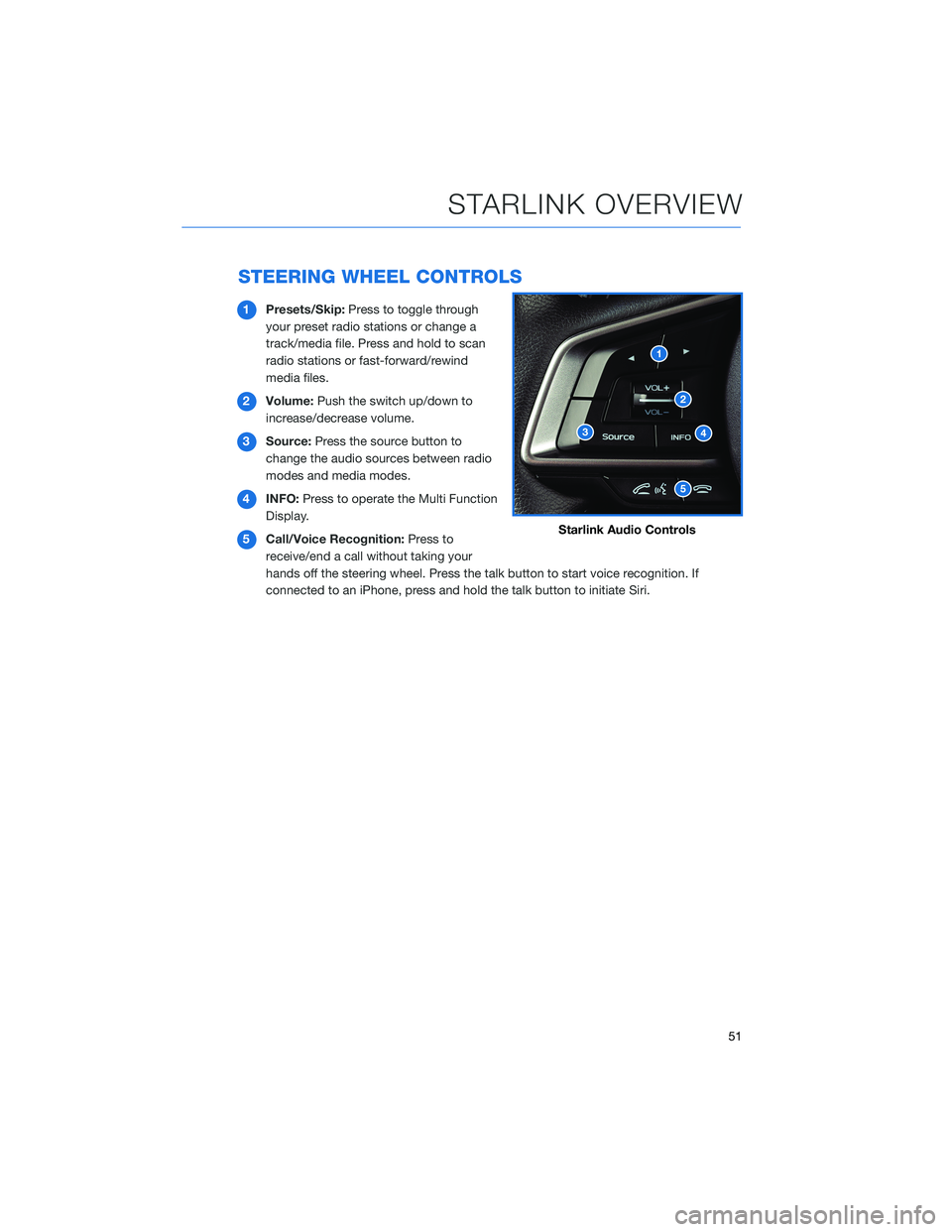

STEERING WHEEL CONTROLS
1Presets/Skip:Press to toggle through
your preset radio stations or change a
track/media file. Press and hold to scan
radio stations or fast-forward/rewind
media files.
2Volume:Push the switch up/down to
increase/decrease volume.
3Source:Press the source button to
change the audio sources between radio
modes and media modes.
4INFO:Press to operate the Multi Function
Display.
5Call/Voice Recognition:Press to
receive/end a call without taking your
hands off the steering wheel. Press the talk button to start voice recognition. If
connected to an iPhone, press and hold the talk button to initiate Siri.
Starlink Audio Controls
STARLINK OVERVIEW
51

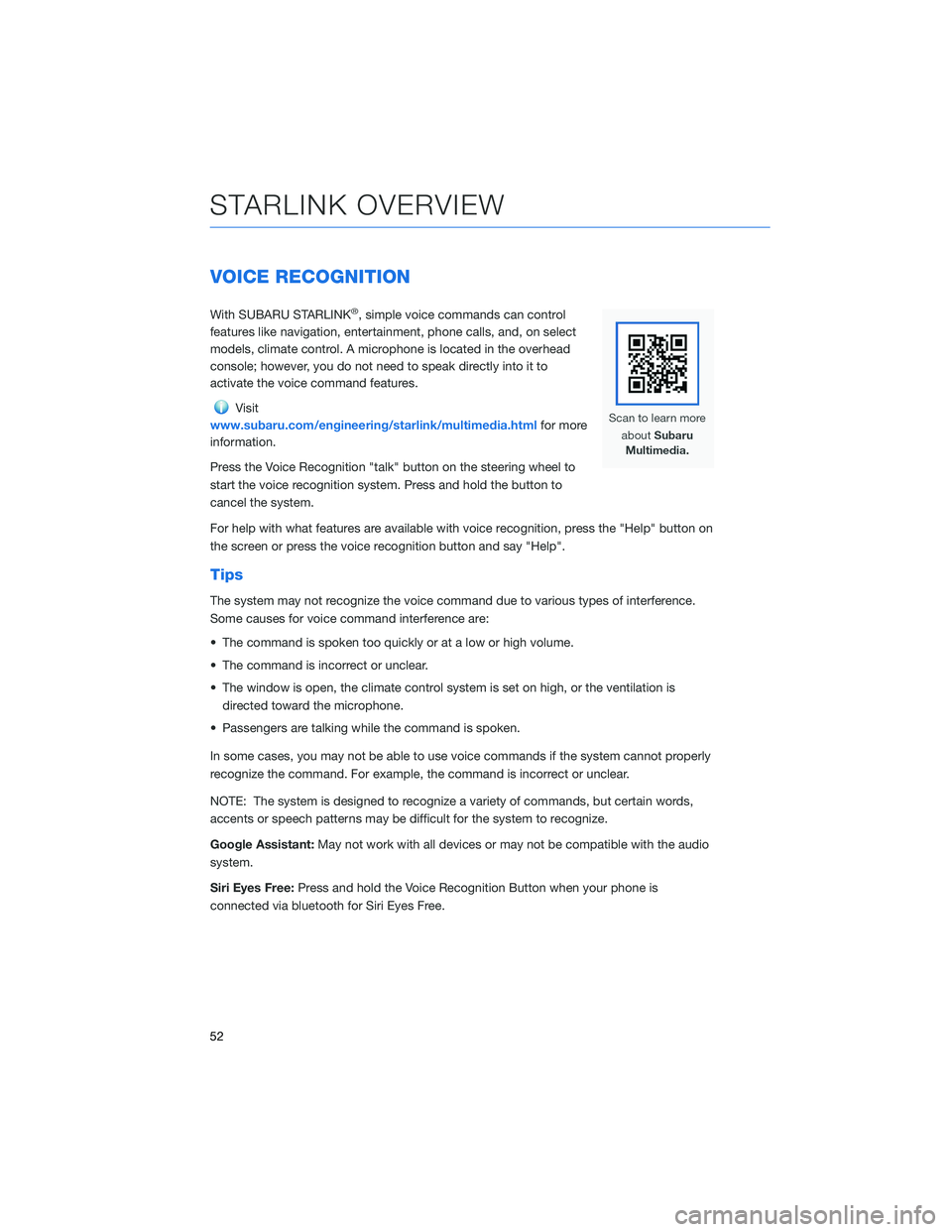

VOICE RECOGNITION
With SUBARU STARLINK®, simple voice commands can control
features like navigation, entertainment, phone calls, and, on select
models, climate control. A microphone is located in the overhead
console; however, you do not need to speak directly into it to
activate the voice command features.
Visit
www.subaru.com/engineering/starlink/multimedia.htmlfor more
information.
Press the Voice Recognition "talk" button on the steering wheel to
start the voice recognition system. Press and hold the button to
cancel the system.
For help with what features are available with voice recognition, press the "Help" button on
the screen or press the voice recognition button and say "Help".
Tips
The system may not recognize the voice command due to various types of interference.
Some causes for voice command interference are:
• The command is spoken too quickly or at a low or high volume.
• The command is incorrect or unclear.
• The window is open, the climate control system is set on high, or the ventilation is
directed toward the microphone.
• Passengers are talking while the command is spoken.
In some cases, you may not be able to use voice commands if the system cannot properly
recognize the command. For example, the command is incorrect or unclear.
NOTE: The system is designed to recognize a variety of commands, but certain words,
accents or speech patterns may be difficult for the system to recognize.
Google Assistant:May not work with all devices or may not be compatible with the audio
system.
Siri Eyes Free:Press and hold the Voice Recognition Button when your phone is
connected via bluetooth for Siri Eyes Free.
STARLINK OVERVIEW
52

TOUCHSCREEN . . . . . . ........50
TOWING YOUR ALL-WHEEL DRIVE
SUBARU..................6
TRAILER TOWING CAPACITY......45
TURNING OFF THE VEHICLE
Without Push-button Ignition.....36
With Push-button Ignition.......36
TURN SIGNALS . . . . . .........25
V
VOICE RECOGNITION
Common Commands . . ........52
Tips....................52
W
WARNING AND INDICATOR LIGHTS . . 29
WELCOME . . . . . . . . . .........4
WI-FI
Connecting to a Wi-Fi Network . . . 106
Wi-Fi Hotspot Subscription.....108
WINDSHIELD GLASS AND
DASHBOARD . . . . ..........90
WINDSHIELD WIPERS . . . . . .....25
X
X-MODE
®
Hill Descent Control (HDC).......35
X-MODE®Dual Mode System
(Sport) . . . . . . . . . . . .......35
X-MODE
®Standard System . . . . . . 35
INDEX
120
