Appearance care10-7
–
CONTINUED –
b rushing away loose d irt. Allow the soap to soak in
for a few minutes
and wip e off with a c lean, d amp c loth. Commerc ial f oam-typ e c lean-
ers suitab le for synthetic leather materials may b e used when nec es-
sary. NOTE Strong cleaning agents such as solvents, paint thinners, window
cleaner or gasoline must never be used on leather or syntheticinterior materials.

11
Maintenance and service
Maintenance schedule11-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance precautions 11-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine hood 11-6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine compartment overview 11-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil 11-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling system 11-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant 11-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air cleaner element 11-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark plugs 11-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive belts 11-20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission oil 11-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission fluid 11-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front differential gear oil (Automatic transmission vehicles) 11-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear differential gear oil 11-25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering fluid 11-27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake fluid 11-28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch fluid 11-30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake booster 11-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery 11-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield washer fluid 11-33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacement of windshield wiper blades 11-34 . . . . . . . . . . . . . . . . . . . . . . . .
Brake pedal 11-37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch pedal (Manual transmission vehicles) 11-38 . . . . . . . . . . . . . . . . . . .
Replacement of brake pad and lining 11-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake stroke 11-40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires and wheels 11-41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire pressure 11-41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire rotation 11-42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheels (If equipped) 11-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses 11-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main fuse and fusible link 11-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation of accessories 11-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing bulbs 11-48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11-2Headlight
11-49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fog light (if equipped) 11-50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front turn signal, parking light and front side marker light 11-51 . . . . .
Rear combination lights 11-52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
License plate light 11-53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light and luggage compartment light 11-54 . . . . . . . . . . . . . . . . . . . . . .
Spot light 11-55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High mount stop light 11-55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance and service11-3
–
CONTINUED –
Maintenance schedule
The sc hed uled maintenanc e items req uired to b e serv
ic ed at reg ular in-
tervals are shown in the “Warranty and Maintenanc e Booklet ”.
For d etails of your maintenanc e sc hed ule, read the sep arate “Warranty
and Maintenanc e Booklet ”.
Maintenance precautions
When maintenanc e and servic e are req uired , it is re c ommend ed that all
work b e d one b y an authorized SUBARU d ealer.
If you p erform maintenanc e and servic e b y yourself, you should familiar-
ize yourself with the information p rovid ed in this sec tion on g eneral main-
tenanc e and servic e for your SUBARU.
Inc orrec t or inc omp lete servic e c ould c ause imp rop e r or unsafe vehic le
op eration. Any p rob lems c aused b y imp rop er maintena nc e and servic e
p erformed b y you are not elig ib le for warranty c ove rag e.

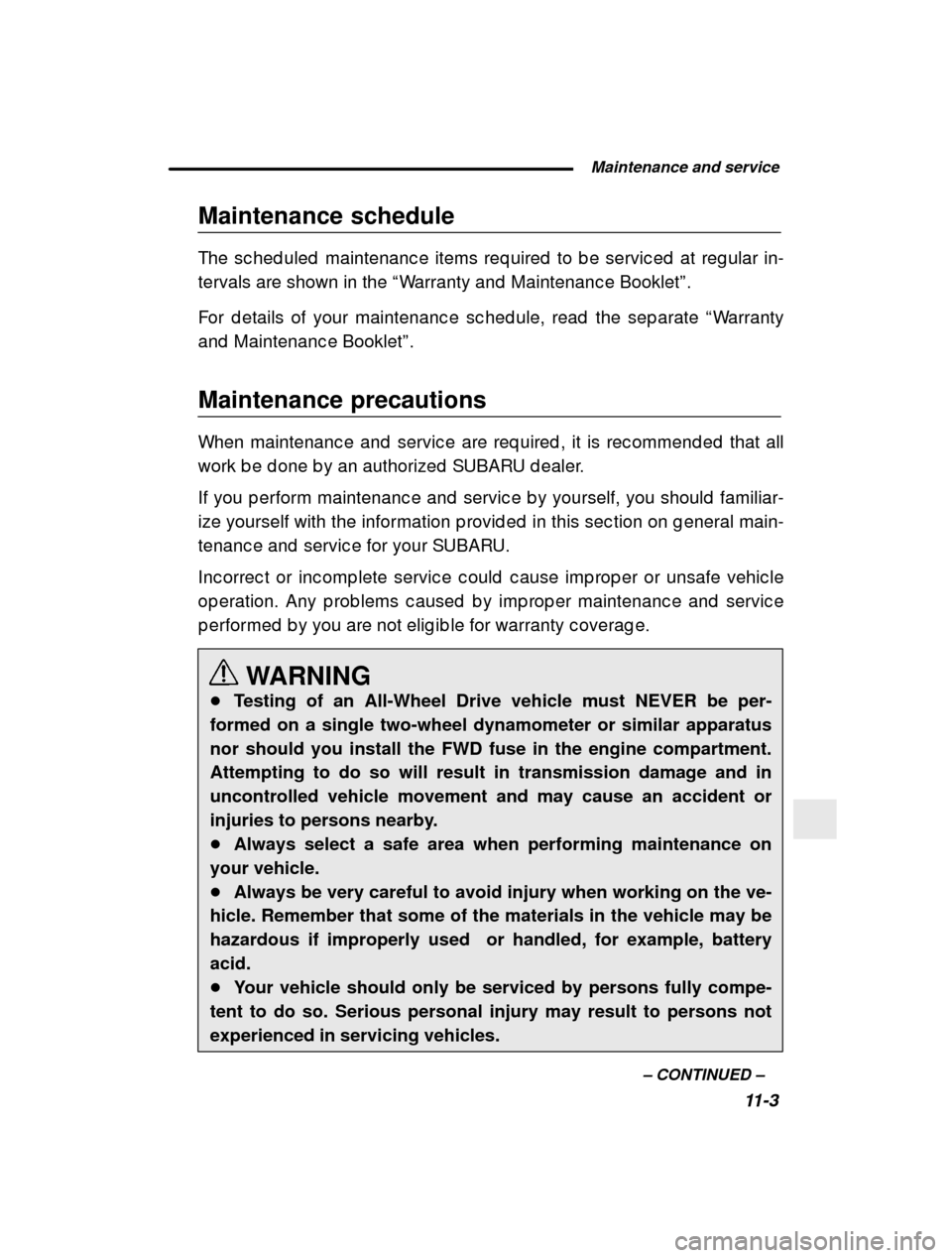

WARNING
Testing of an All-Wheel Drive vehicle must NEVER be per-
formed on a single two-wheel dynamometer or similar apparatus nor should you install the FWD fuse in the engine compartment.Attempting to do so will result in transmission damage and inuncontrolled vehicle movement and may cause an accident or
injuries to persons nearby. Always select a safe area when performing maintenance on
your vehicle. Always be very careful to avoid injury when working on the ve-
hicle. Remember that some of the materials in the vehicle may behazardous if improperly used or handled, for example, batteryacid. Your vehicle should only be serviced by persons fully compe-
tent to do so. Serious personal injury may result to persons not
experienced in servicing vehicles.

11-4

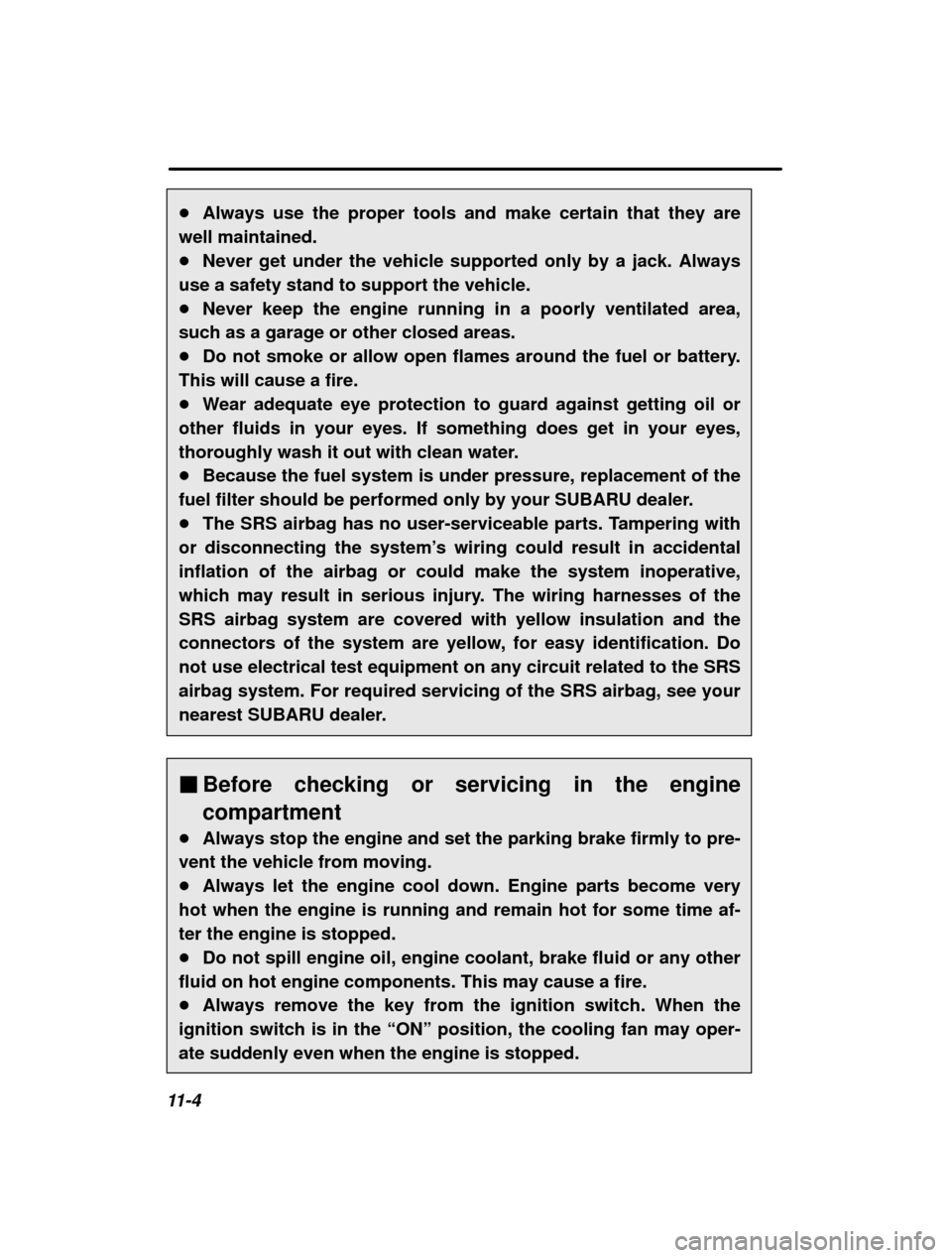

Always use the proper tools and make certain that they are
well maintained. Never get under the vehicle supported only by a jack. Always
use a safety stand to support the vehicle. Never keep the engine running in a poorly ventilated area,
such as a garage or other closed areas. Do not smoke or allow open flames around the fuel or battery.
This will cause a fire. Wear adequate eye protection to guard against getting oil or
other fluids in your eyes. If something does get in your eyes,
thoroughly wash it out with clean water. Because the fuel system is under pressure, replacement of the
fuel filter should be performed only by your SUBARU dealer. The SRS airbag has no user-serviceable parts. Tampering with
or disconnecting the system ’s wiring could result in accidental
inflation of the airbag or could make the system inoperative,
which may result in serious injury. The wiring harnesses of theSRS airbag system are covered with yellow insulation and the
connectors of the system are yellow, for easy identification. Donot use electrical test equipment on any circuit related to the SRSairbag system. For required servicing of the SRS airbag, see your
nearest SUBARU dealer. Before checking or servicing in the engine compartment
Always stop the engine and set the parking brake firmly to pre-
vent the vehicle from moving. Always let the engine cool down. Engine parts become very
hot when the engine is running and remain hot for some time af-ter the engine is stopped. Do not spill engine oil, engine coolant, brake fluid or any other
fluid on hot engine components. This may cause a fire. Always remove the key from the ignition switch. When the
ignition switch is in the “ON” position, the cooling fan may oper-
ate suddenly even when the engine is stopped.

Maintenance and service11-5
–
CONTINUED –

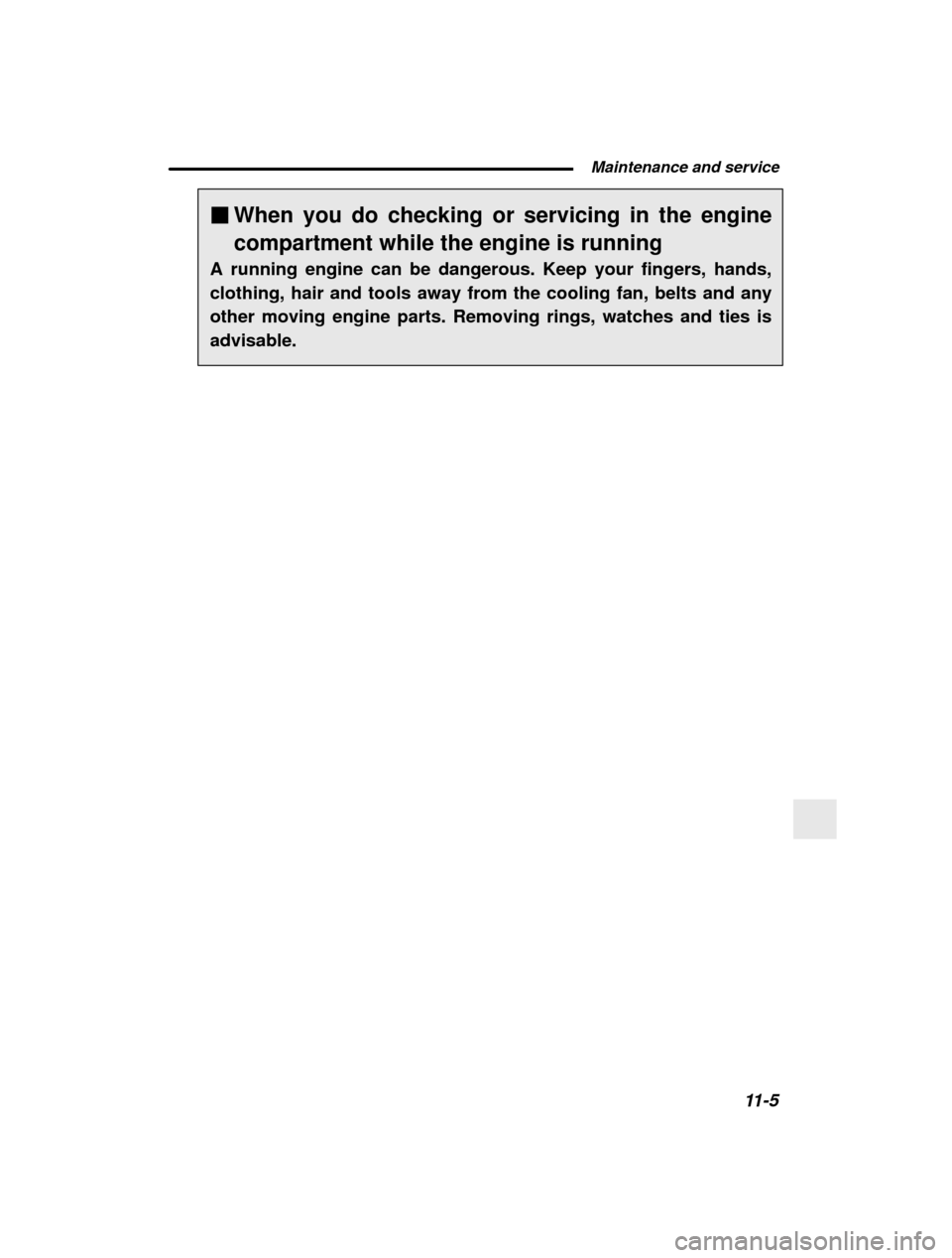

When you do checking or servicing in the engine
compartment while the engine is running
A running engine can be dangerous. Keep your fingers, hands, clothing, hair and tools away from the cooling fan, belts and anyother moving engine parts. Removing rings, watches and ties isadvisable.

11-6Engine hood

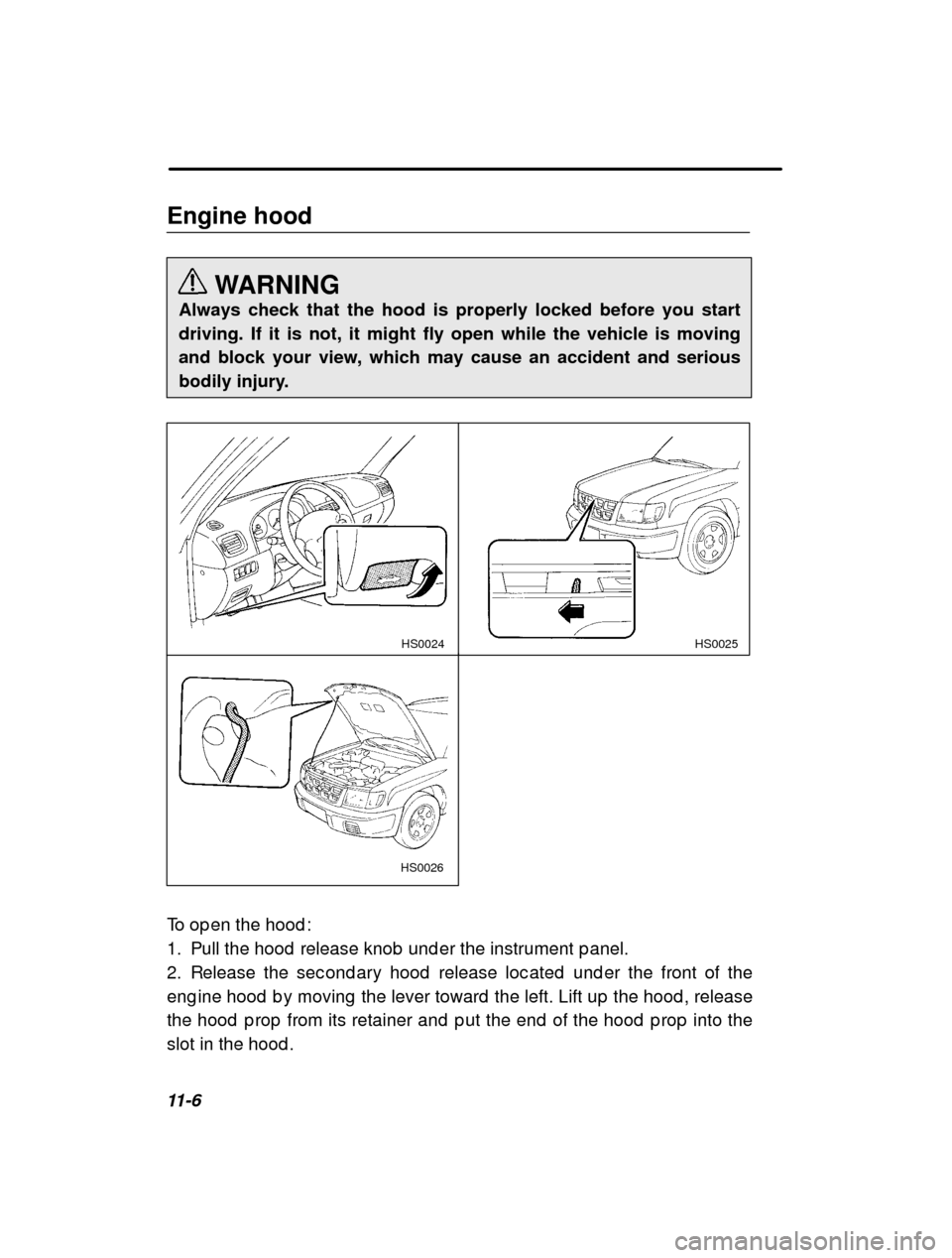

WARNING
Always check that the hood is properly locked before you start
driving. If it is not, it might fly open while the vehicle is moving
and block your view, which may cause an accident and serious
bodily injury.
HS0025
HS0026 HS0024
To op en the hood :
1. Pull the hood release knob und er the instrument p
anel.
2. Release the sec ond ary hood release loc ated und er the front of the
eng ine hood b y moving the lever toward the left. Li ft up the hood , release
the hood p rop from its retainer and p ut the end of the hood p rop into the
slot in the hood .

Maintenance and service11-7
–
CONTINUED –
To c lose the hood :
1. Lift the hood slig htly and remove the hood p rop f
rom the slot in the
hood and return the p rop to its retainer.
2. Lower the hood until it ap p roac hes ab out 6 in. (1 5 c m) from the
c losed p osition and let it d rop .
3. After c losing the hood , b e sure the hood is sec ur ely loc ked .
If this d oes not c lose the hood , release it from a slig htly hig her p osition.
Do not p ush the hood forc ib ly to c lose it. It c ould d eform the metal.

11-8Engine compartment overview 1
Manual transmission oil level
g aug e (MT) (p ag e 11-21) or
Differential g ear oil level
g aug e (AT) (p ag e 11-24)
2 Air c leaner element
(p ag e 11-18)
3 Clutc h fluid reservoir
(p ag e 11-30)
4 Automatic transmission fluid
level g aug e (p ag e 11-22)
5 Brake fluid reservoir
(p ag e 11-28)
6 Fuel filter 7
Wind shield washer tank
(p ag e 11-33)
8 Fuse b ox (p ag e 11-44)
9 Battery (p ag e 11-31)
Q Eng ine oil filler c ap
(p ag e 11-9)
W Eng ine c oolant reservoir
(p ag e 11-15)
E Eng ine oil level g aug e
(p ag e 11-9)
R Power steering fluid reservoir
(p ag e 11-27)
T Rad iator c ap (p ag e 11-15) HGA017BB

Maintenance and service11-9
–
CONTINUED –
Engine oil
Checking the oil level
Chec k the eng ine oil level at eac h fuel stop .
OM-H2727
HS0173
Upper level
Lower- level Notch
front
1. Park the vehic le on a level surfac e and stop the eng ine.
2. Pull out the d ip stic k, wip e it c lean, and insert it ag ain.
3. Be sure the d ip stic k is c orrec tly inserted until it stop s with the
g rap hic symb ol on its top ap p earing as shown in the illustra-
tion.
4. Pull out the d ip stic k ag ain and c hec k the oil lev el on it. If it is b elow
the lower level, ad d oil to b ring the level up to t he up p er level.
CAUTION
Use only engine oil with the recommended grade and viscosity.
If you c hec k the oil level just after stop p ing the eng ine, wait a few min-
utes for the oil to d rain b ac k into the oil p an b ef ore c hec king the level.
Just after d riving or while the eng ine is warm, the eng ine oil level
read ing may b e in a rang e b etween the up p er level a nd the notc h
mark. This is c aused b y thermal exp ansion of the en g ine oil.
To p revent overfilling the eng ine oil, d o not ad d a ny ad d itional oil
ab ove the up p er level when the eng ine is c old .
