SUBARU FORESTER 2005 SG / 2.G Owners Manual

3-40
Instruments and controls

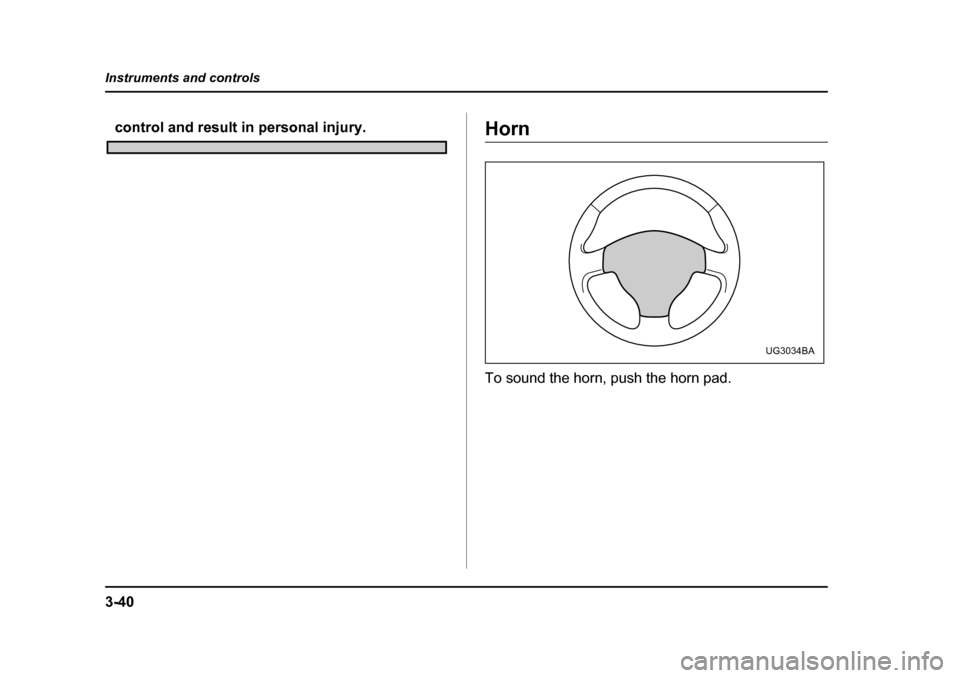

control and result in personal injury.Horn
To sound the horn, push the horn pad.
UG3034BA

4-1
4
Climate control
Ventilator ....................................................... 4-2 Air flow selection .............................................. 4-2
Center and side ventilators .............................. 4-3
Manual climate control system ................... 4-4 Control panel ..................................................... 4-4
Heater operation ............................................... 4-6
Air conditioner operation (if equipped) .......... 4-9
Automatic climate control system (if equipped) .............................................. 4-11Control panel ..................................................... 4-11
To use as full-automatic climate control system ............................................................. 4-12
To use as semi-automatic climate control
system ............................................................. 4-12
Fan speed control dial ...................................... 4-12
Temperature control dial .................................. 4-13
Air flow control dial .......................................... 4-13
Air inlet selection button .................................. 4-14
Air conditioner button ...................................... 4-15
Temperature sensors ....................................... 4-16
Operating tips for heater and air conditioner ................................................ 4-17Cleaning ventilation grille ................................ 4-17
Efficient cooling after parking in direct sunlight ........................................................... 4-17
Lubrication oil circulation in the refrigerant circuit .............................................................. 4-17
Checking air conditioning system before
summer season .............................................. 4-17
Cooling and dehumidifying in high humidity and low temperature weather conditions .... 4-18 Air conditioner compressor shut-off when
engine is heavily loaded ................................ 4-18
Refrigerant for your climate control system .. 4-18
Air filtration system (if equipped) ................ 4-18 Replacing an air filter ....................................... 4-19

4-2
Climate control
Climate controlVentilator „

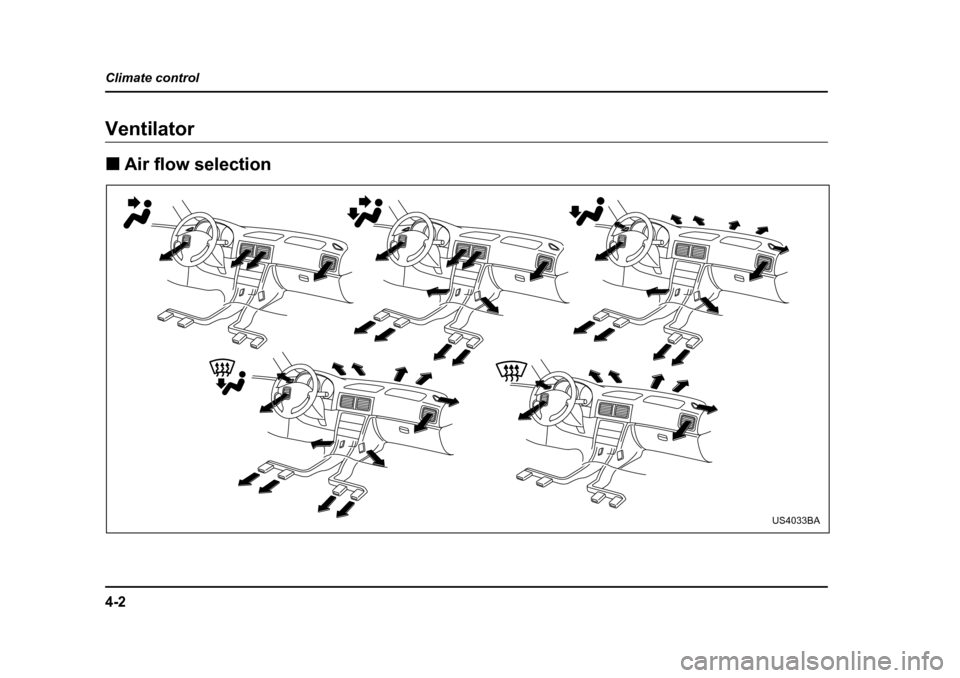

Air flow selection
US4033BA

4-3
Climate control
– CONTINUED –

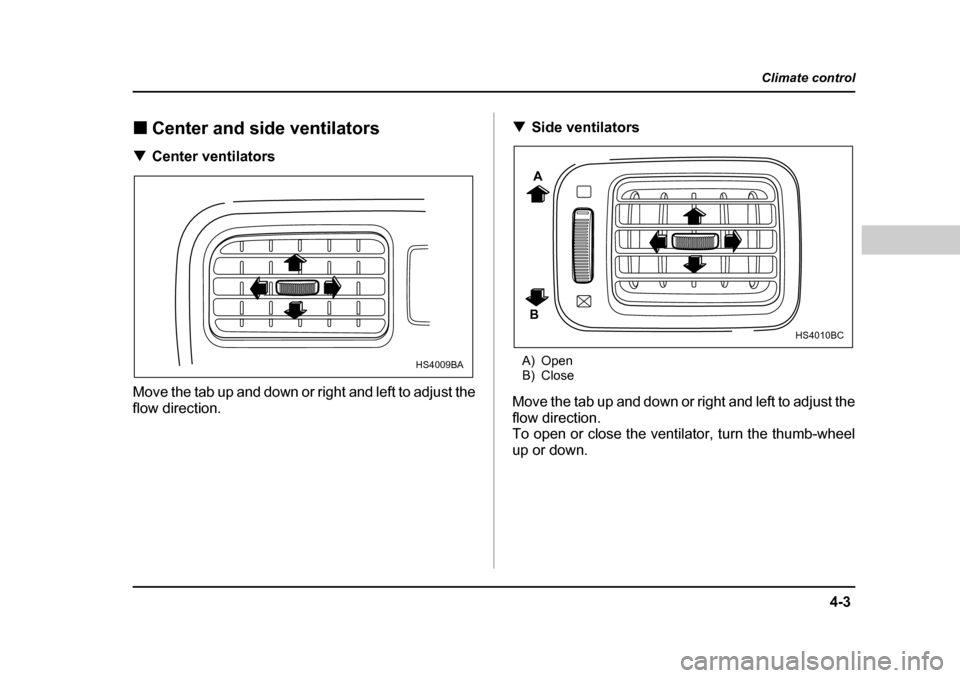

„Center and side ventilators
T Center ventilators
Move the tab up and down or right and left to adjust the
flow direction. T
Side ventilators
A) Open
B) Close
Move the tab up and down or right and left to adjust the
flow direction.
To open or close the ventilator, turn the thumb-wheel
up or down.
HS4009BA
HS4010BC
A
B

4-4
Climate control
Manual climate control system „

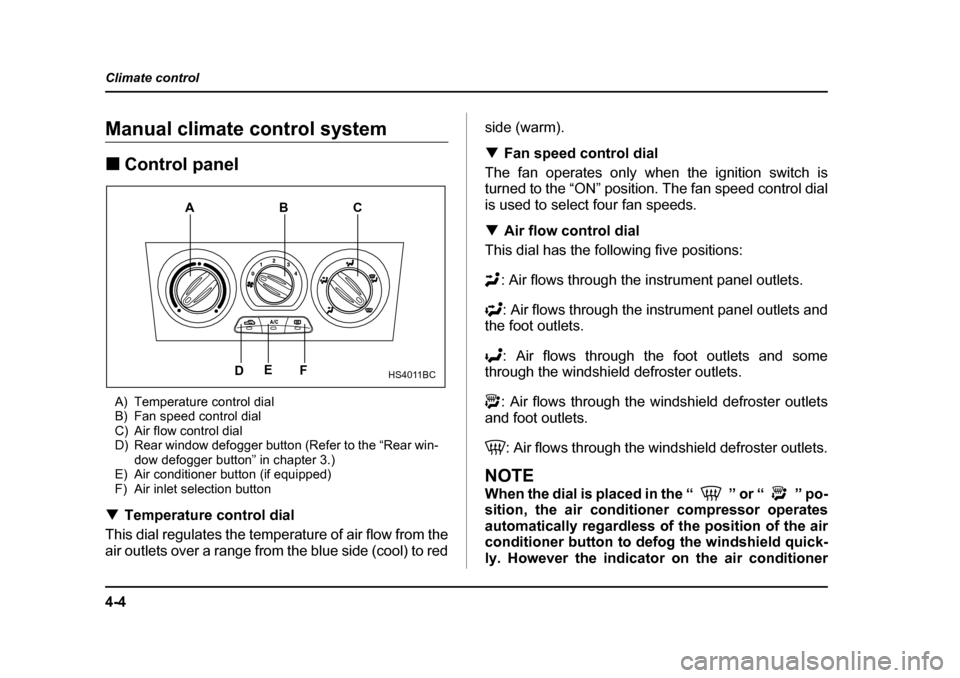

Control panel
A) Temperature control dial
B) Fan speed control dial
C) Air flow control dial
D) Rear window defogger button (Refer to the “Rear win- dow defogger button” in chapter 3.)
E) Air conditioner button (if equipped)
F) Air inlet selection button
T Temperature control dial
This dial regulates the temperature of air flow from the
air outlets over a range from the blue side (cool) to red side (warm). T
Fan speed control dial
The fan operates only when the ignition switch is
turned to the “ON” position. The fan speed control dial
is used to select four fan speeds. T Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets and
the foot outlets.
: Air flows through the foot outlets and some
through the windshield defroster outlets.
: Air flows through the windshield defroster outlets
and foot outlets.
: Air flows through the windshield defroster outlets.
NOTE
When the dial is placed in the “ ” or “ ” po-
sition, the air conditioner compressor operates
automatically regardless of the position of the air
conditioner button to defog the windshield quick-
ly. However the indicator on the air conditioner
HS4011BC
A
BC
F
E
D

4-5
Climate control
– CONTINUED –
button will not come on. At the same time, the air
inlet selection is automatically set to “outside air”
mode.
In this state, you cannot select “recirculation”
mode by manually pressing the air inlet selectionbutton.
Also, you cannot stop the air conditioner com-

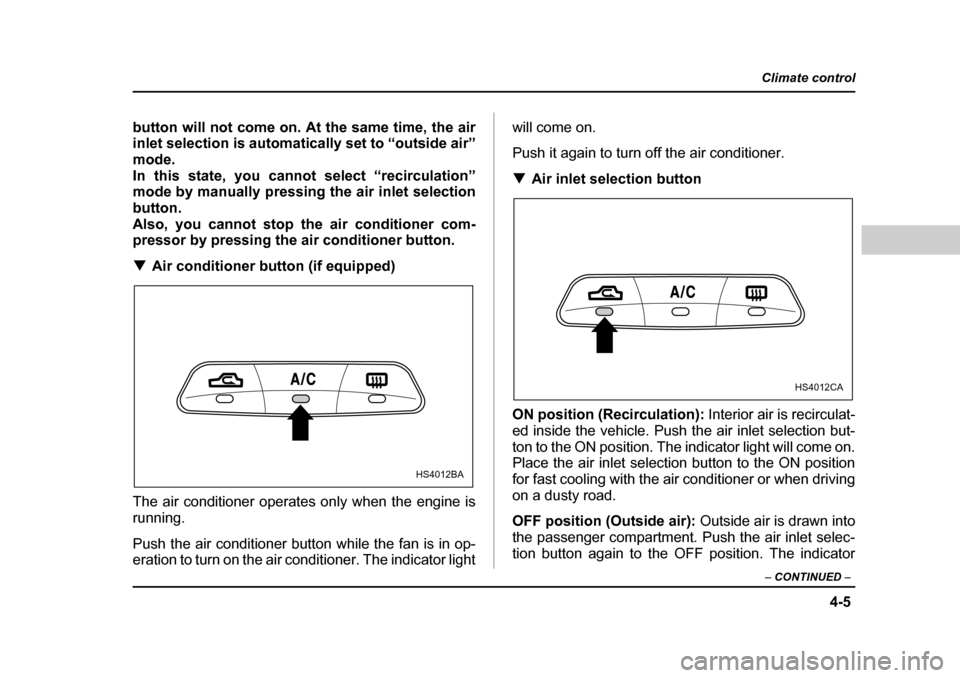

pressor by pressing the air conditioner button. TAir conditioner button (if equipped)
The air conditioner operates only when the engine is
running.
Push the air conditioner button while the fan is in op-
eration to turn on the air conditioner. The indicator light will come on.
Push it again to turn off the air conditioner.T
Air inlet selection button
ON position (Recirculation): Interior air is recirculat-
ed inside the vehicle. Push the air inlet selection but-
ton to the ON position. The indicator light will come on.
Place the air inlet selection button to the ON position
for fast cooling with the air conditioner or when driving
on a dusty road.
OFF position (Outside air): Outside air is drawn into
the passenger compartment. Push the air inlet selec-
tion button again to the OFF position. The indicator
HS4012BA
HS4012CA

4-6
Climate control
light will go off.
Place the air inlet selection button to the OFF position
when the interior has cooled to a comfortable temper-
ature and the road is no longer dusty.
Continued operation with the air inlet selection
button in the ON position may fog up the win-
dows. Switch to the OFF position as soon as
the outside dusty condition clears.
„
Heater operation

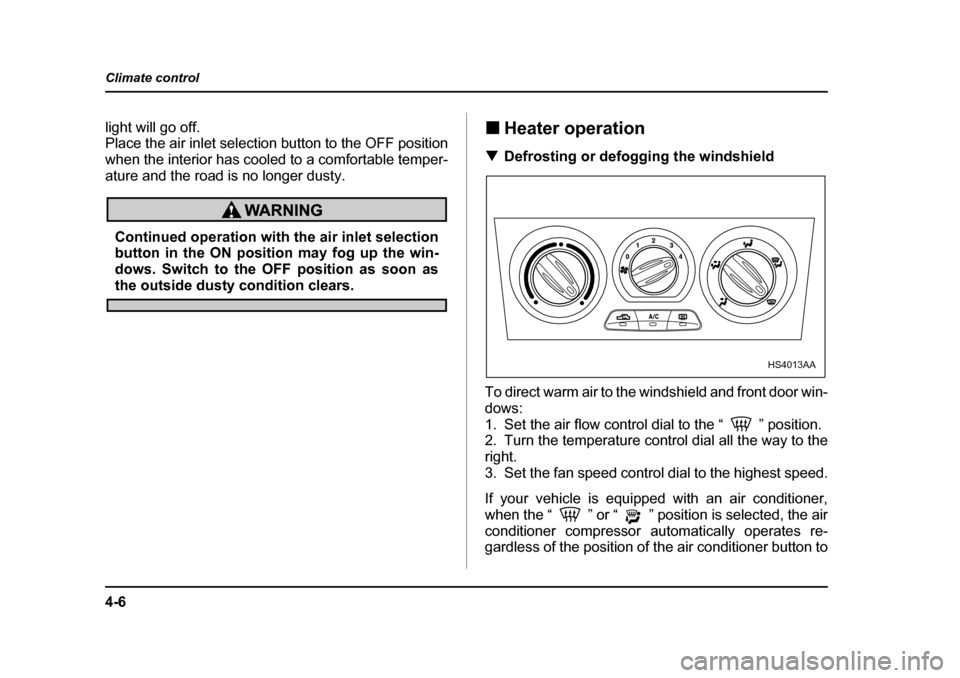

T Defrosting or defogging the windshield
To direct warm air to the windshield and front door win-
dows:
1. Set the air flow control dial to the “ ” position.
2. Turn the temperature control dial all the way to the
right.
3. Set the fan speed control dial to the highest speed.
If your vehicle is equipped with an air conditioner,
when the “ ” or “ ” position is selected, the air
conditioner compressor automatically operates re-
gardless of the position of the air conditioner button to
HS4013AA

4-7
Climate control
– CONTINUED –
defog the windshield quickly.
However, the air conditioner indicator light does not
come on at this time.
NOTE
Warm air also comes out from the right and left air
outlets. To stop warm air flow from these outlets,
turn the corresponding thumb-wheel down. THeating and defrosting
To direct warm air toward the floor and the windshield:
1. Set the air flow control dial to the “ ” position.
2. Set the temperature control dial to the most com-
fortable level.
3. Set the fan speed control dial to the desired speed. If your vehicle is equipped with an air conditioner,
when the “ ” or “ ” position is selected, the air
conditioner compressor automatically operates re-
gardless of the position of the air conditioner button to
defog the windshield quickly.
However, the air conditioner indicator light does not
come on at this time.
NOTE
Warm air also comes out from the right and left air
outlets. To stop warm air flow from these outlets,
turn the corresponding thumb-wheel down. T
Heating
To direct warm air toward the floor:
HS4014AA
HS4015AA

4-8
Climate control
1. Set the air inlet selection button to the OFF posi- tion.
2. Set the air flow control dial to the “ ” position.
3. Set the temperature control dial to the most com-
fortable level.
4. Set the fan speed control dial to the desired speed.
NOTE
Warm air also comes out from the right and left air
outlets. To stop warm air flow from these outlets,
turn the corresponding thumb-wheel down. T

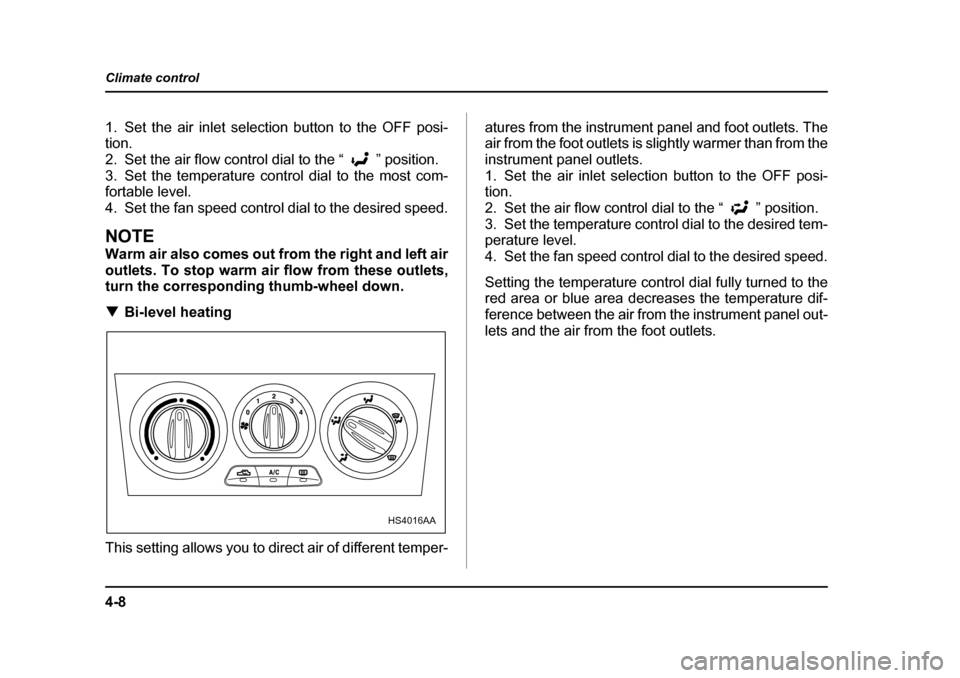

Bi-level heating
This setting allows you to direct air of different temper- atures from the instrument panel and foot outlets. The
air from the foot outlets is slightly warmer than from the
instrument panel outlets.
1. Set the air inlet selection button to the OFF posi- tion.
2. Set the air flow control dial to the “ ” position.
3. Set the temperature control dial to the desired tem- perature level.
4. Set the fan speed control dial to the desired speed.
Setting the temperature control dial fully turned to the
red area or blue area decreases the temperature dif-
ference between the air from the instrument panel out-
lets and the air from the foot outlets.
HS4016AA

4-9
Climate control
– CONTINUED –
TVentilation
To force outside air through the instrument panel out-
lets:
1. Set the air inlet selection button to the OFF posi- tion.
2. Set the air flow control dial to the “ ” position.
3. Set the temperature control dial all the way left.
4. Set the fan speed control dial to the desired speed.
When driving on a dusty road, set the air inlet selection
button to the “ON” position.
Continued operation with the air inlet selection
button in the ON position may fog up the win-
dows. Switch to the OFF position as soon as
the outside dusty condition clears.

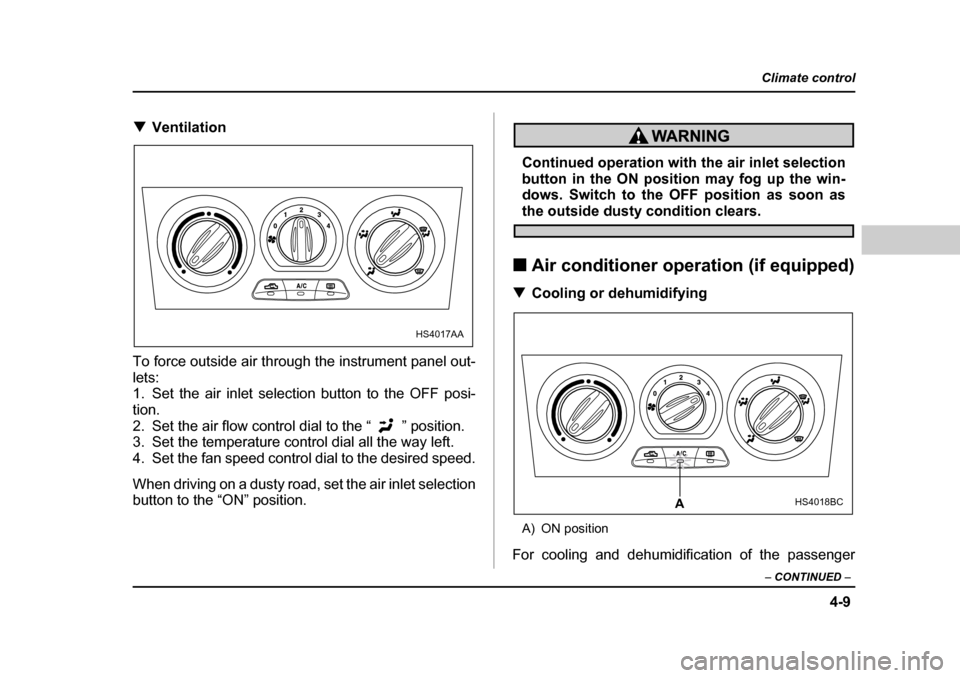

„ Air conditioner operation (if equipped)
T Cooling or dehumidifying
A) ON position
For cooling and dehumidification of the passenger
HS4017AA
HS4018BCA
