SUBARU FORESTER 2005 SG / 2.G Owners Manual

5-8
Audio
T
FM/AM/Weather band selection button (BAND)
Push the “BAND” button when the radio is on to select
FM1, FM2, AM or Weather band (WB) reception. Each
time this button is pressed, the band will change in the
following order:
The display indicates which one is currently selected. T Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. T Tuning (TUNE)
V Manual tuning (TUNE)
Push the “ ” side of the tuning button (3) to in-
crease the tuning frequency and press the “ ” side
of the button to decrease it.
Each time the button is pressed, the frequency chang-
es 10 KHz in the AM waveband and 0.2 MHz in the FM
waveband. V Manual tuning for weather band
When weather band mode is selected, press the “ ” side of the tuning button (3) to change the WB
channel up and press the “ ” side of the tuning but-
ton to change the WB channel down. Each time the
button is pressed, the WB channel changes to the next
channel. T
Seek tuning
If the tuning button (3) is pressed for longer than half
of a second, the radio will begin to automatically
search for receivable frequencies and will stop at the
first one found. This function may not be available,
however, when radio signals are weak. In such a situ-
ation, perform manual tuning to select the desired sta-tion. T Automatic tuning (SCAN)
Press the “SCAN” button (6) to change the radio to the
SCAN mode. In this mode, the radio scans through the
radio band until a station is found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned from the low end to the
high end.
Press the “SCAN” button again to cancel the SCAN
mode and to stop on any displayed frequency.
When the “SCAN” button is pressed for automatic tun-
ing, stations are scanned in the direction of low fre-
quencies to high frequencies only.
FM1 FM2 AM
WB

5-9
Audio
– CONTINUED –
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. TSelecting preset stations
Presetting a station with a preset button (4) allows you
to select that station in a single operation. Up to six
WB, AM, FM1 and FM2 stations each may be preset. T How to preset stations
1. Press the “BAND” selection button to select AM,
FM1, FM2 or WB reception.
2. Press the “SCAN” button (6) or tune the radio man-
ually until the desired station frequency is displayed.
3. Press one of the preset buttons (4) for at least 2
seconds to store the frequency. At this time, there will
momentarily be no sound from the radio. If the button
is pressed for less than 2 seconds, the preceding se-
lection will remain in memory.
NOTE y If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons.y If a cell phone is placed near the radio, it may
cause the radio to emit noise when it receives calls. This noise does not indicate a radio fault.

5-10
Audio „

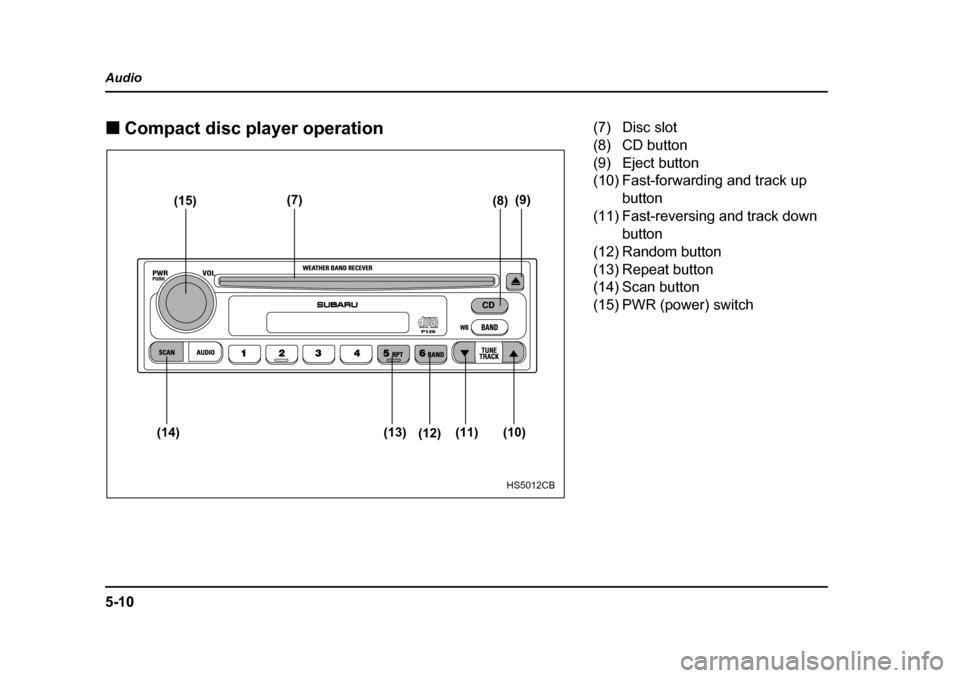

Compact disc player operation
(15) (7)
(8)(9)
(10)
(11)
(12)
(13)
(14)
HS5012CB
(7) Disc slot
(8) CD button
(9) Eject button
(10) Fast-forwarding and track up
button
(11) Fast-reversing and track down
button
(12) Random button
(13) Repeat button
(14) Scan button
(15) PWR (power) switch

5-11
Audio
– CONTINUED –
TTo play back a compact disc
V When CD is not in the player
Hold a disc with a finger in the center hole while grip-
ping the edge of the disc, then insert it in to the slot
(with the label side up) and the player will automatical-
ly pull the disc into position.
A single CD (8 cm/3 inch CD) may also be used with-
out any adapter.
NOTE y Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shutoff. y After the last song finishes, the player will auto-
matically return to track 1 (the first song on the
disc). V When CD is in the player
Press the “CD” button (8). The display will show “CD”
and the player will start playback.
NOTE
After the last song finishes, playback will automat-
ically return to track 1 (the first song on the disc). T To stop playback of a CD
When the “PWR” button (15) is pressed during play- back of a CD, the CD stops playing temporarily. To let
the CD resume playing, press the button again. T
To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the button (10) to skip
to the beginning of the next track. Each time this side
of the button is pressed, the indicated track number
will increase. V Backward direction
Briefly press the “ ” side of the button (11) to skip
to the beginning of the current track. Each time this
side of the button is pressed, the indicated track num-
ber will decrease. T Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the button (10) continuously
for more than 1 second to fast-forward the disc.
Release the button to stop fast-forwarding. V Fast-reversing
Press the “ ” side of the button (11) continuously
for more than 1 second to fast-reverse the disc.
Release the button to stop fast-reversing.

5-12
Audio
T
Repeat playback
Press the “RPT” button (13) and release it in less than
2 seconds while a song is playing to play the song re-
peatedly. The “RPT” indicator will come on and the
song will be played continuously. To cancel the repeat
mode, press the button again. Then the “RPT” indica-
tor goes out, and normal playback mode is restored. T Random playback
Press the “RAND” button (12) and hold it in for more
than 2 seconds while a disc is being played back to
play all songs on the disc in a random order. The
“RAND” indicator will come on and all songs on the
disc will be played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play-
back mode is restored. T Scan
Press the “SCAN” button (14) and release it in less
than 2 seconds, and you can hear the first 10 seconds
of each track to search for the desired program. To
continue listening to the program, press the “SCAN”
button again. After all tracks on the disc has been
scanned, normal playback mode is restored. T To eject a disc from the player
When a disc is being played back or when a disc is in the player, press the eject button “ ” (9). The disc
will be ejected.
The disc may be removed even when the ignition
switch is in the “LOCK” position.
NOTE y
Avoid driving the vehicle with a CD sticking out,
because vibration might make it fall out. y To protect the disc, the disc is automatically
loaded if it is left in the ejected position for more
than approximately 15 seconds (Auto Reload). In
this case, the disc is not played.

5-13
Audio
– CONTINUED –

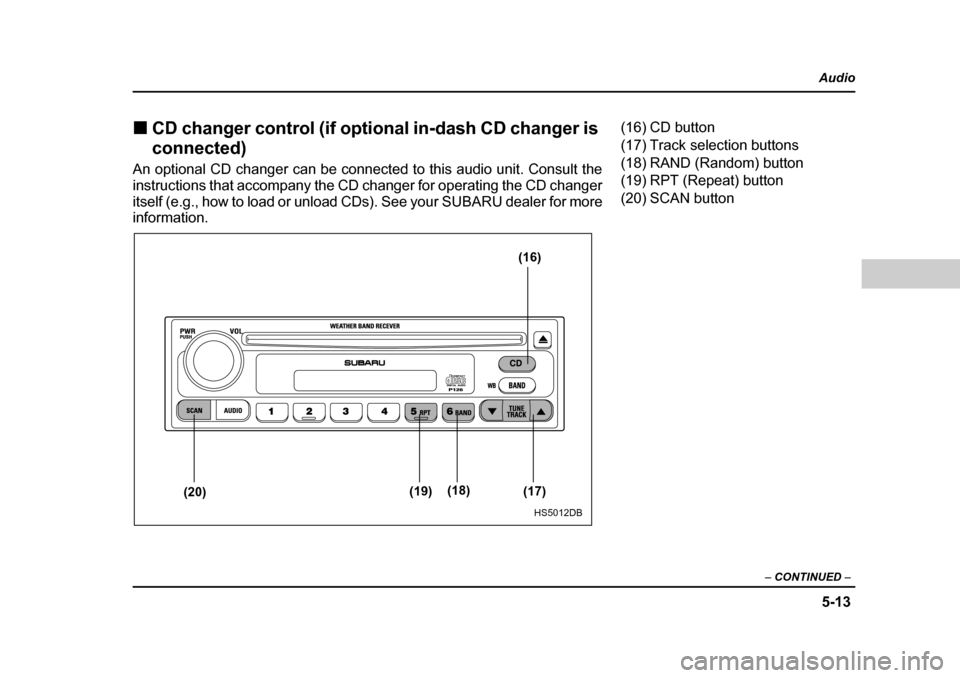

„CD changer control (if optional in-dash CD changer is
connected)
An optional CD changer can be connected to this audio unit. Consult the
instructions that accompany the CD changer for operating the CD changer
itself (e.g., how to load or unload CDs). See your SUBARU dealer for moreinformation.
(16)
(17)
(18)
(19)
(20)
HS5012DB
(16) CD button
(17) Track selection buttons
(18) RAND (Random) button
(19) RPT (Repeat) button
(20) SCAN button

5-14
Audio
T
To start playback
When the “CD” button (16) is pressed, the CD changer
will start playback. The display shows the current disc
number, track number and the elapsed time during
playback.
NOTE y If a disc is in the player, the “DISC” button is
used to change from CD player operation to DISC
changer operation. Each time the “DISC” button is
pressed, the operating mode will change alter-
nately. y At the end of the disc, the player automatically
continues with the next disc. y After playback on the last disc finishes, play-
back will automatically return to the first disc. y If you have loaded fewer than 6 discs, any miss-
ing disc is automatically skipped. T Selection of a desired disc
You can select a desired disc from among the discs
contained in the CD changer only by pressing the cor-
responding number on one of the disc select buttons.
If you are to listen to the 5th disc in the CD changer,
press the “5” button of the disc select buttons. All other
discs in the CD changer can also be selected in a sim-
ilar way.
NOTE y No disc change takes place if the button corre-
sponding to the storage tray in which no disc is
loaded is pressed. y If the disc select button corresponding to the
disc now in playback is pressed again, the disc
will be replayed from its beginning. T To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the button (17) to skip
to the beginning of the next track. Each time this side
of the button is pressed, the indicated track number
will increase. V Backward direction
Briefly press the “ ” side of the button (17) to skip
to the beginning of the current track. Each time this
side of the button is pressed, the indicated track num-
ber will decrease. T Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the button (17) continuously
for more than 1 second to fast-forward the disc.
Release the button to stop fast-forwarding.
If you continue fast-forwarding to the end of the disc,

5-15
Audio
– CONTINUED –
the CD changer will automatically stop fast-forwarding
and start playback beginning with the first track on the
current disc. VFast-reversing
Press the “ ” side of the button (17) continuously
for more than 1 second to fast-reverse the disc.
Release the button to stop fast-reversing.
If you continue fast-reversing to the beginning of the
disc, the CD changer will automatically stop fast-re-
versing and start playback beginning with the first track on the current disc. T Repeat playback
Press the “RPT” button (19) while a song is playing to
play the song repeatedly. The “RPT” indicator will
come on and the song will be played continuously. To
cancel the repeat mode, press the button again. Then
the “RPT” indicator goes out, and normal playback
mode is restored. T Random playback
Press the “RAND” button (18) while a disc is being
played back to play all songs on the disc in a random
order. The “RAND” indicator will come on and all
songs on the disc will be played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play- back mode is restored. T
Scan (a convenient way to become familiar with
a disc)
1. Press the “SCAN” button (20). – The display shows “SCAN” and the track number
being scanned.
– You hear the first 10 seconds of each track.
– The operation is automatically cleared after play-
ing all programs. Then, normal playback starts.
2. Press the “SCAN” button again when you hear a
track you like. – Normal playback resumes.
T To stop playback
To stop playback and switch over to the radio mode,
press the “BAND” button.

5-16
Audio
Type B audio set (if equipped)
The radio will operate only when the ignition switch is in the “ACC” or “ON”
position. „

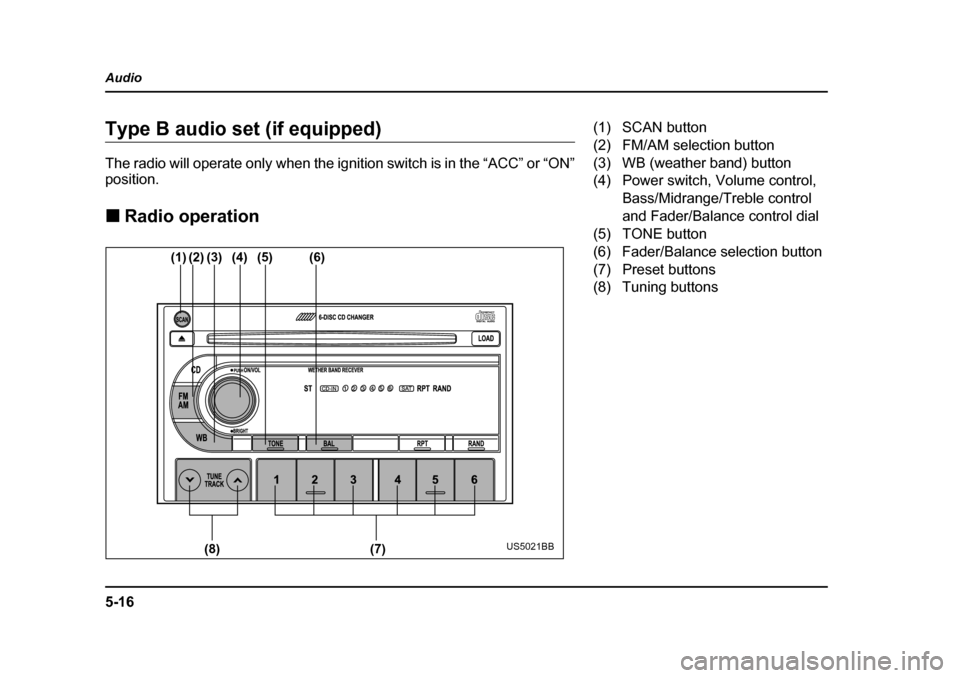

Radio operation
(1) (2) (3) (4) (5) (6)
(7)
(8)
US5021BB
(1) SCAN button
(2) FM/AM selection button
(3) WB (weather band) button
(4) Power switch, Volume control,
Bass/Midrange/Treble control
and Fader/Balance control dial
(5) TONE button
(6) Fader/Balance selection button
(7) Preset buttons
(8) Tuning buttons

5-17
Audio
– CONTINUED –
TPower switch and volume/bass/treble/fader/
balance control (PWR/VOL)
The dial (4) is used for both power (ON/OFF) and vol-
ume control. The radio is turned ON and OFF by push-
ing the dial and the volume is controlled by turning the
dial.
This dial is used for bass/midrange/treble controls
when the “TONE” button (5) is in the depressed posi-
tion. It is also used for fader/balance controls when the
“BAL” button (6) is in the depressed position.
