SUBARU FORESTER 2007 SG / 2.G Owners Manual

Interior equipment 6-11
Ashtray (Canada only, if
equipped)
It is possible to install on ashtray, which is
an optional accessory, in the front pocket.
The ashtray is available from your SUBA-
RU dealer.
To open the ashtray, push lightly on the lid
below the climate controls.
Fully close the lid after using it to help re-
duce residual smoke.
To remove the ashtray for cleaning, holdthe right and left sides of the ashtray and
pull it out.
NOTE
Particles of ash and tobacco will accu-
mulate around the hinges of the ash-
tray’s inner lid. Clean them off using a
toothbrush or other narrow-ended im-
plement.
y
If the socket is ever used for a
plug-in accessory such as a cell
phone, that may damage the por-
tion of the socket’s internal mech-
anism that causes a cigarette
lighter plug to “pop out” after its
lighter element is heated. There-
fore, do not place a cigarette light-
er plug in a socket that has been
used, even once, to power a plug-
in accessory. Doing so may cause
the plug to stick and overheat,
creating a potential fire hazard.
Do not use ashtrays as waste recep-
tacles or leave a lighted cigarette in
an ashtray. This could cause a fire.
600096
600097

6-12 Interior equipment
Floor mat
A retaining pin is located on the driver’s
side of the vehicle next to the fuel filler
door release.
The floor mat is secured using the built-in
grommet, by placing the grommet over the
pin and pushing downward.Coat hook
The coat hook is attached to the rear left
passenger’s hand grip.
600480Make sure the driver’s floor mat is
placed back in its proper location
and correctly secured on its retain-
ing pin. If the floor mat slips forward
and interferes with the movement of
the pedals during driving, it could
cause an accident.
600481
Never hang anything on the coat
hook that might obstruct the driv-
er’s view or that could cause injury
in sudden stops or in a collision.
And do not hang items on the coat
hook that weigh 2.2 lbs (1 kg) or
more.
600098

Interior equipment 6-13
Cargo area cover (if
equipped)
The cargo area cover is provided for cov-
ering the cargo area and to protect its con-
tents from direct sunlight. This cover is de-
tachable to make room for additional car-
go. „Using the cover
To extend the cover, pull the end of the
cover out of the housing, then insert its
hooks into the catches as shown. To re-
wind it, unhook it from the catches and it
will rewind automatically. You should hold
on to the cover and guide it back into the
cover housing while it is rewinding.
„ To remove the cover housing
1. Rewind the cover.
2. To take the cover housing off the re-
tainer, lift it out.
3. Store the cover housing in the cargo
area. „
Stowage of the cover
On models having a temporary spare tire,
the cargo area cover can be stowed under
the cargo floor. „ To install the cover housing
To install the cover, insert both ends of the
cover housing into the retainers.
600099
Do not place anything on the ex-
tended cover. Putting excessive
weight on the extended cover can
break it and an object on the cover
could tumble forward in the event of
a sudden stop or collision. This
could cause serious injury.
600100
600101

6-14 Interior equipment
Shopping bag hook
In the cargo area, there are two retract-
able shopping bag hooks (one on each
side) and four non-retractable shopping
bag hooks (two on each side).
To use either of the retractable hooks, pull
the lower portion out.
Cargo tie-down hooks
The cargo area is equipped with four tie-
down hooks so that cargo can be secured
with a cargo net or ropes.
When using the hooks, raise them. When
not in use, lower the hooks.
Cargo area bars
1) Cargo area bar
In the cargo area, there are two bars (one
on each side) to which a net can be at-
tached.
Do not hang items on the shopping
bag hook that weigh 6.6 lbs (3 kg) or
more.
600492
The cargo tie-down hooks are de-
signed only for securing light cargo.
Never try to secure cargo that ex-
ceeds the capacity of the hooks. The
maximum load capacity is 44 lbs (20
kg) per a hook.
600103
Do not place objects with a total
weight exceeding 6.6 lbs (3 kg) on a
net attached to the cargo area bars.
1
600493

Interior equipment 6-15
– CONTINUED –
Under-floor storage compart-
ment
There are five trays in the storage com-
partment underneath the floor of the cargo
area. They can be used to store small
items.
y
Always keep the lids closed while
driving to reduce the risk of injury
in the event of sudden stop or an
accident.
y Do not store spray cans, contain-
ers with flammable or corrosive
liquids or any other dangerous
items in the storage compartment.
600657

6-16 Interior equipment

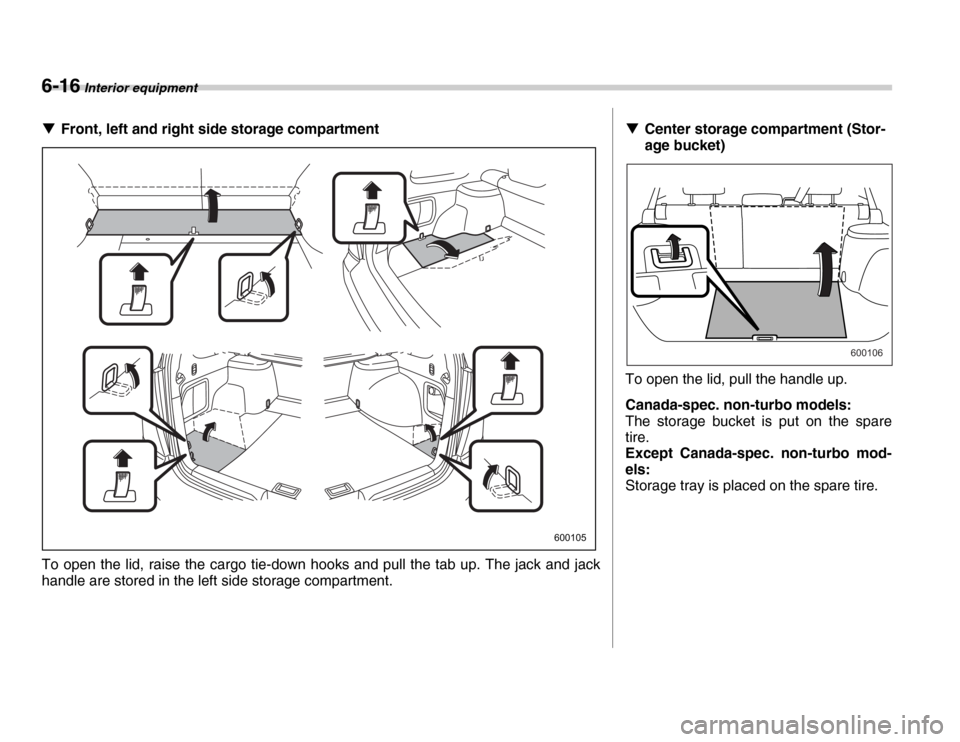

TFront, left and right side storage compartment
To open the lid, raise the cargo tie-down hooks and pull the tab up. The jack and jack
handle are stored in the left side storage compartment.
600105 T
Center storage compartment (Stor-
age bucket)
To open the lid, pull the handle up.
Canada-spec. non-turbo models:
The storage bucket is put on the spare
tire.
Except Canada-spec. non-turbo mod-
els:
Storage tray is placed on the spare tire.
600106

Interior equipment 6-17
NOTE
When storing a flat tire, put the storage
tray in the luggage compartment (Ex-
cept Canada-spec. non-turbo models).
600108

7
Starting and operating
Fuel ...................................................................... 7-2Fuel requirements .................................................. 7-2
Fuel filler lid and cap .............................................. 7-3
State emission testing (U.S. only) .................... 7-5
Preparing to drive .............................................. 7-6
Starting the engine ............................................. 7-7 Manual transmission vehicle ................................. 7-7
Automatic transmission vehicle ............................ 7-7
Stopping the engine ........................................... 7-8
Manual transmission ......................................... 7-9 Shifting speeds ....................................................... 7-9
Driving tips .............................................................. 7-10
Automatic transmission .................................... 7-10 Selector lever for automatic transmission ........... 7-11
Shift lock release .................................................... 7-14
Rear viscous limited slip differential (LSD) (if equipped) ......................................................... 7-15
Power steering ................................................... 7-15
Braking ................................................................ 7-15 Braking tips ............................................................. 7-15
Brake system .......................................................... 7-16
Disc brake pad wear warning indicators .............. 7-16
ABS (Anti-lock Brake System) .......................... 7-16 ABS system self-check .......................................... 7-17
ABS warning light ................................................... 7-17
Electronic Brake Force Distribution (EBD) system ............................................................. 7-18 Steps to take if EBD system fails .......................... 7-18
Parking your vehicle .......................................... 7-19 Parking brake .......................................................... 7-20
Parking tips ............................................................. 7-20
Hill holder (Manual transmission – if equipped) ...................................................... 7-21
Cruise control ..................................................... 7-22 To set cruise control .............................................. 7-22
To temporarily cancel the cruise control ............. 7-23
To turn off the cruise control ................................. 7-23
To change the cruising speed ............................... 7-23
Self-leveling rear suspension (if equipped) ..... 7-25

7-2 Starting and operating
Sta rting an d o peratingFuel
„Fuel requirements
T Non-turbo models
The 2.5-liter non-turbo engine is designed
to operate using unleaded gasoline with
an octane rating of 87 AKI or higher. T Turbo models
The 2.5-liter turbo engine is designed to
operate using premium unleaded gasoline
with an octane rating of 91 AKI or higher.
If premium unleaded gasoline is not avail-
able, regular unleaded gasoline with an
octane rating of 87 AKI or higher may be
temporarily used. For optimum engine
performance and driveability, it is required
that you use premium grade unleaded
gasoline.
NOTE
Be sure to use premium unleaded gas-
oline of 91 AKI or higher for a 2.5-liter
turbo engine model. If other gasoline
(lower than 91 AKI) is used, knocking, reduced output and poor accelerator
response will result. T
Fuel octane rating
This octane rating is the average of the
Research Octane and Motor Octane num-
bers and is commonly referred to as the
Anti Knock Index (AKI).
Using a gasoline with a lower octane rat-
ing can cause persistent and heavy
knocking, which can damage the engine.
Do not be concerned if your vehicle some-
times knocks lightly when you drive up a
hill or when you accelerate. See your
dealer or a qualified service technician if
you use a fuel with the specified octane
rating and your vehicle knocks heavily or
persistently. T Unleaded gasoline
The neck of the fuel filler pipe is designed
to accept only an unleaded gasoline filler
nozzle. Under no circumstances should
leaded gasoline be used because it will
damage the emission control system and
may impair driveability and fuel economy. T Gasoline for California-certified LEV
Your vehicle was certified to California’s
low emission vehicle (LEV) standards as
indicated on the underhood tune-up label,
it is designed to optimize engine and
emission performance with gasoline that meets the clean burning low-sulfur Califor-
nia gasoline specifications. If you live in
any other state than California, your vehi-
cle will operate on gasoline meeting Fed-
eral specifications. Gasoline sold outside
California is permitted to have higher sul-
fur levels, which may affect the perfor-
mance of your vehicle’s catalytic convert-
er and may produce a sulfur exhaust odor
or smell. SUBARU recommends that you
try a different brand of unleaded gasoline
having lower sulfur to determine if the
problem is fuel related before returning
your vehicle to an authorized dealer for
service. T
MMT
Some gasoline contains an octane-en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl). If
you use such fuels, your emission control
system performance may deteriorate and
the CHECK ENGINE warning light/Mal-
function indicator lamp may turn on. If this
happens, return to your authorized
SUBARU Dealer for service. If it is deter-
mined that the condition is caused by the
type of fuel used, repairs may not be cov-
ered by your warranty.
Use of a fuel which is low in quality
or use of an inappropriate fuel addi-
tive may cause engine damage.
