Page 111 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
109
PHONE
4

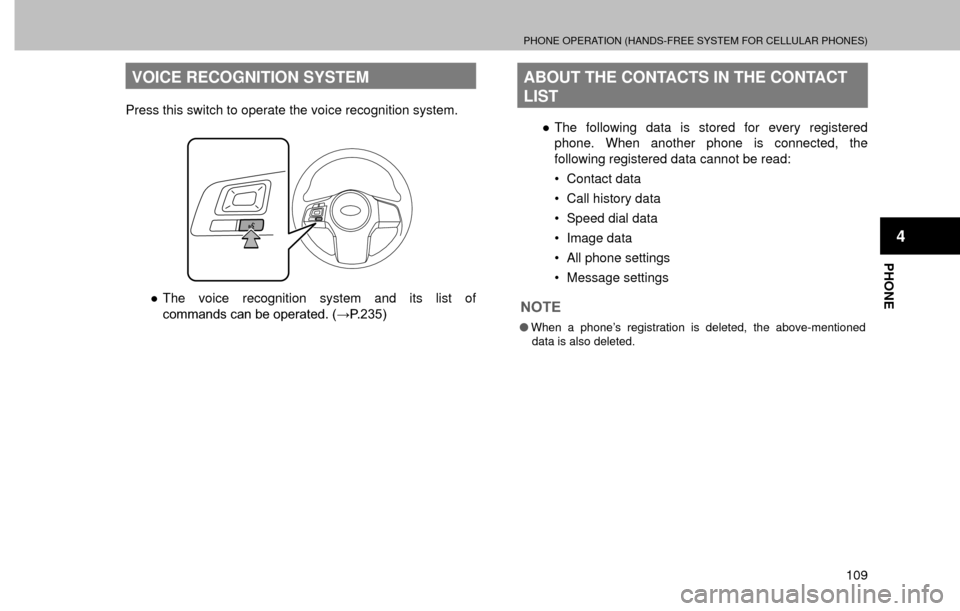

VOICE RECOGNITION SYSTEM
Press this switch to operate the voice recognition system.
”The voice recognition system and its list of
F R P P D Q G V F D Q E H R S H U D W H G : 3
ABOUT THE CONTACTS IN THE CONTACT
LIST
”The following data is stored for every registered
phone. When another phone is connected, the
following registered data cannot be read:
‡ Contact data
‡ Call history data
‡ Speed dial data
‡ Image data
‡ All phone settings
‡ Message settings
NOTE
OWhen a phone’s registration is deleted, the above-mentioned
data is also deleted.
Page 112 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 0

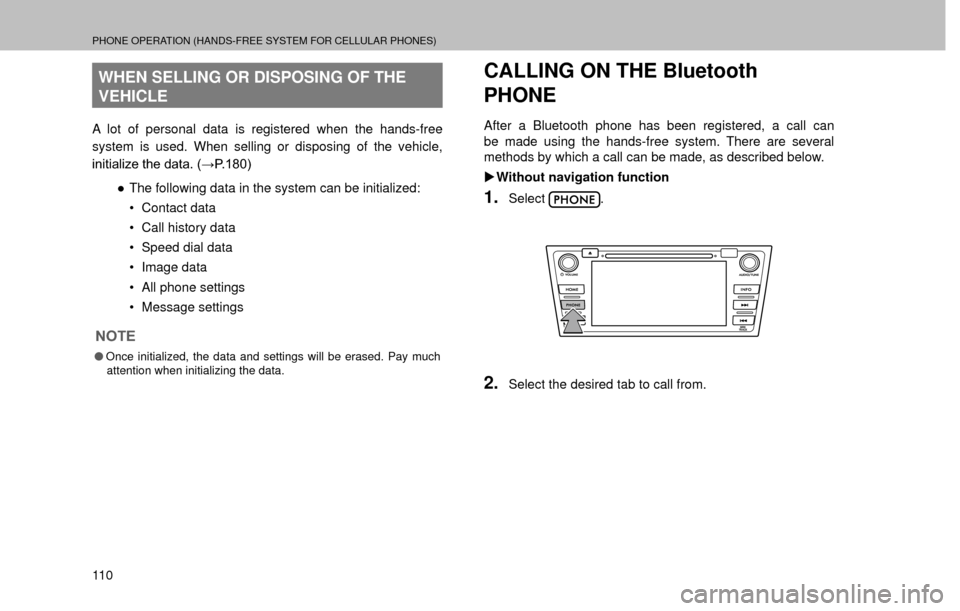

WHEN SELLING OR DISPOSING OF THE
VEHICLE
A lot of personal data is registered when the hands-free
system is used. When selling or disposing of the vehicle,
L Q L W L D O L ] H W K H G D W D : 3
”The following data in the system can be initialized:
‡ Contact data
‡ Call history data
‡ Speed dial data
‡ Image data
‡ All phone settings
‡ Message settings
NOTE
OOnce initialized, the data and settings will be erased. Pay much
attention when initializing the data.
CALLING ON THE Bluetooth
PHONE
After a Bluetooth phone has been registered, a call can
be made using the hands-free system. There are several
methods by which a call can be made, as described below.
XWithout navigation function
1.Select.
2.Select the desired tab to call from.
Page 113 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
111
PHONE
4

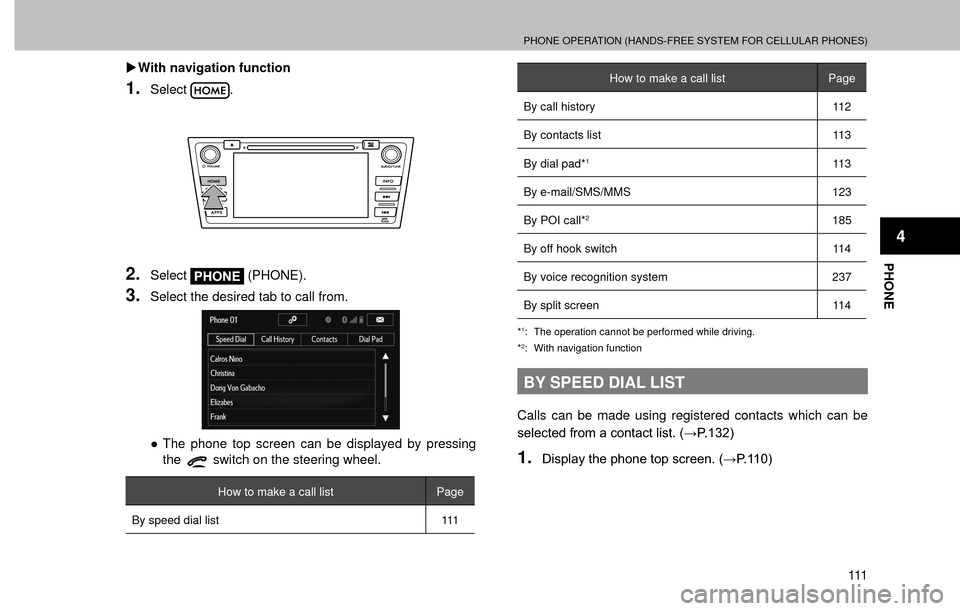

XWith navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select the desired tab to call from.
”The phone top screen can be displayed by pressing
the switch on the steering wheel.
How to make a call list Page
By speed dial list 111
How to make a call list Page
By call history 112
By contacts list 113
By dial pad*
111 3
By e-mail/SMS/MMS 123
By POI call*
2185
By off hook switch 114
By voice recognition system 237
By split screen 114
*1: The operation cannot be performed while driving.
*2: With navigation function
BY SPEED DIAL LIST
Calls can be made using registered contacts which can be
V H O H F W H G I U R P D F R Q W D F W O L V W : 3
1. ' L V S O D \ W K H S K R Q H W R S V F U H H Q : 3
Page 114 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 2

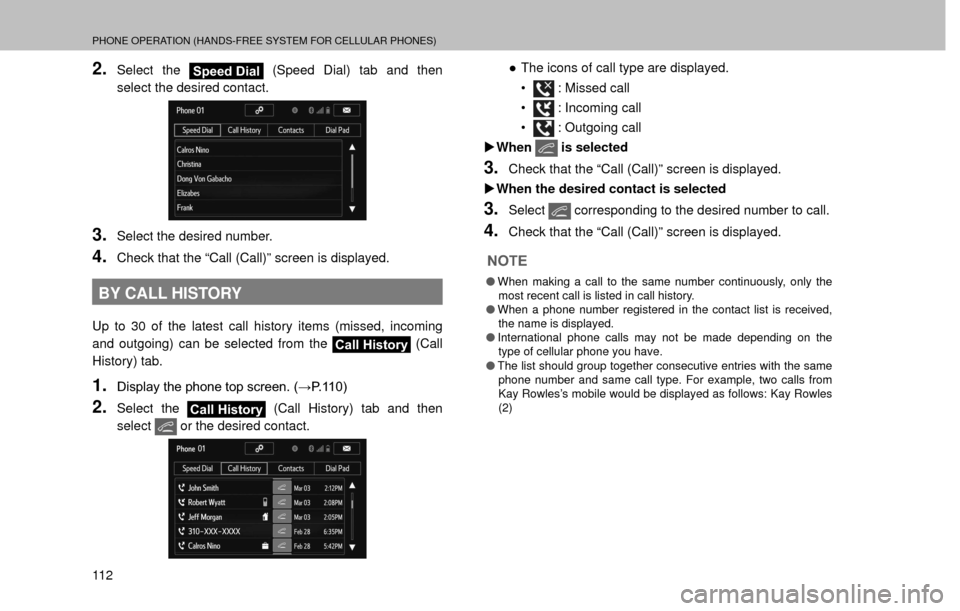

2.Select the Speed Dial (Speed Dial) tab and then
select the desired contact.
3.Select the desired number.
4.Check that the “Call (Call)” screen is displayed.
BY CALL HISTORY
Up to 30 of the latest call history items (missed, incoming
and outgoing) can be selected from the
Call History (Call
History) tab.
1. ' L V S O D \ W K H S K R Q H W R S V F U H H Q : 3
2.Select the Call History (Call History) tab and then
select
or the desired contact.
”The icons of call type are displayed.
‡
: Missed call
‡
: Incoming call
‡
: Outgoing call
XWhen
is selected
3.Check that the “Call (Call)” screen is displayed.
XWhen the desired contact is selected
3.Select corresponding to the desired number to call.
4.Check that the “Call (Call)” screen is displayed.
NOTE
OWhen making a call to the same number continuously, only the
most recent call is listed in call history.
OWhen a phone number registered in the contact list is received,
the name is displayed.
OInternational phone calls may not be made depending on the
type of cellular phone you have.
OThe list should group together consecutive entries with the same
phone number and same call type. For example, two calls from
Kay Rowles’s mobile would be displayed as follows: Kay Rowles
(2)

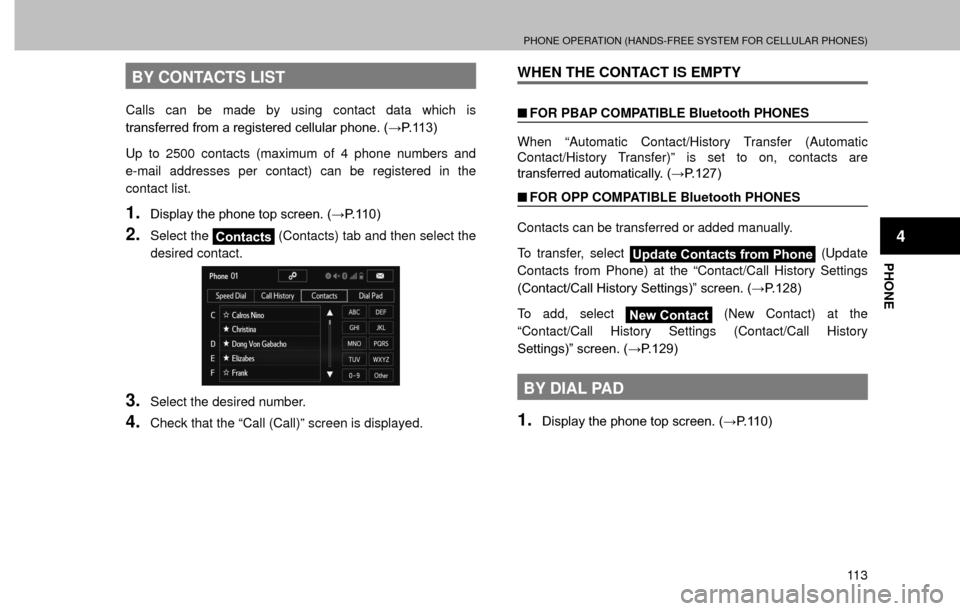

Page 115 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 3
PHONE
4
BY CONTACTS LIST
Calls can be made by using contact data which is
W U D Q V I H U U H G I U R P D U H J L V W H U H G F H O O X O D U S K R Q H : 3
Up to 2500 contacts (maximum of 4 phone numbers and
e-mail addresses per contact) can be registered in the
contact list.
1. ' L V S O D \ W K H S K R Q H W R S V F U H H Q : 3
2.Select the Contacts (Contacts) tab and then select the
desired contact.
3.Select the desired number.
4.Check that the “Call (Call)” screen is displayed.
WHEN THE CONTACT IS EMPTY
QFOR PBAP COMPATIBLE Bluetooth PHONES
When “Automatic Contact/History Transfer (Automatic
Contact/History Transfer)” is set to on, contacts are
W U D Q V I H U U H G D X W R P D W L F D O O \ : 3
QFOR OPP COMPATIBLE Bluetooth PHONES
Contacts can be transferred or added manually.
To transfer, select
Update Contacts from Phone (Update
Contacts from Phone) at the “Contact/Call History Settings
& R Q W D F W & D O O + L V W R U \ 6 H W W L Q J V
Page 116 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 4

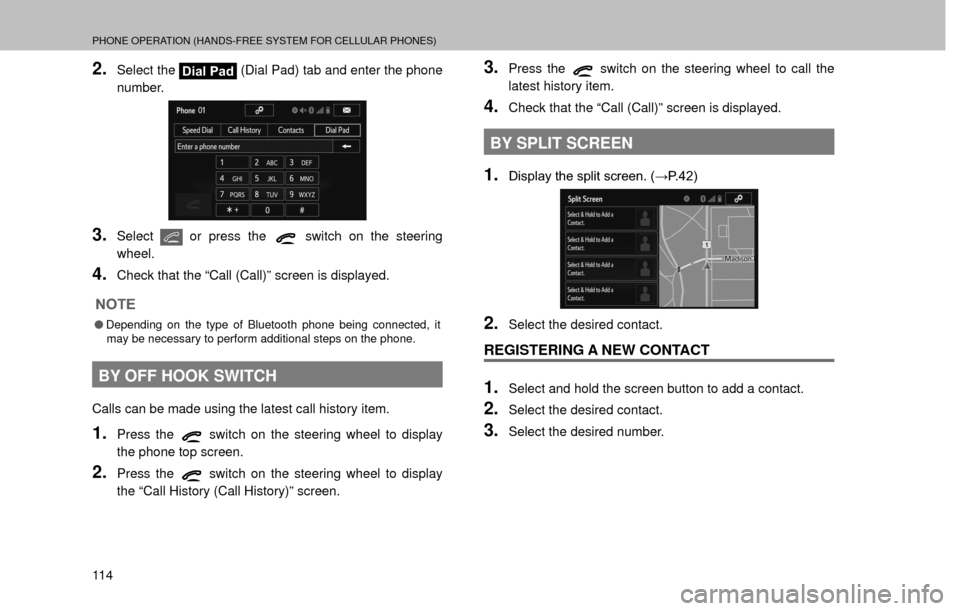

2.Select the Dial Pad (Dial Pad) tab and enter the phone
number.
3.Select or press the switch on the steering
wheel.
4.Check that the “Call (Call)” screen is displayed.
NOTE
ODepending on the type of Bluetooth phone being connected, it
may be necessary to perform additional steps on the phone.
BY OFF HOOK SWITCH
Calls can be made using the latest call history item.
1.Press the switch on the steering wheel to display
the phone top screen.
2.Press the switch on the steering wheel to display
the “Call History (Call History)” screen.
3.Press the switch on the steering wheel to call the
latest history item.
4.Check that the “Call (Call)” screen is displayed.
BY SPLIT SCREEN
1. ' L V S O D \ W K H V S O L W V F U H H Q : 3
2.Select the desired contact.
REGISTERING A NEW CONTACT
1.Select and hold the screen button to add a contact.
2.Select the desired contact.
3.Select the desired number.
Page 117 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 5
PHONE
4

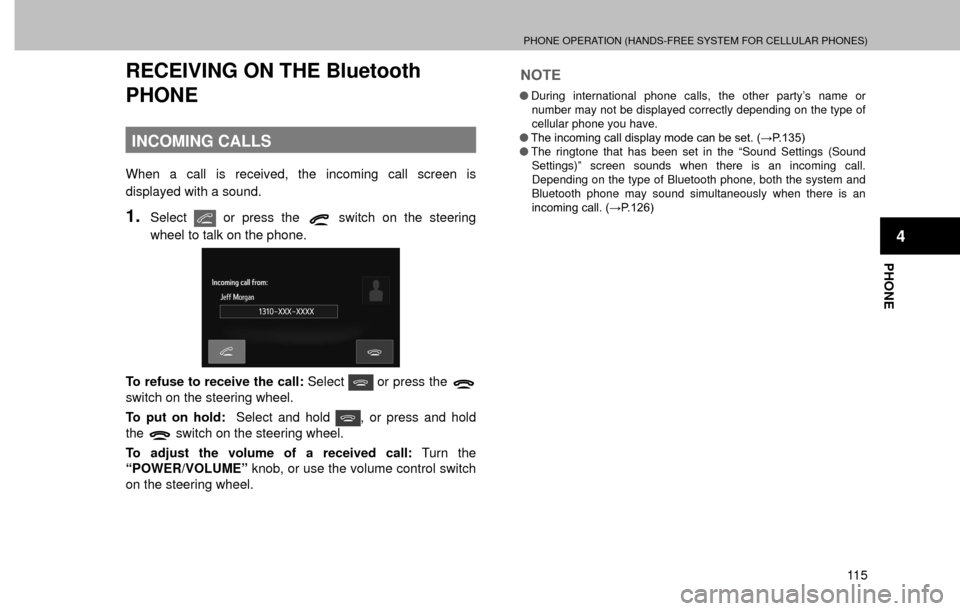

RECEIVING ON THE Bluetooth
PHONE
INCOMING CALLS
When a call is received, the incoming call screen is
displayed with a sound.
1.Select or press the switch on the steering
wheel to talk on the phone.
To refuse to receive the call: Select or press the switch on the steering wheel.
To put on hold: Select and hold
, or press and hold
the switch on the steering wheel.
To adjust the volume of a received call: Turn the
“POWER/VOLUME” knob, or use the volume control switch
on the steering wheel.
NOTE
ODuring international phone calls, the other party’s name or
number may not be displayed correctly depending on the type of
cellular phone you have.
O 7 K H L Q F R P L Q J F D O O G L V S O D \ P R G H F D Q E H V H W : 3
OThe ringtone that has been set in the “Sound Settings (Sound
Settings)” screen sounds when there is an incoming call.
Depending on the type of Bluetooth phone, both the system and
Bluetooth phone may sound simultaneously when there is an
L Q F R P L Q J F D O O : 3
Page 118 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6

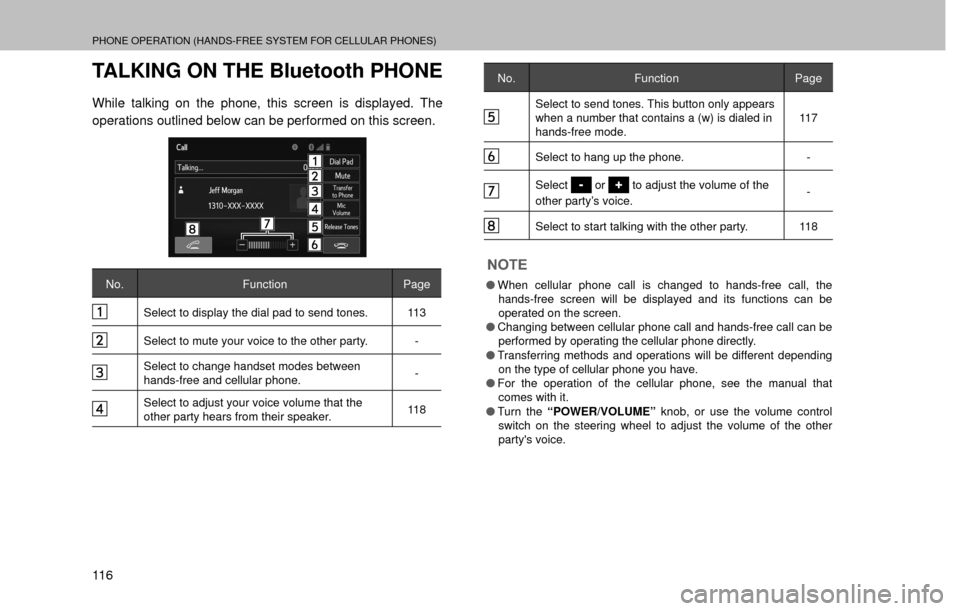

TALKING ON THE Bluetooth PHONE
While talking on the phone, this screen is displayed. The
operations outlined below can be performed on this screen.
No. Function Page
Select to display the dial pad to send tones. 113
Select to mute your voice to the other party. -
Select to change handset modes between
hands-free and cellular phone.-
Select to adjust your voice volume that the
other party hears from their speaker.11 8
No. Function Page
Select to send tones. This button only appears
when a number that contains a (w) is dialed in
hands-free mode.11 7
Select to hang up the phone. -
Select or to adjust the volume of the
other party’s voice.-
Select to start talking with the other party. 118
NOTE
OWhen cellular phone call is changed to hands-free call, the
hands-free screen will be displayed and its functions can be
operated on the screen.
OChanging between cellular phone call and hands-free call can be
performed by operating the cellular phone directly.
OTransferring methods and operations will be different depending
on the type of cellular phone you have.
OFor the operation of the cellular phone, see the manual that
comes with it.
OTurn the “POWER/VOLUME” knob, or use the volume control
switch on the steering wheel to adjust the volume of the other
party's voice.
Page 119 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 7
PHONE
4

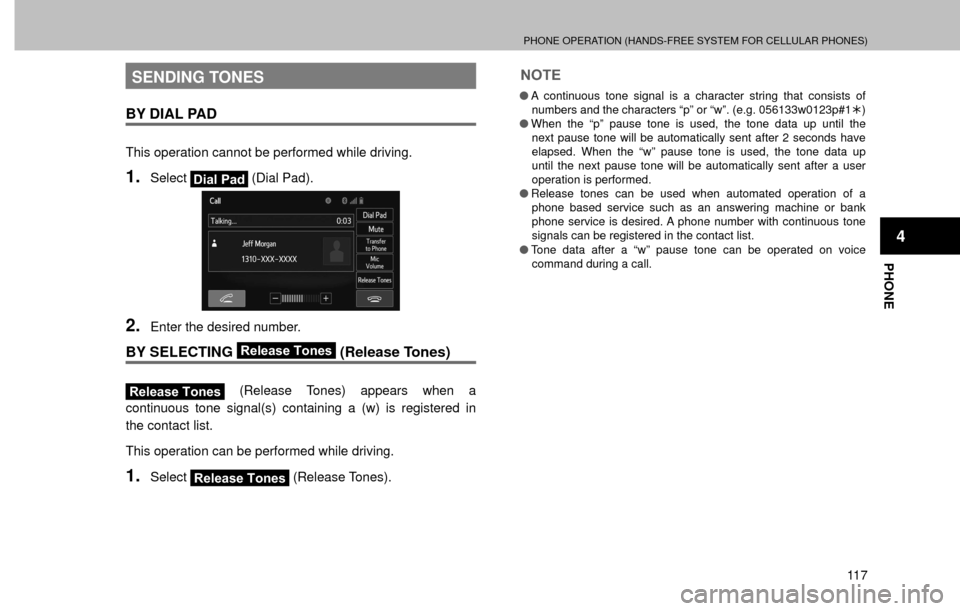

SENDING TONES
BY DIAL PAD
This operation cannot be performed while driving.
1.SelectDial Pad (Dial Pad).
2.Enter the desired number.
BY SELECTING Release Tones (Release Tones)
Release Tones (Release Tones) appears when a
continuous tone signal(s) containing a (w) is registered in
the contact list.
This operation can be performed while driving.
1.SelectRelease Tones (Release Tones).
NOTE
OA continuous tone signal is a character string that consists of
numbers and the characters “p” or “w”. (e.g. 056133w0123p#1 ½)
OWhen the “p” pause tone is used, the tone data up until the
next pause tone will be automatically sent after 2 seconds have
elapsed. When the “w” pause tone is used, the tone data up
until the next pause tone will be automatically sent after a user
operation is performed.
ORelease tones can be used when automated operation of a
phone based service such as an answering machine or bank
phone service is desired. A phone number with continuous tone
signals can be registered in the contact list.
OTone data after a “w” pause tone can be operated on voice
command during a call.

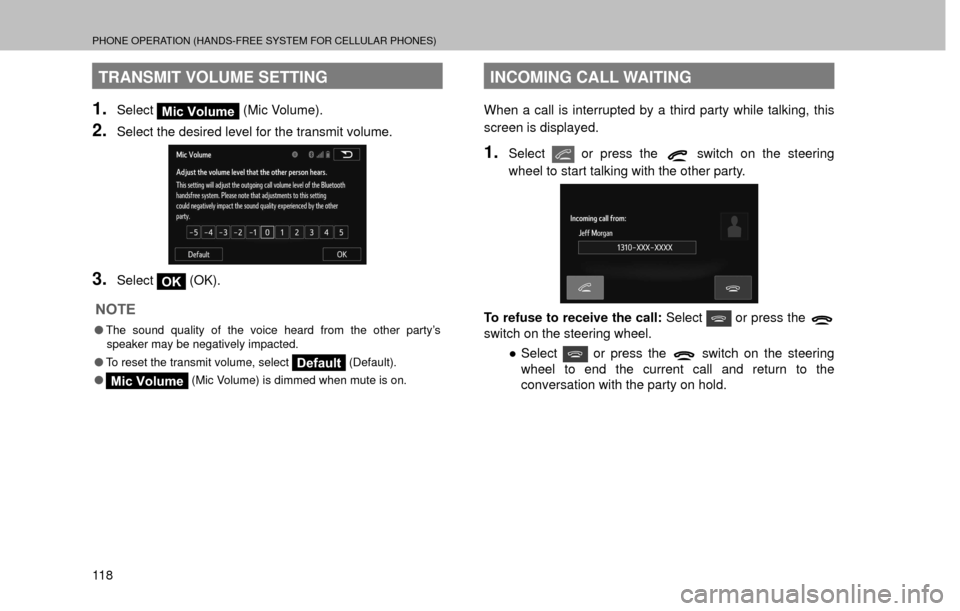

Page 120 of 291
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 8
TRANSMIT VOLUME SETTING
1.SelectMic Volume (Mic Volume).
2.Select the desired level for the transmit volume.
3.SelectOK (OK).
NOTE
OThe sound quality of the voice heard from the other party’s
speaker may be negatively impacted.
OTo reset the transmit volume, select
Default (Default).
O
Mic Volume (Mic Volume) is dimmed when mute is on.
INCOMING CALL WAITING
When a call is interrupted by a third party while talking, this
screen is displayed.
1.Select or press the switch on the steering
wheel to start talking with the other party.
To refuse to receive the call: Select or press the switch on the steering wheel.
”Select
or press the switch on the steering
wheel to end the current call and return to the
conversation with the party on hold.
