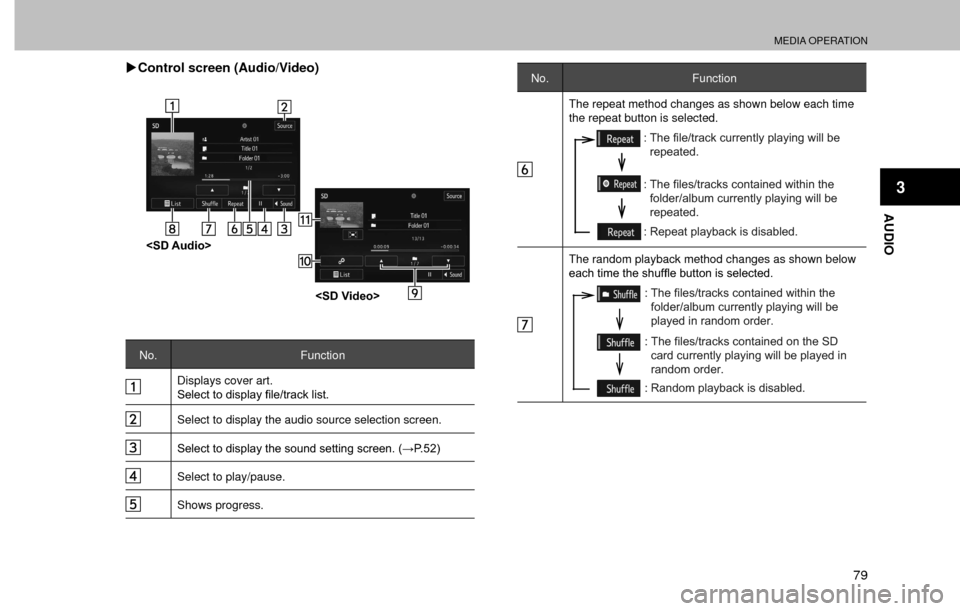

SUBARU FORESTER 2016 SJ / 4.G Navigation Manual

MEDIA OPERATION
79
AUDIO
3
XControl screen (Audio/Video)


No. Function
Displays cover art.
6HOHFWWRGLVSOD\¿OHWUDFNOLVW
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
Select to play/pause.
Shows progress.
No. Function
The repeat method changes as shown below each time
the repeat button is selected.
: The file/track currently playing will be
repeated.
: The files/tracks contained within the
folder/album currently playing will be
repeated.
: Repeat playback is disabled.

The random playback method changes as shown below
HDFKWLPHWKHVKXIÀHEXWWRQLVVHOHFWHG
: The files/tracks contained within the
folder/album currently playing will be
played in random order.
: The files/tracks contained on the SD
card currently playing will be played in
random order.
: Random playback is disabled.

MEDIA OPERATION
80
No. Function
Select to display the play mode selection screen.
‡ “Artists (Artists)”/“Albums (Albums)”/“Songs
(Songs)”/“Genres (Genres)”/“Composers
(Composers)”/“Folder (Folder)”/“Videos (Videos)” are
on the play mode selection screen.
‡Switching between SD audio and SD video is possible
on the play mode selection screen. To return to the top
screen, select
Now Playing (Now Playing) on the
list screen.
Select to choose the folder.
Select to display the options screen.
The following can be done on the options screen.

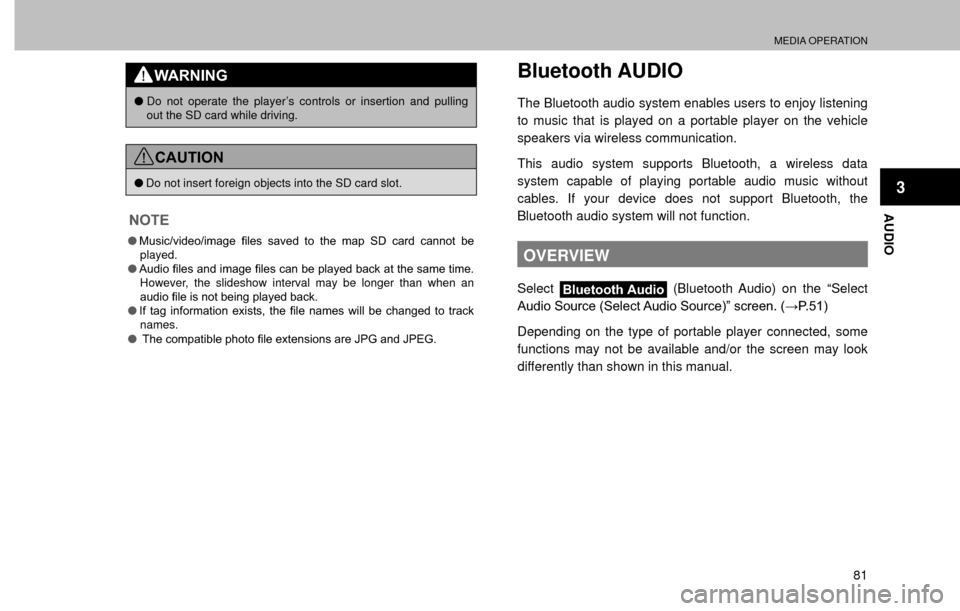

MEDIA OPERATION
81
AUDIO
3
WARNING
ODo not operate the player’s controls or insertion and pulling
out the SD card while driving.
CAUTION
ODo not insert foreign objects into the SD card slot.
NOTE
O0XVLFYLGHRLPDJH

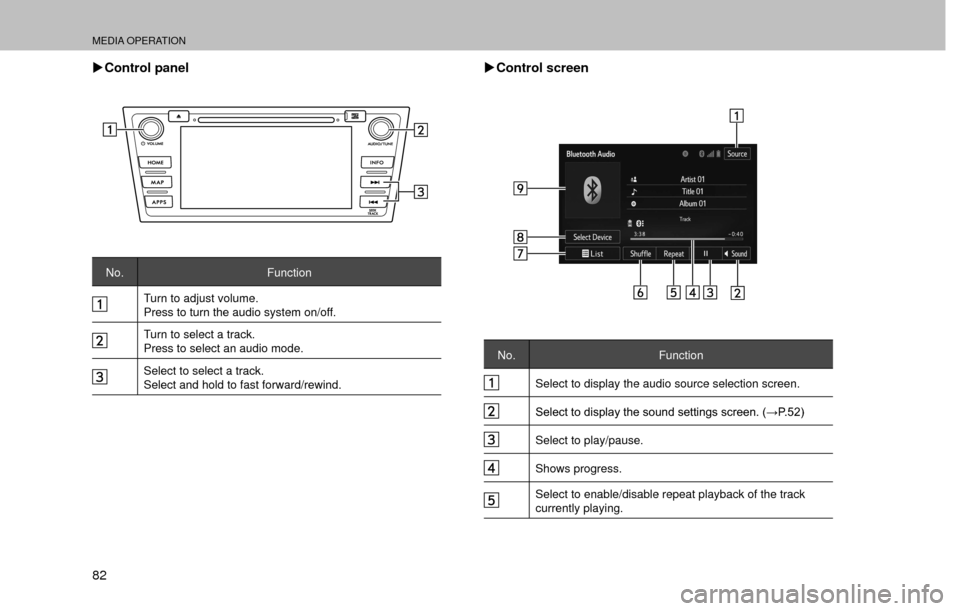

MEDIA OPERATION
82 XControl panel
No. Function
Turn to adjust volume.
Press to turn the audio system on/off.
Turn to select a track.
Press to select an audio mode.
Select to select a track.
Select and hold to fast forward/rewind.
XControl screen
No. Function
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVVFUHHQ
:3
Select to play/pause.
Shows progress.
Select to enable/disable repeat playback of the track
currently playing.

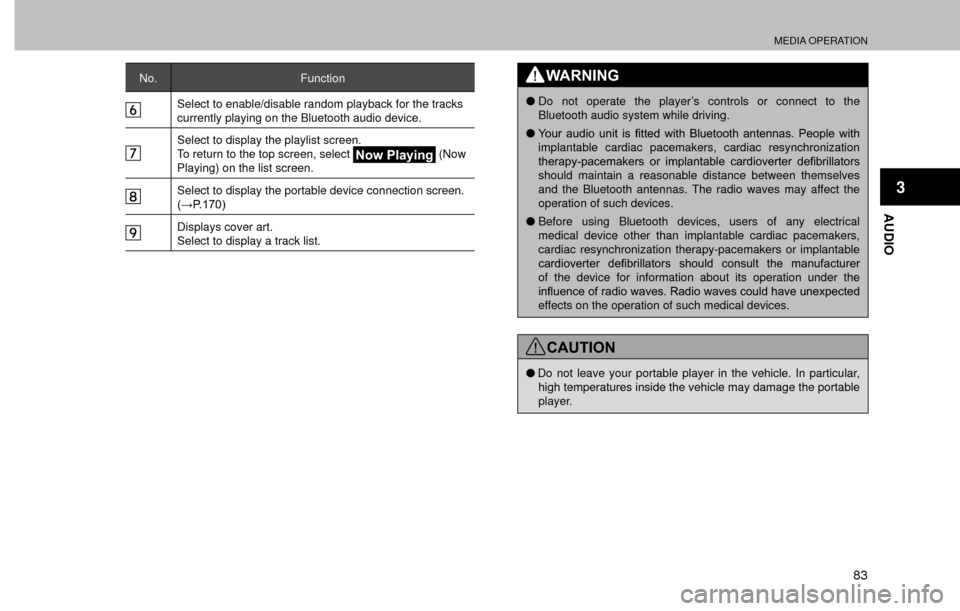

MEDIA OPERATION
83
AUDIO
3
No. Function
Select to enable/disable random playback for the tracks
currently playing on the Bluetooth audio device.
Select to display the playlist screen.
To return to the top screen, select Now Playing (Now
Playing) on the list screen.
Select to display the portable device connection screen.

:3
Displays cover art.
Select to display a track list.
WARNING
ODo not operate the player’s controls or connect to the
Bluetooth audio system while driving.
O<RXU DXGLR XQLW LV

MEDIA OPERATION
84
NOTE
ODepending on the Bluetooth device that is connected to the
system, the music may start playing when selecting while
it is paused. Conversely, the music may pause when selecting
while it is playing.
OIn the following conditions, the system may not function:
‡The Bluetooth device is turned off.
‡The Bluetooth device is not connected.
‡The Bluetooth device has a low battery.
OIt may take time to connect the phone when Bluetooth audio is
being played.
OFor operating the portable player, see the instruction manual that
comes with it.
OIf the Bluetooth device is disconnected due to poor reception
from the Bluetooth network when the ignition switch is turned
to the “ACC” or “ON” position, the system will automatically
reconnect to the portable player.
OIf the Bluetooth device is disconnected on purpose, such as it
was turned off, this does not happen. Reconnect the portable
player manually.
OBluetooth device information is registered when the Bluetooth
device is connected to the Bluetooth audio system. When
selling or disposing of the vehicle, remove the Bluetooth audio
LQIRUPDWLRQIURPWKHV\VWHP
:3
CONNECTING A Bluetooth DEVICE
To use the Bluetooth audio system, it is necessary to
register a Bluetooth device with the system.
XRegistering an additional device
1.SelectSelect Device (Select Device) on the Bluetooth
audio control screen.
2.)RUPRUHLQIRUPDWLRQ
:3
XSelecting a registered device
1.SelectSelect Device (Select Device) on the Bluetooth
audio control screen.
2.)RUPRUHLQIRUPDWLRQ
:3

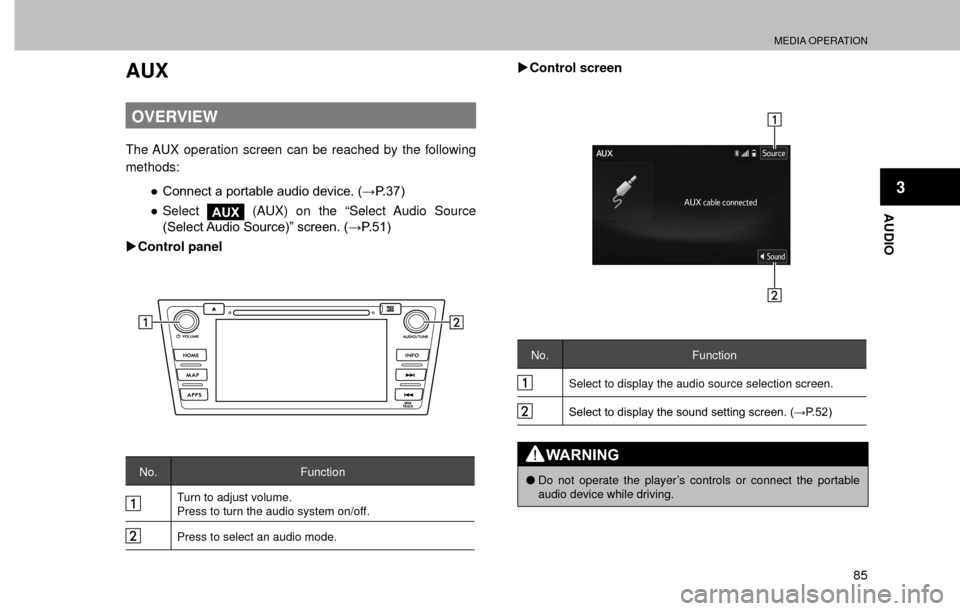

MEDIA OPERATION
85
AUDIO
3
AUX
OVERVIEW
The AUX operation screen can be reached by the following
methods:

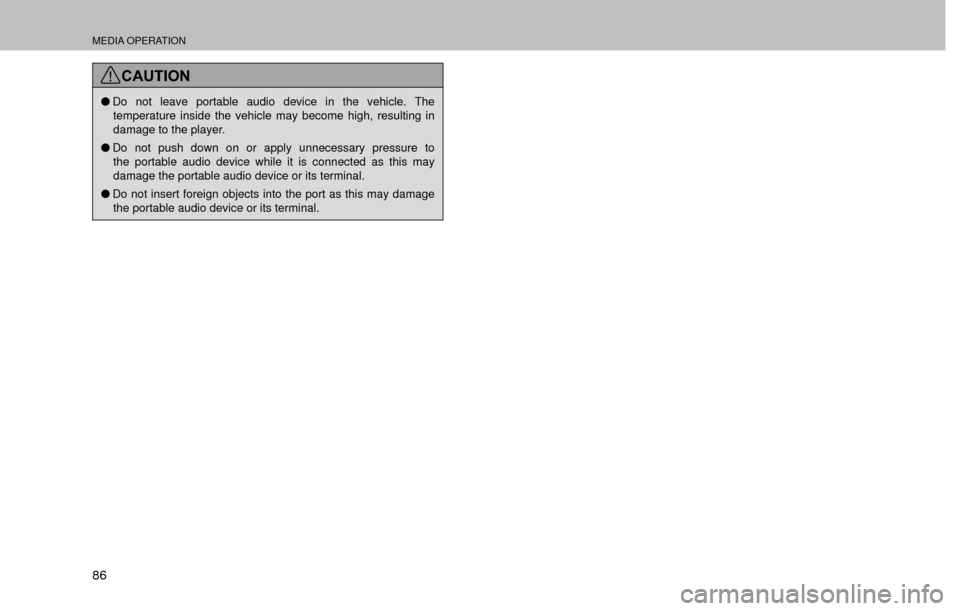

MEDIA OPERATION
86
CAUTION
ODo not leave portable audio device in the vehicle. The
temperature inside the vehicle may become high, resulting in
damage to the player.
ODo not push down on or apply unnecessary pressure to
the portable audio device while it is connected as this may
damage the portable audio device or its terminal.
ODo not insert foreign objects into the port as this may damage
the portable audio device or its terminal.

AUDIO/VISUAL REMOTE CONTROLS
87
AUDIO
3
AUDIO/VISUAL REMOTE CONTROLS
STEERING SWITCHES
Some parts of the audio/visual system can be adjusted
using the switches on the steering wheel.
No. Switch
“+/-” switch
“/ ” switch
Mute/enter switch
Back switch
List switch
“Source” switch
X“+/-” switch
Mode Operation Function
VolumePress Volume up/down
Press and hold Volume up/down continuously
List screen Press Cursor up/down
X“/ ” switch
Mode Operation Function
AM/FM Radio,
SiriusXM
®
Press Preset channel up/down
Press and hold Seek up/down continuously
ahaPress Content up/down
Press and holdReverse the current content
item for 15 seconds/ Fast
forward the current content
item for 30 seconds

AUDIO/VISUAL REMOTE CONTROLS
88
Mode Operation Function
Audio CD, MP3/
WMA/AAC
disc, SD*
1,
USB, iPod,
Bluetooth audioPress6HOHFWDWUDFN¿OH
Press and hold Fast forward/rewind
Pandora*
2Press
Track up (“”only)
Press and hold Thumbs up/down
List screen Press Cursor left/right
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
XMute/enter switch
Mode Operation Function
Except list
screenPress Mute/unmute
List screen Press Select cursor entry
XBack switch
Mode Operation Function
AllPressReturn to the previous screen
when
is displayed on
the screen.
Press and holdReturn to the “HOME
(HOME)” screen
XList switch
Mode Operation Function
Audio screen,
Navigation*
screenPress Show list screen
*: With navigation function
X“Source” switch
Mode Operation Function
All Press Change audio modes
NOTE
OIn the aha, Pandora* and STARLINK mode, some operation may
be done on the screen depend on the selected APPS.
*: Pandora is available in the United States, Australia, and New Zealand.
