Page 171 of 291
![SUBARU FORESTER 2016 SJ / 4.G Navigation Manual SETTINGS
7
Bluetooth® SETTINGS
169
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.SelectConnect Phone (Connect Phone).
XFrom the status display
1. 6 H O H F W V W D W X V G L V S O D \](/img/17/7217/w960_7217-170.png "SUBARU FORESTER 2016 SJ / 4.G Navigation Manual SETTINGS
7
Bluetooth® SETTINGS
169
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.SelectConnect Phone (Connect Phone).
XFrom the status display
1. 6 H O H F W V W D W X V G L V S O D \")
SETTINGS
7
Bluetooth® SETTINGS
169
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.SelectConnect Phone (Connect Phone).
XFrom the status display
1. 6 H O H F W V W D W X V G L V S O D \ D U H D R Q W K H V F U H H Q : 3
REGISTERING A Bluetooth DEVICE
Up to 5 Bluetooth devices can be registered.
Bluetooth compatible phones (HFP) and audio devices
(AVP) can be registered simultaneously.
This operation cannot be performed while driving.
1.Display the “Bluetooth Settings (Bluetooth Settings)”
V F U H H Q : 3
2.SelectAdd (Add).
XWhen another Bluetooth device is connected
”To disconnect the Bluetooth device, select
Yes
(Yes).
XWhen 5 Bluetooth devices have already been
registered
”A registered device needs to be replaced. Select
Yes (Yes), and then select the device to be
replaced.
3.When this screen is displayed, search for the device
name displayed on this screen on the screen of your
Bluetooth device.
”For details about operating the Bluetooth device, see
the manual that comes with it.
”To cancel the registration, select
Cancel (Cancel).
4.Register the Bluetooth device using your Bluetooth
device.
”A PIN-code is not required for SSP (Secure Simple
Pairing) compatible Bluetooth devices. Depending
on the type of Bluetooth device being connected, a
P H V V D J H F R Q
Page 172 of 291
Bluetooth® SETTINGS
170
5.Check that the screen is displayed when registration is
complete.
”The system waits for connection requests coming
from the registered device.
Page 173 of 291
SETTINGS
7
Bluetooth® SETTINGS
171
2.Select the device to be connected.
Page 174 of 291
Bluetooth® SETTINGS
172
2.SelectBluetooth (Bluetooth).
3.Follow the steps in “CONNECTING A Bluetooth
' ( 9 , & (
Page 175 of 291
SETTINGS
7
Bluetooth® SETTINGS
173
No. Information
The name of the Bluetooth device. Can be changed to a
G H V L U H G Q D P H : 3
Select to set the Bluetooth audio device connection
P H W K R G : 3
Device address is unique to the device and cannot be
changed.
Phone number of the Bluetooth phone.
& R P S D W L E L O L W \ S U R ¿ O H R I W K H % O X H W R R W K G H Y L F H
Select to reset all setup items.
NOTE
OIf 2 Bluetooth devices have been registered with the same
device name, the devices can be distinguished referring to the
device’s address.
ODepending on the type of phone, some information may not be
displayed.
CHANGING A DEVICE NAME
1.SelectDevice Name (Device Name).
2.Enter the name and then select OK (OK).
NOTE
OEven if the device name is changed, the name registered in your
Bluetooth device does not change.
SETTING AUDIO DEVICE CONNECTION METHOD
1.SelectConnect Audio Device from (Connect Audio
Device from).
2.Select the desired connection method.
”
Vehicle (Vehicle): Select to connect the audio
system to the audio device.
”
Device (Device): Select to connect the audio device
to the audio system.
”Depending on the audio device, the “Vehicle
(Vehicle)” or “Device (Device)” connection method
may be best. As such, refer to the manual that comes
with the audio device.
”To reset the connection method, select
Default
(Default).
“System Settings (System Settings)”
SCREEN
<0037004b004800030025004f005800480057005200520057004b00030056004800570057004c0051004a00560003004600440051000300450048000300460052005100bf0055005000480047000300440051004700030046004b00440051004a0048004700
11>
1.Display the “Bluetooth Settings (Bluetooth Settings)”
V F U H H Q : 3
2.SelectSystem Settings (System Settings).

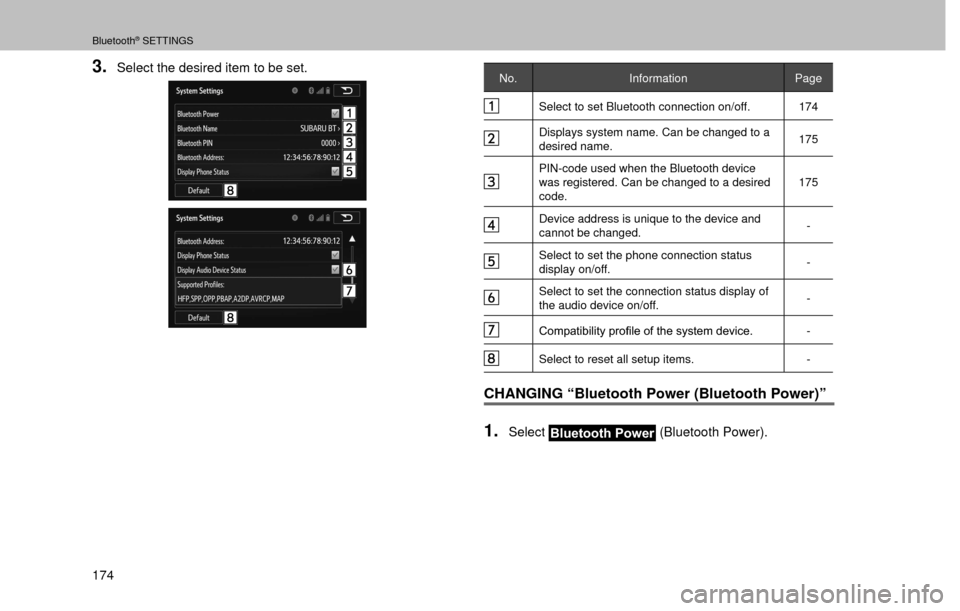

Page 176 of 291
Bluetooth® SETTINGS
174
3.Select the desired item to be set.No. Information Page
Select to set Bluetooth connection on/off. 174
Displays system name. Can be changed to a
desired name.175
PIN-code used when the Bluetooth device
was registered. Can be changed to a desired
code.175
Device address is unique to the device and
cannot be changed.-
Select to set the phone connection status
display on/off.-
Select to set the connection status display of
the audio device on/off.-
& R P S D W L E L O L W \ S U R ¿ O H R I W K H V \ V W H P G H Y L F H -
Select to reset all setup items. -
CHANGING “Bluetooth Power (Bluetooth Power)”
1.SelectBluetooth Power (Bluetooth Power).

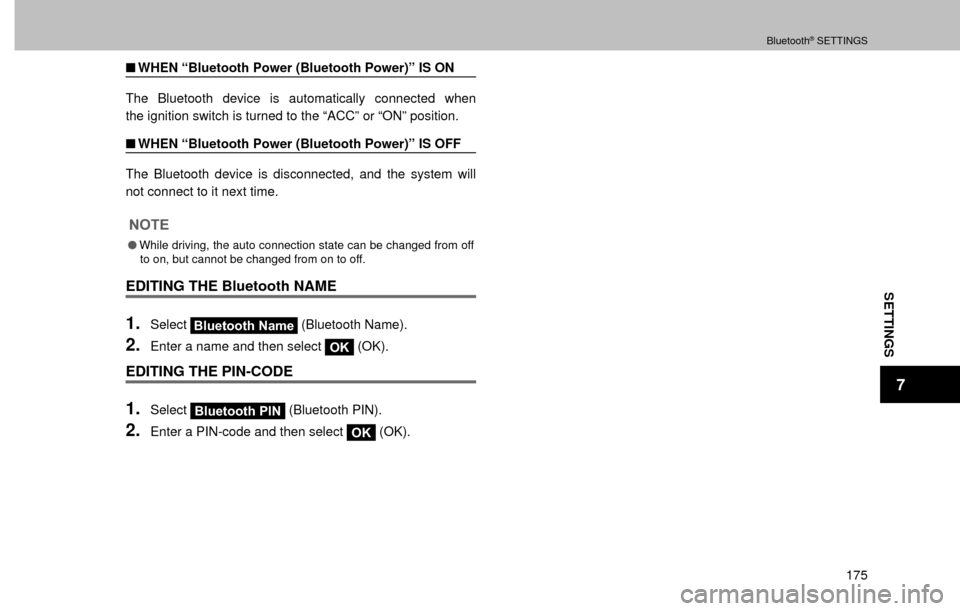

Page 177 of 291
SETTINGS
7
Bluetooth® SETTINGS
175
QWHEN “Bluetooth Power (Bluetooth Power)” IS ON
The Bluetooth device is automatically connected when
the ignition switch is turned to the “ACC” or “ON” position.
QWHEN “Bluetooth Power (Bluetooth Power)” IS OFF
The Bluetooth device is disconnected, and the system will
not connect to it next time.
NOTE
OWhile driving, the auto connection state can be changed from off
to on, but cannot be changed from on to off.
EDITING THE Bluetooth NAME
1.SelectBluetooth Name (Bluetooth Name).
2.Enter a name and then select OK (OK).
EDITING THE PIN-CODE
1.SelectBluetooth PIN (Bluetooth PIN).
2.Enter a PIN-code and then select OK (OK).
Page 178 of 291
OTHER SETTINGS
176
OTHER SETTINGS
GENERAL SETTINGS
Settings are available for keyboard layout, operation
sounds, etc.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectGeneral (General).
4.Select the items to be set.
GENERAL SETTINGS SCREEN
Page 179 of 291
OTHER SETTINGS
177
SETTINGS
7
No. Function
*1 6 H O H F W W R F K D Q J H W K H Y H K L F O H F O R F N V H W W L Q J V : 3
Select to change the language.
*2Select to change the unit for measuring distance.
Select to turn the beep sound on/off.
Select to change the button and screen color.
Select to change the keyboard layout.
Select to turn on/off the setting that returns the display
to the split screen automatically after 20 seconds when
a screen other than the split screen is displayed.
Select to turn the animation function on/off.
6 H O H F W W R F X V W R P L ] H W K H V F U H H Q R I I L P D J H : 3
6 H O H F W W R G H O H W H S H U V R Q D O G D W D : 3
Select to set the connected device when using aha.
Select
USB (USB) when using an iPhone, and then
select
Bluetooth (Bluetooth) when using Android
devices.
No. Function
Select to set the connected device when using
Pandora*3. Select USB (USB) when using an iPhone,
and then select
Bluetooth (Bluetooth) when using
Android devices.
Select to update the Gracenote® database. For details,
contact your SUBARU dealer.
Select to display the software information. Notices
related to third party software used in this product are
enlisted. (This includes instructions for obtaining such
software, where applicable.)
Select to set the back camera delay control on/off.
When set to on, the back camera image displays for
approximately 7 seconds after moving the shift lever/
select lever “R” to any position other than “R”.
The display disappears when the shift lever/select lever
is moved to “P”, or when the vehicle speed reaches
approximately 5 mph (8 km/h) or faster.
Select to reset all setup items.
*1: With navigation function
*2: Excludes Canada models without navigation function.
*3: Pandora is available in the United States, Australia, and New Zealand.
Page 180 of 291
OTHER SETTINGS
178
CLOCK SETTINGS (WITH NAVIGATION
FUNCTION)
Used to set the auto update setting for time zones, daylight
saving time and automatic time adjustment on/off.
1.Display the “General Settings (General Settings)”
V F U H H Q : 3
2.SelectClock (Clock).
3.Select the items to be set.
No. Function
6 H O H F W W R F K D Q J H W K H W L P H ] R Q H : 3
Select to set daylight saving time on/off or to auto.
When set to auto, the daylight saving time setting
automatically turns on or off based on the current
location information.
4.SelectOK (OK).
QSETTING THE TIME ZONE
1.SelectTime Zone (Time Zone).
2.Select the desired time zone.
CUSTOMIZING THE SCREEN OFF IMAGES
When the screen is turned off, the desired set image
can be displayed as the screen off image. Images
can be copied from a USB memory or SD card*.
A USB memory or SD card* must be connected when
H G L W L Q J V F U H H Q R I I L P D J H V : 3
*: With navigation function
