SUBARU FORESTER 2016 SJ / 4.G Navigation Manual

DESTINATION SEARCH
199
NAVIGATION SYSTEM
8

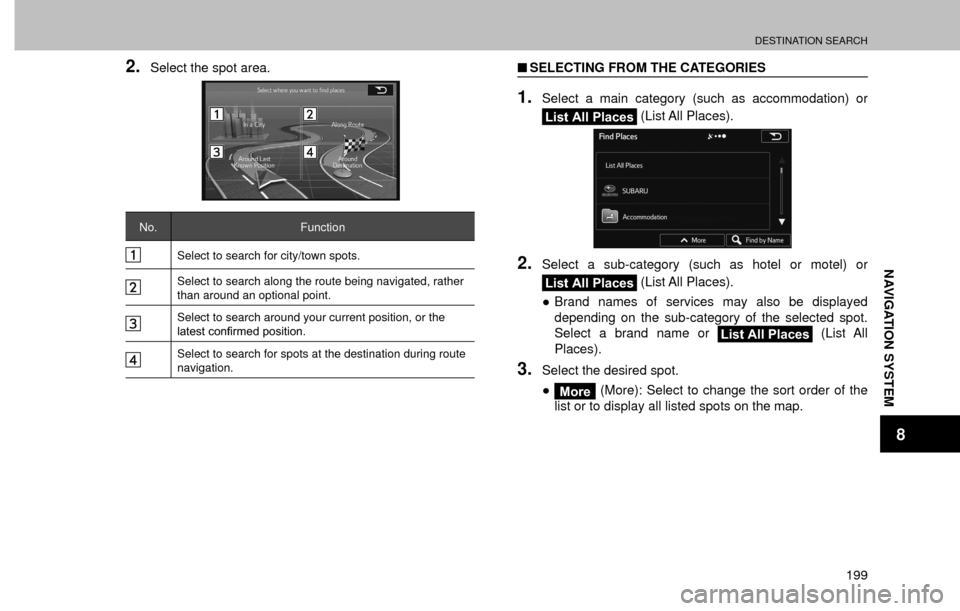

2.Select the spot area.
No. Function
Select to search for city/town spots.
Select to search along the route being navigated, rather
than around an optional point.
Select to search around your current position, or the
ODWHVWFRQ¿UPHGSRVLWLRQ
Select to search for spots at the destination during route
navigation.
QSELECTING FROM THE CATEGORIES
1.Select a main category (such as accommodation) or
List All Places (List All Places).
2.Select a sub-category (such as hotel or motel) or
List All Places (List All Places).

”Brand names of services may also be displayed
depending on the sub-category of the selected spot.
Select a brand name or
List All Places (List All
Places).
3.Select the desired spot.

”
More (More): Select to change the sort order of the
list or to display all listed spots on the map.

DESTINATION SEARCH
200

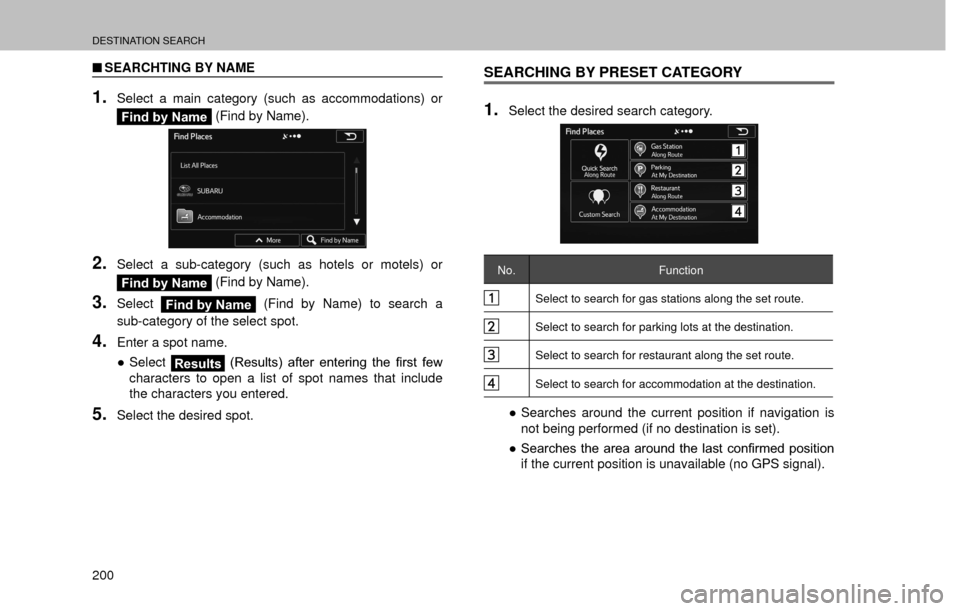

QSEARCHTING BY NAME
1.Select a main category (such as accommodations) or
Find by Name (Find by Name).
2.Select a sub-category (such as hotels or motels) or
Find by Name (Find by Name).
3.SelectFind by Name (Find by Name) to search a
sub-category of the select spot.
4.Enter a spot name.

”Select
Results 5HVXOWV DIWHU HQWHULQJ WKH

DESTINATION SEARCH
201
NAVIGATION SYSTEM
8
2.Select the desired spot.

”Filter (Filter): Select to narrow down the list.

”
More (More): Select to change the sort order of the
list or to display all listed spots on the map.
SEARCHING BY FIND ON MAP
1.Display the “Destination (Destination)” screen.

:3
2.SelectFind on Map (Find on Map).
3.Scroll the map to the desired point and touch.

”The cursor () is displayed.
”
: Select to return to the previous location when the
map has been moved.
4.SelectNext (Next).
SEARCHING BY FAVORITES
1.Display the “Destination (Destination)” screen.

:3
2.SelectFavorites (Favorites).
3.Select the desired destination.

”Refer to “SAVING DESTINATIONS” for information on
KRZWRVDYHWKHGHVWLQDWLRQ
:3

”
Filter (Filter): Select to narrow down the list.

”
: Select to delete the favorites.

”
More (More): Select to change the sort order of the
list, to display all listed spots on the map or to delete
all favorites on the list.

DESTINATION SEARCH
202

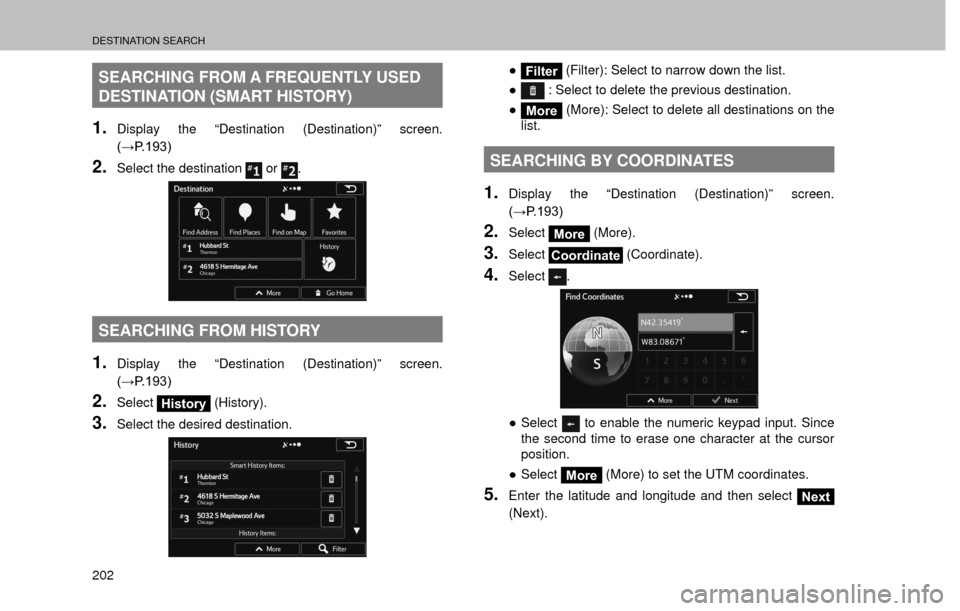

SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY)
1.Display the “Destination (Destination)” screen.

:3
2.Select the destination or .
SEARCHING FROM HISTORY
1.Display the “Destination (Destination)” screen.

:3
2.SelectHistory (History).
3.Select the desired destination.

”Filter (Filter): Select to narrow down the list.

”
: Select to delete the previous destination.

”
More (More): Select to delete all destinations on the
list.
SEARCHING BY COORDINATES
1.Display the “Destination (Destination)” screen.

:3
2.SelectMore (More).
3.SelectCoordinate (Coordinate).
4.Select.

”Select to enable the numeric keypad input. Since
the second time to erase one character at the cursor
position.

”Select
More (More) to set the UTM coordinates.
5.Enter the latitude and longitude and then select Next
(Next).

DESTINATION SEARCH
203
NAVIGATION SYSTEM
8
OTHER SEARCH OPERATION
SEARCHING BY WHERE AM I?
You can search for the closest assistance service by using
the “Where Am I? (Where Am I?)” screen.
1.Display the “Where Am I? (Where Am I?)” screen.

:3
2.SelectHelp Nearby (Help Nearby).
3.Select the desired search category.
No. Function
Select to search for vehicle repairs / road-side
assistance services.
Select to search for hospitals / emergency services.
No. Function
Select to search for police stations.
Select to search for gas stations.

”This button searches for everything around your
FXUUHQWSRVLWLRQRUWKHODWHVWFRQ

DESTINATION SEARCH
204

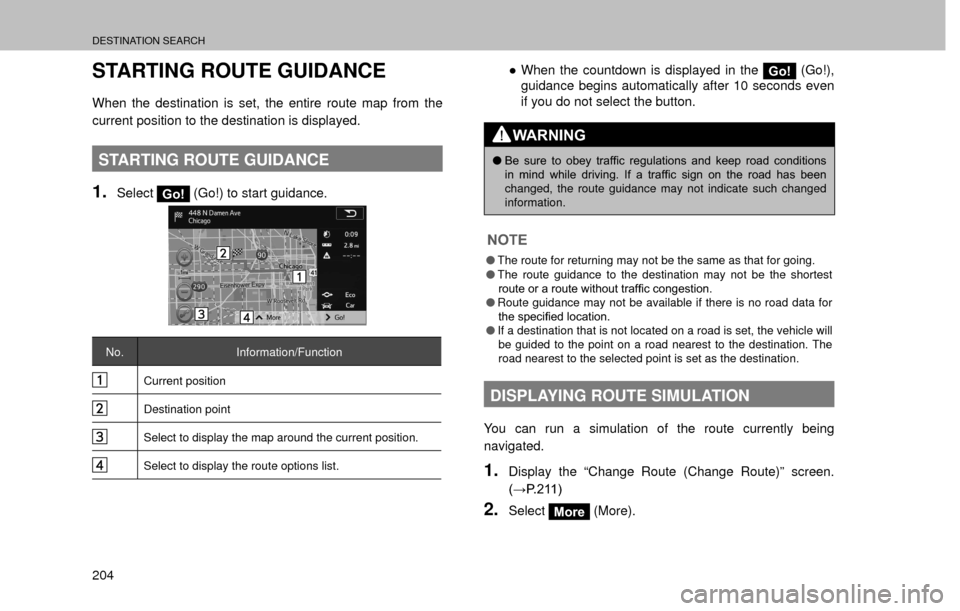

STARTING ROUTE GUIDANCE
When the destination is set, the entire route map from the
current position to the destination is displayed.
STARTING ROUTE GUIDANCE
1.SelectGo! (Go!) to start guidance.
No. Information/Function
Current position
Destination point
Select to display the map around the current position.
Select to display the route options list.

”When the countdown is displayed in the Go! (Go!),
guidance begins automatically after 10 seconds even
if you do not select the button.
WARNING
O%H VXUH WR REH\ WUDI

DESTINATION SEARCH
205
NAVIGATION SYSTEM
8
3.SelectSimulate Navigation (Simulate Navigation).
4.Check that the route simulation is displayed.

”The simulation begins from the start point and works
through the entire route at the recommended speed.

”You can use the following buttons during the
simulation (although the control buttons disappear
after a few seconds, you can touch the map to show
them again).
No. Function
Select to return to the previous route event (the previous
change in the route).
Select to pause the simulation.
Select to go to the next route event (the next change in
the route).
No. Function
Select to change the speed of the simulation. You can
select from speeds of 4x, 8x, or 16x. Select again to
return to normal speed.
Select to stop the simulation.
CANCELING ROUTE
The route being navigated is deleted, including all
waypoints.
1.SelectMenu (Menu) on the map screen.
2.SelectCancel Route (Cancel Route).

”You can also cancel the route guidance by selecting
Cancel Route (Cancel Route) on the “Change
5RXWH&KDQJH5RXWH

ROUTE GUIDANCE
206
ROUTE GUIDANCE
ROUTE GUIDANCE SCREEN
During the route guidance, various types of guidance
screens can be displayed depending on conditions.
SCREEN FOR ROUTE GUIDANCE
No. Information/Function
Distance to the next turn and an arrow indicating the
turning direction
Arrow indicating the direction of the turn after the next
turn
Guidance route
Current position
'DWD¿HOGV
No. Information/Function
Current street name
Select to display the “Where Am I? (Where Am I?)”
VFUHHQ
:3
Next street name
NOTE
OIf the vehicle goes off the guidance route, the route is searched
again.
OFor some areas, the roads have not been completely digitized in
our database. For this reason, the route guidance may select a
road that should not be traveled on.
STANDARD MAP ICON
The following table shows the most frequently displayed
route events.
Icon Explanation
Turn left
Turn right
U-turn left

ROUTE GUIDANCE
207
NAVIGATION SYSTEM
8
Icon Explanation
U-turn right
Keep left at the fork in the road.
Keep right at the fork in the road.
Turn left & sharp curve.
Turn right & sharp curve.
Stay in the left lane.
Stay in the right lane.
Go straight ahead at the intersection.
Turn left at the T junction.
Turn right at the T junction.
Go left at the roundabout. Third exit (next change in
direction).
Join the roundabout (the route change after the next
change).
Join the expressway.
Leave the expressway.
Board the ferry.
Icon Explanation
Disembark from the ferry.
You are half way to your destination.
You have arrived at your destination.
DATA FIELDS
:KHQ WKH YHKLFOH LV RQ WKH JXLGDQFH URXWH WKH GDWD

ROUTE GUIDANCE
208

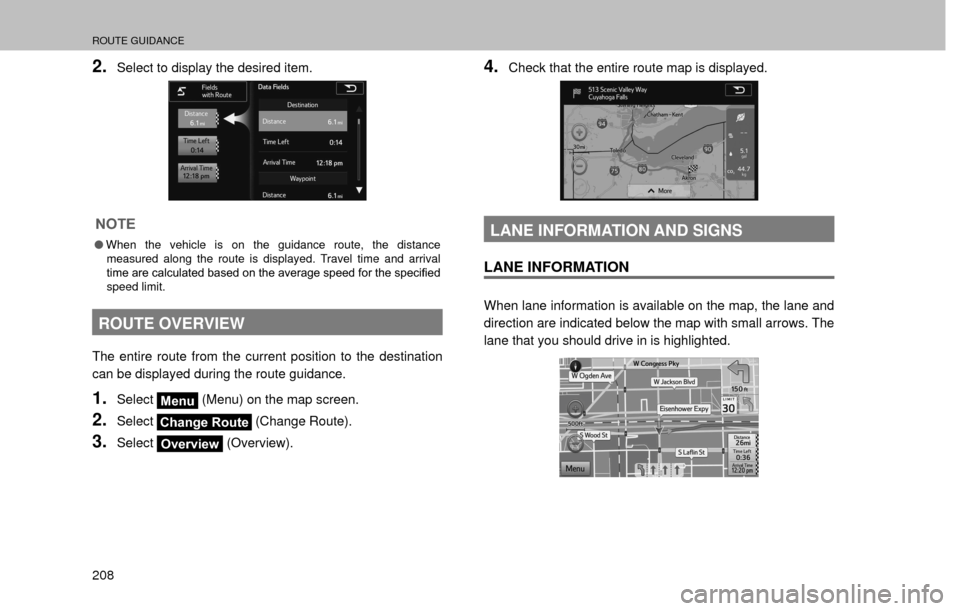

2.Select to display the desired item.
NOTE
OWhen the vehicle is on the guidance route, the distance
measured along the route is displayed. Travel time and arrival
<0057004c005000480003004400550048000300460044004f00460058004f004400570048004700030045004400560048004700030052005100030057004b0048000300440059004800550044004a0048000300560053004800480047000300490052005500
030057004b004800030056005300480046004c00bf00480047>
speed limit.
ROUTE OVERVIEW
The entire route from the current position to the destination
can be displayed during the route guidance.
1.SelectMenu (Menu) on the map screen.
2.SelectChange Route (Change Route).
3.SelectOverview (Overview).
4.Check that the entire route map is displayed.
LANE INFORMATION AND SIGNS
LANE INFORMATION
When lane information is available on the map, the lane and
direction are indicated below the map with small arrows. The
lane that you should drive in is highlighted.
