SUBARU FORESTER 2016 SJ / 4.G Navigation Manual
Page 25 of 291
BASIC FUNCTION
23
1
QUICK GUIDE
SPLIT SCREEN
Press and hold the “AUDIO/TUNE” knob, to display the
split screen.
The split screen can display two information screens
simultaneously, such as the audio system screen and
hands-free screen or the hands-free screen and navigation*
screen. When hands-free mode is selected, it is possible
to make a call on the home screen if the desired telephone
number is registered to one of the 4 displayed buttons. In
order to register the contact, select and hold the desired
button and register the desired contact by obey displayed
P H V V D J H V R Q W K H V F U H H Q : 3
*: With navigation function
When a screen is selected, the selected screen is switched
to a full-screen display. The split screen can be set to a two-
way split screen.
) R U G H W D L O V D E R X W V H W W L Q J W K H V S O L W V F U H H Q : 3 No. Function Page
Select to display the “Customize Split
Screen (Customize Split Screen)” screen.43

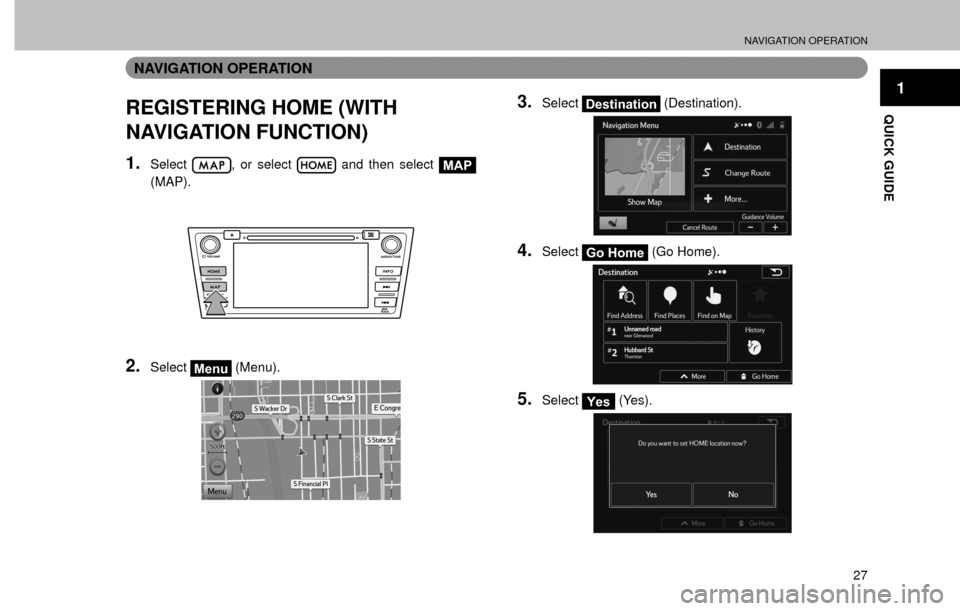

Page 29 of 291
NAVIGATION OPERATION
27
1
QUICK GUIDE
NAVIGATION OPERATION
REGISTERING HOME (WITH
NAVIGATION FUNCTION)
1.Select, or select and then select MAP
(MAP).
2.SelectMenu (Menu).
3.SelectDestination (Destination).
4.SelectGo Home (Go Home).
5.SelectYes (Yes).

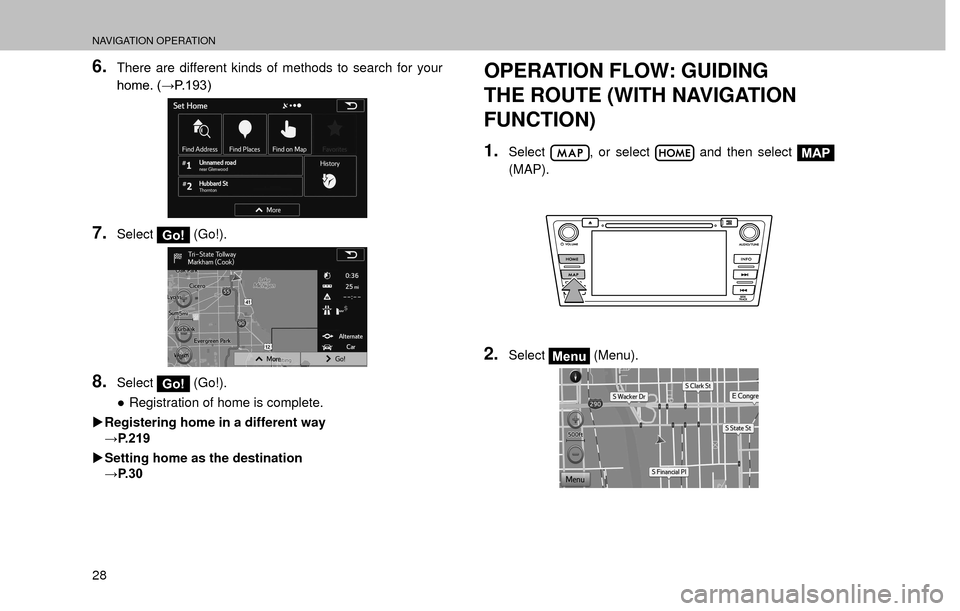

Page 30 of 291
NAVIGATION OPERATION
28
6.There are different kinds of methods to search for your
K R P H : 3
7.SelectGo! (Go!).
8.SelectGo! (Go!).
”Registration of home is complete.
XRegistering home in a different way
: 3
XSetting home as the destination
: 3
OPERATION FLOW: GUIDING
THE ROUTE (WITH NAVIGATION
FUNCTION)
1.Select, or select and then select MAP
(MAP).
2.SelectMenu (Menu).
Page 31 of 291
NAVIGATION OPERATION
29
1
QUICK GUIDE
3.SelectDestination (Destination).
4.There are different kinds of methods to search for a
G H V W L Q D W L R Q : 3
5.SelectNext (Next).
6.SelectGo! (Go!).
”Guidance to the destination is displayed on the
screen and can be heard via voice guidance.
Page 32 of 291
NAVIGATION OPERATION
30
SETTING HOME AS THE
DESTINATION (WITH NAVIGATION
FUNCTION)
1.Select, or select and then select MAP
(MAP).
2.SelectMenu (Menu).
3.SelectDestination (Destination).
4.SelectGo Home (Go Home).
5.SelectNext (Next).
6.SelectGo! (Go!).
”Guidance to the destination is displayed on the
screen and can be heard via voice guidance.
Page 33 of 291
FUNCTION INDEX
31
1
QUICK GUIDE
FUNCTION INDEX
FUNCTION INDEX
XAudio
Function Page
Using the radio 56, 65
Playing an audio CD or MP3/WMA/AAC disc 69
Playing an SD*
1 card 78
Playing a USB memory 71
Playing an iPod
®75
Playing a Bluetooth device 81
Using the aha application 142
Using the AUX port 85
Using the MirrorLink
TM application 139
Using the Pandora
®*2 application 150
Using the steering wheel audio switches 87
Audio system settings 89
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
XMap*
*: With navigation function
Displaying maps Page
Viewing the map screen 184
Displaying the current position 189
Changing the scale 190
Changing the map orientation 190
Displaying the estimated travel/arrival time to the
destination207
' L V S O D \ L Q J W U D I ¿ F L Q I R U P D W L R Q192
Searching for destinations Page
Searching for the destination 194
Page 34 of 291
FUNCTION INDEX
32 XRoute guidance*
*: With navigation function
Before starting or during route guidance Page
Starting route guide 204
Editing the route 212
Viewing the entire route map 208
Adjusting route guidance volume 181
Deleting the destination 213
XUseful functions
Hands-free system (for cellular phone) Page
Registering/connecting Bluetooth phone 164
Making a call on a Bluetooth phone 110
Receiving a call on the Bluetooth phone 115
Voice recognition system Page
Operating the system with your voice 234
Page 36 of 291
BASIC INFORMATION BEFORE OPERATION
34
BASIC INFORMATION BEFORE OPERATION
INITIAL SCREEN
INITIAL SCREEN
WARNING
OWhen the vehicle is stopped with the engine running, always
apply the parking brake for safety.
1.When the ignition switch is in the “ACC” or “ON”
position, the initial screen will be displayed and the
system will begin operating.
”After a few seconds, the “CAUTION (CAUTION)”
screen will be displayed.
2.SelectI Agree (I Agree).
”After about 5 seconds, the “CAUTION (CAUTION)”
screen automatically switches to the next screen.
”With navigation function: Select
Language
(Language) to select a language.
XWith navigation function
3.SelectAccept (Accept).
” & R Q ¿ U P W K H H Q G X V H U O L F H Q V H D J U H H P H Q W

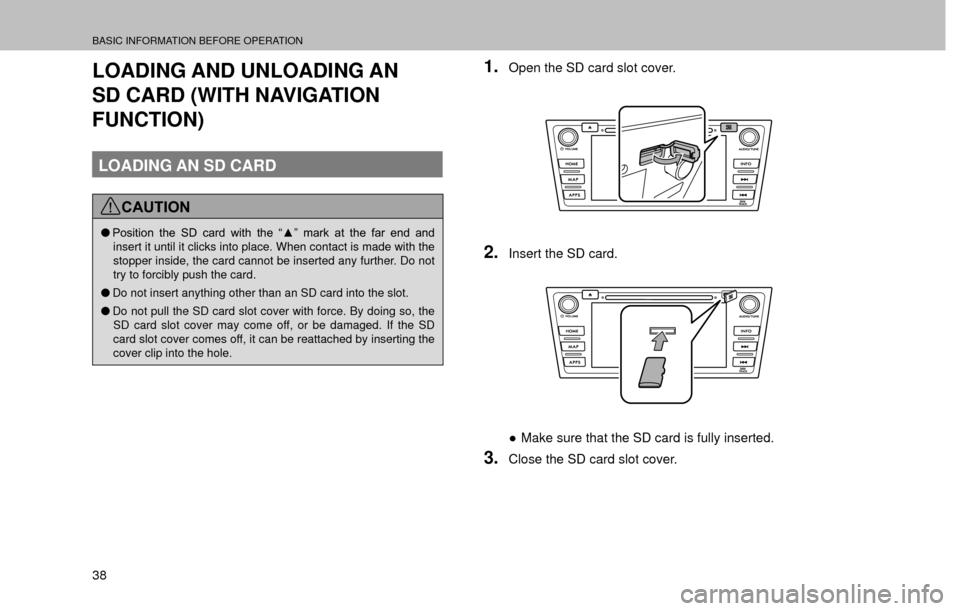

Page 40 of 291
BASIC INFORMATION BEFORE OPERATION
38
LOADING AND UNLOADING AN
SD CARD (WITH NAVIGATION
FUNCTION)
LOADING AN SD CARD
CAUTION
O 3 R V L W L R Q W K H 6 ' F D U G Z L W K W K H
Page 43 of 291
BASIC INFORMATION BEFORE OPERATION
41
BASIC FUNCTION
2
Operation method Outline Main use
Rotate*1
To change the
map direction,
rotate with two
¿ Q J H U V W R X F K L Q J
the screen.Changing the
horizontal
display angle of
the map.
*1: With navigation function
*2: The above operations may not be performed on all screens.
NOTE
OFlick operations may not be performed smoothly in high
altitudes.
TOUCH SCREEN OPERATION
This system is operated mainly by the buttons on the
screen. (Referred to as screen buttons in this manual.)
”When a screen button is touched, a beep sounds.
< R X F D Q V H W W K H E H H S V R X Q G : 3
CAUTION
OTo prevent damaging the screen, lightly touch the screen
E X W W R Q V Z L W K \ R X U
