navigation SUBARU FORESTER 2016 SJ / 4.G Navigation Manual
[x] Cancel search | Manufacturer: SUBARU, Model Year: 2016, Model line: FORESTER, Model: SUBARU FORESTER 2016 SJ / 4.GPages: 291, PDF Size: 11.3 MB
Page 3 of 291
1
TABLE OF CONTENTS
1QUICK GUIDE
17
2BASIC FUNCTION
33
3AUDIO
49
4PHONE
105
5APPS
137
6INFORMATION
153
7SETTINGS
163
8NAVIGATION SYSTEM
(WITH NAVIGATION FUNCTION)183
9VOICE RECOGNITION SYSTEM
233
10APPENDIX/WHAT TO DO IF/
INDEX257
*:Pandora is available in the United States, Australia, and New Zealand.
1 QUICK GUIDE
· BASIC FUNCTION... 18 · QUICK REFERENCE... 26
· NAVIGATION OPERATION... 27 · FUNCTION INDEX... 31
2 BASIC FUNCTION
· BASIC INFORMATION BEFORE OPERATION... 34
· REAR VIEW CAMERA... See vehicle Owner’s Manual
3 AUDIO
· BASIC OPERATION... 50 · RADIO OPERATION... 56
· MEDIA OPERATION... 69 · AUDIO/VISUAL REMOTE CONTROLS... 87
· SETUP... 89 · TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM... 92
4 PHONE
· PHONE OPERATION... 106 · SETUP... 125
5 APPS
· STARLINK... 138 · MirrorLinkTM... 139 · ahaTM... 142 · Pandora®*... 150
6 INFORMATION
· USEFUL INFORMATION... 154
7 SETTINGS
· Bluetooth® SETTINGS... 164 · OTHER SETTINGS... 176
8 NAVIGATION SYSTEM (WITH NAVIGATION FUNCTION)
· NAVIGATION... 183
9 VOICE RECOGNITION SYSTEM
· VOICE RECOGNITION SYSTEM OPERATION... 234 · COMMAND LIST... 239
10 APPENDIX / WHAT TO DO IF / INDEX
· MAP DATABASE INFORMATION AND UPDATES... 258
· TROUBLESHOOTING... 266 · ERROR MESSAGES... 272 · INDEX... 279
Page 12 of 291
INTRODUCTION
10
HOW TO READ THIS MANUAL
BASIC INFORMATION BEFORE OPERATION
INFO SCREEN OPERATION
REORDERING THE MENU ICONS
Order of the menu icons can be changed.1. Display the “INFO (INFO)” screen. (→P.22)2. Select Reorder (Reorder).
3. Select the desired menu icon to be moved.
4. Select or to move the menu icon, and then
select OK (OK).
SPLIT SCREEN OPERATION
The split screen can display multiple information screens,
such as the audio system screen and hands-free screen,
simultaneously.
The following describes screen operation for the with
navigation function.
1. Press and hold the “AUDIO/TUNE” knob.2. Split screen is displayed.
● When a screen is selected, the selected screen will
change to a full-screen display.
No. Name Description
Operational Outlines An outline of the operation is explained.
Main Operations The steps of an operation are explained.
Supplementary informations A main operation’s supplementary informations are described.
”When a panel button should be selected, button names are shown as .
”When a touch button on the screen should be selected, button names are shown as
.
Page 13 of 291
1
2
3
4
5
6
7
8
9
10
11
Table of Contents
1QUICK GUIDE
BASIC FUNCTION ................................................ 18
OVERVIEW BUTTONS .........................................................18
“HOME (HOME)” SCREEN ..................................................20
“APPS (APPS)” SCREEN ....................................................21
“INFO (INFO)” SCREEN .......................................................22
SPLIT SCREEN .....................................................................23
STATUS DISPLAY .................................................................24
QUICK REFERENCE ............................................ 26“SETTINGS (SETTINGS)” SCREEN ....................................26
NAVIGATION OPERATION .................................. 27REGISTERING HOME (WITH NAVIGATION FUNCTION) ...27
OPERATION FLOW: GUIDING THE ROUTE
(WITH NAVIGATION FUNCTION) .........................................28
SETTING HOME AS THE DESTINATION
(WITH NAVIGATION FUNCTION) .........................................30
FUNCTION INDEX ................................................ 31FUNCTION INDEX ................................................................31
2BASIC FUNCTION
BASIC INFORMATION BEFORE OPERATION ... 34
INITIAL SCREEN ..................................................................34
”INITIAL SCREEN ............................................................34LOADING AND UNLOADING A DISC ..................................36
”LOADING A DISC ............................................................36
”UNLOADING A DISC.......................................................37
CONNECTING AND DISCONNECTING A USB MEMORY/
PORTABLE DEVICE .............................................................37
”CONNECTING A DEVICE ...............................................37
LOADING AND UNLOADING AN SD CARD
(WITH NAVIGATION FUNCTION) .........................................38
”LOADING AN SD CARD .................................................38
”UNLOADING AN SD CARD ............................................39
TOUCH SCREEN GESTURES .............................................40
TOUCH SCREEN OPERATION ............................................41
INFO SCREEN OPERATION ................................................42
”REORDERING THE MENU ICONS ................................42
SPLIT SCREEN OPERATION ...............................................42
”CUSTOMIZING THE SPLIT SCREEN ............................43
ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION ..........................................................................43
”ENTERING LETTERS AND NUMBERS .........................43
”LIST SCREEN OPERATION ...........................................44
SCREEN ADJUSTMENT ......................................................46
”CHANGING BETWEEN DAY AND NIGHT MODE ..........47
3AUDIO
BASIC OPERATION ............................................. 50
SOME BASICS ......................................................................50
”TURNING THE SYSTEM ON AND OFF .........................50
”SELECTING AN AUDIO SOURCE ..................................51
”SOUND SETTINGS.........................................................52
”AUDIO SCREEN ADJUSTMENT ....................................54
”VOICE RECOGNITION SYSTEM ...................................55
Page 14 of 291
12
RADIO OPERATION ............................................. 56AM/FM RADIO.......................................................................56
”OVERVIEW .....................................................................56
”PRESETTING A STATION ..............................................57
”SELECTING A STATION FROM THE LIST .....................58
”RADIO BROADCAST DATA SYSTEM ............................58
”AVAILABLE HD Radio™ TECHNOLOGY .......................60
”CACHING A RADIO PROGRAM .....................................63
SiriusXM
® Satellite Radio ....................................................65
”OVERVIEW .....................................................................65
”HOW TO SUBSCRIBE TO SiriusXM
® Satellite Radio .....66
”DISPLAYING THE RADIO ID ..........................................68
”PRESETTING A CHANNEL ............................................68
”SELECTING A CHANNEL FROM THE LIST ...................68
MEDIA OPERATION ............................................. 69CD ..........................................................................................69
”OVERVIEW .....................................................................69
USB MEMORY ......................................................................71
”OVERVIEW .....................................................................71
iPod .......................................................................................75
”OVERVIEW .....................................................................75
SD CARD (WITH NAVIGATION FUNCTION) .......................78
”OVERVIEW .....................................................................78
Bluetooth AUDIO ..................................................................81
”OVERVIEW .....................................................................81
”CONNECTING A Bluetooth DEVICE ...............................84
AUX .......................................................................................85
”OVERVIEW .....................................................................85
AUDIO/VISUAL REMOTE CONTROLS ............... 87STEERING SWITCHES ........................................................87
SETUP ................................................................... 89AUDIO SETTINGS ................................................................89
”AUDIO SETTINGS SCREEN ..........................................89
TIPS FOR OPERATING THE AUDIO/VISUAL
SYSTEM ................................................................ 92
OPERATING INFORMATION ................................................92
”RADIO .............................................................................92
”CD PLAYER AND DISC ..................................................93
”USB MEMORY ................................................................96
”iPod .................................................................................97
”SD CARD (WITH NAVIGATION FUNCTION) .................97
”FILE INFORMATION .......................................................98
”TERMS ..........................................................................102
4PHONE
PHONE OPERATION (HANDS-FREE SYSTEM
FOR CELLULAR PHONES) ............................... 106
QUICK REFERENCE ..........................................................106
SOME BASICS ....................................................................107
”REGISTERING/CONNECTING A Bluetooth PHONE....108
”USING THE PHONE SWITCH/MICROPHONE ............108
”VOICE RECOGNITION SYSTEM .................................109
”ABOUT THE CONTACTS IN THE CONTACT LIST ......109
”WHEN SELLING OR DISPOSING
OF THE VEHICLE ........................................................ 110
Page 16 of 291
14
7SETTINGS
Bluetooth
® SETTINGS ....................................... 164REGISTERING/CONNECTING Bluetooth® DEVICE .........164
”REGISTERING A Bluetooth PHONE FOR
THE FIRST TIME .........................................................164
”REGISTERING A Bluetooth AUDIO DEVICE
FOR THE FIRST TIME .................................................166
”PROFILES .....................................................................167
SETTING Bluetooth DETAILS ...........................................168
”“Bluetooth Settings (Bluetooth Settings)” SCREEN ......168
”REGISTERING A Bluetooth DEVICE ............................169
”DELETING A Bluetooth DEVICE ...................................170
”CONNECTING A Bluetooth DEVICE .............................170
”EDITING THE Bluetooth DEVICE INFORMATION .......172
”“System Settings (System Settings)” SCREEN .............173
OTHER SETTINGS ............................................. 176GENERAL SETTINGS ........................................................176
”GENERAL SETTINGS SCREEN ..................................176
VOICE SETTINGS ...............................................................181
”VOICE SETTINGS SCREEN ........................................182
8NAVIGATION SYSTEM
BASIC OPERATION ........................................... 184
QUICK REFERENCE ..........................................................184
”MAP SCREEN ...............................................................184
”MAP OPERATIONS ......................................................185
”NAVIGATION MENU .....................................................186
”GPS INDICATOR ..........................................................187
”CHECK CURRENT POSITION .....................................188
MAP SCREEN OPERATION ...............................................189
”CURRENT POSITION DISPLAY ...................................189
”SHOW MAP ...................................................................189
”MAP SCALE ..................................................................190
”ORIENTATION OF THE MAP ........................................190
”POSITION MARKER .....................................................191
TRAFFIC INFORMATION ...................................................192
”DISPLAYING TRAFFIC INFORMATION .......................192
DESTINATION SEARCH .................................... 193DESTINATION SEARCH SCREEN .....................................193
SEARCH OPERATION ........................................................194
”SETTING HOME AS DESTINATION .............................195
”SEARCHING BY FIND ADDRESS ................................195
”SEARCHING BY FIND PLACES ...................................197
”SEARCHING BY FIND ON MAP ...................................201
”SEARCHING BY FAVORITES ......................................201
”SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY) .............................202
”SEARCHING FROM HISTORY .....................................202
”SEARCHING BY COORDINATES ................................202
Page 17 of 291
1
2
3
4
5
6
7
8
9
10
15
OTHER SEARCH OPERATION ..........................................203
”SEARCHING BY WHERE AM I? ...................................203
STARTING ROUTE GUIDANCE .........................................204
”STARTING ROUTE GUIDANCE ...................................204
”DISPLAYING ROUTE SIMULATION .............................204
”CANCELING ROUTE ....................................................205
ROUTE GUIDANCE ............................................ 206ROUTE GUIDANCE SCREEN ............................................206
”SCREEN FOR ROUTE GUIDANCE .............................206
”STANDARD MAP ICON ................................................206
”DATA FIELDS ................................................................207
”ROUTE OVERVIEW ......................................................208
”LANE INFORMATION AND SIGNS ...............................208
”HIGHWAY SERVICES ...................................................209
”JUNCTION DISPLAY ....................................................210
TYPICAL VOICE GUIDANCE PROMPTS ..........................210
ROUTE RELATED FUNCTIONS ......................................... 211
”DISPLAYING CHANGE ROUTE ................................... 211
”EDITING ROUTE ..........................................................212
”ADDING DESTINATIONS .............................................212
”REORDERING DESTINATIONS ...................................212
”DELETING DESTINATIONS .........................................213
”SETTING ROUTE PREFERENCES .............................213
”AVOIDANCES SETTING ...............................................215
”CHANGING ROUTE......................................................215
”SETTING A NEW STARTING POINT ............................216
”CREATING A ROUTE ....................................................217
”ROUTE ALTERNATIVES ...............................................218
MEMORY POINTS .............................................. 219MEMORY POINTS SETTINGS ...........................................219
”SETTING UP HOME .....................................................219
”SAVING DESTINATIONS ..............................................220
SETUP ................................................................. 221NAVIGATION SETTINGS ....................................................221
”OPTIONAL FUNCTIONS ..............................................221
TIPS FOR THE NAVIGATION SYSTEM ............. 229GPS (GLOBAL POSITIONING SYSTEM) ..........................229
”REGARDING ERRORS IN CURRENT POSITION
DISPLAY ......................................................................229
”LIMITATIONS OF THE NAVIGATION SYSTEM ............229
MAP DATA ...........................................................................231
”REGARDING ROADS AND PLACE NAME DATA ........231
9VOICE RECOGNITION SYSTEM
VOICE RECOGNITION SYSTEM
OPERATION ....................................................... 234
VOICE RECOGNITION SYSTEM .......................................234
”USING THE VOICE RECOGNITION SYSTEM .............234
”VOICE RECOGNITION SYSTEM OPERATION ...........235
”CASUAL SPEECH RECOGNITION ..............................238
COMMAND LIST................................................. 239
Page 20 of 291
BASIC FUNCTION
18
BASIC FUNCTION

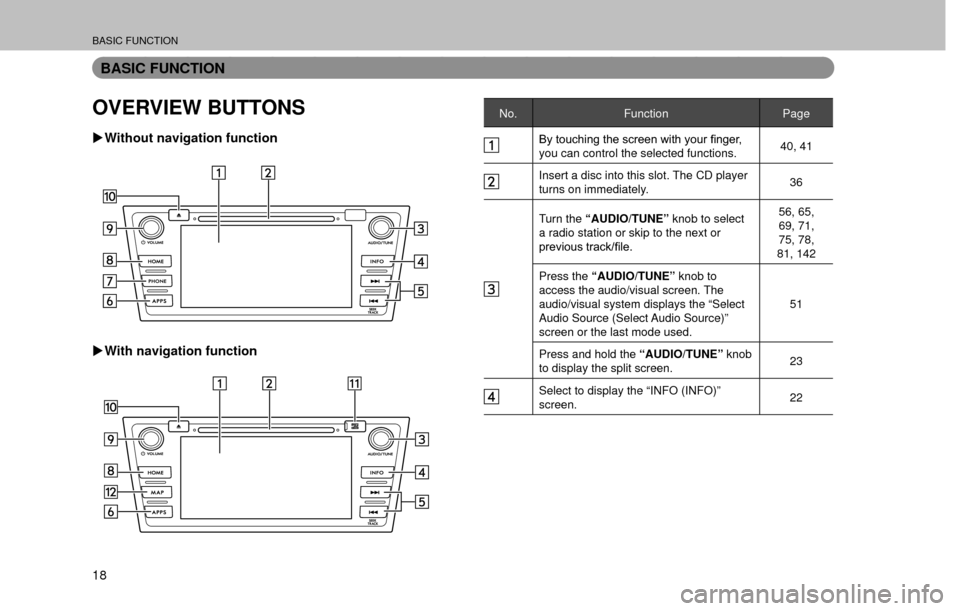

OVERVIEW BUTTONS
XWithout navigation function
XWith navigation function
No. Function Page
% \ W R X F K L Q J W K H V F U H H Q Z L W K \ R X U
Page 21 of 291
BASIC FUNCTION
19
1
QUICK GUIDE
No. Function Page
Select or to seek up or
down for a radio station or to access a
G H V L U H G W U D F N ¿ O H
Press and hold
or to
continuously seek for a radio station, or
W R I D V W I R U Z D U G U H Z L Q G ¿ O H V R U W U D F N V 56, 65,
69, 71,
75, 78,
81,
142, 150
Select to display the “APPS (APPS)”
screen.21
*1Select to access the Bluetooth hands-
free system.106
Select to display the “HOME (HOME)”
screen. 20
Press the “POWER/VOLUME” knob to
turn the audio system on and off, and
turn it to adjust the volume.
Press and hold to turn the screen off.50
Press to eject a disc. 37
*2*3microSD card slot*4
Remove the cover and insert an SD card
into this slot.38
*2*3Select to display the navigation screen
(while the map SD card is inserted).184
*1: Without navigation function
*2: With navigation function
*3: An “Unable to read the map SD data. Check the map SD. If necessary,
consult your dealer.” message appears if the map SD card is not inserted,
or if an SD card containing no map data is inserted.
*
4: In this manual, microSD card is now referred to as SD card.
Page 22 of 291
BASIC FUNCTION
20

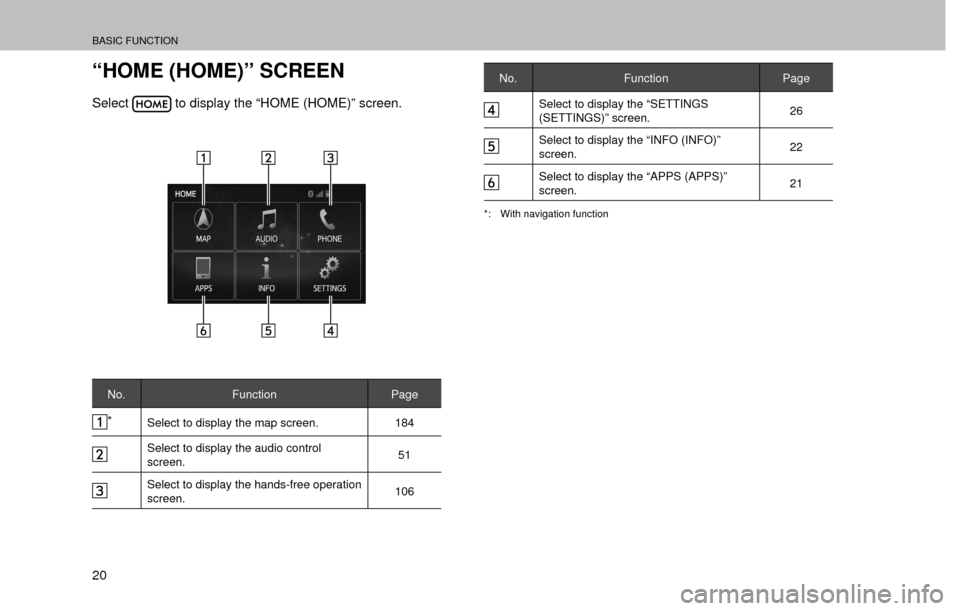

“HOME (HOME)” SCREEN
Select to display the “HOME (HOME)” screen.
No. Function Page
*
Select to display the map screen. 184
Select to display the audio control
screen.51
Select to display the hands-free operation
screen.106
No. Function Page
Select to display the “SETTINGS
(SETTINGS)” screen.26
Select to display the “INFO (INFO)”
screen.22
Select to display the “APPS (APPS)”
screen.21
*: With navigation function
Page 24 of 291
BASIC FUNCTION
22
“INFO (INFO)” SCREEN
This screen can be used to display sports information and
photos, etc.
Select
, or select and then select INFO
(INFO), to display the “INFO (INFO)” screen.
No. Function Page
*1Select to display sports information. 154
*1Select to display weather information. 155
No. Function Page
*1Select to display stocks information. 159
*1Select to display fuel information. 160
Select to reorder the menu icons. 42
*2Select to view pictures in the SD card. 78
Select to view pictures in the USB
memory connected to USB port 2.71
Select to view pictures in the USB
memory connected to USB port 1.71
*1: Service is not available in Canada.
*2: With navigation function
