Controls
Dual Zone Automatic Climate Control System (if equipped)
1. Automatic On and Off This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2. Temperature Control Dial Rotate the dial clockwise to increase
the temperature or rotate the dial
counterclockwise to decrease the
temperature and maintain a comfortable
climate within the driver and passenger
compartment. The temperature is
displayed digitally on the screen.
Separate temperature settings
can be adjusted for the driver’s
side and passenger’s side.Operation in Manual Mode
3. Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment. Press
the button again to allow outside air
into the compartment. TO PREVENT
WINDSHIELD FOGGING, DO NOT
REMAIN IN THE RECIRCULATED MODE
FOR AN EXTENDED PERIOD OF TIME.
4. Fan Speed Control Knob Rotate the fan speed control knob
to select one of seven different
fan speed positions.
5. Air Flow Mode Selection Button Press the “MODE” button to select
the desired air flow mode. The
selected air flow mode – either
ventilation, bi-level, heat or heat-
defrost – is shown on the display.
18
3
6
9
7542
1980916_16a_Subaru_Forester_QRG_061015.indd 186/10/15 11:00 AM
Page 22 of 34
19
6. Dual Button Press the “DUAL” button to activate
or deactivate the dual mode. Dual
mode makes it possible to have
separate temperature settings for the
driver’s side and passenger’s side.
7. Air Conditioner Button Press the “A/C” button to activate
the air conditioning. Press it again
to turn off the air conditioning.
8. Defroster Button Press the button to defrost or
dehumidify the windshield and
front door windows.
9. Rear Window Defogger Button Press the button to turn on the
defogger. It will automatically shut off
after about 15 minutes. If the window
clears before that time, you can
press the button again to turn it off.
Located in the
multi-function
display; top
center of dash
Controls
1980916_16a_Subaru_Forester_QRG_061015.indd 196/10/15 11:00 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 23 of 34
20
Controls
Steering Wheel Audio Controls
Talk switch; please refer to the “Bluetooth audio” section in your Owner’s Manual. Press the button
to turn audio ON/
OFF or to select
the cursor entry. Press the button
to return to the
previous screen.
Press the button to select
the desired audio mode –
FM, AM, SAT, CD, AUX, MEDIA. With any of the radio modes
selected, push the switch left or
right to skip through your presets.
In CD mode, push the switch left or
right to skip forward or back a track.
Push the top (+) of
the switch to increase
or the bottom (–)
of the switch to
decrease volume. Press the
button to show
the list screen.
USB Port
The USB port is located in the center console.
You can connect a portable music player to
the USB port and hear the music stored on
it through the vehicle speakers. Press the
“SOURCE” button located on the audio system
repeatedly until the USB mode is selected.
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the
center console. You can connect a portable
music player to the auxiliary jack and hear the
music stored on it through the vehicle speakers.
Press the “SOURCE” button located on the
audio system to select the auxiliary mode.
1980916_16a_Subaru_Forester_QRG_061015.indd 206/10/15 11:00 AM
Page 24 of 34
21
Controls

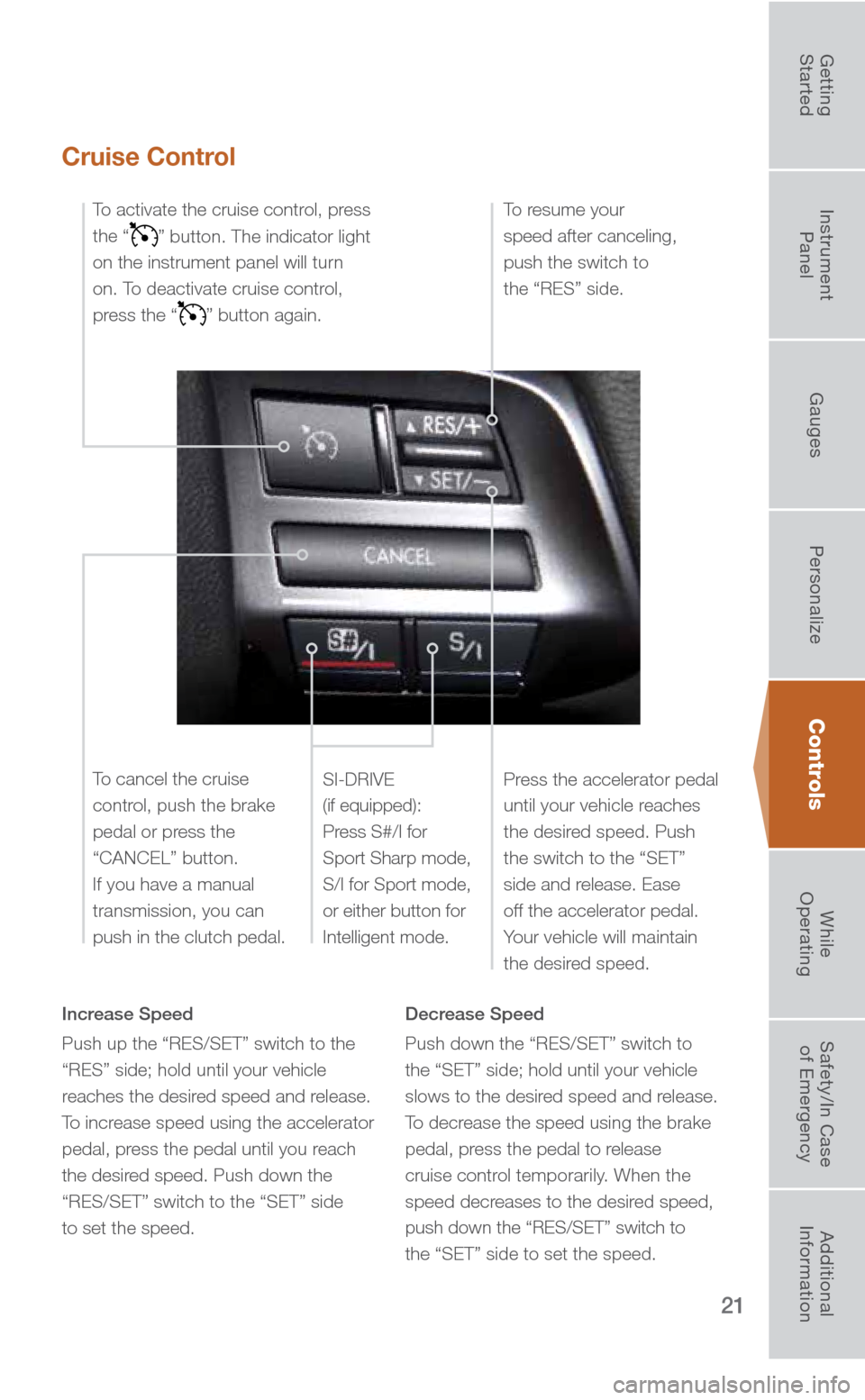

Cruise Control
Increase Speed
Push up the “RES/SET” switch to the
“RES” side; hold until your vehicle
reaches the desired speed and release.
To increase speed using the accelerator
pedal, press the pedal until you reach
the desired speed. Push down the
“RES/SET” switch to the “SET” side
to set the speed. Decrease Speed
Push down the “RES/SET” switch to
the “SET” side; hold until your vehicle
slows to the desired speed and release.
To decrease the speed using the brake
pedal, press the pedal to release
cruise control temporarily. When the
speed decreases to the desired speed,
push down the “RES/SET” switch to
the “SET” side to set the speed.
To activate the cruise control, press
the “
” button. The indicator light
on the instrument panel will turn
on. To deactivate cruise control,
press the “
” button again.
Press the accelerator pedal
until your vehicle reaches
the desired speed. Push
the switch to the “SET”
side and release. Ease
off the accelerator pedal.
Your vehicle will maintain
the desired speed.
To cancel the cruise
control, push the brake
pedal or press the
“CANCEL” button.
If you have a manual
transmission, you can
push in the clutch pedal. To resume your
speed after canceling,
push the switch to
the “RES” side.
SI-DRIVE
(if equipped):
Press S#/I for
Sport Sharp mode,
S/I for Sport mode,
or either button for
Intelligent mode.
1980916_16a_Subaru_Forester_QRG_061015.indd 216/10/15 11:00 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 25 of 34
22
While Operating
Vehicle Dynamics Control OFF Switch
Pressing the switch to deactivate the Vehicle
Dynamics Control system can help in the
following situations:
• A standing start on a steeply sloping
road with a snowy, gravel-covered,
or otherwise slippery surface.
• When the vehicle’s wheels are stuck in mud or deep snow.
Fuel Filler Lid Release
The vehicle is equipped with a fuel filler lid release. To open the fuel filler lid, pull the fuel filler
lever up and release.
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when
the selector is in the “D” (Drive)
position, you can temporarily
shift the gear by pulling the
“+” or “-” paddle shift control
switch. The transmission will
automatically switch back to
Normal Mode.
• When the selector lever is in
Manual Mode, shift to the next
higher gear by pulling the “+”
paddle shift control switch on
the steering wheel. Pull the “-”
paddle shift control switch to
shift into the next lower gear.
1980916_16a_Subaru_Forester_QRG_061015.indd 226/10/15 11:00 AM
Page 26 of 34
23
1
Automatic Transmission Shift Mode
The automatic transmission gives you ultimate control with two different driving
modes: Normal Mode and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in
Normal shift mode. The shift position indicator on the instrument panel \
shows
“D”, and the transmission automatically shifts into a suitable for\
ward gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual
gate
1 from the “D” (Drive) position causes the transmission to change in\
to
Manual Mode. To shift, use the paddle shift control switches. The shift position
indicator shows the selected gear position.
When Manual Shifting Operation is Possible
• Arrow-shaped lights in the center of the instrument panel show whether an
upshift is possible and whether a downshift is possible.
• Both arrows are on: Upshifting and downshifting are both possible.
• Up arrow only is on: Only upshifting is possible.
• Down arrow only is on: Only downshifting is possible.
While
Operating
1980916_16a_Subaru_Forester_QRG_061015.indd 236/10/15 11:00 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 27 of 34
24
Safety/In Case of Emergency
Child Restraint System
For maximum safety, first carefully read the LATCH system instructions from the device
manufacturer, as well as the installation instructions in your Owner’s Manual, to properly
install the LATCH compatible restraint system. Use the appropriate seatbelts or anchorages
provided in your vehicle. Children age 12 and under must properly occupy the rear seat at
all times.
Child Safety Locks
The child safety locks are located on the inside edges of the rear doors. In the locked
position, the rear doors can only be opened from the outside.
1980916_16a_Subaru_Forester_QRG_061015.indd 246/10/15 11:00 AM
Page 28 of 34
25
Location of Spare Tire
and Jack
A jack and other maintenance tools
are stored in the tool bucket in the
center of the spare tire, located in
the trunk or cargo area. Raise the
center lid and remove the bucket
from the center of the spare tire. Take
the jack out of the bucket. The jack
handle is stowed on the back of the
center lid of the cargo area.
Emergency Towing Your
All-Wheel Drive Vehicle
Since all-wheel drive distributes
engine power to all four wheels,
improper towing will severely damage
your AWD system. A flatbed truck
is the only recommended way to
properly transport your AWD vehicle.
If towing is necessary, it is best
done by your Subaru retailer or a
commercial towing service.
Subaru Roadside
Assistance
Subaru Roadside Assistance is free
and standard on every 2016 Subaru
vehicle. Coverage is automatic; there
are no forms to complete. Subaru
Roadside Assistance is available
anytime during the 3-year/36,000-mile
Subaru Limited Warranty, whichever
comes first.* A Subaru Roadside
Assistance decal has been affixed to
the driver’s door window.
Subaru Roadside Assistance:
1-800-261-2155
Exclusions
Specifically excluded from Subaru
Roadside Assistance coverage are
service requests or claims resulting
from: accidents, vandalism, acts of
God, violation of any laws, misuse and
abuse, or vehicle modifications not
recommended by the manufacturer.
*See your retailer for details.Safety/In Case of Emergency
1980916_16a_Subaru_Forester_QRG_061015.indd 256/10/15 11:00 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 29 of 34
26
Additional Information
Fuel
• 2.5 liter DOHC Non-turbo models use regular unleaded gasoline with an octane rating of
87 AKI or higher. Consult the Owner’s Manual for more detailed information.
• 2.0 liter DOHC Turbo model’s engine is designed to operate at maximum performance
using unleaded gasoline with an octane rating of 93 AKI or higher. If 93 AKI fuel is
not readily available, unleaded gasoline with an octane rating of 91 AKI or h\
igher may
be temporarily used. However, you may notice a slight decrease in maximum engine
performance while using 91 AKI fuel.
Regular unleaded gasoline with an octane rating of 87 AKI or higher may \
also be
used. Using regular unleaded gasoline will not be detrimental to engine durability, nor
will it affect your warranty coverage. However, depending on your driving habits and
conditions, you may notice a decrease in maximum engine performance, fuel economy
or slight engine vibration or knocking. It is not recommended to use 87 AKI when towing.
Consult the Owner’s Manual for more detailed information.
Fuel Capacity
• 15.9 US gal (60 liters, 13.2 lmp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
2.6 US gallons of fuel remain.
• If you have recently fueled your vehicle, the Check Engine light on the instrument pa\
nel
may stay on due to a missing or loose fuel filler cap (the cap should\
be tightened until a
click is heard).
1980916_16a_Subaru_Forester_QRG_061015.indd 266/10/15 11:00 AM
Page 30 of 34
27
Additional
Information
Engine Oil
Use only the following oils:
• ILSAC GF-4 or GF-5, which can be identified with the ILSAC certifica\
tion
mark (Starburst mark).
• Or API classification SN or SM with the words “ENERGY CONSERVING”.
- 2.5 liter DOHC Non-turbo models use 0W-20 synthetic, replacement
interval 6,000 miles under normal driving conditions. No requirement at
the first 3,000 miles.
- 2.0 liter DOHC Turbo models use 5W-30 synthetic, replacement interval
6,000 miles under normal driving conditions. No requirement at the first
3,000 miles.
Engine Oil Capacity
• 2.5 liter DOHC Non-turbo models: 5.1 US qt (4.8 liters, 4.2 lmp qt)
• 2.0 liter DOHC Turbo models: 5.4 US qt (5.1 liters, 4.5 lmp qt)
Additional
Information
1980916_16a_Subaru_Forester_QRG_061015.indd 276/10/15 11:00 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
