SUBARU FORESTER 2017 SJ / 4.G Driving Assist Manual

88

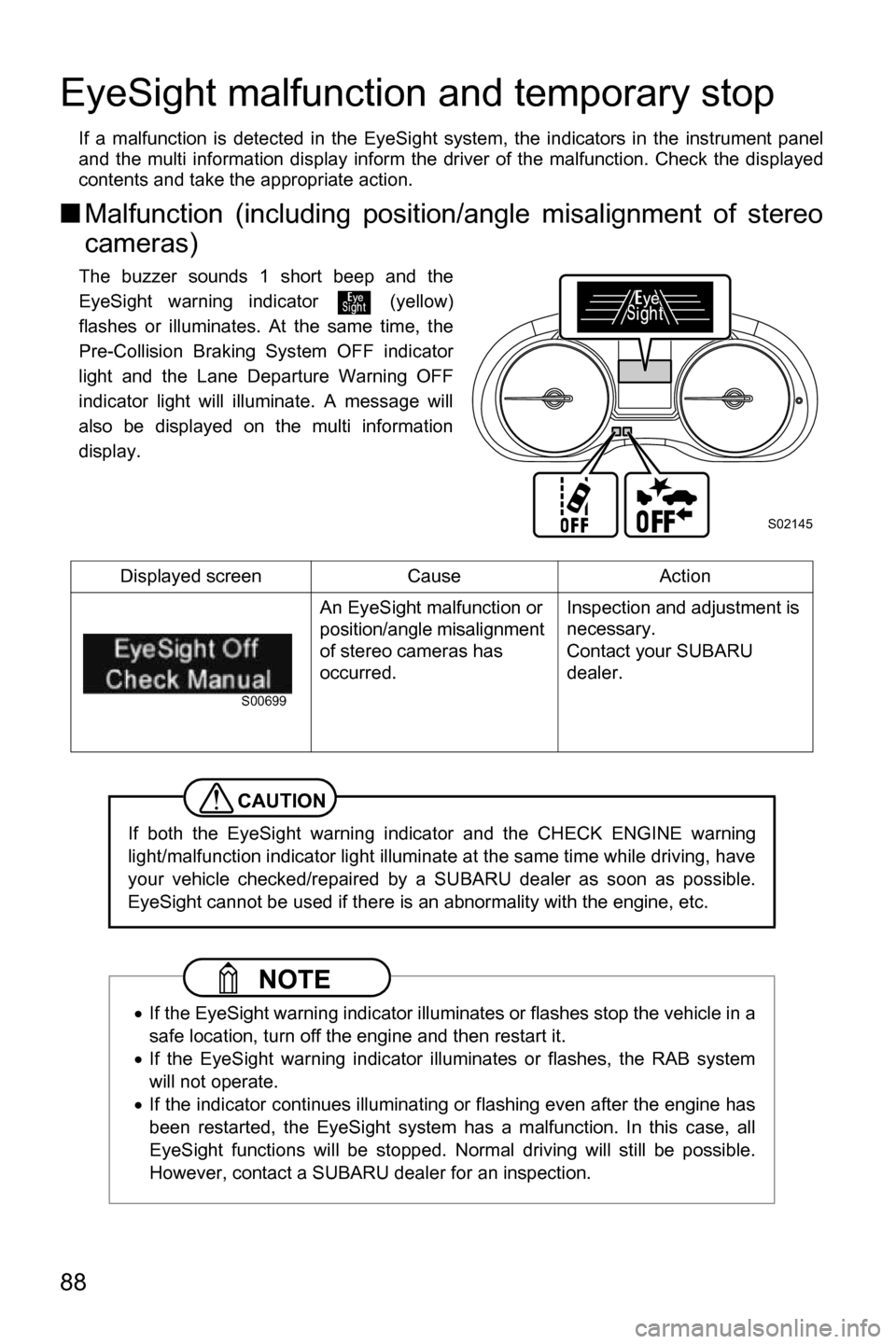

EyeSight malfunction and temporary stop
If a malfunction is detected in the EyeSight system, the indicators in the instrument panel
and the multi information display inform the driver of the malfunction. Check the displayed
contents and take the appropriate action.
■Malfunction (including position/angle misalignment of stereo
cameras)
The buzzer sounds 1 short beep and the
EyeSight warning indicator (yellow)
flashes or illuminates. At the same time, the
Pre-Collision Braking System OFF indicator
light and the Lane Departure Warning OFF
indicator light will illuminate. A message will
also be displayed on the multi information
display.
Displayed screen Cause Action An EyeSight malfunction or
position/angle misalignment
of stereo cameras has
occurred. Inspection and adjustment is
necessary.
Contact your SUBARU
dealer.
CAUTION
If both the EyeSight warning indicator and the CHECK ENGINE warning
light/malfunction indicator light illuminate at the same time while driving, have
your vehicle checked/repaired by a SUBARU dealer as soon as possible.
EyeSight cannot be used if there is an abnormality with the engine, etc.
NOTE
x
If the EyeSight warning indicator illuminates or flashes stop the vehicle in a
safe location, turn off the engine and then restart it.
x If the EyeSight warning indicator illuminates or flashes, the RAB system
will not operate.
x If the indicator continues illuminating or flashing even after the engine has
been restarted, the EyeSight system has a malfunction. In this case, all
EyeSight functions will be stopped. Normal driving will still be possible.
However, contact a SUBARU dealer for an inspection.
S02145
S00699

EyeSight malfunction and temporary stop
89

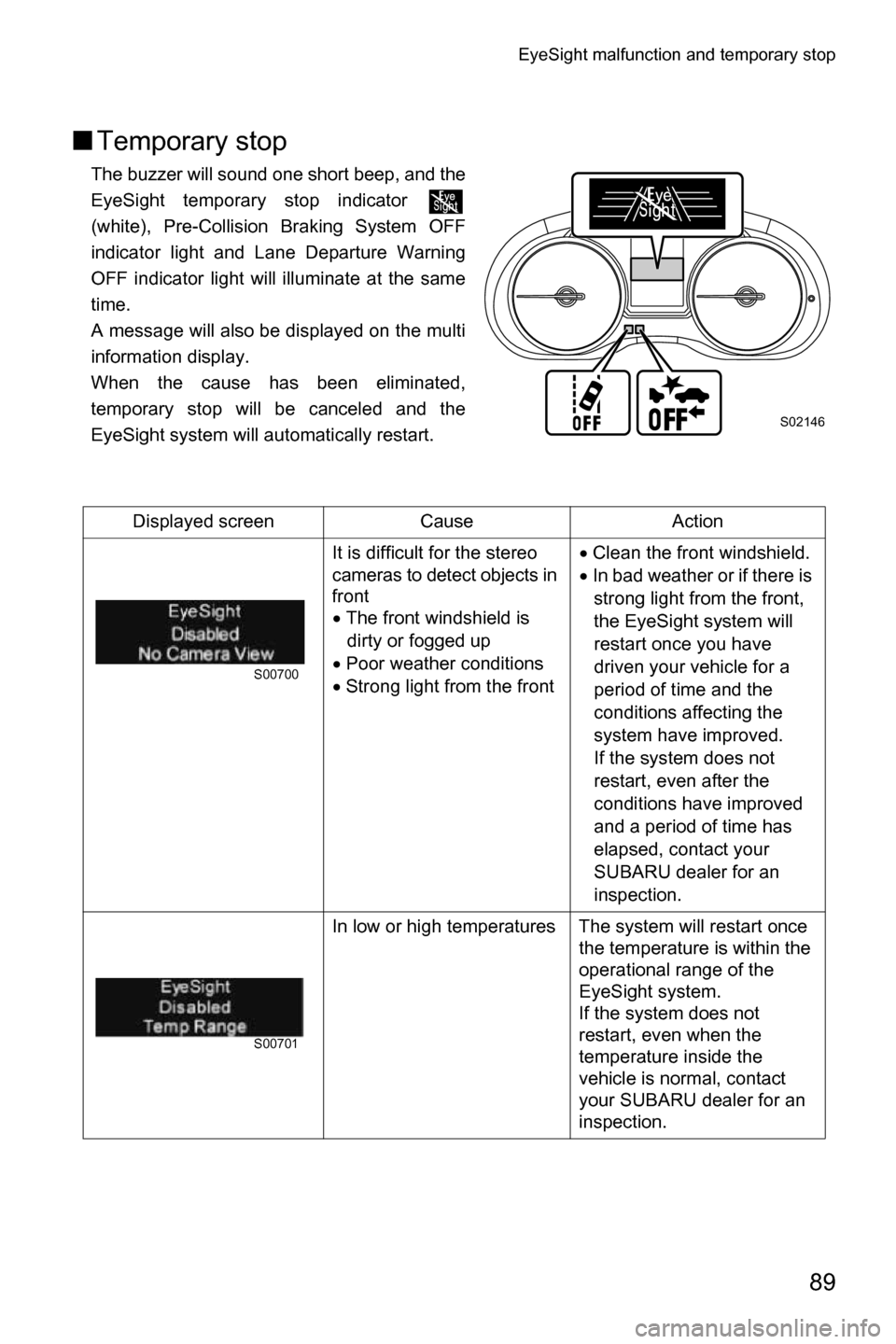

■Temporary stop
The buzzer will sound one short beep, and the
EyeSight temporary stop indicator
(white), Pre-Collision Braking System OFF
indicator light and Lane Departure Warning
OFF indicator light will illuminate at the same
time.
A message will also be displayed on the multi
information display.
When the cause has been eliminated,
temporary stop will be canceled and the
EyeSight system will automatically restart.
Displayed screen Cause Action It is difficult for the stereo
cameras to detect objects in
frontx The front windshield is
dirty or fogged up
x Poor weather conditions
x Strong light from the front x
Clean the front windshield.
x In bad weather or if there is
strong light from the front,
the EyeSight system will
restart once you have
driven your vehicle for a
period of time and the
conditions affecting the
system have improved.
If the system does not
restart, even after the
conditions have improved
and a period of time has
elapsed, contact your
SUBARU dealer for an
inspection.
In low or high temperatures The system will restart once the temperature is within the
operational range of the
EyeSight system.
If the system does not
restart, even when the
temperature inside the
vehicle is normal, contact
your SUBARU dealer for an
inspection.
S02146
S00700
S00701

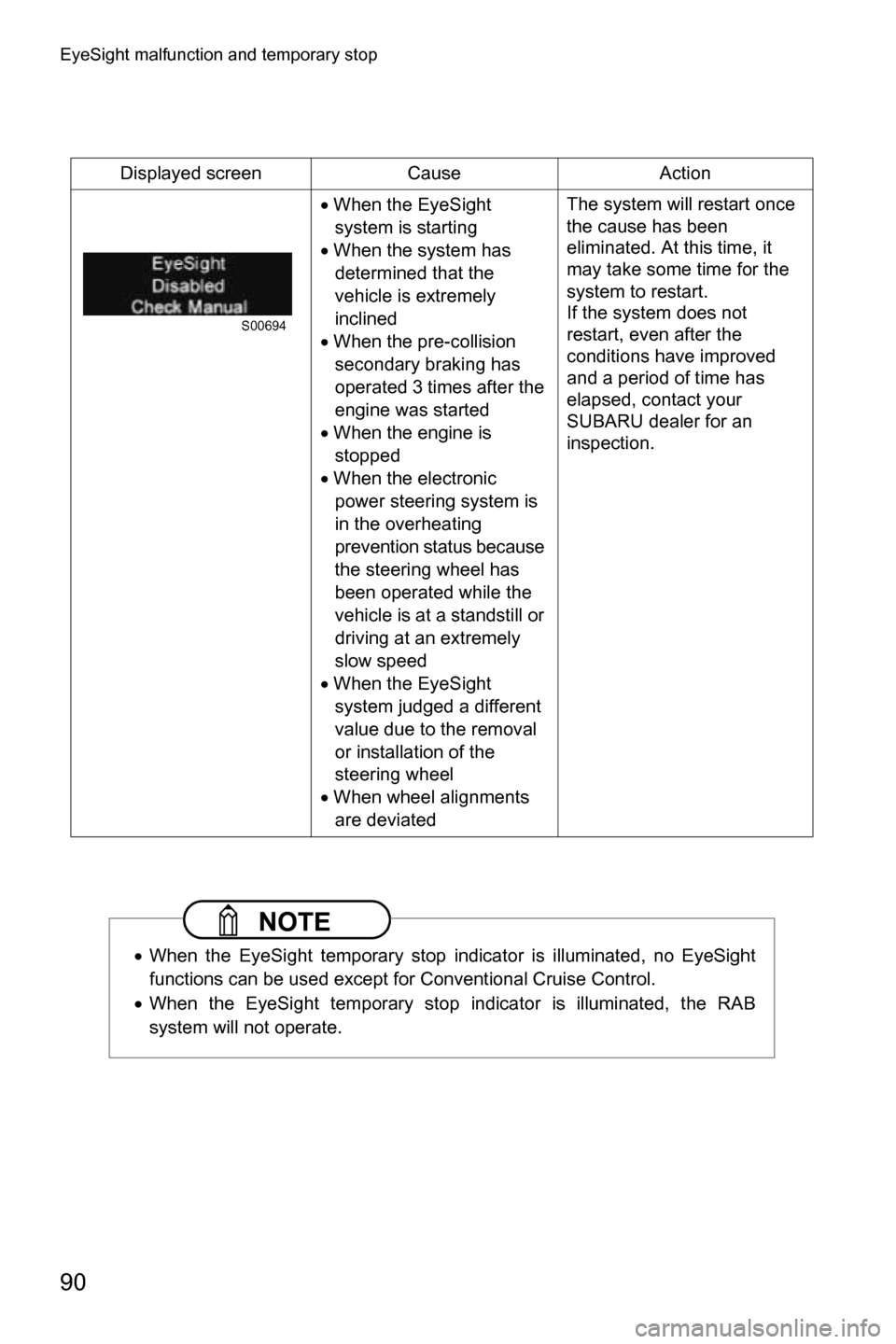

EyeSight malfunction and temporary stop
90
Displayed screenCauseAction
x When the EyeSight
system is starting
x When the system has
determined that the
vehicle is extremely
inclined
x When the pre-collision
secondary braking has
operated 3 times after the
engine was started
x When the engine is
stopped
x When the electronic
power steering system is
in the overheating
prevention status because
the steering wheel has
been operated while the
vehicle is at a standstill or
driving at an extremely
slow speed
x When the EyeSight
system judged a different
value due to the removal
or installation of the
steering wheel
x When wheel alignments
are deviated The system will restart once
the cause has been
eliminated. At this time, it
may take some time for the
system to restart.
If the system does not
restart, even after the
conditions have improved
and a period of time has
elapsed, contact your
SUBARU dealer for an
inspection.
NOTE
x
When the EyeSight temporary stop indicator is illuminated, no EyeSight
functions can be used except for Conventional Cruise Control.
x When the EyeSight temporary stop indicator is illuminated, the RAB
system will not operate.
S00694

Customizing functions
91

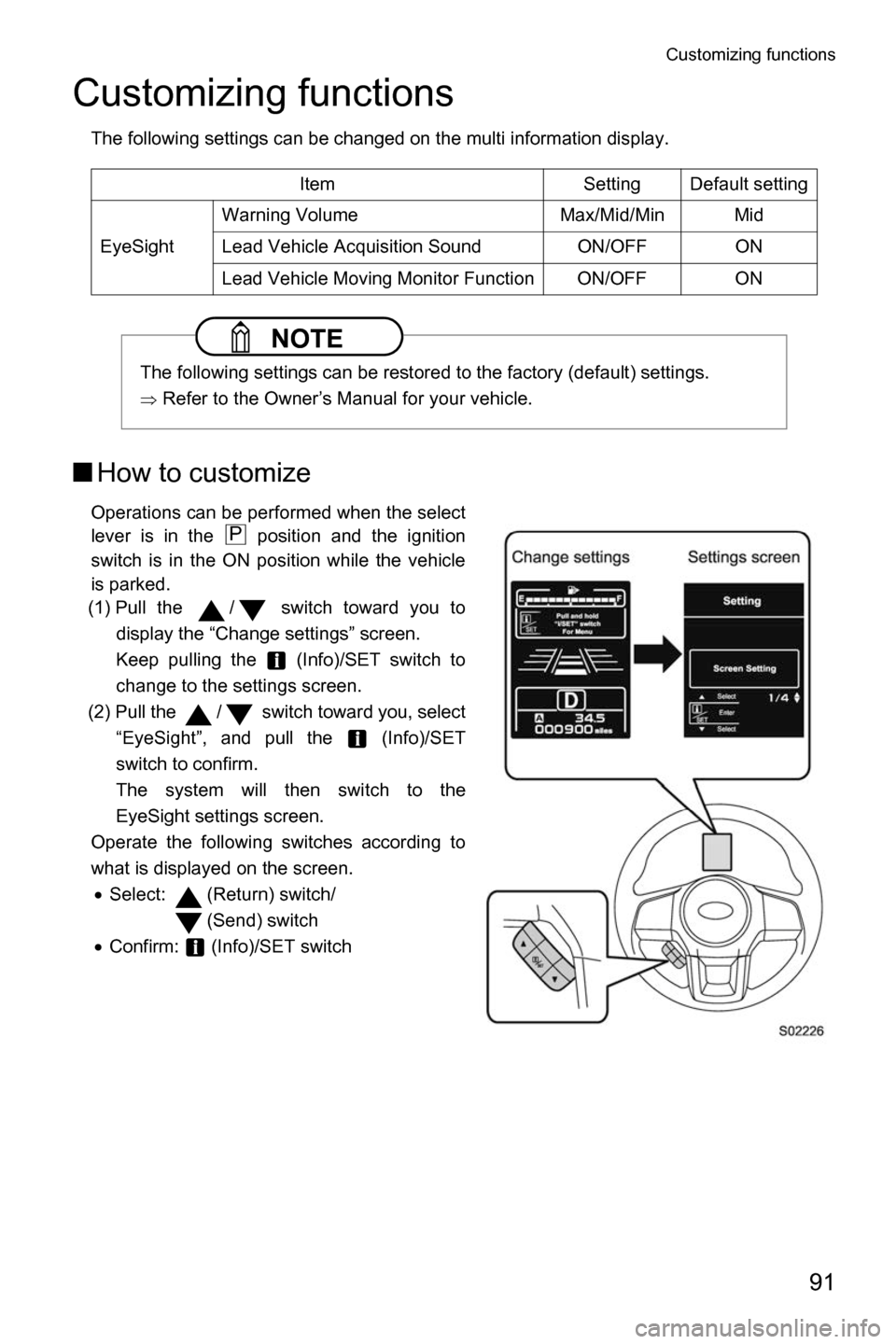

Customizing functions
The following settings can be changed on the multi information display.
■How to customize
Operations can be performed when the select
lever is in the position and the ignition
switch is in the ON position while the vehicle
is parked.
(1) Pull the / switch toward you to
display the “Change settings” screen.
Keep pulling the (Info)/SET switch to
change to the settings screen.
(2) Pull the / switch toward you, select “EyeSight”, and pull the (Info)/SET
switch to confirm.
The system will then switch to the
EyeSight settings screen.
Operate the following switches according to
what is displayed on the screen. x Select: (Return) switch/
(Send) switch
x Confirm: (Info)/SET switch Item Setting Default setting
EyeSight Warning Volume Max/Mid/Min Mid
Lead Vehicle Acquisition Sound ON/OFF ON
Lead Vehicle Moving Monitor Function ON/OFF ON
NOTE
The following settings can be restored to the factory (default) settings.
Ÿ Refer to the Owner’s Manual for your vehicle.
P

Customizing functions
92

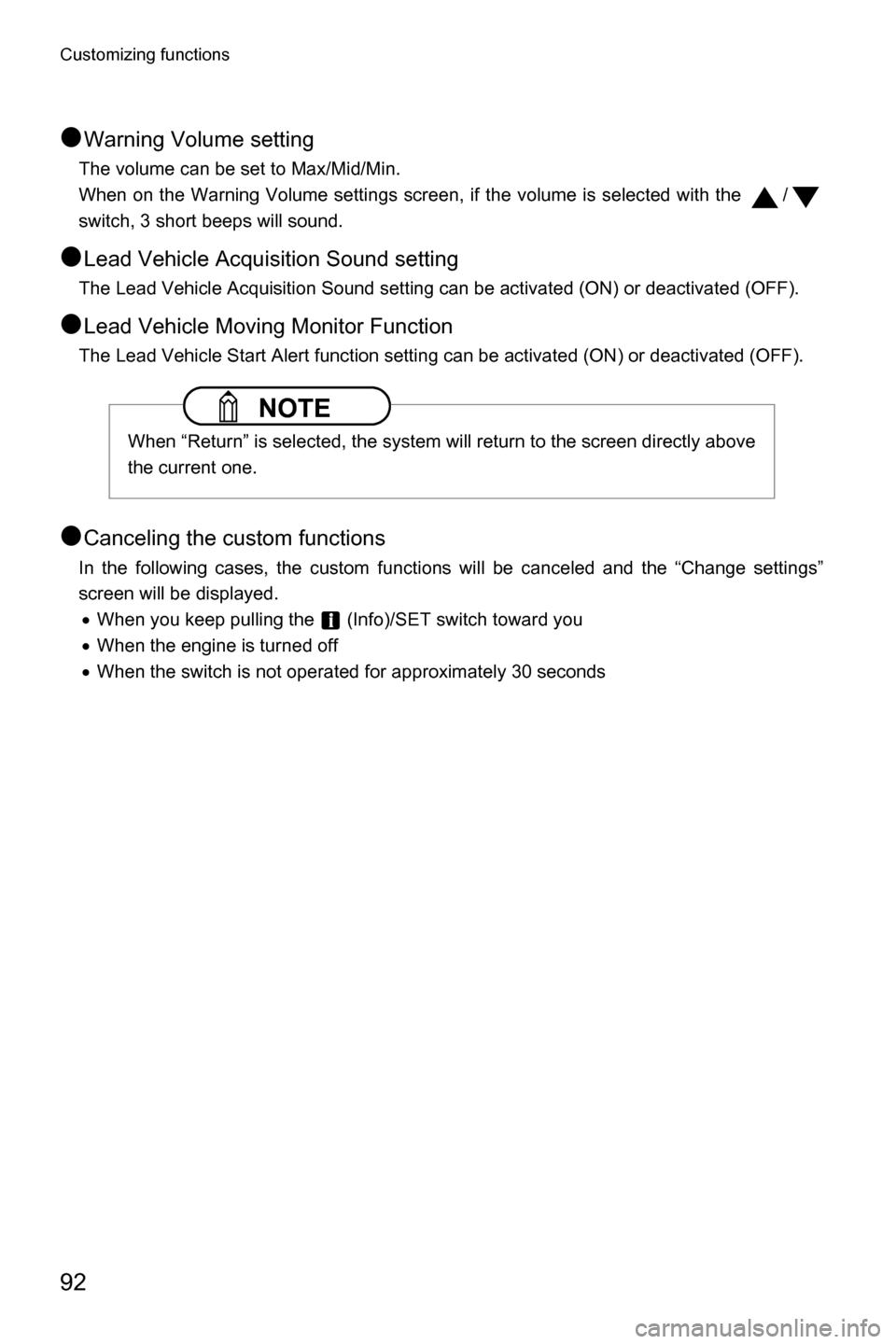

●Warning Volume setting
The volume can be set to Max/Mid/Min.
When on the Warning Volume settings screen, if the volume is selected with the /
switch, 3 short beeps will sound.
●Lead Vehicle Acquisition Sound setting
The Lead Vehicle Acquisition Sound setting can be activated (ON) or deactivated (OFF).
●Lead Vehicle Moving Monitor Function
The Lead Vehicle Start Alert function setting can be activated (ON) or deactivated (OFF).
●Canceling the custom functions
In the following cases, the custom functions will be canceled and the “Change settings”
screen will be displayed. x When you keep pulling the (Info)/SET switch toward you
x When the engine is turned off
x When the switch is not operated for approximately 30 seconds
NOTE
When “Return” is selected, the system will return to the screen directly above
the current one.

Message screen list
93

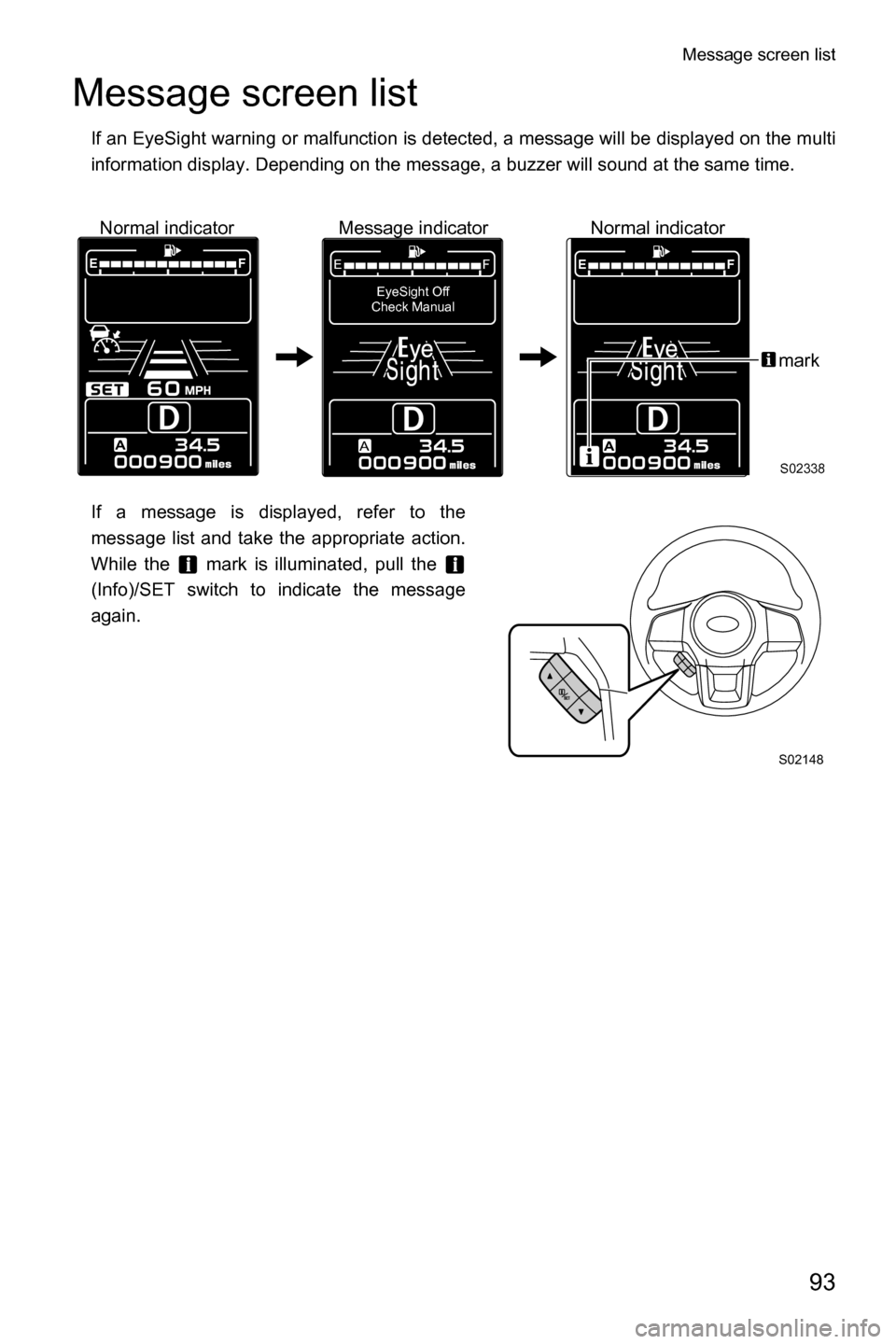

Message screen list
If an EyeSight warning or malfunction is detected, a message will be displayed on the multi
information display. Depending on the message, a buzzer will sound at the same time.
If a message is displayed, refer to the
message list and take the appropriate action.
While the mark is illuminated, pull the
(Info)/SET switch to indicate the message
again.
A
EF
A
EF
A
EF
Normal indicatorNormal indicator
mark
Message indicator
EyeSight Off
Check Manual
S02338
S02148

Message screen list
94

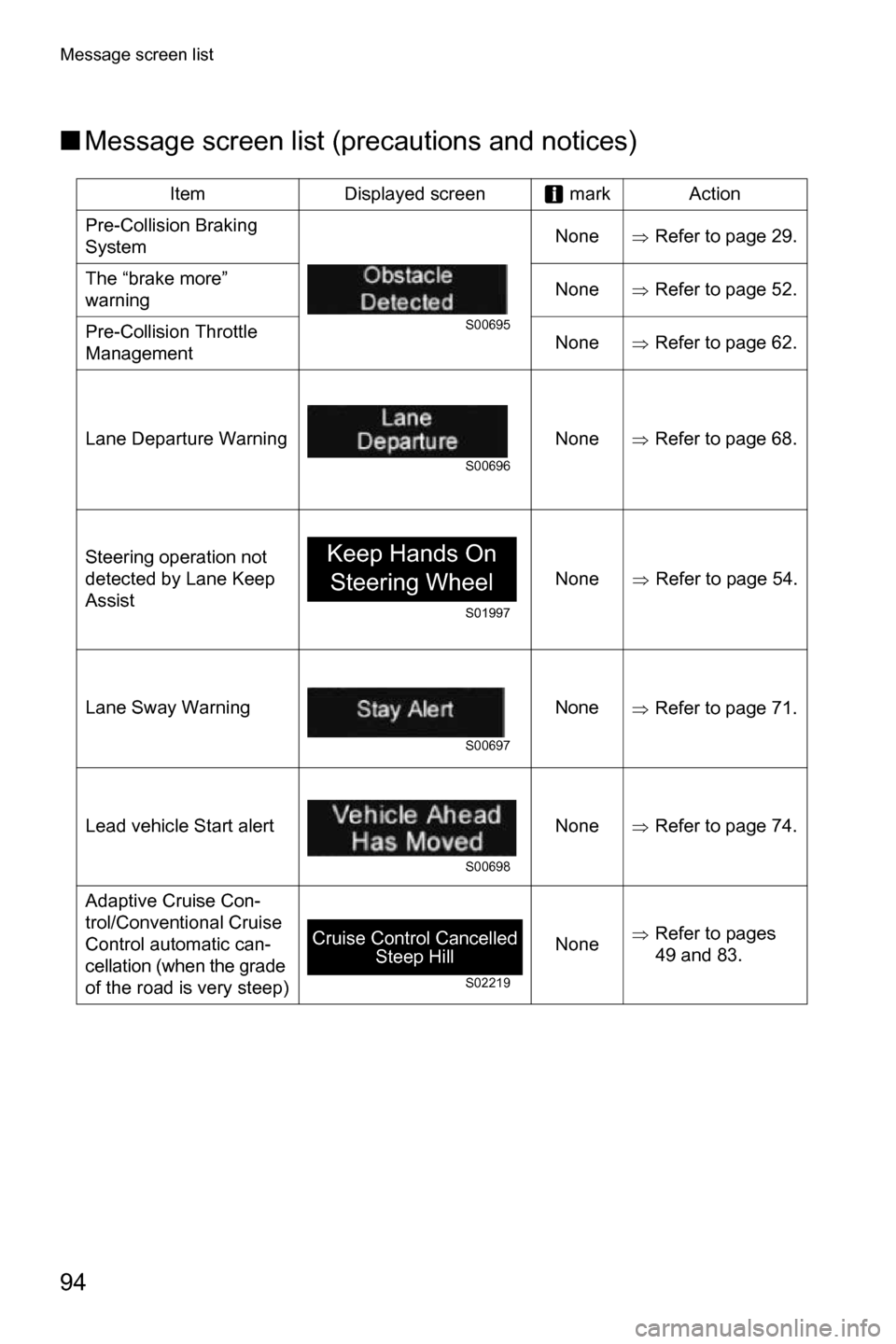

■Message screen list (precautions and notices)
Item Displayed screen mark Action
Pre-Collision Braking
System None
ŸRefer to page 29.
The “brake more”
warning None
ŸRefer to page 52.
Pre-Collision Throttle
Management None
ŸRefer to page 62.
Lane Departure Warning None
ŸRefer to page 68.
Steering operation not
detected by Lane Keep
Assist None
ŸRefer to page 54.
Lane Sway Warning None
ŸRefer to page 71.
Lead vehicle Start alert None
ŸRefer to page 74.
Adaptive Cruise Con-
trol/Conventional Cruise
Control automatic can-
cellation (when the grade
of the road is very steep) None
ŸRefer to pages
49 and 83.
S00695
S00696
Keep Hands On
Steering Wheel
S01997
S00697
S00698
S02219
Cruise Control Cancelled Steep Hill

Message screen list
95

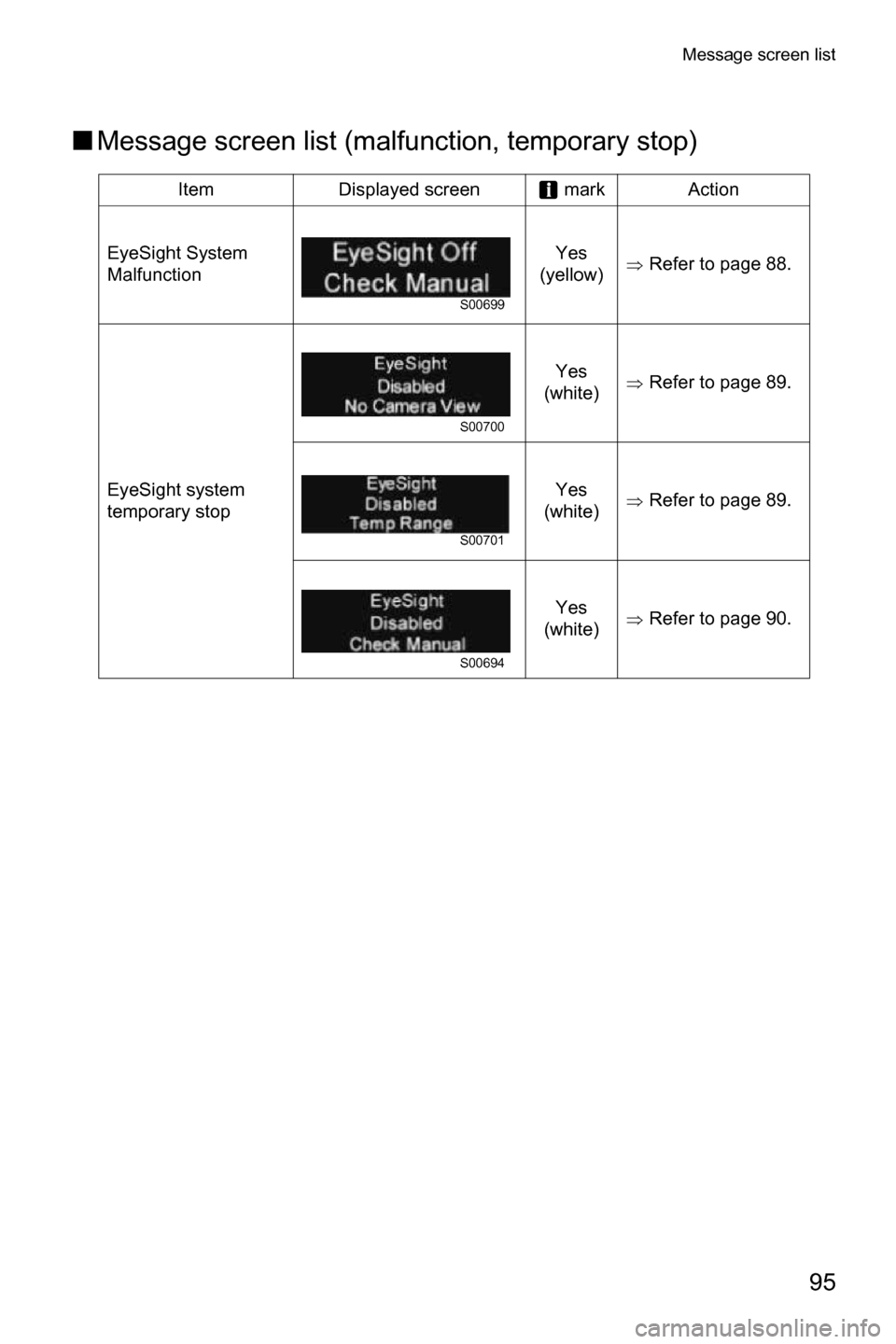

■Message screen list (malfunction, temporary stop)
Item Displayed screen mark Action
EyeSight System
Malfunction Yes
(yellow)
ŸRefer to page 88.
EyeSight system
temporary stop Yes
(white)
ŸRefer to page 89.
Yes
(white)
ŸRefer to page 89.
Yes
(white)
ŸRefer to page 90.
S00699
S00700
S00701
S00694

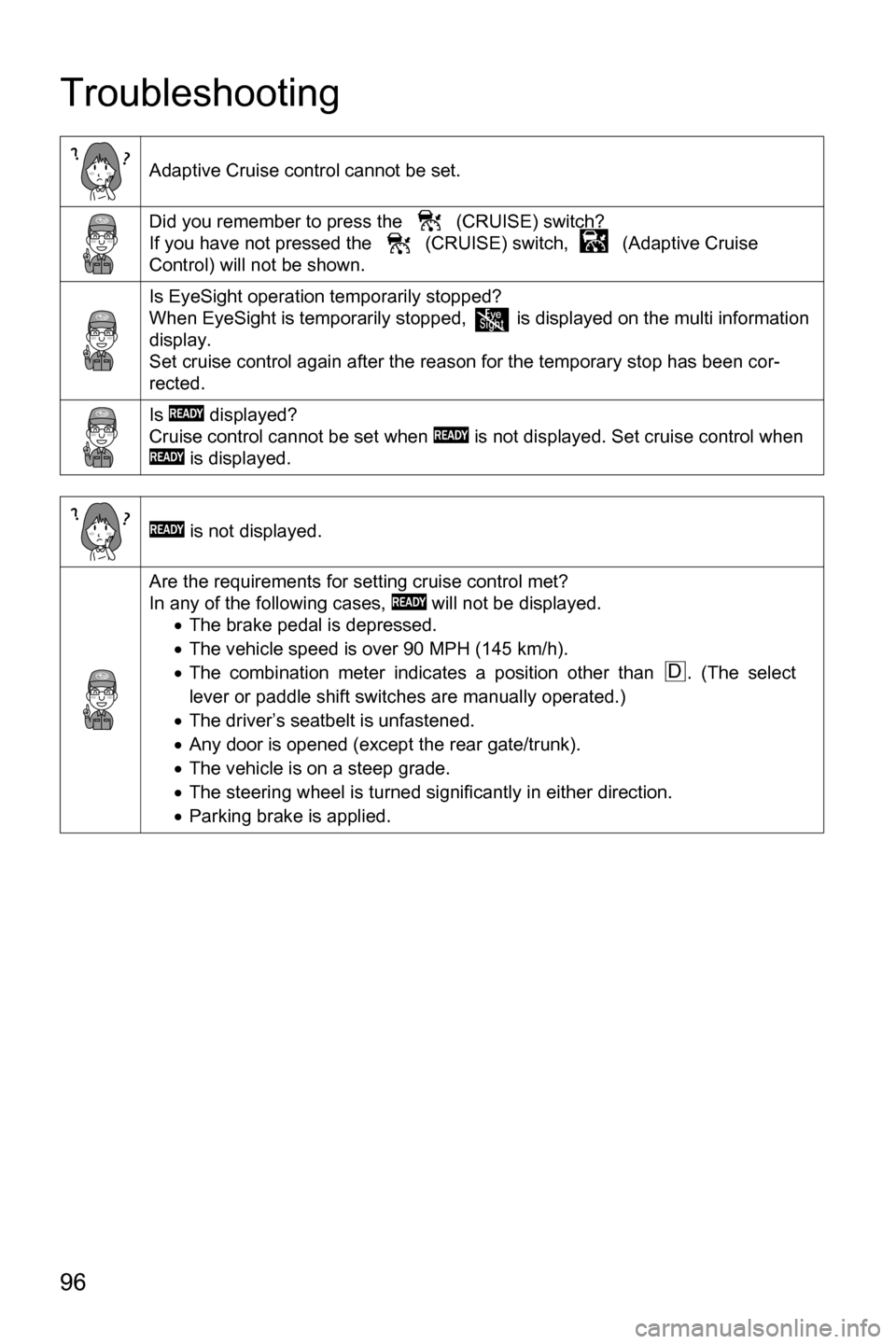

96
Troubleshooting
Adaptive Cruise control cannot be set.
Did you remember to press the (CRUISE) switch?
If you have not pressed the (CRUISE) switch, (Adaptive Cruise
Control) will not be shown.
Is EyeSight operation temporarily stopped?
When EyeSight is temporarily stopped, is displayed on the multi information
display.
Set cruise control again after the reason for the temporary stop has been cor-
rected.
Is displayed?
Cruise control cannot be set when is not displayed. Set cruise control when is displayed.
is not displayed.
Are the requirements for setting cruise control met?
In any of the following cases, will not be displayed. xThe brake pedal is depressed.
x The vehicle speed is over 90 MPH (145 km/h).
x The combination meter indicates a position other than . (The select
lever or paddle shift switches are manually operated.)
x The driver’s seatbelt is unfastened.
x Any door is opened (except the rear gate/trunk).
x The vehicle is on a steep grade.
x The steering wheel is turned significantly in either direction.
x Parking brake is applied.
D

Troubleshooting
97

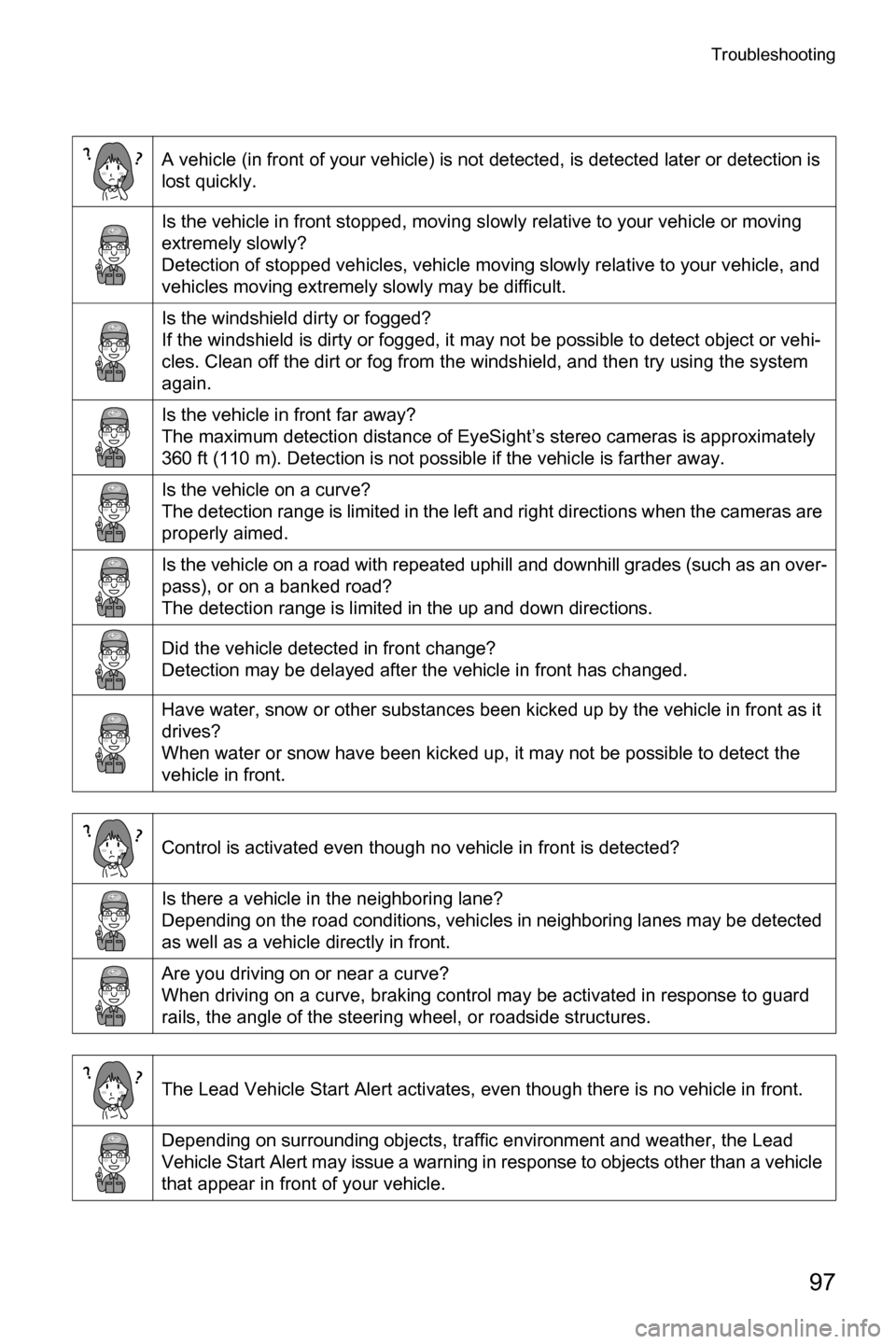

A vehicle (in front of your vehicle) is not detected, is detected later or detection is
lost quickly.
Is the vehicle in front stopped, moving slowly relative to your vehicle or moving
extremely slowly?
Detection of stopped vehicles, vehicle moving slowly relative to your vehicle, and
vehicles moving extremely slowly may be difficult.
Is the windshield dirty or fogged?
If the windshield is dirty or fogged, it may not be possible to detect object or vehi-
cles. Clean off the dirt or fog from the windshield, and then try using the system
again.
Is the vehicle in front far away?
The maximum detection distance of EyeSight’s stereo cameras is approximately
360 ft (110 m). Detection is not possible if the vehicle is farther away.
Is the vehicle on a curve?
The detection range is limited in the left and right directions when the cameras are
properly aimed.
Is the vehicle on a road with repeated uphill and downhill grades (such as an over-
pass), or on a banked road?
The detection range is limited in the up and down directions.
Did the vehicle detected in front change?
Detection may be delayed after the vehicle in front has changed.
Have water, snow or other substances been kicked up by the vehicle in front as it
drives?
When water or snow have been kicked up, it may not be possible to detect the
vehicle in front.
Control is activated even though no vehicle in front is detected?
Is there a vehicle in the neighboring lane?
Depending on the road conditions, vehicles in neighboring lanes may be detected
as well as a vehicle directly in front.
Are you driving on or near a curve?
When driving on a curve, braking control may be activated in response to guard
rails, the angle of the steering wheel, or roadside structures.
The Lead Vehicle Start Alert activates, even though there is no vehicle in front.
Depending on surrounding objects, traffic environment and weather, the Lead
Vehicle Start Alert may issue a warning in response to objects other than a vehicle
that appear in front of your vehicle.
