SUBARU FORESTER 2017 SJ / 4.G Driving Assist Manual

Conventional Cruise Control
78

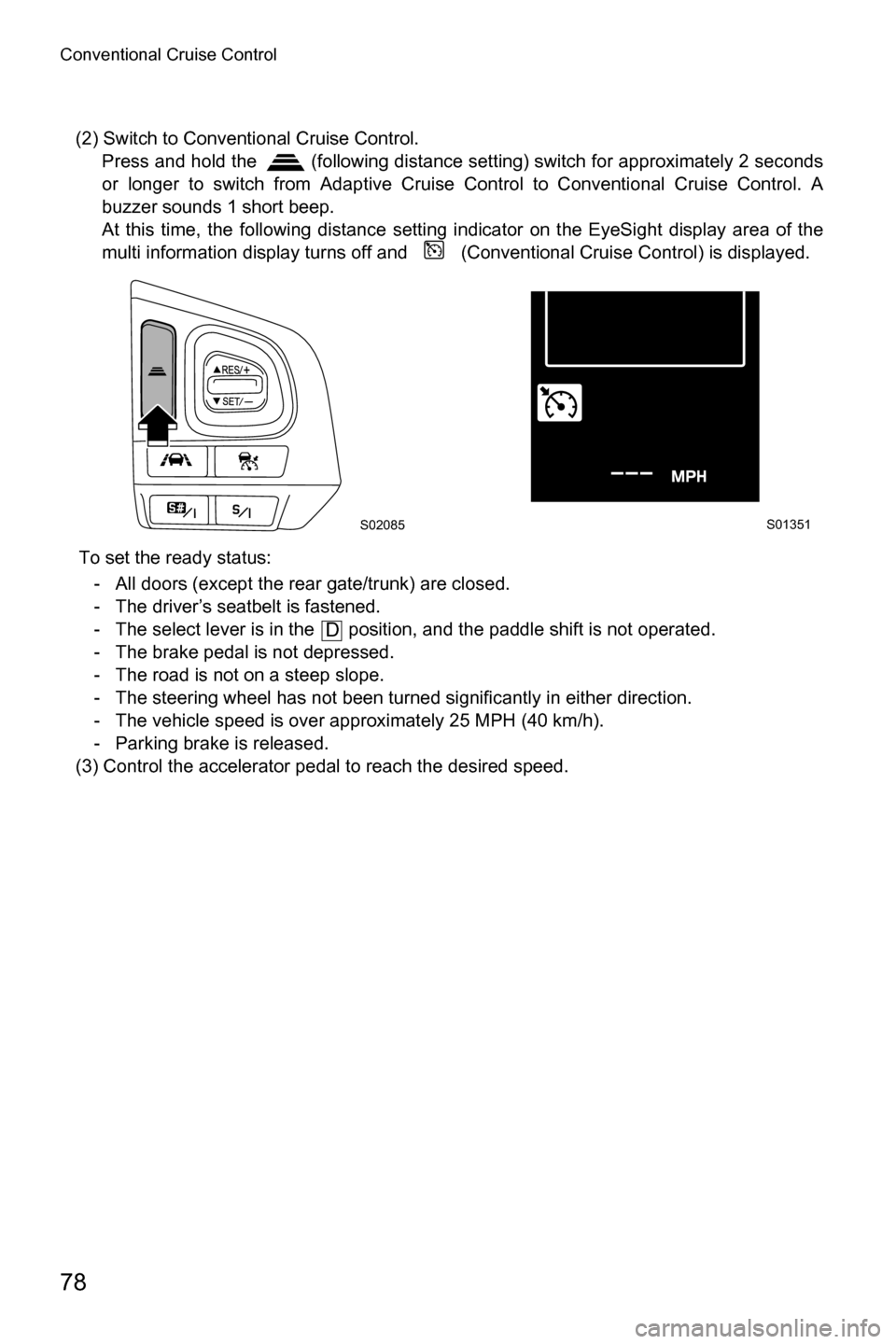

(2) Switch to Conventional Cruise Control. Press and hold the (following distance setting) switch for approximately 2 seconds
or longer to switch from Adaptive Cruise Control to Conventional Cruise Control. A
buzzer sounds 1 short beep.
At this time, the following distance setting indicator on the EyeSight display area of the
multi information display turns off and (Conventional Cruise Control) is displayed.
To set the ready status: - All doors (except the rear gate/trunk) are closed.
- The driver’s seatbelt is fastened.
- The select lever is in the position, and the paddle shift is not operated.
- The brake pedal is not depressed.
- The road is not on a steep slope.
- The steering wheel has not been turned significantly in either direction.
- The vehicle speed is over approximately 25 MPH (40 km/h).
- Parking brake is released.
(3) Control the accelerator pedal to reach the desired speed.
S02085S01351
D

Conventional Cruise Control
79

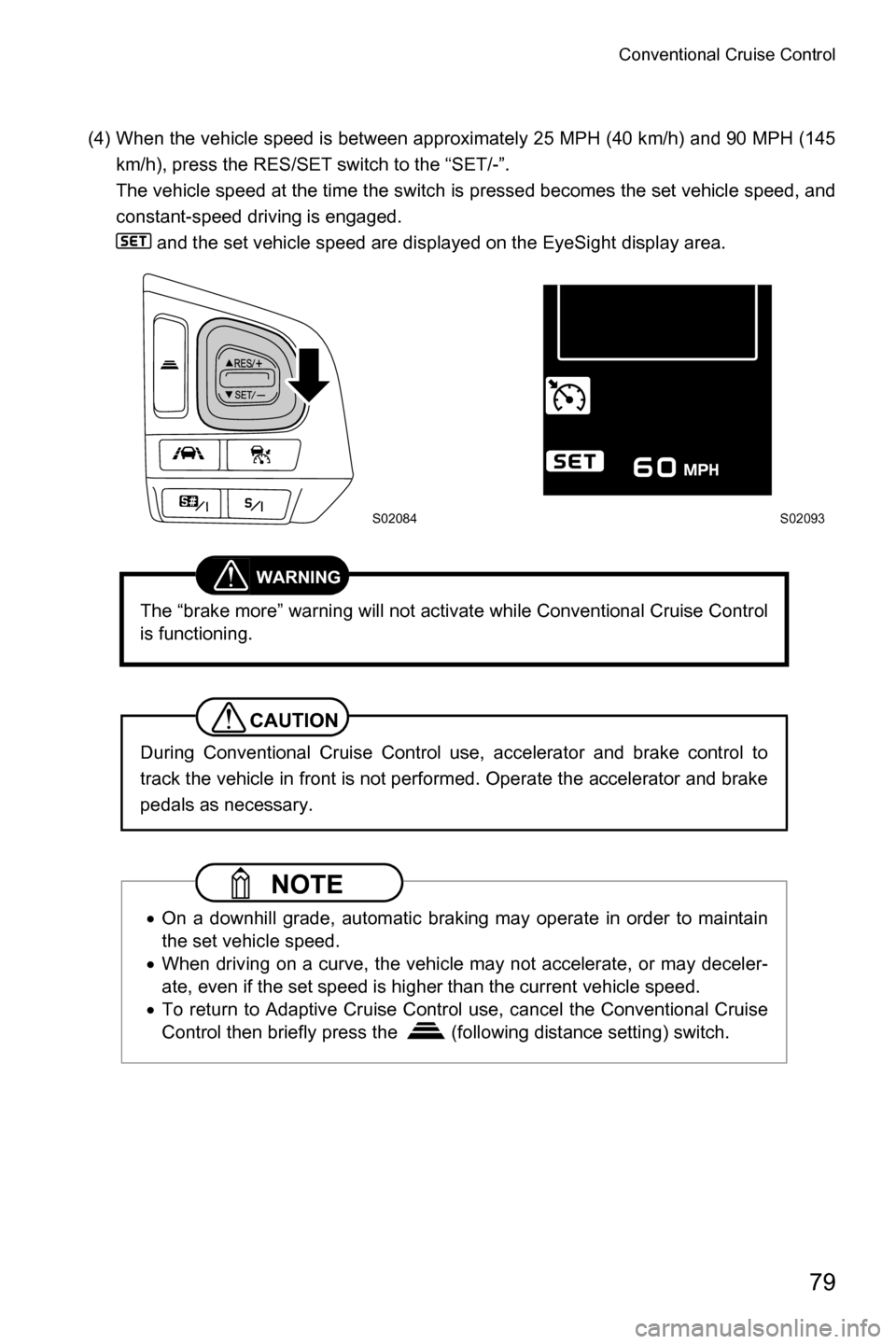

(4) When the vehicle speed is between approximately 25 MPH (40 km/h) and 90 MPH (145km/h), press the RES/SET switch to the “SET/-”.
The vehicle speed at the time the switch is pressed becomes the set vehicle speed, and
constant-speed driving is engaged. and the set vehicle speed are displayed on the EyeSight display area.
WARNING
The “brake more” warning will not activate while Conventional Cruise Control
is functioning.
CAUTION
During Conventional Cruise Control use, accelerator and brake control to
track the vehicle in front is not performed. Operate the accelerator and brake
pedals as necessary.
NOTE
xOn a downhill grade, automatic braking may operate in order to maintain
the set vehicle speed.
x When driving on a curve, the vehicle may not accelerate, or may deceler-
ate, even if the set speed is higher than the current vehicle speed.
x To return to Adaptive Cruise Control use, cancel the Conventional Cruise
Control then briefly press the (following distance setting) switch.
S02084S02093

Conventional Cruise Control
80

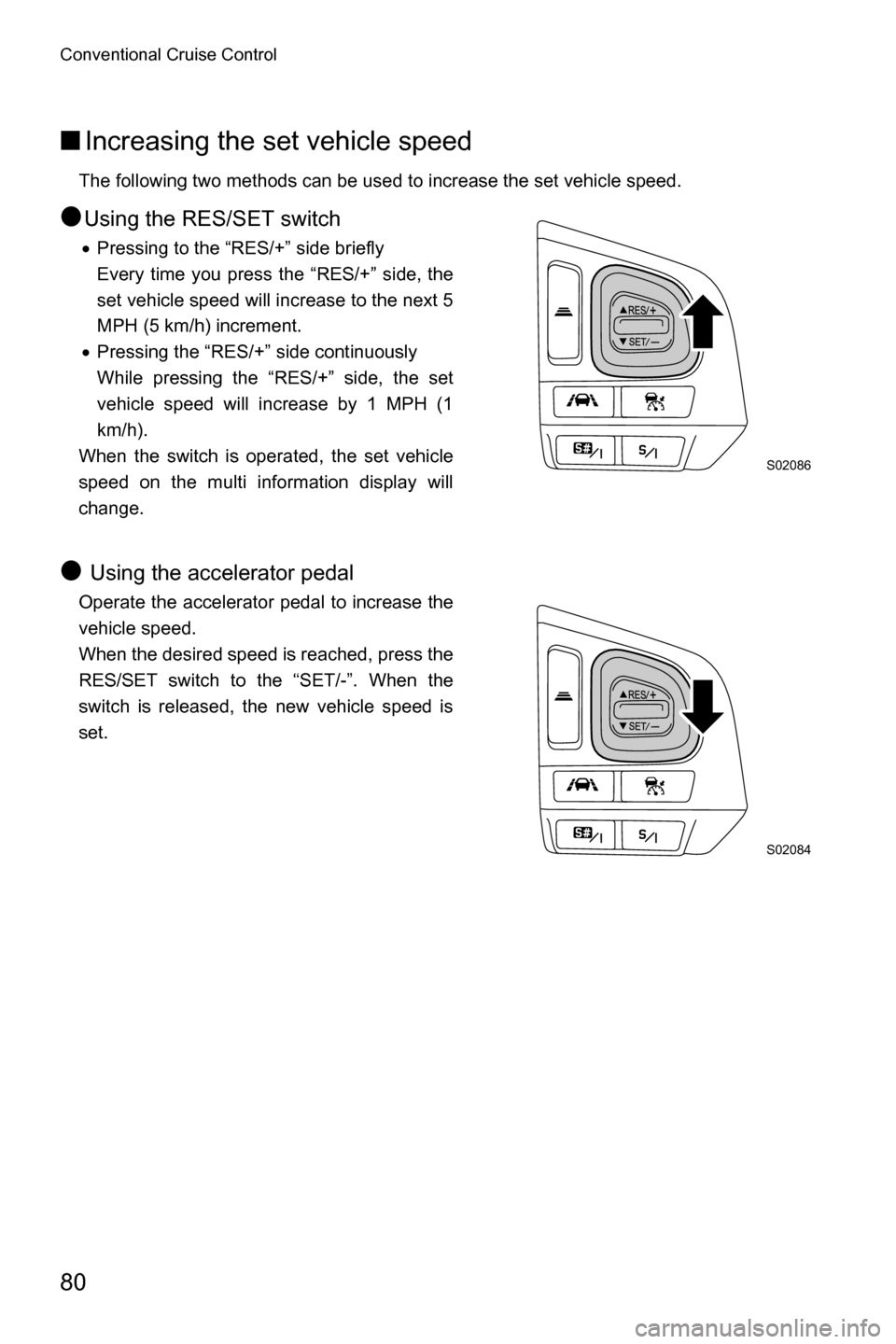

■Increasing the set vehicle speed
The following two methods can be used to increase the set vehicle speed.
●Using the RES/SET switch
xPressing to the “RES/+” side briefly
Every time you press the “RES/+” side, the
set vehicle speed will increase to the next 5
MPH (5 km/h) increment.
x Pressing the “RES/+” side continuously
While pressing the “RES/+” side, the set
vehicle speed will increase by 1 MPH (1
km/h).
When the switch is operated, the set vehicle
speed on the multi information display will
change.
● Using the accelerator pedal
Operate the accelerator pedal to increase the
vehicle speed.
When the desired speed is reached, press the
RES/SET switch to the “SET/-”. When the
switch is released, the new vehicle speed is
set.
S02086
S02084

Conventional Cruise Control
81

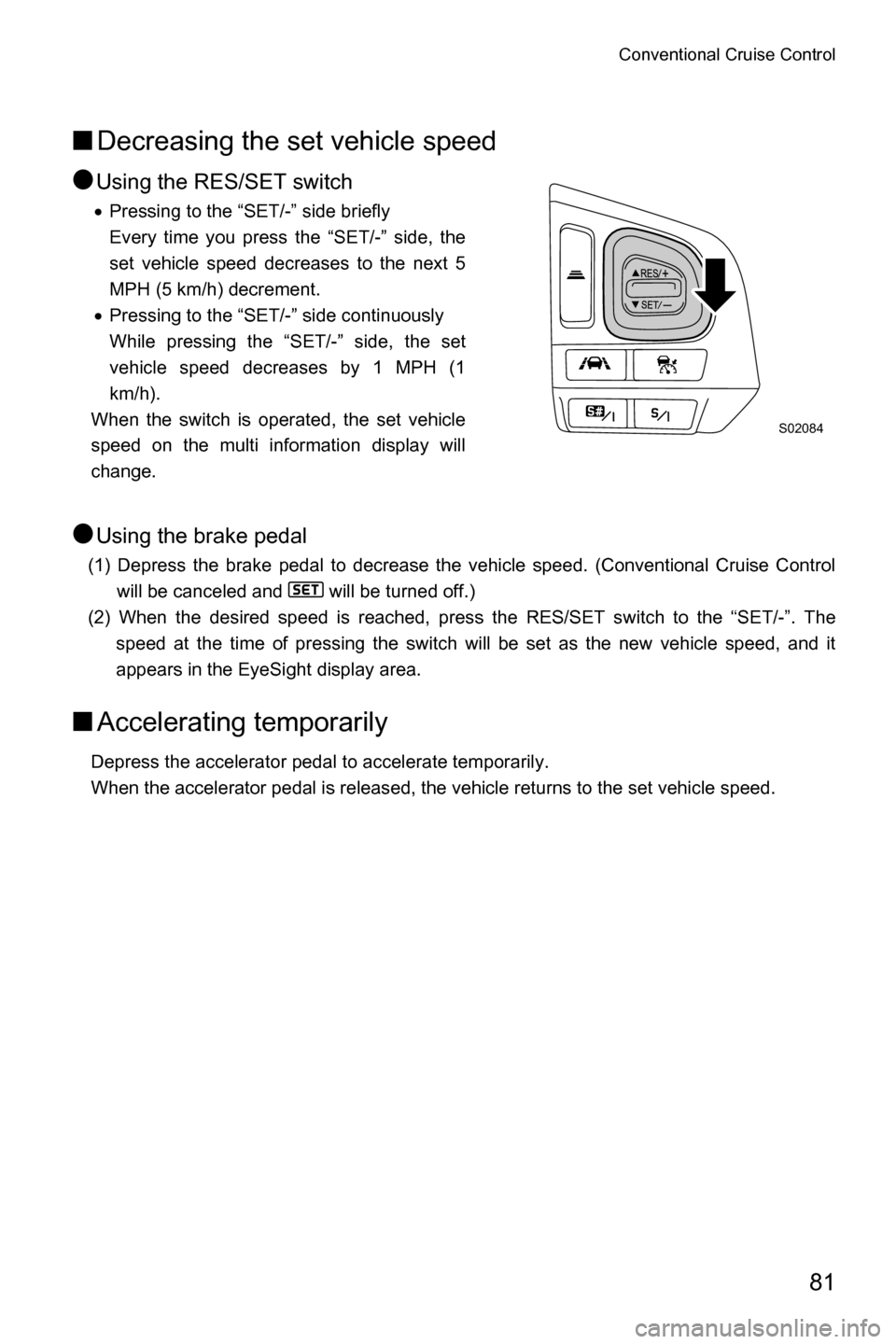

■Decreasing the set vehicle speed
●
Using the RES/SET switch
x Pressing to the “SET/-” side briefly
Every time you press the “SET/-” side, the
set vehicle speed decreases to the next 5
MPH (5 km/h) decrement.
x Pressing to the “SET/-” side continuously
While pressing the “SET/-” side, the set
vehicle speed decreases by 1 MPH (1
km/h).
When the switch is operated, the set vehicle
speed on the multi information display will
change.
●Using the brake pedal
(1) Depress the brake pedal to decrease the vehicle speed. (Conventional Cruise Control will be canceled and will be turned off.)
(2) When the desired speed is reached, press the RES/SET switch to the “SET/-”. The speed at the time of pressing the switch will be set as the new vehicle speed, and it
appears in the EyeSight display area.
■Accelerating temporarily
Depress the accelerator pedal to accelerate temporarily.
When the accelerator pedal is released, the vehicle returns to the set vehicle speed.
S02084

Conventional Cruise Control
82

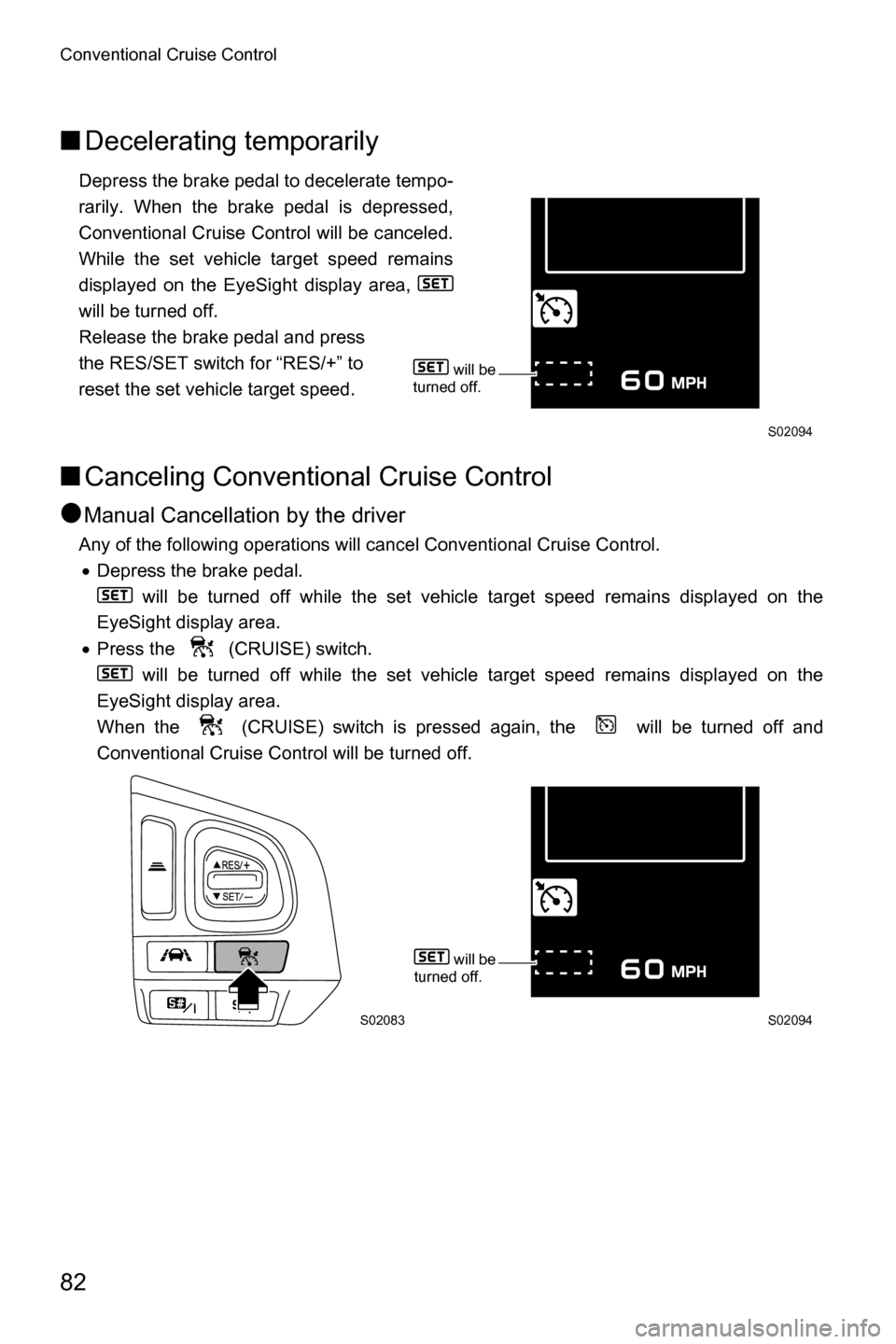

■Decelerating temporarily
Depress the brake pedal to decelerate tempo-
rarily. When the brake pedal is depressed,
Conventional Cruise Control will be canceled.
While the set vehicle target speed remains
displayed on the EyeSight display area,
will be turned off.
Release the brake pedal and press
the RES/SET switch for “RES/+” to
reset the set vehicle target speed.
■Canceling Conventional Cruise Control
●
Manual Cancellation by the driver
Any of the following operations will cancel Conventional Cruise Control.
x Depress the brake pedal.
will be turned off while the set vehicle target speed remains displayed on the
EyeSight display area.
x Press the (CRUISE) switch.
will be turned off while the set vehicle target speed remains displayed on the
EyeSight display area.
When the (CRUISE) switch is pressed again, the will be turned off and
Conventional Cruise Control will be turned off.
S02094
S02083S02094
will be
turned off.
will be
turned off.

Conventional Cruise Control
83

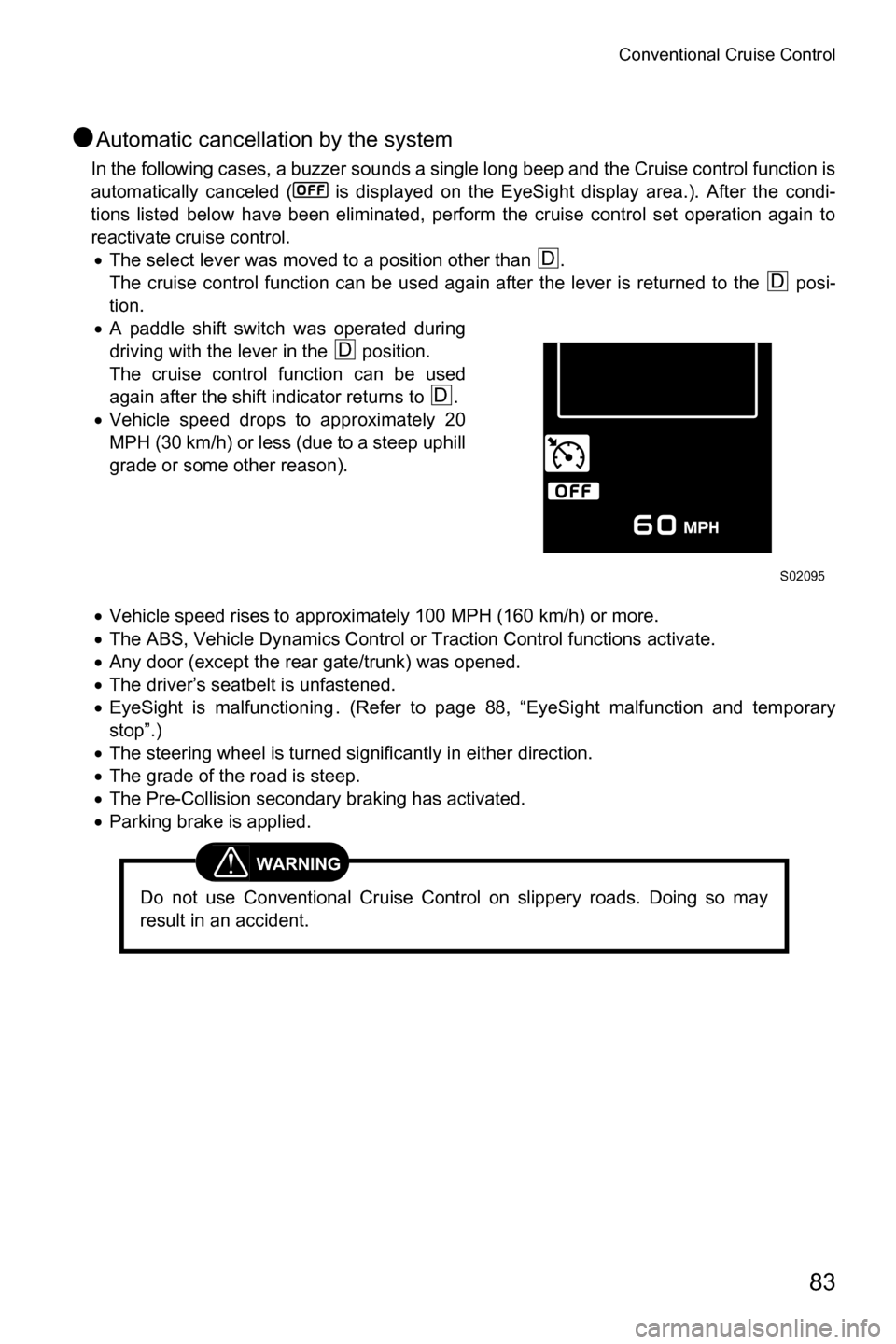

●Automatic cancellation by the system
In the following cases, a buzzer sounds a single long beep and the Cruise control function is
automatically canceled ( is displayed on the EyeSight display area.). After the condi-
tions listed below have been eliminated, perform the cruise control set operation again to
reactivate cruise control.x The select lever was moved to a position other than .
The cruise control function can be used again after the lever is returned to the posi-
tion.
x A paddle shift switch was operated during
driving with the lever in the position.
The cruise control function can be used
again after the shift indicator returns to .
x Vehicle speed drops to approximately 20
MPH (30 km/h) or less (due to a steep uphill
grade or some other reason).
x Vehicle speed rises to approximately 100 MPH (160 km/h) or more.
x The ABS, Vehicle Dynamics Control or Traction Control functions activate.
x Any door (except the rear gate/trunk) was opened.
x The driver’s seatbelt is unfastened.
x EyeSight is malfunctioning . (Refer to page 88, “EyeSight malfunction and temporary
stop”.)
x The steering wheel is turned significantly in either direction.
x The grade of the road is steep.
x The Pre-Collision secondary braking has activated.
x Parking brake is applied.
WARNING
Do not use Conventional Cruise Control on slippery roads. Doing so may
result in an accident.
D
D
S02095
D
D

Conventional Cruise Control
84

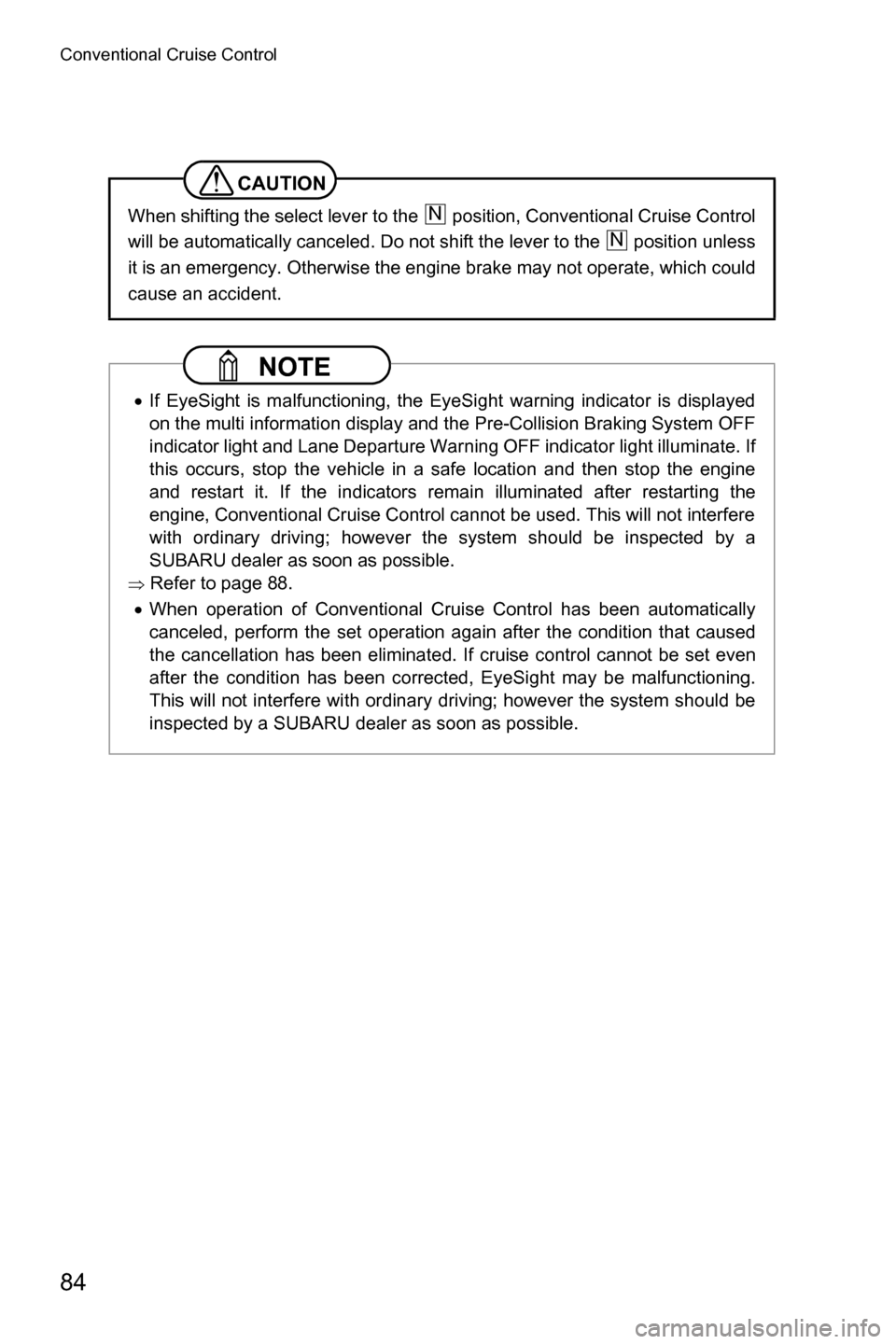

CAUTION
When shifting the select lever to the position, Conventional Cruise Control
will be automatically canceled. Do not shift the lever to the position unless
it is an emergency. Otherwise the engine brake may not operate, which could
cause an accident.
NOTE
xIf EyeSight is malfunctioning, the EyeSight warning indicator is displayed
on the multi information display and the Pre-Collision Braking System OFF
indicator light and Lane Departure Warning OFF indicator light illuminate. If
this occurs, stop the vehicle in a safe location and then stop the engine
and restart it. If the indicators remain illuminated after restarting the
engine, Conventional Cruise Control cannot be used. This will not interfere
with ordinary driving; however the system should be inspected by a
SUBARU dealer as soon as possible.
Ÿ Refer to page 88.
x When operation of Conventional Cruise Control has been automatically
canceled, perform the set operation again after the condition that caused
the cancellation has been eliminated. If cruise control cannot be set even
after the condition has been corrected, EyeSight may be malfunctioning.
This will not interfere with ordinary driving; however the system should be
inspected by a SUBARU dealer as soon as possible.
N
N

Conventional Cruise Control
85

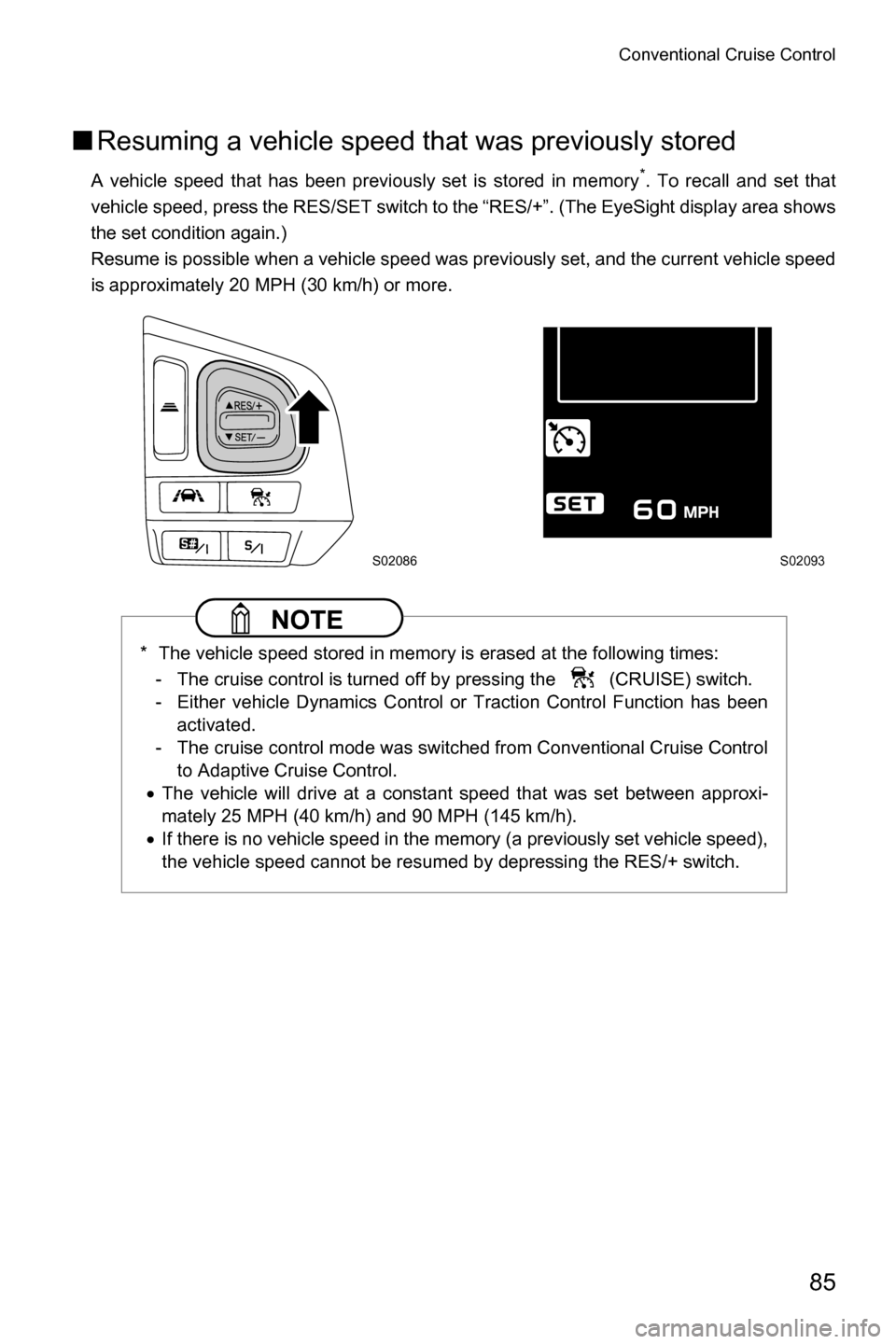

■Resuming a vehicle speed that was previously stored
A vehicle speed that has been previously set is stored in memory*. To recall and set that
vehicle speed, press the RES/SET switch to the “RES/+”. (The EyeSight display area shows
the set condition again.)
Resume is possible when a vehicle speed was previously set, and the current vehicle speed
is approximately 20 MPH (30 km/h) or more.

NOTE
* The vehicle speed stored in memory is erased at the following times: - The cruise control is turned off by pressing the (CRUISE) switch.
- Either vehicle Dynamics Control or Traction Control Function has been activated.
- The cruise control mode was switched from Conventional Cruise Control to Adaptive Cruise Control.
x The vehicle will drive at a constant speed that was set between approxi-
mately 25 MPH (40 km/h) and 90 MPH (145 km/h).
x If there is no vehicle speed in the memory (a previously set vehicle speed),
the vehicle speed cannot be resumed by depressing the RES/+ switch.
S02086S02093

86

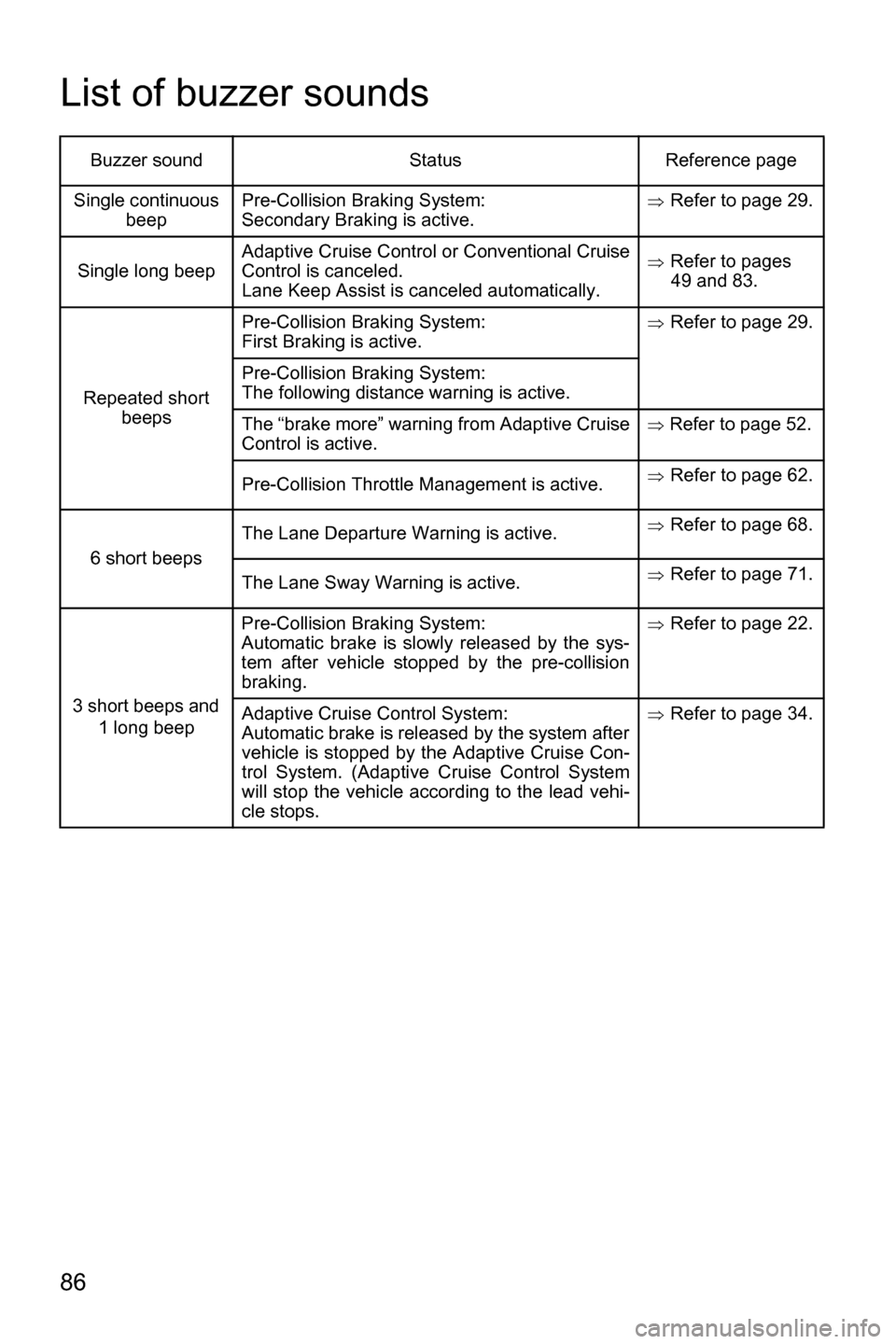

List of buzzer sounds
Buzzer soundStatusReference page
Single continuous beep Pre-Collision Braking System:
Secondary Braking is active.
ŸRefer to page 29.
Single long beep Adaptive Cruise Control or Conventional Cruise
Control is canceled.
Lane Keep Assist is canceled automatically.
ŸRefer to pages
49 and 83.
Repeated short beeps Pre-Collision Braking System:
First Braking is active.
ŸRefer to page 29.
Pre-Collision Braking System:
The following distance warning is active.
The “brake more” warning from Adaptive Cruise
Control is active.
Ÿ Refer to page 52.
Pre-Collision Throttle Management is active.
ŸRefer to page 62.
6 short beeps The Lane Departure Warning is active.
ŸRefer to page 68.
The Lane Sway Warning is active.
ŸRefer to page 71.
3 short beeps and 1 long beep Pre-Collision Braking System:
Automatic brake is slowly released by the sys-
tem after vehicle stopped by the pre-collision
braking.
ŸRefer to page 22.
Adaptive Cruise Control System:
Automatic brake is released by the system after
vehicle is stopped by the Adaptive Cruise Con-
trol System. (Adaptive Cruise Control System
will stop the vehicle according to the lead vehi-
cle stops.
ŸRefer to page 34.

List of buzzer sounds
87
*The buzzer that indicates when a lead vehicle is detected or when it is no longer detected
(Lead Vehicle Acquisition Sound), as well as the Lead Vehicle Start Alert can be turned on
or off.
Ÿ Refer to page 91.

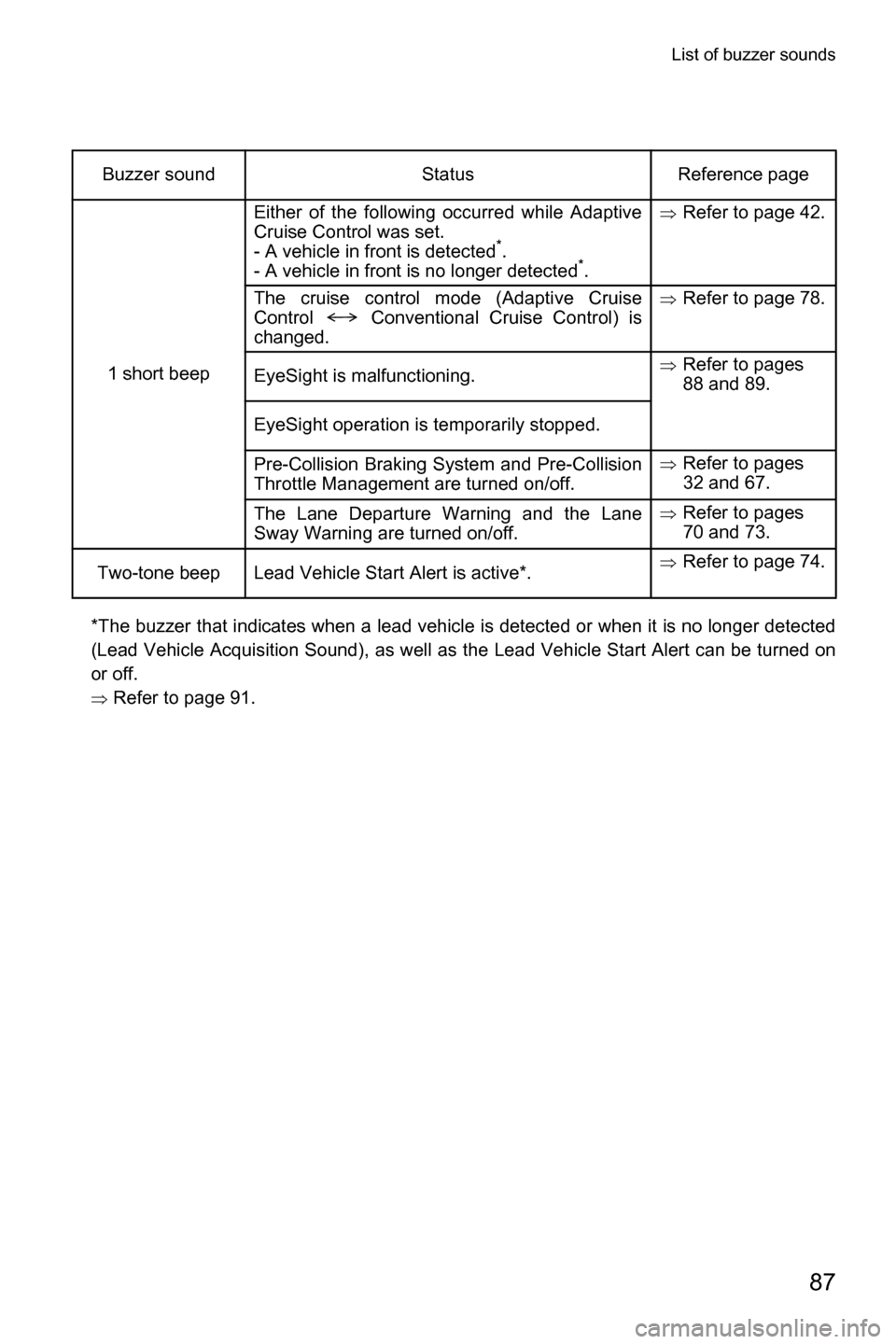

Buzzer sound Status Reference page
1 short beep Either of the following occurred while Adaptive
Cruise Control was set.
- A vehicle in front is detected
*.
- A vehicle in front is no longer detected*.
ŸRefer to page 42.
The cruise control mode (Adaptive Cruise
Control Conventional Cruise Control) is
changed.
ŸRefer to page 78.
EyeSight is malfunctioning.
ŸRefer to pages
88 and 89.
EyeSight operation is temporarily stopped.
Pre-Collision Braking System and Pre-Collision
Throttle Management are turned on/off.
ŸRefer to pages
32 and 67.
The Lane Departure Warning and the Lane
Sway Warning are turned on/off.
ŸRefer to pages
70 and 73.
Two-tone beep Lead Vehicle Start Alert is active*.
ŸRefer to page 74.
