SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

Siri
249
Siri/VOICE RECOGNITION SYSTEM
9

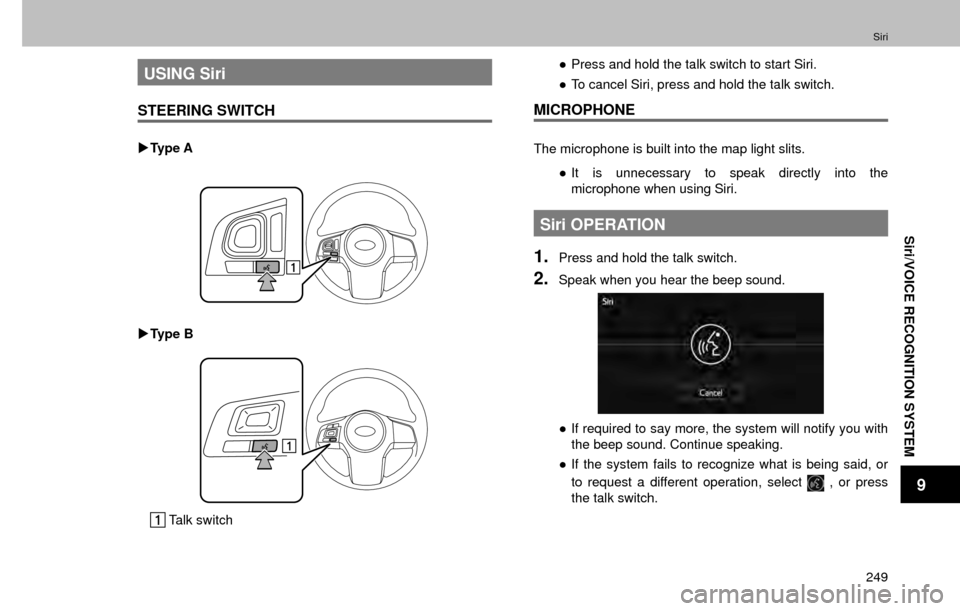

USING Siri
STEERING SWITCH
XTy p e A
XTy p e B
Talk switch

”Press and hold the talk switch to start Siri.

” To cancel Siri, press and hold the talk switch.
MICROPHONE
The microphone is built into the map light slits.

”It is unnecessary to speak directly into the
microphone when using Siri.
Siri OPERATION
1.Press and hold the talk switch.
2.Speak when you hear the beep sound.

”If required to say more, the system will notify you with
the beep sound. Continue speaking.

” If the system fails to recognize what is being said, or
to request a different operation, select
, or press
the talk switch.

Siri
250
”

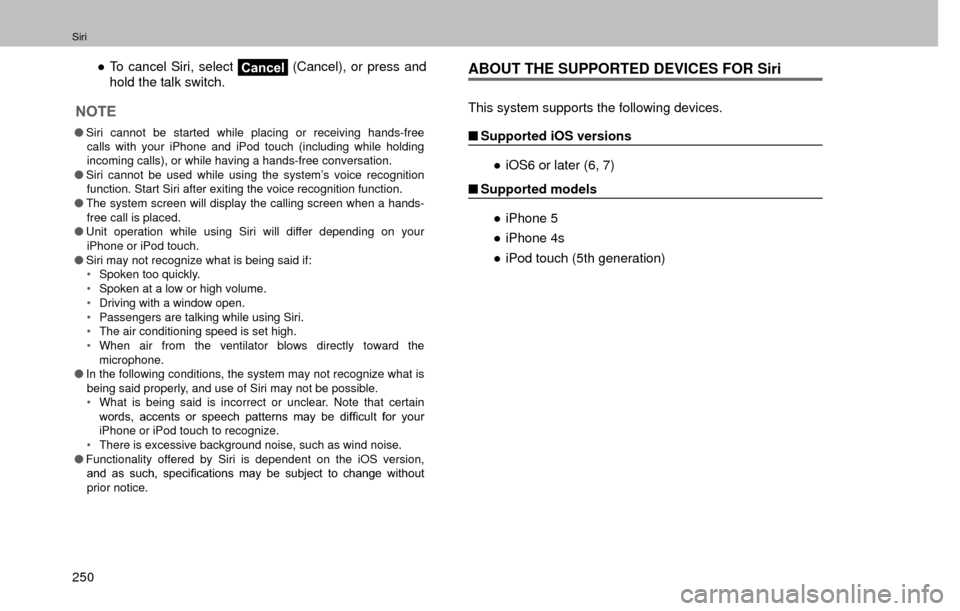

To cancel Siri, select
Cancel (Cancel), or press and
hold the talk switch.
NOTE
O Siri cannot be started while placing or receiving hands-free
calls with your iPhone and iPod touch (including while holding
incoming calls), or while having a hands-free conversation.
O Siri cannot be used while using the system’s voice recognition
function. Start Siri after exiting the voice recognition function.
O The system screen will display the calling screen when a hands-
free call is placed.
O Unit operation while using Siri will differ depending on your
iPhone or iPod touch.
O Siri may not recognize what is being said if:
‡ Spoken too quickly.
‡ Spoken at a low or high volume.
‡ Driving with a window open.
‡ Passengers are talking while using Siri.
‡ The air conditioning speed is set high.
‡ When air from the ventilator blows directly toward the
microphone.
O In the following conditions, the system may not recognize what is
being said properly, and use of Siri may not be possible.
‡ What is being said is incorrect or unclear. Note that certain
ZRUGV DFFHQWV RU VSHHFK SDWWHUQV PD\ EH GLI

VOICE RECOGNITION SYSTEM OPERATION
251
Siri/VOICE RECOGNITION SYSTEM
9

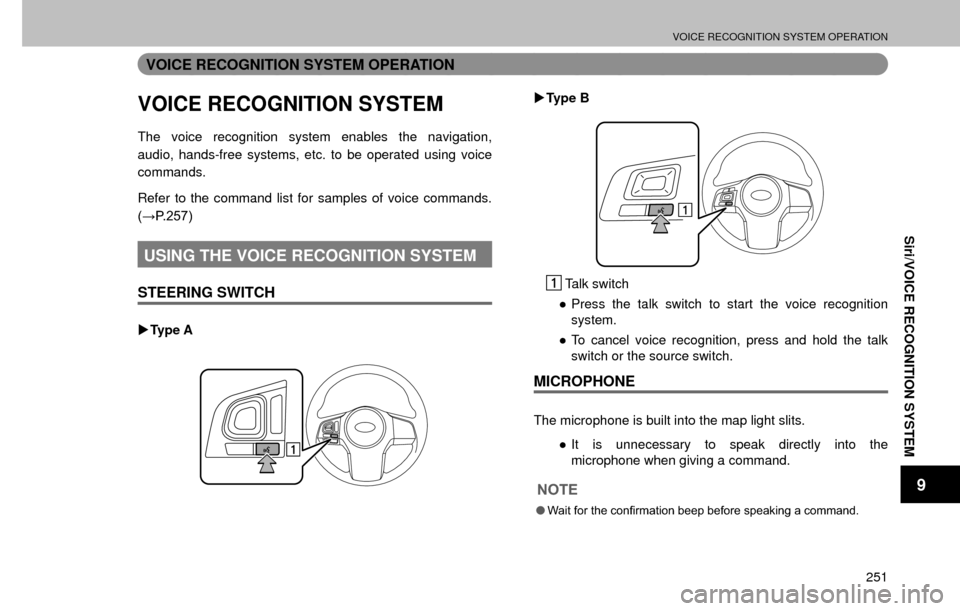

VOICE RECOGNITION SYSTEM OPERATION
VOICE RECOGNITION SYSTEM
The voice recognition system enables the navigation,
audio, hands-free systems, etc. to be operated using voice
commands.
Refer to the command list for samples of voice commands.

:3
USING THE VOICE RECOGNITION SYSTEM
STEERING SWITCH
XTy p e A
XTy p e B
Talk switch

” Press the talk switch to start the voice recognition
system.

” To cancel voice recognition, press and hold the talk
switch or the source switch.
MICROPHONE
The microphone is built into the map light slits.

”It is unnecessary to speak directly into the
microphone when giving a command.
NOTE
O :DLWIRUWKHFRQ

VOICE RECOGNITION SYSTEM OPERATION
252

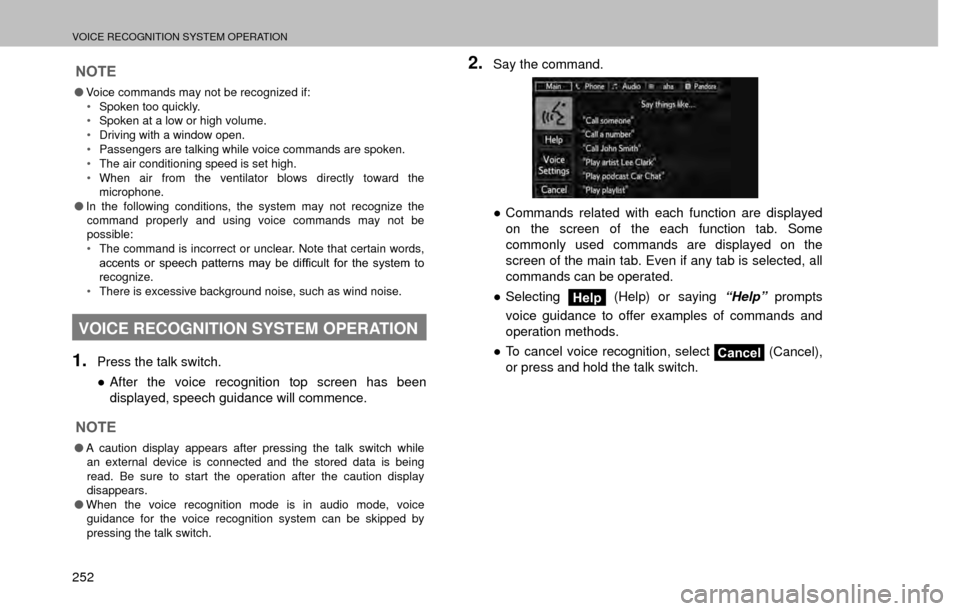

NOTE
OVoice commands may not be recognized if:
‡ Spoken too quickly.
‡ Spoken at a low or high volume.
‡ Driving with a window open.
‡ Passengers are talking while voice commands are spoken.
‡ The air conditioning speed is set high.
‡ When air from the ventilator blows directly toward the
microphone.
O In the following conditions, the system may not recognize the
command properly and using voice commands may not be
possible:
‡ The command is incorrect or unclear. Note that certain words,
DFFHQWV RU VSHHFK SDWWHUQV PD\ EH GLI

VOICE RECOGNITION SYSTEM OPERATION
253
Siri/VOICE RECOGNITION SYSTEM
9

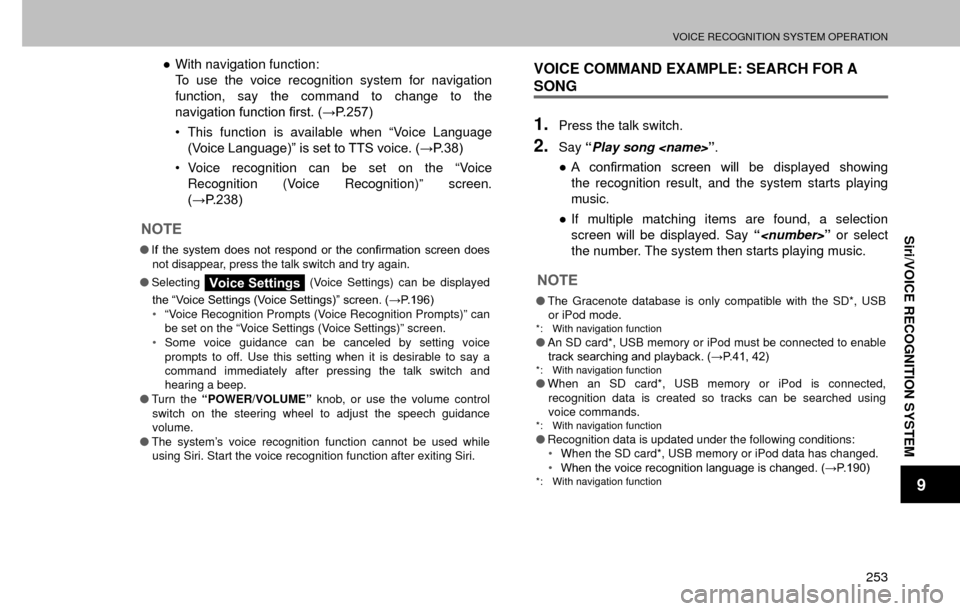

”With navigation function:
To use the voice recognition system for navigation
function, say the command to change to the
QDYLJDWLRQIXQFWLRQ

VOICE RECOGNITION SYSTEM OPERATION
254

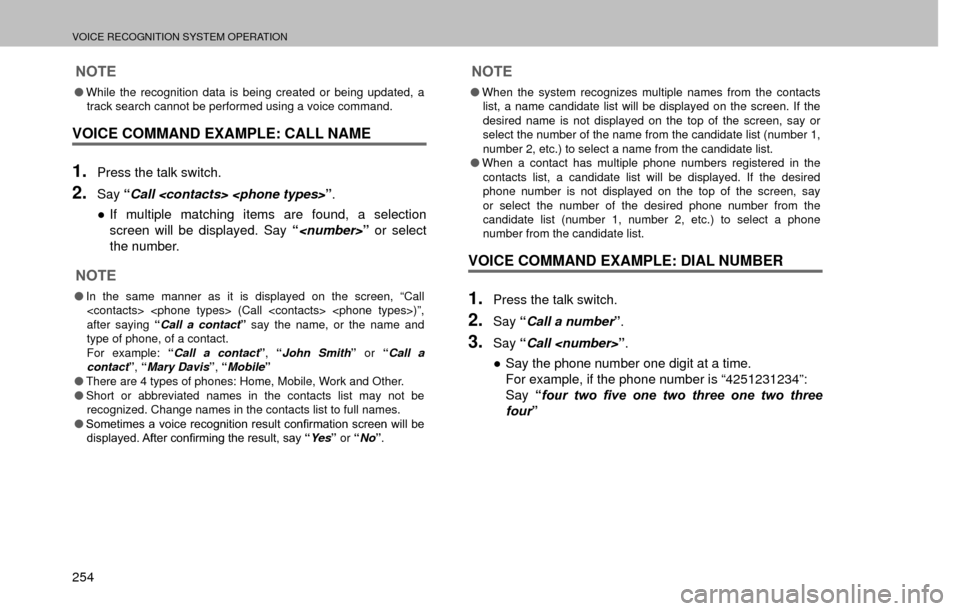

NOTE
OWhile the recognition data is being created or being updated, a
track search cannot be performed using a voice command.
VOICE COMMAND EXAMPLE: CALL NAME
1.Press the talk switch.
2.Say “Call ”.

” If multiple matching items are found, a selection
screen will be displayed. Say “” or select
the number.
NOTE
O In the same manner as it is displayed on the screen, “Call
(Call )”,
after saying “Call a contact” say the name, or the name and
type of phone, of a contact.
For example: “Call a contact ”,“John Smith ” or “Call a
contact ”,“Mary Davis ”,“Mobile ”
O There are 4 types of phones: Home, Mobile, Work and Other.
O Short or abbreviated names in the contacts list may not be
recognized. Change names in the contacts list to full names.
O 6RPHWLPHVDYRLFHUHFRJQLWLRQUHVXOWFRQ

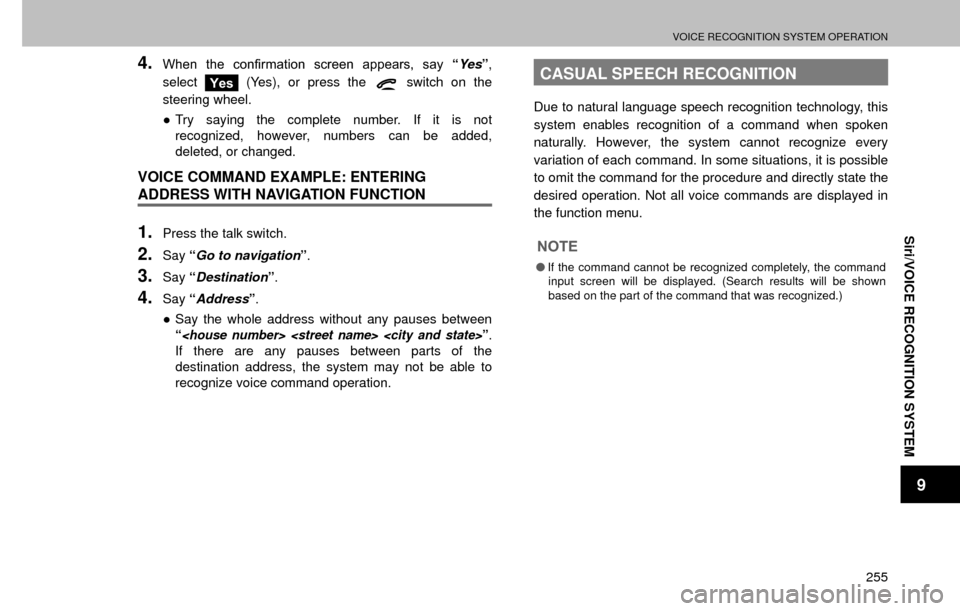

VOICE RECOGNITION SYSTEM OPERATION
255
Siri/VOICE RECOGNITION SYSTEM
9
4.:KHQ WKH FRQ

VOICE RECOGNITION SYSTEM OPERATION
256

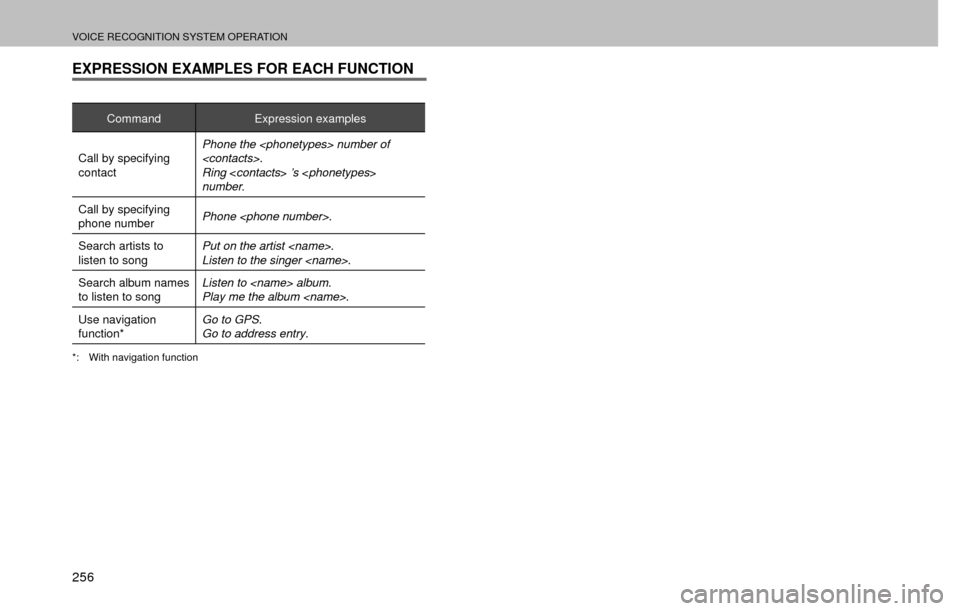

EXPRESSION EXAMPLES FOR EACH FUNCTION
CommandExpression examples
Call by specifying
contact Phone the number of
.
Ring
’s
number.
Call by specifying
phone number Phone
.
Search artists to
listen to song Put on the artist
.
Listen to the singer .
Search album names
to listen to song Listen to album
.
Play me the album .
Use navigation
function* Go to GPS
.
Go to address entry .
*: With navigation function

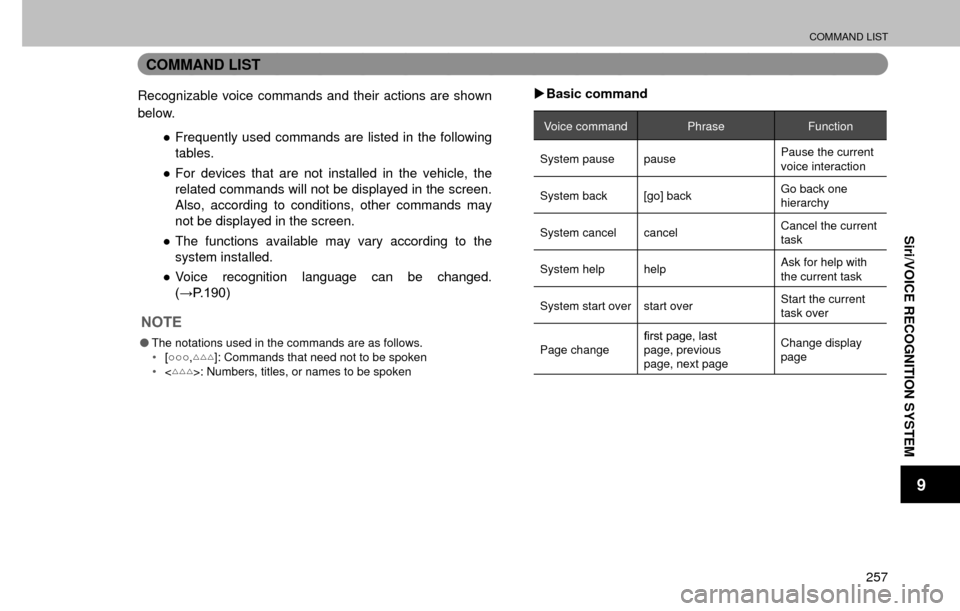

COMMAND LIST
257
Siri/VOICE RECOGNITION SYSTEM
9
COMMAND LIST
Recognizable voice commands and their actions are shown
below.
”Frequently used commands are listed in the following
tables.

” For devices that are not installed in the vehicle, the
related commands will not be displayed in the screen.
Also, according to conditions, other commands may
not be displayed in the screen.

” The functions available may vary according to the
system installed.

” Voice recognition language can be changed.

:3
NOTE
O The notations used in the commands are as follows.
‡ >
|
|
|UUU]: Commands that need not to be spoken
‡ <UUU>: Numbers, titles, or names to be spoken
XBasic command
Voice command PhraseFunction
System pause pause Pause the current
voice interaction
System back [go] back Go back one
hierarchy
System cancel cancel Cancel the current
task
System help help Ask for help with
the current task
System start over start over Start the current
task over
Page change ¿UVWSDJHODVW
page, previous
page, next page Change display
page

COMMAND LIST

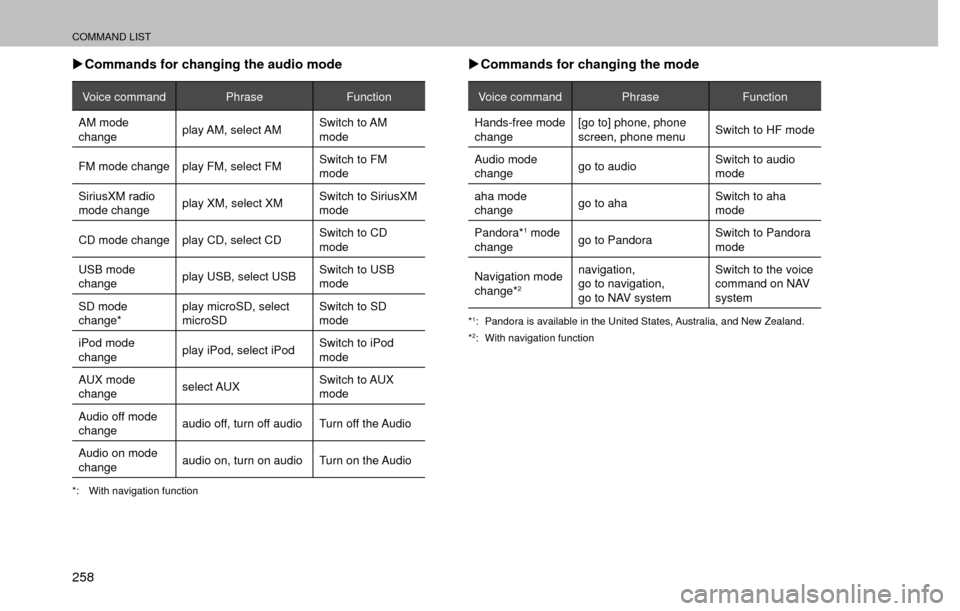

258 XCommands for changing the audio mode
Voice command PhraseFunction
AM mode
change play AM, select AM Switch to AM
mode
FM mode change play FM, select FM Switch to FM
mode
SiriusXM radio
mode change play XM, select XM Switch to SiriusXM
mode
CD mode change play CD, select CD Switch to CD
mode
USB mode
change play USB, select USB Switch to USB
mode
SD mode
change* play microSD, select
microSD Switch to SD
mode
iPod mode
change play iPod, select iPod Switch to iPod
mode
AUX mode
change select AUX Switch to AUX
mode
Audio off mode
change audio off, turn off audio Turn off the Audio
Audio on mode
change audio on, turn on audio Turn on the Audio
*: With navigation function
X
Commands for changing the mode
Voice command PhraseFunction
Hands-free mode
change [go to] phone, phone
screen, phone menu
Switch to HF mode
Audio mode
change go to audio Switch to audio
mode
aha mode
change go to aha Switch to aha
mode
Pandora*
1 mode
change go to Pandora Switch to Pandora
mode
Navigation mode
change*
2
navigation,
go to navigation,
go to NAV system Switch to the voice
command on NAV
system
*1: Pandora is available in the United States, Australia, and New Zealand.
*2: With navigation function
