Page 231 of 308
ROUTE GUIDANCE
229
NAVIGATION SYSTEM
8
No.Function
Select whether or not to use the expressway when
creating the route.
Select whether or not to use toll roads (Period Charge)
in the route.
Select whether or not to use toll roads (Per-use Toll) in
the route.
Select whether or not to use ferries when creating the
route. (However, ferries might not always be selected for
the route.) However, information on temporary service
ferries may not be displayed on the map. There may be
a fee for using the ferry.
Select whether or not to use Carpool/HOV lanes when
creating the route.
Select whether or not to use unpaved roads when
creating the route.
Select to search for the best green alternative route. If
this alternative route is much better than the selected
method, you can quickly switch to Green mode.
”The route is searched again, and the new
recommended route is indicated by a blue line.
SELECTING ROUTE TYPE
1.Display the “Route Settings (Route Settings)” screen.
: 3
2.SelectRoute Planning Method (Route Planning
Method).
3.Select the desired route type.
No. Function
Select to search all roads for the quickest route following
the speed limits of the roads.
Select to search for the route that conserves the most
energy.
Select to search for a route that is easiest to drive, with
few right and left turns. Using this option, the program
allows you to avoid combinations of smaller roads and
to take the expressway.
Page 232 of 308
ROUTE GUIDANCE
230

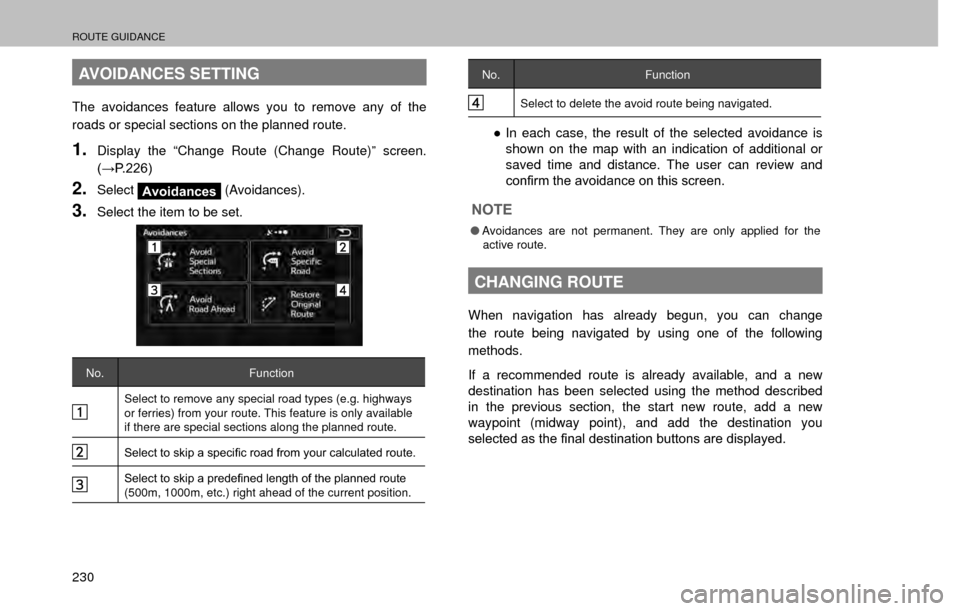

AVOIDANCES SETTING
The avoidances feature allows you to remove any of the
roads or special sections on the planned route.
1.Display the “Change Route (Change Route)” screen.
: 3
2.SelectAvoidances (Avoidances).
3.Select the item to be set.
No.
Function
Select to remove any special road types (e.g. highways
or ferries) from your route. This feature is only available
if there are special sections along the planned route.
6 H O H F W W R V N L S D V S H F L ¿ F U R D G I U R P \ R X U F D O F X O D W H G U R X W H
6 H O H F W W R V N L S D S U H G H ¿ Q H G O H Q J W K R I W K H S O D Q Q H G U R X W H
(500m, 1000m, etc.) right ahead of the current position.
No.Function
Select to delete the avoid route being navigated.
”In each case, the result of the selected avoidance is
shown on the map with an indication of additional or
saved time and distance. The user can review and
F R Q ¿ U P W K H D Y R L G D Q F H R Q W K L V V F U H H Q
NOTE
O Avoidances are not permanent. They are only applied for the
active route.
CHANGING ROUTE
When navigation has already begun, you can change
the route being navigated by using one of the following
methods.
If a recommended route is already available, and a new
destination has been selected using the method described
in the previous section, the start new route, add a new
waypoint (midway point), and add the destination you
V H O H F W H G D V W K H ¿ Q D O G H V W L Q D W L R Q E X W W R Q V D U H G L V S O D \ H G
Page 233 of 308

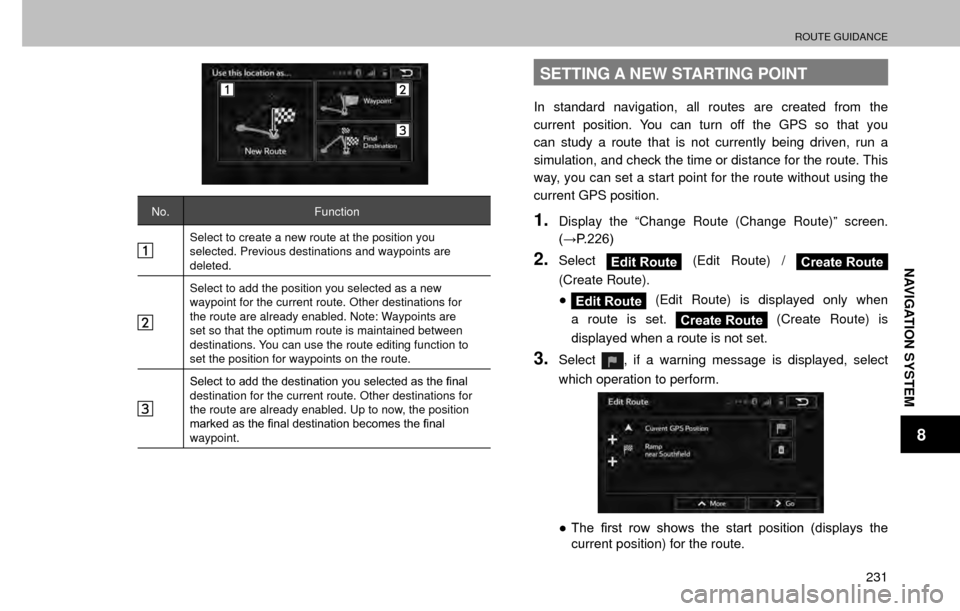

ROUTE GUIDANCE
231
NAVIGATION SYSTEM
8
No.Function
Select to create a new route at the position you
selected. Previous destinations and waypoints are
deleted.
Select to add the position you selected as a new
waypoint for the current route. Other destinations for
the route are already enabled. Note: Waypoints are
set so that the optimum route is maintained between
destinations. You can use the route editing function to
set the position for waypoints on the route.
6 H O H F W W R D G G W K H G H V W L Q D W L R Q \ R X V H O H F W H G D V W K H ¿ Q D O
destination for the current route. Other destinations for
the route are already enabled. Up to now, the position
P D U N H G D V W K H ¿ Q D O G H V W L Q D W L R Q E H F R P H V W K H ¿ Q D O
waypoint.
SETTING A NEW STARTING POINT
In standard navigation, all routes are created from the
current position. You can turn off the GPS so that you
can study a route that is not currently being driven, run a
simulation, and check the time or distance for the route. This
way, you can set a start point for the route without using the
current GPS position.
1.Display the “Change Route (Change Route)” screen.
: 3
2.SelectEdit Route (Edit Route) / Create Route
(Create Route).
”
Edit Route (Edit Route) is displayed only when
a route is set.
Create Route (Create Route) is
displayed when a route is not set.
3.Select, if a warning message is displayed, select
which operation to perform.
Page 234 of 308

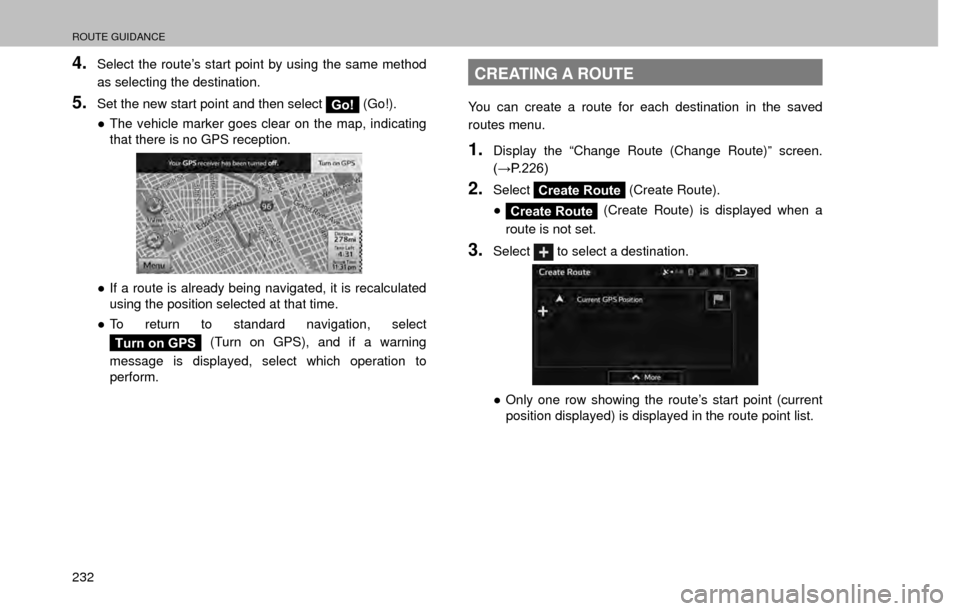

ROUTE GUIDANCE
232
4.Select the route’s start point by using the same method
as selecting the destination.
5.Set the new start point and then select Go! (Go!).
” The vehicle marker goes clear on the map, indicating
that there is no GPS reception.
”If a route is already being navigated, it is recalculated
using the position selected at that time.
” To return to standard navigation, select
Turn on GPS (Turn on GPS), and if a warning
message is displayed, select which operation to
perform.
CREATING A ROUTE
You can create a route for each destination in the saved
routes menu.
1.Display the “Change Route (Change Route)” screen.
: 3
2.SelectCreate Route (Create Route).
”
Create Route (Create Route) is displayed when a
route is not set.
3.Select to select a destination.
” Only one row showing the route’s start point (current
position displayed) is displayed in the route point list.
Page 235 of 308

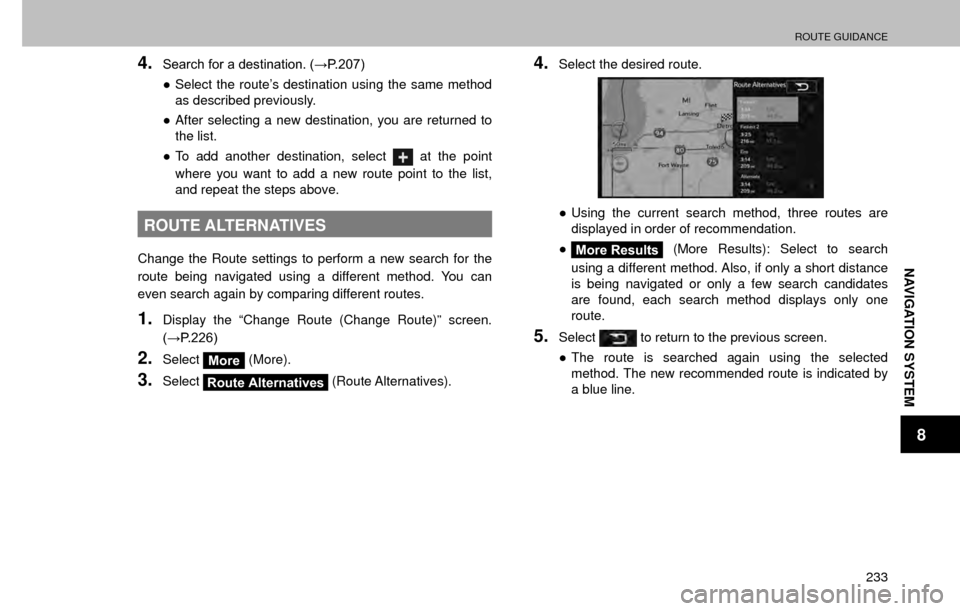

ROUTE GUIDANCE
233
NAVIGATION SYSTEM
8
4. 6 H D U F K I R U D G H V W L Q D W L R Q : 3
”Select the route’s destination using the same method
as described previously.
” After selecting a new destination, you are returned to
the list.
” To add another destination, select
at the point
where you want to add a new route point to the list,
and repeat the steps above.
ROUTE ALTERNATIVES
Change the Route settings to perform a new search for the
route being navigated using a different method. You can
even search again by comparing different routes.
1.Display the “Change Route (Change Route)” screen.
: 3
2.SelectMore (More).
3.SelectRoute Alternatives (Route Alternatives).
4.Select the desired route.
”
Using the current search method, three routes are
displayed in order of recommendation.
”
More Results (More Results): Select to search
using a different method. Also, if only a short distance
is being navigated or only a few search candidates
are found, each search method displays only one
route.
5.Select to return to the previous screen.
” The route is searched again using the selected
method. The new recommended route is indicated by
a blue line.
Page 236 of 308

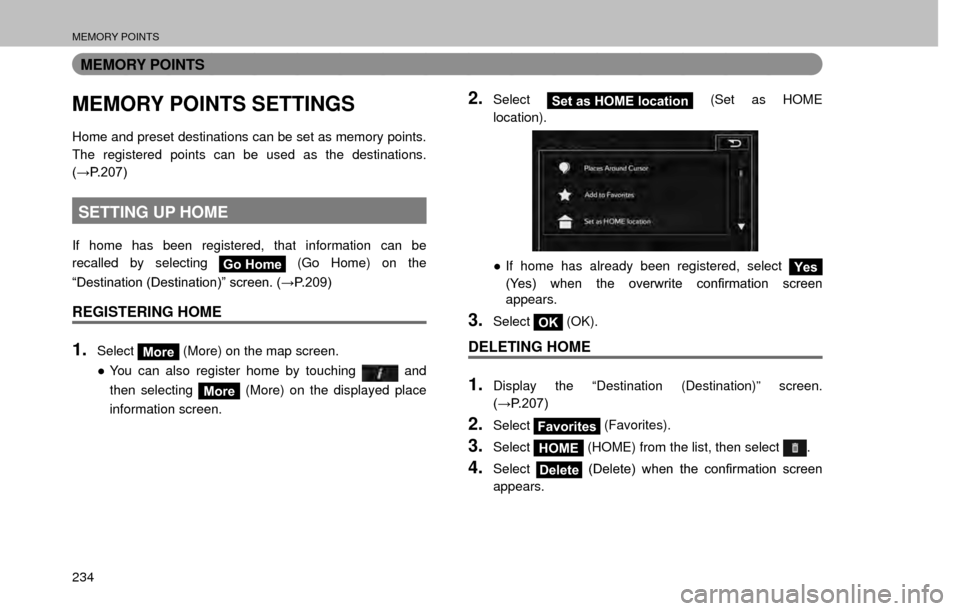

MEMORY POINTS
234
MEMORY POINTS
MEMORY POINTS SETTINGS
Home and preset destinations can be set as memory points.
The registered points can be used as the destinations.
: 3
SETTING UP HOME
If home has been registered, that information can be
recalled by selecting
Go Home (Go Home) on the
Page 237 of 308

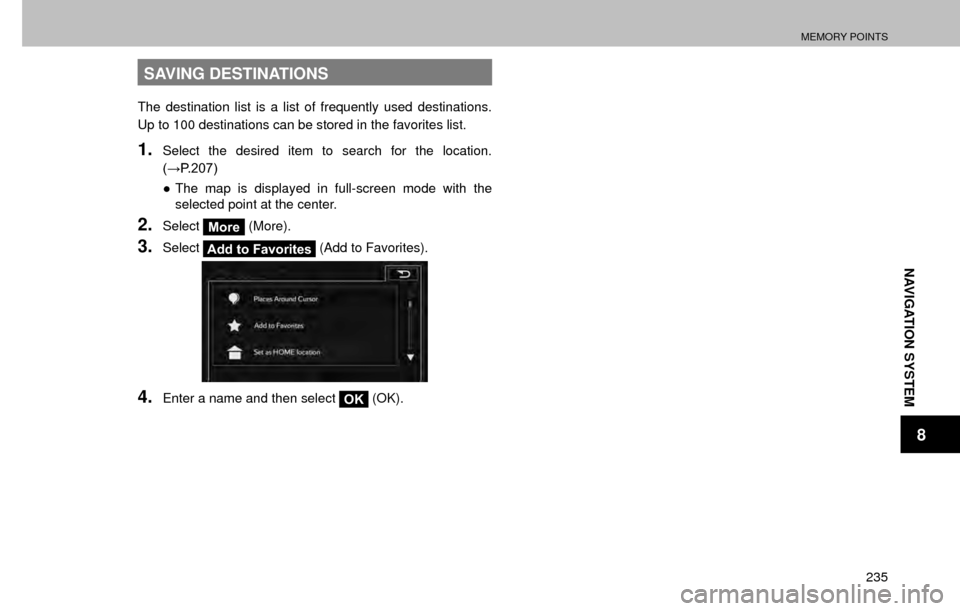

MEMORY POINTS
235
NAVIGATION SYSTEM
8
SAVING DESTINATIONS
The destination list is a list of frequently used destinations.
Up to 100 destinations can be stored in the favorites list.
1.Select the desired item to search for the location.
: 3
”The map is displayed in full-screen mode with the
selected point at the center.
2.SelectMore (More).
3.SelectAdd to Favorites (Add to Favorites).
4.Enter a name and then select OK (OK).
Page 238 of 308

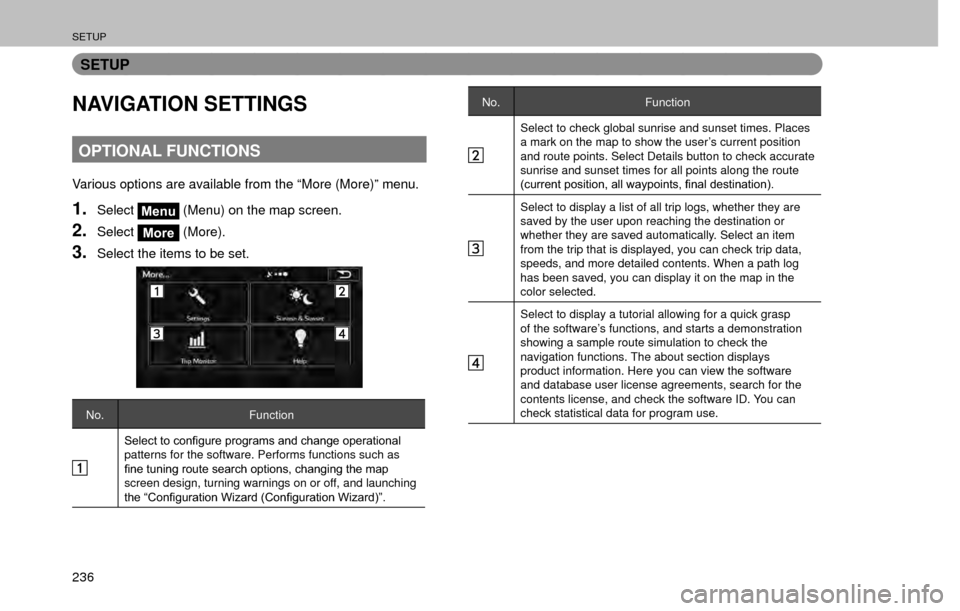

SETUP
236
SETUP
NAVIGATION SETTINGS
OPTIONAL FUNCTIONS
Various options are available from the “More (More)” menu.
1.SelectMenu (Menu) on the map screen.
2.SelectMore (More).
3.Select the items to be set.
No.
Function
6 H O H F W W R F R Q ¿ J X U H S U R J U D P V D Q G F K D Q J H R S H U D W L R Q D O
patterns for the software. Performs functions such as
¿ Q H W X Q L Q J U R X W H V H D U F K R S W L R Q V F K D Q J L Q J W K H P D S
screen design, turning warnings on or off, and launching
W K H ³ & R Q ¿ J X U D W L R Q : L ] D U G & R Q ¿ J X U D W L R Q : L ] D U G ´
No.Function
Select to check global sunrise and sunset times. Places
a mark on the map to show the user’s current position
and route points. Select Details button to check accurate
sunrise and sunset times for all points along the route
F X U U H Q W S R V L W L R Q D O O Z D \ S R L Q W V ¿ Q D O G H V W L Q D W L R Q
Select to display a list of all trip logs, whether they are
saved by the user upon reaching the destination or
whether they are saved automatically. Select an item
from the trip that is displayed, you can check trip data,
speeds, and more detailed contents. When a path log
has been saved, you can display it on the map in the
color selected.
Select to display a tutorial allowing for a quick grasp
of the software’s functions, and starts a demonstration
showing a sample route simulation to check the
navigation functions. The about section displays
product information. Here you can view the software
and database user license agreements, search for the
contents license, and check the software ID. You can
check statistical data for program use.
Page 239 of 308

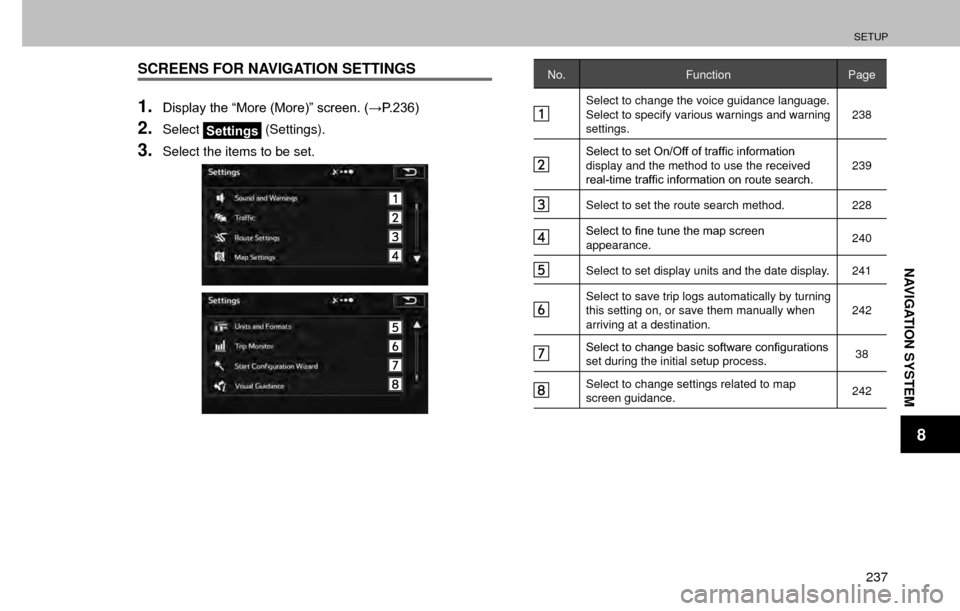

SETUP
237
NAVIGATION SYSTEM
8
SCREENS FOR NAVIGATION SETTINGS
1. ' L V S O D \ W K H
Page 240 of 308

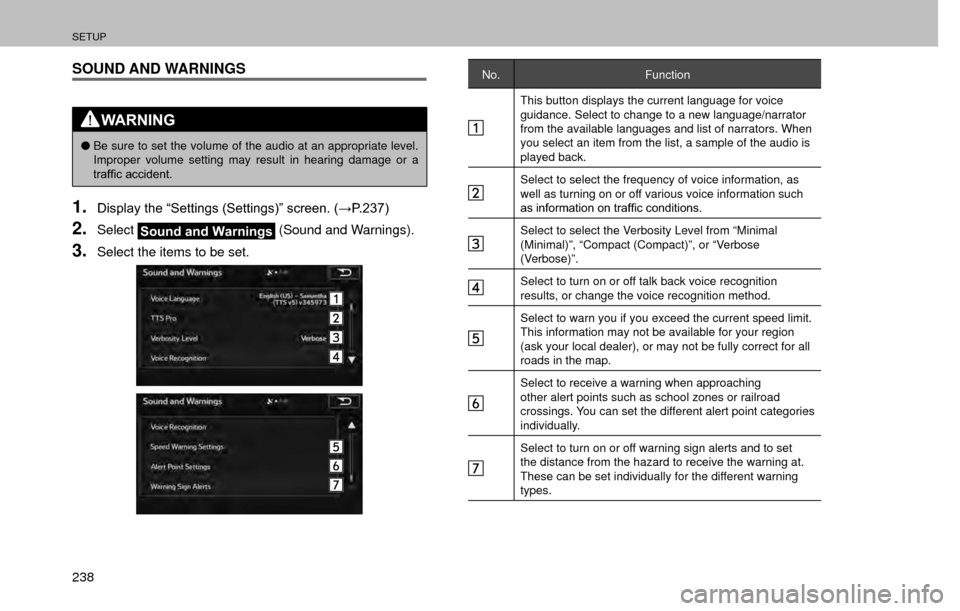

SETUP
238
SOUND AND WARNINGS
WARNING
OBe sure to set the volume of the audio at an appropriate level.
Improper volume setting may result in hearing damage or a
W U D I ¿ F D F F L G H Q W
1. ' L V S O D \ W K H
