Page 77 of 308

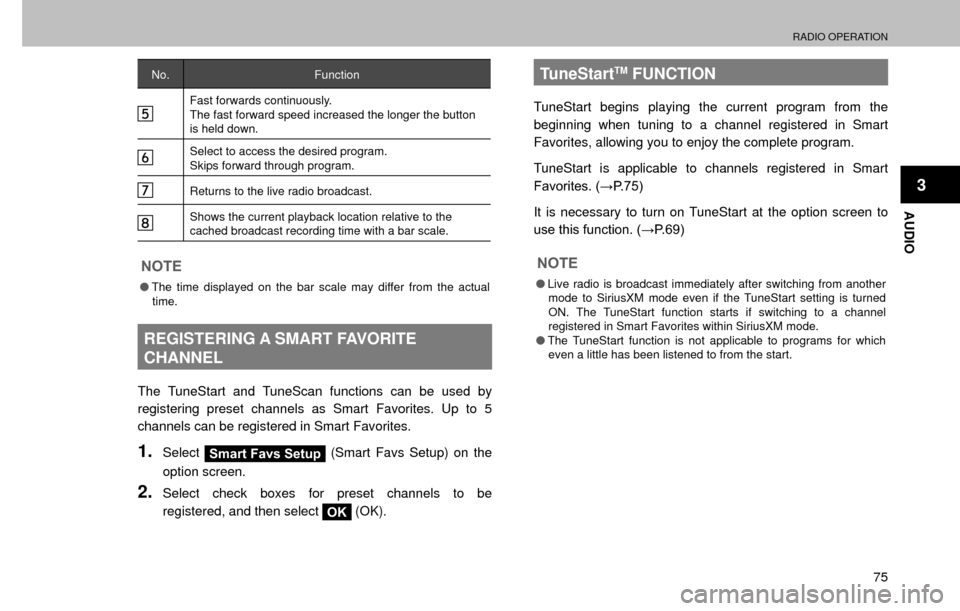

RADIO OPERATION
75
AUDIO
3
No.Function
Fast forwards continuously.
The fast forward speed increased the longer the button
is held down.
Select to access the desired program.
Skips forward through program.
Returns to the live radio broadcast.
Shows the current playback location relative to the
cached broadcast recording time with a bar scale.
NOTE
OThe time displayed on the bar scale may differ from the actual
time.
REGISTERING A SMART FAVORITE
CHANNEL
The TuneStart and TuneScan functions can be used by
registering preset channels as Smart Favorites. Up to 5
channels can be registered in Smart Favorites.
1.SelectSmart Favs Setup (Smart Favs Setup) on the
option screen.
2.Select check boxes for preset channels to be
registered, and then select
OK (OK).
TuneStartTM FUNCTION
TuneStart begins playing the current program from the
beginning when tuning to a channel registered in Smart
Favorites, allowing you to enjoy the complete program.
TuneStart is applicable to channels registered in Smart
) D Y R U L W H V : 3
It is necessary to turn on TuneStart at the option screen to
X V H W K L V I X Q F W L R Q : 3
NOTE
O
Live radio is broadcast immediately after switching from another
mode to SiriusXM mode even if the TuneStart setting is turned
ON. The TuneStart function starts if switching to a channel
registered in Smart Favorites within SiriusXM mode.
O The TuneStart function is not applicable to programs for which
even a little has been listened to from the start.
Page 88 of 308

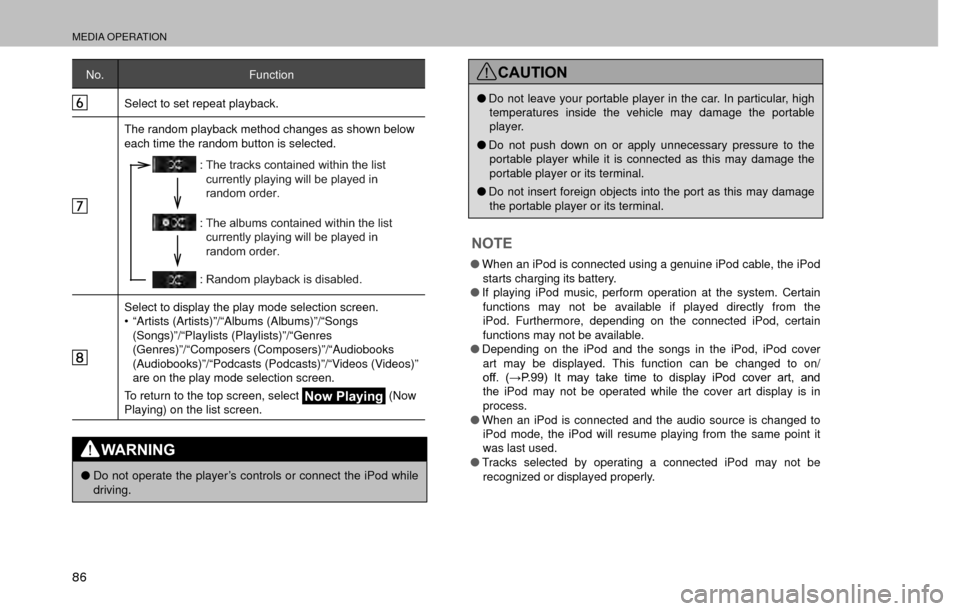

MEDIA OPERATION
86
No.Function
Select to set repeat playback.
The random playback method changes as shown below
each time the random button is selected.
: The tracks contained within the list currently playing will be played in
random order.
: The albums contained within the list currently playing will be played in
random order.
: Random playback is disabled.
Select to display the play mode selection screen.
‡ “Artists (Artists)”/“Albums (Albums)”/“Songs
(Songs)”/“Playlists (Playlists)”/“Genres
(Genres)”/“Composers (Composers)”/“Audiobooks
(Audiobooks)”/“Podcasts (Podcasts)”/“Videos (Videos)”
are on the play mode selection screen.
To return to the top screen, select
Now Playing (Now
Playing) on the list screen.
WARNING
O Do not operate the player’s controls or connect the iPod while
driving.
CAUTION
ODo not leave your portable player in the car. In particular, high
temperatures inside the vehicle may damage the portable
player.
O Do not push down on or apply unnecessary pressure to the
portable player while it is connected as this may damage the
portable player or its terminal.
O Do not insert foreign objects into the port as this may damage
the portable player or its terminal.
NOTE
O When an iPod is connected using a genuine iPod cable, the iPod
starts charging its battery.
O If playing iPod music, perform operation at the system. Certain
functions may not be available if played directly from the
iPod. Furthermore, depending on the connected iPod, certain
functions may not be available.
O Depending on the iPod and the songs in the iPod, iPod cover
art may be displayed. This function can be changed to on/
R I I : 3 , W P D \ W D N H W L P H W R G L V S O D \ L 3 R G F R Y H U D U W D Q G
the iPod may not be operated while the cover art display is in
process.
O When an iPod is connected and the audio source is changed to
iPod mode, the iPod will resume playing from the same point it
was last used.
O Tracks selected by operating a connected iPod may not be
recognized or displayed properly.
Page 99 of 308

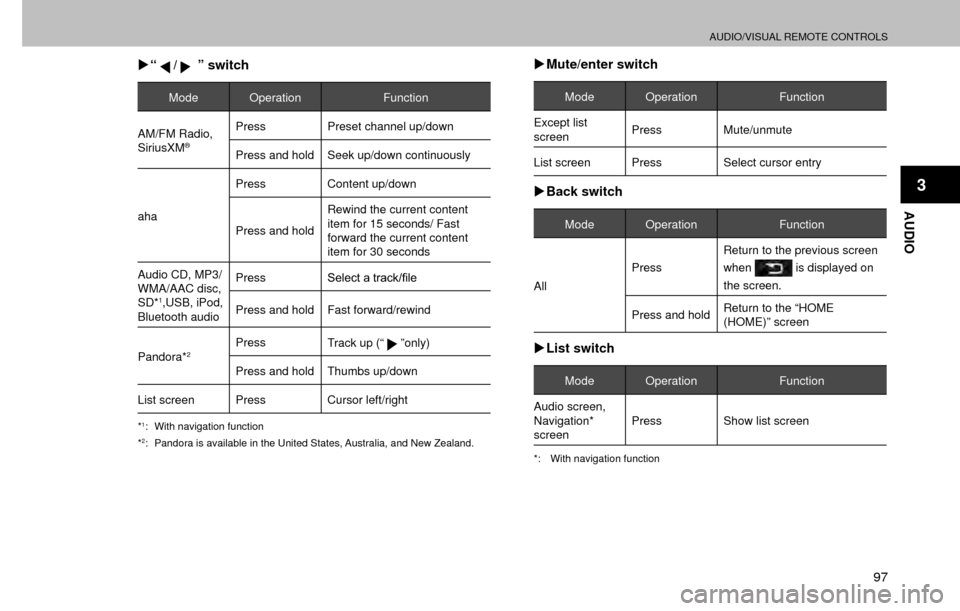

AUDIO/VISUAL REMOTE CONTROLS
97
AUDIO
3
X“/ ” switch
Mode Operation Function
AM/FM Radio,
SiriusXM
®
Press Preset channel up/down
Press and hold Seek up/down continuously
aha Press
Content up/down
Press and hold Rewind the current content
item for 15 seconds/ Fast
forward the current content
item for 30 seconds
Audio CD, MP3/
WMA/AAC disc,
SD*
1,USB, iPod,
Bluetooth audio Press
6 H O H F W D W U D F N ¿ O H
Press and hold Fast forward/rewind
Pandora*
2Press Track up (“”only)
Press and hold Thumbs up/down
List screen Press Cursor left/right
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
X Mute/enter switch
Mode Operation Function
Except list
screen Press
Mute/unmute
List screen Press Select cursor entry
XBack switch
Mode Operation Function
All Press
Return to the previous screen
when
is displayed on
the screen.
Press and hold Return to the “HOME
(HOME)” screen
X
List switch
Mode Operation Function
Audio screen,
Navigation*
screen Press
Show list screen
*: With navigation function
Page 109 of 308

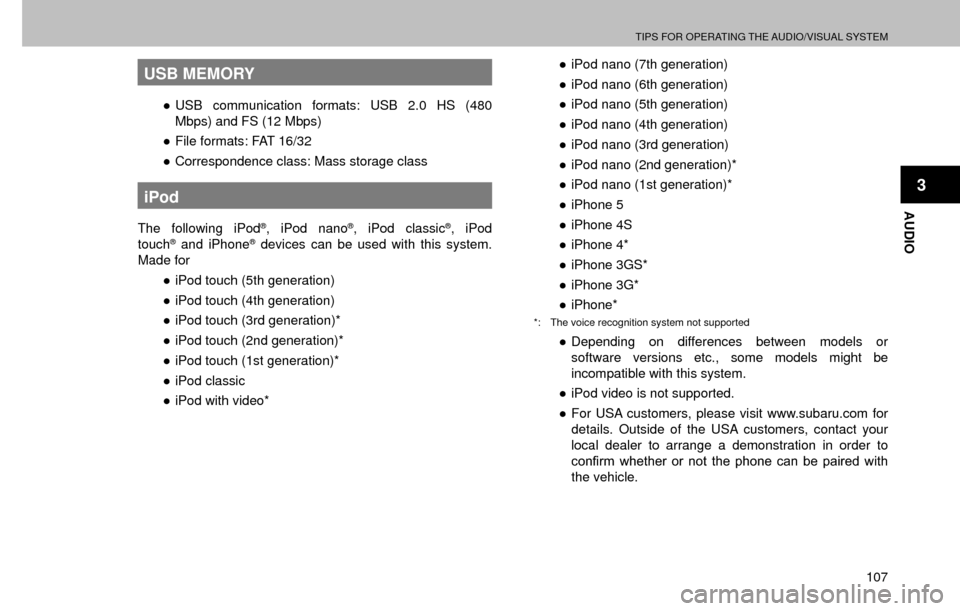

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
107
AUDIO
3
USB MEMORY
”USB communication formats: USB 2.0 HS (480
Mbps) and FS (12 Mbps)
” File formats: FAT 16/32
” Correspondence class: Mass storage class
iPod
The following iPod®, iPod nano®, iPod classic®, iPod
touch® and iPhone® devices can be used with this system.
Made for
”iPod touch (5th generation)
” iPod touch (4th generation)
” iPod touch (3rd generation)*
” iPod touch (2nd generation)*
” iPod touch (1st generation)*
” iPod classic
” iPod with video* ”
iPod nano (7th generation)
” iPod nano (6th generation)
” iPod nano (5th generation)
” iPod nano (4th generation)
” iPod nano (3rd generation)
” iPod nano (2nd generation)*
” iPod nano (1st generation)*
” iPhone 5
” iPhone 4S
” iPhone 4*
” iPhone 3GS*
” iPhone 3G*
” iPhone*
*: The voice recognition system not supported
”Depending on differences between models or
software versions etc., some models might be
incompatible with this system.
” iPod video is not supported.
” For USA customers, please visit www.subaru.com for
details. Outside of the USA customers, contact your
local dealer to arrange a demonstration in order to
F R Q
Page 231 of 308
ROUTE GUIDANCE
229
NAVIGATION SYSTEM
8
No.Function
Select whether or not to use the expressway when
creating the route.
Select whether or not to use toll roads (Period Charge)
in the route.
Select whether or not to use toll roads (Per-use Toll) in
the route.
Select whether or not to use ferries when creating the
route. (However, ferries might not always be selected for
the route.) However, information on temporary service
ferries may not be displayed on the map. There may be
a fee for using the ferry.
Select whether or not to use Carpool/HOV lanes when
creating the route.
Select whether or not to use unpaved roads when
creating the route.
Select to search for the best green alternative route. If
this alternative route is much better than the selected
method, you can quickly switch to Green mode.
”The route is searched again, and the new
recommended route is indicated by a blue line.
SELECTING ROUTE TYPE
1.Display the “Route Settings (Route Settings)” screen.
: 3
2.SelectRoute Planning Method (Route Planning
Method).
3.Select the desired route type.
No. Function
Select to search all roads for the quickest route following
the speed limits of the roads.
Select to search for the route that conserves the most
energy.
Select to search for a route that is easiest to drive, with
few right and left turns. Using this option, the program
allows you to avoid combinations of smaller roads and
to take the expressway.
Page 261 of 308
COMMAND LIST
259
Siri/VOICE RECOGNITION SYSTEM
9
XCommands for Hands-free
Voice command PhraseFunction
Redial redial, call again, dial
again Places a call to the
phone number of
the latest outgoing
call
Call back call back, return phone
call Places a call to the
phone number of
latest incoming call
Recent calls [show] recent calls Displays the call
history screen
Dial number
calling call
dial
the said phone
number
Call by name
and type call
dial
said phone type of
the contact from
the phone book
List message list messages, list
messages Displays e-mails
Call call
This can be used
when receiving
messages
Ignore
ignore
Read read
Reply reply
XCommands for Pandora*
*: Pandora is available in the United States, Australia, and New Zealand.
Voice command PhraseFunction
Pandora mode
change play Pandora stations Switch to Pandora
mode
List Pandora
stations list Pandora stations List Pandora
stations
Thumb up like, thumbs up 0 D U N ³ / L N H ´ À D J
Thumb down dislike, thumbs down 0 D U N ³ ' L V O L N H ´ À D J
and skip to the
next song
X
Commands for aha
Voice command PhraseFunction
aha mode
change play aha stations Switch to aha
mode
List aha stations list aha stations List aha stations
Like on/off like/unselect like,
thumbs up/unselect
thumbs up 0 D U N ³ / L N H ´ À D J
Unmark it
Page 267 of 308
![SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual COMMAND LIST
265
Siri/VOICE RECOGNITION SYSTEM
9
Voice commandPhraseFunction
Go go 5 H À H F W V W K H
selected route
and starts the
navigation
guidance
Go map go to [the] map
Transits to the](/img/17/7221/w960_7221-266.png "SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual COMMAND LIST
265
Siri/VOICE RECOGNITION SYSTEM
9
Voice commandPhraseFunction
Go go 5 H À H F W V W K H
selected route
and starts the
navigation
guidance
Go map go to [the] map
Transits to the")

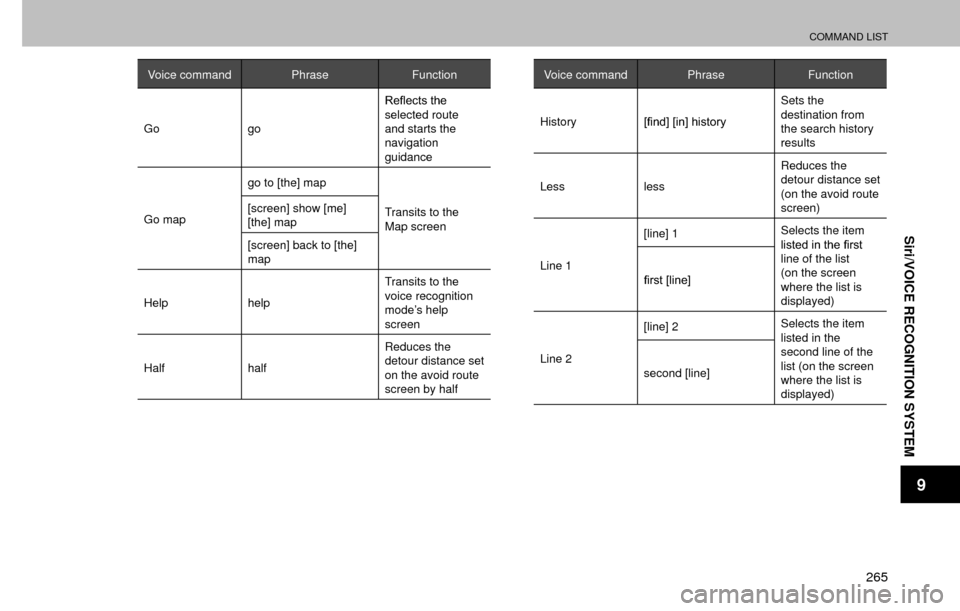

COMMAND LIST
265
Siri/VOICE RECOGNITION SYSTEM
9
Voice commandPhraseFunction
Go go 5 H À H F W V W K H
selected route
and starts the
navigation
guidance
Go map go to [the] map
Transits to the
Map screen
[screen] show [me]
[the] map
[screen] back to [the]
map
Help help Transits to the
voice recognition
mode’s help
screen
Half half Reduces the
detour distance set
on the avoid route
screen by halfVoice command
PhraseFunction
History > ¿ Q G @ > L Q @ K L V W R U \ Sets the
destination from
the search history
results
Less less Reduces the
detour distance set
(on the avoid route
screen)
Line 1 [line] 1
Selects the item
O L V W H G L Q W K H ¿ U V W
line of the list
(on the screen
where the list is
displayed)
¿ U V W > O L Q H @
Line 2 [line] 2
Selects the item
listed in the
second line of the
list (on the screen
where the list is
displayed)
second [line]
Page 285 of 308

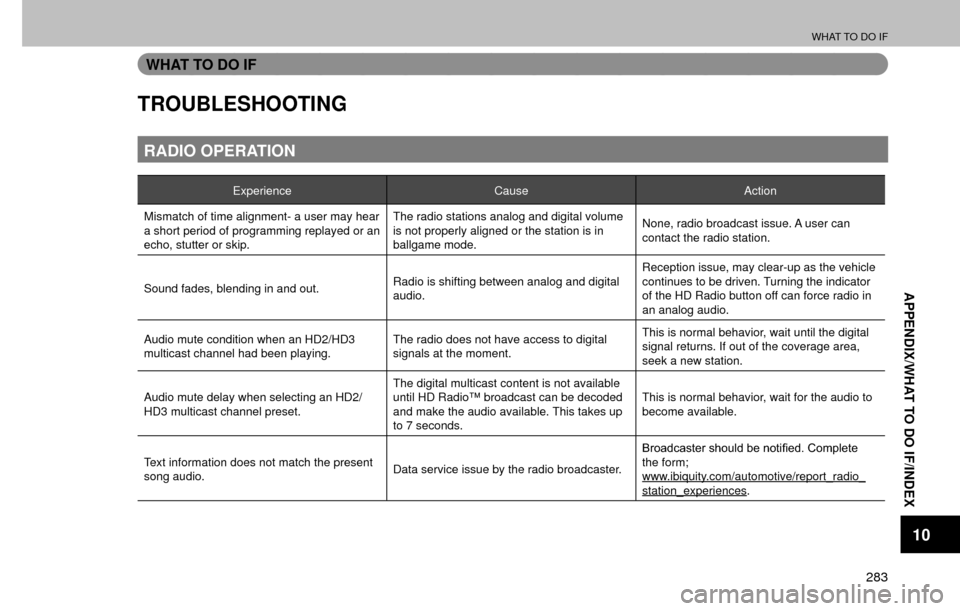

WHAT TO DO IF
283
APPENDIX/WHAT TO DO IF/INDEX
10
WHAT TO DO IF
TROUBLESHOOTING
RADIO OPERATION
ExperienceCauseAction
Mismatch of time alignment- a user may hear
a short period of programming replayed or an
echo, stutter or skip. The radio stations analog and digital volume
is not properly aligned or the station is in
ballgame mode.
None, radio broadcast issue. A user can
contact the radio station.
Sound fades, blending in and out. Radio is shifting between analog and digital
audio.Reception issue, may clear-up as the vehicle
continues to be driven. Turning the indicator
of the HD Radio button off can force radio in
an analog audio.
Audio mute condition when an HD2/HD3
multicast channel had been playing. The radio does not have access to digital
signals at the moment.This is normal behavior, wait until the digital
signal returns. If out of the coverage area,
seek a new station.
Audio mute delay when selecting an HD2/
HD3 multicast channel preset. The digital multicast content is not available
until HD Radio™ broadcast can be decoded
and make the audio available. This takes up
to 7 seconds.This is normal behavior, wait for the audio to
become available.
Text information does not match the present
song audio. Data service issue by the radio broadcaster.
% U R D G F D V W H U V K R X O G E H Q R W L ¿ H G & R P S O H W H
the form;
www.ibiquity.com/automotive/report_radio_
station_experiences.
Page 292 of 308

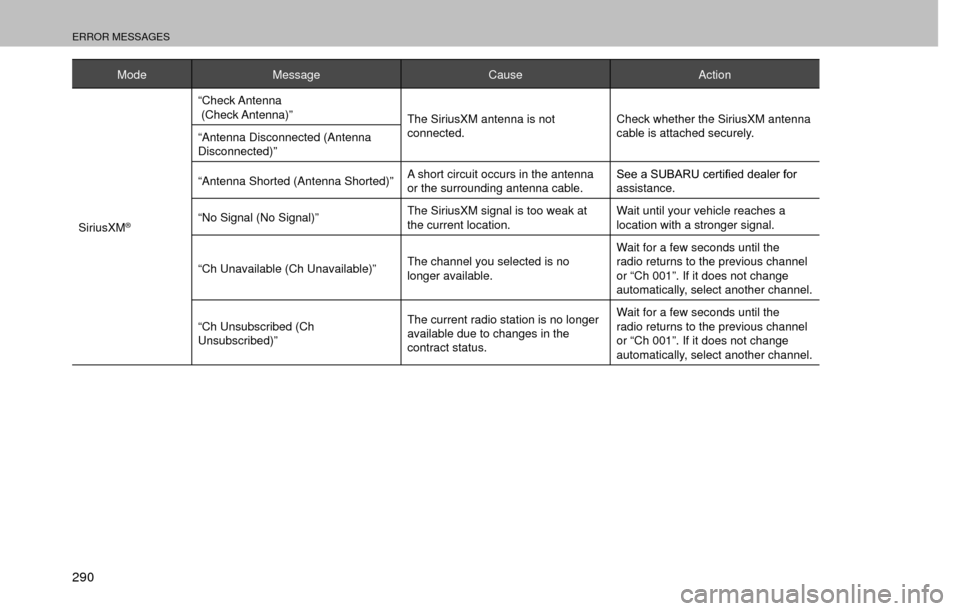

ERROR MESSAGES
290
ModeMessage CauseAction
SiriusXM
®
“Check Antenna
(Check Antenna)” The SiriusXM antenna is not
connected.Check whether the SiriusXM antenna
cable is attached securely.
“Antenna Disconnected (Antenna
Disconnected)”
“Antenna Shorted (Antenna Shorted)” A short circuit occurs in the antenna
or the surrounding antenna cable. 6 H H D 6 8 % $ 5 8 F H U W L ¿ H G G H D O H U I R U
assistance.
“No Signal (No Signal)” The SiriusXM signal is too weak at
the current location.Wait until your vehicle reaches a
location with a stronger signal.
“Ch Unavailable (Ch Unavailable)” The channel you selected is no
longer available.Wait for a few seconds until the
radio returns to the previous channel
or “Ch 001”. If it does not change
automatically, select another channel.
“Ch Unsubscribed (Ch
Unsubscribed)” The current radio station is no longer
available due to changes in the
contract status.Wait for a few seconds until the
radio returns to the previous channel
or “Ch 001”. If it does not change
automatically, select another channel.
Page 293 of 308

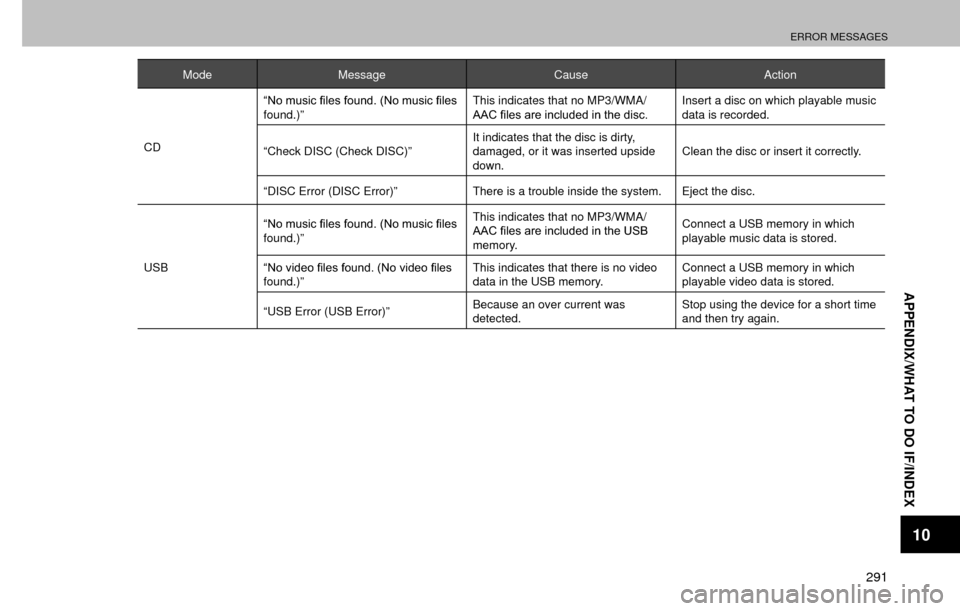

ERROR MESSAGES
291
APPENDIX/WHAT TO DO IF/INDEX
10
ModeMessage CauseAction
CD ³ 1 R P X V L F ¿ O H V I R X Q G 1 R P X V L F ¿ O H V
found.)”
This indicates that no MP3/WMA/
$ $ & ¿ O H V D U H L Q F O X G H G L Q W K H G L V F Insert a disc on which playable music
data is recorded.
“Check DISC (Check DISC)” It indicates that the disc is dirty,
damaged, or it was inserted upside
down.Clean the disc or insert it correctly.
“DISC Error (DISC Error)” There is a trouble inside the system. Eject the disc.
USB ³ 1 R P X V L F ¿ O H V I R X Q G 1 R P X V L F ¿ O H V
found.)”
This indicates that no MP3/WMA/
$ $ & ¿ O H V D U H L Q F O X G H G L Q W K H 8 6 %
memory.Connect a USB memory in which
playable music data is stored.
³ 1 R Y L G H R ¿ O H V I R X Q G 1 R Y L G H R ¿ O H V
found.)” This indicates that there is no video
data in the USB memory.Connect a USB memory in which
playable video data is stored.
“USB Error (USB Error)” Because an over current was
detected.Stop using the device for a short time
and then try again.
