4-2
Climate control
Climate controlVentilator „
Air flow selection
UG4054BA

4-3
Climate control
– CONTINUED –
„Center and side ventilators
T Center ventilators
Move the tab up and down or right and left to adjust the
flow direction. T
Side ventilators
1) Open
2) Close
Move the knob in any direction you prefer to adjust the
flow direction.
To open the ventilator, turn the knob counterclock- wise.
To close the ventilator, turn the knob clockwise.
UG4069BA
1 2
UG4504BB

4-4
Climate control
Manual climate control system (if
equipped) „

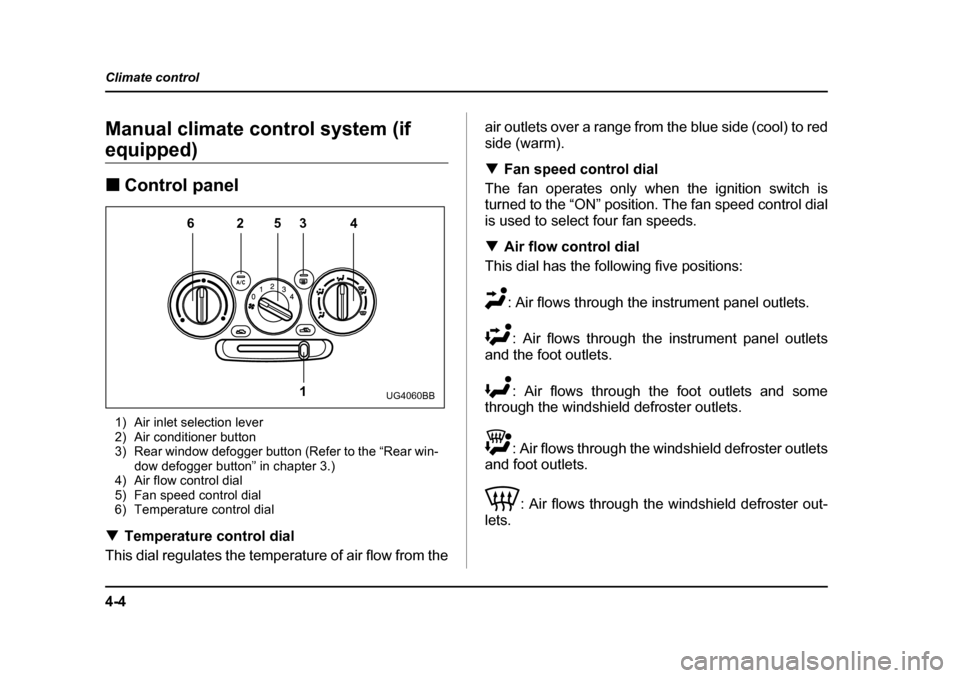

Control panel
1) Air inlet selection lever
2) Air conditioner button
3) Rear window defogger button (Refer to the “Rear win- dow defogger button” in chapter 3.)
4) Air flow control dial
5) Fan speed control dial
6) Temperature control dial
T Temperature control dial
This dial regulates the temperature of air flow from the air outlets over a range from the blue side (cool) to red side (warm). T
Fan speed control dial
The fan operates only when the ignition switch is
turned to the “ON” position. The fan speed control dial
is used to select four fan speeds. T Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.: Air flows through the instrument panel outlets
and the foot outlets.
: Air flows through the foot outlets and some
through the windshield defroster outlets.
: Air flows through the windshield defroster outlets
and foot outlets.
: Air flows through the windshield defroster out-
lets.
6253 4
1
UG4060BB

4-5
Climate control
– CONTINUED –
NOTE yYou will find the notation “USE WITH ” on
the air flow control dial plate.
This is intended to remind you to set the air inlet
selection lever in the “ ” position when de-
fogging the windshield.
Defogging with the air inlet selection lever set in
the “ ” position provides better defogging
performance than in the “ ” position.y When the dial is placed in the “ ” or “ ”
position, the air conditioner compressor operates
automatically regardless of the position of the air
conditioner button to defog the windshield quick- ly.
However the indicator on the air conditioner but-
ton will not come on.
Also, you cannot stop the air conditioner com-
pressor by pressing the air conditioner button. T
Air conditioner button (if equipped)
The air conditioner operates only when the engine is
running.
Push the air conditioner button while the fan is in op-
eration to turn on the air conditioner. The indicator light
will come on.
Push it again to turn off the air conditioner.T Air inlet selection lever
(Recirculation): Interior air is recirculated inside
the vehicle.
Place the air inlet selection lever in the “ ” posi-
UG4507BA

4-6
Climate control
tion for fast cooling with the air conditioner or when
driving on a dusty road.
(Outside air): Outside air is drawn into the pas-
senger compartment.
Place the air inlet selection lever in the “ ” posi-
tion when the interior has cooled to a comfortable tem-
perature and the road is no longer dusty.
Continued operation in the position may
fog up the windows. Switch to
the position as soon as the outside
dusty condition clears. „
Heater operation
T Defrosting or defogging the windshield
To direct warm air to the windshield and front door win-
dows:
1. Set the air inlet selection lever to the “ ” po-sition.
2. Set the air flow control dial to the “ ” position.
3. Turn the temperature control dial all the way to the
right.
4. Set the fan speed control dial to the highest speed.
If your vehicle is equipped with an air conditioner,
when the “ ” or “ ” position is selected, the air
conditioner compressor automatically operates re-
UG4061AA

4-7
Climate control
– CONTINUED –
gardless of the position of the air conditioner button to
defog the windshield quickly.
However, the air conditioner indicator light does not
come on at this time.
NOTE
Warm air also comes out from the right and left air
outlets. To stop warm air flow from these outlets,
turn the corresponding knob clockwise. THeating and defrosting
To direct warm air toward the floor and the windshield:
1. Set the air inlet selection lever to the “ ” po-sition. 2. Set the air flow control dial to the “ ” position.
3. Set the temperature control dial to the most com-
fortable level.
4. Set the fan speed control dial to the desired speed.
If your vehicle is equipped with an air conditioner,
when the “ ” or “ ” position is selected, the air
conditioner compressor automatically operates re-
gardless of the position of the air conditioner button to
defog the windshield quickly.
However, the air conditioner indicator light does not
come on at this time.
NOTE
Warm air also comes out from the right and left air
outlets. To stop warm air flow from these outlets,
turn the corresponding knob clockwise.
UG4062AA

4-8
Climate control
T
Heating
To direct warm air toward the floor:
1. Set the air inlet selection lever to the “ ” po- sition.
2. Set the air flow control dial to the “ ” position.
3. Set the temperature control dial to the most com-
fortable level.
4. Set the fan speed control dial to the desired speed.
NOTE
Warm air also comes out from the right and left air
outlets. To stop warm air flow from these outlets,
turn the corresponding knob clockwise. T
Bi-level heating
This setting allows you to direct air of different temper-
atures from the instrument panel and foot outlets. The
air from the foot outlets is slightly warmer than from the
instrument panel outlets.
1. Set the air inlet selection lever to the “ ” po- sition.
2. Set the air flow control dial to the “ ” position.
3. Set the temperature control dial to the desired tem- perature level.
4. Set the fan speed control dial to the desired speed.
Setting the temperature control dial fully turned to the
red area or blue area decreases the temperature dif-
UG4063AAUG4064AA

4-9
Climate control
– CONTINUED –
ference between the air from the instrument panel out-

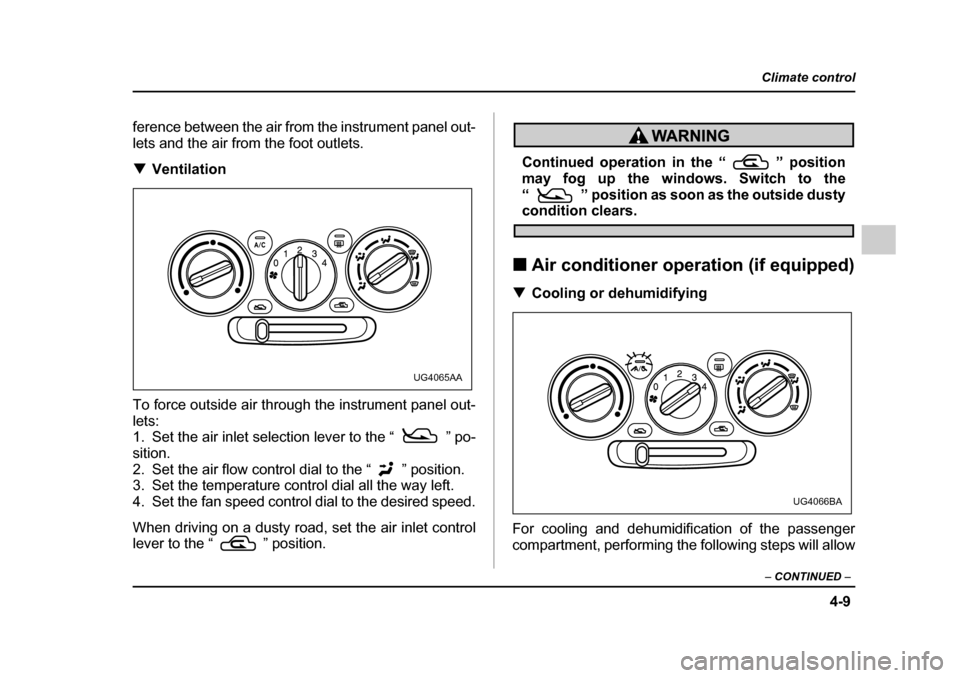

lets and the air from the foot outlets. TVentilation
To force outside air through the instrument panel out-
lets:
1. Set the air inlet selection lever to the “ ” po- sition.
2. Set the air flow control dial to the “ ” position.
3. Set the temperature control dial all the way left.
4. Set the fan speed control dial to the desired speed.
When driving on a dusty road, set the air inlet control
lever to the “ ” position.
Continued operation in the “ ” position
may fog up the windows. Switch to the
“ ” position as soon as the outside dusty
condition clears.
„ Air conditioner operation (if equipped)
T Cooling or dehumidifying
For cooling and dehumidification of the passenger
compartment, performing the following steps will allow
UG4065AA
