Maintenance and service

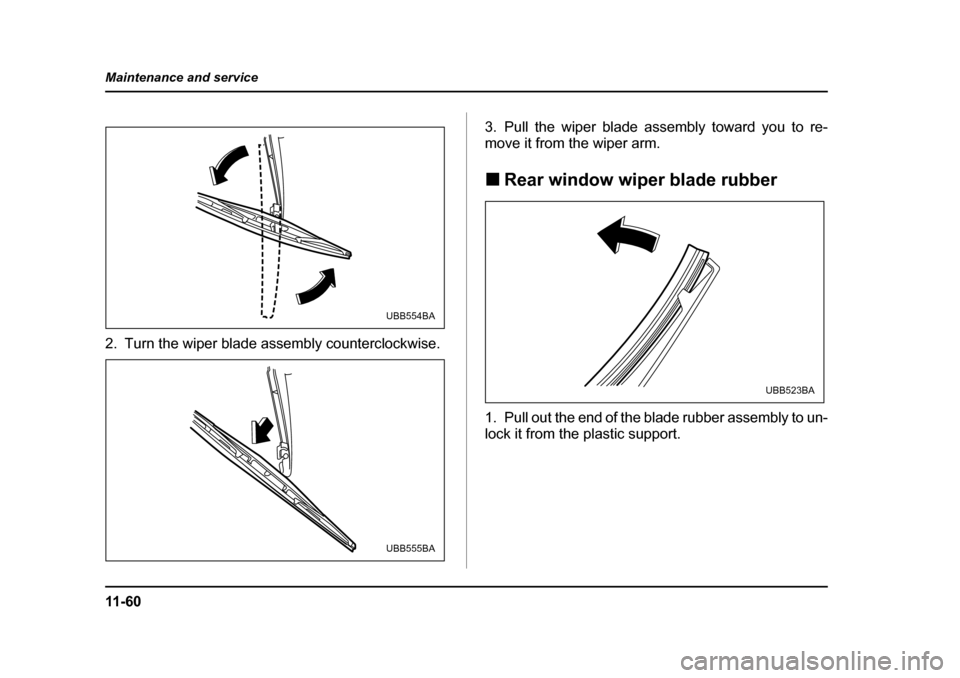

2. Turn the wiper blade assembly counterclockwise.
3. Pull the wiper blade assembly toward you to re-
move it from the wiper arm. „
Rear window wiper blade rubber
1. Pull out the end of the blade rubber assembly to un-
lock it from the plastic support.
UBB554BA
UBB555BA
UBB523BA

11 -6 1
Maintenance and service
– CONTINUED –
2. Pull the blade rubber assembly out of the plastic
support. A) Metal spines
3. If the new blade rubber is not provided with two
metal spines, remove the metal spines from the old
blade rubber and install them in the new blade rubber.
USB586BA
A
USB583BC

11 - 6 2
Maintenance and service

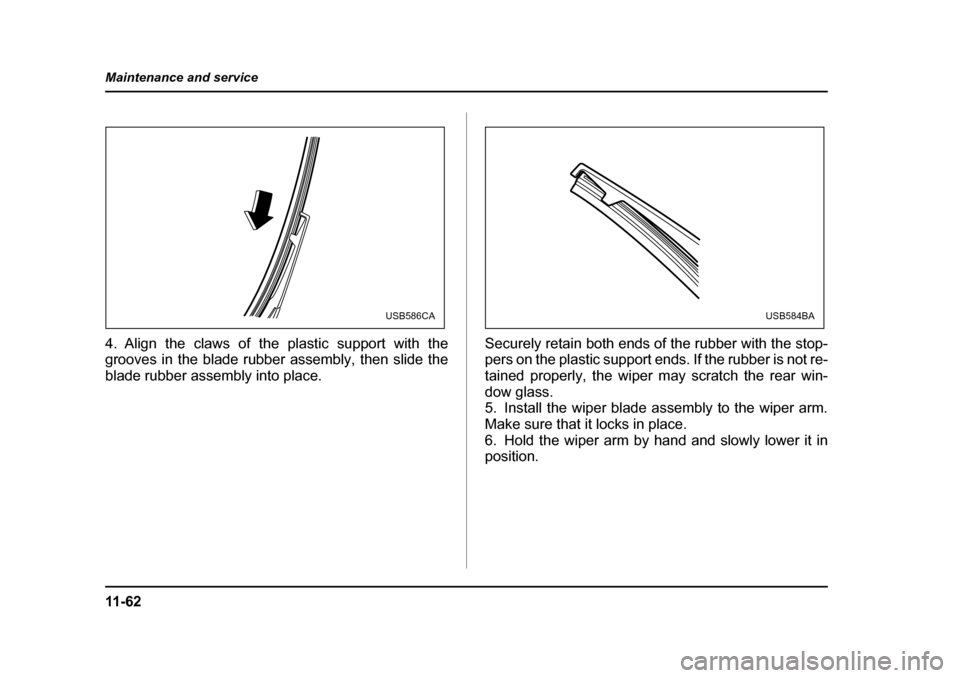

4. Align the claws of the plastic support with the
grooves in the blade rubber assembly, then slide the
blade rubber assembly into place.
Securely retain both ends of the rubber with the stop-
pers on the plastic support ends. If the rubber is not re-
tained properly, the wiper may scratch the rear win-
dow glass.
5. Install the wiper blade assembly to the wiper arm.
Make sure that it locks in place.
6. Hold the wiper arm by hand and slowly lower it in position.
USB586CAUSB584BA

11 -6 3
Maintenance and service
– CONTINUED –
Battery
yBefore beginning work on or near any bat-
tery, be sure to extinguish all cigarettes, match-
es, and lighters. Never expose a battery to an
open flame or electric sparks. Batteries give off
a gas which is highly flammable and explosive.y For safety, in case an explosion does occur,
wear eye protection or shield your eyes when
working near any battery. Never lean over a bat-tery. y Do not let battery fluid contact eyes, skin,
fabrics, or paint because battery fluid is a cor-
rosive acid. If battery fluid gets on your skin or
in your eyes, immediately flush the area with
water thoroughly. Seek medical help immedi-
ately if acid has entered the eyes.
If battery fluid is accidentally swallowed, imme-
diately drink a large amount of milk or water,
and seek medical attention immediately. y To lessen the risk of sparks, remove rings,
metal watchbands, and other metal jewelry.
Never allow metal tools to contact the positive
battery terminal and anything connected to it
WHILE you are at the same time in contact with any other metallic portion of the vehicle be-
cause a short circuit will result.y
Keep everyone including children away from
the battery.y Charge the battery in a well-ventilated area.
y Battery posts, terminals and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the State of California to cause
cancer and reproductive harm. Batteries also
contain other chemicals known to the State of
California to cause cancer. Wash hands after
handling.

11 - 6 4
Maintenance and service

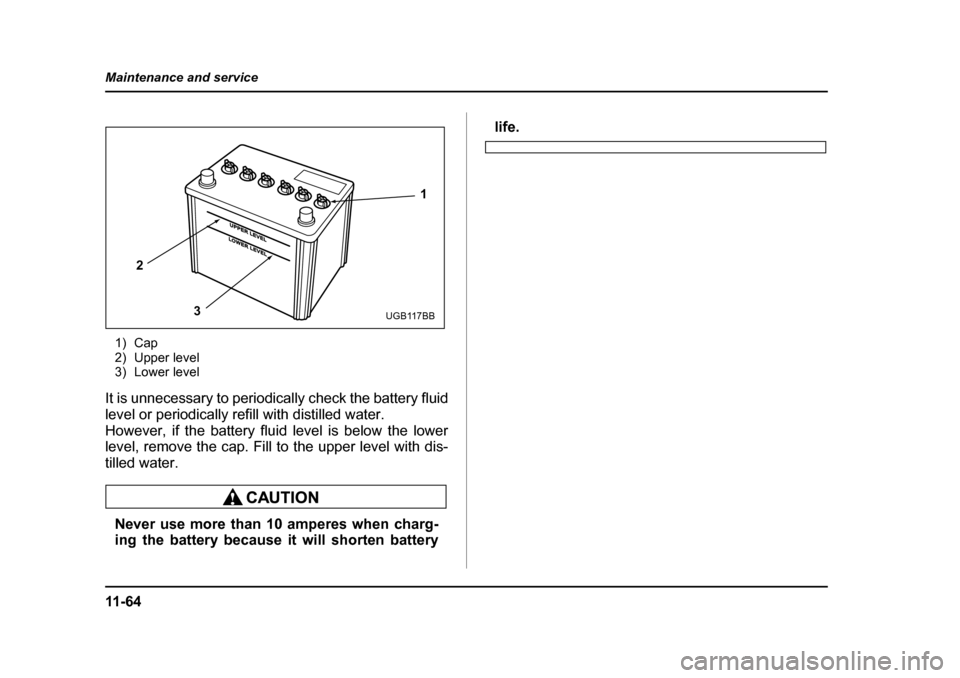

1) Cap
2) Upper level
3) Lower level
It is unnecessary to periodically check the battery fluid
level or periodically refill with distilled water.
However, if the battery fluid level is below the lower
level, remove the cap. Fill to the upper level with dis-
tilled water.
Never use more than 10 amperes when charg-
ing the battery because it will shorten battery
life.
UPPER LEVELLO W E R
LEV E LLOWER LEVEL
1
2 3
UGB117BB

11 -6 5
Maintenance and service
– CONTINUED –
Fuses
Never replace a fuse with one having a higher
rating or with material other than a fuse be-
cause serious damage or a fire could result.
The fuses are designed to melt during an overload to
prevent damage to the wiring harness and electrical
equipment. The fuses are located in two fuse boxes.

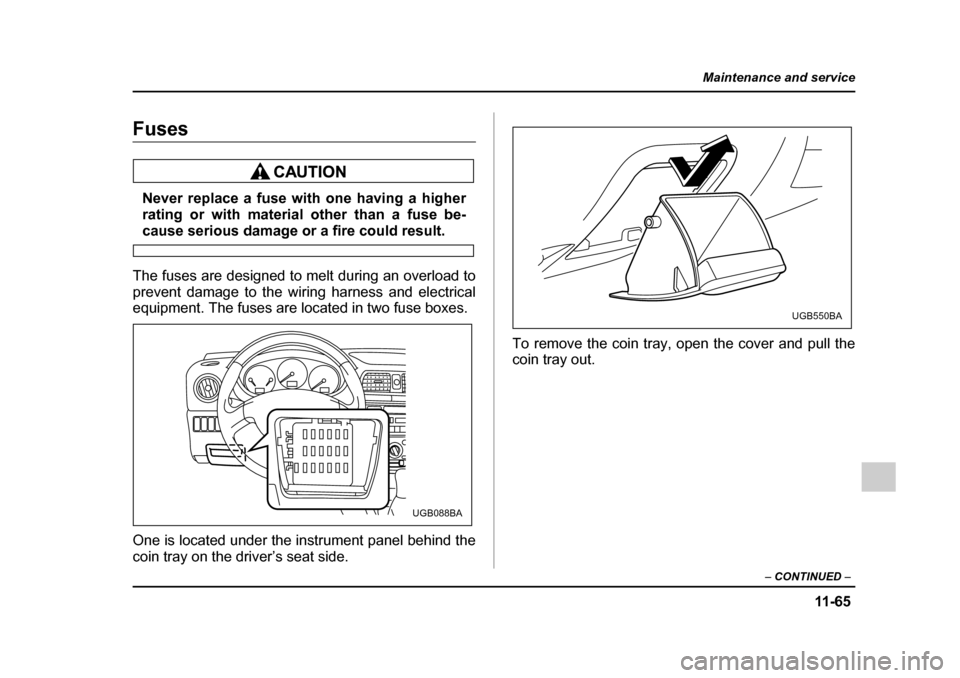

One is located under the instrument panel behind the
coin tray on the driver’s seat side. To remove the coin tray, open the cover and pull the
coin tray out.
UGB088BA
UGB550BA

11 - 6 6
Maintenance and service
The other one is housed in the engine compartment.

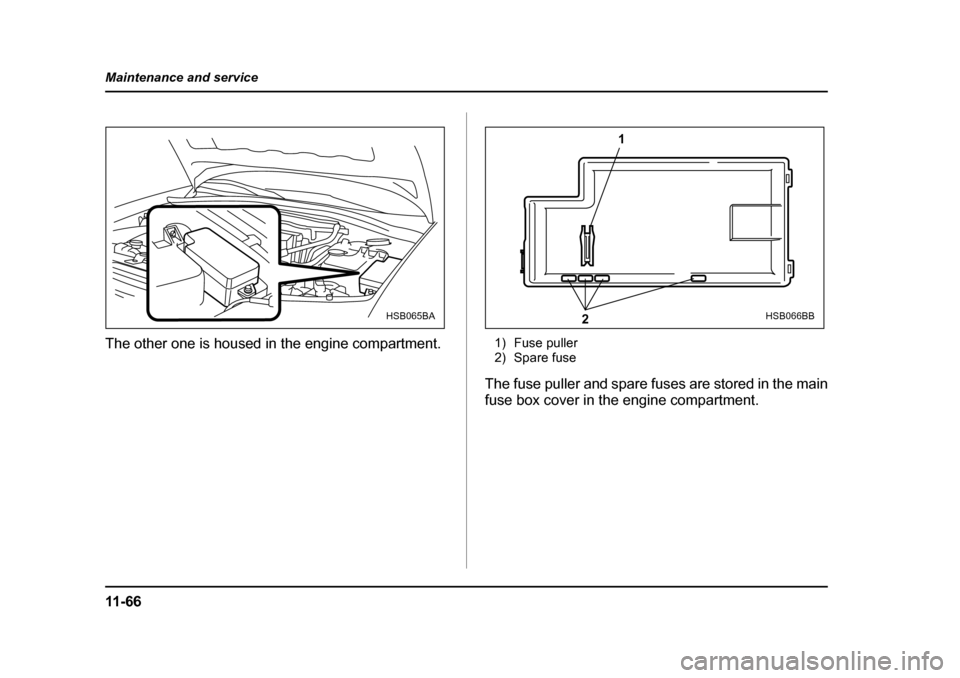

1) Fuse puller
2) Spare fuse
The fuse puller and spare fuses are stored in the main
fuse box cover in the engine compartment.
HSB065BA
1
2
HSB066BB

11 -6 7
Maintenance and service
– CONTINUED –

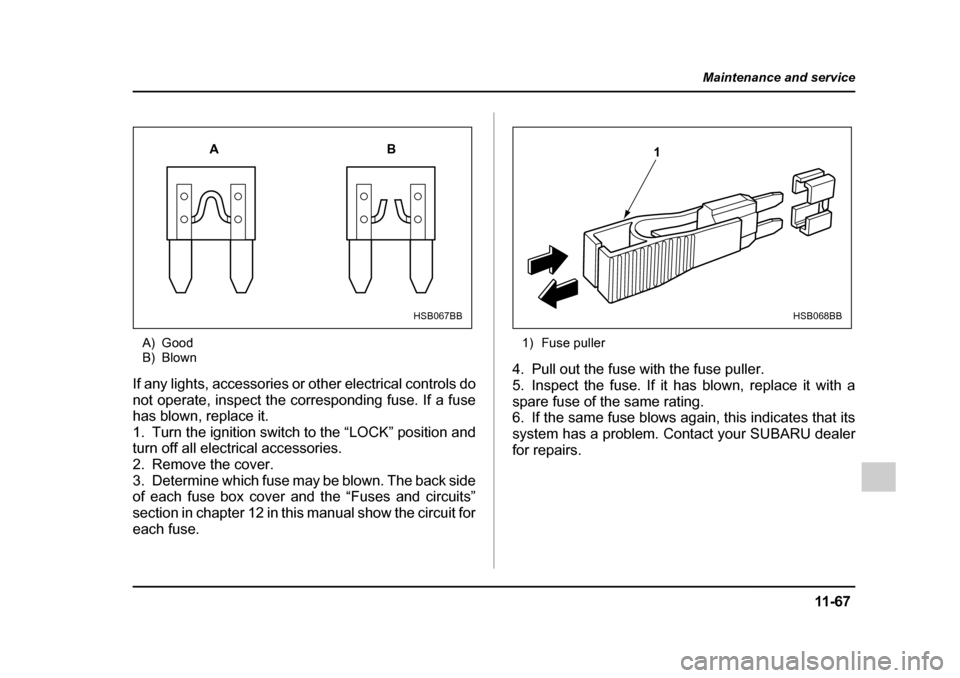

A) Good
B) Blown
If any lights, accessories or other electrical controls do
not operate, inspect the corresponding fuse. If a fuse
has blown, replace it.
1. Turn the ignition switch to the “LOCK” position and
turn off all electrical accessories.
2. Remove the cover.
3. Determine which fuse may be blown. The back side
of each fuse box cover and the “Fuses and circuits”
section in chapter 12 in this manual show the circuit for each fuse. 1) Fuse puller
4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a
spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its
system has a problem. Contact your SUBARU dealerfor repairs.
AB
HSB067BB
1
HSB068BB

11 - 6 8
Maintenance and service

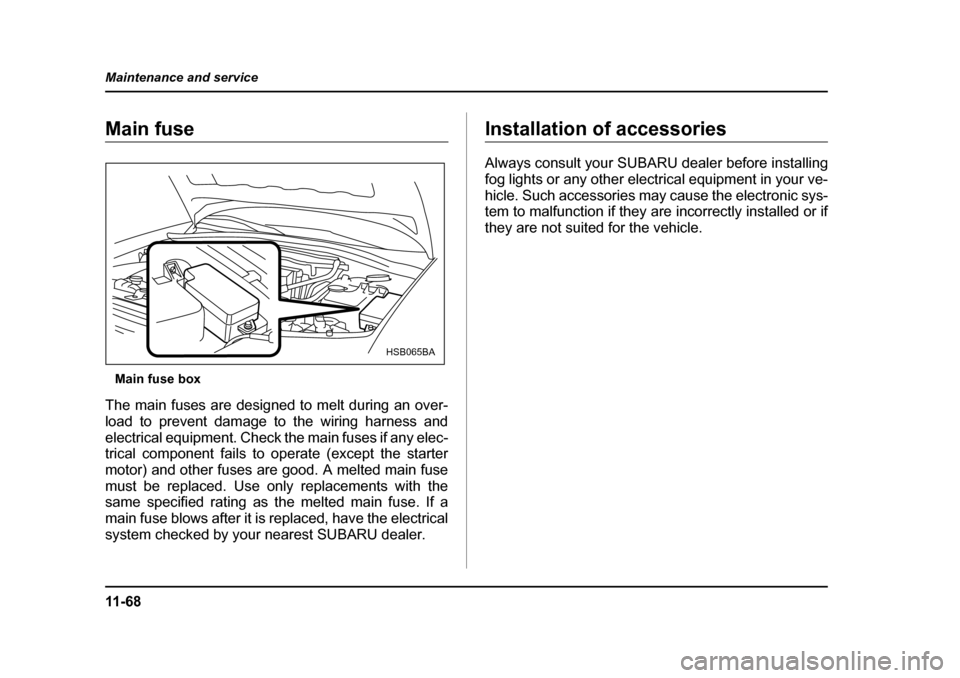

Main fuse
Main fuse box
The main fuses are designed to melt during an over-
load to prevent damage to the wiring harness and
electrical equipment. Check the main fuses if any elec-
trical component fails to operate (except the starter
motor) and other fuses are good. A melted main fuse
must be replaced. Use only replacements with the
same specified rating as the melted main fuse. If a
main fuse blows after it is replaced, have the electrical
system checked by your nearest SUBARU dealer.Installation of accessories
Always consult your SUBARU dealer before installing
fog lights or any other electrical equipment in your ve-
hicle. Such accessories may cause the electronic sys-
tem to malfunction if they are incorrectly installed or if
they are not suited for the vehicle.
HSB065BA

11 -6 9
Maintenance and service
– CONTINUED –

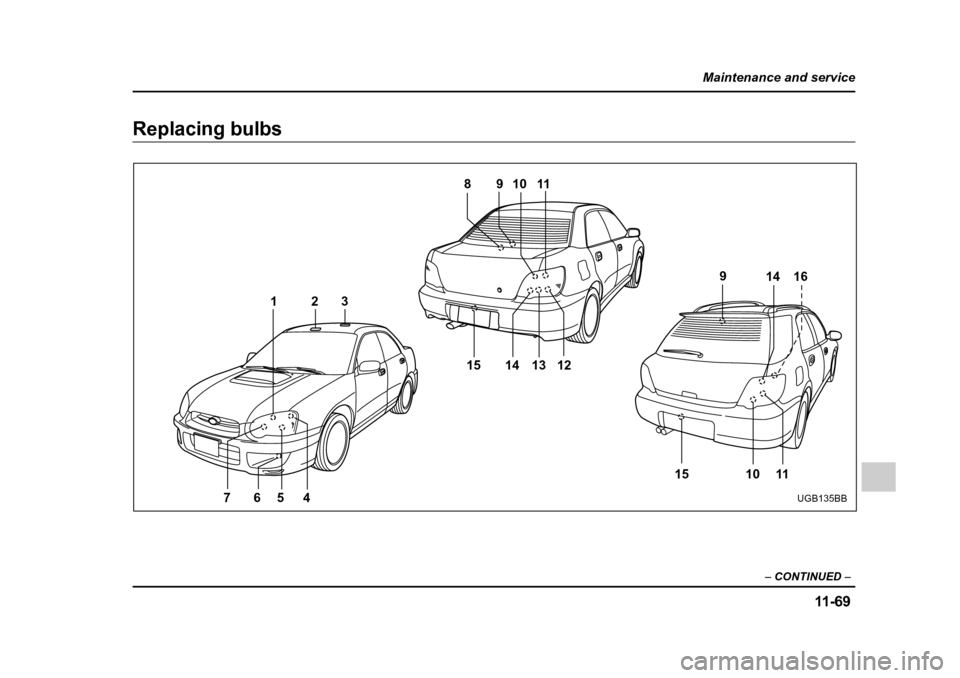

Replacing bulbs
