Page 461 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 11 - 8 0
Maintenance and service
2. Remove the upper and lower screws. Then, slide
the rear combination lamp assembly to the rear and
remove it from the vehicle.
1) Brake/tail light
2) Rear turn si

Page 462 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 11 -8 1
Maintenance and service
– CONTINUED  –
�„License plate light
1. Remove the mounting screws using a Phillips
screwdriver.
2. Remove the cover and lens.
3. Pull the bulb out of the sock

Page 463 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 11 - 8 2
Maintenance and service

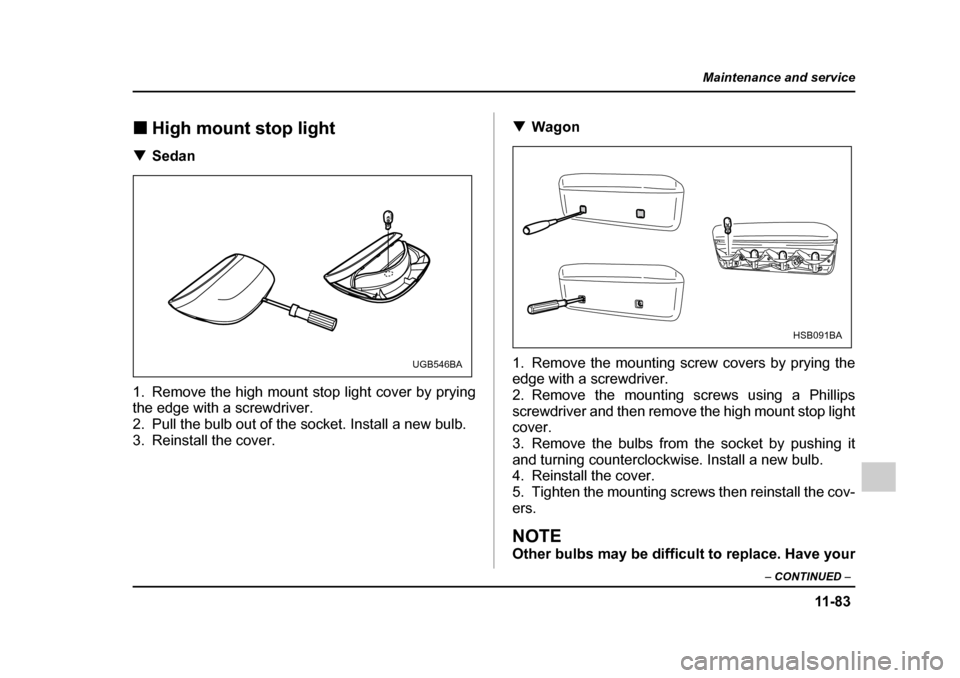

1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the lens. �„
Tr

Page 464 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 11 -8 3
Maintenance and service
– CONTINUED  –

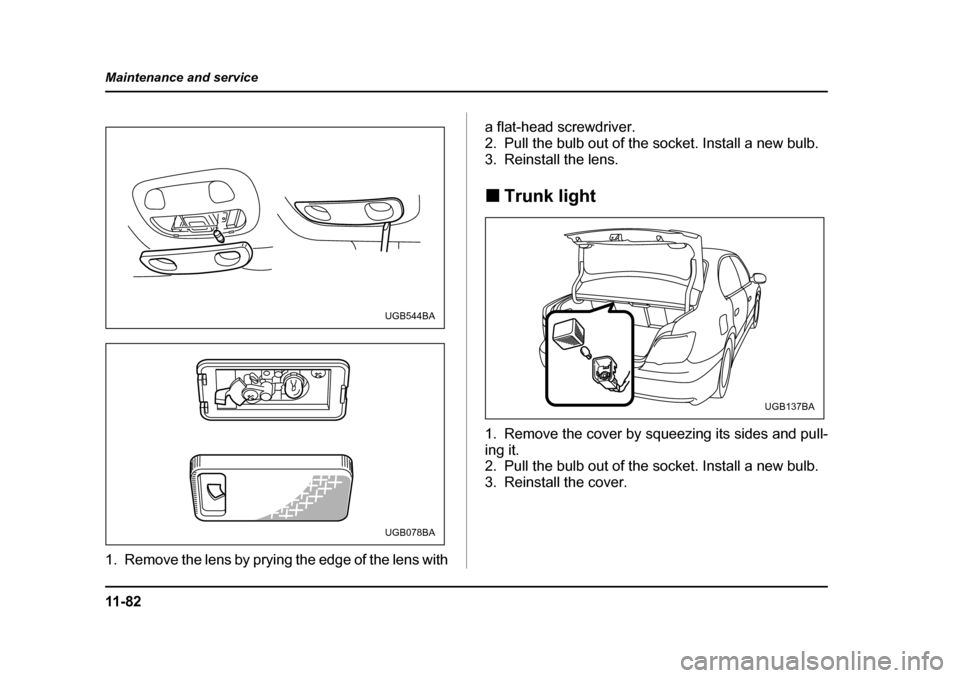

�„High mount stop light
�T Sedan
1. Remove the high mount stop light cover by prying
the edge with a screwdriver.
2. Pull the bulb out of the soc

Page 465 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 11 - 8 4
Maintenance and service
SUBARU dealer replace these bulbs if necessary.

Page 466 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 12-1
12
Specifications
Specifications ................................................ 12-2 Dimensions ....................................................... 12-2
Engine ............................

Page 467 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 12-2
Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. �„
Dimensions
in (mm)
*1: Measured with vehicle empty
AT: Automatic transmission
MT: Ma

Page 468 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 12-3
Specifications
–  CONTINUED  –

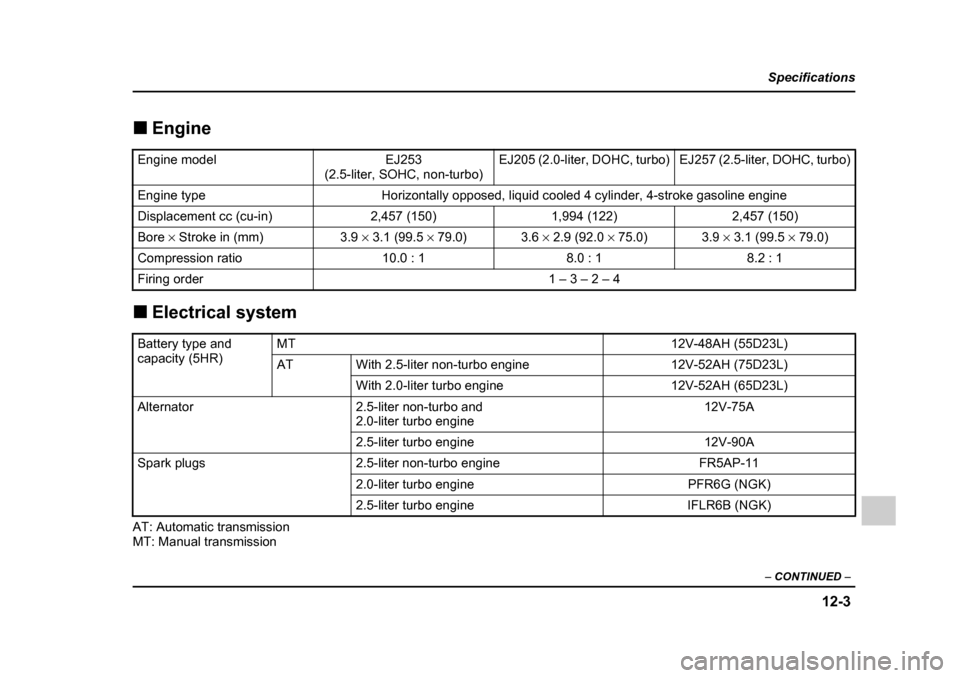

�„Engine
�„ Electrical system
AT: Automatic transmission
MT: Manual transmission
Engine modelEJ253
(2.5-liter, SOHC, non-turbo)EJ205 (2.0-liter, DOHC, tur

Page 469 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 12-4
Specifications �„

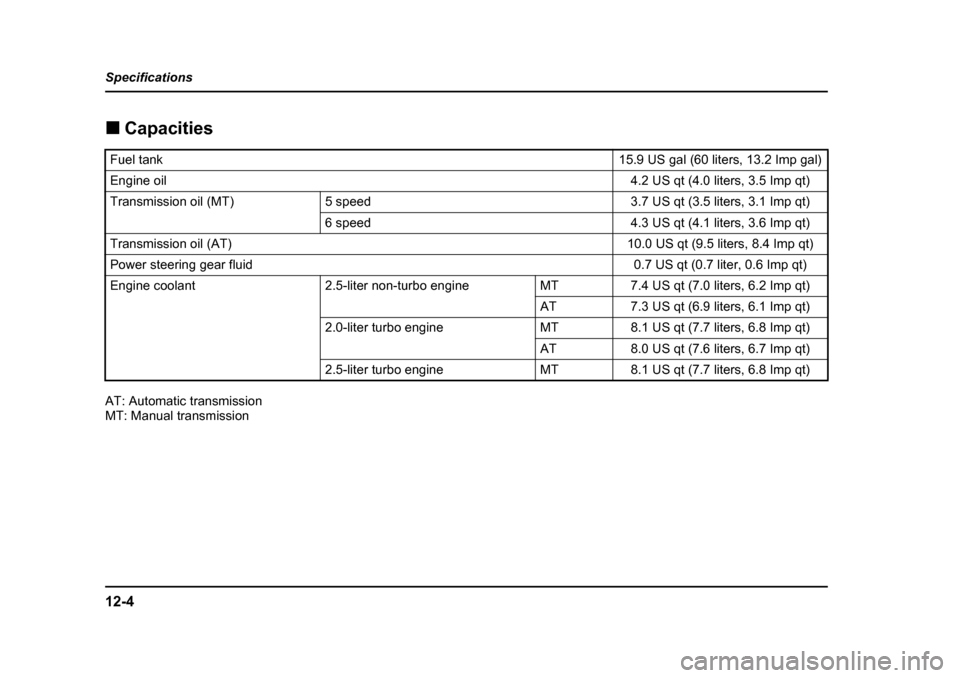

Capacities
AT: Automatic transmission
MT: Manual transmission
Fuel tank15.9 US gal (60 liters, 13.2 Imp gal)
Engine oil4.2 US qt (4.0 liters, 3.5 Imp qt)
Transmission oil (MT

Page 470 of 507

SUBARU IMPREZA 2005 2.G Owners Manual 12-5
Specifications
–  CONTINUED  –

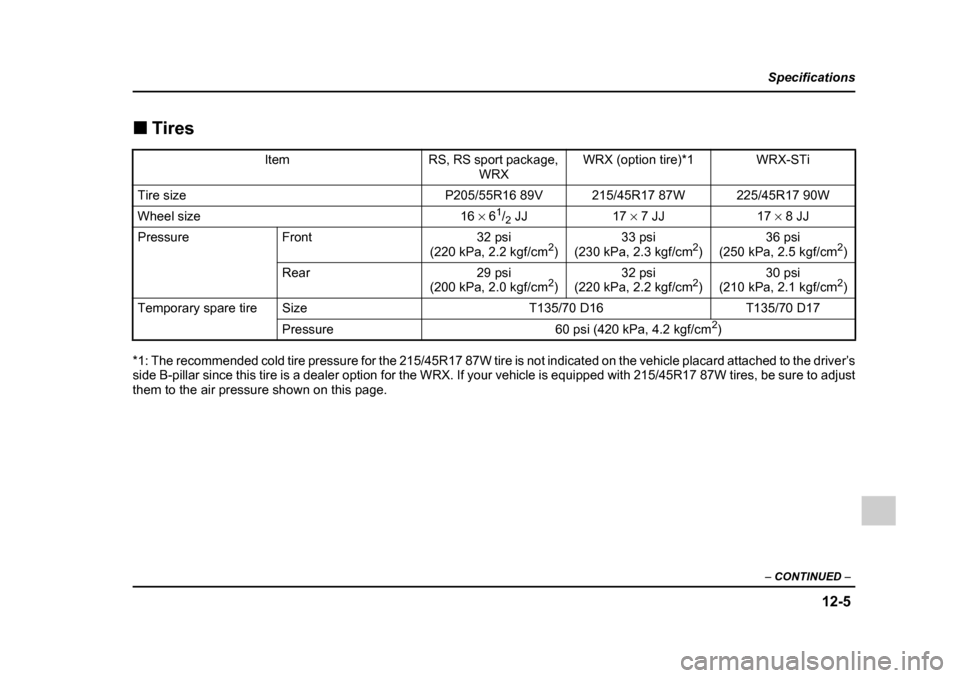

�„Tires
*1: The recommended cold tire pressure for the 215/45R17 87W tire is not indicated on the vehicle placard attached to the drive r’s
side B-pillar si
