Navigation 21
Markers and Controls Displayed on Maps
Screens During Route Guidance
(1) Distance and time to destinationIndicates the time (either appro ximate time required or time
of arrival) and the distance to the destination or a waypoint.
(2) Route A thick blue line indicates th e route you should follow.
(3) Turn guidance arrow Indicates the direction of your turn at the next intersection/
intersection as well as the distance to the intersection/inter-
section.
(4) "Repeat voice" key If this key is selected, the last voice guidance will be repeated.
(5) Current road name Shows the name of the road you are currently driving on.
(6) "Display whole route" key If this key is selected, a map co ntaining the entire route will
be displayed. (See Page 56.)
(7) Detour If this key is selected, the syst em will calculate an alternative
route that detours from the current location.
(8) "Change route" key Selecting this key displays the route option menu. Selecting a
new route option causes the system to calculate the selected
route.(3)(2)
(1)
(4)(5)
(6)
(7)
Select the screen
(5 seconds)
(8)
Impreza_B1962BE-A.book Page 21 Wednesday, May 7, 2008 9:01 PM
Page 12 of 84
22 Navigation
Menu Screen Keys and Functions
The table below shows the keys displayed on the MENU screen,
the functions accessible by selecting these keys, and the pages of
this manual that describe the instructions you should follow when
using these functions.
Select to return to
the current map screen.
Page 13 of 84
Navigation 23
Menu Screen Keys and Functions
PhoneBluetooth Phone page 187
Redial List page 199
Received Calls page 199
Phone Book page 201
Memory Points page 193
Bluetooth Settings page 183
Version Version page 87
VOL Volume page 18
Menu screen key Function Reference page
Impreza_B1962BE-A.book Page 23 Wednesday, May 7, 2008 9:01 PM
Page 14 of 84
24 Navigation
Map Operations
Selecting Map Orientation
You can select either "heading up" or "north up" display on
the current map screen by using the following procedure.
1Select or .
If you select ("north up" display), the system rotates the
map so that north is always directly upwards on the screen. If you select
("heading up" display), the system rotates the
map so that the direction in wh ich you are heading is always
directly upwards on the screen (the red arrow points to the north).
<"Heading up" display>
<"North up" display>
Impreza_B1962BE-A.book Page 24 Wednesday, May 7, 2008 9:01 PM
Page 15 of 84
Navigation 25
Map Operations
Changing Map Scale
You can increase or decrease the scale of the map using the
following procedure:
1Select or to change the map scale.
2Selecting or changes the scale as shown
below.
Impreza_B1962BE-A.book Page 25 Wednesday, May 7, 2008 9:01 PM
Page 16 of 84
26 Navigation
Map Operations
NOTE• Selecting or allows you to change the map scale.
• You c an k ee p se le c t i ng o r al low s you to change the map scale.
• Selecting either of the followin g on the scale bar displayed by
selecting or allows you to change to the specified map scale.
• The scale can be displayed in Imperial or metric units. To change the units, See
Page 61.
Imperial display
Metric display 1/32 mi (mile)
50 m1/4 mi (mile)
500 m2 mi (mile)
4 km 16 mi (mile)
32 km128 mi (mile)
256 km
Current scale
Scale to be changed
Impreza_B1962BE-A.book Page 26 Wednesday, May 7, 2008 9:01 PM
Page 17 of 84
Navigation 27
Setting Route
Setting Destination

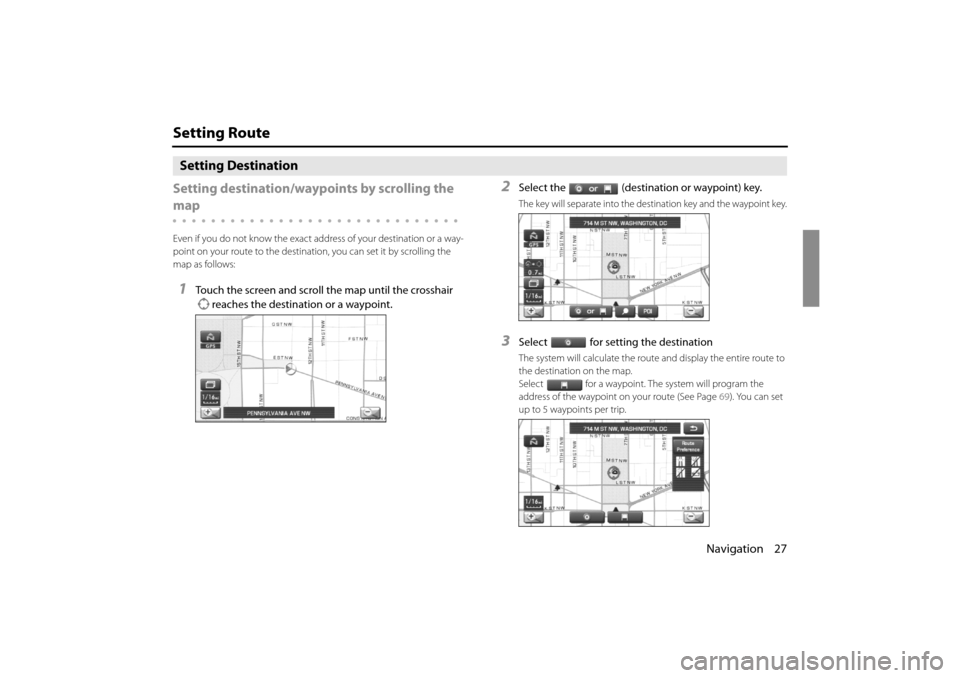

Setting destination/wayp oints by scrolling the
map
Even if you do not know the exact address of your destination or a way-
point on your route to the destination, you can set it by scrolling the
map as follows:
1Touch the screen and scroll the map until the crosshair
reaches the destination or a waypoint.
2Select the (destination or waypoint) key.
The key will separate into the destination key and the waypoint key.
3Select for setting the destination
The system will calculate the route and display the entire route to
the destination on the map.
Select for a waypoint. The system will program the
address of the waypoint on your route (See Page 69). You can set
up to 5 waypoints per trip.
Impreza_B1962BE-A.book Page 27 Wednesday, May 7, 2008 9:01 PM
Page 18 of 84
28 Navigation
Setting Route
4Select (start).
Route guidance will begin along the displayed route.
NOTE• If the system cannot find your desired route, select (change
route). This will allow you to access the ROUTE OPTIONS screen, from which
you can prompt the system to calculate a new route. (See Page 49.)
• Selecting (start) for more than 5 seconds will start the demon-
stration mode operation.
■ Selecting route
Upon setting the destination, the sy stem prepares to calculate three
types of routes to the destination (Q uick, Alt., and Short). You can select
from any of the three options as follows:
1Select (3 routes).
The system will be ready for calculation of any route you select
from the three options, namely, Quick (the fastest route), Alt.
(alternative route), and Short (the shortest route).
Impreza_B1962BE-A.book Page 28 Wednesday, May 7, 2008 9:01 PM
Page 19 of 84
Navigation 29
Setting Route

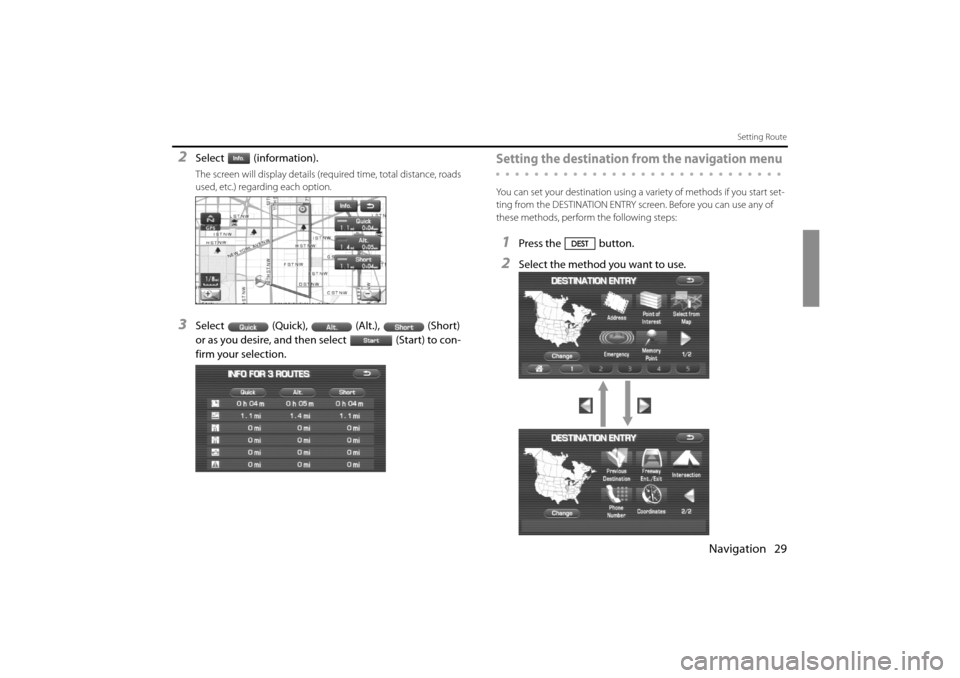

2Select (information).
The screen will display details (required time, total distance, roads
used, etc.) regarding each option.
3Select (Quick), (Alt.), (Short)
or as you desire, and then select (Start) to con-
firm your selection.
Setting the destination from the navigation menu
You can set your destination using a variety of methods if you start set-
ting from the DESTINATION ENTRY screen. Before you can use any of
these methods, perform the following steps:
1Press the button.
2Select the method you want to use.
Impreza_B1962BE-A.book Page 29 Wednesday, May 7, 2008 9:01 PM
Page 20 of 84
30 Navigation
Setting Route
You can switch between screens by selecting (next page)
or (previous page).
NOTE• If the set destination area is different from the one displayed under "Search
Area" in the right part of the screen, you must select the (change)
key and specify the desired area again.
• For the methods marked with an asterisk ( * ), you can use the "Change Search
Area" function to narrow the area where a destination or waypoint is located
by selecting the (change) key (See Page 41). •
Depending on the method used or th e status of the map displayed, the
located point may differ from where the facility you want to visit actually
exists.
(Address)* See Page
31.
(Point of Interests)* See Page 34.
(Select from Map) See Page 35.
(Emergency) See Page 37.
(Memory Point) See Page 33.
(Previous Destination) See Page 35.
(Intersection)* See Page 39.
(Freeway Ent/Exit) See Page 36.
(Phone number) See Page 40.
(Coordinates) See Page 38.
(Home) See Page 33.
-(Category1) - (Category5)
