SAFETY PRECAUTIONS
Warning
• Smart Engine Start is for vehicles with automatic transmission equipped \
with
Keyless Access and Start system only. Do not use it for manual transmission
vehicles.
• This product is applicable only to vehicles with 12V DC, negative ground\
ing
specifications. Do not use in vehicles with 24V specifications. Otherwis\
e,
damage to the unit or a fire may result.
• Do not allow children to play with remote keyless entry or Smart Engine \
Start
systems. The doors may be locked or unlocked, and the engine may be
started unintentionally.
• If an unusual event occurs, such as liquids spilling onto the product, o\
r the product
emitting smoke or strange odors, stop using it immediately and consult t\
he dealer
from whom you purchased it. Continued use of the product before correcti\
ve
actions are taken may result in an accident, injury, or fire.
• Never pull the plastic bag in which this product is packaged over your h\
ead.
Otherwise, a serious injury or death from suffocation may occur.
• The vehicle must be within view of anyone using Smart Engine Start. Star\
ting the
engine when the vehicle is not in view may result in an accident.
Caution
• Do not use this product for applications other than in-vehicle use. An electric shock
or injury may result.
• Do not operate Smart Engine Start if the Check Engine Light stays on and\
engine
service is required.
• Never attempt to disassemble or modify the product. An accident, fire, or electric
shock may result.
• When replacing fuses, be sure to use fuses with the same specified capac\
ity
(amperage). Otherwise, damage to the unit or vehicle, fire, or electri\
c shock
may result.
• All features may not be applicable to all vehicle models.
• Contents subject to change without notice.

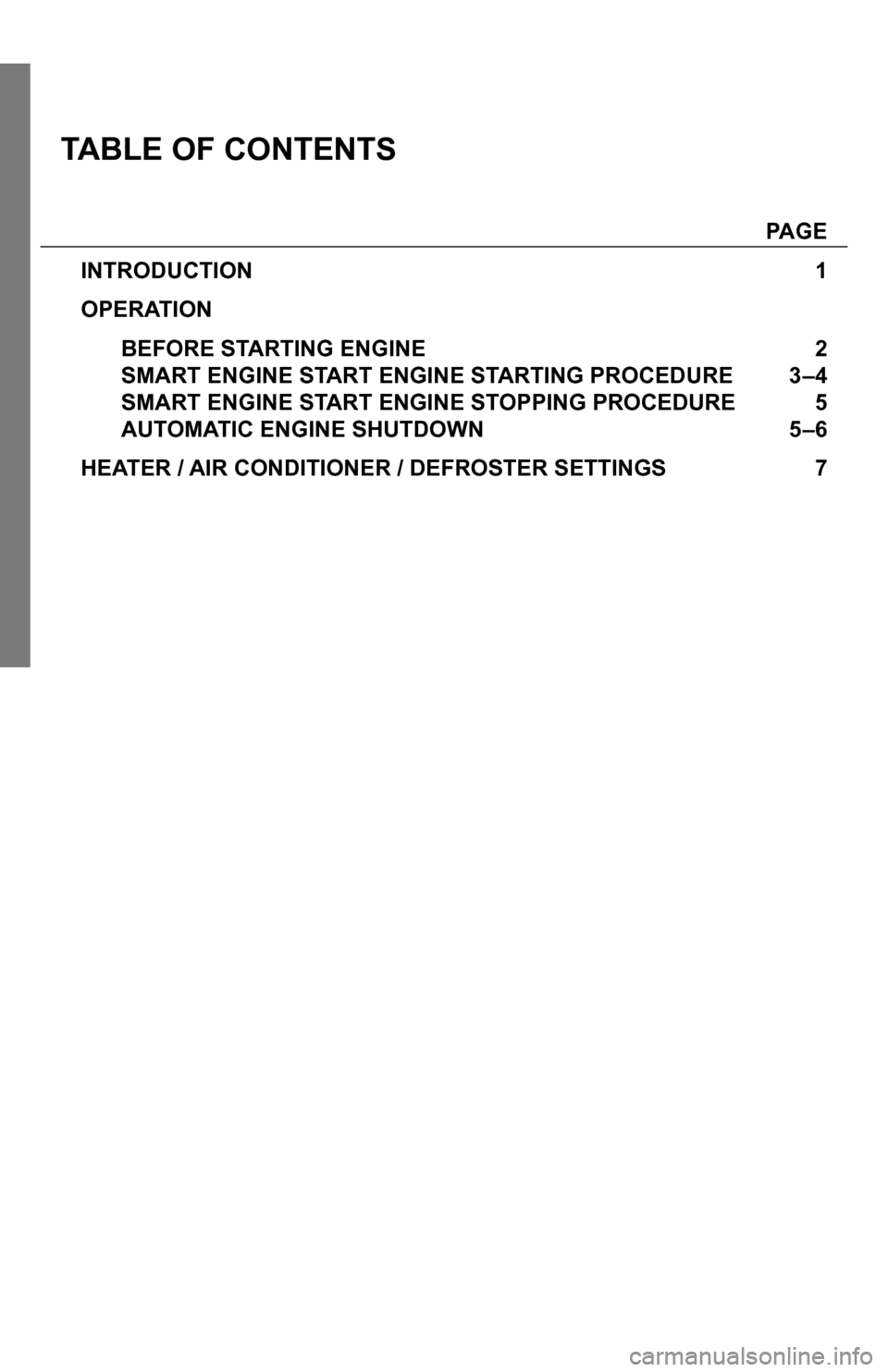

Page 6 of 28
TABLE OF CONTENTS
PAGE
INTRODUCTION 1
OPERATION
BEFORE STARTING ENGINE 2
SMART ENGINE START ENGINE STARTING PROCEDURE 3–4
SMART ENGINE START ENGINE STOPPING PROCEDURE 5
AUTOMATIC ENGINE SHUTDOWN 5–6
HEATER / AIR CONDITIONER / DEFROSTER SETTINGS 7
Page 7 of 28
SUBARU — Smart Engine Start Page 1
INTRODUCTION
Smart Engine Start allows you to start your engine from outside the vehi\
cle. It utilizes
your vehicle’s keyless entry remote, so there is no need for a special remote. In
addition, Smart Engine Start can activate the heater or air conditioner, providing you
with a comfortable cabin upon entry.
To ensure your safety, and the safety of anyone near the vehicle, Smart Engine Start
is designed to shut the engine off when it detects any attempt to enter or move the
vehicle after a Smart Engine Start.
NOTES:
• To utilize Smart Engine Start, your vehicle must have an automatic transm\
ission
equipped with a Keyless Access and Start system; it cannot be used for manual
transmission models.
• The transmission range for Smart Engine Start may be shorter than the re\
mote’s
basic keyless entry operation.
• Range can also be affected by the condition of the key and radio wave conditions
in the surrounding environment.
• While the engine is running, the transmission range for Smart Engine Sta\
rt may
be shorter.
• Please adhere to state, provincial, and local laws when using Smart Engi\
ne Start.
Failure to do so may result in legal penalties.
Examples: • The vehicle must be within view of anyone using Smart Engine Start.
• Do not unnecessarily start the engine while the vehicle is stopped.
For more details, please contact your local SUBARU dealer.

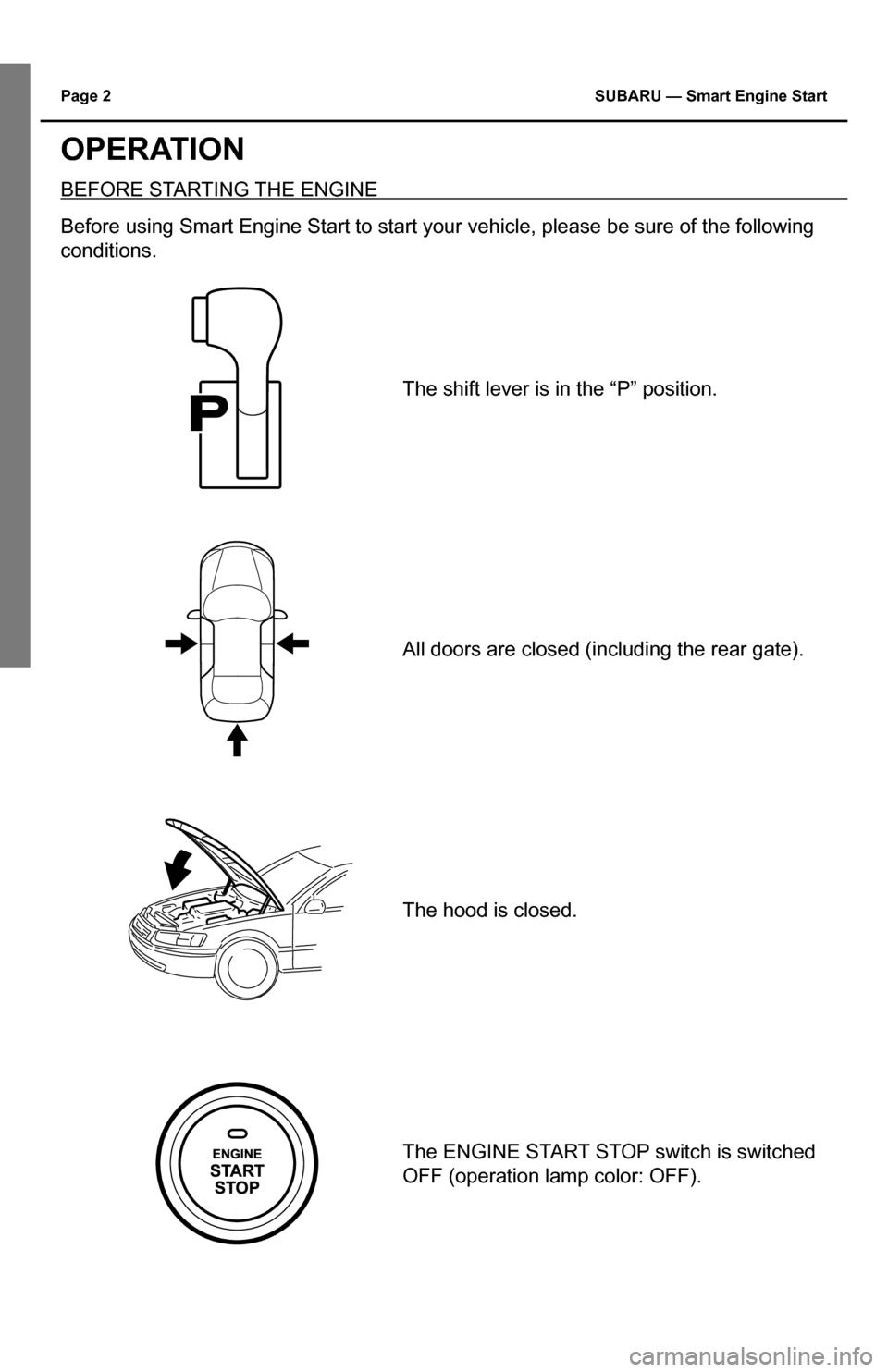

Page 8 of 28
Page 2 SUBARU — Smart Engine Start
OPERATION
BEFORE STARTING THE ENGINE
Before using Smart Engine Start to start your vehicle, please be sure of\
the following
conditions.
The shift lever is in the “P” position.
All doors are closed (including the rear gate).
The hood is closed.
The ENGINE START STOP switch is switched
OFF (operation lamp color: OFF).
Page 9 of 28
SUBARU — Smart Engine Start Page 3
OPERATION
SMART ENGINE START ENGINE STARTING PROCEDURE
To start a vehicle with Smart Engine Start, press and release the LOCK bu\
tton twice
within two seconds, then press and hold the LOCK button for three second\
s.
Engine starts successfully
A) Press and release the LOCK button.• The hazard lights flash once.
B) Press and release the LOCK button again. • The hazard lights flash again.
FOLLOWED IMMEDIATELY BY Step 3:
C) Press and hold the LOCK button. • The hazard lights flash 3 times [Car Finder]
• The horn sounds once [Car Finder]
• After three seconds, the horn sounds once.
D) Release the LOCK button.
• The parking lights and hazard lights flash once,
and the horn sounds once.
• The parking lights remain lit until the engine
stops.
Step 1
Step 2
Step 3
Engine running
WITHIN TWO SECONDS
THREE SECONDS
OR MORE

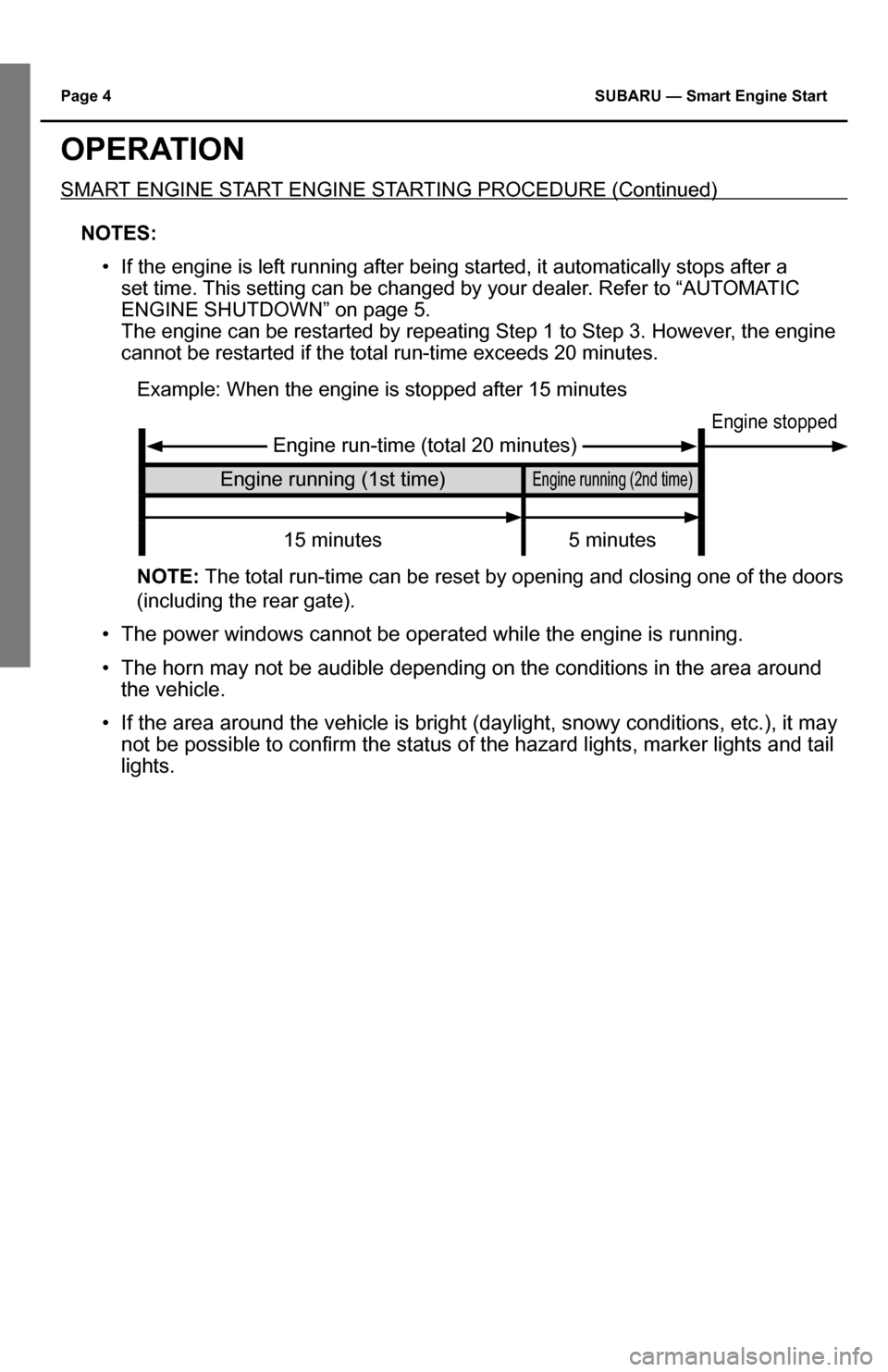

Page 10 of 28
Page 4 SUBARU — Smart Engine Start
OPERATION
SMART ENGINE START ENGINE STARTING PROCEDURE (Continued)
NOTES: • If the engine is left running after being started, it automatically stop\
s after a
set time. This setting can be changed by your dealer. Refer to “AUTOMATIC
ENGINE SHUTDOWN” on page 5.
The engine can be restarted by repeating Step 1 to Step 3. However, the engine
cannot be restarted if the total run-time exceeds 20 minutes.
Example: When the engine is stopped after 15 minutes
Engine stopped
Engine run-time (total 20 minutes)
Engine running (1st time)Engine running (2nd time)
15 minutes 5 minutes
NOTE: The total run-time can be reset by opening and closing one of the doors \
(including the rear gate).
• The power windows cannot be operated while the engine is running.
• The horn may not be audible depending on the conditions in the area arou\
nd
the vehicle.
• If the area around the vehicle is bright (daylight, snowy conditions, etc.), it may
not be possible to confirm the status of the hazard lights, marker light\
s and tail
lights.
Page 11 of 28
SUBARU — Smart Engine Start Page 5
OPERATION
SMART ENGINE START ENGINE STOPPING PROCEDURE
Press and hold the LOCK button on the remote for two or more seconds. The parking
lights turn off.
NOTES: • All doors will remain locked after the engine is shut off.
• The hazard lights flash once after the engine is shut off.
AUTOMATIC ENGINE SHUTDOWN
The engine will automatically shut down after a
pre-set amount of time.
To change this setting, please contact your local
SUBARU dealer. In some areas, the use of Smart
Engine Start may violate state, provincial, or local
laws. Check the laws in your area before using
Smart Engine Start.
Smart Engine Start will automatically shut down
or will not start the vehicle’s engine under the
following conditions:
20
If the total run-time has exceeded 20 minutes.
NOTE: The total run-time can be reset by
opening and closing one of the doors (including
the rear gate).
If any door or the rear gate is opened.

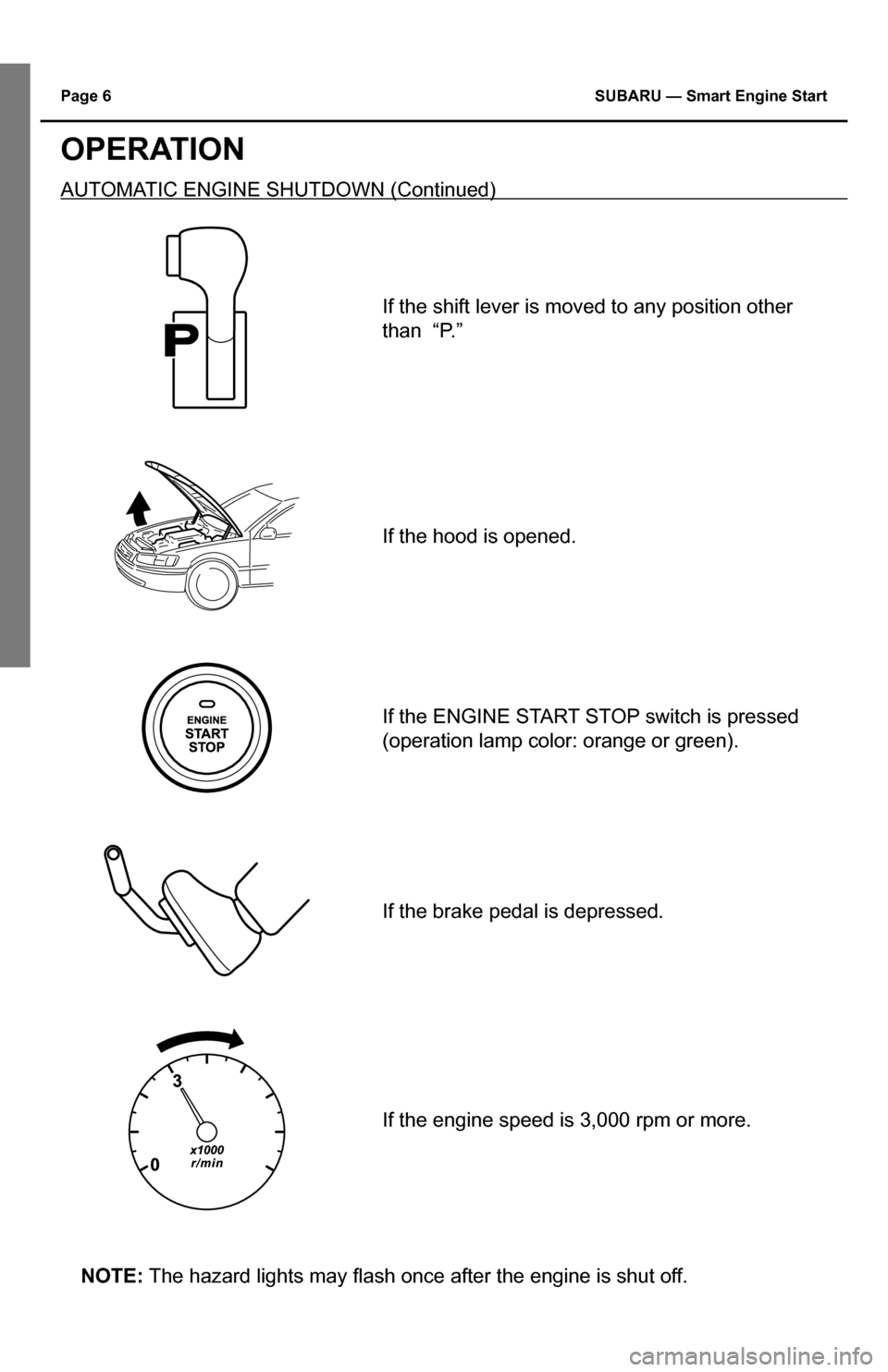

Page 12 of 28
Page 6 SUBARU — Smart Engine Start
OPERATION
AUTOMATIC ENGINE SHUTDOWN (Continued)
If the shift lever is moved to any position other
than “P.”
If the hood is opened.
If the ENGINE START STOP switch is pressed
(operation lamp color: orange or green).
If the brake pedal is depressed.
If the engine speed is 3,000 rpm or more.
NOTE: The hazard lights may flash once after the engine is shut off.

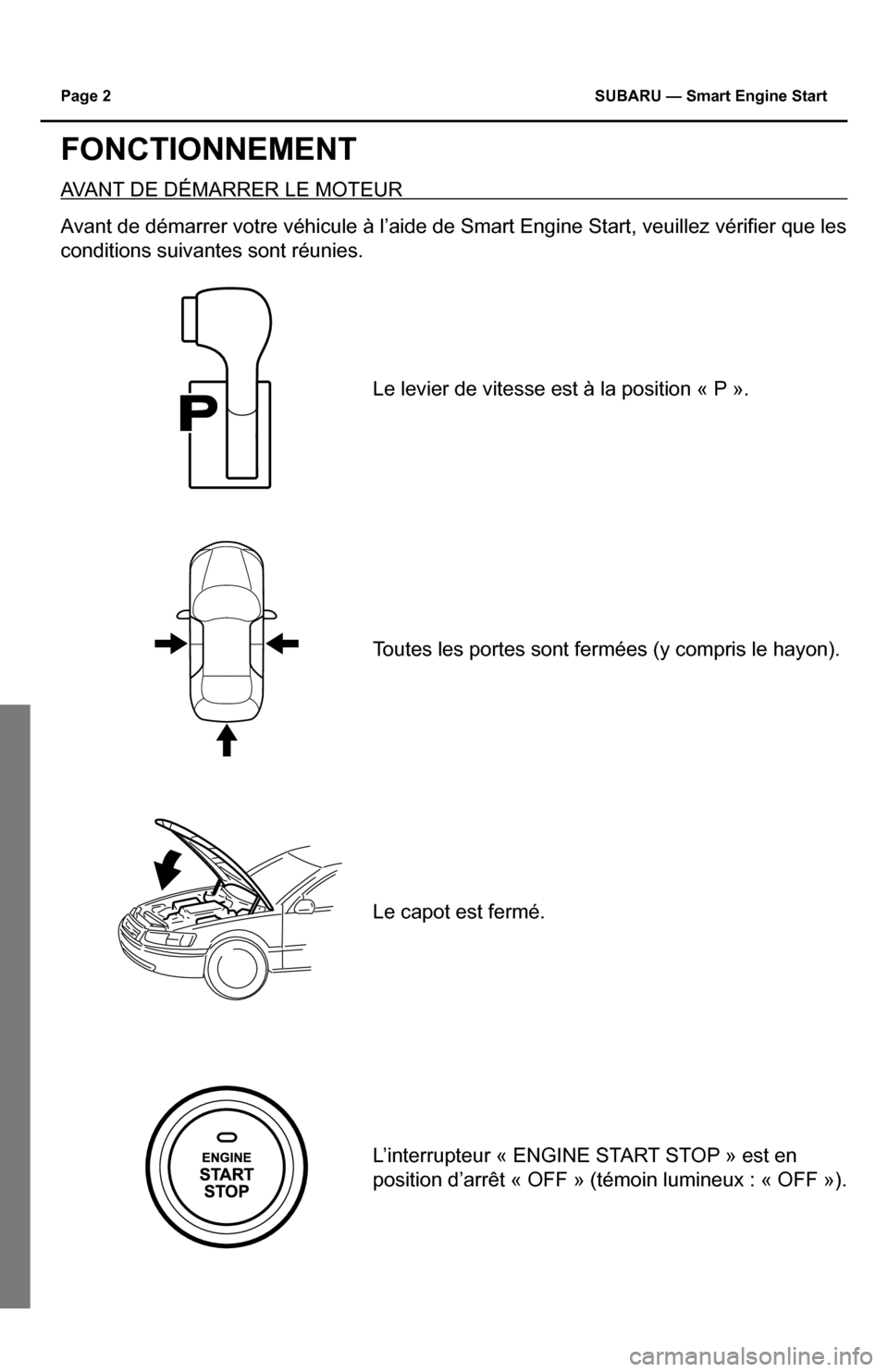

Page 22 of 28
Page 2 SUBARU — Smart Engine Start
FONCTIONNEMENT
AVANT DE DÉMARRER LE MOTEUR
Avant de démarrer votre véhicule à l’aide de Smart Engine Start, veuillez vérifier que les
conditions suivantes sont réunies.
Le levier de vitesse est à la position « P ».
Toutes les portes sont fermées (y compris le hayon).
Le capot est fermé.
L’interrupteur « ENGINE START STOP » est en
position d’arrêt « OFF » (témoin lumineux : « OFF »\
).

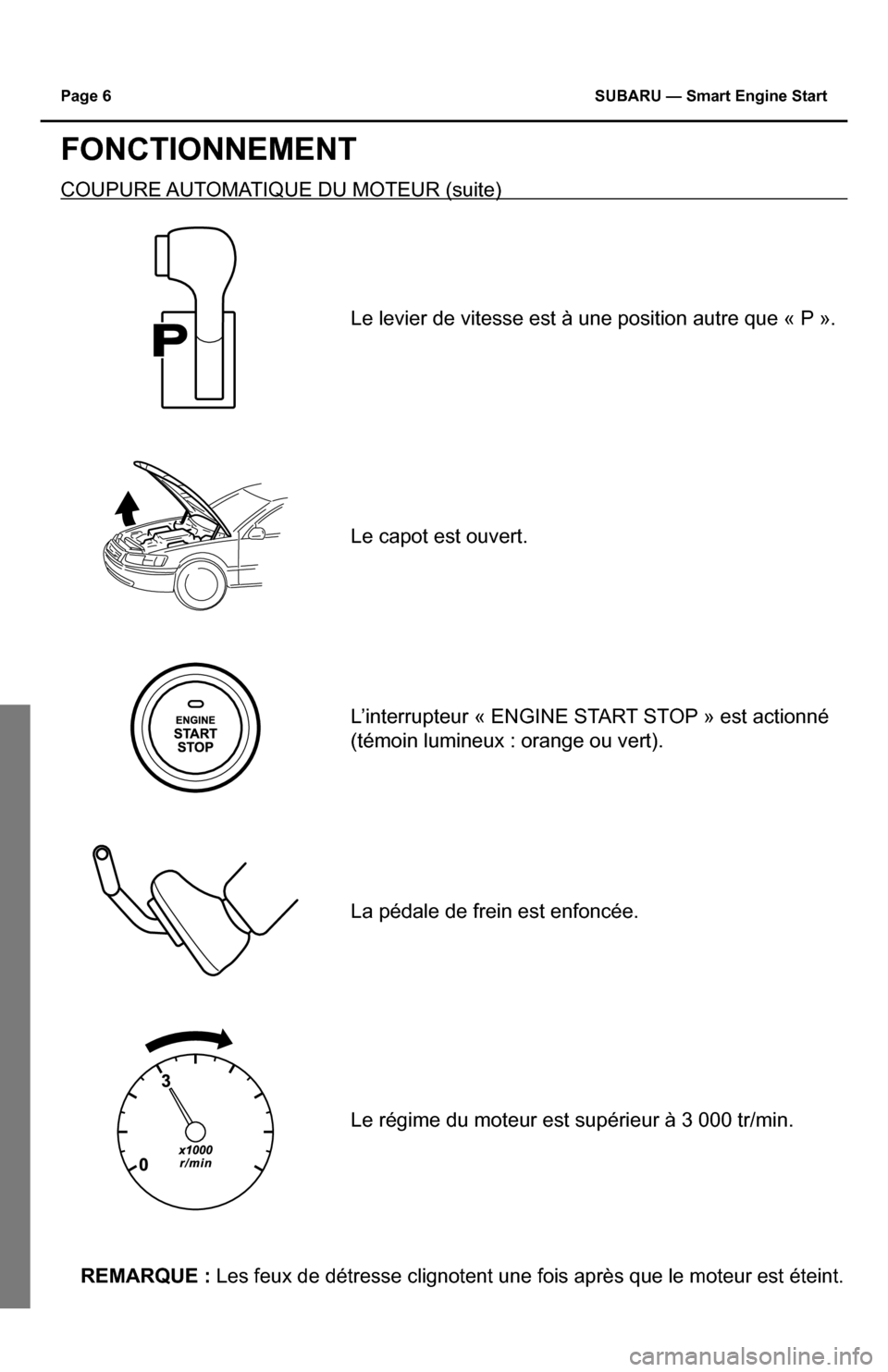

Page 26 of 28
Page 6 SUBARU — Smart Engine Start
FONCTIONNEMENT
COUPURE AUTOMATIQUE DU MOTEUR (suite)
Le levier de vitesse est à une position autre que « P ».
Le capot est ouvert.
L’interrupteur « ENGINE START STOP » est actionné
(témoin lumineux : orange ou vert).
La pédale de frein est enfoncée.
Le régime du moteur est supérieur à 3 000 tr/min.
REMARQUE :
Les feux de détresse clignotent une fois après que le moteur est é\
teint.
