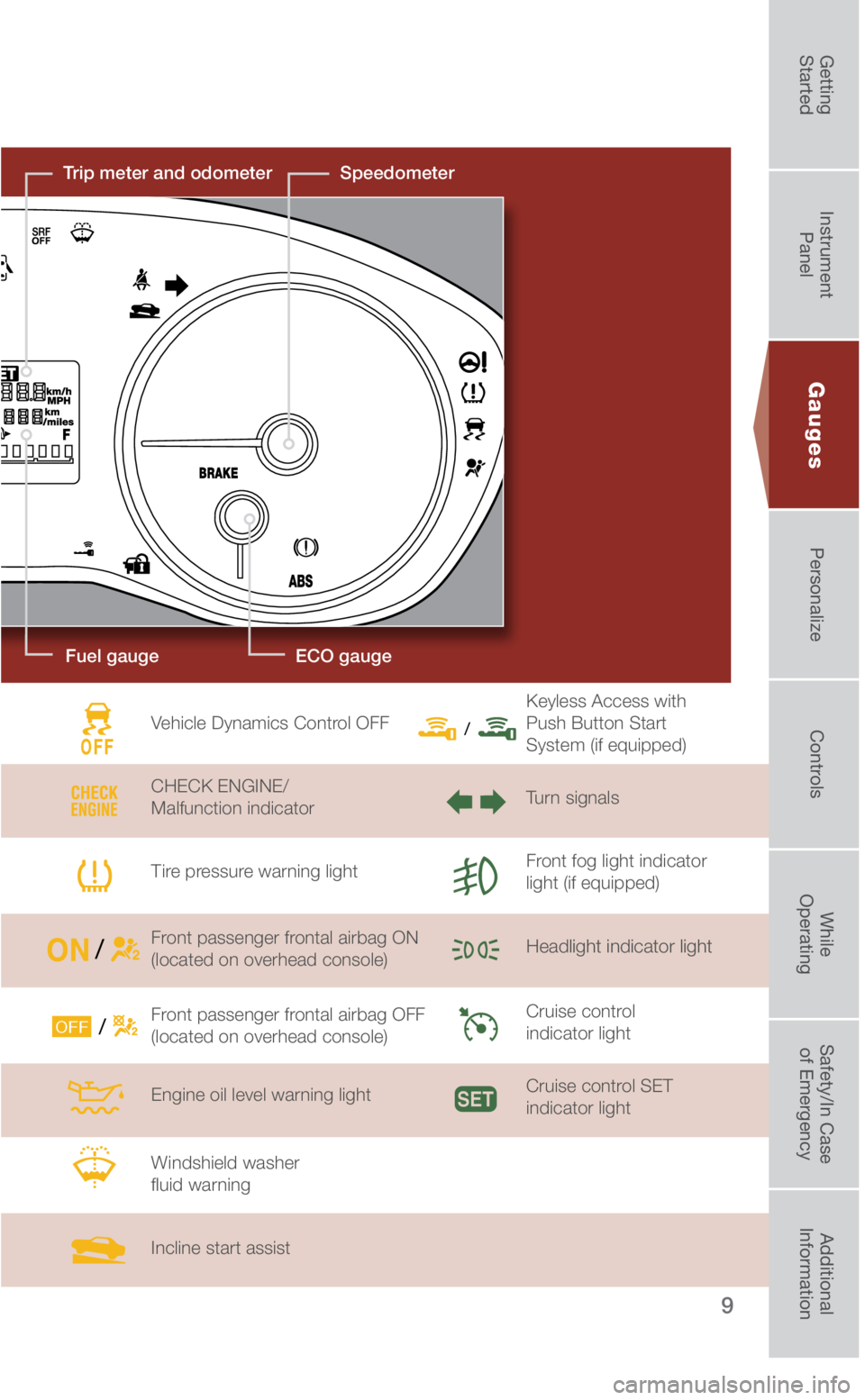

SUBARU IMPREZA 2018 Quick Guide

9
Fuel gauge
Speedometer
Trip meter and odometer
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal airbag ON
(located on overhead console)
Front passenger frontal airbag OFF
(located on overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline start assist Keyless Access with
Push Button Start
System (if equipped)
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
Gauges
ECO gauge
3220513_18b_Impreza_QRG_091217.indd 99/12/17 3:49 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

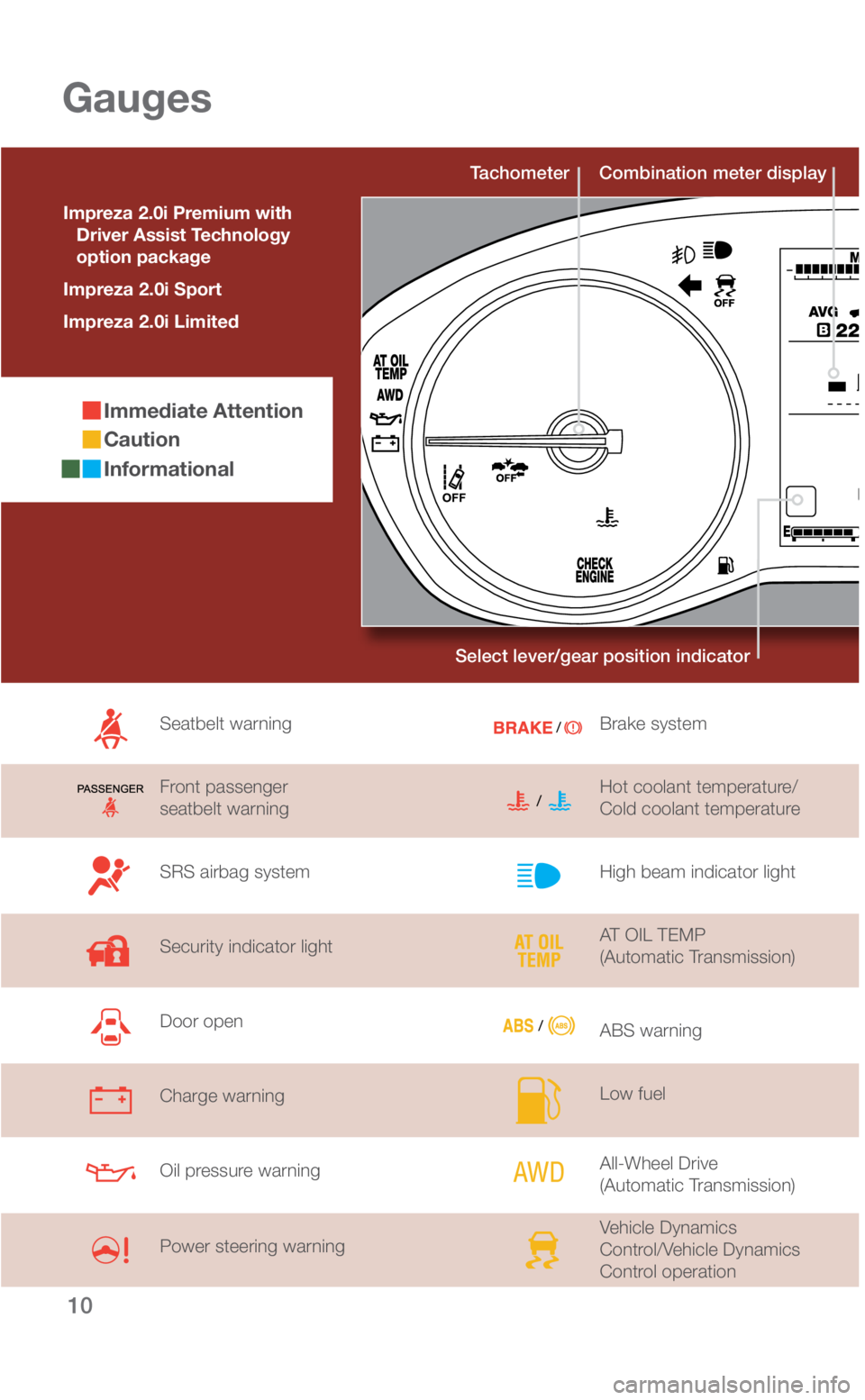

10
Combination meter display
Tachometer
Gauges
Immediate Attention
Caution
Informational
Impreza 2.0i Premium with
Driver Assist Technology
option package
Impreza 2.0i Sport
Impreza 2.0i Limited
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning Brake system
Hot coolant temperature/
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Vehicle Dynamics
Control/Vehicle Dynamics
Control operation
Select lever/gear position indicator
3220513_18b_Impreza_QRG_091217.indd 109/12/17 3:49 PM

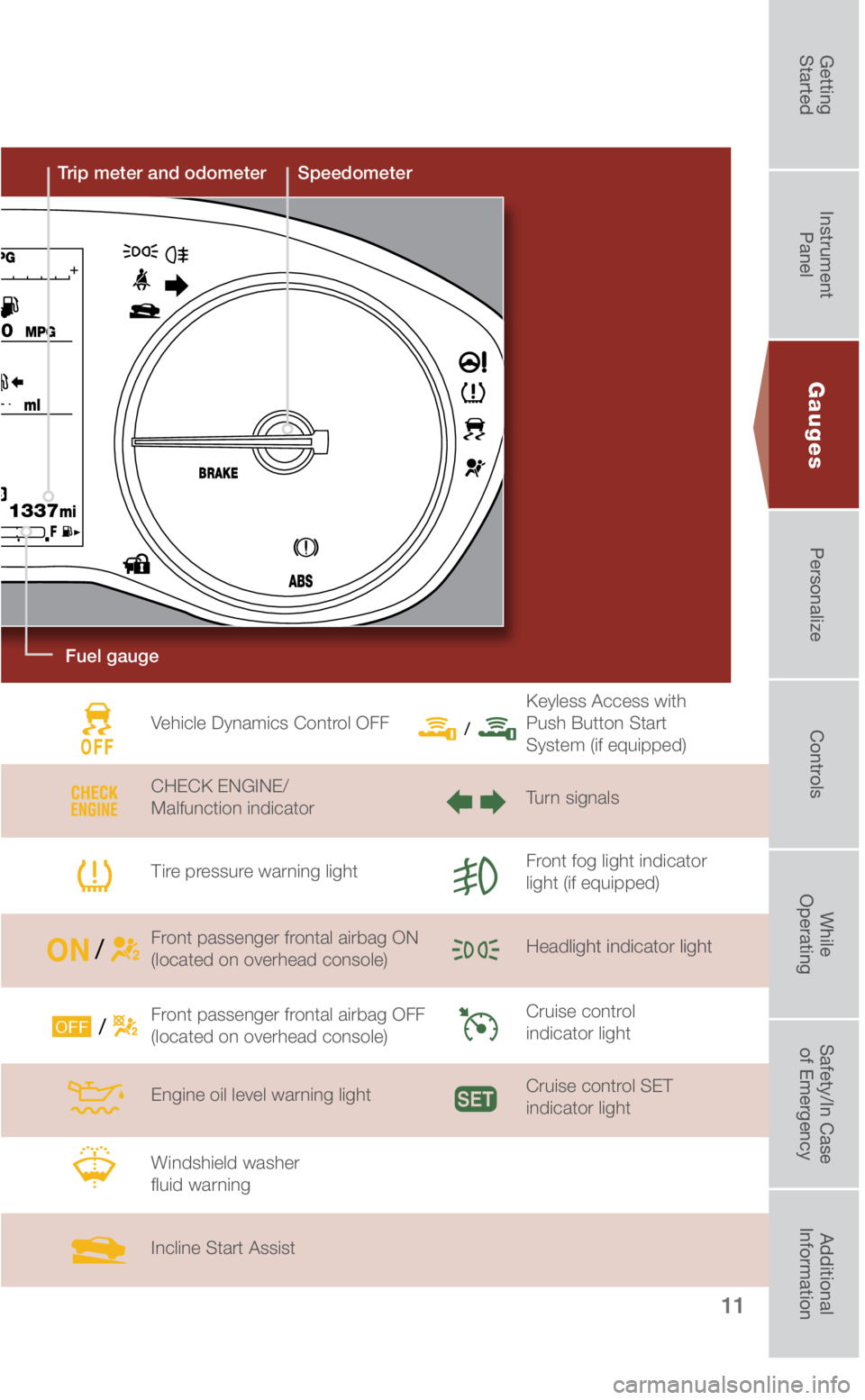

11
SpeedometerTrip meter and odometer
Gauges
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal airbag ON
(located on overhead console)
Front passenger frontal airbag OFF
(located on overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline Start Assist Keyless Access with
Push Button Start
System (if equipped)
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
Fuel gauge
3220513_18b_Impreza_QRG_091217.indd 119/12/17 3:49 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

12
Personalize
Tilt and Telescopic Steering Column
Push the lever down firmly to adjust the height and lengthwise positio\
n of the column; firmly
push the lever back up to lock the column in place. Do not adjust while \
driving.
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust the
right-hand mirror. Move the knob in the direction you want to move the mirror. Then return
the knob to the neutral/center position.
i/SET Combination Meter Display Controls (if equipped)
Use the controls to display and switch selected items in the combination meter displa\
y.
Please refer to your Owner’s Manual for details on these controls.
3220513_18b_Impreza_QRG_091217.indd 129/12/17 3:49 PM

13
Personalize

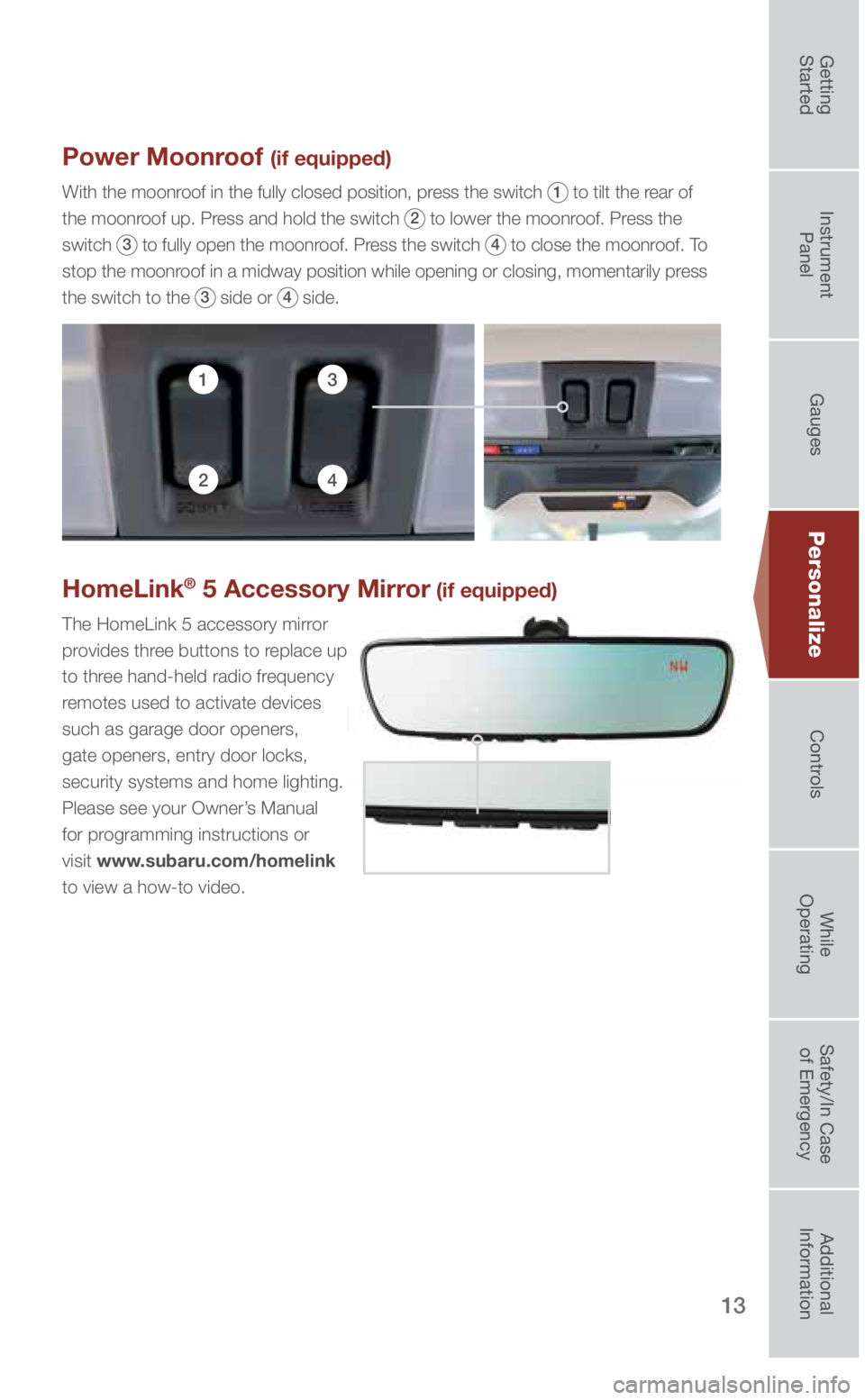

Power Moonroof (if equipped)
With the moonroof in the fully closed position, press the switch 1 to tilt the rear of
the moonroof up. Press and hold the switch
2 to lower the moonroof. Press the
switch
3 to fully open the moonroof. Press the switch 4 to close the moonroof. To
stop the moonroof in a midway position while opening or closing, momentarily press
the switch to the
3 side or 4 side.
13
24
HomeLink® 5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror
provides three buttons to replace up
to three hand-held radio frequency
remotes used to activate devices
such as garage door openers,
gate openers, entry door locks,
security systems and home lighting.
Please see your Owner’s Manual
for programming instructions or
visit www.subaru.com/homelink
to view a how-to video.
3220513_18b_Impreza_QRG_091217.indd 139/12/17 3:50 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

14
Controls
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward,
the instrument panel illumination becomes full bright.

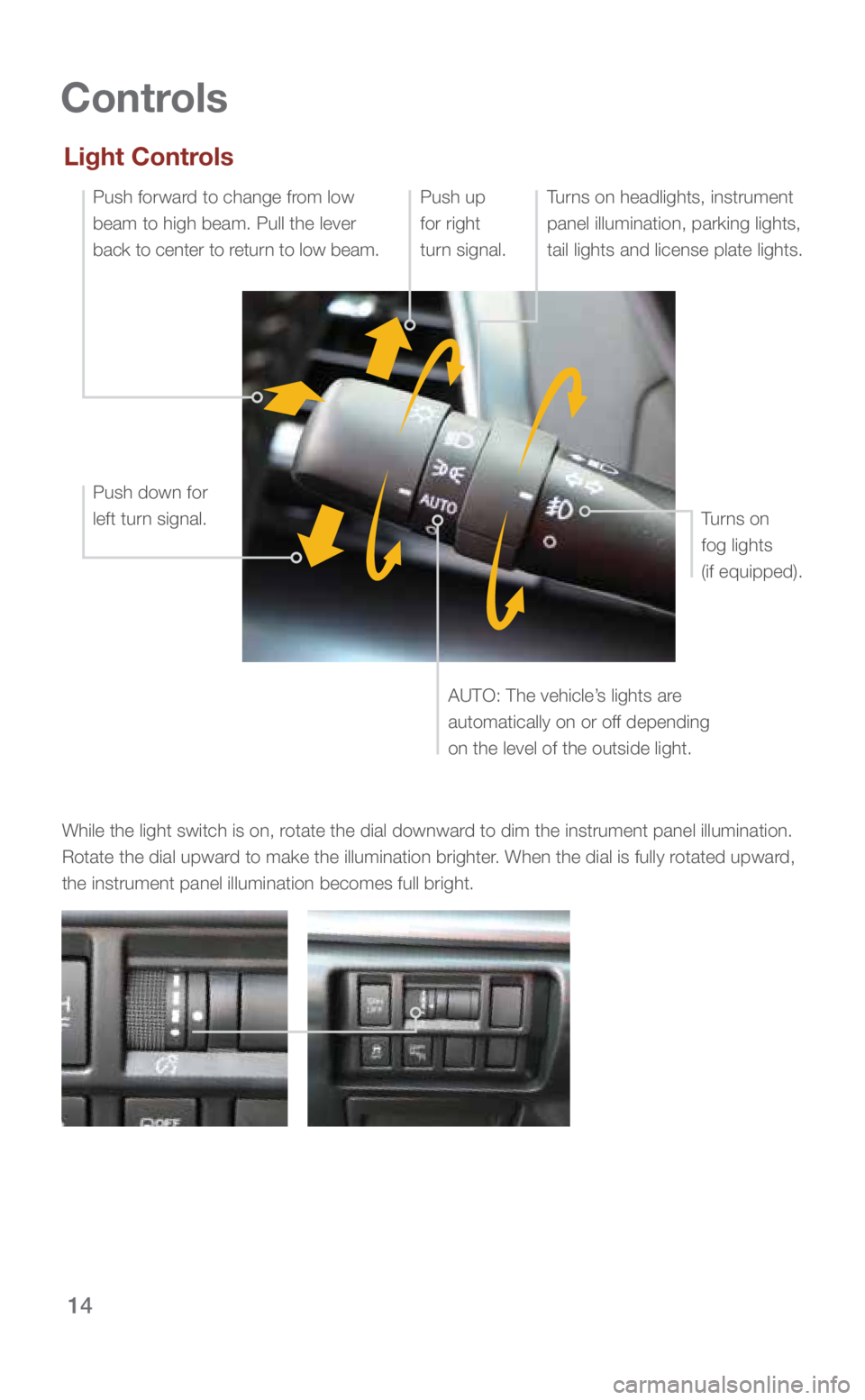

Light Controls
Turns on headlights, instrument
panel illumination, parking lights,
tail lights and license plate lights.
Push up
for right
turn signal.
Push down for
left turn signal.Push forward to change from low
beam to high beam. Pull the lever
back to center to return to low beam.
Turns on
fog lights
(if equipped).
AUTO: The vehicle’s lights are
automatically on or off depending
on the level of the outside light.
3220513_18b_Impreza_QRG_091217.indd 149/12/17 3:50 PM

15
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
Rear Wiper (5-door only)
To operate the rear wiper, rotate the end of the knob upward to the intermittent,
continuous, or wash position. When the rear wiper is off, rotate the knob downward
to wash and wipe the rear window.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only a reduced brightness
high beam will be automatically turned on when the engine has started, the parking
brake is fully released and the light switch is in the “OFF” or “
” position. The
brightness of the illumination of the high beam headlights is reduced by the daytime
running light system. You must always switch on your headlights when it is dark
outside by turning the light switch to the “
” position.
1
2
3
INT.
LOW
HIGH OFF
Controls
3220513_18b_Impreza_QRG_091217.indd 159/12/17 3:50 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

16
Controls
3
51
246

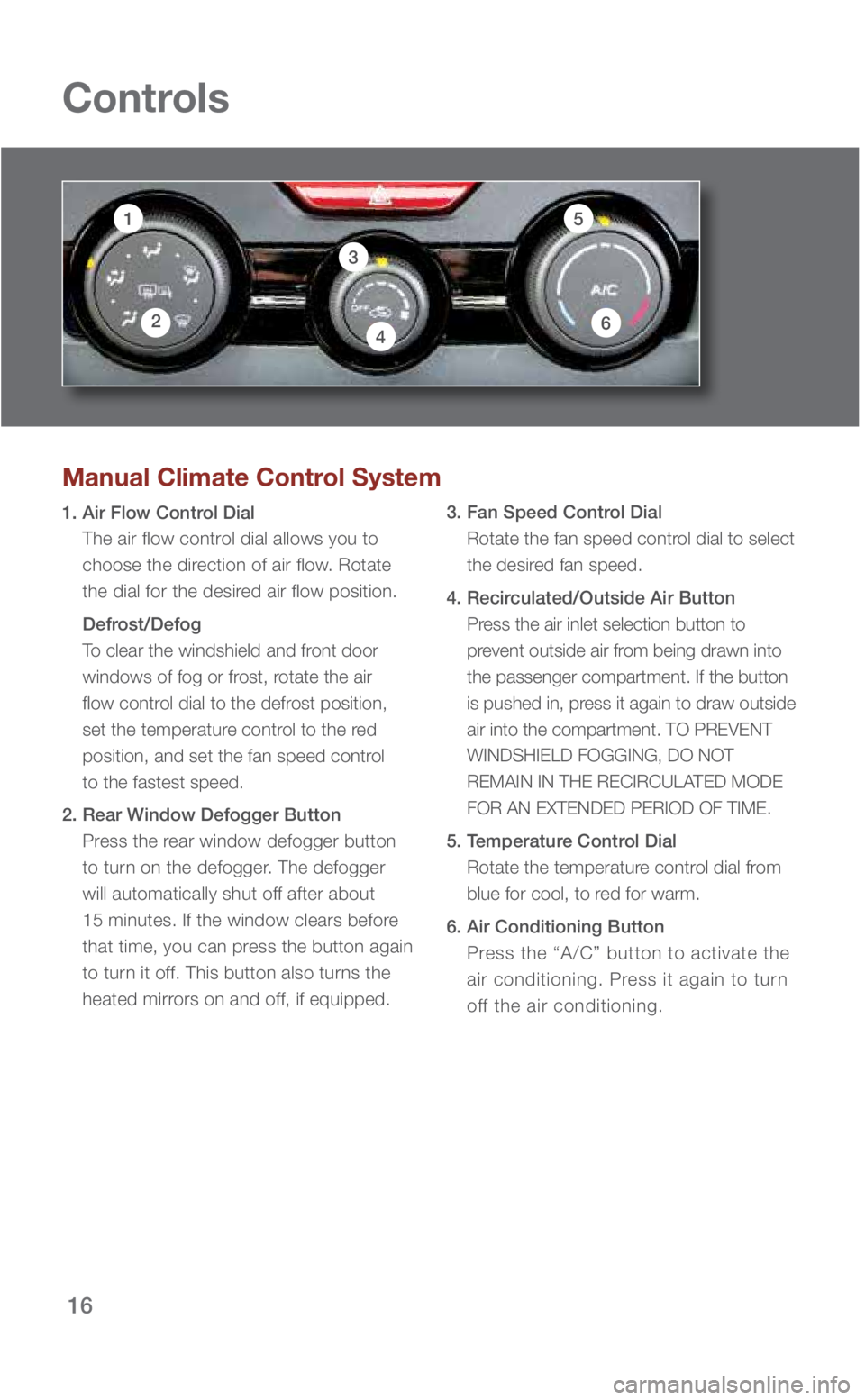

Manual Climate Control System
1. Air Flow Control Dial The air flow control dial allows you to
choose the direction of air flow. Rotate
the dial for the desired air flow position.
Defrost/Defog
To clear the windshield and front door
windows of fog or frost, rotate the air
flow control dial to the defrost position,
set the temperature control to the red
position, and set the fan speed control
to the fastest speed.
2. Rear Window Defogger Button Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about
15 minutes. If the window clears before
that time, you can press the button again
to turn it off. This button also turns the
heated mirrors on and off, if equipped. 3. Fan Speed Control Dial
Rotate the fan speed control dial to select
the desired fan speed.
4. Recirculated/Outside Air Button Press the air inlet selection button to
prevent outside air from being drawn into
the passenger compartment. If the button
is pushed in, press it again to draw outside
air into the compartment. TO PREVENT
WINDSHIELD FOGGING, DO NOT
REMAIN IN THE RECIRCULATED MODE
FOR AN EXTENDED PERIOD OF TIME.
5. Temperature Control Dial Rotate the temperature control dial from
blue for cool, to red for warm.
6. Air Conditioning Button Press the “A/C” button to activate the
air conditioning. Press it again to turn
off the air conditioning.
3220513_18b_Impreza_QRG_091217.indd 169/12/17 3:50 PM

17
Automatic Climate
Control System
(if equipped)
1. Automatic On and Off This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2. Temperature Control Dial Rotate the dial clockwise to
increase the temperature or
rotate the dial counterclockwise
to decrease the temperature and
maintain a comfortable climate
within the driver and passenger
compartment. The temperature is
displayed digitally on the screen.
Operation in Manual Mode
3. Recirculated/Outside Air Button Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN THE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME. 4. Fan Speed Control Knob
Rotate the fan speed control
knob to select one of seven
different fan speed positions.
5. Air Flow Mode Selection Dial Turn the “MODE” dial to select
the desired air flow mode. The
selected air flow mode – either
ventilation, bi-level, heat or heat-
defrost – is shown on the display.
6. Air Conditioner Button Press the “A/C” button to activate
the air conditioning. Press it again
to turn off the air conditioning.
7. Defroster Button Press the button to defrost
or dehumidify the windshield
and front door windows.
8. Rear Window Defogger Button Press the button to turn on the
defogger. It will automatically shut off
after about 15 minutes. If the window
clears before that time, you can
press the button again to turn it off.
9. Maximum Air Conditioner Button
For quicker cooling, press
the “MAX A/C” button.
Controls
1
3
4
582
796
Located in the multi-function display;
top center of dash
3220513_18b_Impreza_QRG_091217.indd 179/12/17 3:50 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

18
Controls
Steering Wheel Audio Controls (if equipped)
Talk switch; please refer to
the “Bluetooth audio” section
in your Owner’s Manual.
Press the button to select
the desired audio mode –
FM, AM, SAT, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to skip
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
USB Port
The USB port is located in the front of the center console.
You can connect a USB-equipped portable music player to
the USB port and hear the music stored on it through the
vehicle speakers. Press the “SOURCE” button located on
the audio system repeatedly until the USB mode is selected.
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the front of
the center console. You can connect a portable music
player to the auxiliary jack and hear the music stored on it
through the vehicle speakers. Press the “SOURCE” button
located on the audio system to select the auxiliary mode.
