SUBARU IMPREZA 2018 Quick Guide

19
Cruise Control
Increase Speed
Push up the “RES/SET” switch to
the “RES” side; hold until your vehicle
reaches the desired speed and
release. To increase speed using the
accelerator pedal, press the pedal
until you reach the desired speed.
Push down the “RES/SET” switch to
the “SET” side to set the speed.Decrease Speed
Push down the “RES/SET” switch to
the “SET” side; hold until your vehicle
slows to the desired speed and release.
To decrease the speed using the brake
pedal, press the pedal to release
cruise control temporarily. When the
speed decreases to the desired speed,
push down the “RES/SET” switch to
the “SET” side to set the speed.To activate the cruise control,
press the “
” button.
The indicator light on the
instrument panel will turn on.
To deactivate cruise control,
press the “
” button again.
Press the accelerator pedal until your
vehicle reaches the desired speed. Push
the switch to the “SET” side and release.
Ease off the accelerator pedal. Your
vehicle will maintain the desired speed. To cancel the cruise control,
push the brake pedal or press
the “CANCEL” button. If you
have a manual transmission, you
can push in the clutch pedal.
To resume your speed after
canceling, push the switch
to the “RES” side.
Controls
3220513_18b_Impreza_QRG_091217.indd 199/12/17 3:50 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

20
While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.
1. Steering Responsive Headlights OFF switch
(if equipped)
2. Traction Mode / Vehicle Dynamics Control OFF switch
3. Blind Spot Detection / Rear Cross Traffic Alert OFF switch
(if equipped)
1
32
3220513_18b_Impreza_QRG_091217.indd 209/12/17 3:50 PM

21
1

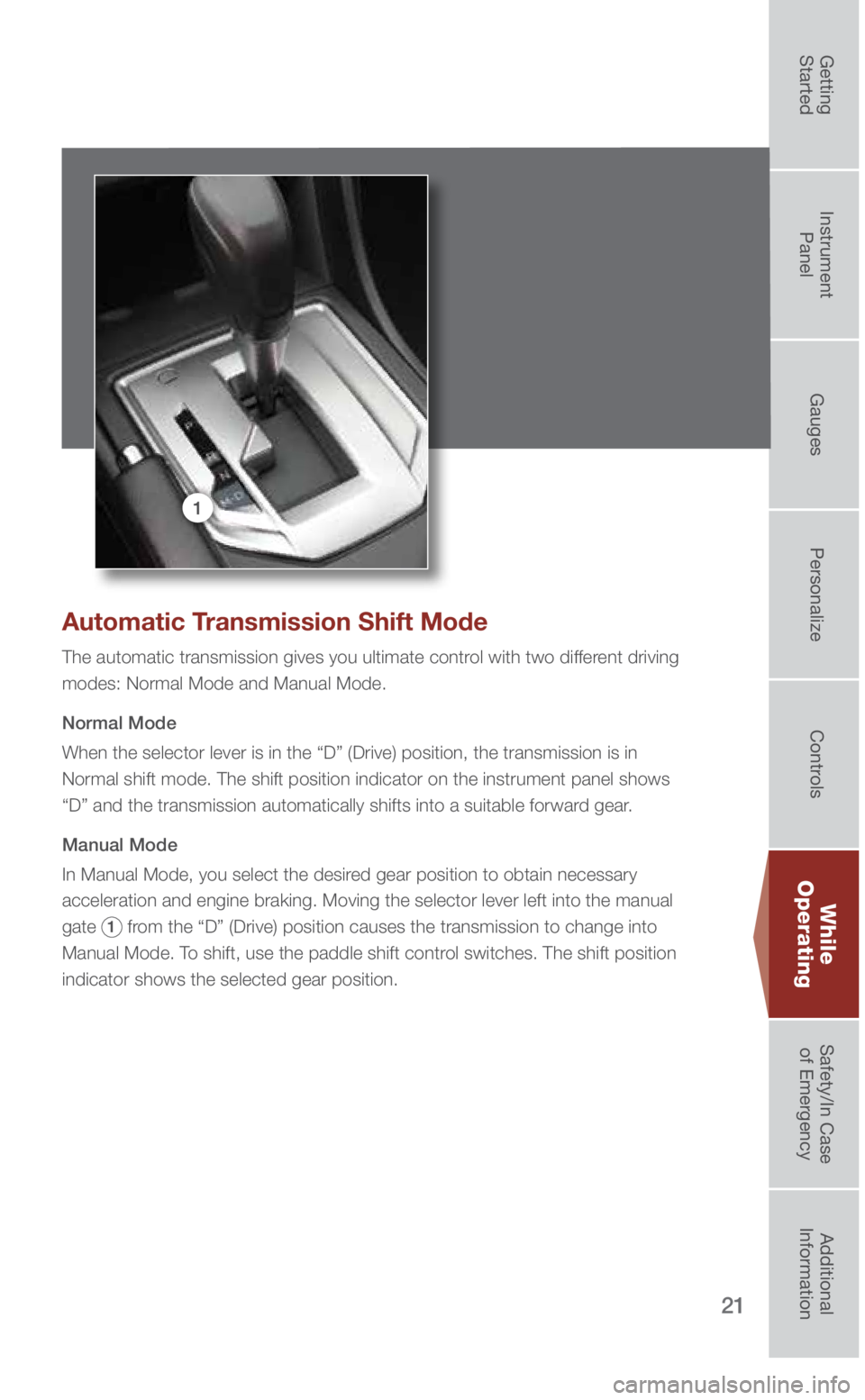

Automatic Transmission Shift Mode
The automatic transmission gives you ultimate control with two different driving
modes: Normal Mode and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in
Normal shift mode. The shift position indicator on the instrument panel \
shows
“D” and the transmission automatically shifts into a suitable forw\
ard gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual
gate
1 from the “D” (Drive) position causes the transmission to change in\
to
Manual Mode. To shift, use the paddle shift control switches. The shift position
indicator shows the selected gear position.
While
Operating
3220513_18b_Impreza_QRG_091217.indd 219/12/17 3:50 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

22

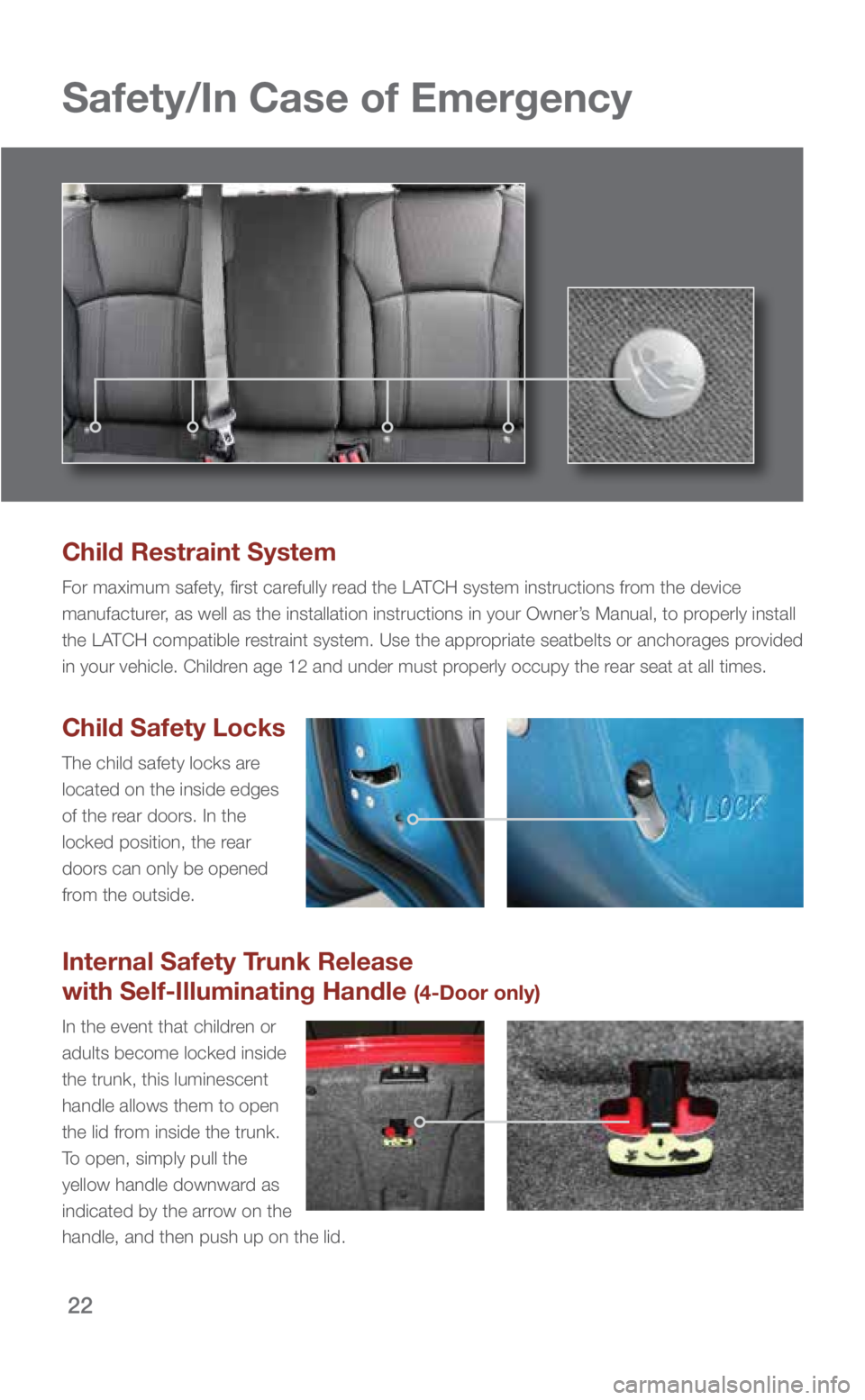

Safety/In Case of Emergency
Child Restraint System
For maximum safety, first carefully read the LATCH system instructions from the device
manufacturer, as well as the installation instructions in your Owner’s Manual, to properly install
the LATCH compatible restraint system. Use the appropriate seatbelts or anchorages provided
in your vehicle. Children age 12 and under must properly occupy the rear seat at all times.
Child Safety Locks
The child safety locks are
located on the inside edges
of the rear doors. In the
locked position, the rear
doors can only be opened
from the outside.
Internal Safety Trunk Release
with Self-Illuminating Handle
(4-Door only)
In the event that children or
adults become locked inside
the trunk, this luminescent
handle allows them to open
the lid from inside the trunk.
To open, simply pull the
yellow handle downward as
indicated by the arrow on the
handle, and then push up on the lid.
3220513_18b_Impreza_QRG_091217.indd 229/12/17 3:50 PM

23
Location of
Spare Tire and Jack
A jack handle is stored under the floor
of the trunk (4-door) or the cargo area
(5-door). A jack and a towing hook are
stored in the tool bucket in the center
of the spare tire. Also, a tool bag that
contains a wheel nut wrench and
a screwdriver is equipped with
the vehicle.
Emergency Towing Your
All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel
Drive distributes engine power to
all four wheels, improper towing will
severely damage your AWD system. A
flatbed truck is the only recommended
way to properly transport your AWD
vehicle. If towing is necessary, it is
best done by your Subaru Retailer
or a commercial towing service.


Subaru
Roadside Assistance
Subaru Roadside Assistance is free
and standard on every 2018 Subaru
vehicle. Coverage is automatic; there
are no forms to complete. Subaru
Roadside Assistance is available
anytime during the 3-year/36,000-mile
Subaru Limited Warranty, whichever
comes first.* A Subaru Roadside
Assistance decal has been affixed
to the driver’s door window.
Subaru Roadside Assistance:
1-800-261-2155
Exclusions
Specifically excluded from Subaru
Roadside Assistance coverage are
service requests or claims resulting
from: accidents, vandalism, acts of
God, violation of any laws, misuse and
abuse, or vehicle modifications not
recommended by the manufacturer.
*See your Retailer for details.
4-Door:
5-Door:
Safety/In Case of Emergency
3220513_18b_Impreza_QRG_091217.indd 239/12/17 3:50 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

24

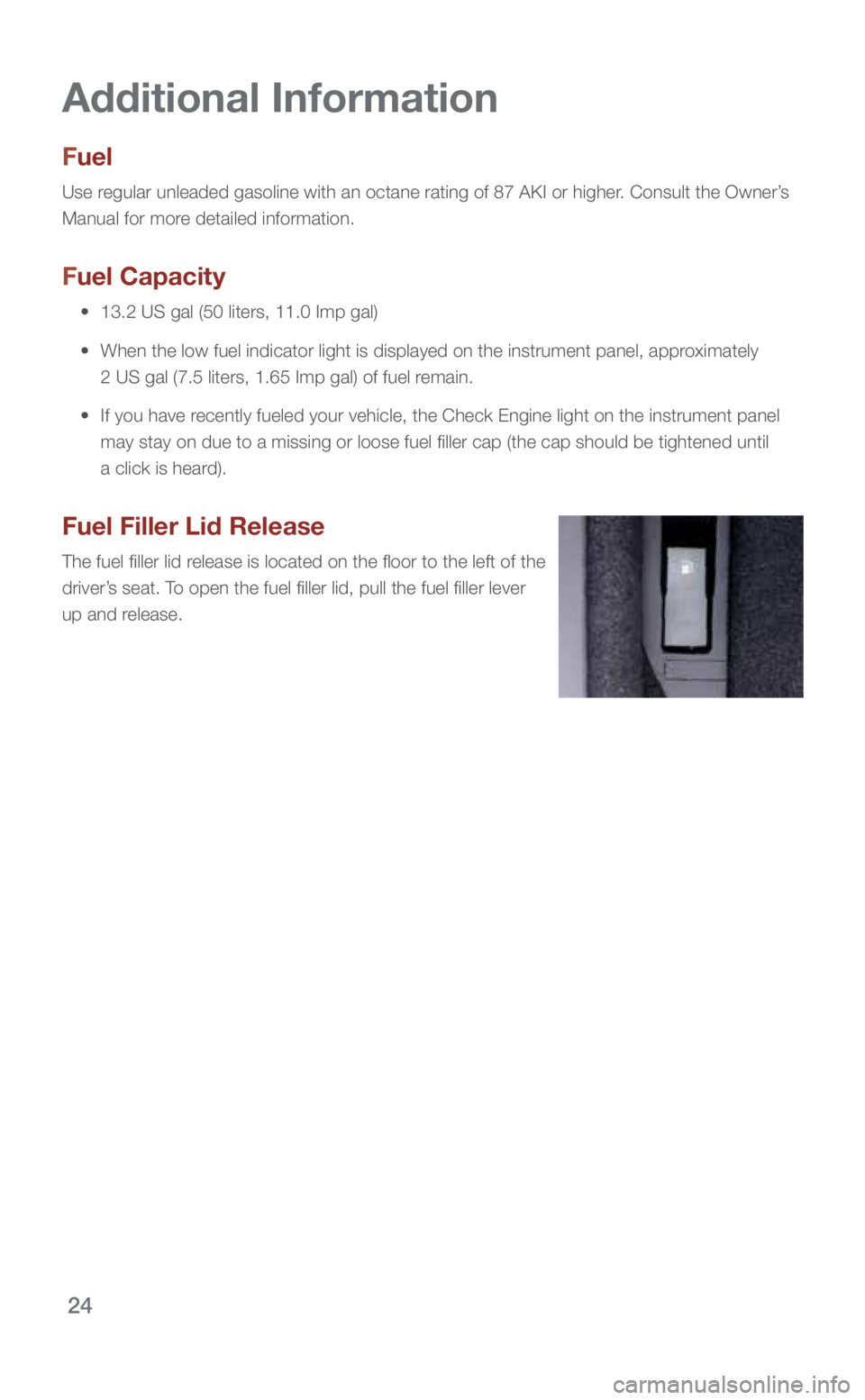

Fuel
Use regular unleaded gasoline with an octane rating of 87 AKI or higher. Consult the Owner’s
Manual for more detailed information.
Fuel Capacity
• 13.2 US gal (50 liters, 11.0 Imp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
2 US gal (7.5 liters, 1.65 Imp gal) of fuel remain.
• If you have recently fueled your vehicle, the Check Engine light on the instrument pa\
nel
may stay on due to a missing or loose fuel filler cap (the cap should\
be tightened until
a click is heard).
Additional Information
Fuel Filler Lid Release
The fuel filler lid release is located on the floor to the left of the
driver’s seat. To open the fuel filler lid, pull the fuel filler lever
up and release.
3220513_18b_Impreza_QRG_091217.indd 249/12/17 3:50 PM

25

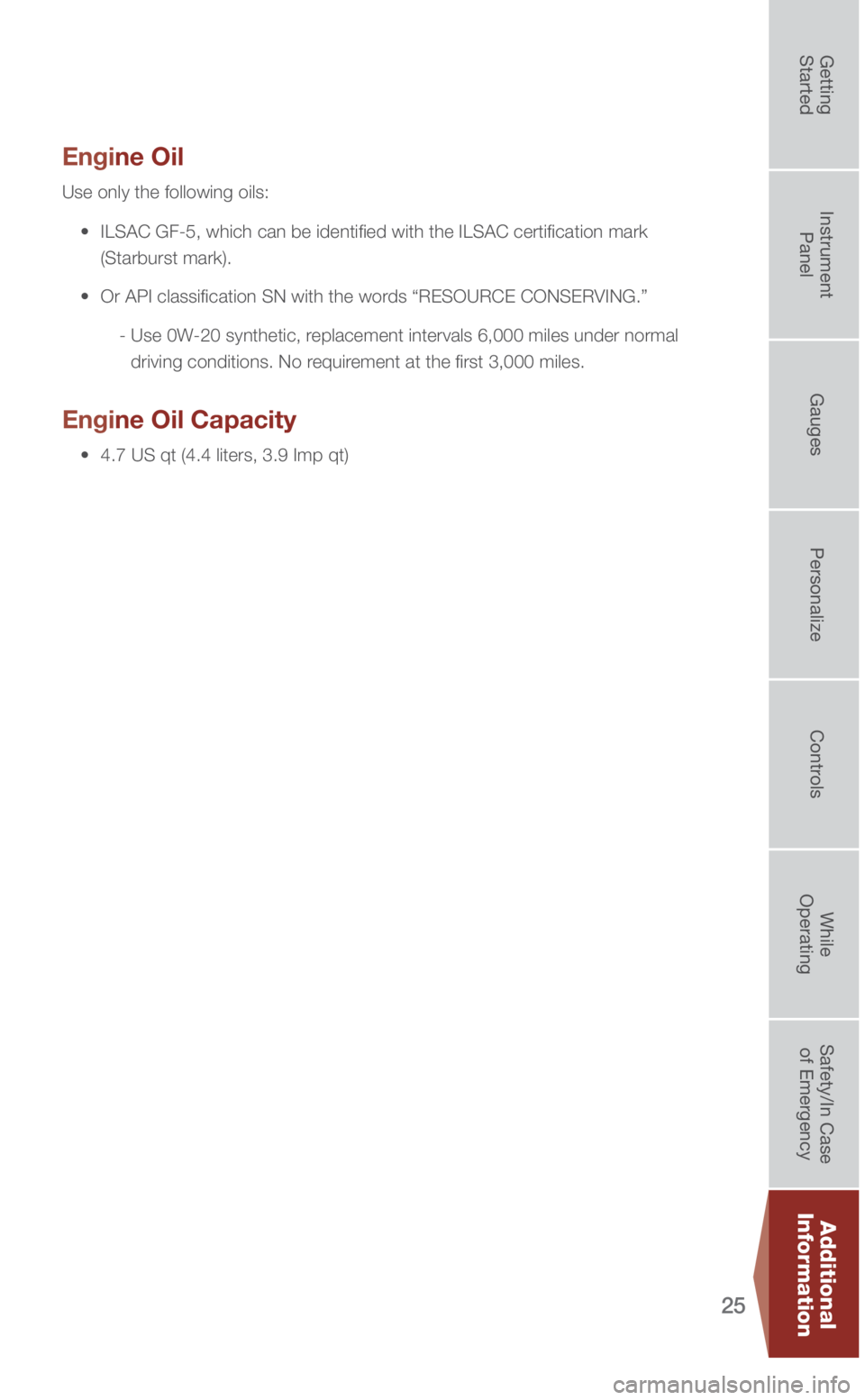

Engine Oil
Use only the following oils:
• ILSAC GF-5, which can be identified with the ILSAC certification mar\
k
(Starburst mark).
• Or API classification SN with the words “RESOURCE CONSERVING.”
- Use 0W-20 synthetic, replacement intervals 6,000 miles under normal
driving conditions. No requirement at the first 3,000 miles.
Engine Oil Capacity
• 4.7 US qt (4.4 liters, 3.9 Imp qt)
Additional
Information
3220513_18b_Impreza_QRG_091217.indd 259/12/17 3:50 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

26
Engine Compartment
Additional
Information
Please refer to your Owner’s Manual for more information.
2.0i Engine
1. Brake Fluid Reservoir
2. Main Fuse Box
3. Battery
4. Windshield Washer Tank
5. Radiator Cap 6.
Engine Oil Filler Cap
7. Engine Coolant Reservoir
8. Engine Oil Filter
9. Engine Oil Dipstick
10. Air Cleaner Element
1
9
3
86
7
10
2
5
4
3220513_18b_Impreza_QRG_091217.indd 269/12/17 3:50 PM

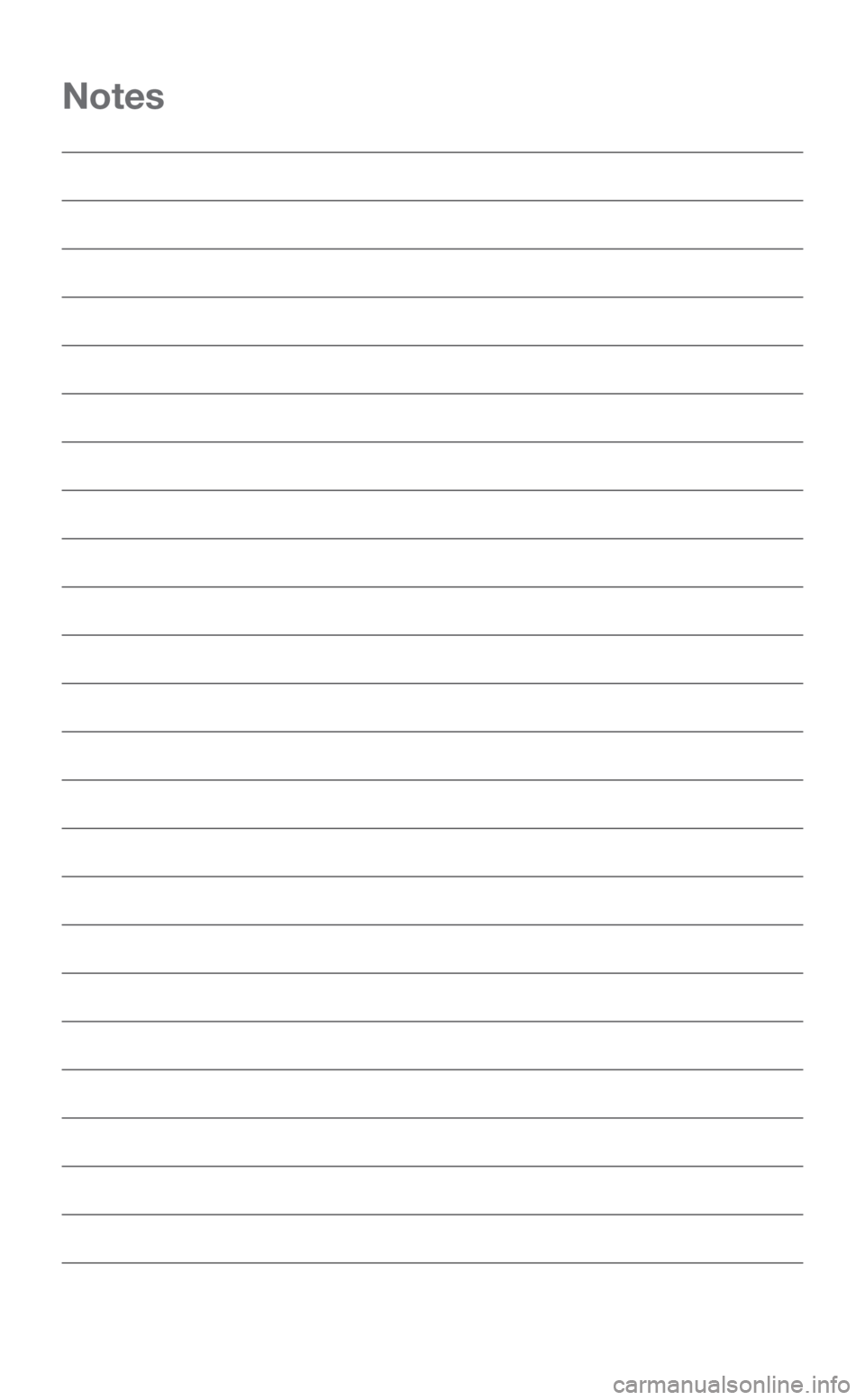

Notes
3220513_18b_Impreza_QRG_091217.indd 279/12/17 3:50 PM

Notes
