SUBARU IMPREZA 2019 Quick Guide

9
Fuel gauge
Speedometer
Trip meter and odometer
Gauges
ECO gauge
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag ON (located on
overhead console)
Front passenger frontal
airbag OFF (located on
overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline start assist
Keyless Access with
Push Button Start System
(if equipped)
Turn signals
Front fog light
indicator light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
3641428_19b_Impreza_QRG_072518.indd 97/25/18 11:17 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

10

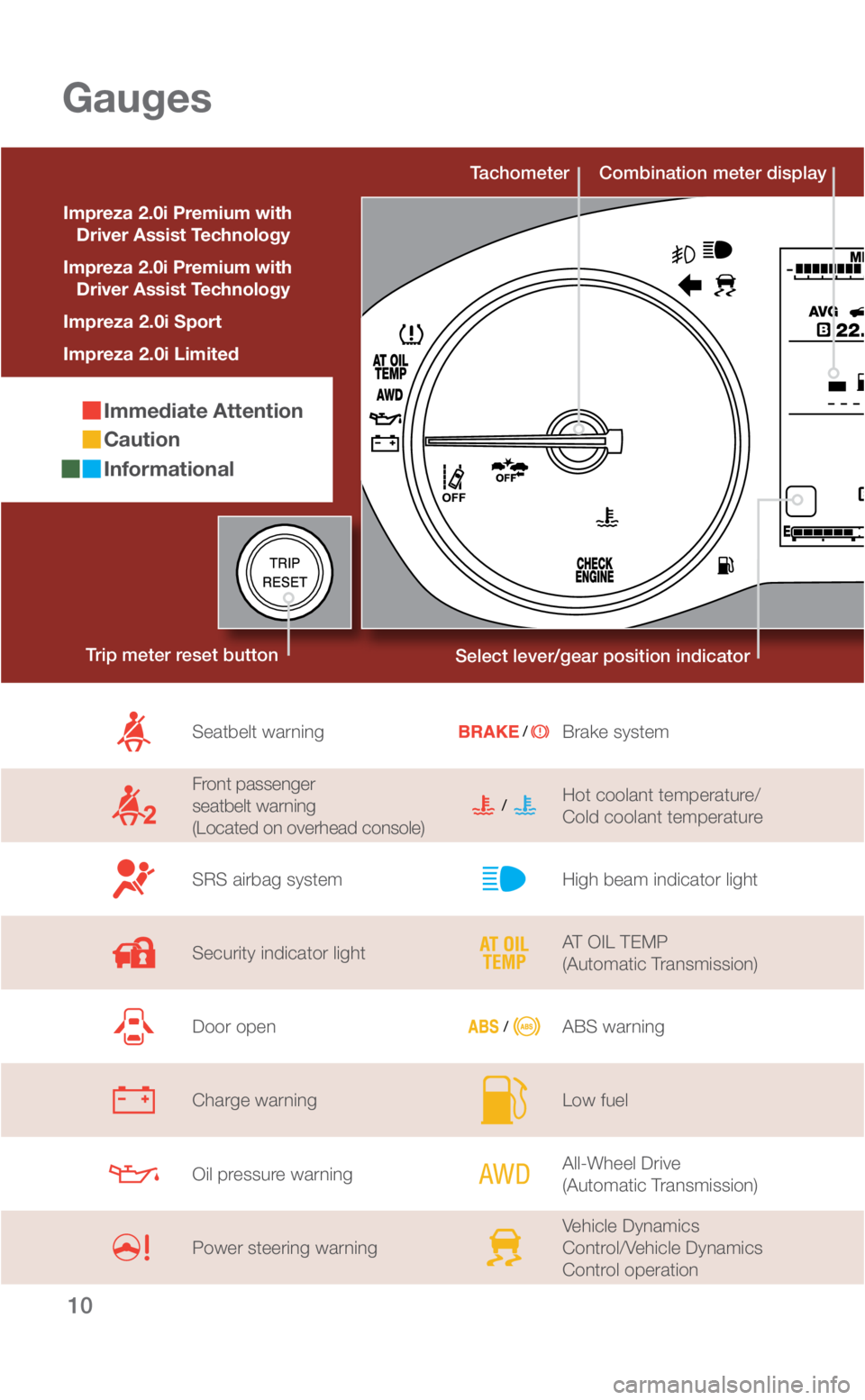

Combination meter display
Tachometer
Gauges
Immediate Attention
Caution
Informational
Impreza 2.0i Premium with
Driver Assist Technology
Impreza 2.0i Premium with
Driver Assist Technology
Impreza 2.0i Sport
Impreza 2.0i Limited
Select lever/gear position indicator
Trip meter reset button
Seatbelt warning
Front passenger

seatbelt warning
(Located on overhead console)
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning
Brake system
Hot coolant temperature/
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Vehicle Dynamics
Control/Vehicle Dynamics
Control operation
3641428_19b_Impreza_QRG_072518.indd 107/25/18 11:17 AM

11
SpeedometerTrip meter and odometer
Gauges
Fuel gauge
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag ON (located on
overhead console)
Front passenger frontal
airbag OFF (located on
overhead console)
Engine oil level warning light
Windshield washer
fluid warning
Incline start assist
Lane Departure Warning OFF light
Pre-Collision Braking
Keyless Access with
Push Button Start System
(if equipped)
Turn signals
Front fog light
indicator light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
3641428_19b_Impreza_QRG_072518.indd 117/25/18 11:17 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

12

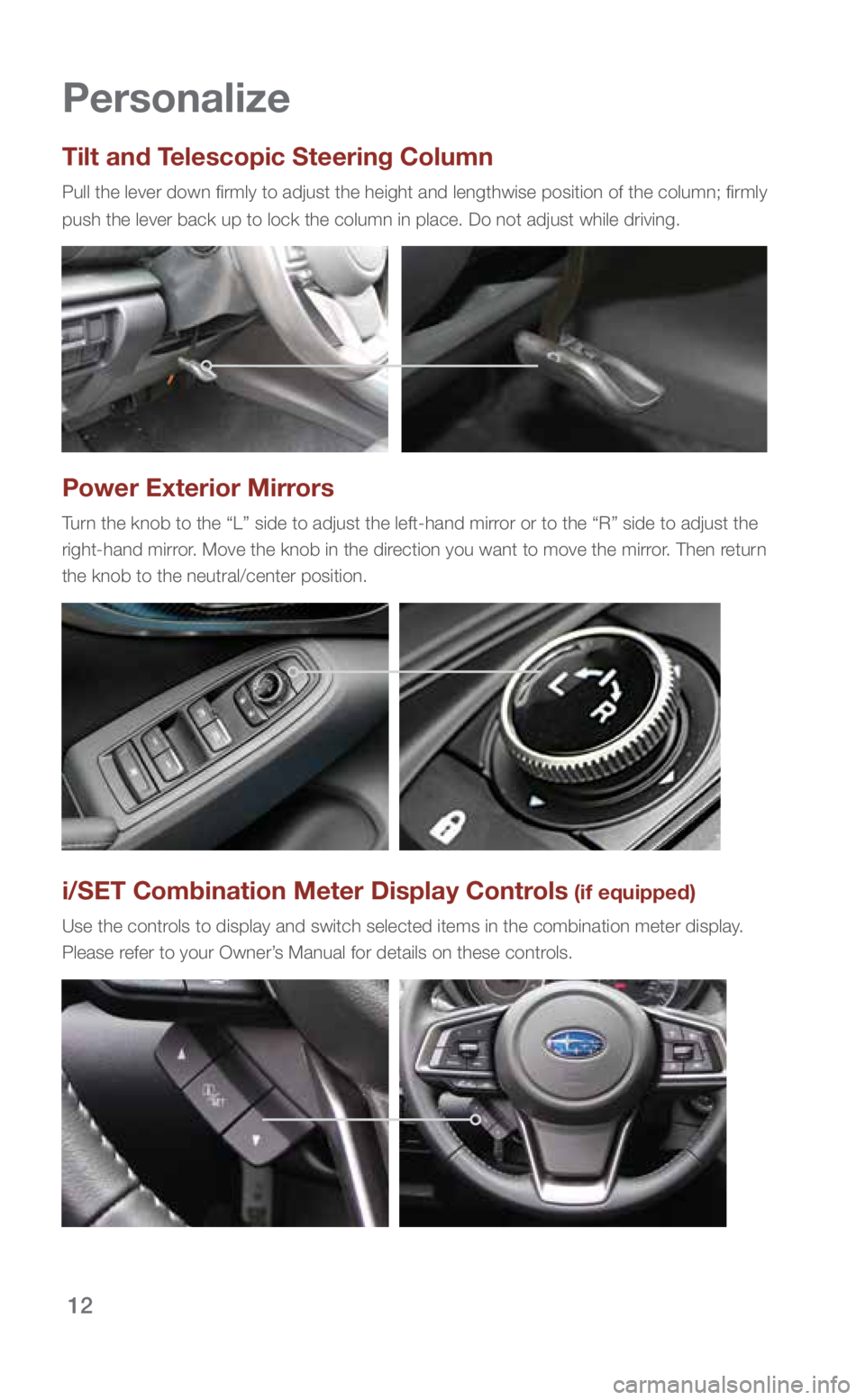

Personalize
Tilt and Telescopic Steering Column
Pull the lever down firmly to adjust the height and lengthwise positio\
n of the column; firmly
push the lever back up to lock the column in place. Do not adjust while \
driving.
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust the
right-hand mirror. Move the knob in the direction you want to move the mirror. Then return
the knob to the neutral/center position.
i/SET Combination Meter Display Controls (if equipped)
Use the controls to display and switch selected items in the combination meter displa\
y.
Please refer to your Owner’s Manual for details on these controls.
3641428_19b_Impreza_QRG_072518.indd 127/25/18 11:18 AM

13
Personalize

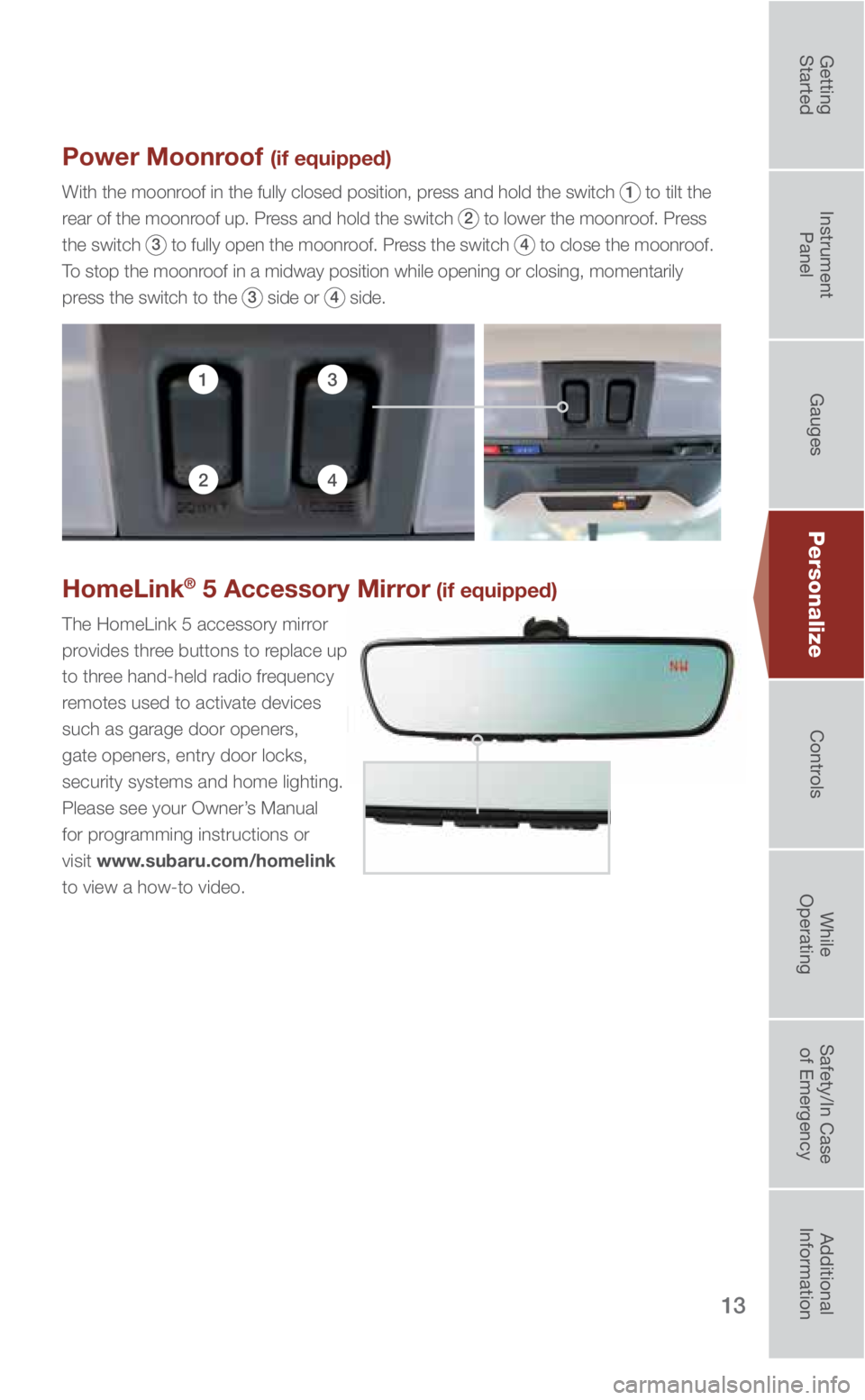

Power Moonroof (if equipped)
With the moonroof in the fully closed position, press and hold the switch 1 to tilt the
rear of the moonroof up. Press and hold the switch
2 to lower the moonroof. Press
the switch
3 to fully open the moonroof. Press the switch 4 to close the moonroof.
To stop the moonroof in a midway position while opening or closing, momentarily
press the switch to the
3 side or 4 side.
13
24
HomeLink® 5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror
provides three buttons to replace up
to three hand-held radio frequency
remotes used to activate devices
such as garage door openers,
gate openers, entry door locks,
security systems and home lighting.
Please see your Owner’s Manual
for programming instructions or
visit www.subaru.com/homelink
to view a how-to video.
3641428_19b_Impreza_QRG_072518.indd 137/25/18 11:18 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

14
Controls
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward
(dots aligned), the instrument panel illumination stays at full bright\
ness.
Light Controls
Push slightly down
for lane change
or fully down for
left turn signal.
Push slightly up
for lane change
or fully up for
right turn signal.
Push forward to change from low
beam to high beam. Pull the lever
back to center to return to low beam.

Turns on instrument panel
lights, tail lights, parking lights
and license plate lights.
Turns on headlights, instrument
panel illumination, parking lights,
tail lights and license plate lights.
Rotate to turn
on fog lights
(if equipped).
AUTO (if equipped): The vehicle’s lights
are automatically on or off, depending
on the level of outside light.
3641428_19b_Impreza_QRG_072518.indd 147/25/18 11:18 AM

15

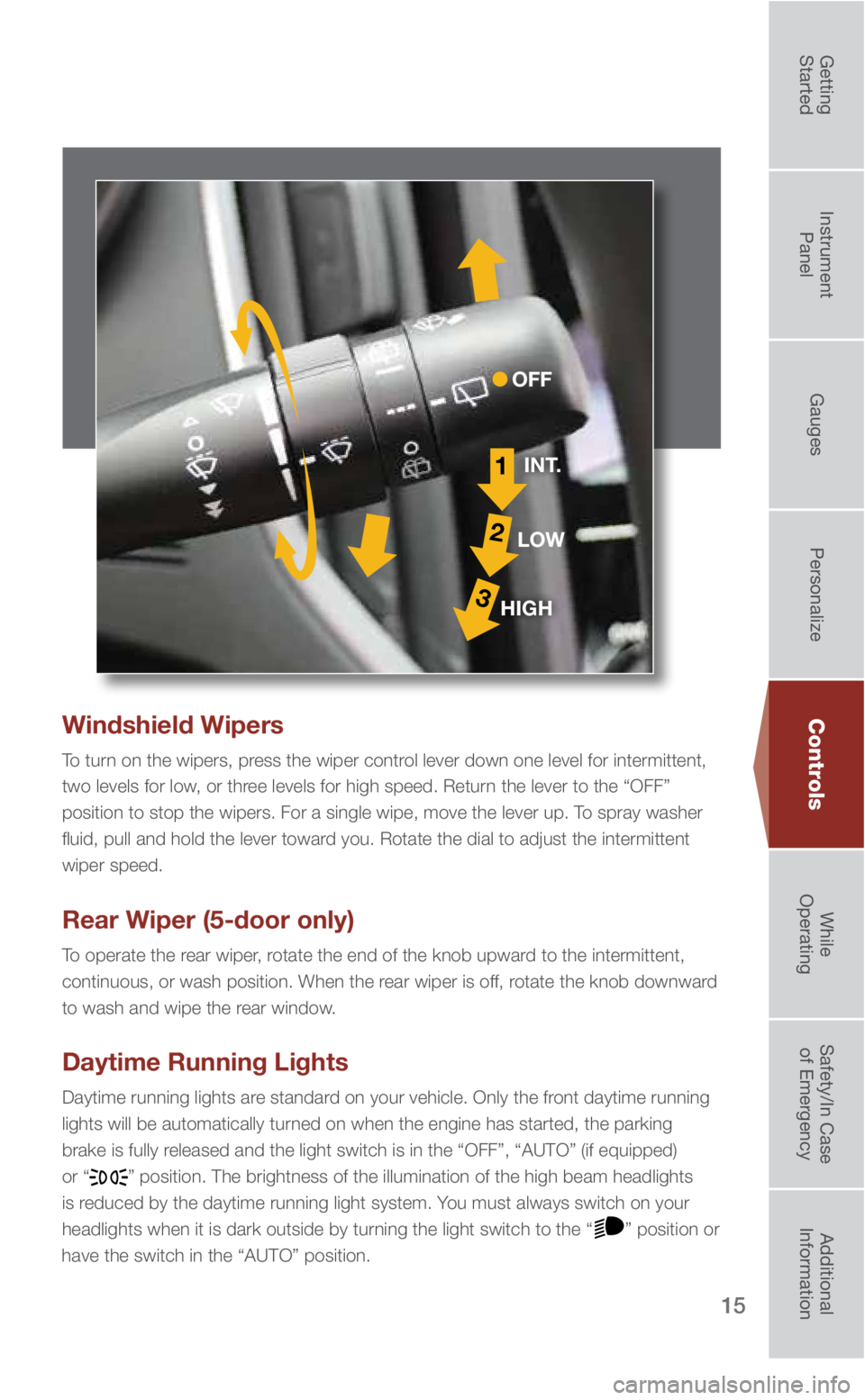

Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
Rear Wiper (5-door only)
To operate the rear wiper, rotate the end of the knob upward to the intermittent,
continuous, or wash position. When the rear wiper is off, rotate the knob downward
to wash and wipe the rear window.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only the front daytime running
lights will be automatically turned on when the engine has started, the parking
brake is fully released and the light switch is in the “OFF”, “AUTO” (if eq\
uipped)
or “
” position. The brightness of the illumination of the high beam headl\
ights
is reduced by the daytime running light system. You must always switch on your
headlights when it is dark outside by turning the light switch to the “
” position or
have the switch in the “AUTO” position.
1
2
3
INT.
LOW
HIGH OFF
Controls
3641428_19b_Impreza_QRG_072518.indd 157/25/18 11:18 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

16
Controls
3
51
246

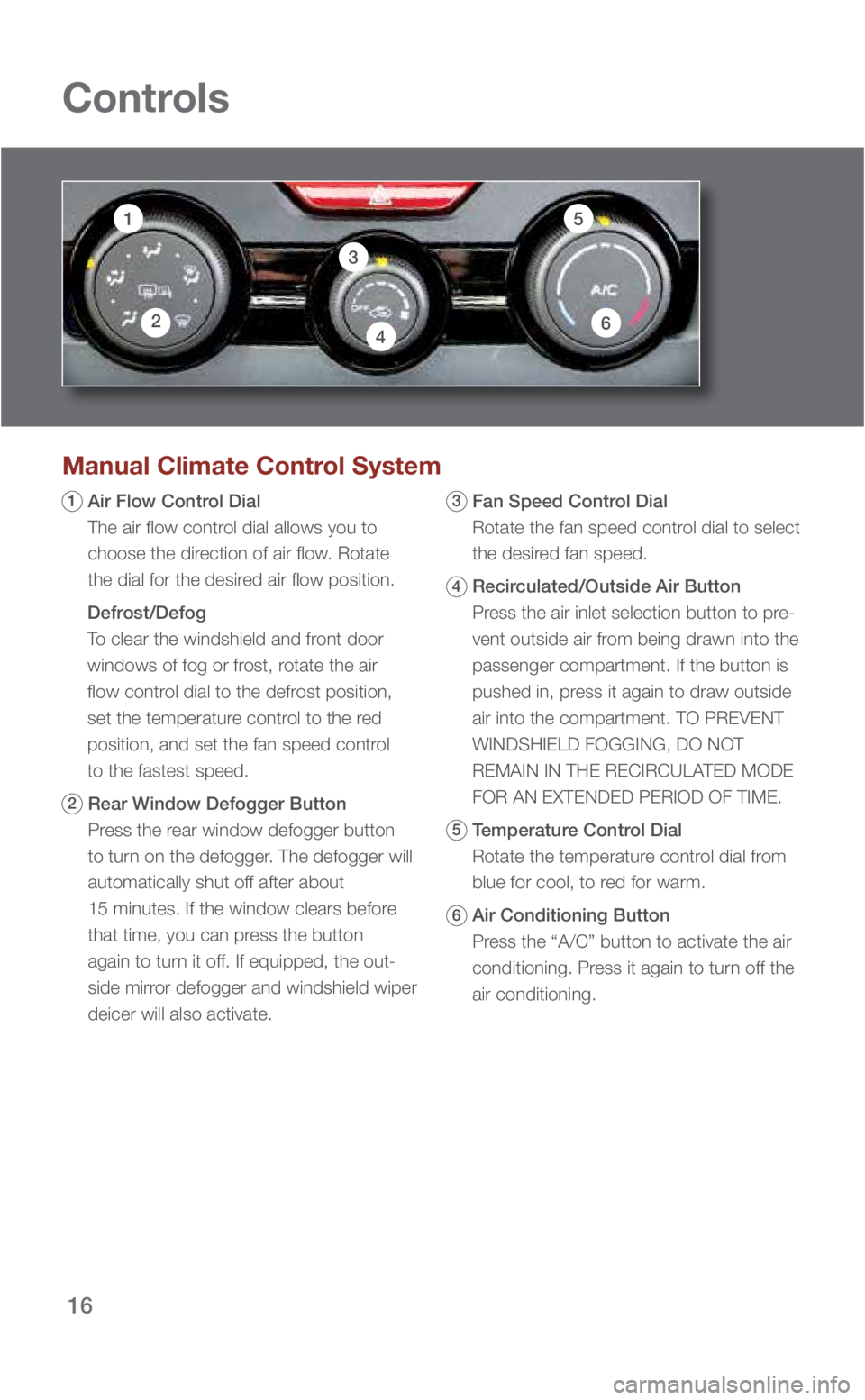

Manual Climate Control System
1 Air Flow Control Dial
The air flow control dial allows you to
choose the direction of air flow. Rotate
the dial for the desired air flow position.

Defrost/Defog
To clear the windshield and front door
windows of fog or frost, rotate the air
flow control dial to the defrost position,
set the temperature control to the red
position, and set the fan speed control
to the fastest speed.
2 Rear Window Defogger Button
Press the rear window defogger button
to turn on the defogger. The defogger will
automatically shut off after about
15 minutes. If the window clears before
that time, you can press the button
again to turn it off. If equipped, the out-
side mirror defogger and windshield wiper
deicer will also activate.
3 Fan Speed Control Dial
Rotate the fan speed control dial to select
the desired fan speed.
4 Recirculated/Outside Air Button
Press the air inlet selection button to pre-
vent outside air from being drawn into the
passenger compartment. If the button is
pushed in, press it again to draw outside
air into the compartment. TO PREVENT
WINDSHIELD FOGGING, DO NOT
REMAIN IN THE RECIRCULATED MODE
FOR AN EXTENDED PERIOD OF TIME.
5 Temperature Control Dial
Rotate the temperature control dial from
blue for cool, to red for warm.
6 Air Conditioning Button
Press the “A/C” button to activate the air
conditioning. Press it again to turn off the
air conditioning.
3641428_19b_Impreza_QRG_072518.indd 167/25/18 11:18 AM

17

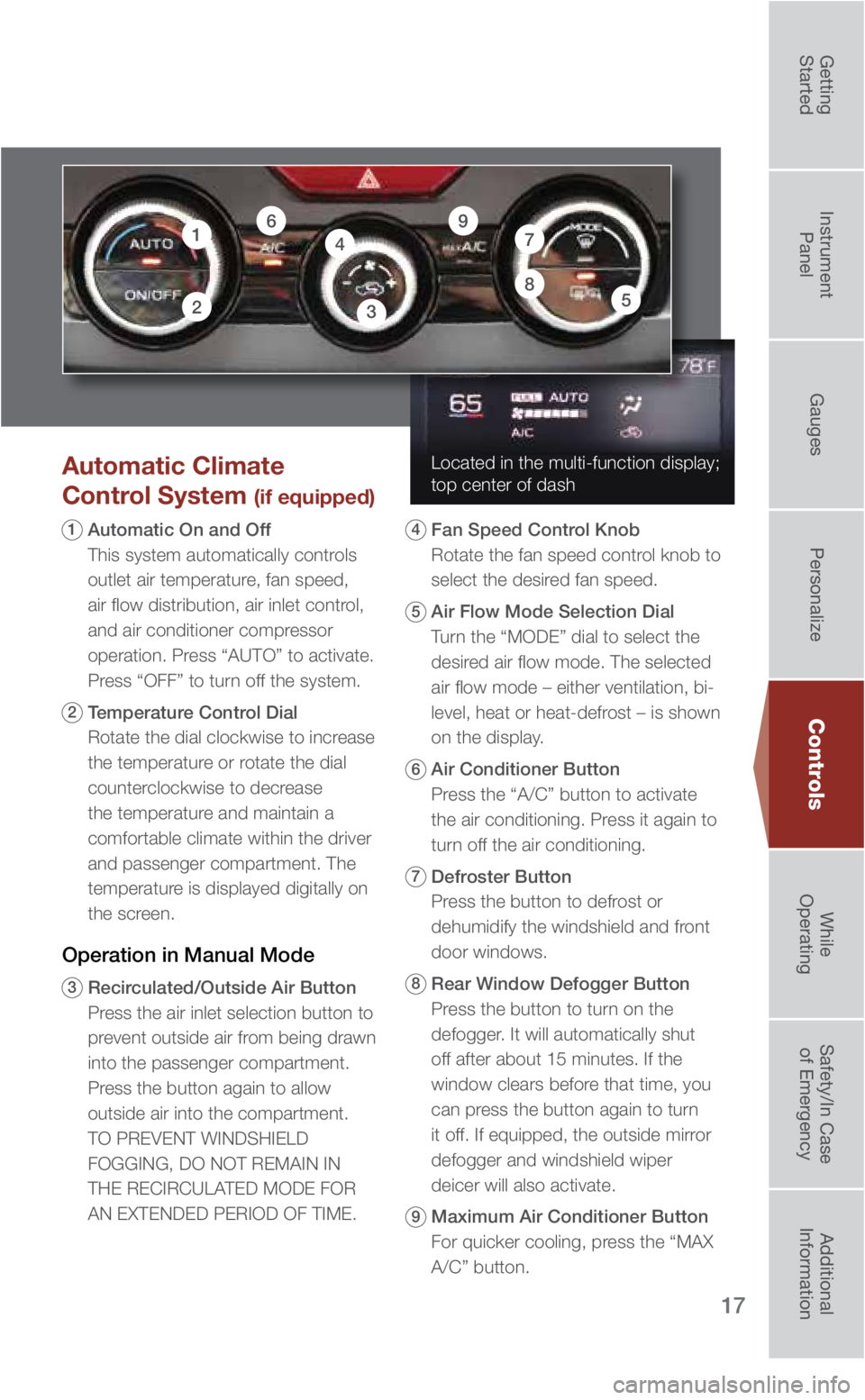

Located in the multi-function display;
top center of dashAutomatic Climate
Control System
(if equipped)
1 Automatic On and Off
This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2 Temperature Control Dial
Rotate the dial clockwise to increase
the temperature or rotate the dial
counterclockwise to decrease
the temperature and maintain a
comfortable climate within the driver
and passenger compartment. The
temperature is displayed digitally on
the screen.
Operation in Manual Mode
3 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN
THE RECIRCULATED MODE FOR
AN EXTENDED PERIOD OF TIME.

4 Fan Speed Control Knob
Rotate the fan speed control knob to
select the desired fan speed.
5 Air Flow Mode Selection Dial
Turn the “MODE” dial to select the
desired air flow mode. The selected
air flow mode – either ventilation, bi-
level, heat or heat-defrost – is shown
on the display.
6 Air Conditioner Button
Press the “A/C” button to activate
the air conditioning. Press it again to
turn off the air conditioning.
7 Defroster Button
Press the button to defrost or
dehumidify the windshield and front
door windows.
8 Rear Window Defogger Button
Press the button to turn on the
defogger. It will automatically shut
off after about 15 minutes. If the
window clears before that time, you
can press the button again to turn
it off. If equipped, the outside mirror
defogger and windshield wiper
deicer will also activate.
9 Maximum Air Conditioner Button
For quicker cooling, press the “MAX
A/C” button.
Controls
1
3
4
582
796
3641428_19b_Impreza_QRG_072518.indd 177/25/18 11:18 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

18
Controls

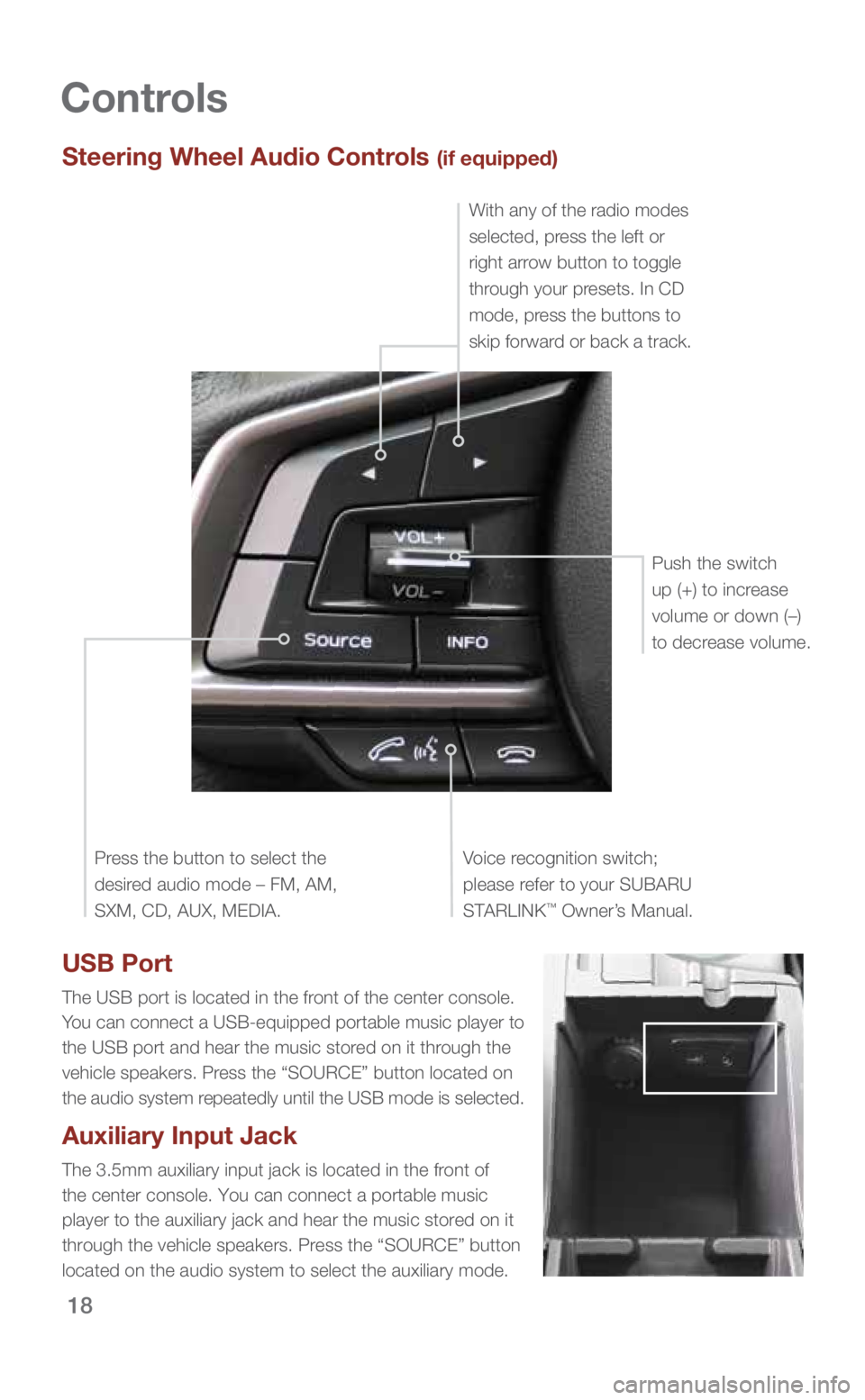

Steering Wheel Audio Controls (if equipped)
Voice recognition switch;
please refer to your SUBARU
STARLINK
™ Owner’s Manual.
Press the button to select the
desired audio mode – FM, AM,
SXM, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to toggle
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
USB Port
The USB port is located in the front of the center console.
You can connect a USB-equipped portable music player to
the USB port and hear the music stored on it through the
vehicle speakers. Press the “SOURCE” button located on
the audio system repeatedly until the USB mode is selected.
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the front of
the center console. You can connect a portable music
player to the auxiliary jack and hear the music stored on it
through the vehicle speakers. Press the “SOURCE” button
located on the audio system to select the auxiliary mode.
3641428_19b_Impreza_QRG_072518.indd 187/25/18 11:18 AM
