SUBARU IMPREZA 2019 Quick Guide

19

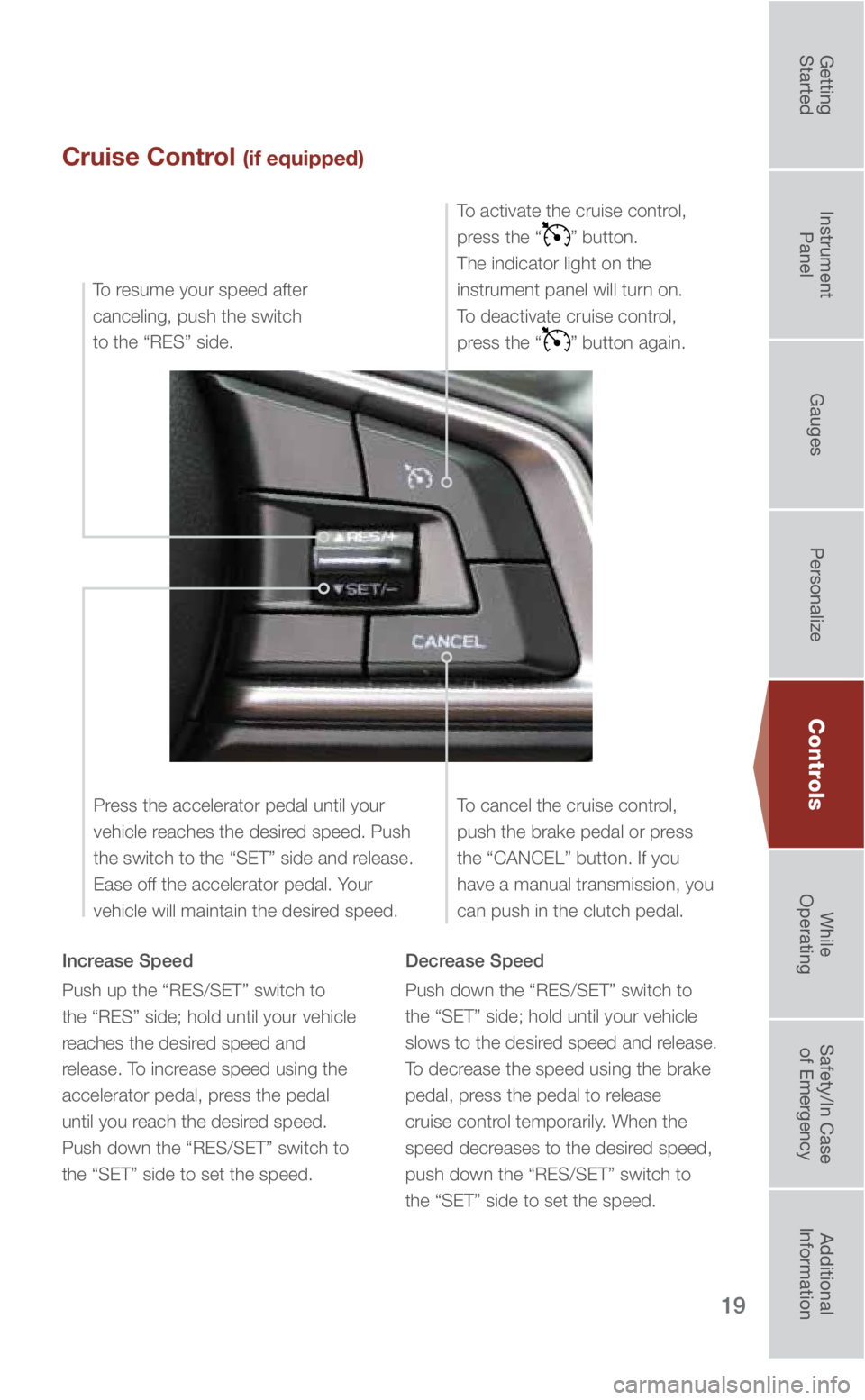

Cruise Control (if equipped)
Increase Speed
Push up the “RES/SET” switch to
the “RES” side; hold until your vehicle
reaches the desired speed and
release. To increase speed using the
accelerator pedal, press the pedal
until you reach the desired speed.
Push down the “RES/SET” switch to
the “SET” side to set the speed. Decrease Speed
Push down the “RES/SET” switch to
the “SET” side; hold until your vehicle
slows to the desired speed and release.
To decrease the speed using the brake
pedal, press the pedal to release
cruise control temporarily. When the
speed decreases to the desired speed,
push down the “RES/SET” switch to
the “SET” side to set the speed. To activate the cruise control,
press the “
” button.
The indicator light on the
instrument panel will turn on.
To deactivate cruise control,
press the “
” button again.
Press the accelerator pedal until your
vehicle reaches the desired speed. Push
the switch to the “SET” side and release.
Ease off the accelerator pedal. Your
vehicle will maintain the desired speed. To cancel the cruise control,
push the brake pedal or press
the “CANCEL” button. If you
have a manual transmission, you
can push in the clutch pedal.

To resume your speed after
canceling, push the switch
to the “RES” side.
Controls
3641428_19b_Impreza_QRG_072518.indd 197/25/18 11:18 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

20

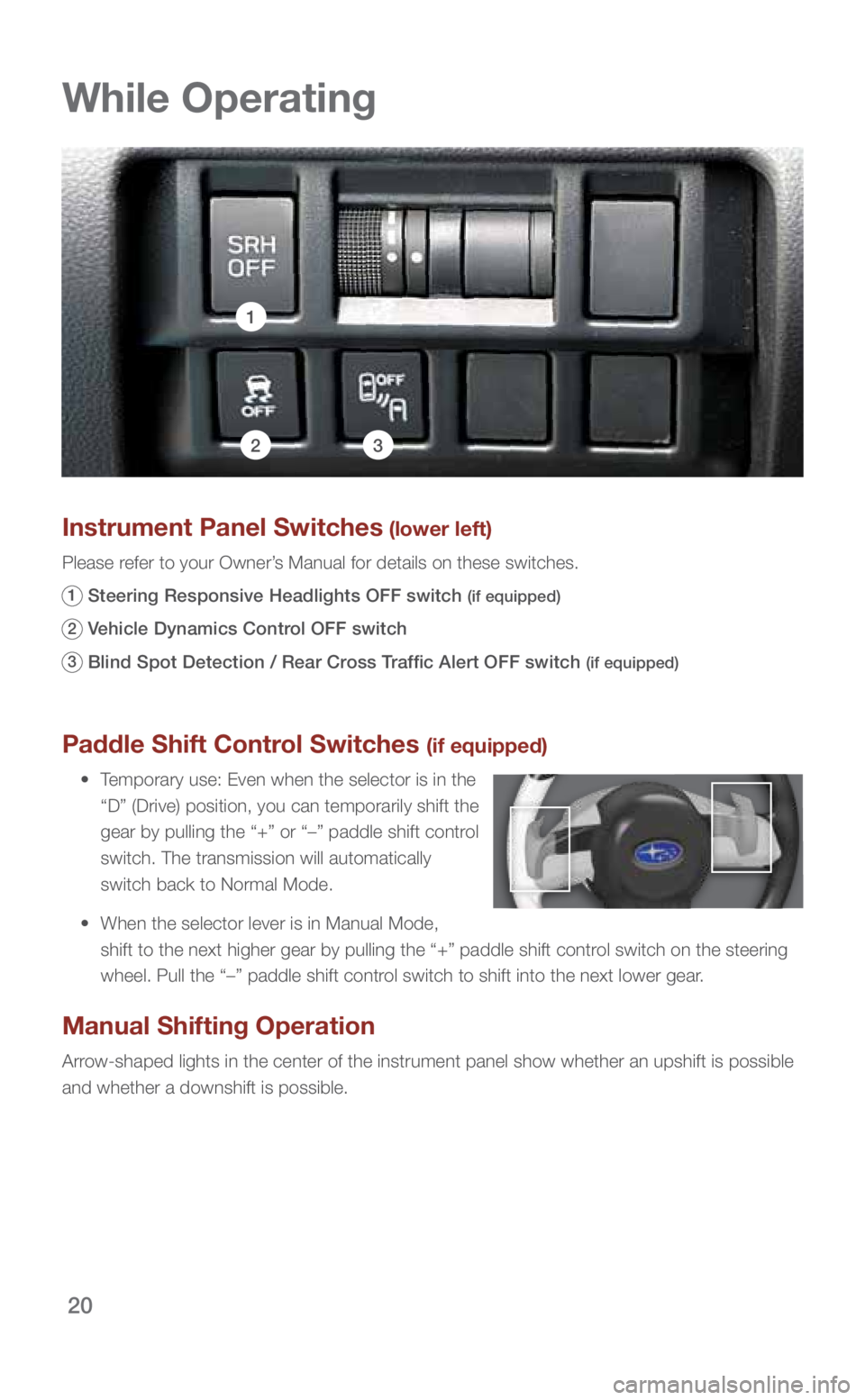

While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.

1 Steering Responsive Headlights OFF switch (if equipped)
2 Vehicle Dynamics Control OFF switch
3 Blind Spot Detection / Rear Cross Traffic Alert OFF switch (if equipped)
1
32
3641428_19b_Impreza_QRG_072518.indd 207/25/18 11:18 AM

21
1

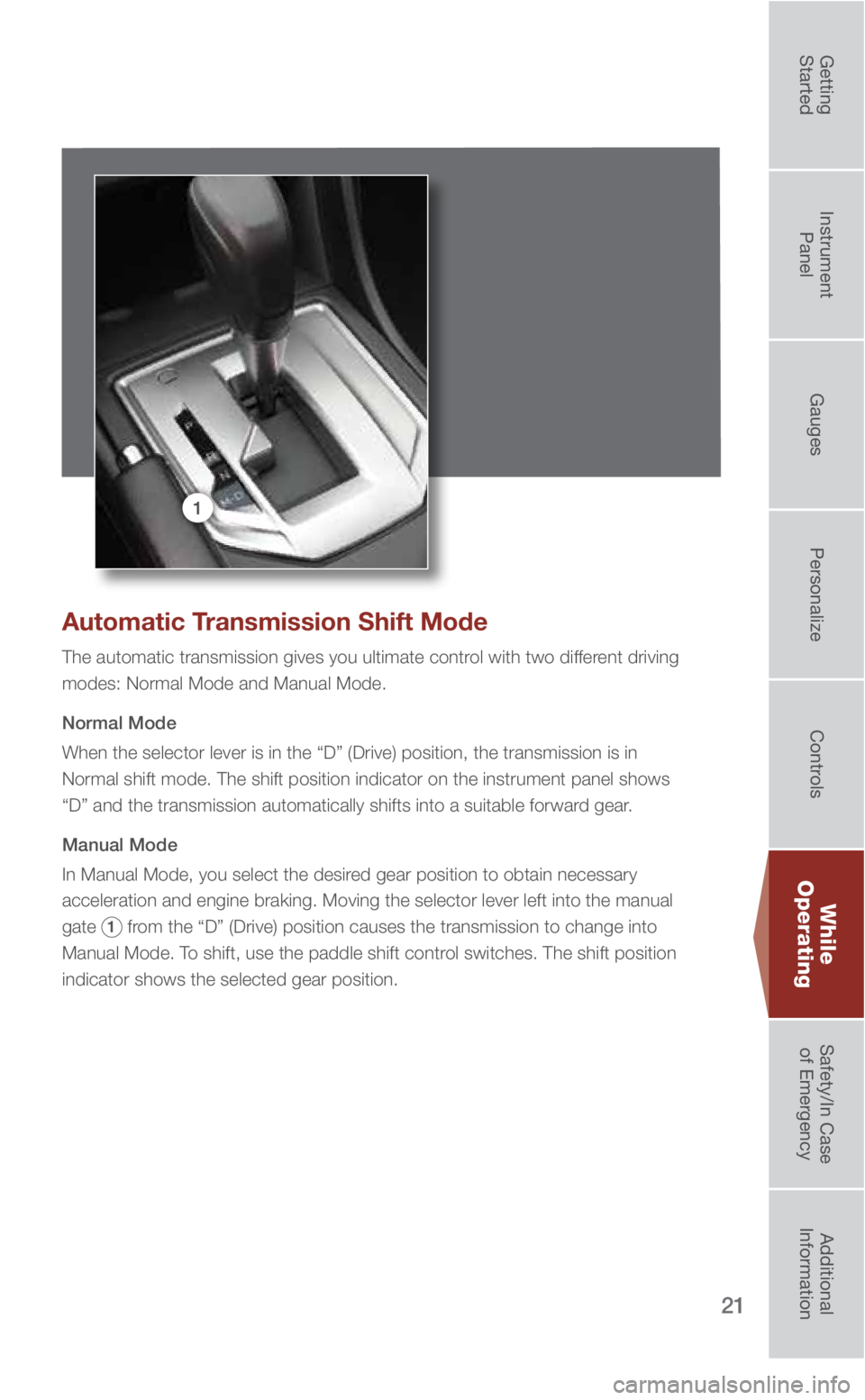

Automatic Transmission Shift Mode
The automatic transmission gives you ultimate control with two different driving
modes: Normal Mode and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in
Normal shift mode. The shift position indicator on the instrument panel \
shows
“D” and the transmission automatically shifts into a suitable forw\
ard gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual
gate
1 from the “D” (Drive) position causes the transmission to change in\
to
Manual Mode. To shift, use the paddle shift control switches. The shift position
indicator shows the selected gear position.
While
Operating
3641428_19b_Impreza_QRG_072518.indd 217/25/18 11:19 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

22

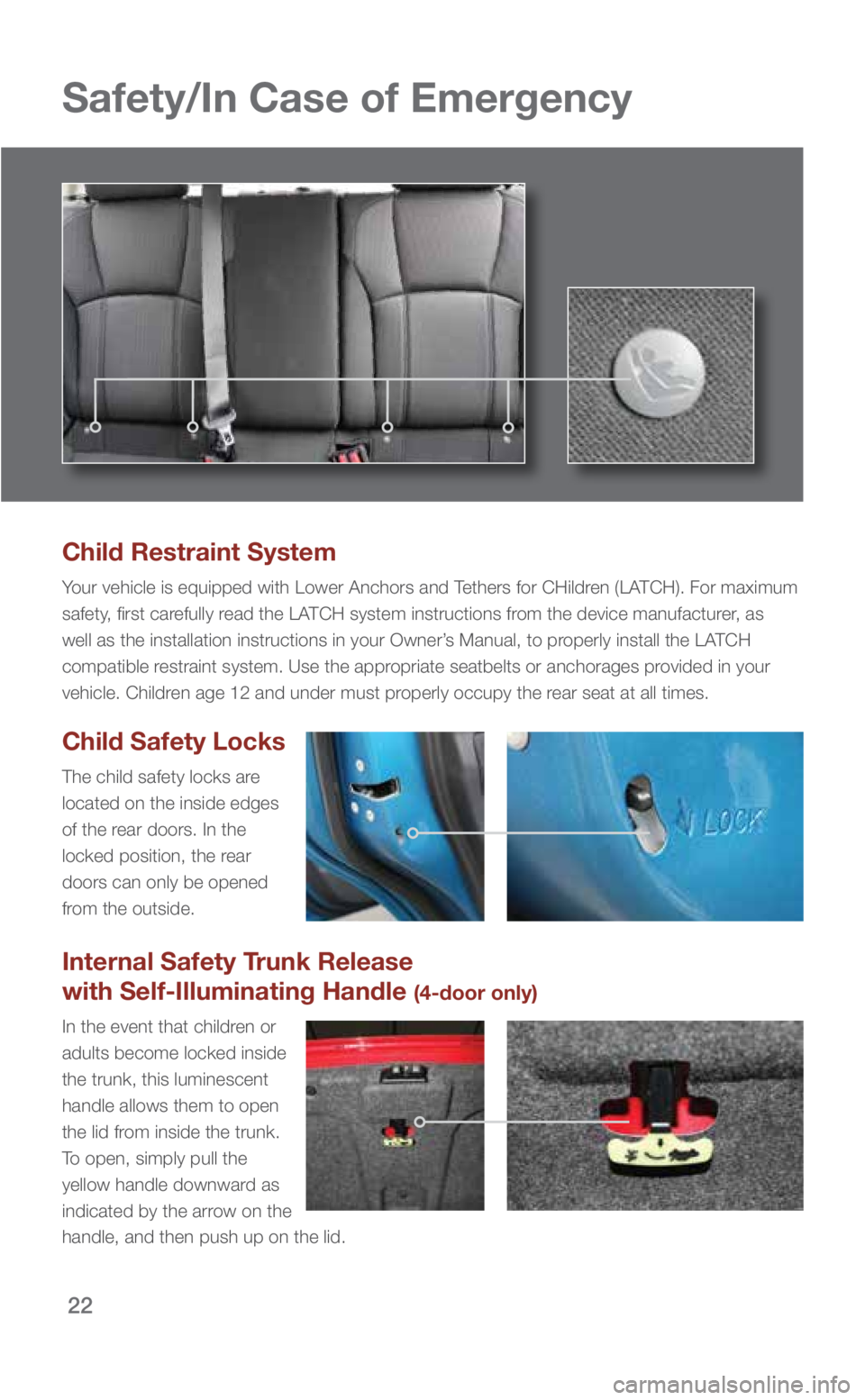

Safety/In Case of Emergency
Child Restraint System
Your vehicle is equipped with Lower Anchors and Tethers for CHildren (LATCH). For maximum
safety, first carefully read the LATCH system instructions from the device manufacturer, as
well as the installation instructions in your Owner’s Manual, to properly install the LATCH
compatible restraint system. Use the appropriate seatbelts or anchorages provided in your
vehicle. Children age 12 and under must properly occupy the rear seat at all times.
Child Safety Locks
The child safety locks are
located on the inside edges
of the rear doors. In the
locked position, the rear
doors can only be opened
from the outside.
Internal Safety Trunk Release
with Self-Illuminating Handle
(4-door only)
In the event that children or
adults become locked inside
the trunk, this luminescent
handle allows them to open
the lid from inside the trunk.
To open, simply pull the
yellow handle downward as
indicated by the arrow on the
handle, and then push up on the lid.
3641428_19b_Impreza_QRG_072518.indd 227/25/18 11:19 AM

23
Location of Spare Tire and Jack
A jack handle is stored under the floor of the trunk (4-door) or the cargo area
(5-door). A jack and a towing hook are stored in the tool bucket in the center of
the spare tire. Also, a tool bag that contains a wheel nut wrench and a screwdriver
is included with the vehicle.
Emergency Towing Your All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel Drive distributes engine power to all\
four
wheels, improper towing will severely damage your AWD system. A flatbed truck
is the only recommended way to properly transport your AWD vehicle. If towing is
necessary, it is best done by your Subaru Retailer or a commercial towing service.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on your vehicle. Coverage
is automatic; there are no forms to complete. Subaru Roadside Assistance
is available anytime during the 3-year/36,000-mile Subaru Limited Warranty,
whichever comes first.* A Subaru Roadside Assistance decal has been af\
fixed to
the driver’s door window.
Subaru Roadside Assistance:
1-800-261-2155
Exclusions
Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation
of any laws, misuse and abuse, or vehicle modifications not recommended by
the manufacturer.
*See your Retailer for details.
4-door:
5-door:
Safety/In Case of Emergency
3641428_19b_Impreza_QRG_072518.indd 237/25/18 11:19 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

24

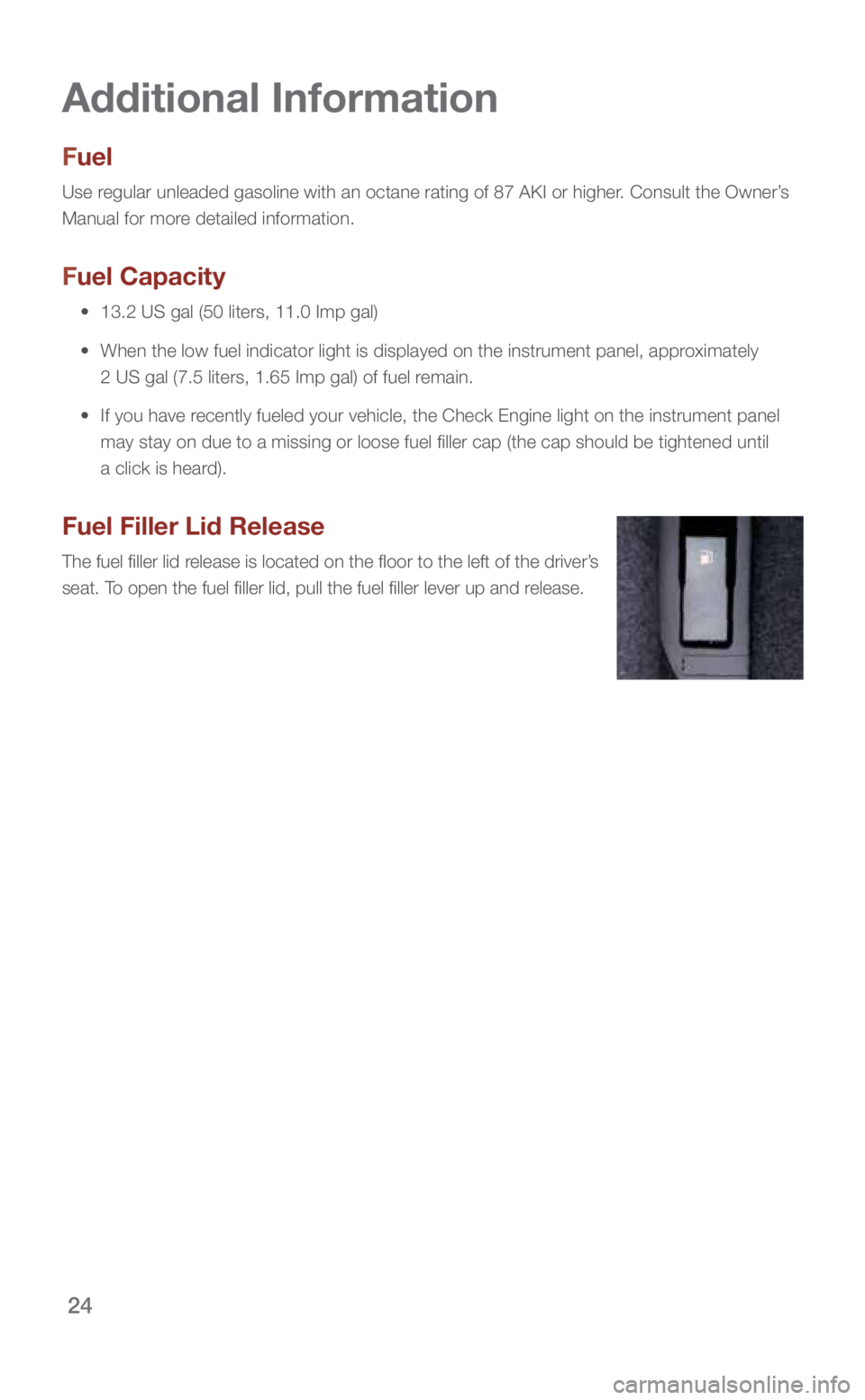

Fuel
Use regular unleaded gasoline with an octane rating of 87 AKI or higher. Consult the Owner’s
Manual for more detailed information.
Fuel Capacity
• 13.2 US gal (50 liters, 11.0 Imp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
2 US gal (7.5 liters, 1.65 Imp gal) of fuel remain.
• If you have recently fueled your vehicle, the Check Engine light on the instrument pa\
nel
may stay on due to a missing or loose fuel filler cap (the cap should\
be tightened until
a click is heard).
Fuel Filler Lid Release
The fuel filler lid release is located on the floor to the left of the driver’s
seat. To open the fuel filler lid, pull the fuel filler lever up and release.
Additional Information
3641428_19b_Impreza_QRG_072518.indd 247/25/18 11:19 AM

25

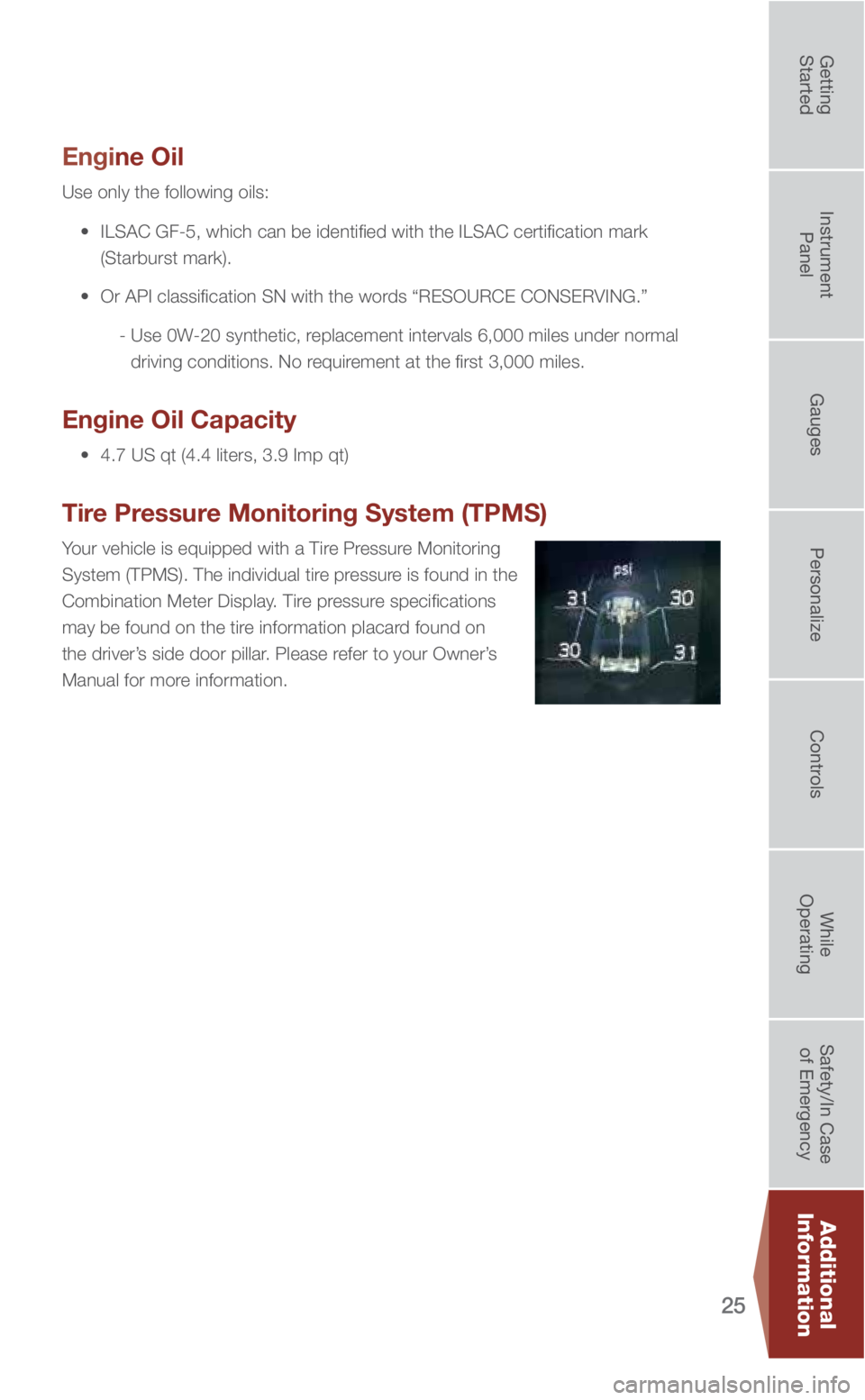

Engine Oil
Use only the following oils:
• ILSAC GF-5, which can be identified with the ILSAC certification mar\
k
(Starburst mark).
• Or API classification SN with the words “RESOURCE CONSERVING.”
- Use 0W-20 synthetic, replacement intervals 6,000 miles under normal
driving conditions. No requirement at the first 3,000 miles.
Engine Oil Capacity
• 4.7 US qt (4.4 liters, 3.9 Imp qt)
Tire Pressure Monitoring System (TPMS)
Your vehicle is equipped with a Tire Pressure Monitoring
System (TPMS). The individual tire pressure is found in the
Combination Meter Display. Tire pressure specifications
may be found on the tire information placard found on
the driver’s side door pillar. Please refer to your Owner’s
Manual for more information.
Additional
Information
3641428_19b_Impreza_QRG_072518.indd 257/25/18 11:19 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

26
Engine Compartment
Additional
Information
Please refer to your Owner’s Manual for more information.
2.0 L Engine
1 Brake Fluid Reservoir

2 Main Fuse Box

3 Battery

4 Windshield Washer Tank

5 Radiator Cap
6
Engine Oil Filler Cap

7 Engine Coolant Reservoir

8 Engine Oil Filter

9 Engine Oil Dipstick

10 Air Cleaner Element
1
9
3
86
7
10
2
5
4
3641428_19b_Impreza_QRG_072518.indd 267/25/18 11:19 AM

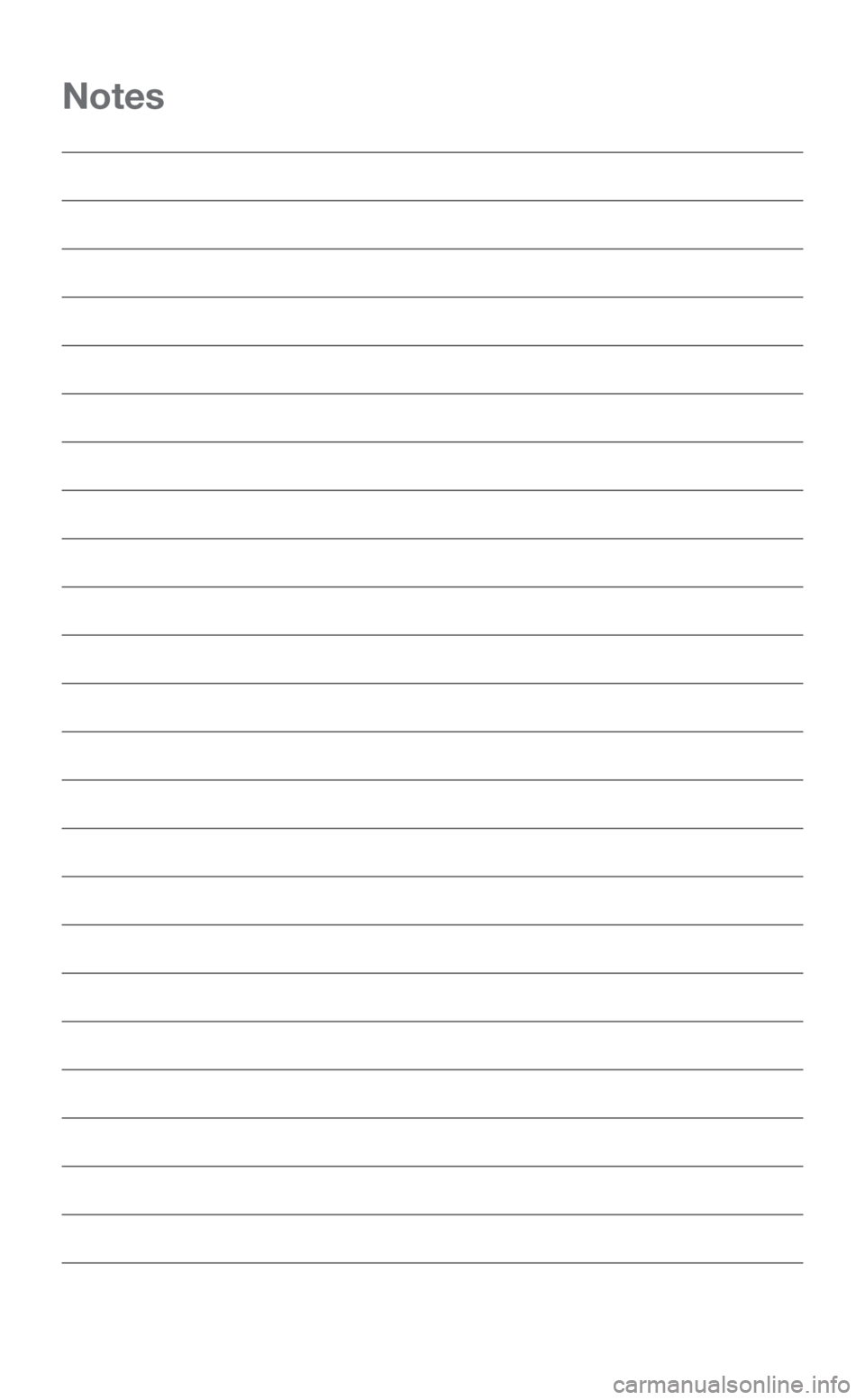

Notes
