Headlights (U.S. spec. WRX-STi)
High-intensity-discharge (HID) bulbs are used
for the low beams of the headlights on the U.S.
spec. WRX-STi. These HID bulbs use an ex-
tremely high voltage. To avoid the risk of an
electric shock and resulting serious injury, you
should not attempt to replace them. Neither
should you attempt to replace the high-beam
bulbs, remove/refit the headlight assemblies,
or remove any headlight-assembly compo-
nents. For replacement of the headlight bulbs
(low-beam and high-beam), removal and instal-
lation of the headlight assemblies, and removal
of headlight-assembly components, contact
your Subaru dealer.
! Headlight (Except U.S. spec. WRX-STi)
Halogen headlight bulbs become very hot while
in use. If you touch the bulb surface with bare
hands or greasy gloves, finger prints or grease on the bulb surface will develop into hot spots
and cause the bulb to break. If there are finger
prints or grease on the bulb surface, wipe them
away with a soft cloth moistened with alcohol.
NOTE "

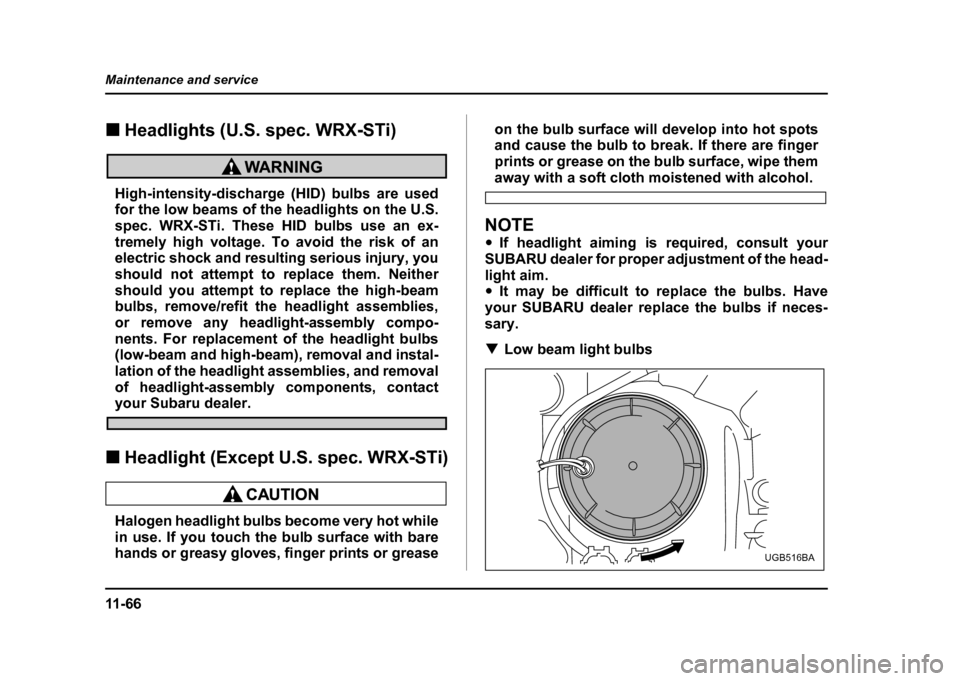

If headlight aiming is required, consult your
SUBARU dealer for proper adjustment of the head-
light aim. " It may be difficult to replace the bulbs. Have
your SUBARU dealer replace the bulbs if neces-
sary. ! Low beam light bulbs
UGB516BA

11 -6 7
Maintenance and service
– CONTINUED –

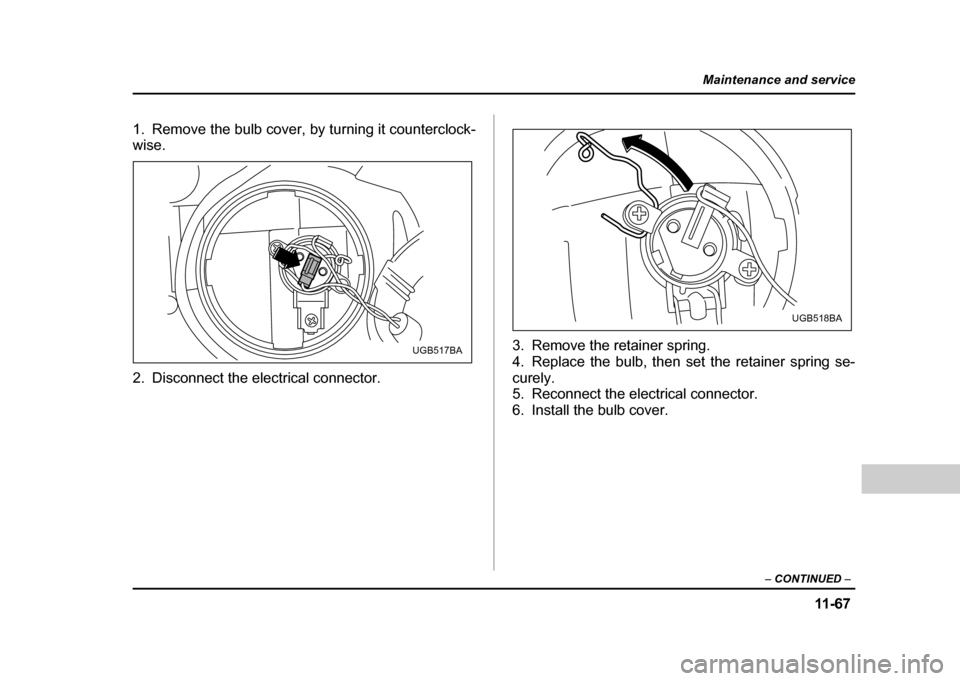

1. Remove the bulb cover, by turning it counterclock- wise.
2. Disconnect the electrical connector. 3. Remove the retainer spring.
4. Replace the bulb, then set the retainer spring se-curely.
5. Reconnect the electrical connector.
6. Install the bulb cover.
UGB517BA
UGB518BA

11 - 6 8
Maintenance and service
!
High beam light bulbs

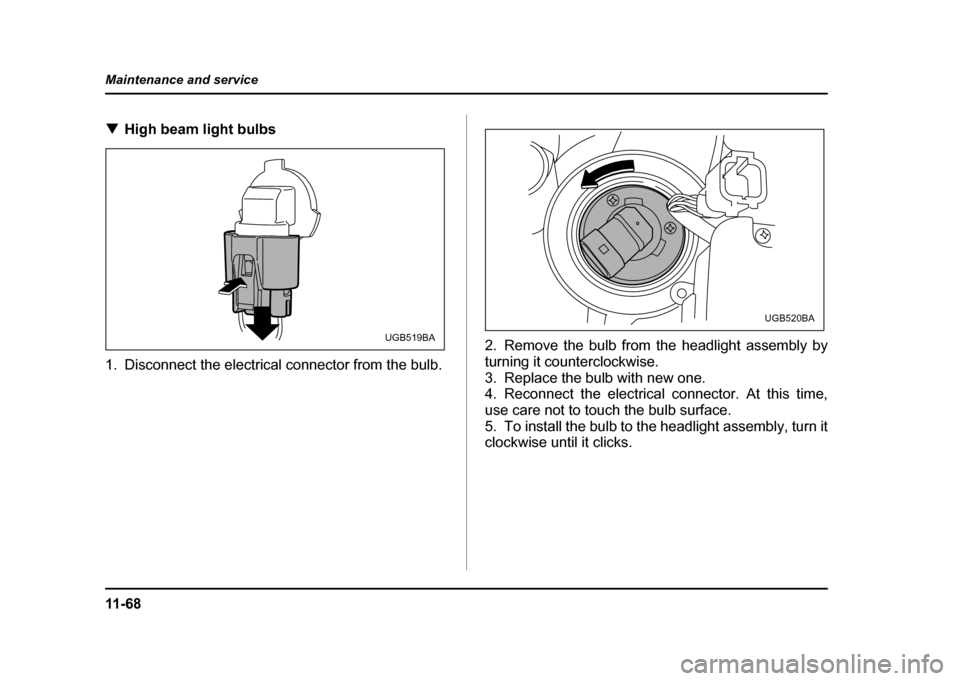

1. Disconnect the electrical connector from the bulb. 2. Remove the bulb from the headlight assembly by
turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At this time,
use care not to touch the bulb surface.
5. To install the bulb to the headlight assembly, turn it
clockwise until it clicks.
UGB519BA
UGB520BA

11 -6 9
Maintenance and service
– CONTINUED –
!Front turn signal light bulbs

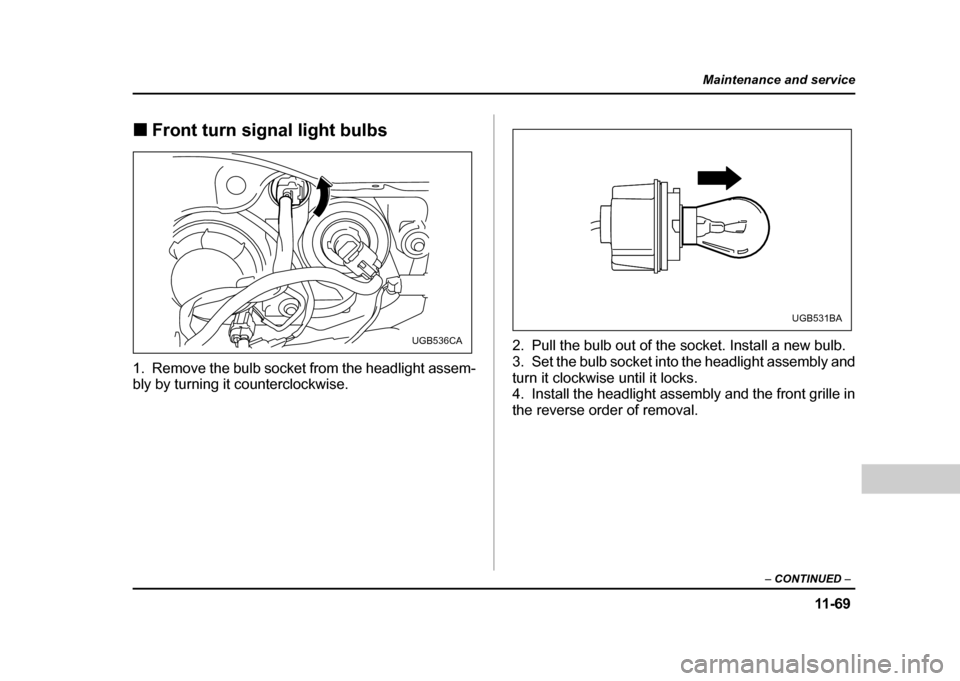

1. Remove the bulb socket from the headlight assem-
bly by turning it counterclockwise. 2. Pull the bulb out of the socket. Install a new bulb.
3. Set the bulb socket into the headlight assembly and
turn it clockwise until it locks.
4. Install the headlight assembly and the front grille in
the reverse order of removal.
UGB536CA
UGB531BA

11 - 7 0
Maintenance and service
!
Parking light
1) Parking light
The headlight assembly must be removed before the
parking light bulbs can be replaced. When the head-
light assembly has been removed and then rein-
stalled, it may become necessary to make a headlight
aiming adjustment. It may be difficult to replace the
bulbs. Have your SUBARU dealer replace the bulbs if
necessary. !
Before removing the headlight assembly0

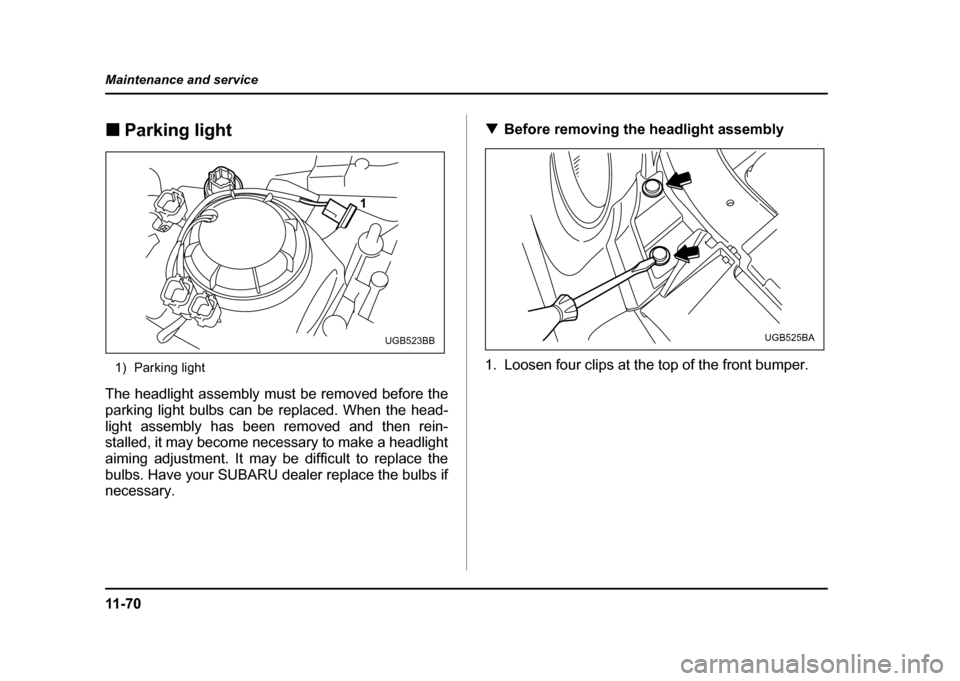

1. Loosen four clips at the top of the front bumper.
1
UGB523BBUGB525BA

11 -7 1
Maintenance and service
– CONTINUED –
#:Clip

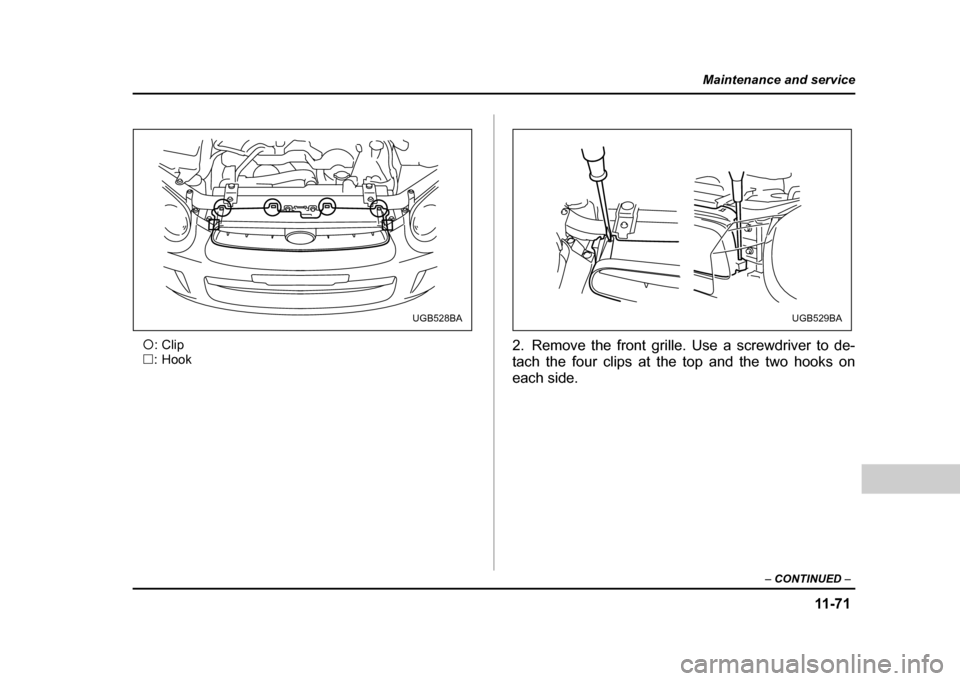

$ : Hook 2. Remove the front grille. Use a screwdriver to de-
tach the four clips at the top and the two hooks on
each side.
UGB528BAUGB529BA

11 - 7 2
Maintenance and service
!

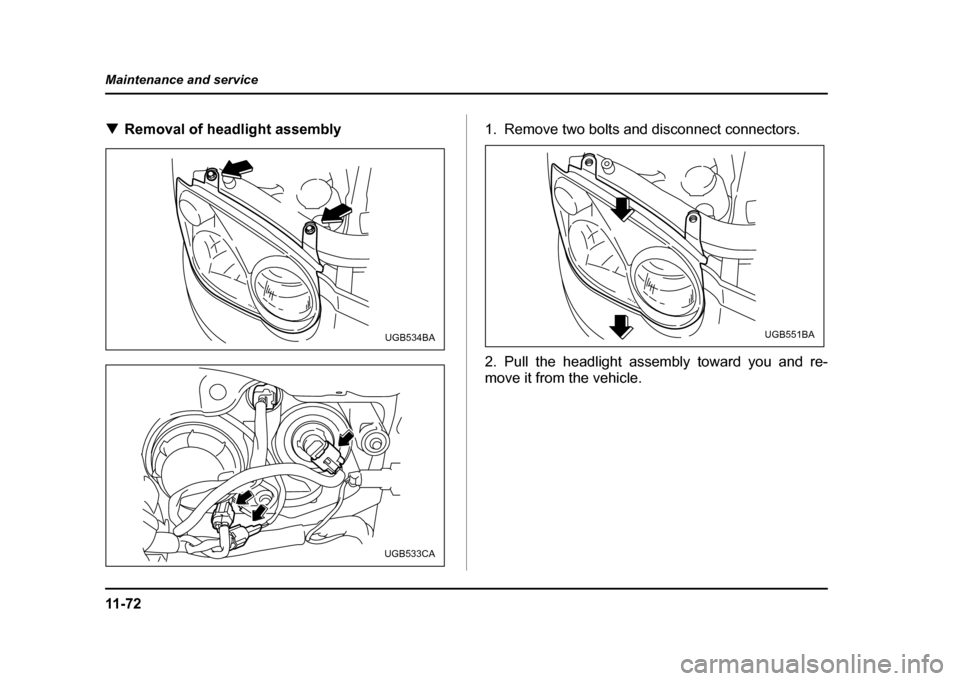

Removal of headlight assembly 1. Remove two bolts and disconnect connectors.
2. Pull the headlight assembly toward you and re-
move it from the vehicle.
UGB534BA
UGB533CA
UGB551BA

11 -7 3
Maintenance and service
– CONTINUED –
!Parking light bulbs
1. Remove the bulb socket from the headlight assem-
bly by turning it counterclockwise. 2. Pull the bulb out of the socket. Install a new bulb.
3. Set the bulb socket into the headlight assembly and
turn it clockwise until it locks.
4. Install the headlight assembly and the front grille in
the reverse order of removal. !
Front fog light
It may be difficult to replace the bulbs. Have your SUB-
ARU dealer replace the bulbs if necessary.
UGB535BA
UGB532BA

11 - 7 4
Maintenance and service
!
Rear combination lights
! Sedan

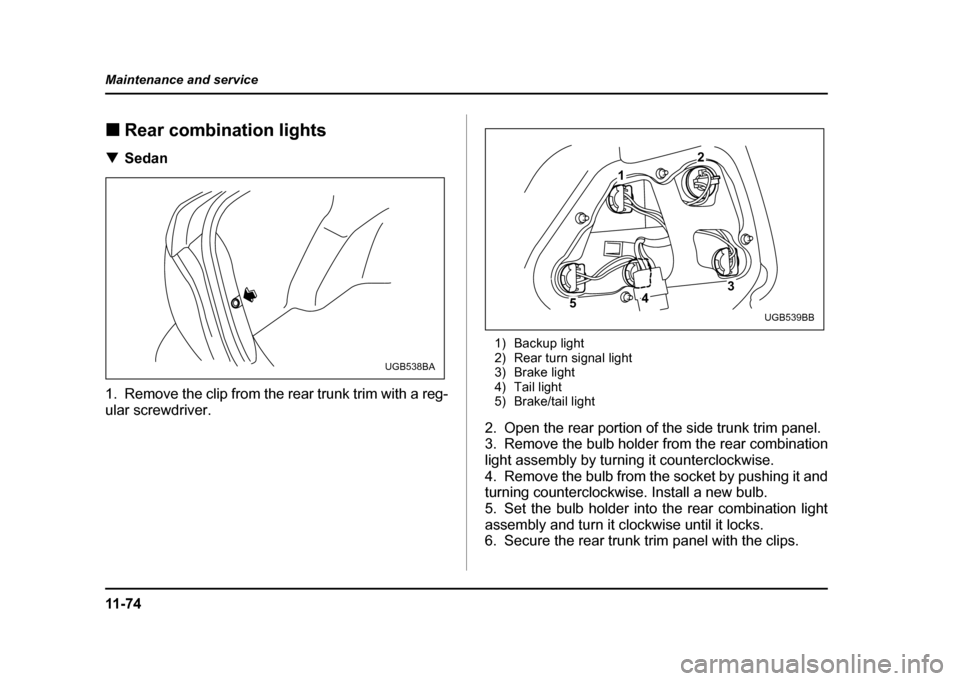

1. Remove the clip from the rear trunk trim with a reg-
ular screwdriver. 1) Backup light
2) Rear turn signal light
3) Brake light
4) Tail light
5) Brake/tail light
2. Open the rear portion of the side trunk trim panel.
3. Remove the bulb holder from the rear combination
light assembly by turning it counterclockwise.
4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb.
5. Set the bulb holder into the rear combination light
assembly and turn it clockwise until it locks.
6. Secure the rear trunk trim panel with the clips.
UGB538BA
554
2
3
1
UGB539BB

11 -7 5
Maintenance and service
– CONTINUED –
!Wagon
1. Using a Phillips screwdriver, remove the upper and
lower screws that secure the side cover of the rear
combination light assembly. 2. Remove the upper and lower screws. Then, slide
the rear combination lamp assembly to the rear and
remove it from the vehicle.
UGB540BA
UGB541BA
