SUBARU IMPREZA WRX 2004 2.G Owners Manual

12-6
Specifications

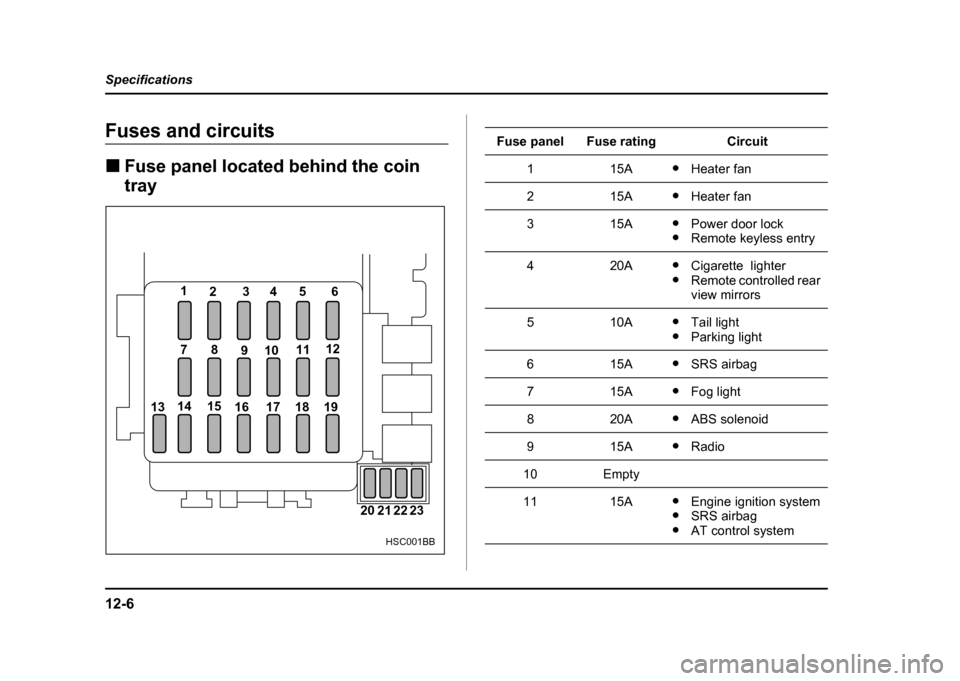

Fuses and circuits !
Fuse panel located behind the coin tray
1
23456
78 9101112
13 14 15
16 17 18 19
20 21 22 23
HSC001BB
Fuse panelFuse ratingCircuit
115A"Heater fan
215A"Heater fan
315A"Power door lock
" Remote keyless entry
420A"Cigarette lighter
" Remote controlled rear
view mirrors
510A"Tail light
" Parking light
615A"SRS airbag
715A"Fog light
820A"ABS solenoid
915A"Radio
10Empty
1115A"Engine ignition system
" SRS airbag
" AT control system

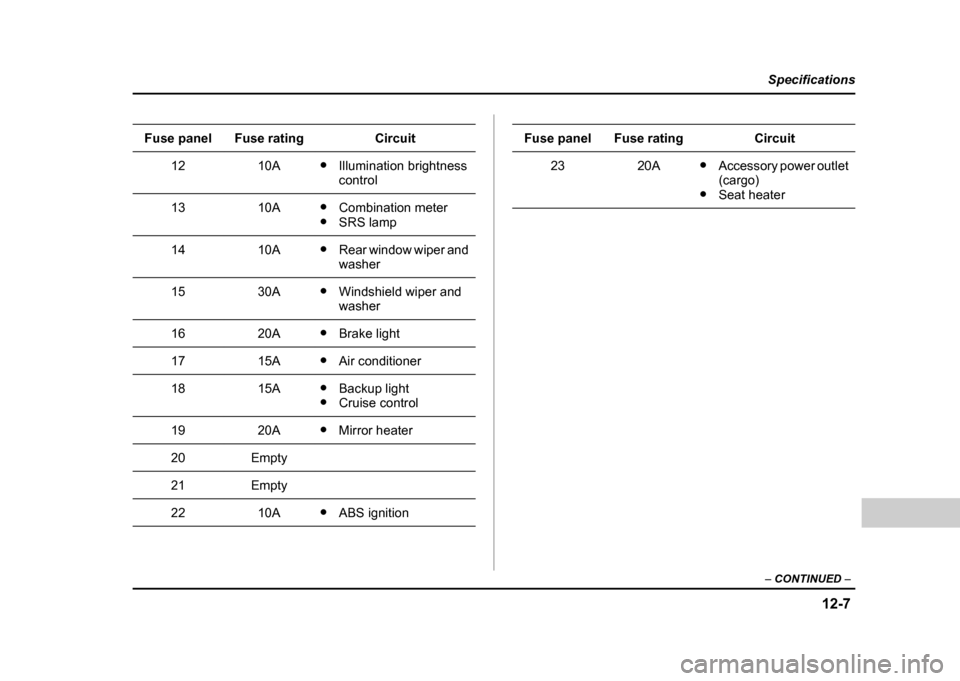

12-7
Specifications
– CONTINUED –
1210A"Illumination brightness
control
1310A"Combination meter
" SRS lamp
1410A"Rear window wiper and
washer
1530A"Windshield wiper and
washer
1620A"Brake light
1715A"Air conditioner
1815A"Backup light
" Cruise control
1920A"Mirror heater
20Empty
21Empty
2210A"ABS ignition
Fuse panelFuse ratingCircuit
2320A"Accessory power outlet
(cargo)
" Seat heater
Fuse panelFuse ratingCircuit

12-8
Specifications
!

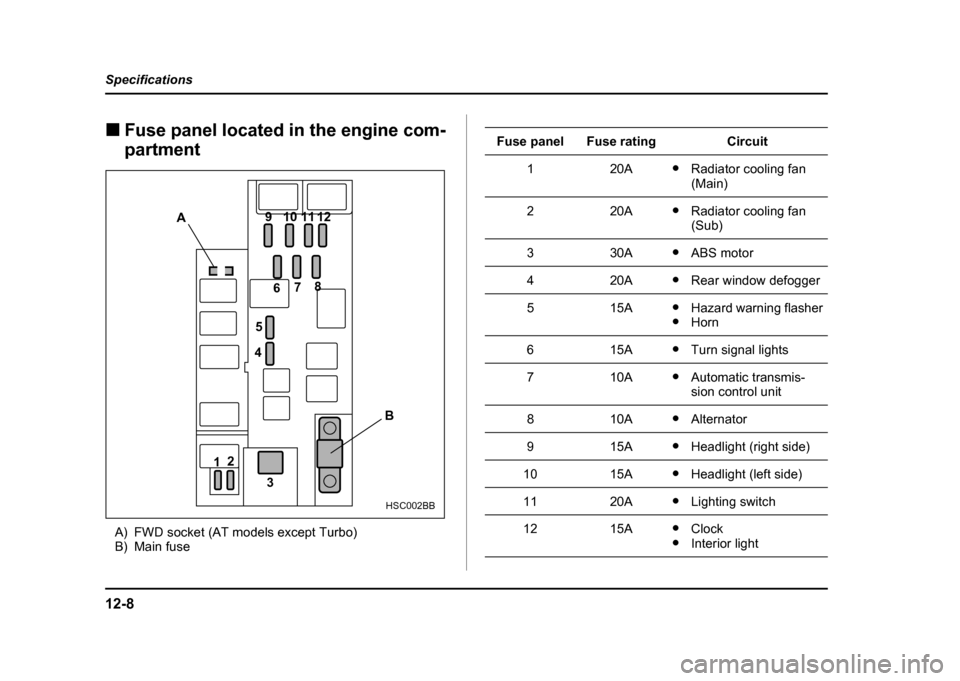

Fuse panel located in the engine com-
partment
A) FWD socket (AT models except Turbo)
B) Main fuse
A 12
3 B
4
5 6
78
91011
12
HSC002BB
Fuse panelFuse ratingCircuit
120A"
Radiator cooling fan
(Main)
220A"Radiator cooling fan
(Sub)
330A"ABS motor
420A"Rear window defogger
515A"Hazard warning flasher
" Horn
615A"Turn signal lights
710A"Automatic transmis- sion control unit
810A"Alternator
915A"Headlight (right side)
1015A"Headlight (left side)
1120A"Lighting switch
1215A"Clock
" Interior light

12-9
Specifications
– CONTINUED –
Bulb chart
Description Wattage Bulb type
Headlight
U.S. spec. WRX-
STi versionLow beam 12V-35W D2R
High beam 12V-60W 9005 (HB3)
Except U.S. spec. WRX-STi version Low beam 12V-55W H1
High beam 12V-60W 9005 (HB3)
Front fog light 12V-55W H3
Front turn signal 12V-21W —
Parking light 12V-5W 168
Rear combination
light Brake light (sedan) 12V-21W 7440
Brake/tail light 12V-21/5W 7443
Turn signal light 12V-21W (Amber) —
Tail light (sedan) 12V-21/5W 7443
Back-up light 12V-21W 7440 High mount stop light
Sedan
(in compartment) 12V-18W 921
Sedan
(in rear spoiler) 12V-1.2W —
Wagon 12V-13W 912
License plate light 12V-5W 168
Trunk room light 12V-16W W16W
Cargo area light 12V-13W —
Front ashtray light 12V-1.4W —
Dome light 12V-8W —
Map light 12V-8W —
Description Wattage Bulb type

12-10
Specifications

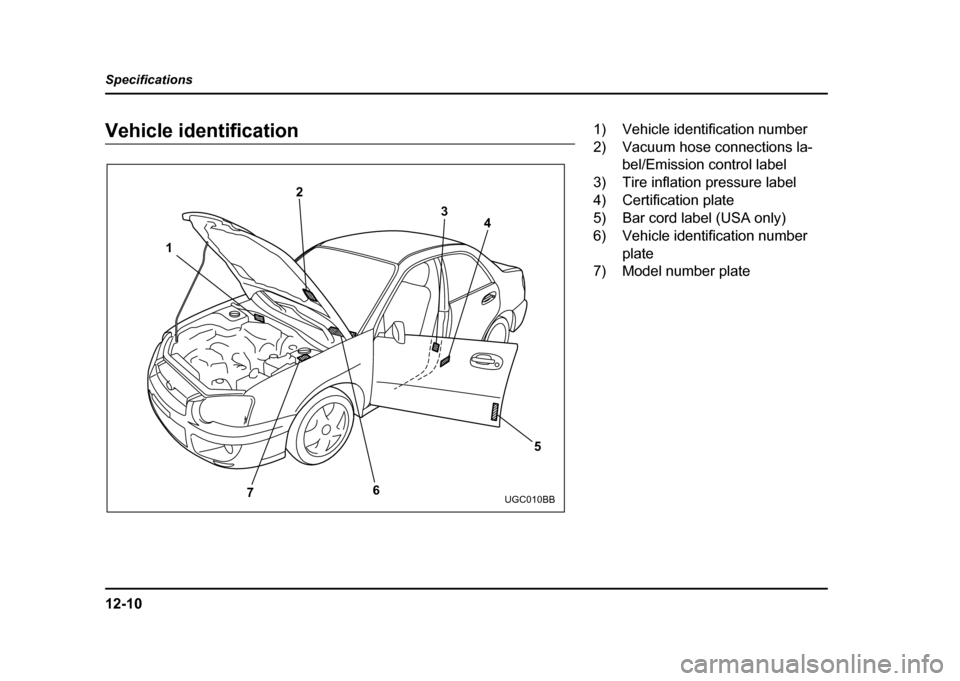

Vehicle identification
2
1
7 64
3
5
UGC010BB
1) Vehicle identification number
2) Vacuum hose connections la-bel/Emission control label
3) Tire inflation pressure label
4) Certification plate
5) Bar cord label (USA only)
6) Vehicle identification number plate
7) Model number plate

13-1
13
Consumer information and Reporting safety defectsUniform tire quality grading standards ....... 13-2Treadwear .......................................................... 13-2
Traction AA, A, B, C .......................................... 13-2
Temperature A, B, C ......................................... 13-3
Reporting safety defects (USA) ................... 13-4

13-2
Consumer information and Reporting safety defects
Consumer information and Reporting safety defectsFor U.S.A.
The following information has been compiled accord-
ing to Code of Federal Regulations “Title 49, Part
575”. Uniform tire quality grading stan-
dards
This information indicates the relative performance of
passenger car tires in the area of treadwear, traction,
and temperature resistance. This is to aid the consum-
er in making an informed choice in the purchase oftires.
Quality grades can be found where applicable on the
tire sidewall between tread shoulder and maximum
section width. For example:
Treadwear 200 Traction AA Temperature A
The quality grades apply to new pneumatic tires for
use on passenger cars. However, they do not apply to
deep tread, winter type snow tires, space-saver or
temporary use spare tires, tires with nominal rim diam-
eters of 12 inches or less, or to some limited produc- tion tires.
All passenger car tires must confirm to Federal Safety
Requirements in addition to these grades. !
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course.
For example, a tire graded 150 would wear one and
one-half (1-1/2) times as well on the government
course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their
use, however, and may depart significantly from the
norm due to variations in driving habits, service prac-
tices and differences in road characteristics and cli-mate. ! Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A,
B and C. Those grades represent the tire’s ability to
stop on wet pavement as measured under controlled
conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor
traction performance.
The traction grade assigned to this tire is based

13-3
Consumer information and Reporting safety defects
– CONTINUED –
on straight-ahead braking traction tests, and
does not include acceleration, cornering, hy-
droplaning, or peak traction characteristics.
! Temperature A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life,
and excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet under
the Federal Motor Vehicle Safety Standards No. 109.
Grades B and A represent higher levels of perfor-
mance on the laboratory test wheel than the minimum
required by law.
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation,
or excessive loading, either separately or in
combination, can cause heat buildup and pos-
sible tire failure.

13-4
Consumer information and Reporting safety defects
Reporting safety defects (USA)
If you believe that your vehicle has a defect
which could cause a crash or could cause in-
jury or death, you should immediately inform
the National Highway Traffic Safety Admin-
istration (NHTSA) in addition to notifying
Subaru of America, Inc.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved
in individual problems between you, your
dealer, or Subaru of America, Inc. To con-
tact NHTSA, you may either call the Auto
Safety Hotline toll-free at 1-800-424-9393
(or 366-0123 in the Washington D.C. area)
or write to: NHTSA, U.S. Department of
Transportation, Washington, D.C. 20590.
You can also obtain other information aboutmotor vehicle safety from the Hotline.
