SUBARU LEGACY 1995 Service Repair Manual

OBD0513A
2

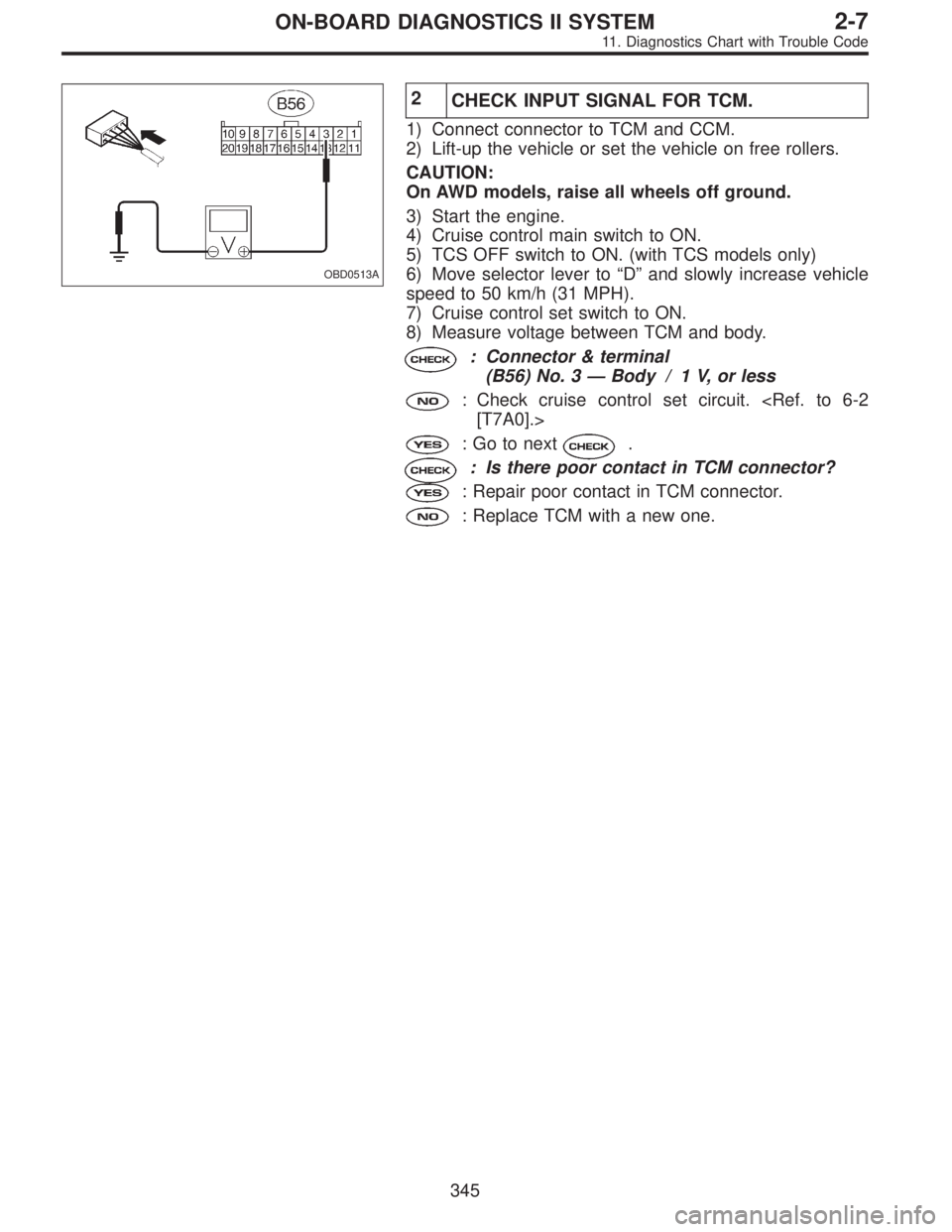

CHECK INPUT SIGNAL FOR TCM.
1) Connect connector to TCM and CCM.
2) Lift-up the vehicle or set the vehicle on free rollers.
CAUTION:
On AWD models, raise all wheels off ground.
3) Start the engine.
4) Cruise control main switch to ON.
5) TCS OFF switch to ON. (with TCS models only)
6) Move selector lever to“D”and slowly increase vehicle
speed to 50 km/h (31 MPH).
7) Cruise control set switch to ON.
8) Measure voltage between TCM and body.
: Connector & terminal
(B56) No. 3—Body / 1 V, or less
: Check cruise control set circuit. [T7A0].>
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Replace TCM with a new one.
345
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code

OBD0516

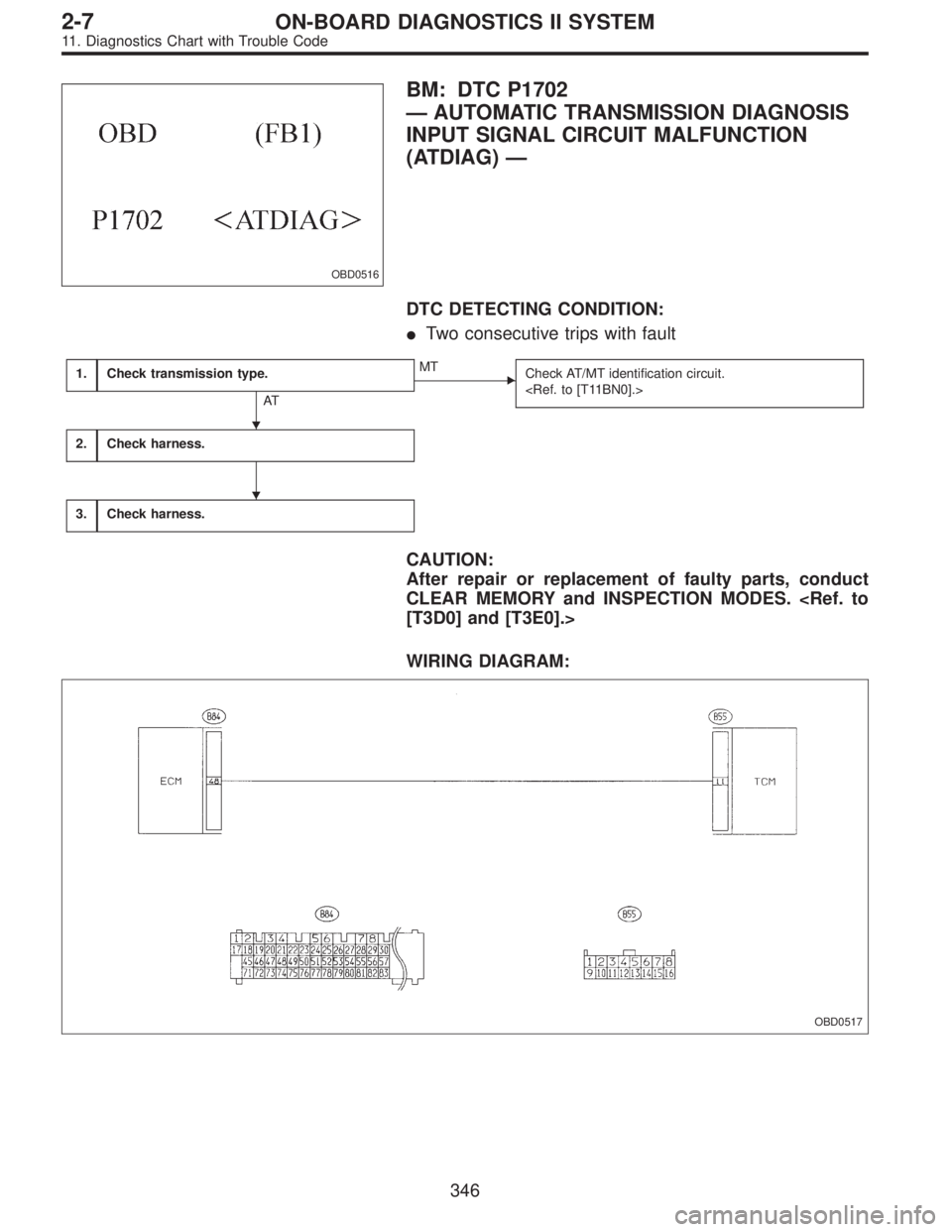

BM: DTC P1702
—AUTOMATIC TRANSMISSION DIAGNOSIS
INPUT SIGNAL CIRCUIT MALFUNCTION
(ATDIAG)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
1.Check transmission type.
AT
MT
Check AT/MT identification circuit.

2.Check harness.
3.Check harness.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES. [T3D0] and [T3E0].>
WIRING DIAGRAM:
OBD0517


346
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code

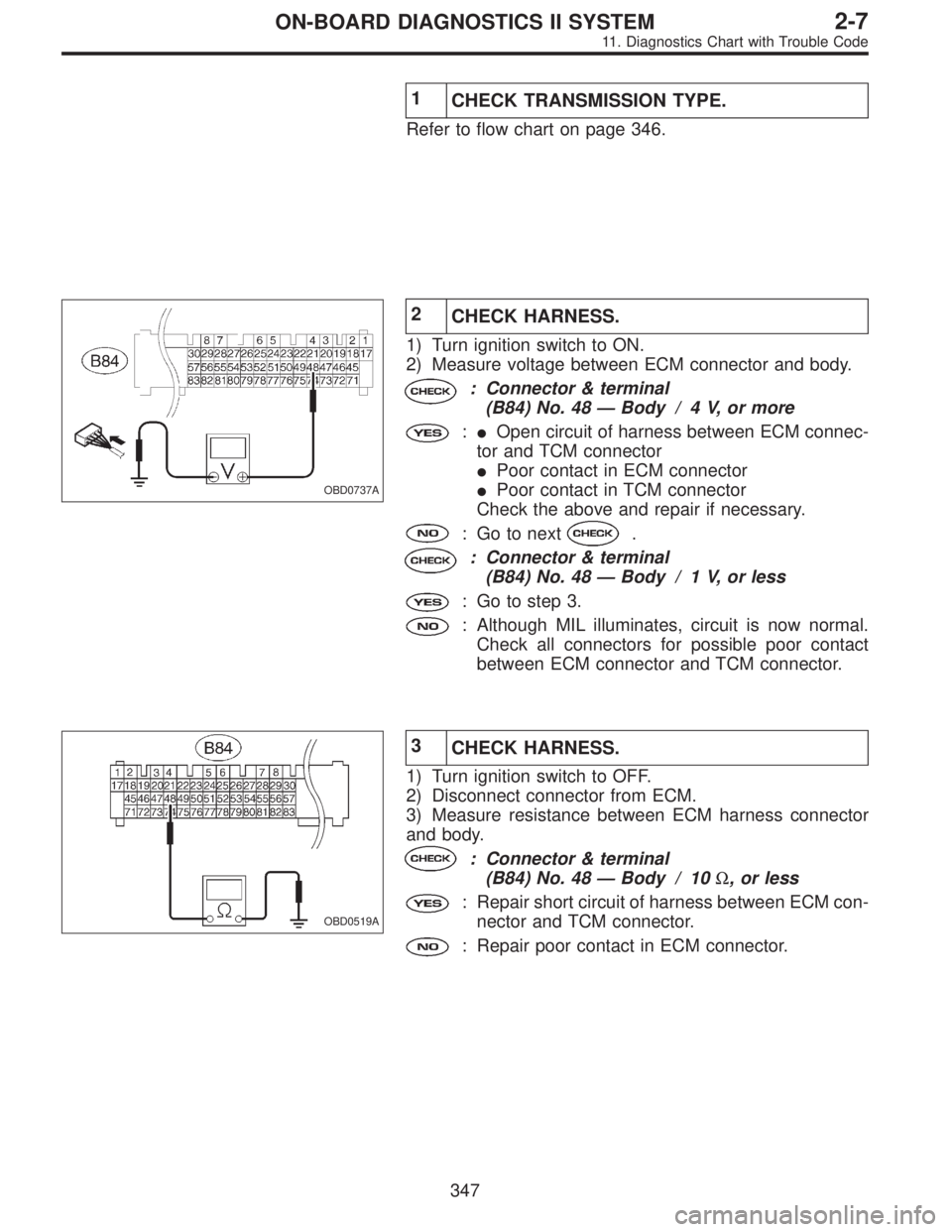

1
CHECK TRANSMISSION TYPE.
Refer to flow chart on page 346.
OBD0737A
2
CHECK HARNESS.
1) Turn ignition switch to ON.
2) Measure voltage between ECM connector and body.
: Connector & terminal
(B84) No. 48—Body / 4 V, or more
:
Open circuit of harness between ECM connec-
tor and TCM connector

Poor contact in ECM connector

Poor contact in TCM connector
Check the above and repair if necessary.
: Go to next.
: Connector & terminal
(B84) No. 48—Body / 1 V, or less
: Go to step 3.
: Although MIL illuminates, circuit is now normal.
Check all connectors for possible poor contact
between ECM connector and TCM connector.
OBD0519A
3
CHECK HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ECM.
3) Measure resistance between ECM harness connector
and body.
: Connector & terminal
(B84) No. 48—Body / 10Ω, or less
: Repair short circuit of harness between ECM con-
nector and TCM connector.
: Repair poor contact in ECM connector.
347
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code

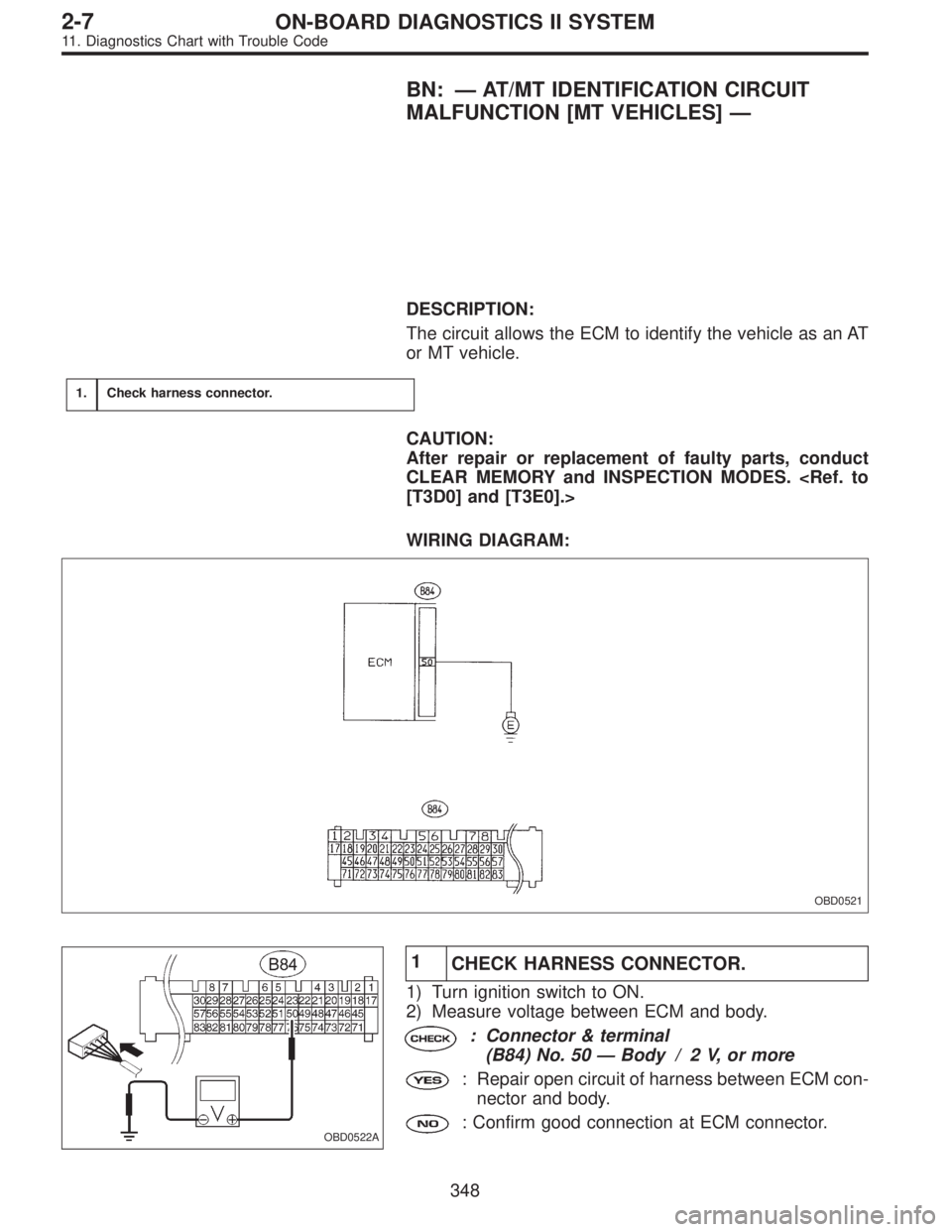

BN:—AT/MT IDENTIFICATION CIRCUIT
MALFUNCTION [MT VEHICLES]—
DESCRIPTION:
The circuit allows the ECM to identify the vehicle as an AT
or MT vehicle.
1.Check harness connector.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES. [T3D0] and [T3E0].>
WIRING DIAGRAM:
OBD0521
OBD0522A
1
CHECK HARNESS CONNECTOR.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and body.
: Connector & terminal
(B84) No. 50—Body / 2 V, or more
: Repair open circuit of harness between ECM con-
nector and body.
: Confirm good connection at ECM connector.
348
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code

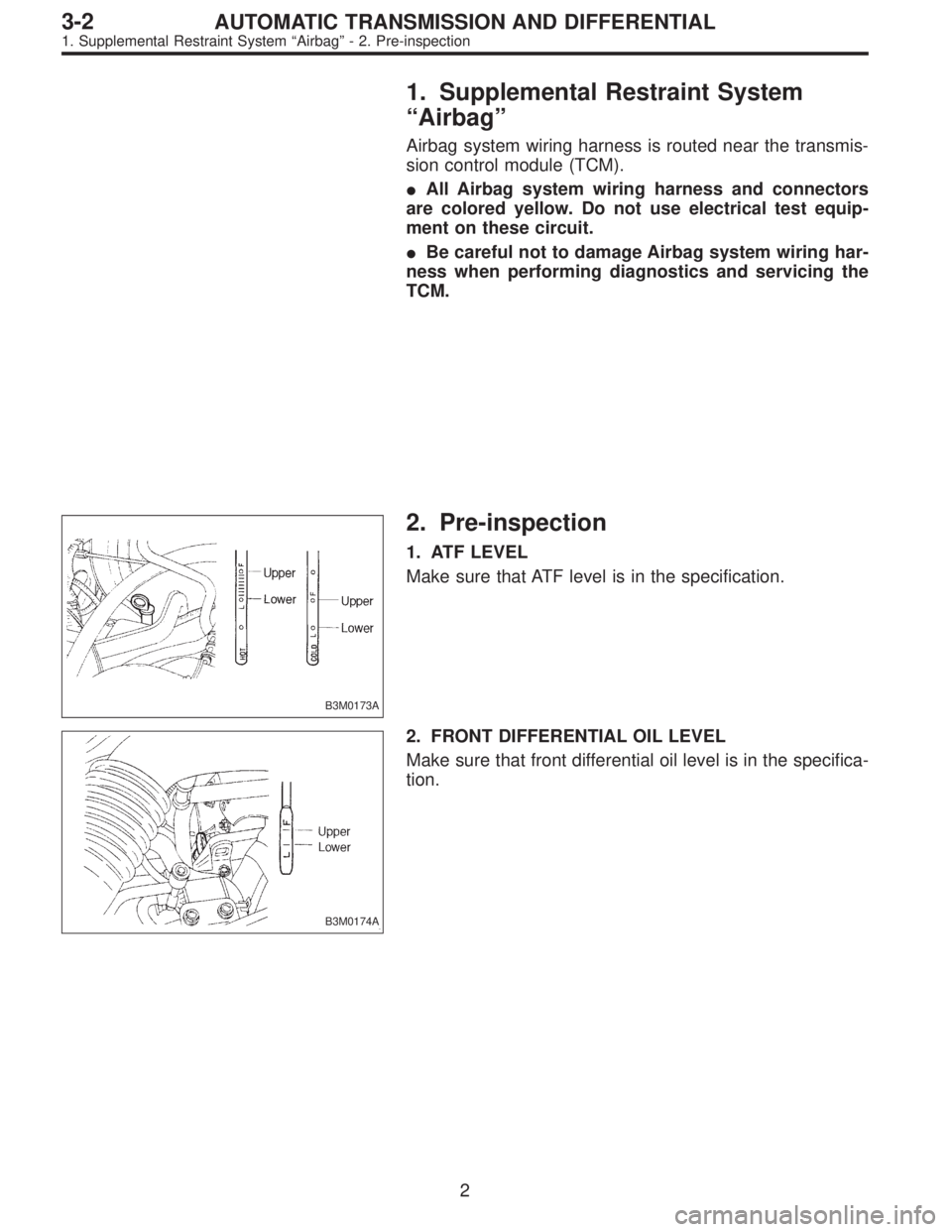

1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed near the transmis-
sion control module (TCM).

All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuit.

Be careful not to damage Airbag system wiring har-
ness when performing diagnostics and servicing the
TCM.
B3M0173A
2. Pre-inspection
1. ATF LEVEL
Make sure that ATF level is in the specification.
B3M0174A
2. FRONT DIFFERENTIAL OIL LEVEL
Make sure that front differential oil level is in the specifica-
tion.
2
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
1. Supplemental Restraint System“Airbag”- 2. Pre-inspection

1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed near the transmis-
sion control module (TCM).

All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuit.

Be careful not to damage Airbag system wiring har-
ness when performing diagnostics and servicing the
TCM.
B3M0173A
2. Pre-inspection
1. ATF LEVEL
Make sure that ATF level is in the specification.
B3M0174A
2. FRONT DIFFERENTIAL OIL LEVEL
Make sure that front differential oil level is in the specifica-
tion.
2
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
1. Supplemental Restraint System“Airbag”- 2. Pre-inspection

G3M0717

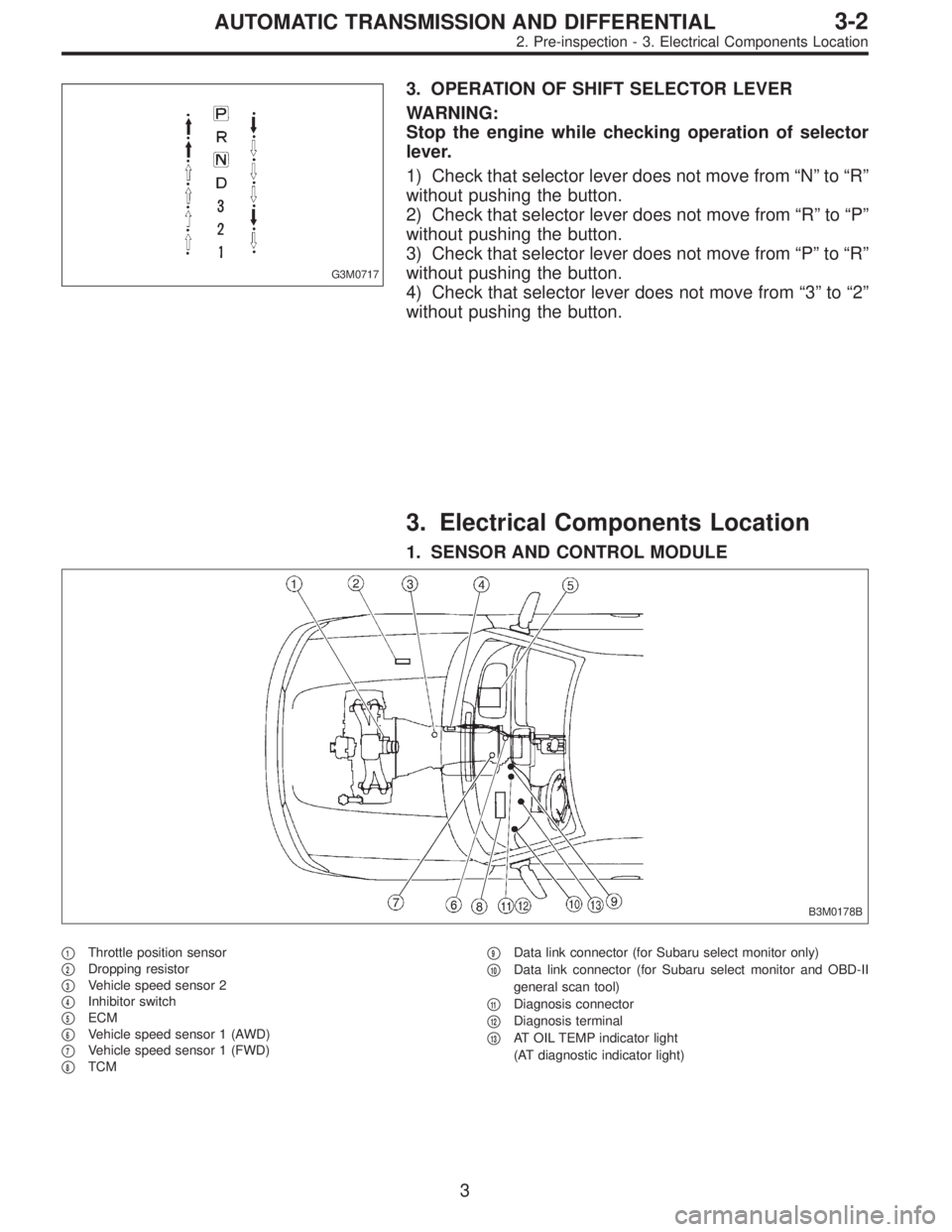

3. OPERATION OF SHIFT SELECTOR LEVER
WARNING:
Stop the engine while checking operation of selector
lever.
1) Check that selector lever does not move from“N”to“R”
without pushing the button.
2) Check that selector lever does not move from“R”to“P”
without pushing the button.
3) Check that selector lever does not move from“P”to“R”
without pushing the button.
4) Check that selector lever does not move from“3”to“2”
without pushing the button.
3. Electrical Components Location
1. SENSOR AND CONTROL MODULE
B3M0178B
1Throttle position sensor

2Dropping resistor

3Vehicle speed sensor 2

4Inhibitor switch

5ECM

6Vehicle speed sensor 1 (AWD)

7Vehicle speed sensor 1 (FWD)

8TCM
9Data link connector (for Subaru select monitor only)

10Data link connector (for Subaru select monitor and OBD-II
general scan tool)

11Diagnosis connector

12Diagnosis terminal

13AT OIL TEMP indicator light
(AT diagnostic indicator light)
3
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
2. Pre-inspection - 3. Electrical Components Location

G3M0717
3. OPERATION OF SHIFT SELECTOR LEVER
WARNING:
Stop the engine while checking operation of selector
lever.
1) Check that selector lever does not move from“N”to“R”
without pushing the button.
2) Check that selector lever does not move from“R”to“P”
without pushing the button.
3) Check that selector lever does not move from“P”to“R”
without pushing the button.
4) Check that selector lever does not move from“3”to“2”
without pushing the button.
3. Electrical Components Location
1. SENSOR AND CONTROL MODULE
B3M0178B
1Throttle position sensor

2Dropping resistor

3Vehicle speed sensor 2

4Inhibitor switch

5ECM

6Vehicle speed sensor 1 (AWD)

7Vehicle speed sensor 1 (FWD)

8TCM
9Data link connector (for Subaru select monitor only)

10Data link connector (for Subaru select monitor and OBD-II
general scan tool)

11Diagnosis connector

12Diagnosis terminal

13AT OIL TEMP indicator light
(AT diagnostic indicator light)
3
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
2. Pre-inspection - 3. Electrical Components Location

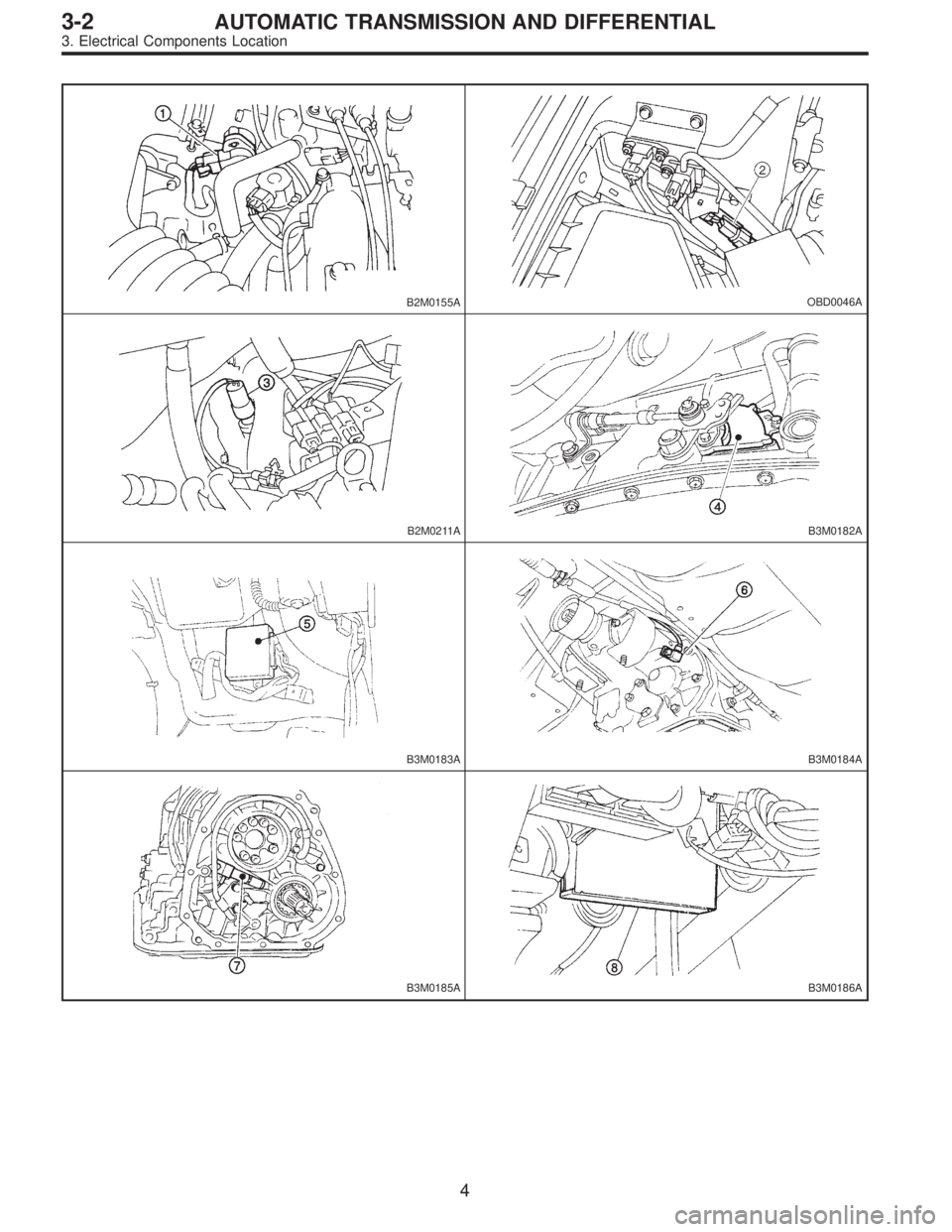

B2M0155AOBD0046A
B2M0211AB3M0182A
B3M0183AB3M0184A
B3M0185AB3M0186A
4
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
3. Electrical Components Location

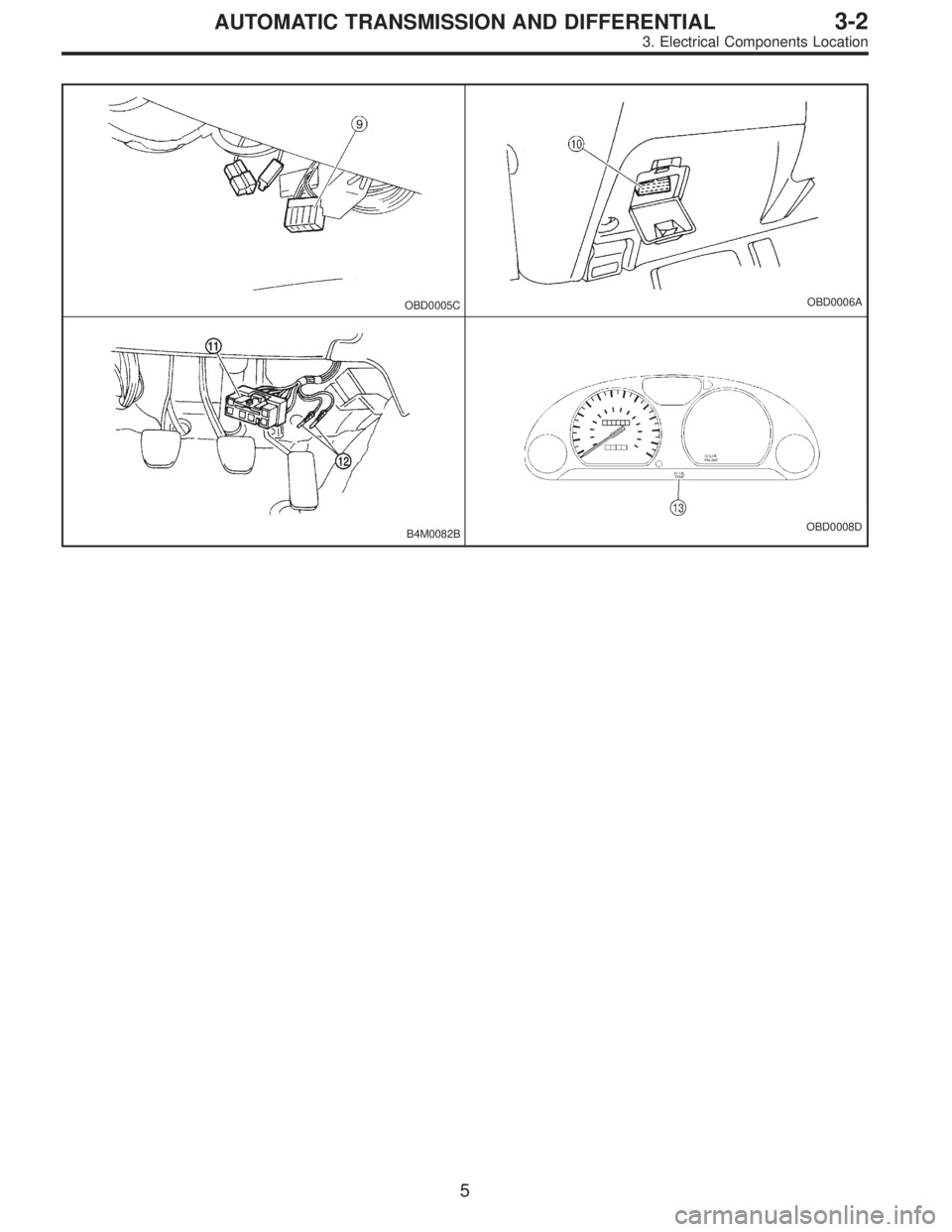

OBD0005COBD0006A
B4M0082BOBD0008D
5
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
3. Electrical Components Location
