SUBARU LEGACY 1995 Service Repair Manual

B2M0362

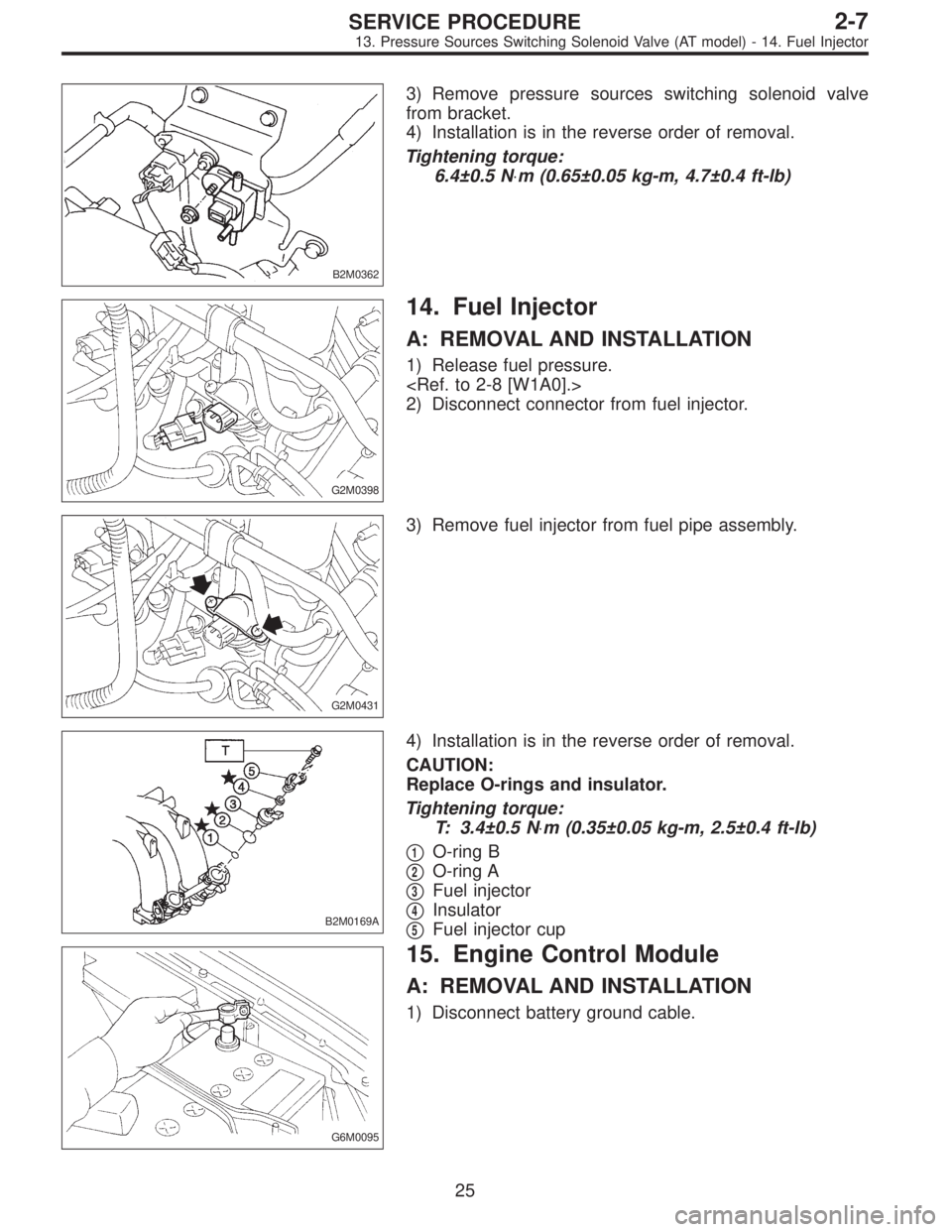

3) Remove pressure sources switching solenoid valve
from bracket.
4) Installation is in the reverse order of removal.
Tightening torque:
6.4±0.5 N⋅m (0.65±0.05 kg-m, 4.7±0.4 ft-lb)
G2M0398
14. Fuel Injector
A: REMOVAL AND INSTALLATION
1) Release fuel pressure.

2) Disconnect connector from fuel injector.
G2M0431
3) Remove fuel injector from fuel pipe assembly.
B2M0169A
4) Installation is in the reverse order of removal.
CAUTION:
Replace O-rings and insulator.
Tightening torque:
T: 3.4±0.5 N⋅m (0.35±0.05 kg-m, 2.5±0.4 ft-lb)


1O-ring B


2O-ring A


3Fuel injector


4Insulator


5Fuel injector cup
G6M0095
15. Engine Control Module
A: REMOVAL AND INSTALLATION
1) Disconnect battery ground cable.
25
2-7SERVICE PROCEDURE
13. Pressure Sources Switching Solenoid Valve (AT model) - 14. Fuel Injector

B2M0362
3) Remove pressure sources switching solenoid valve
from bracket.
4) Installation is in the reverse order of removal.
Tightening torque:
6.4±0.5 N⋅m (0.65±0.05 kg-m, 4.7±0.4 ft-lb)
G2M0398
14. Fuel Injector
A: REMOVAL AND INSTALLATION
1) Release fuel pressure.

2) Disconnect connector from fuel injector.
G2M0431
3) Remove fuel injector from fuel pipe assembly.
B2M0169A
4) Installation is in the reverse order of removal.
CAUTION:
Replace O-rings and insulator.
Tightening torque:
T: 3.4±0.5 N⋅m (0.35±0.05 kg-m, 2.5±0.4 ft-lb)


1O-ring B


2O-ring A


3Fuel injector


4Insulator


5Fuel injector cup
G6M0095
15. Engine Control Module
A: REMOVAL AND INSTALLATION
1) Disconnect battery ground cable.
25
2-7SERVICE PROCEDURE
13. Pressure Sources Switching Solenoid Valve (AT model) - 14. Fuel Injector

G2M0434

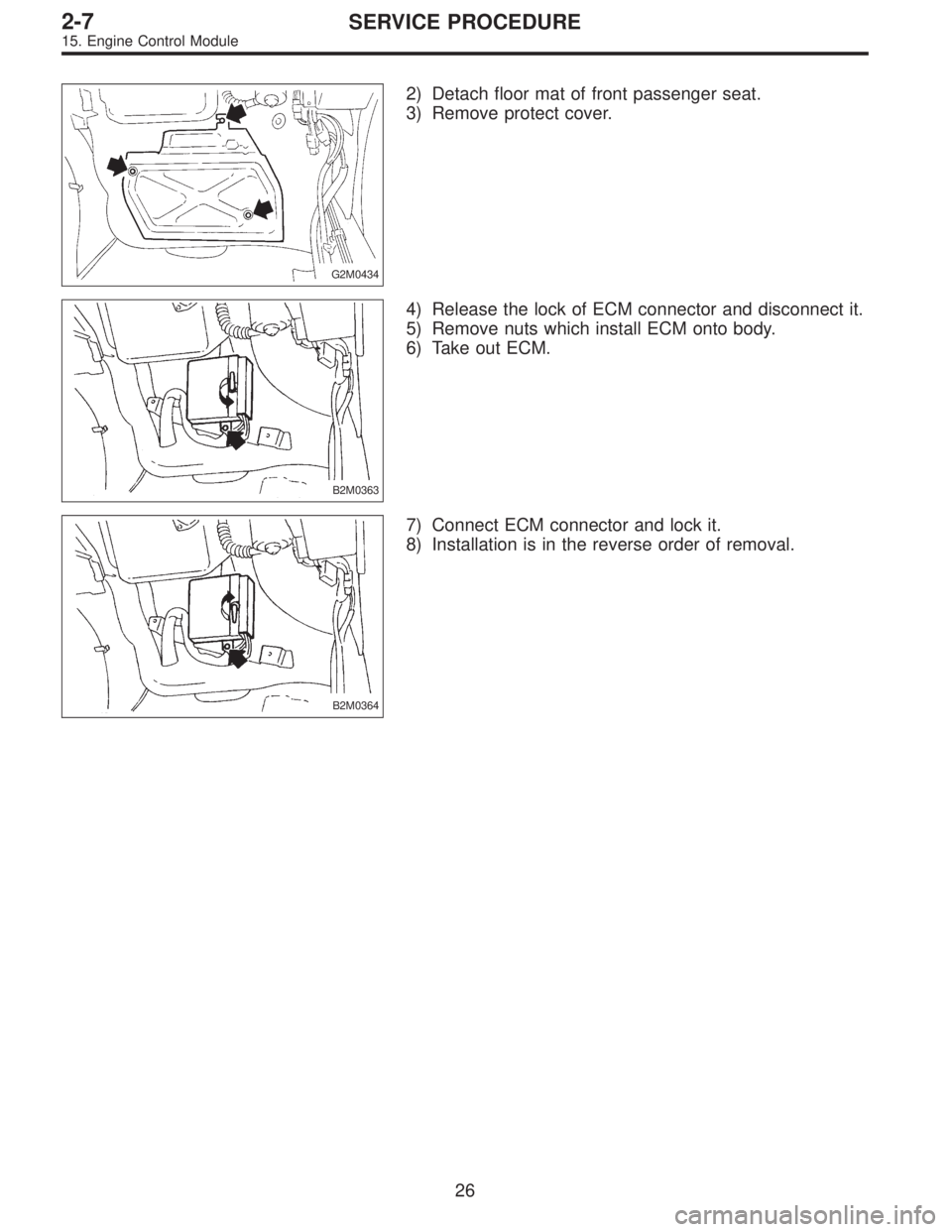

2) Detach floor mat of front passenger seat.
3) Remove protect cover.
B2M0363
4) Release the lock of ECM connector and disconnect it.
5) Remove nuts which install ECM onto body.
6) Take out ECM.
B2M0364
7) Connect ECM connector and lock it.
8) Installation is in the reverse order of removal.
26
2-7SERVICE PROCEDURE
15. Engine Control Module

G6M0095

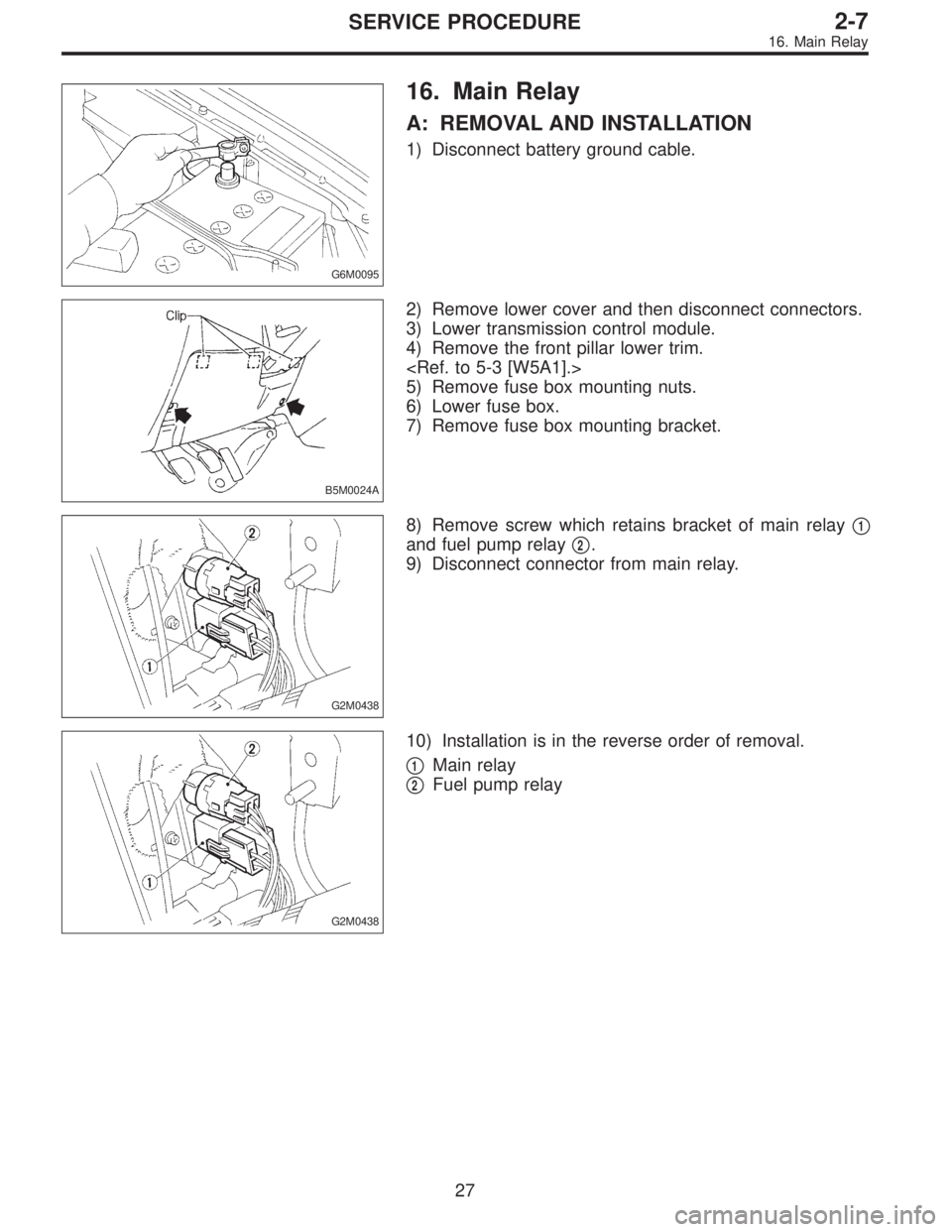

16. Main Relay
A: REMOVAL AND INSTALLATION
1) Disconnect battery ground cable.
B5M0024A
2) Remove lower cover and then disconnect connectors.
3) Lower transmission control module.
4) Remove the front pillar lower trim.

5) Remove fuse box mounting nuts.
6) Lower fuse box.
7) Remove fuse box mounting bracket.
G2M0438
8) Remove screw which retains bracket of main relay
1
and fuel pump relay
2.
9) Disconnect connector from main relay.
G2M0438
10) Installation is in the reverse order of removal.


1Main relay


2Fuel pump relay
27
2-7SERVICE PROCEDURE
16. Main Relay

G6M0095

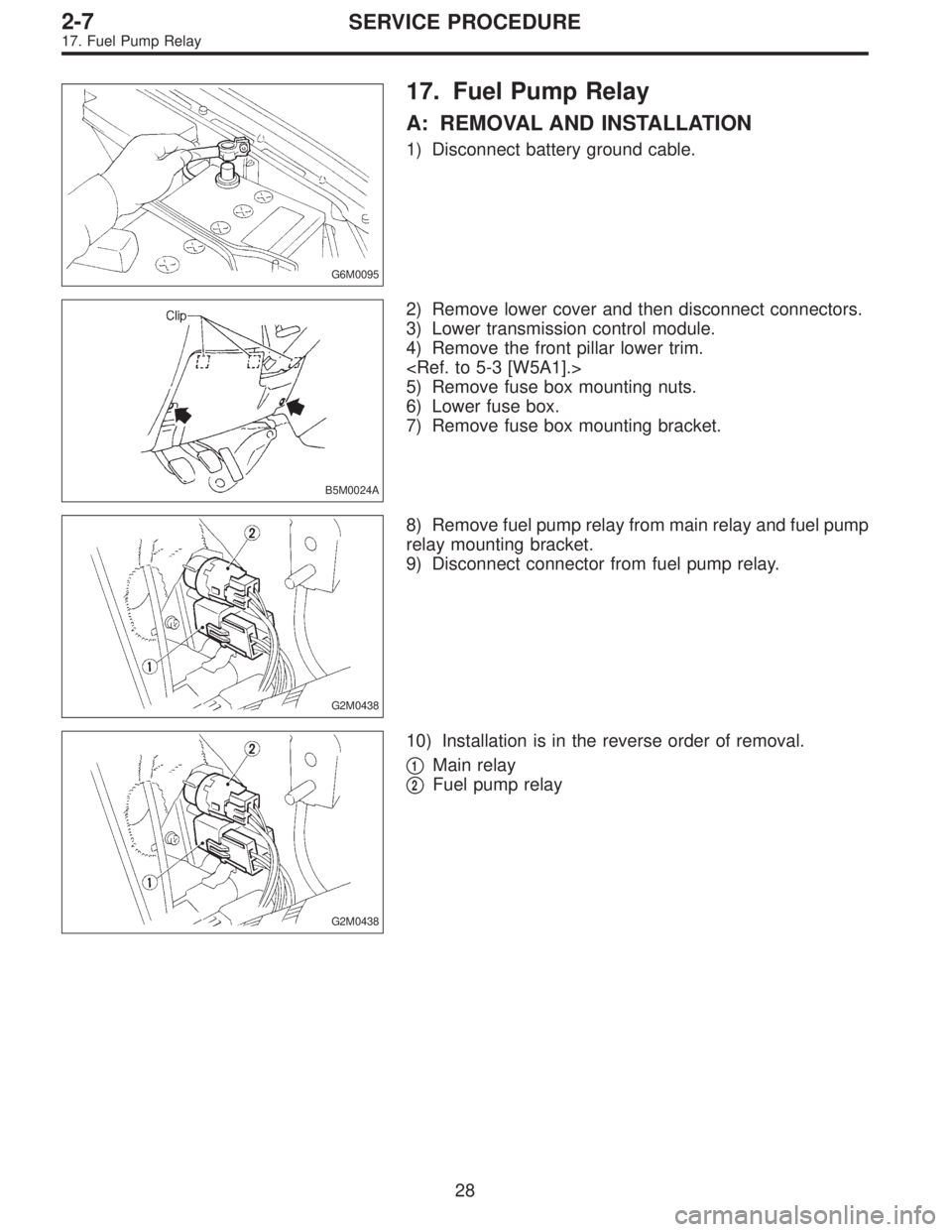

17. Fuel Pump Relay
A: REMOVAL AND INSTALLATION
1) Disconnect battery ground cable.
B5M0024A
2) Remove lower cover and then disconnect connectors.
3) Lower transmission control module.
4) Remove the front pillar lower trim.

5) Remove fuse box mounting nuts.
6) Lower fuse box.
7) Remove fuse box mounting bracket.
G2M0438
8) Remove fuel pump relay from main relay and fuel pump
relay mounting bracket.
9) Disconnect connector from fuel pump relay.
G2M0438
10) Installation is in the reverse order of removal.


1Main relay


2Fuel pump relay
28
2-7SERVICE PROCEDURE
17. Fuel Pump Relay

1. Fuel System

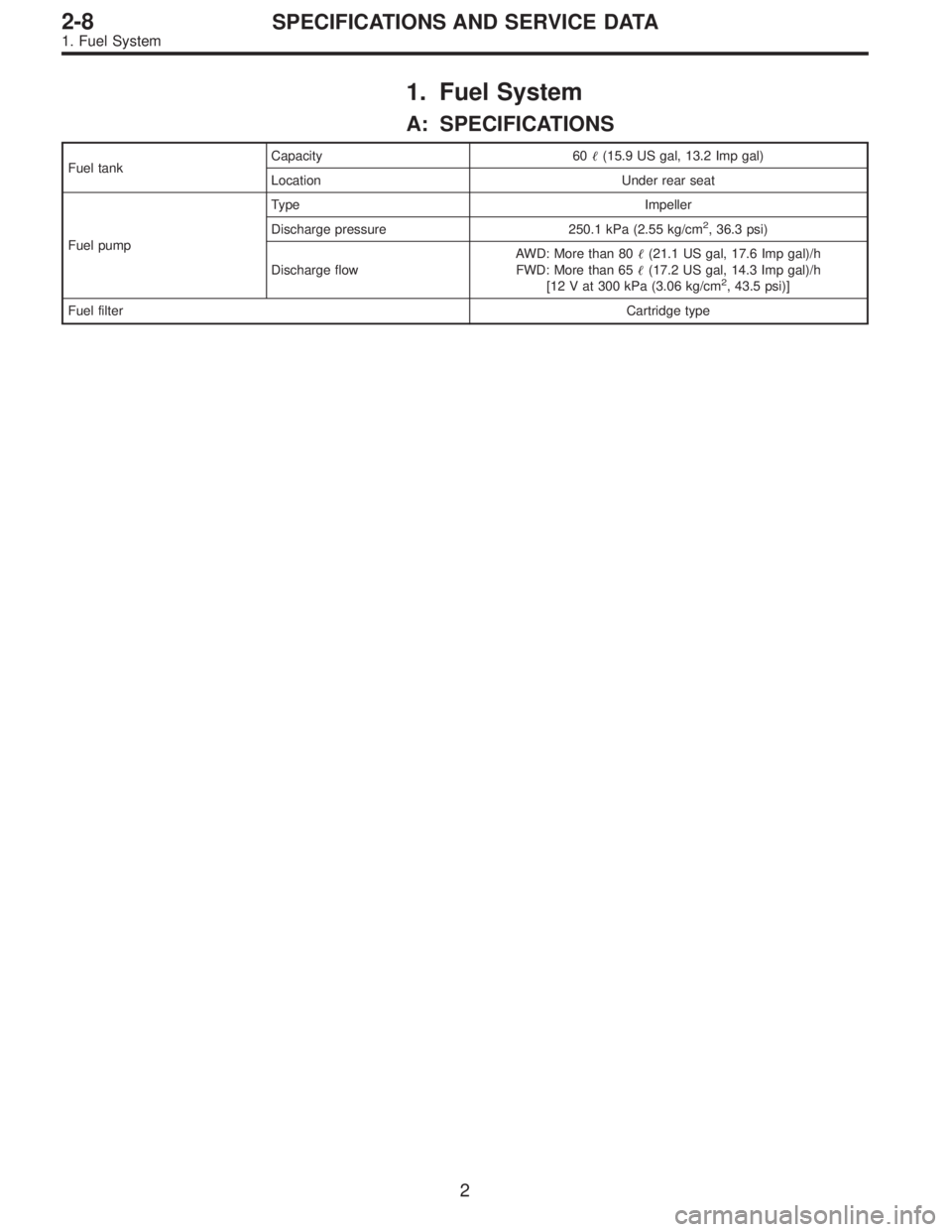

A: SPECIFICATIONS
Fuel tankCapacity 60
(15.9 US gal, 13.2 Imp gal)
Location Under rear seat
Fuel pumpType Impeller
Discharge pressure 250.1 kPa (2.55 kg/cm
2, 36.3 psi)
Discharge flowAWD: More than 80
(21.1 US gal, 17.6 Imp gal)/h
FWD: More than 65
(17.2 US gal, 14.3 Imp gal)/h
[12 V at 300 kPa (3.06 kg/cm
2, 43.5 psi)]
Fuel filterCartridge type
2
2-8SPECIFICATIONS AND SERVICE DATA
1. Fuel System

1. Fuel Tank

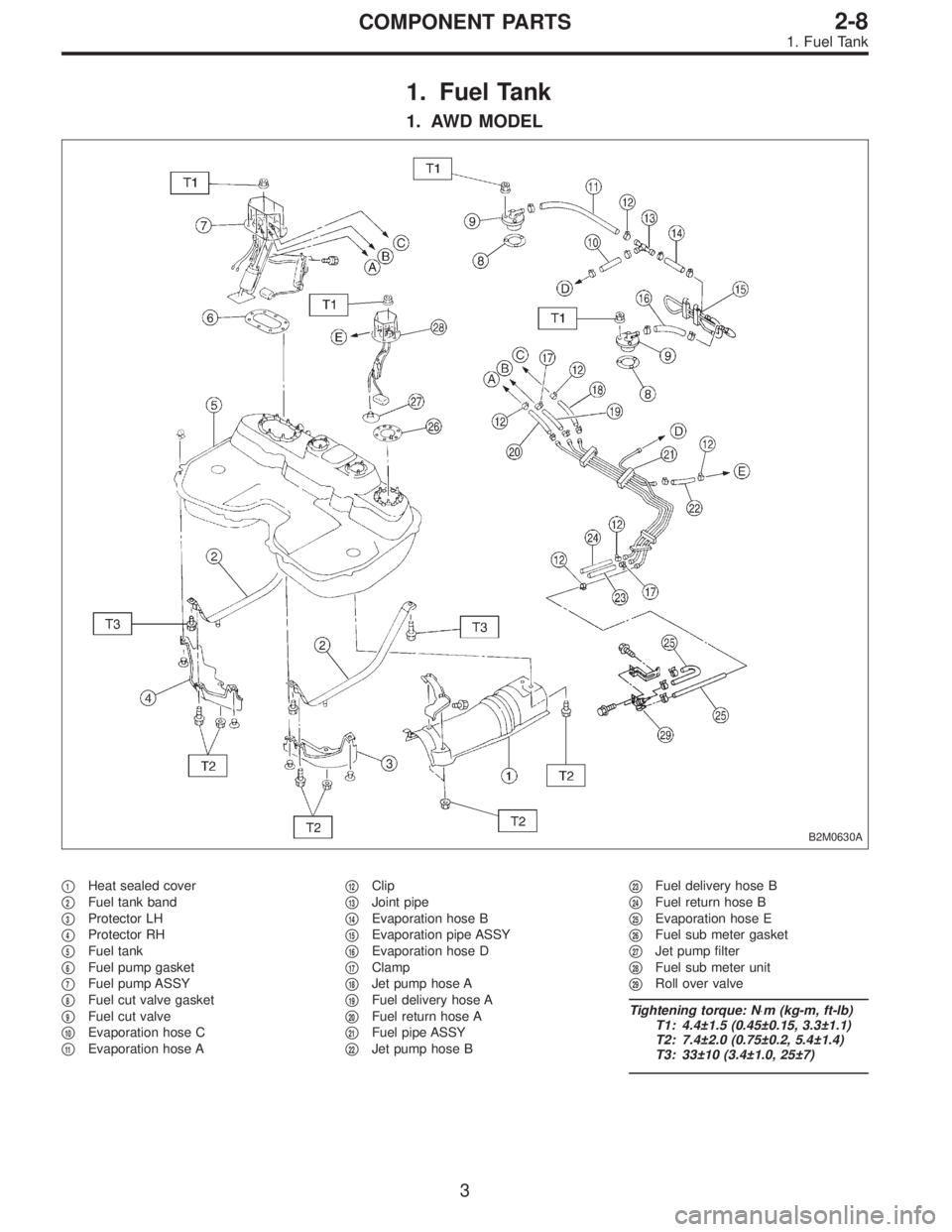

1. AWD MODEL
B2M0630A

1Heat sealed cover


2Fuel tank band


3Protector LH


4Protector RH


5Fuel tank


6Fuel pump gasket


7Fuel pump ASSY


8Fuel cut valve gasket


9Fuel cut valve


10Evaporation hose C


11Evaporation hose A

12Clip


13Joint pipe


14Evaporation hose B


15Evaporation pipe ASSY


16Evaporation hose D


17Clamp


18Jet pump hose A


19Fuel delivery hose A


20Fuel return hose A


21Fuel pipe ASSY


22Jet pump hose B

23Fuel delivery hose B


24Fuel return hose B


25Evaporation hose E


26Fuel sub meter gasket


27Jet pump filter


28Fuel sub meter unit


29Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
3
2-8COMPONENT PARTS
1. Fuel Tank

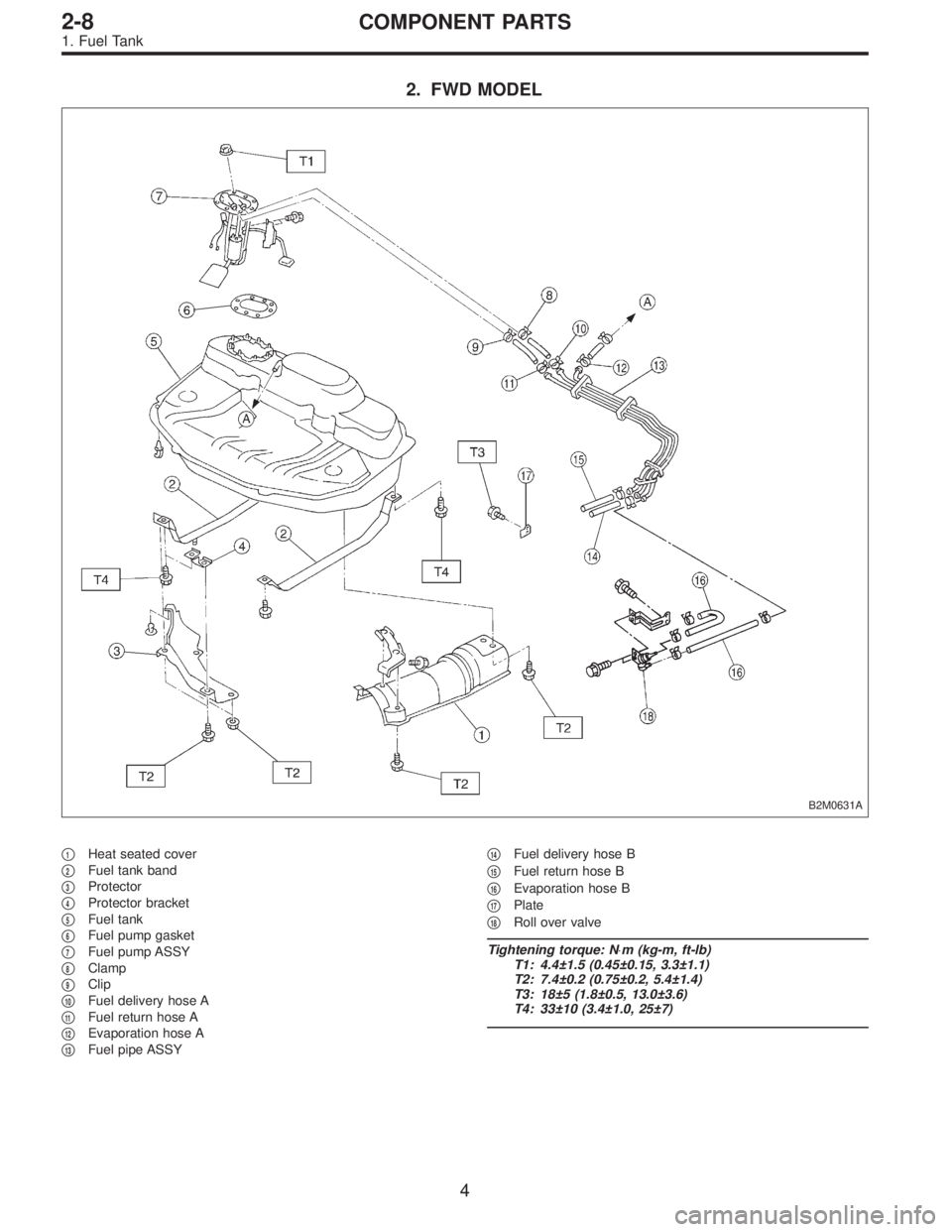

2. FWD MODEL
B2M0631A

1Heat seated cover


2Fuel tank band


3Protector


4Protector bracket


5Fuel tank


6Fuel pump gasket


7Fuel pump ASSY


8Clamp


9Clip


10Fuel delivery hose A


11Fuel return hose A


12Evaporation hose A


13Fuel pipe ASSY

14Fuel delivery hose B


15Fuel return hose B


16Evaporation hose B


17Plate


18Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±0.2 (0.75±0.2, 5.4±1.4)
T3: 18±5 (1.8±0.5, 13.0±3.6)
T4: 33±10 (3.4±1.0, 25±7)
4
2-8COMPONENT PARTS
1. Fuel Tank

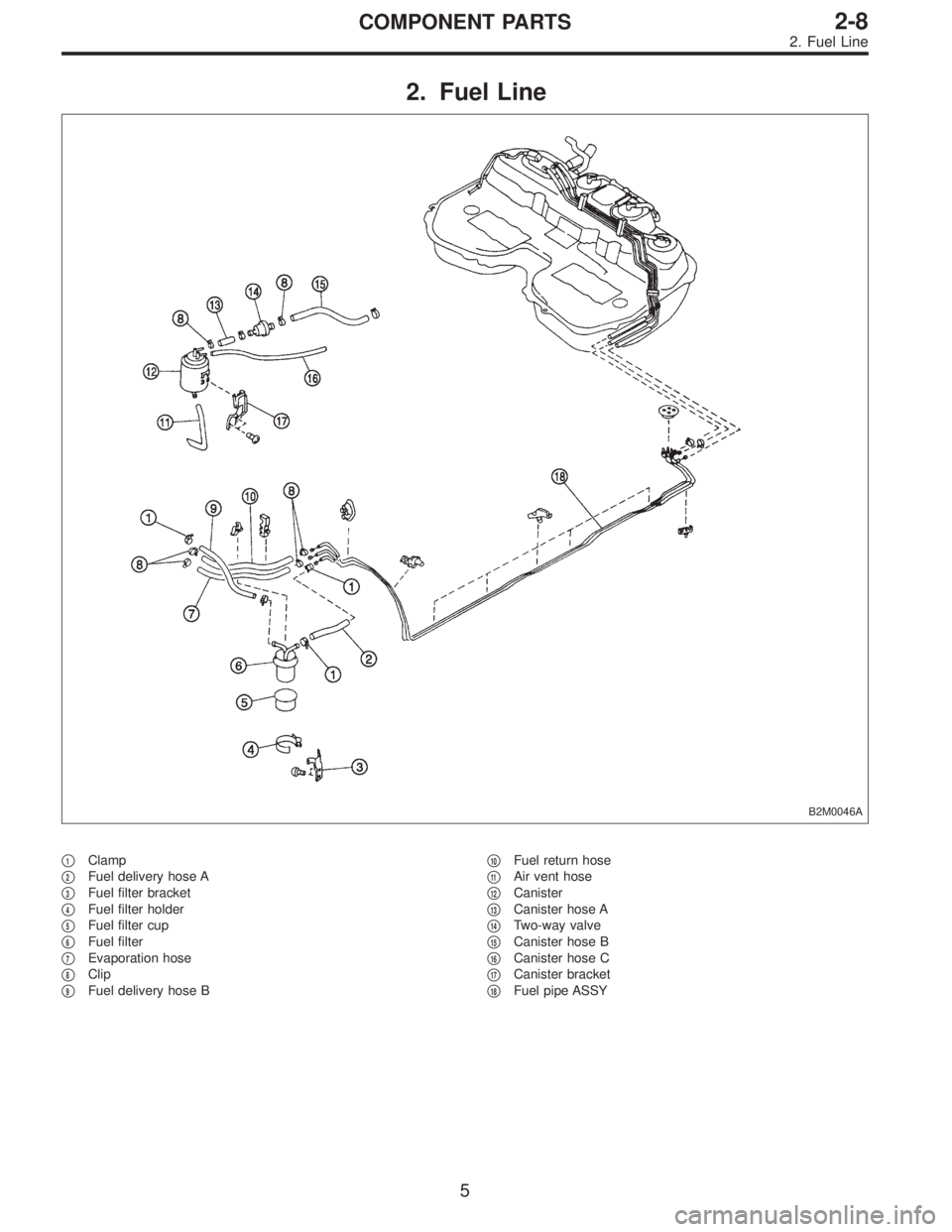

2. Fuel Line
B2M0046A

1Clamp


2Fuel delivery hose A


3Fuel filter bracket


4Fuel filter holder


5Fuel filter cup


6Fuel filter


7Evaporation hose


8Clip


9Fuel delivery hose B

10Fuel return hose


11Air vent hose


12Canister


13Canister hose A


14Two-way valve


15Canister hose B


16Canister hose C


17Canister bracket


18Fuel pipe ASSY
5
2-8COMPONENT PARTS
2. Fuel Line

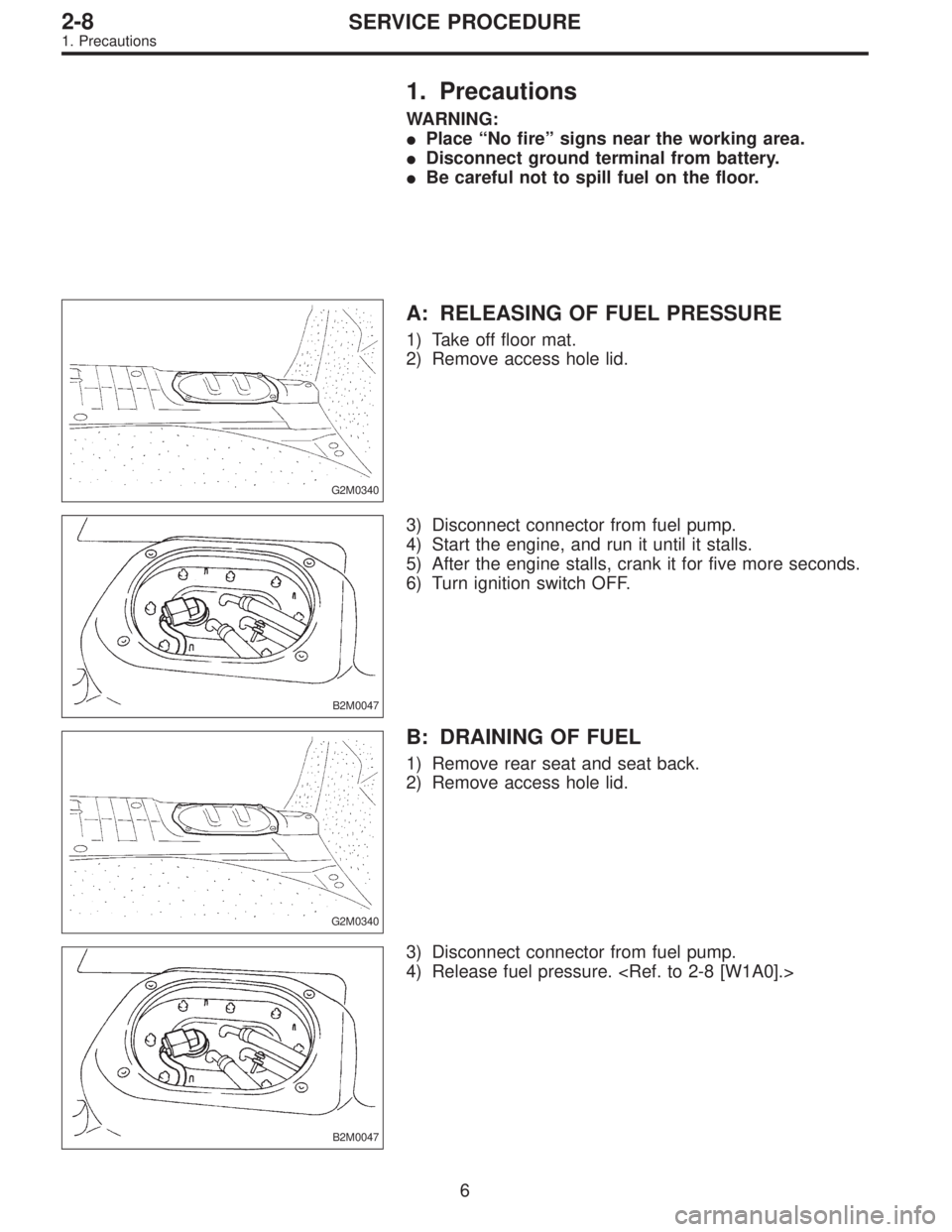

1. Precautions
WARNING:
Place “No fire” signs near the working area.
Disconnect ground terminal from battery.
Be careful not to spill fuel on the floor.
G2M0340
A: RELEASING OF FUEL PRESSURE
1) Take off floor mat.
2) Remove access hole lid.
B2M0047
3) Disconnect connector from fuel pump.
4) Start the engine, and run it until it stalls.
5) After the engine stalls, crank it for five more seconds.
6) Turn ignition switch OFF.
G2M0340
B: DRAINING OF FUEL
1) Remove rear seat and seat back.
2) Remove access hole lid.
B2M0047
3) Disconnect connector from fuel pump.
4) Release fuel pressure.
6
2-8SERVICE PROCEDURE
1. Precautions
