SUBARU LEGACY 1995 Service Repair Manual 13. ENGINE ELECTRICAL SYSTEM RHD model BUR10-01A 55 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2042 of 2248

SUBARU LEGACY 1995 Service Repair Manual BUR10-01B 56 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2043 of 2248

SUBARU LEGACY 1995 Service Repair Manual BUR10-01C 57 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2044 of 2248

SUBARU LEGACY 1995 Service Repair Manual BUR10-01D 58 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2045 of 2248

SUBARU LEGACY 1995 Service Repair Manual 14. FRONT FOG LIGHT SYSTEM BU22-01 59 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2046 of 2248

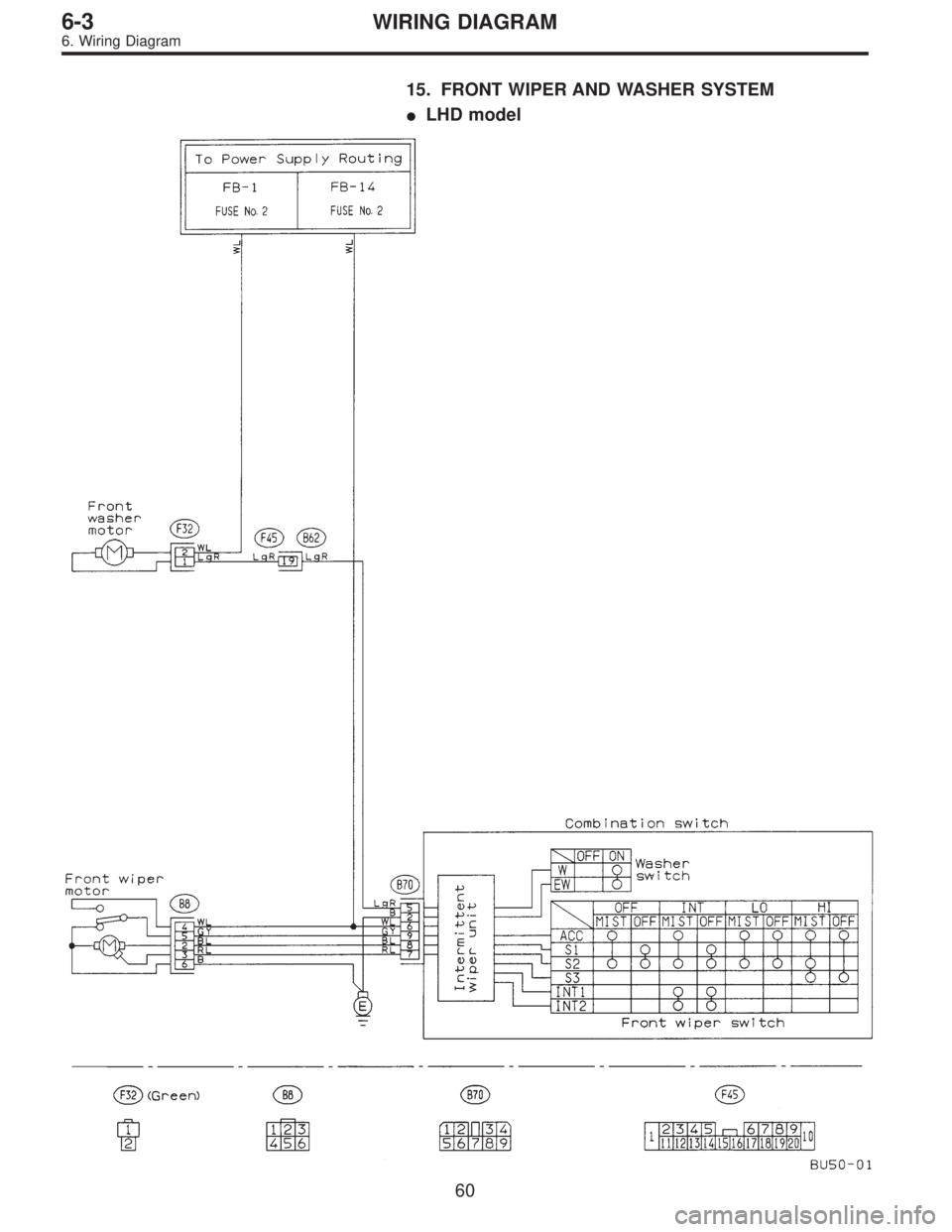

SUBARU LEGACY 1995 Service Repair Manual 15. FRONT WIPER AND WASHER SYSTEM LHD model 60 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2047 of 2248

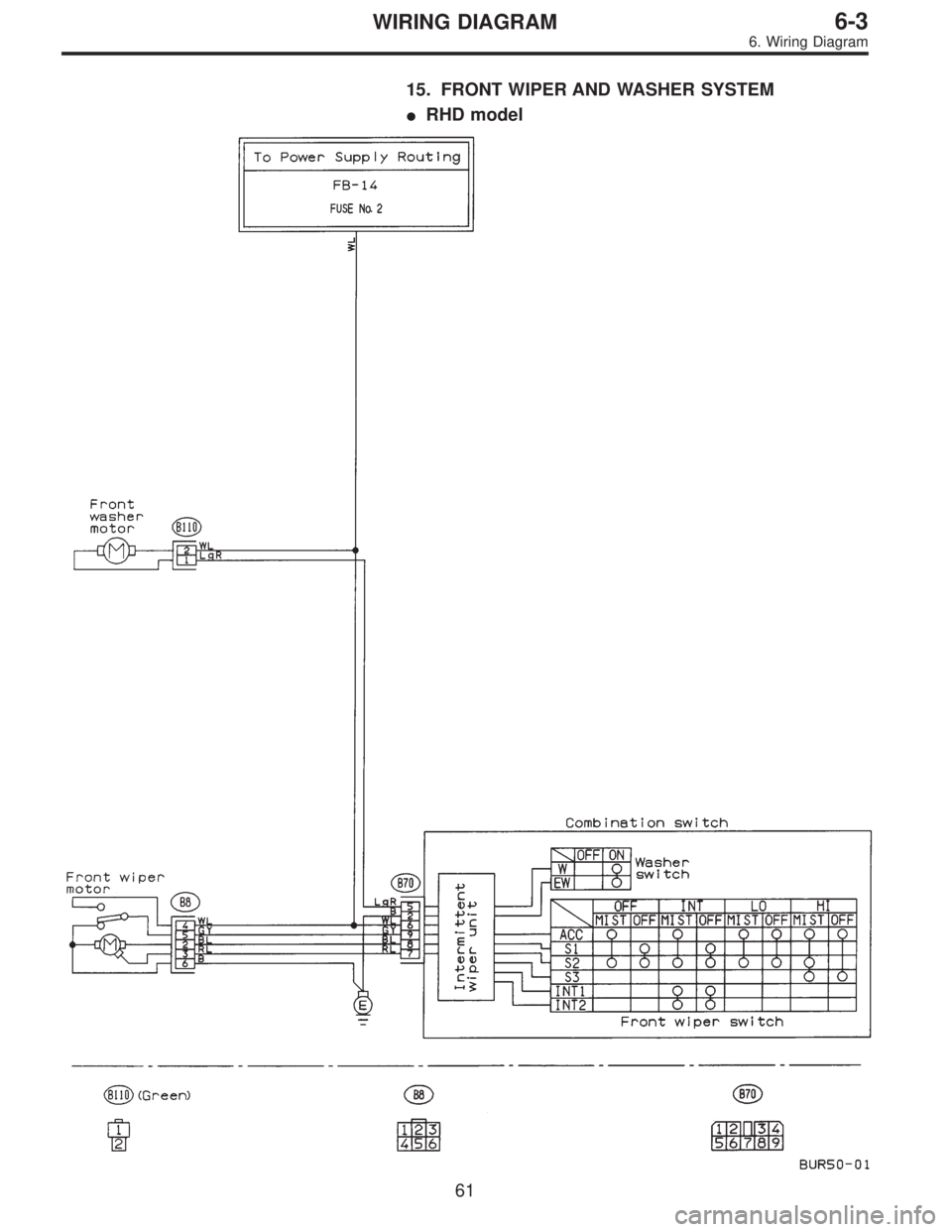

SUBARU LEGACY 1995 Service Repair Manual 15. FRONT WIPER AND WASHER SYSTEM RHD model 61 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2048 of 2248

SUBARU LEGACY 1995 Service Repair Manual 16. FUEL GAUGE SYSTEM LHD model BU61-01 62 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2049 of 2248

SUBARU LEGACY 1995 Service Repair Manual 16. FUEL GAUGE SYSTEM RHD model BUR61-01 63 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2050 of 2248

SUBARU LEGACY 1995 Service Repair Manual 17. HORN AND CIGARETTE LIGHTER SYSTEM LHD model BU74-01 64 6-3WIRING DIAGRAM 6. Wiring Diagram
