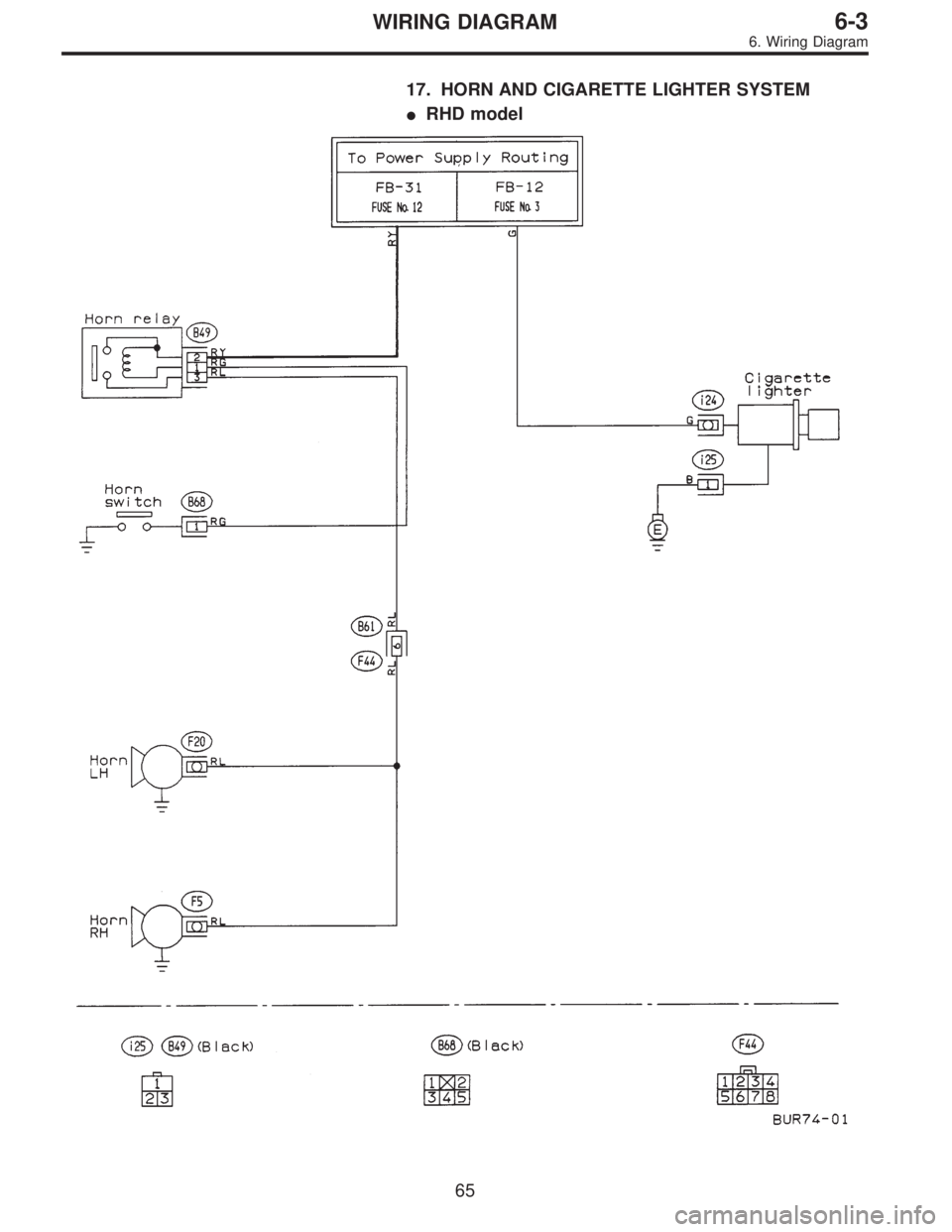

SUBARU LEGACY 1995 Service Repair Manual 17. HORN AND CIGARETTE LIGHTER SYSTEM RHD model 65 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2052 of 2248

SUBARU LEGACY 1995 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM LHD without DRL model BU20-01 66 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2053 of 2248

SUBARU LEGACY 1995 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM LHD with DRL model BC20-01A 67 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2054 of 2248

SUBARU LEGACY 1995 Service Repair Manual BC20-01B 68 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2055 of 2248

SUBARU LEGACY 1995 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM RHD model BUR20-01 69 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2056 of 2248

SUBARU LEGACY 1995 Service Repair Manual 19. LIGHTING (TAIL LIGHT⋅ILLUMINATION LIGHT⋅ETC.) SYSTEM LHD model BU21-01A 70 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2057 of 2248

SUBARU LEGACY 1995 Service Repair Manual BU21-01B 71 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2058 of 2248

SUBARU LEGACY 1995 Service Repair Manual 19. LIGHTING (TAIL LIGHT⋅ILLUMINATION LIGHT⋅ETC.) SYSTEM RHD model BUR21-01A 72 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2059 of 2248

SUBARU LEGACY 1995 Service Repair Manual BUR21-01B 73 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2060 of 2248

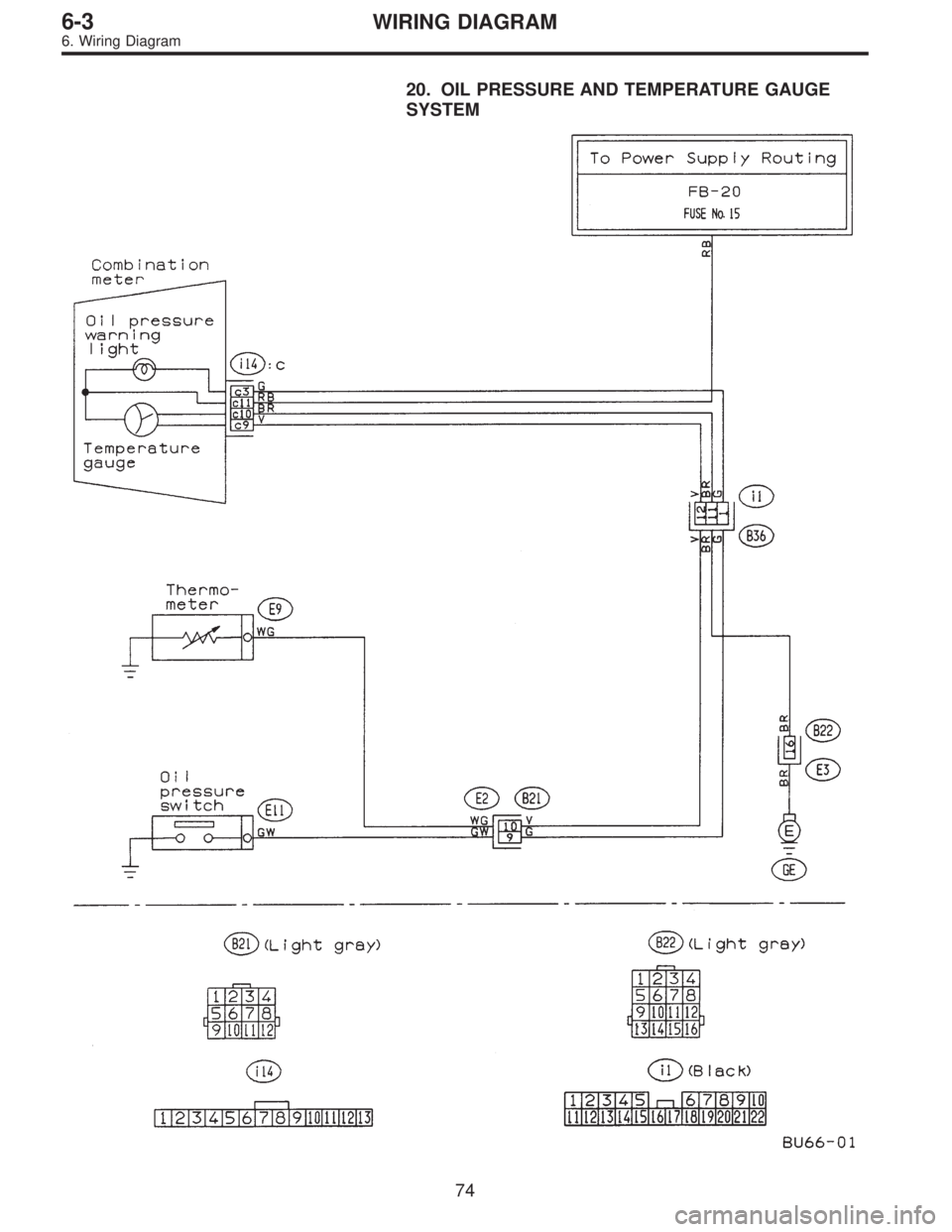

SUBARU LEGACY 1995 Service Repair Manual 20. OIL PRESSURE AND TEMPERATURE GAUGE SYSTEM 74 6-3WIRING DIAGRAM 6. Wiring Diagram
