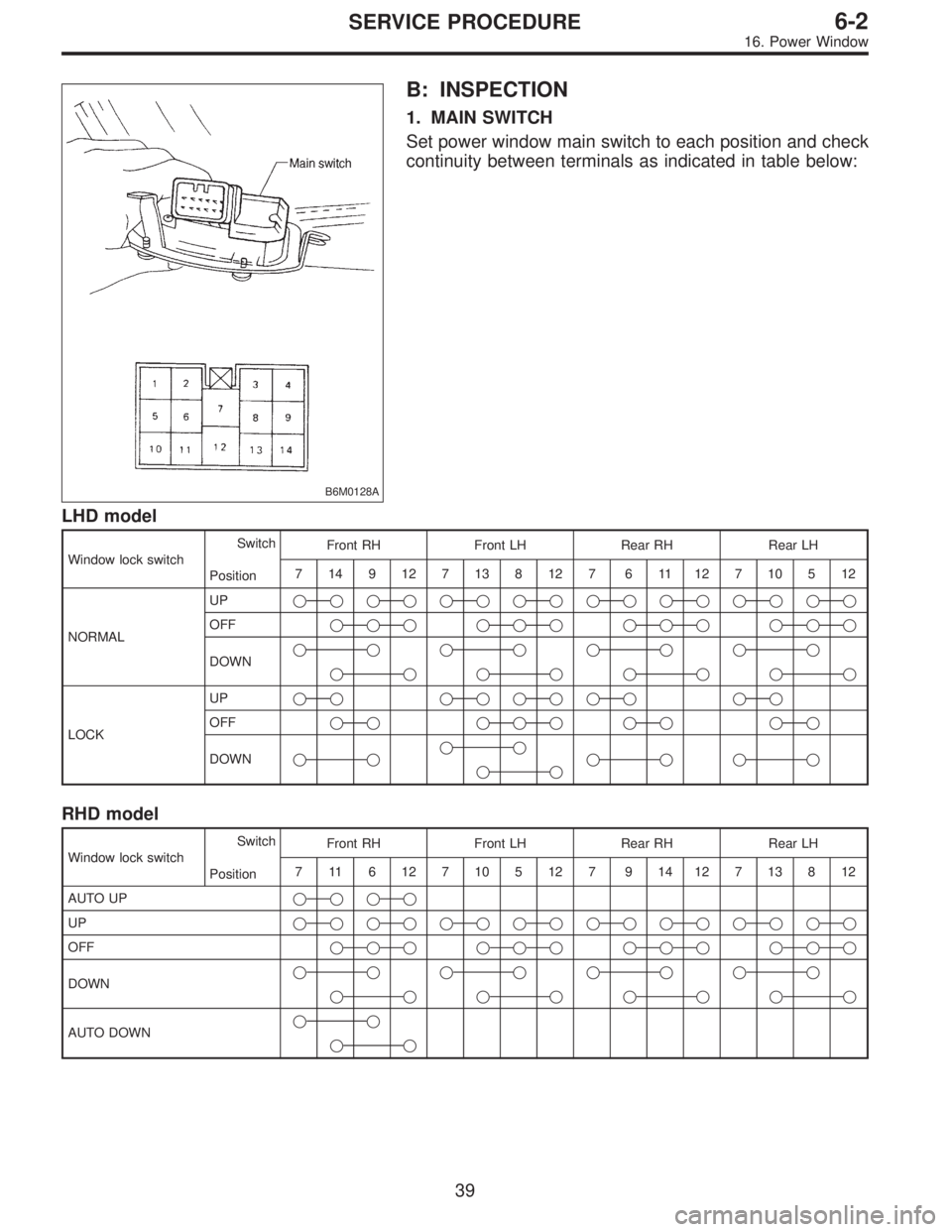

B: INSPECTION
1. MAIN SWITCH
Set power window main switch to each position and check
continuity between terminals as indicated in table below:
LHD model
Window lock switchSwitch
PositionFront RH Front LH Rear RH Rear LH
7 14 9 12 7 13 8 12 7 6 11 12 7 10 5 12
NORMALUP

OFF
DOWN

LOCKUP

OFF
DOWN
RHD model
Window lock switchSwitch
PositionFront RH Front LH Rear RH Rear LH
7 11 6 12 7 10 5 12 7 9 14 12 7 13 8 12
AUTO UP

UP
OFF
DOWN

AUTO DOWN
39
6-2SERVICE PROCEDURE
16. Power Window

B6M0129A

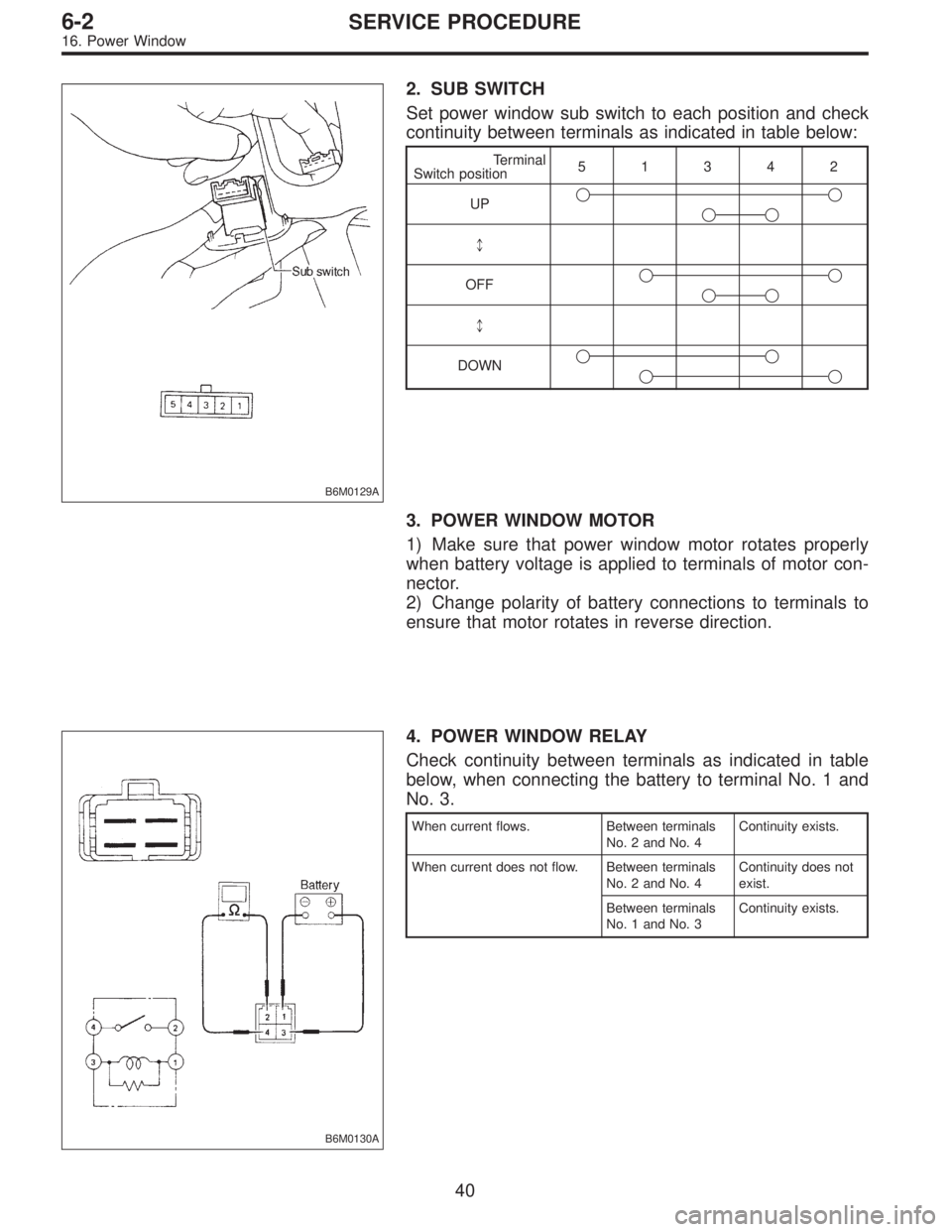

2. SUB SWITCH
Set power window sub switch to each position and check
continuity between terminals as indicated in table below:
Terminal
Switch position51342
UP

*
OFF

*
DOWN

3. POWER WINDOW MOTOR
1) Make sure that power window motor rotates properly
when battery voltage is applied to terminals of motor con-
nector.
2) Change polarity of battery connections to terminals to
ensure that motor rotates in reverse direction.
B6M0130A
4. POWER WINDOW RELAY
Check continuity between terminals as indicated in table
below, when connecting the battery to terminal No. 1 and
No. 3.
When current flows. Between terminals
No. 2 and No. 4Continuity exists.
When current does not flow. Between terminals
No. 2 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 3Continuity exists.
40
6-2SERVICE PROCEDURE
16. Power Window

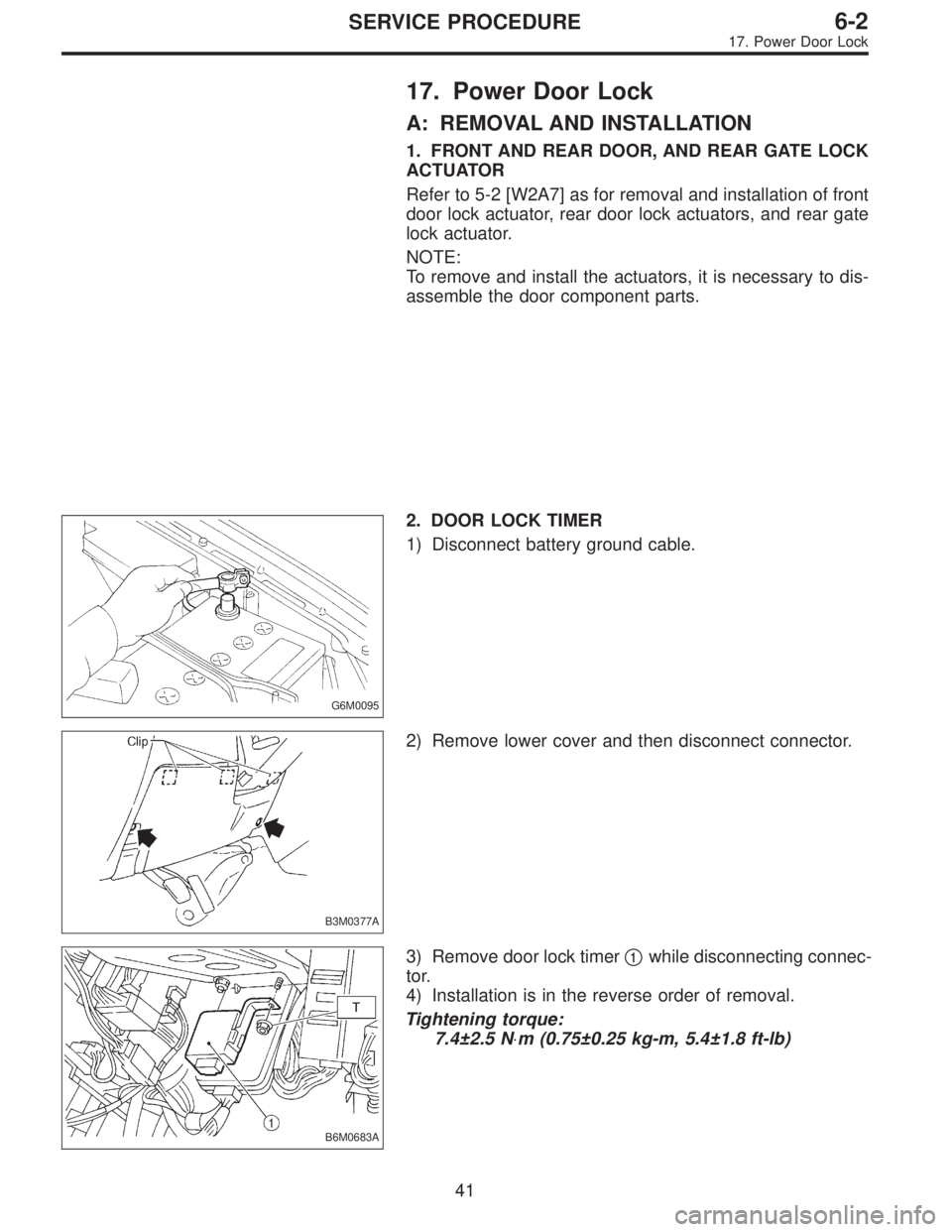

17. Power Door Lock
A: REMOVAL AND INSTALLATION
1. FRONT AND REAR DOOR, AND REAR GATE LOCK
ACTUATOR
Refer to 5-2 [W2A7] as for removal and installation of front
door lock actuator, rear door lock actuators, and rear gate
lock actuator.
NOTE:
To remove and install the actuators, it is necessary to dis-
assemble the door component parts.
G6M0095
2. DOOR LOCK TIMER
1) Disconnect battery ground cable.
B3M0377A
2) Remove lower cover and then disconnect connector.
B6M0683A
3) Remove door lock timer1while disconnecting connec-
tor.
4) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.5 N⋅m (0.75±0.25 kg-m, 5.4±1.8 ft-lb)
41
6-2SERVICE PROCEDURE
17. Power Door Lock

B6M0133

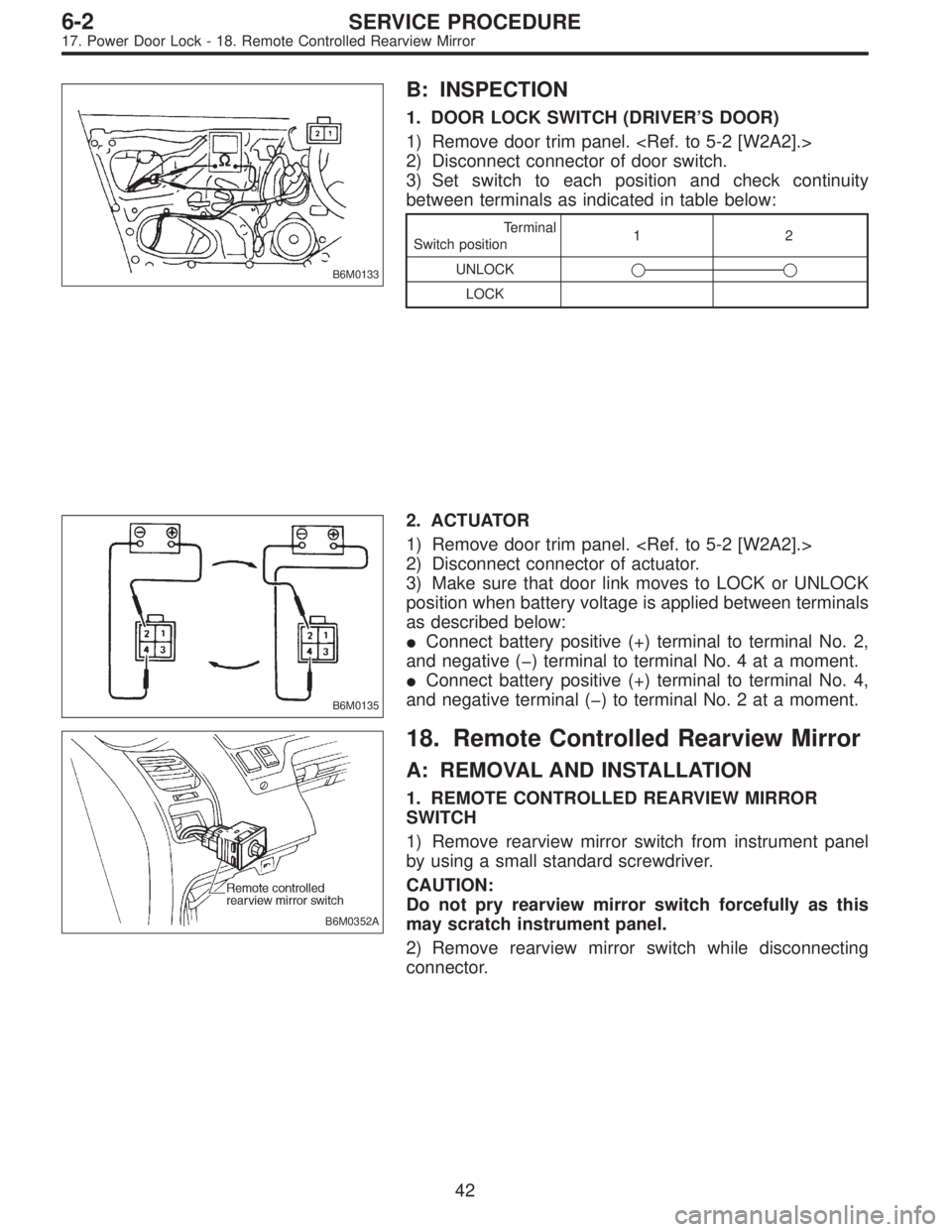

B: INSPECTION
1. DOOR LOCK SWITCH (DRIVER’S DOOR)
1) Remove door trim panel.
2) Disconnect connector of door switch.
3) Set switch to each position and check continuity
between terminals as indicated in table below:
Terminal
Switch position12
UNLOCK
LOCK
B6M0135
2. ACTUATOR
1) Remove door trim panel.
2) Disconnect connector of actuator.
3) Make sure that door link moves to LOCK or UNLOCK
position when battery voltage is applied between terminals
as described below:

Connect battery positive (+) terminal to terminal No. 2,
and negative () terminal to terminal No. 4 at a moment.

Connect battery positive (+) terminal to terminal No. 4,
and negative terminal () to terminal No. 2 at a moment.
B6M0352A
18. Remote Controlled Rearview Mirror
A: REMOVAL AND INSTALLATION
1. REMOTE CONTROLLED REARVIEW MIRROR
SWITCH
1) Remove rearview mirror switch from instrument panel
by using a small standard screwdriver.
CAUTION:
Do not pry rearview mirror switch forcefully as this
may scratch instrument panel.
2) Remove rearview mirror switch while disconnecting
connector.
42
6-2SERVICE PROCEDURE
17. Power Door Lock - 18. Remote Controlled Rearview Mirror

B6M0133
B: INSPECTION
1. DOOR LOCK SWITCH (DRIVER’S DOOR)
1) Remove door trim panel.
2) Disconnect connector of door switch.
3) Set switch to each position and check continuity
between terminals as indicated in table below:
Terminal
Switch position12
UNLOCK
LOCK
B6M0135
2. ACTUATOR
1) Remove door trim panel.
2) Disconnect connector of actuator.
3) Make sure that door link moves to LOCK or UNLOCK
position when battery voltage is applied between terminals
as described below:

Connect battery positive (+) terminal to terminal No. 2,
and negative () terminal to terminal No. 4 at a moment.

Connect battery positive (+) terminal to terminal No. 4,
and negative terminal () to terminal No. 2 at a moment.
B6M0352A
18. Remote Controlled Rearview Mirror
A: REMOVAL AND INSTALLATION
1. REMOTE CONTROLLED REARVIEW MIRROR
SWITCH
1) Remove rearview mirror switch from instrument panel
by using a small standard screwdriver.
CAUTION:
Do not pry rearview mirror switch forcefully as this
may scratch instrument panel.
2) Remove rearview mirror switch while disconnecting
connector.
42
6-2SERVICE PROCEDURE
17. Power Door Lock - 18. Remote Controlled Rearview Mirror

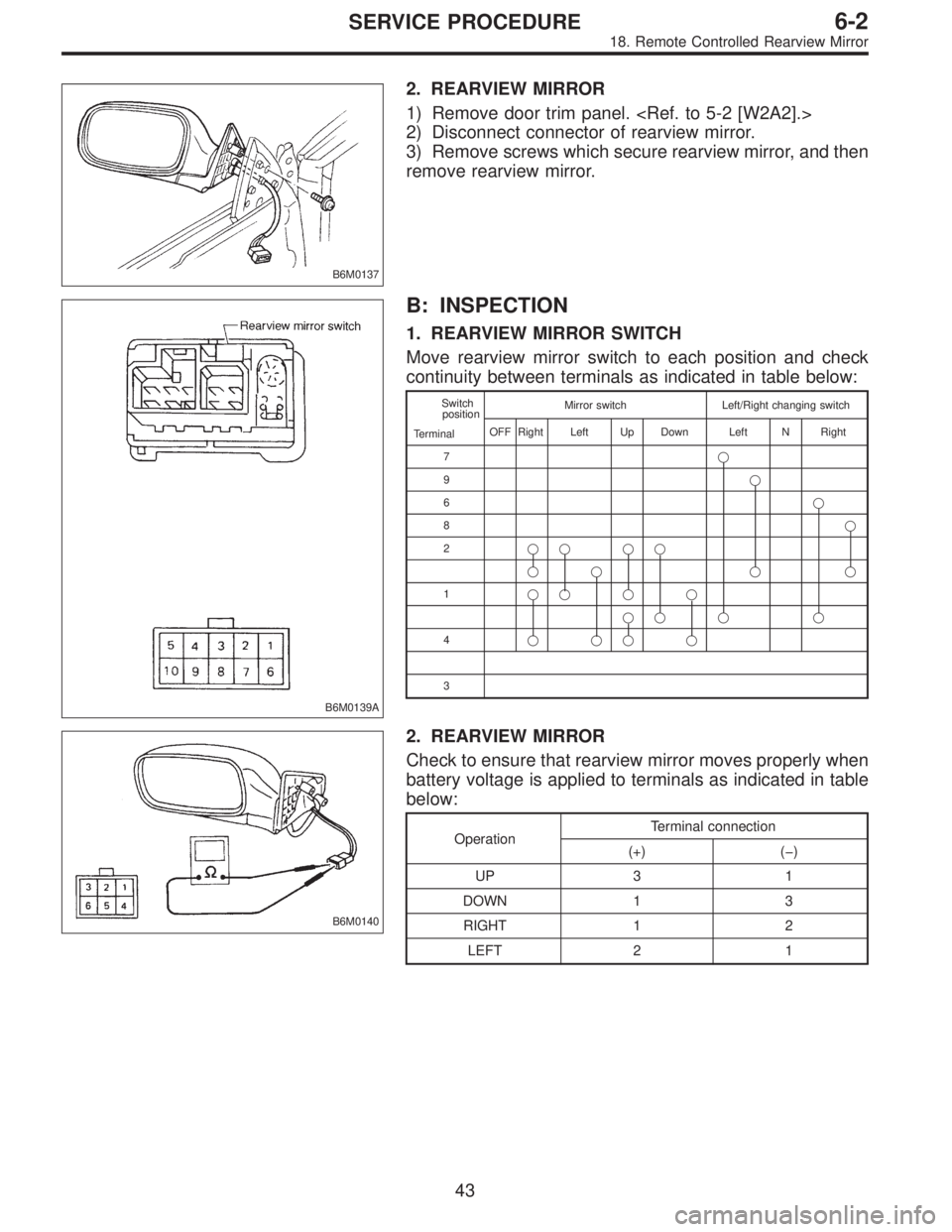

B6M0137
2. REARVIEW MIRROR
1) Remove door trim panel.
2) Disconnect connector of rearview mirror.
3) Remove screws which secure rearview mirror, and then
remove rearview mirror.
B6M0139A
B: INSPECTION
1. REARVIEW MIRROR SWITCH
Move rearview mirror switch to each position and check
continuity between terminals as indicated in table below:
Switch
position
TerminalMirror switch Left/Right changing switch
OFF Right Left Up Down Left N Right
7
9
6
8
2

1


4
3
B6M0140
2. REARVIEW MIRROR
Check to ensure that rearview mirror moves properly when
battery voltage is applied to terminals as indicated in table
below:
OperationTerminal connection
(+) ()
UP 3 1
DOWN 1 3
RIGHT 1 2
LEFT 2 1
43
6-2SERVICE PROCEDURE
18. Remote Controlled Rearview Mirror

19. Sunroof
A: REMOVAL AND INSTALLATION
1. SUNROOF AND SUNROOF MOTOR
Refer to 5-1 [W16A0] as for removal and installation of
sunroof system.
B6M0353A
2. SUNROOF SWITCH
NOTE:
The sunroof switch is installed in spot light body.
1) Pry spot light lens off using a screwdriver.
2) Remove screws which secure spot light body.
3) Remove spot light body while disconnecting connec-
tors.
4) Remove screw which secures sunroof switch, and then
remove sunroof switch.
B6M0142A
B: INSPECTION
1. SUNROOF SWITCH
Set sunroof switch to each position and check continuity
between terminals as indicated in table below:
Terminal
Switch position43652
Open
Close
Tilt up
Tilt down
B6M0503
2. SUNROOF MOTOR
1) Apply battery voltage between 1-pin connector and
body ground wire.
2) Make sure that sunroof motor moves when connecting
terminals as described below:

Connect between terminals No. 3 and 4 (OPEN)

Connect between terminals No. 6 and 4 (CLOSE)

Connect between terminals No. 5 and 4 (TILT UP)

Connect between terminals No. 2 and 4 (TILT DOWN)
44
6-2SERVICE PROCEDURE
19. Sunroof

B6M0144A

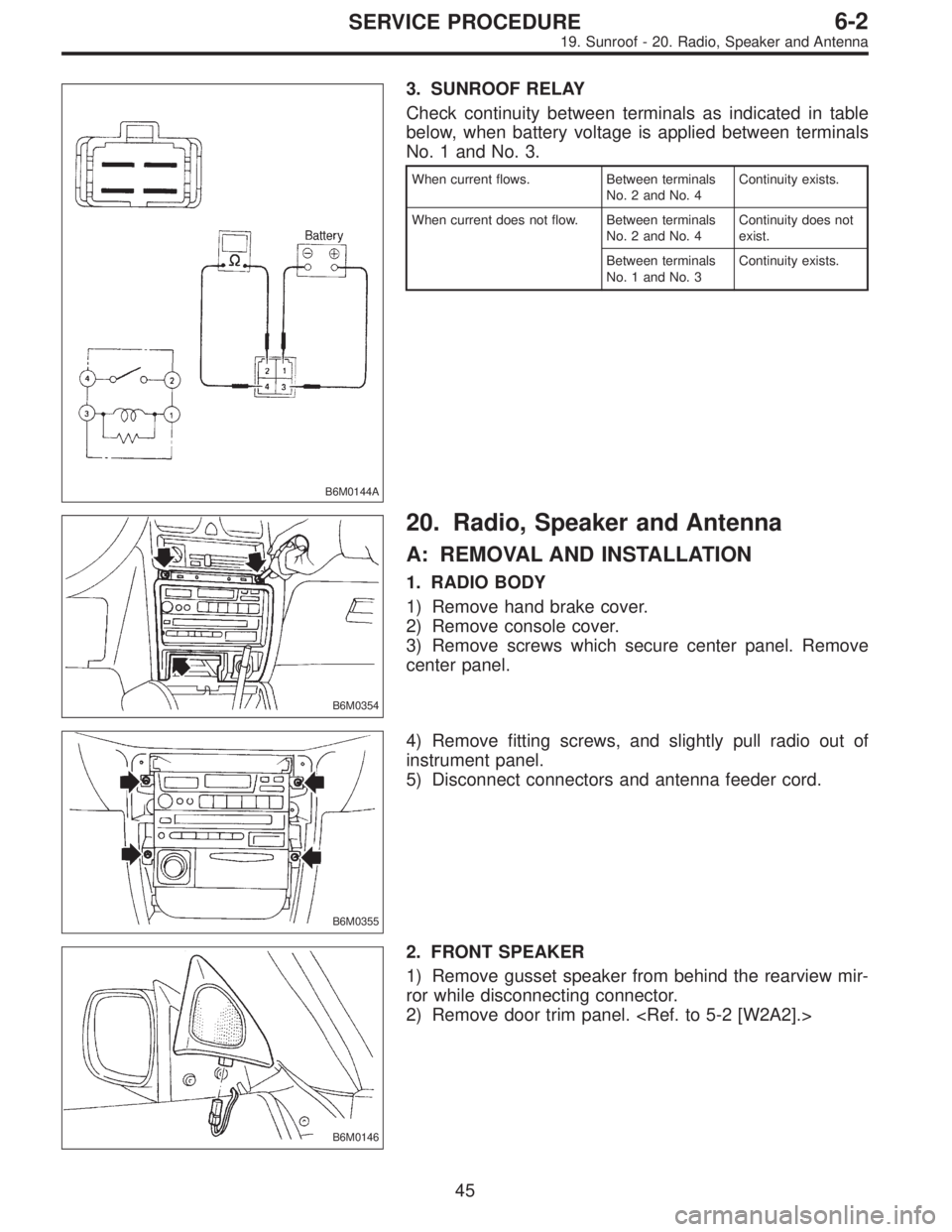

3. SUNROOF RELAY
Check continuity between terminals as indicated in table
below, when battery voltage is applied between terminals
No. 1 and No. 3.
When current flows. Between terminals
No. 2 and No. 4Continuity exists.
When current does not flow. Between terminals
No. 2 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 3Continuity exists.
B6M0354
20. Radio, Speaker and Antenna
A: REMOVAL AND INSTALLATION
1. RADIO BODY
1) Remove hand brake cover.
2) Remove console cover.
3) Remove screws which secure center panel. Remove
center panel.
B6M0355
4) Remove fitting screws, and slightly pull radio out of
instrument panel.
5) Disconnect connectors and antenna feeder cord.
B6M0146
2. FRONT SPEAKER
1) Remove gusset speaker from behind the rearview mir-
ror while disconnecting connector.
2) Remove door trim panel.
45
6-2SERVICE PROCEDURE
19. Sunroof - 20. Radio, Speaker and Antenna

B6M0144A
3. SUNROOF RELAY
Check continuity between terminals as indicated in table
below, when battery voltage is applied between terminals
No. 1 and No. 3.
When current flows. Between terminals
No. 2 and No. 4Continuity exists.
When current does not flow. Between terminals
No. 2 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 3Continuity exists.
B6M0354
20. Radio, Speaker and Antenna
A: REMOVAL AND INSTALLATION
1. RADIO BODY
1) Remove hand brake cover.
2) Remove console cover.
3) Remove screws which secure center panel. Remove
center panel.
B6M0355
4) Remove fitting screws, and slightly pull radio out of
instrument panel.
5) Disconnect connectors and antenna feeder cord.
B6M0146
2. FRONT SPEAKER
1) Remove gusset speaker from behind the rearview mir-
ror while disconnecting connector.
2) Remove door trim panel.
45
6-2SERVICE PROCEDURE
19. Sunroof - 20. Radio, Speaker and Antenna

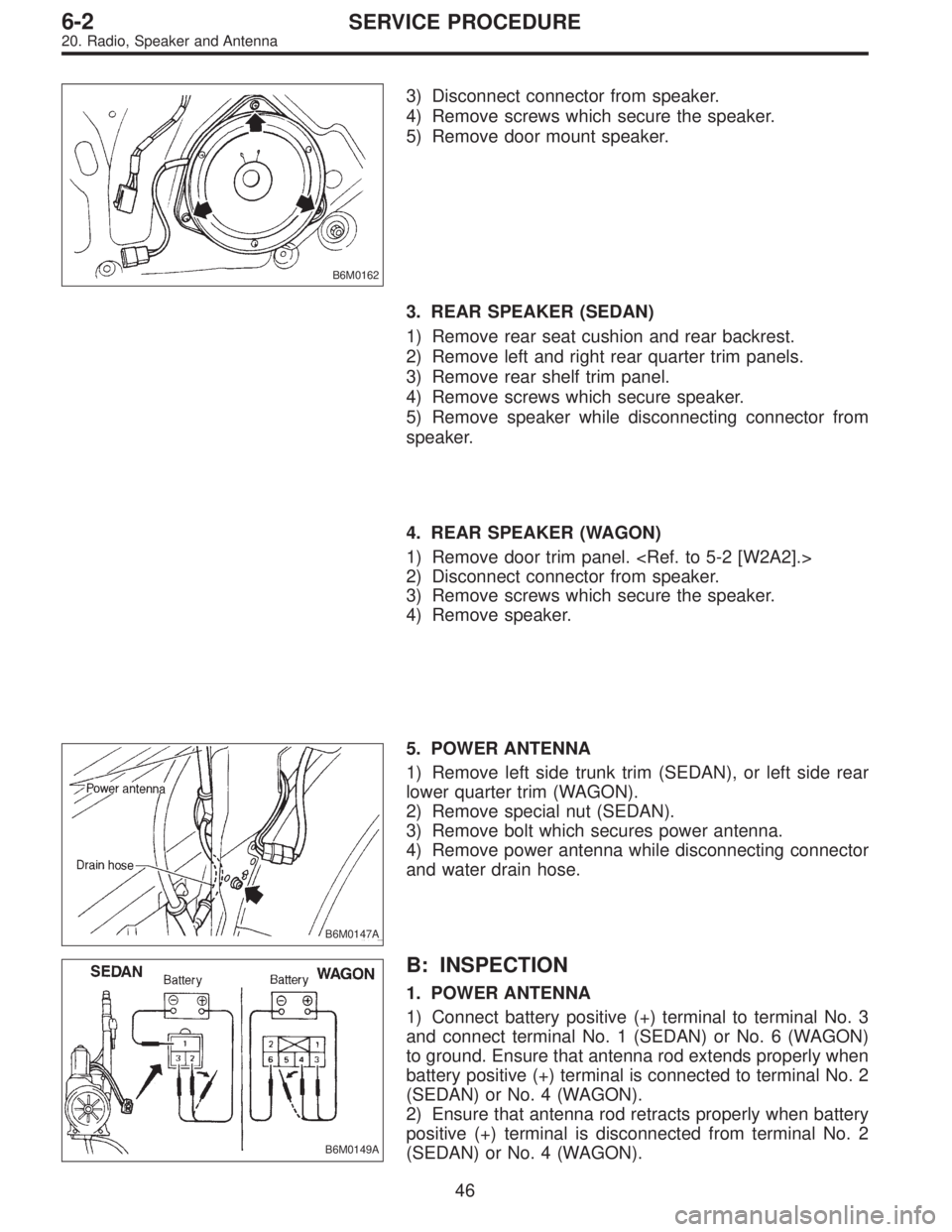

B6M0162
3) Disconnect connector from speaker.
4) Remove screws which secure the speaker.
5) Remove door mount speaker.
3. REAR SPEAKER (SEDAN)
1) Remove rear seat cushion and rear backrest.
2) Remove left and right rear quarter trim panels.
3) Remove rear shelf trim panel.
4) Remove screws which secure speaker.
5) Remove speaker while disconnecting connector from
speaker.
4. REAR SPEAKER (WAGON)
1) Remove door trim panel.
2) Disconnect connector from speaker.
3) Remove screws which secure the speaker.
4) Remove speaker.
B6M0147A
5. POWER ANTENNA
1) Remove left side trunk trim (SEDAN), or left side rear
lower quarter trim (WAGON).
2) Remove special nut (SEDAN).
3) Remove bolt which secures power antenna.
4) Remove power antenna while disconnecting connector
and water drain hose.
B6M0149A
B: INSPECTION
1. POWER ANTENNA
1) Connect battery positive (+) terminal to terminal No. 3
and connect terminal No. 1 (SEDAN) or No. 6 (WAGON)
to ground. Ensure that antenna rod extends properly when
battery positive (+) terminal is connected to terminal No. 2
(SEDAN) or No. 4 (WAGON).
2) Ensure that antenna rod retracts properly when battery
positive (+) terminal is disconnected from terminal No. 2
(SEDAN) or No. 4 (WAGON).
46
6-2SERVICE PROCEDURE
20. Radio, Speaker and Antenna
