SUBARU LEGACY 1996 Service Repair Manual

B6M0107A
B: REMOVAL AND INSTALLATION

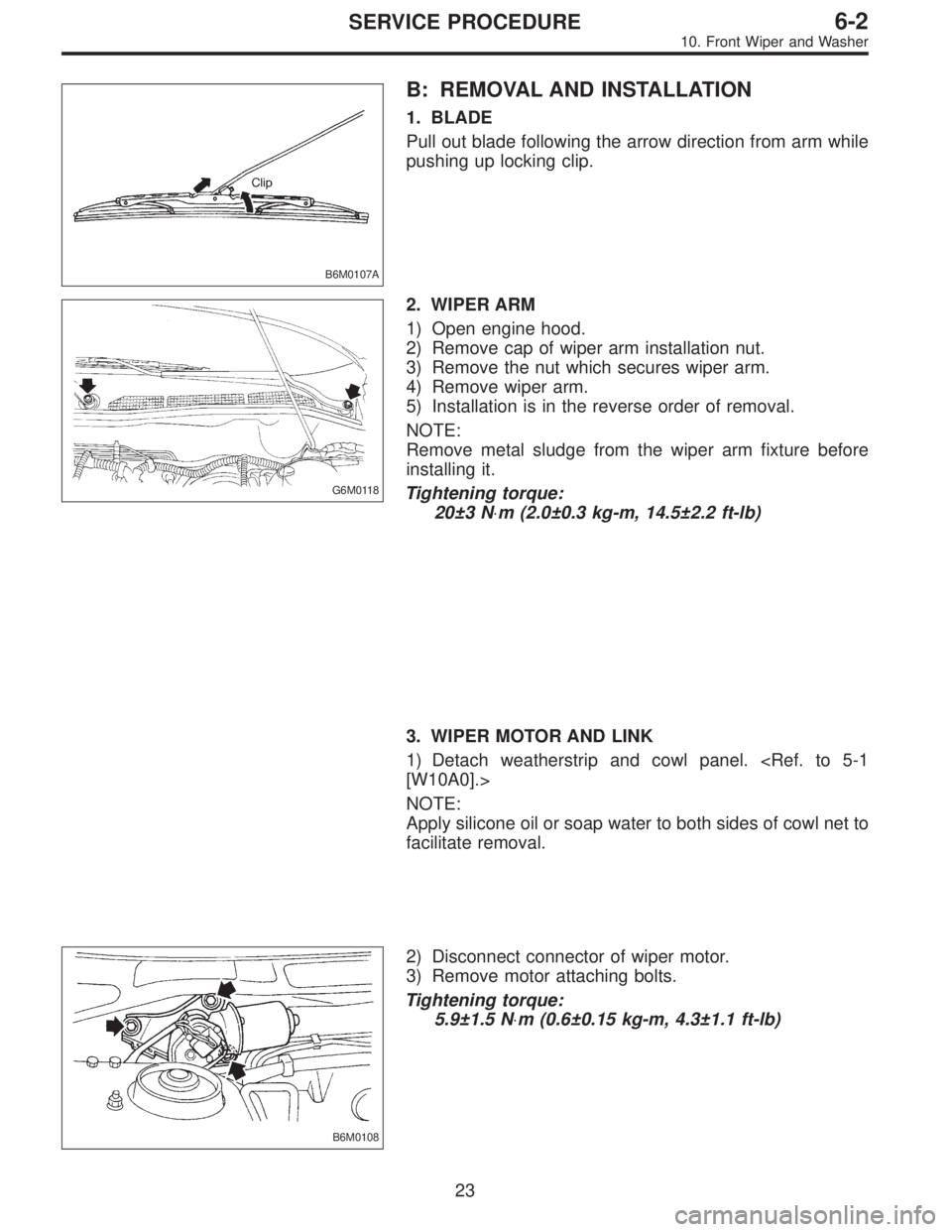

1. BLADE
Pull out blade following the arrow direction from arm while
pushing up locking clip.
G6M0118
2. WIPER ARM
1) Open engine hood.
2) Remove cap of wiper arm installation nut.
3) Remove the nut which secures wiper arm.
4) Remove wiper arm.
5) Installation is in the reverse order of removal.
NOTE:
Remove metal sludge from the wiper arm fixture before
installing it.
Tightening torque:
20±3 N⋅m (2.0±0.3 kg-m, 14.5±2.2 ft-lb)
3. WIPER MOTOR AND LINK
1) Detach weatherstrip and cowl panel. [W10A0].>
NOTE:
Apply silicone oil or soap water to both sides of cowl net to
facilitate removal.
B6M0108
2) Disconnect connector of wiper motor.
3) Remove motor attaching bolts.
Tightening torque:
5.9±1.5 N⋅m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
23
6-2SERVICE PROCEDURE
10. Front Wiper and Washer

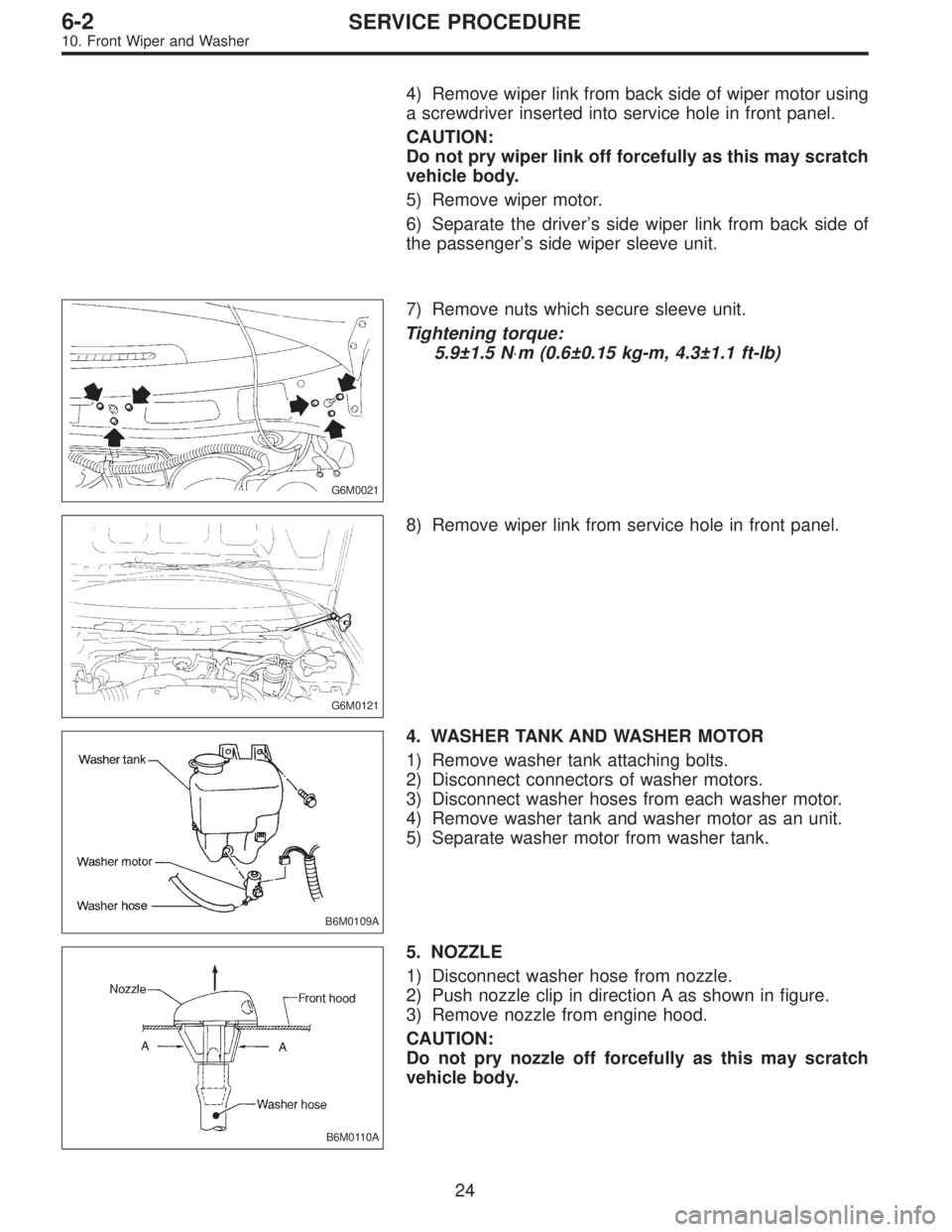

4) Remove wiper link from back side of wiper motor using
a screwdriver inserted into service hole in front panel.
CAUTION:
Do not pry wiper link off forcefully as this may scratch
vehicle body.
5) Remove wiper motor.
6) Separate the driver’s side wiper link from back side of
the passenger’s side wiper sleeve unit.
G6M0021
7) Remove nuts which secure sleeve unit.
Tightening torque:
5.9±1.5 N⋅m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
G6M0121
8) Remove wiper link from service hole in front panel.
B6M0109A
4. WASHER TANK AND WASHER MOTOR
1) Remove washer tank attaching bolts.
2) Disconnect connectors of washer motors.
3) Disconnect washer hoses from each washer motor.
4) Remove washer tank and washer motor as an unit.
5) Separate washer motor from washer tank.
B6M0110A
5. NOZZLE
1) Disconnect washer hose from nozzle.
2) Push nozzle clip in direction A as shown in figure.
3) Remove nozzle from engine hood.
CAUTION:
Do not pry nozzle off forcefully as this may scratch
vehicle body.
24
6-2SERVICE PROCEDURE
10. Front Wiper and Washer

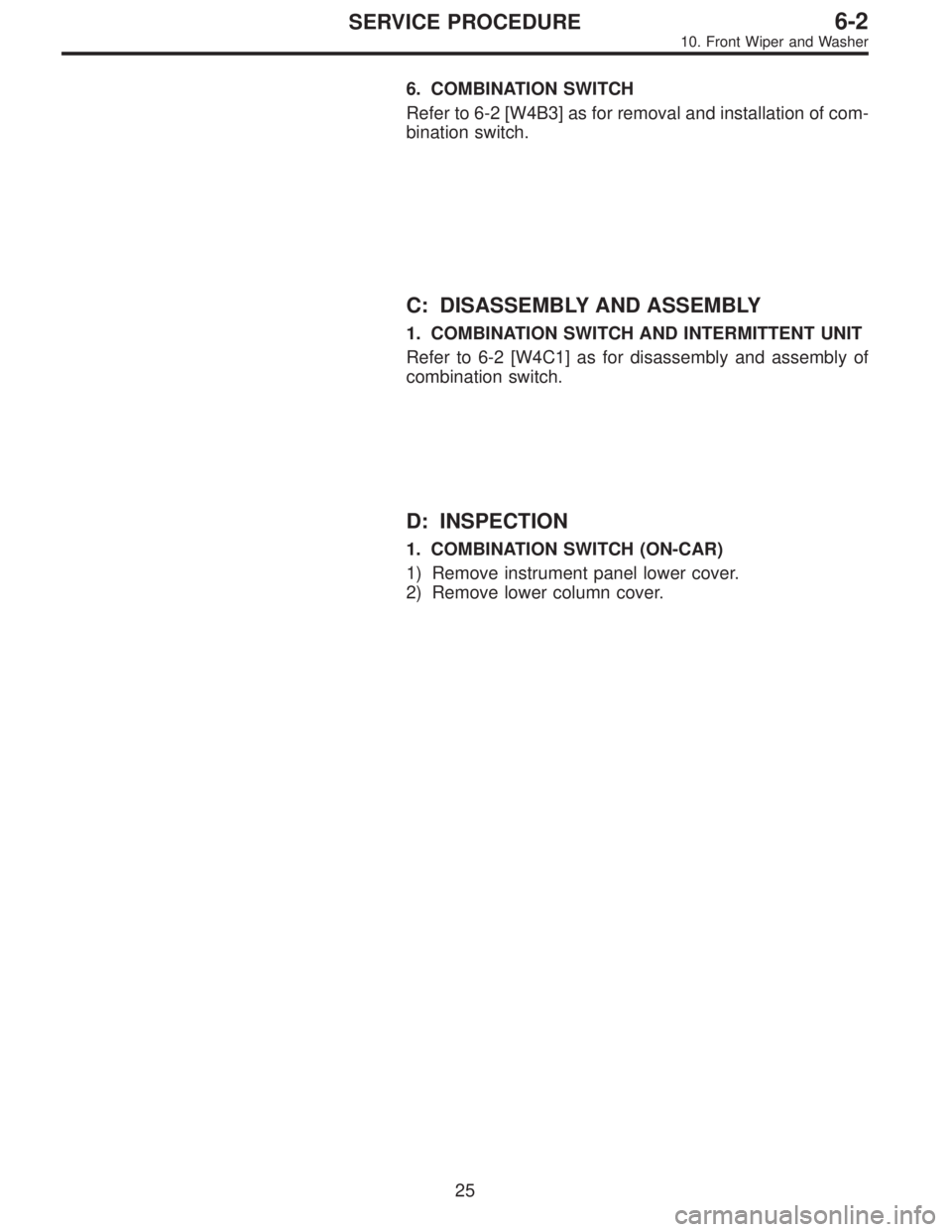

6. COMBINATION SWITCH
Refer to 6-2 [W4B3] as for removal and installation of com-
bination switch.
C: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH AND INTERMITTENT UNIT
Refer to 6-2 [W4C1] as for disassembly and assembly of
combination switch.
D: INSPECTION
1. COMBINATION SWITCH (ON-CAR)
1) Remove instrument panel lower cover.
2) Remove lower column cover.
25
6-2SERVICE PROCEDURE
10. Front Wiper and Washer

B6M0238

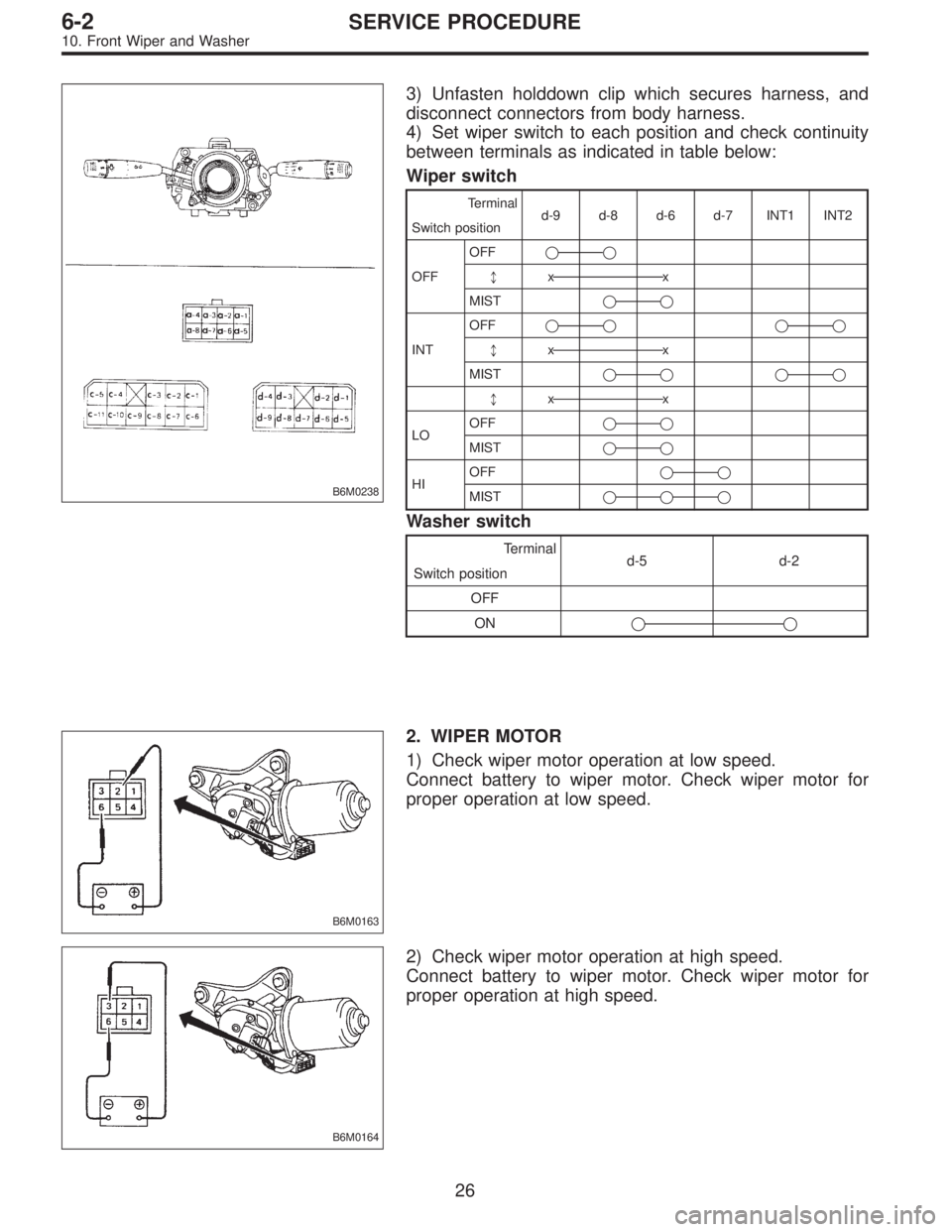

3) Unfasten holddown clip which secures harness, and
disconnect connectors from body harness.
4) Set wiper switch to each position and check continuity
between terminals as indicated in table below:
Wiper switch
Terminal
d-9 d-8 d-6 d-7 INT1 INT2
Switch position
OFFOFF
*xx
MIST
INTOFF

*xx
MIST
*xx
LOOFFMIST
HIOFFMIST
Washer switch
Terminal
d-5 d-2
Switch position
OFF
ON
B6M0163
2. WIPER MOTOR
1) Check wiper motor operation at low speed.
Connect battery to wiper motor. Check wiper motor for
proper operation at low speed.
B6M0164
2) Check wiper motor operation at high speed.
Connect battery to wiper motor. Check wiper motor for
proper operation at high speed.
26
6-2SERVICE PROCEDURE
10. Front Wiper and Washer

B6M0165
3) Check wiper motor for proper stoppage.
Connect battery to wiper motor. After operating wiper motor
at low speed, disconnect battery to stop it.
B6M0166
4) Reconnect battery and ensure that wiper motor stops at
“AUTO STOP”after operating at low speed.
B6M0111
3. WASHER MOTOR
Apply battery voltage between terminals of washer motor
connector and check that washer motor operates.
G6M0126
11. Rear Wiper and Washer
A: ON-CAR SERVICES
1. ADJUSTMENT
1) Adjust wiper blade in original position as shown in fig-
ure by changing wiper arm installation.
Original position:
A: 25—35 mm (0.98—1.38 in)
G6M0127
2) Adjust washer ejecting point on rear gate window as
shown in figure when the vehicle stops.
Ejecting point:
A: 25 mm (0.98 in)
B: 200—300 mm (7.87—11.81 in)
27
6-2SERVICE PROCEDURE
10. Front Wiper and Washer - 11. Rear Wiper and Washer

B6M0165

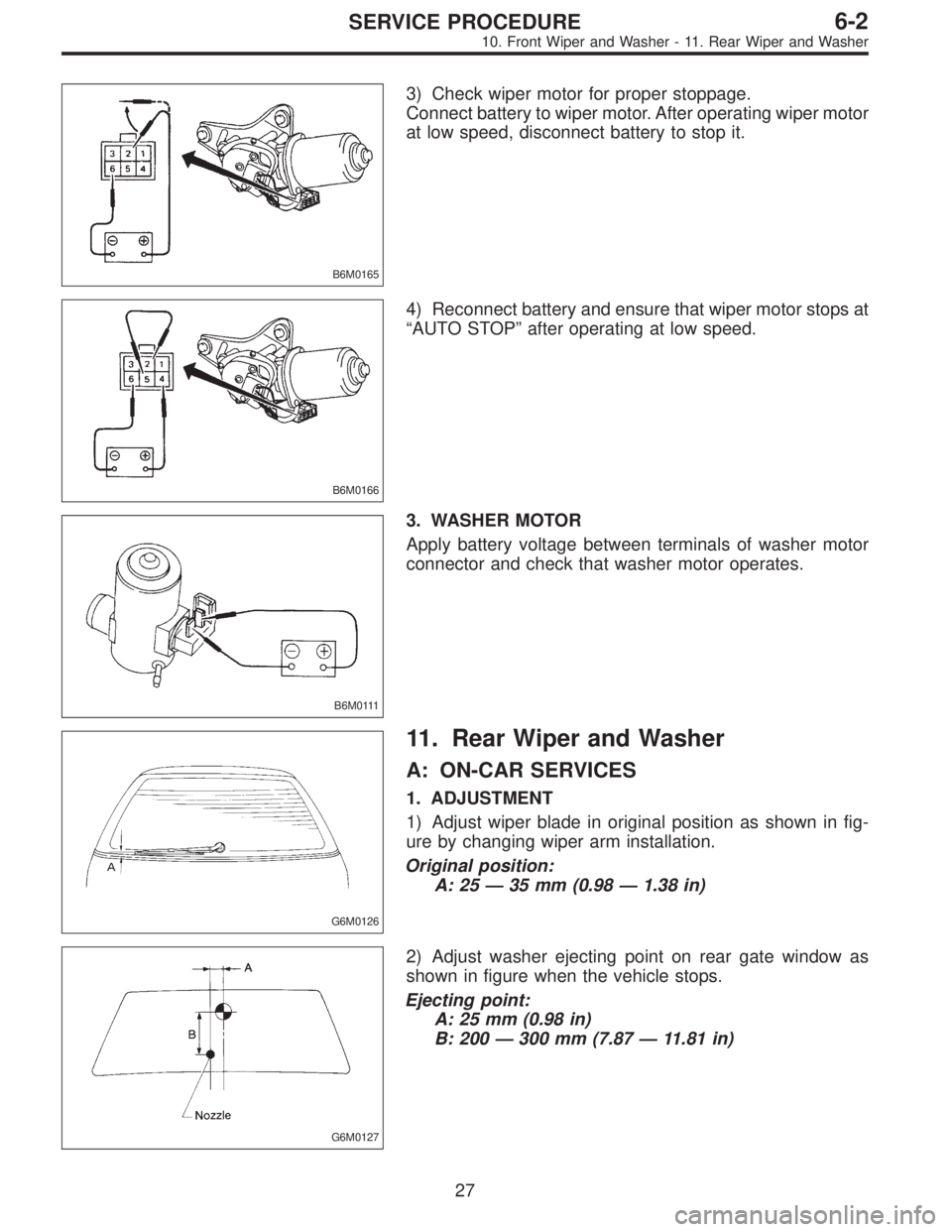

3) Check wiper motor for proper stoppage.
Connect battery to wiper motor. After operating wiper motor
at low speed, disconnect battery to stop it.
B6M0166
4) Reconnect battery and ensure that wiper motor stops at
“AUTO STOP”after operating at low speed.
B6M0111
3. WASHER MOTOR
Apply battery voltage between terminals of washer motor
connector and check that washer motor operates.
G6M0126
11. Rear Wiper and Washer
A: ON-CAR SERVICES
1. ADJUSTMENT
1) Adjust wiper blade in original position as shown in fig-
ure by changing wiper arm installation.
Original position:
A: 25—35 mm (0.98—1.38 in)
G6M0127
2) Adjust washer ejecting point on rear gate window as
shown in figure when the vehicle stops.
Ejecting point:
A: 25 mm (0.98 in)
B: 200—300 mm (7.87—11.81 in)
27
6-2SERVICE PROCEDURE
10. Front Wiper and Washer - 11. Rear Wiper and Washer

B6M0107A

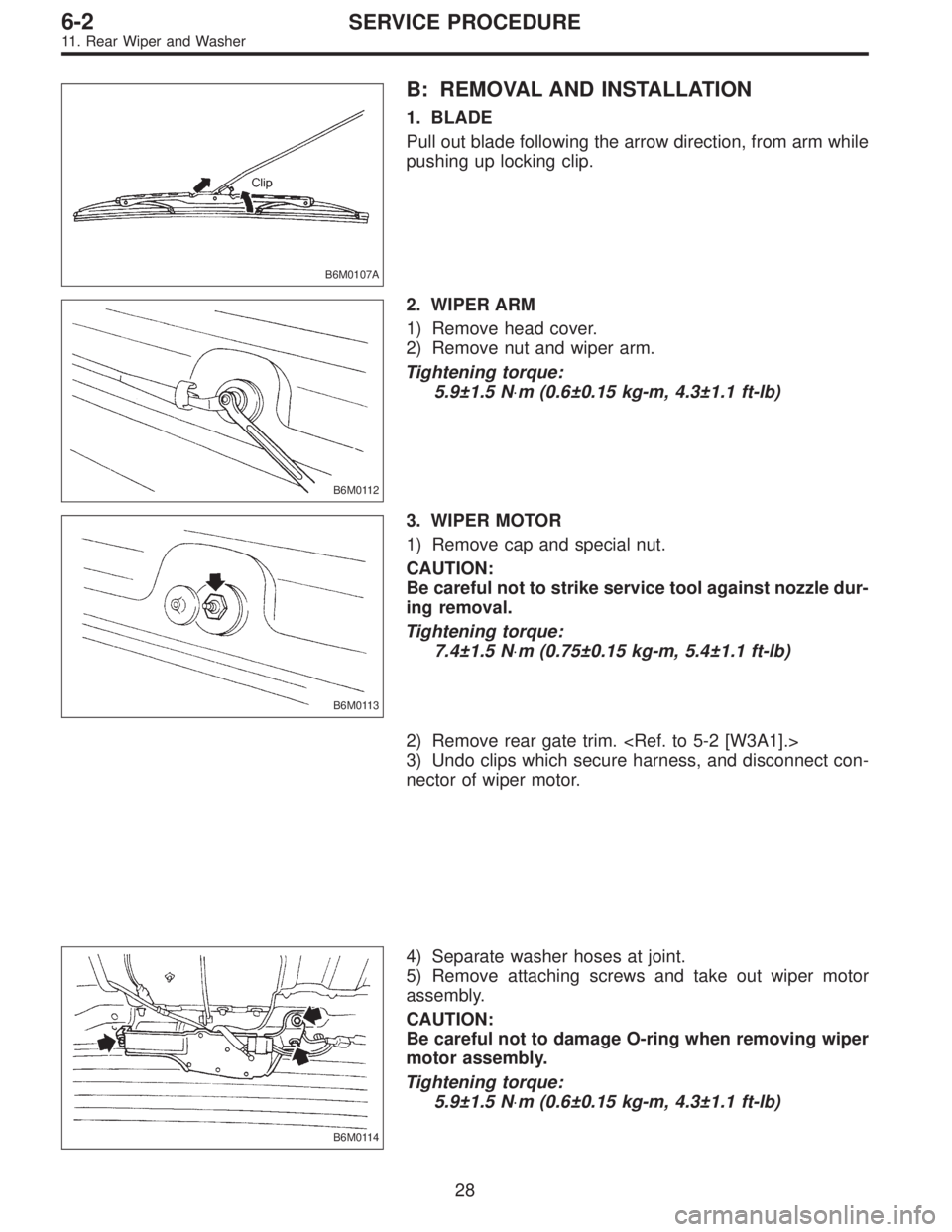

B: REMOVAL AND INSTALLATION
1. BLADE
Pull out blade following the arrow direction, from arm while
pushing up locking clip.
B6M0112
2. WIPER ARM
1) Remove head cover.
2) Remove nut and wiper arm.
Tightening torque:
5.9±1.5 N⋅m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
B6M0113
3. WIPER MOTOR
1) Remove cap and special nut.
CAUTION:
Be careful not to strike service tool against nozzle dur-
ing removal.
Tightening torque:
7.4±1.5 N⋅m (0.75±0.15 kg-m, 5.4±1.1 ft-lb)
2) Remove rear gate trim.
3) Undo clips which secure harness, and disconnect con-
nector of wiper motor.
B6M0114
4) Separate washer hoses at joint.
5) Remove attaching screws and take out wiper motor
assembly.
CAUTION:
Be careful not to damage O-ring when removing wiper
motor assembly.
Tightening torque:
5.9±1.5 N⋅m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
28
6-2SERVICE PROCEDURE
11. Rear Wiper and Washer

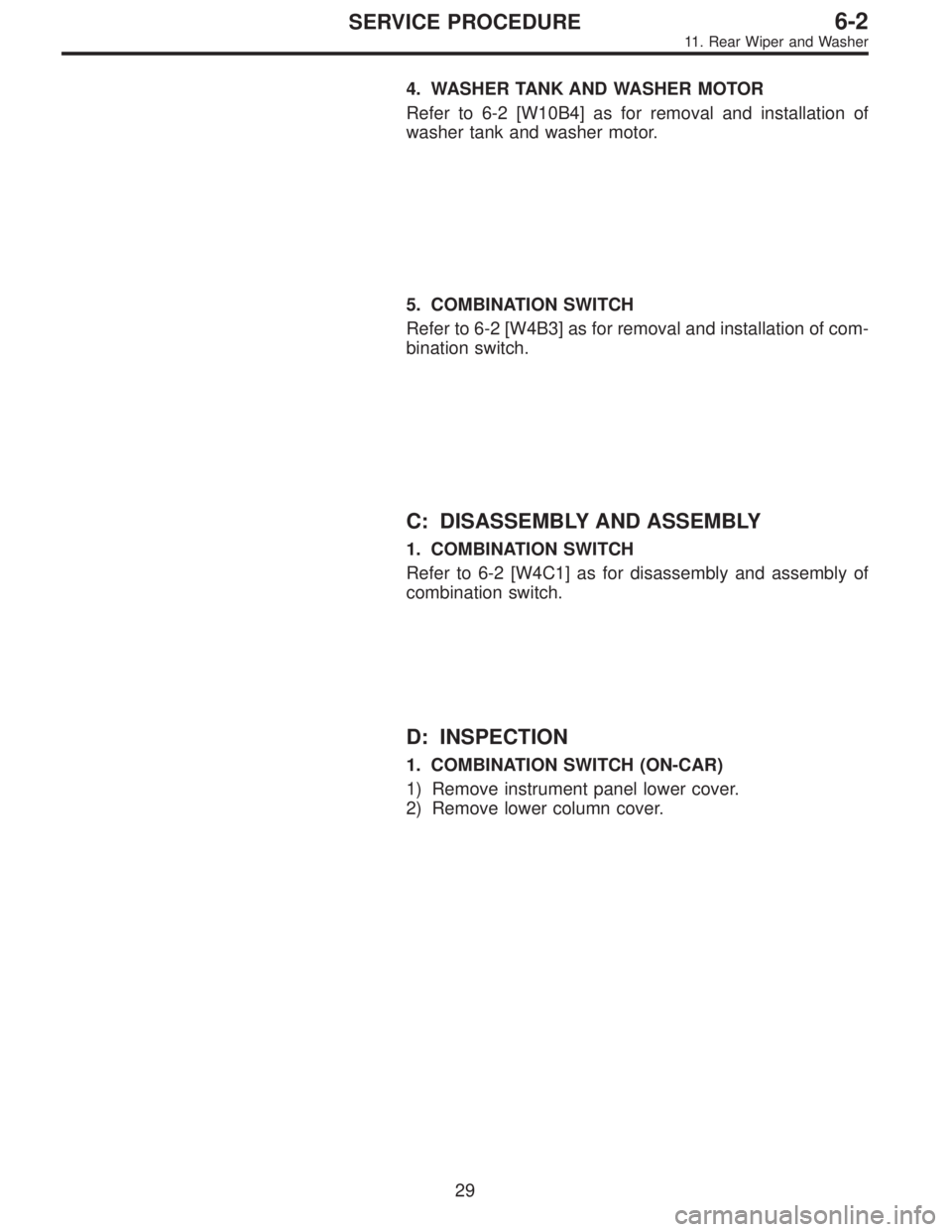

4. WASHER TANK AND WASHER MOTOR
Refer to 6-2 [W10B4] as for removal and installation of
washer tank and washer motor.
5. COMBINATION SWITCH
Refer to 6-2 [W4B3] as for removal and installation of com-
bination switch.
C: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH
Refer to 6-2 [W4C1] as for disassembly and assembly of
combination switch.
D: INSPECTION
1. COMBINATION SWITCH (ON-CAR)
1) Remove instrument panel lower cover.
2) Remove lower column cover.
29
6-2SERVICE PROCEDURE
11. Rear Wiper and Washer

B6M0238
3) Unfasten holddown clip which secures harness, and
disconnect connectors from body harness.
4) Set rear wiper and washer switch to each position and
check continuity between terminals as indicated in table
below:
Terminal
Switch positiond-2 d-1 d-3
WASH
OFF
ON
WASH
B6M0167
2. WIPER MOTOR
1) Operational check
Connect battery to wiper motor and check operation of
wiper motor.
B6M0168
2) Check wiper motor for proper stoppage.
After operating wiper motor, disconnect battery from wiper
motor.
B6M0169
3) Reconnect battery and ensure that wiper motor stops at
“AUTO STOP”after it has been operated.
30
6-2SERVICE PROCEDURE
11. Rear Wiper and Washer

G6M0134

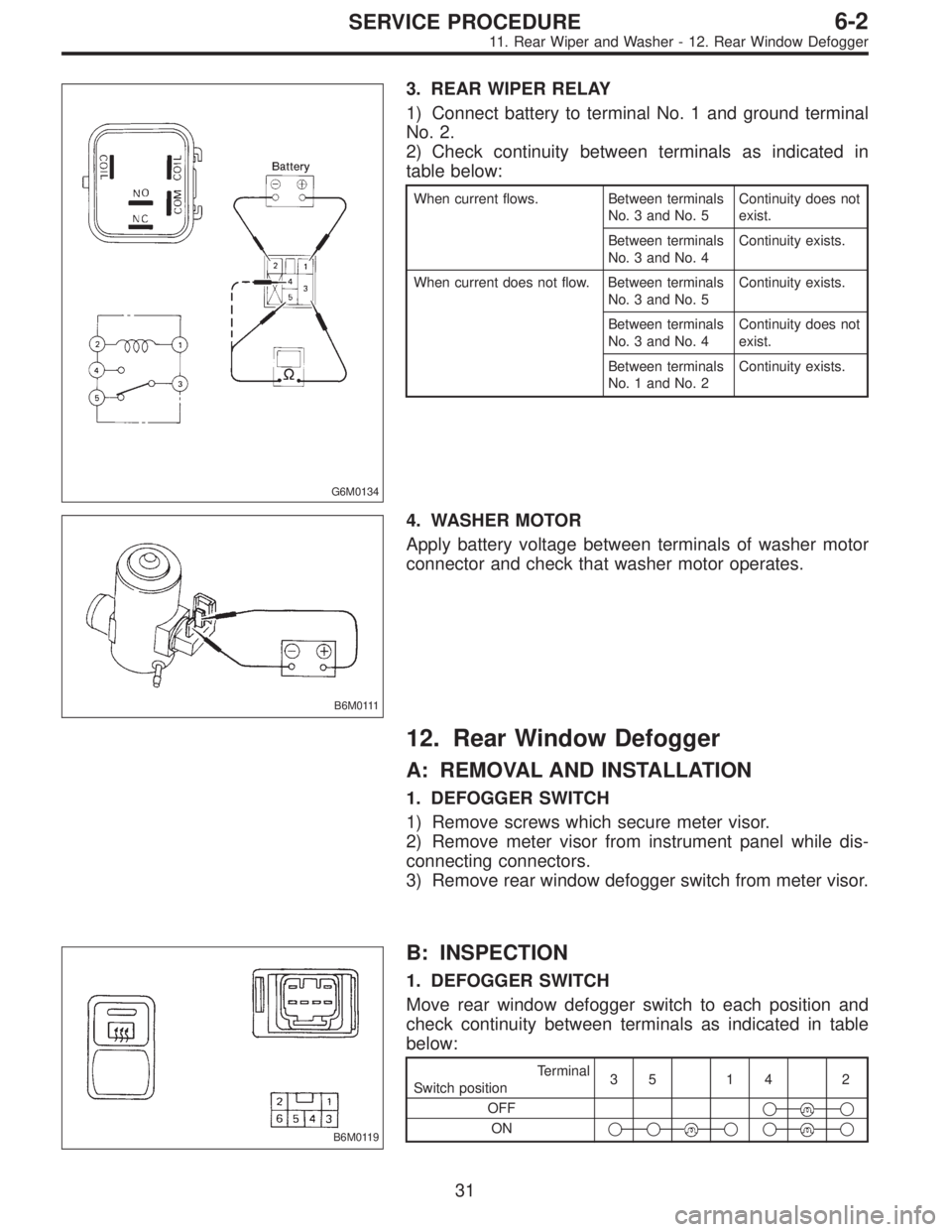

3. REAR WIPER RELAY
1) Connect battery to terminal No. 1 and ground terminal
No. 2.
2) Check continuity between terminals as indicated in
table below:
When current flows. Between terminals
No. 3 and No. 5Continuity does not
exist.
Between terminals
No. 3 and No. 4Continuity exists.
When current does not flow. Between terminals
No. 3 and No. 5Continuity exists.
Between terminals
No. 3 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 2Continuity exists.
B6M0111
4. WASHER MOTOR
Apply battery voltage between terminals of washer motor
connector and check that washer motor operates.
12. Rear Window Defogger
A: REMOVAL AND INSTALLATION
1. DEFOGGER SWITCH
1) Remove screws which secure meter visor.
2) Remove meter visor from instrument panel while dis-
connecting connectors.
3) Remove rear window defogger switch from meter visor.
B6M0119
B: INSPECTION
1. DEFOGGER SWITCH
Move rear window defogger switch to each position and
check continuity between terminals as indicated in table
below:
Terminal
Switch position35 14 2
OFF

ON
31
6-2SERVICE PROCEDURE
11. Rear Wiper and Washer - 12. Rear Window Defogger
