Valve cover gasket SUBARU LEGACY 1996 Service Repair Manual

2. Cylinder Head and Camshaft
B2M0103A

1Rocker cover (RH)


2Rocker cover gasket


3Camshaft support (RH)


4O-ring


5Camshaft (RH)


6Intake valve guide


7Exhaust valve guide


8Oil seal


9Cylinder head (RH)


10Cylinder head gasket


11Cylinder head (LH)


12Plug


13Camshaft (LH)


14O-ring


15Camshaft support (LH)

16Oil seal


17Oil filler cap


18Gasket


19Oil filler pipe


20O-ring


21Rocker cover gasket


22Rocker cover (LH)
Tightening torque: N⋅m (kg-m, ft-lb)
T1: Refer to 2-3 [W6E1].
T2: 5±1 (0.5±0.1, 3.6±0.7)
T3: 10 (1.0, 7)
T4: 16 (1.6, 12)
7
2-3COMPONENT PARTS
2. Cylinder Head and Camshaft

TROUBLE
Engine will not start.
Rough idle and engine stall
Low output, hesitation and poor acceleration
Surging
Engine does not return to idle.
Dieseling (Run-on)
After burning in exhaust system
Knocking
Excessive engine oil consumption
Excessive fuel consumption Starter does not turn.
Initial combustion does not occur.
Initial combustion occurs.
Engine stalls after initial combustion.
LUBRICATION SYSTEM
22 3 3Incorrect oil pressure
2Loosened oil pump attaching bolts and defective
gasket
2Defective oil filter seal
2Defective crankshaft oil seal
32Defective rocker cover gasket
2Loosened oil drain plug or defective gasket
2Loosened oil pan fitting bolts or defective oil pan
COOLING SYSTEM
33221Overheating
333Over cooling
OTHERS
113 3Malfunction of Evaporative Emission Control
System
21Stuck or damaged throttle valve
322 2Accelerator cable out of adjustment
77
2-3DIAGNOSTICS
1. Engine Trouble in General

2. Cylinder Head and Camshaft
B2M0681A

1Rocker cover (RH)


2Rocker cover gasket (RH)


3Oil separator cover


4Gasket


5Intake camshaft cap (Front RH)


6Intake camshaft cap (Center RH)


7Intake camshaft cap (Rear RH)


8Intake camshaft (RH)


9Exhaust camshaft cap (Front RH)


10Exhaust camshaft cap (Center RH)


11Exhaust camshaft cap (Rear RH)


12Exhaust camshaft (RH)


13Intake valve guide

14Exhaust valve guide


15Cylinder head bolt


16Oil seal


17Cylinder head (RH)


18Cylinder head gasket (RH)


19Cylinder head gasket (LH)


20Cylinder head (LH)


21Intake camshaft (LH)


22Exhaust camshaft (LH)


23Intake camshaft cap (Front LH)


24Intake camshaft cap (Center LH)


25Intake camshaft cap (Rear LH)


26Exhaust camshaft (Front LH)

27Exhaust camshaft cap (Center LH)


28Exhaust camshaft cap (Rear LH)


29Rocker cover gasket (LH)


30Rocker cover (LH)


31Oil filler cap


32Gasket


33Oil filler duct


34Gasket
Tightening torque: N⋅m (kg-m, ft-lb)
T1: Refer to 2-3b [W4E1].
T2: 5 (0.5, 3.6)
T3: 10 (1.0, 7)
7
2-3bCOMPONENT PARTS
2. Cylinder Head and Camshaft

TROUBLE
Engine will not start.
Rough idle and engine stall
Low output, hesitation and poor acceleration
Surging
Engine does not return to idle.
Dieseling (Run-on)
After burning in exhaust system
Knocking
Excessive engine oil consumption
Excessive fuel consumption Starter does not turn.
Initial combustion does not occur.
Initial combustion occurs.
Engine stalls after initial combustion.
LUBRICATION SYSTEM
22 3 3Incorrect oil pressure
2Loosened oil pump attaching bolts and defective
gasket
2Defective oil filter seal
2Defective crankshaft oil seal
32Defective rocker cover gasket
2Loosened oil drain plug or defective gasket
2Loosened oil pan fitting bolts or defective oil pan
COOLING SYSTEM
33221Overheating
333Over cooling
OTHERS
113 3Malfunction of Evaporative Emission Control
System
21Stuck or damaged throttle valve
322 2Accelerator cable out of adjustment
77
2-3bDIAGNOSTICS
1. Engine Trouble in General

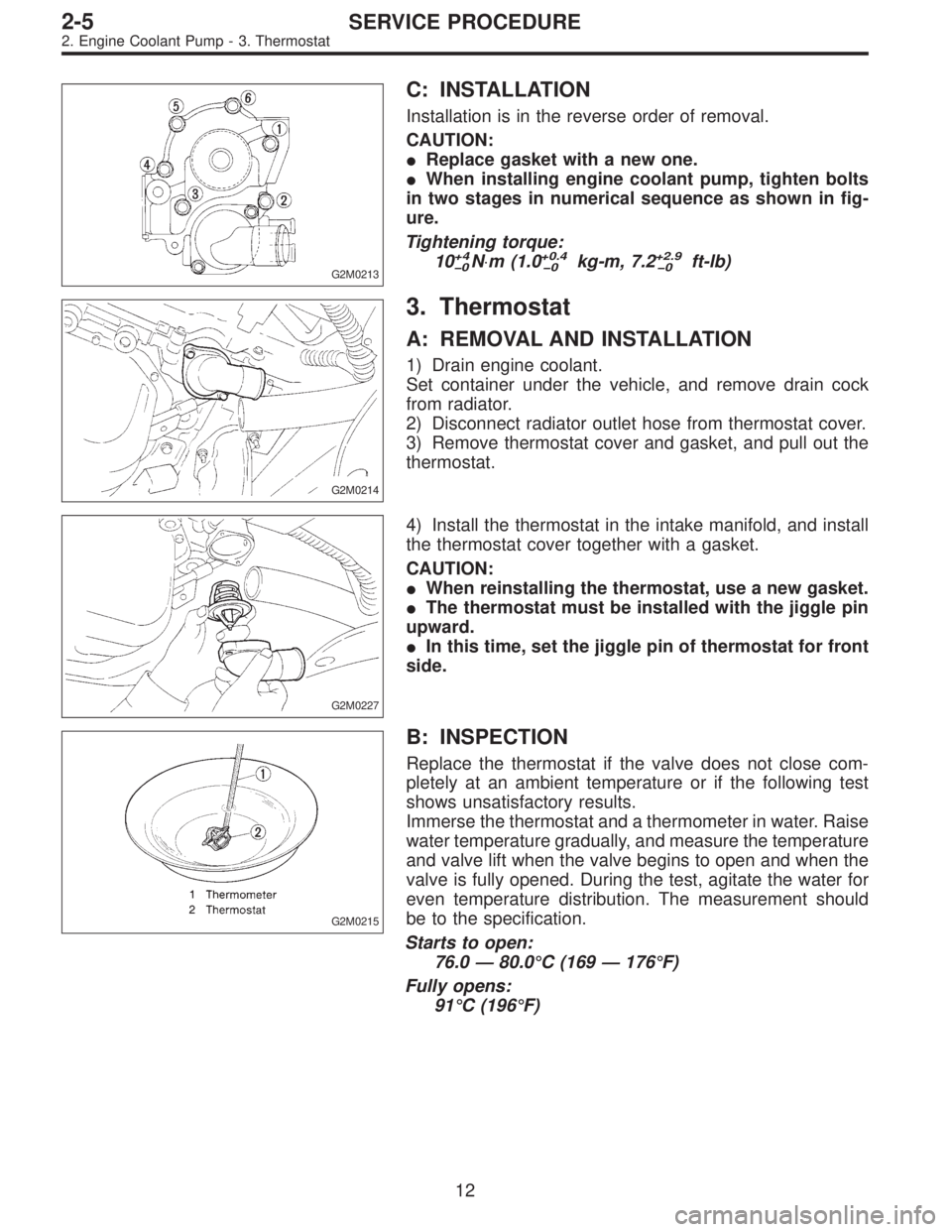

G2M0213
C: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Replace gasket with a new one.
When installing engine coolant pump, tighten bolts
in two stages in numerical sequence as shown in fig-
ure.
Tightening torque:
10
+4
0N⋅m (1.0+0.4
0kg-m, 7.2+2.9
0ft-lb)
G2M0214
3. Thermostat
A: REMOVAL AND INSTALLATION
1) Drain engine coolant.
Set container under the vehicle, and remove drain cock
from radiator.
2) Disconnect radiator outlet hose from thermostat cover.
3) Remove thermostat cover and gasket, and pull out the
thermostat.
G2M0227
4) Install the thermostat in the intake manifold, and install
the thermostat cover together with a gasket.
CAUTION:
When reinstalling the thermostat, use a new gasket.
The thermostat must be installed with the jiggle pin
upward.
In this time, set the jiggle pin of thermostat for front
side.
G2M0215
B: INSPECTION
Replace the thermostat if the valve does not close com-
pletely at an ambient temperature or if the following test
shows unsatisfactory results.
Immerse the thermostat and a thermometer in water. Raise
water temperature gradually, and measure the temperature
and valve lift when the valve begins to open and when the
valve is fully opened. During the test, agitate the water for
even temperature distribution. The measurement should
be to the specification.
Starts to open:
76.0—80.0°C (169—176°F)
Fully opens:
91°C (196°F)
12
2-5SERVICE PROCEDURE
2. Engine Coolant Pump - 3. Thermostat

1. Fuel Tank
1. 2500 cc AWD MODEL
B2M0630A

1Heat sealed cover


2Fuel tank band


3Protector LH


4Protector RH


5Fuel tank


6Fuel pump gasket


7Fuel pump ASSY


8Fuel cut valve gasket


9Fuel cut valve


10Evaporation hose C


11Evaporation hose A

12Clip


13Joint pipe


14Evaporation hose B


15Evaporation pipe ASSY


16Evaporation hose D


17Clamp


18Jet pump hose A


19Fuel delivery hose A


20Fuel return hose A


21Fuel pipe ASSY


22Jet pump hose B

23Fuel delivery hose B


24Fuel return hose B


25Evaporation hose E


26Fuel sub meter gasket


27Jet pump filter


28Fuel sub meter unit


29Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
3
2-8COMPONENT PARTS
1. Fuel Tank

2. FWD MODEL
B2M0631A

1Heat seated cover


2Fuel tank band


3Protector


4Protector bracket


5Fuel tank


6Fuel pump gasket


7Fuel pump ASSY


8Clamp


9Clip


10Fuel delivery hose A


11Fuel return hose A


12Evaporation hose A


13Fuel pipe ASSY

14Fuel delivery hose B


15Fuel return hose B


16Evaporation hose B


17Plate


18Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±0.2 (0.75±0.2, 5.4±1.4)
T3: 18±5 (1.8±0.5, 13.0±3.6)
T4: 33±10 (3.4±1.0, 25±7)
4
2-8COMPONENT PARTS
1. Fuel Tank

1Heat sealed cover


2Fuel tank band


3Protector LH


4Protector RH


5Fuel tank


6Pressure control solenoid valve bracket


7Pressure control solenoid valve


8Evaporation hose G


9Evaporation pipe A


10Fuel pump gasket


11Fuel pump ASSY


12Fuel cut valve gasket


13Fuel cut valve


14Evaporation hose C


15Evaporation hose A


16Clip


17Joint pipe


18Evaporation hose B


19Evaporation pipe ASSY

20Evaporation hose D


21Evaporation hose E


22Clamp


23Jet pump hose A


24Fuel delivery hose A


25Fuel return hose A


26Fuel pipe ASSY


27Jet pump hose B


28Fuel delivery hose B


29Fuel return hose B


30Evaporation hose F


31Fuel sub meter gasket


32Jet pump filter


33Fuel sub meter unit
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
6
2-8COMPONENT PARTS
1. Fuel Tank

G2M0213
C: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Replace gasket with a new one.
When installing engine coolant pump, tighten bolts
in two stages in numerical sequence as shown in fig-
ure.
Tightening torque:
10
+4
0N⋅m (1.0+0.4
0kg-m, 7.2+2.9
0ft-lb)
G2M0214
3. Thermostat
A: REMOVAL AND INSTALLATION
1) Drain engine coolant.
Set container under the vehicle, and remove drain cock
from radiator.
2) Disconnect radiator outlet hose from thermostat cover.
3) Remove thermostat cover and gasket, and pull out the
thermostat.
G2M0227
4) Install the thermostat in the intake manifold, and install
the thermostat cover together with a gasket.
CAUTION:
When reinstalling the thermostat, use a new gasket.
The thermostat must be installed with the jiggle pin
upward.
In this time, set the jiggle pin of thermostat for front
side.
G2M0215
B: INSPECTION
Replace the thermostat if the valve does not close com-
pletely at an ambient temperature or if the following test
shows unsatisfactory results.
Immerse the thermostat and a thermometer in water. Raise
water temperature gradually, and measure the temperature
and valve lift when the valve begins to open and when the
valve is fully opened. During the test, agitate the water for
even temperature distribution. The measurement should
be to the specification.
Starts to open:
76.0—80.0°C (169—176°F)
Fully opens:
91°C (196°F)
12
2-5SERVICE PROCEDURE
2. Engine Coolant Pump - 3. Thermostat

1. Fuel Tank
1. 2500 cc AWD MODEL
B2M0630A

1Heat sealed cover


2Fuel tank band


3Protector LH


4Protector RH


5Fuel tank


6Fuel pump gasket


7Fuel pump ASSY


8Fuel cut valve gasket


9Fuel cut valve


10Evaporation hose C


11Evaporation hose A

12Clip


13Joint pipe


14Evaporation hose B


15Evaporation pipe ASSY


16Evaporation hose D


17Clamp


18Jet pump hose A


19Fuel delivery hose A


20Fuel return hose A


21Fuel pipe ASSY


22Jet pump hose B

23Fuel delivery hose B


24Fuel return hose B


25Evaporation hose E


26Fuel sub meter gasket


27Jet pump filter


28Fuel sub meter unit


29Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
3
2-8COMPONENT PARTS
1. Fuel Tank
