G5M0144

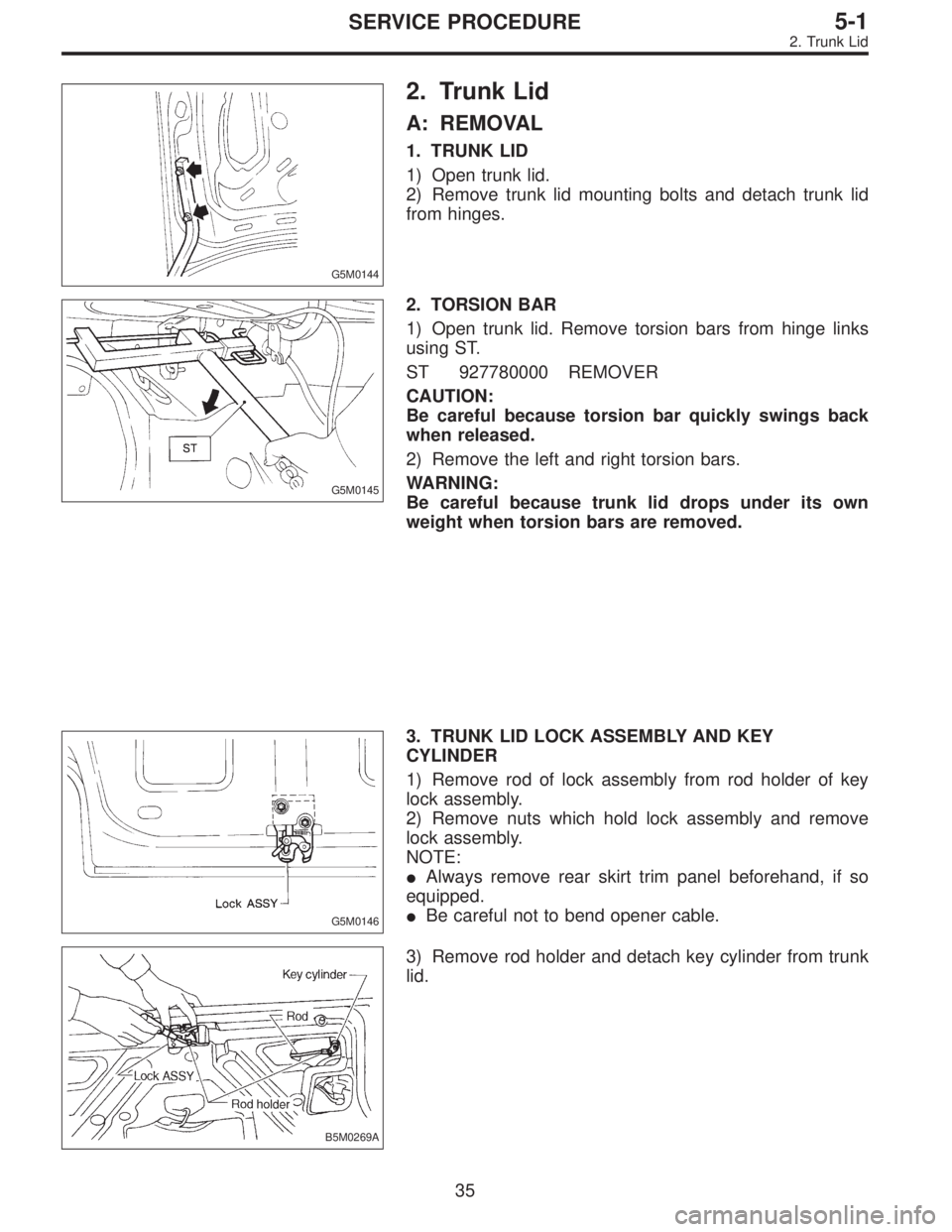

2. Trunk Lid
A: REMOVAL
1. TRUNK LID
1) Open trunk lid.
2) Remove trunk lid mounting bolts and detach trunk lid
from hinges.
G5M0145
2. TORSION BAR
1) Open trunk lid. Remove torsion bars from hinge links
using ST.
ST 927780000 REMOVER
CAUTION:
Be careful because torsion bar quickly swings back
when released.
2) Remove the left and right torsion bars.
WARNING:
Be careful because trunk lid drops under its own
weight when torsion bars are removed.
G5M0146
3. TRUNK LID LOCK ASSEMBLY AND KEY
CYLINDER
1) Remove rod of lock assembly from rod holder of key
lock assembly.
2) Remove nuts which hold lock assembly and remove
lock assembly.
NOTE:

Always remove rear skirt trim panel beforehand, if so
equipped.

Be careful not to bend opener cable.
B5M0269A
3) Remove rod holder and detach key cylinder from trunk
lid.
35
5-1SERVICE PROCEDURE
2. Trunk Lid

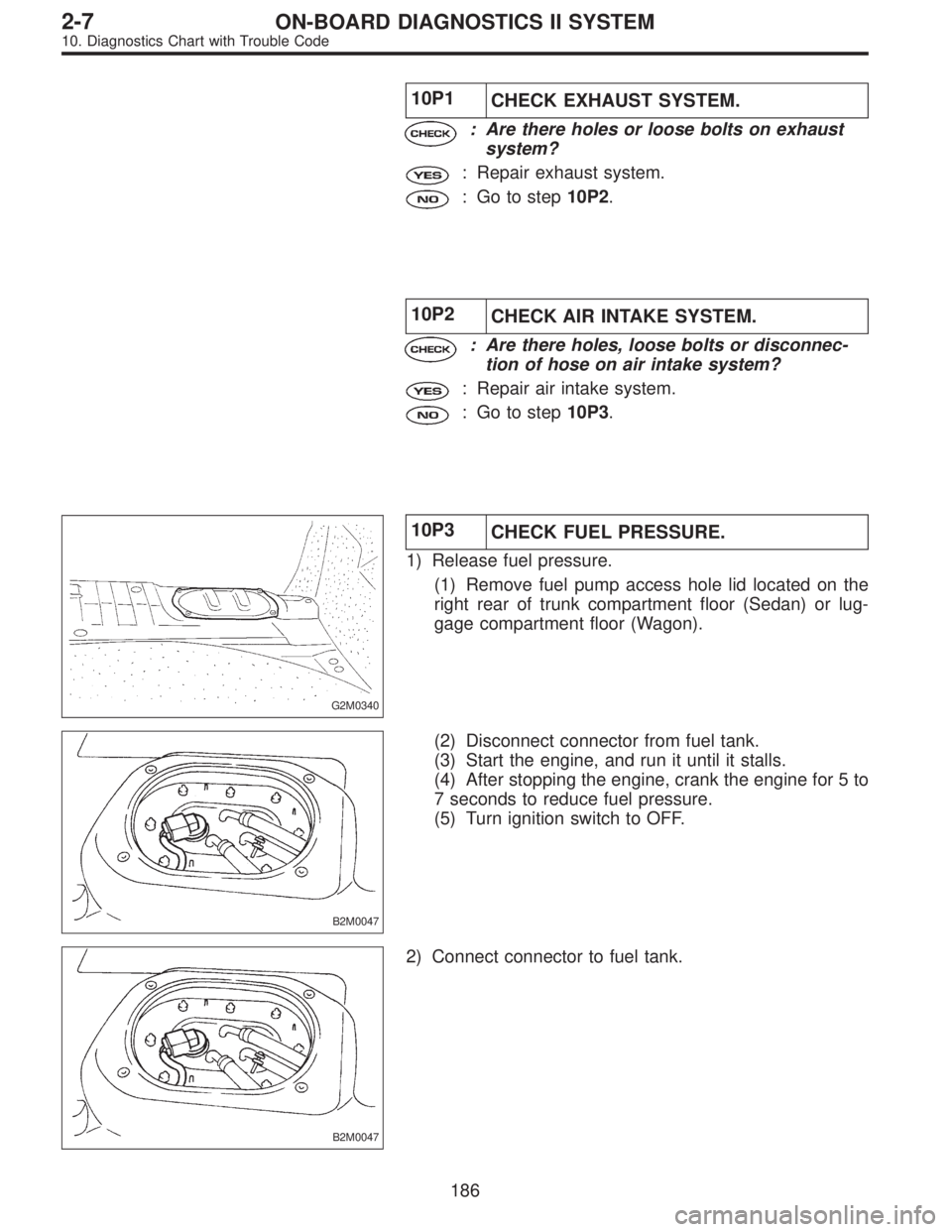

10P1
CHECK EXHAUST SYSTEM.
: Are there holes or loose bolts on exhaust
system?
: Repair exhaust system.
: Go to step10P2.
10P2
CHECK AIR INTAKE SYSTEM.
: Are there holes, loose bolts or disconnec-
tion of hose on air intake system?
: Repair air intake system.
: Go to step10P3.
G2M0340
10P3
CHECK FUEL PRESSURE.
1) Release fuel pressure.
(1) Remove fuel pump access hole lid located on the
right rear of trunk compartment floor (Sedan) or lug-
gage compartment floor (Wagon).
B2M0047
(2) Disconnect connector from fuel tank.
(3) Start the engine, and run it until it stalls.
(4) After stopping the engine, crank the engine for 5 to
7 seconds to reduce fuel pressure.
(5) Turn ignition switch to OFF.
B2M0047
2) Connect connector to fuel tank.
186
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
