Page 2281 of 3342
B2M1064

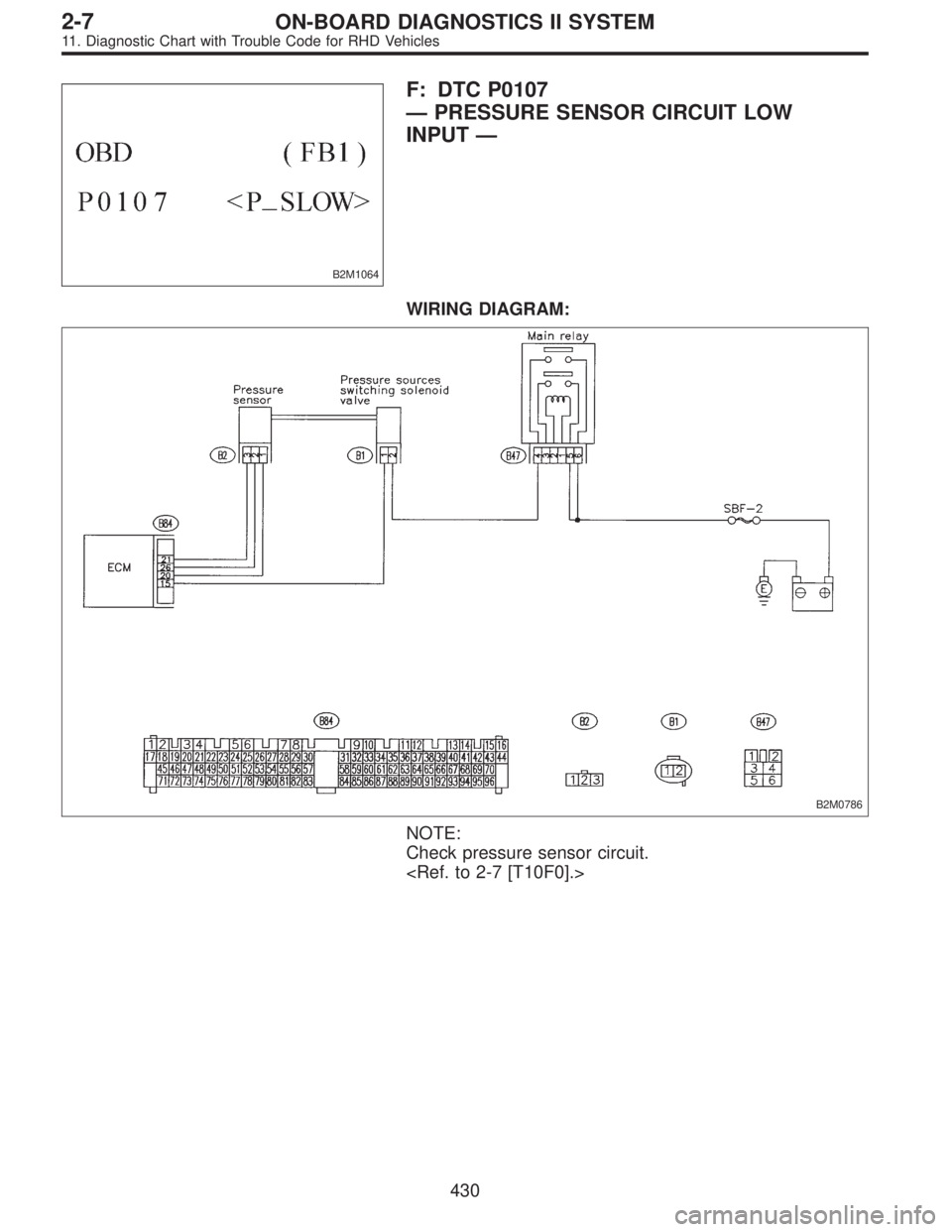

F: DTC P0107
—PRESSURE SENSOR CIRCUIT LOW
INPUT—
WIRING DIAGRAM:
B2M0786
NOTE:
Check pressure sensor circuit.
430
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2282 of 3342
B2M1066

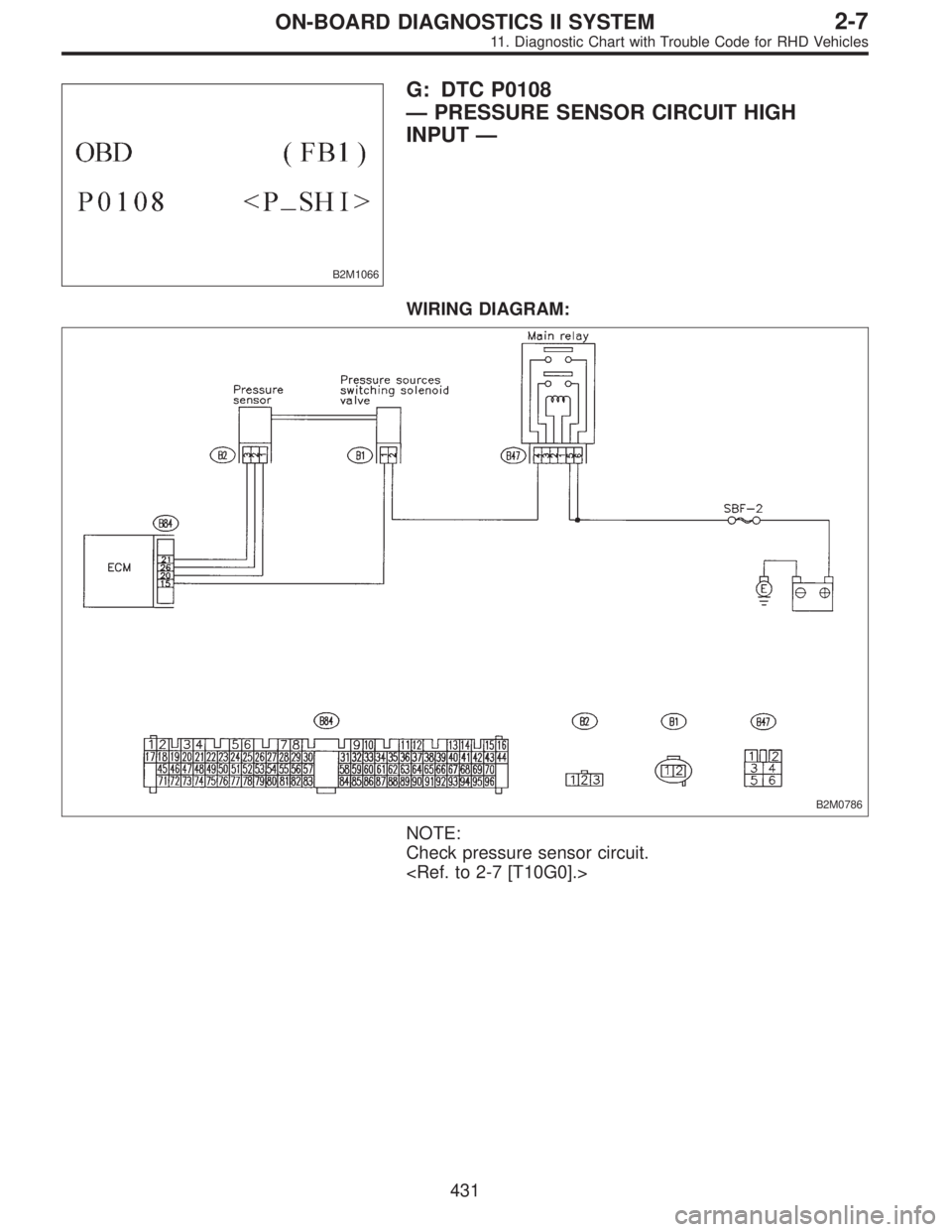

G: DTC P0108
—PRESSURE SENSOR CIRCUIT HIGH
INPUT—
WIRING DIAGRAM:
B2M0786
NOTE:
Check pressure sensor circuit.
431
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2283 of 3342
B2M1067

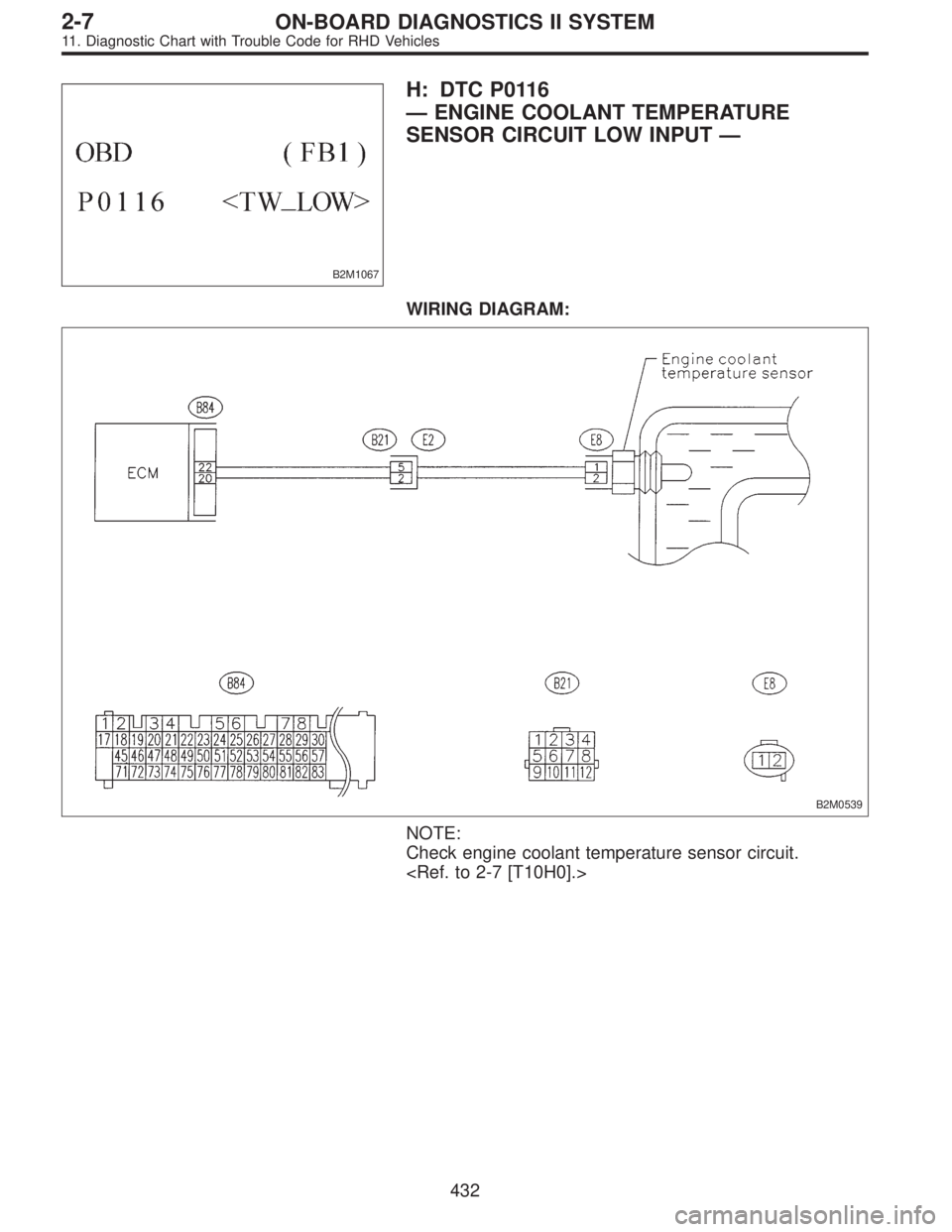

H: DTC P0116
—ENGINE COOLANT TEMPERATURE
SENSOR CIRCUIT LOW INPUT—
WIRING DIAGRAM:
B2M0539
NOTE:
Check engine coolant temperature sensor circuit.
432
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2284 of 3342
B2M1068

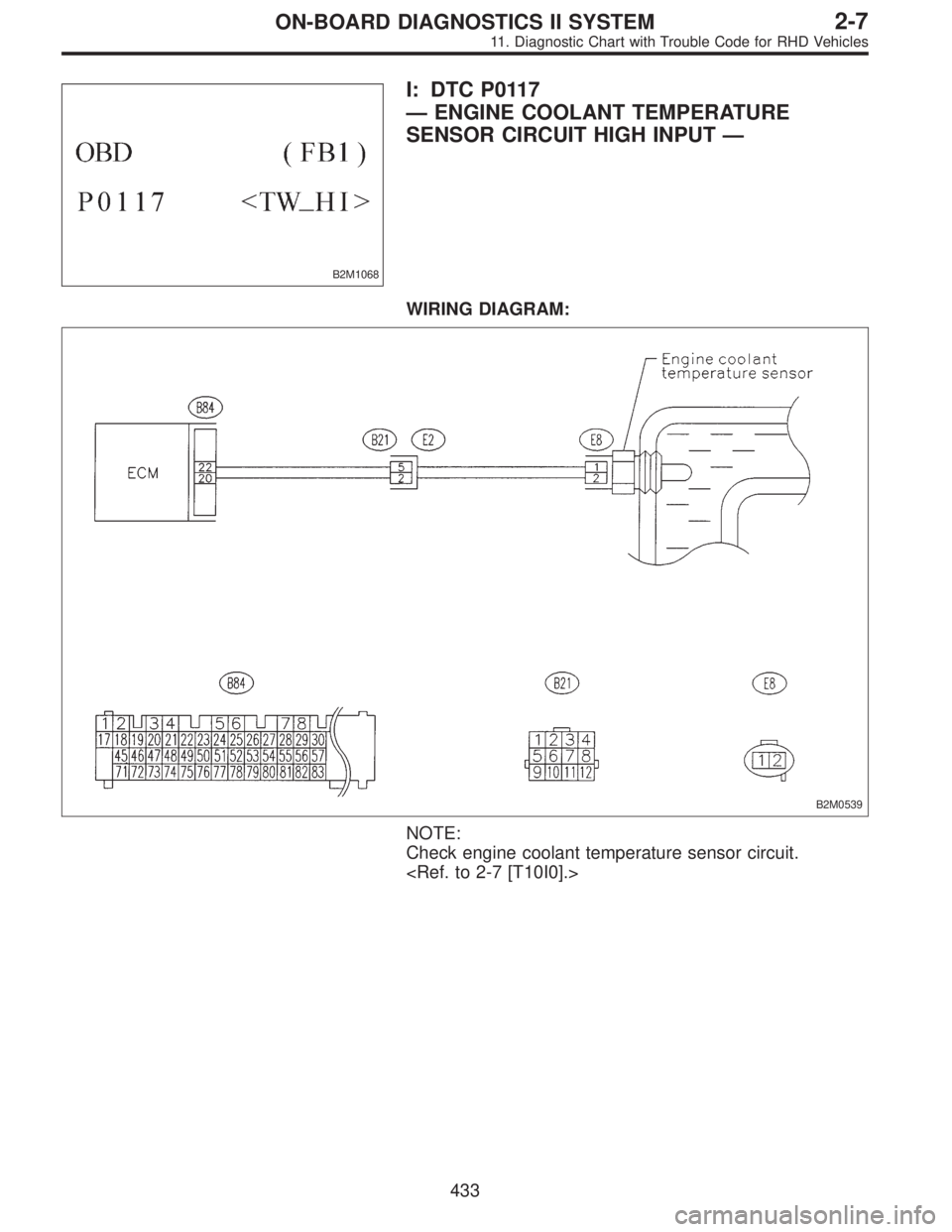

I: DTC P0117
—ENGINE COOLANT TEMPERATURE
SENSOR CIRCUIT HIGH INPUT—
WIRING DIAGRAM:
B2M0539
NOTE:
Check engine coolant temperature sensor circuit.
433
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2285 of 3342
B2M1069

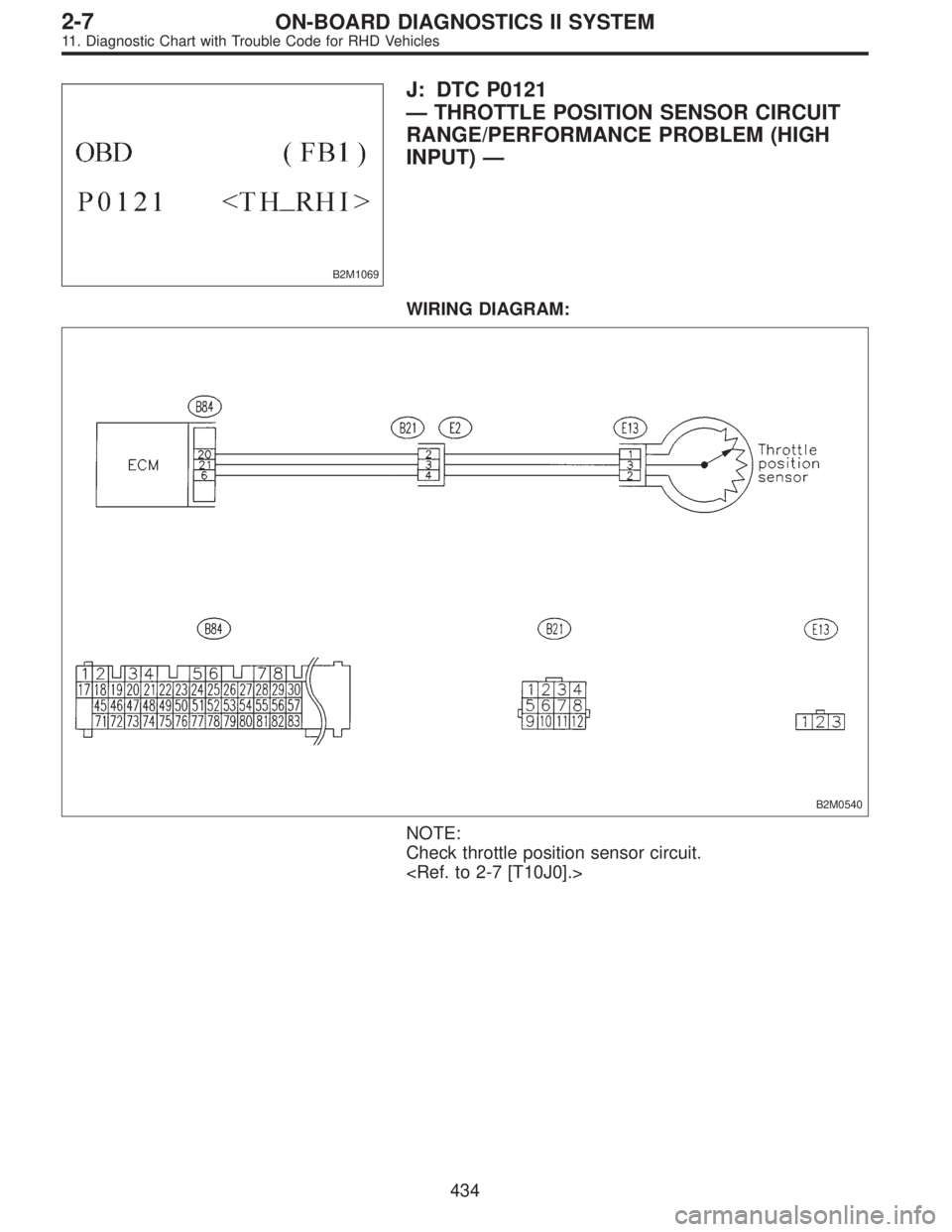

J: DTC P0121
—THROTTLE POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM (HIGH
INPUT)—
WIRING DIAGRAM:
B2M0540
NOTE:
Check throttle position sensor circuit.
434
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2286 of 3342
B2M1070

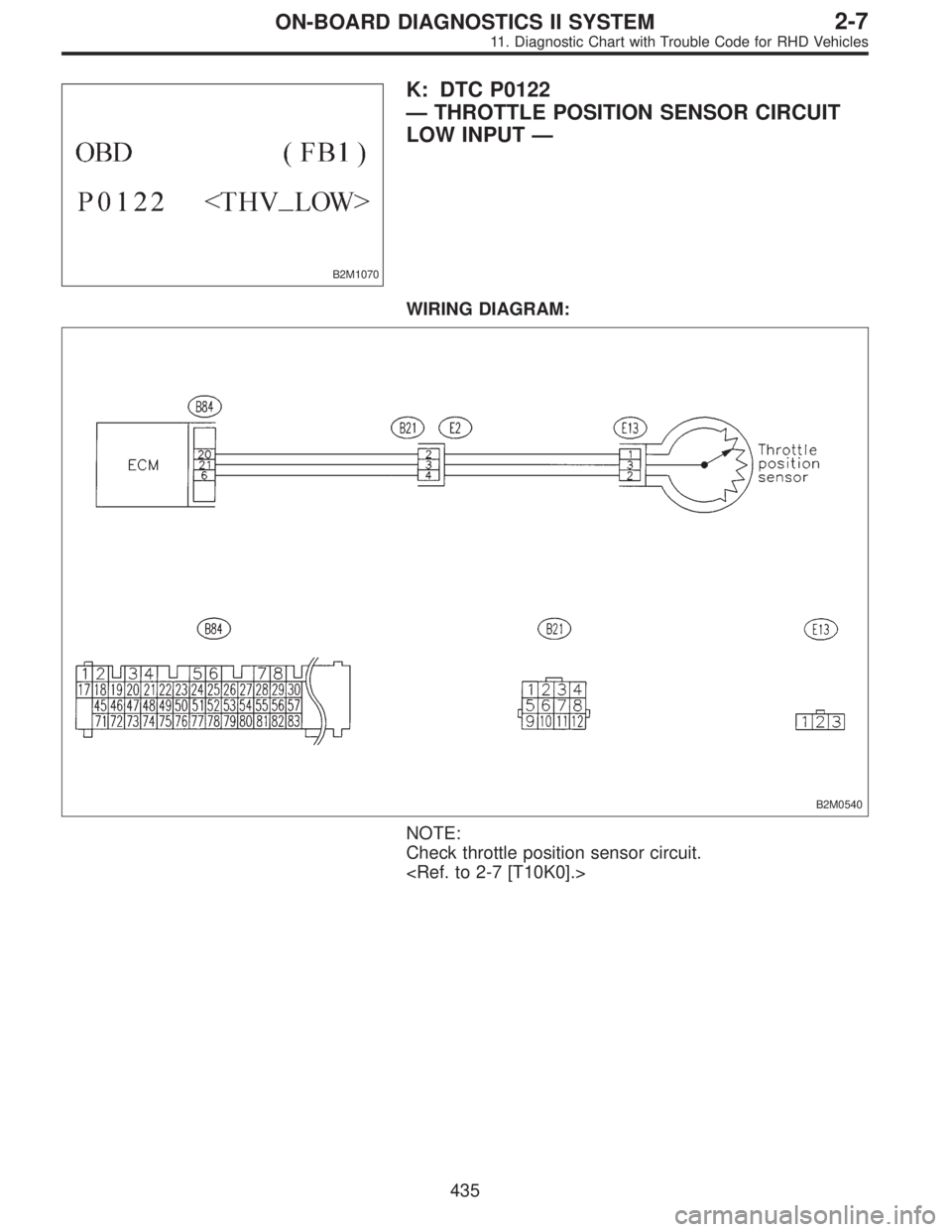

K: DTC P0122
—THROTTLE POSITION SENSOR CIRCUIT
LOW INPUT—
WIRING DIAGRAM:
B2M0540
NOTE:
Check throttle position sensor circuit.
435
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2287 of 3342
B2M1071

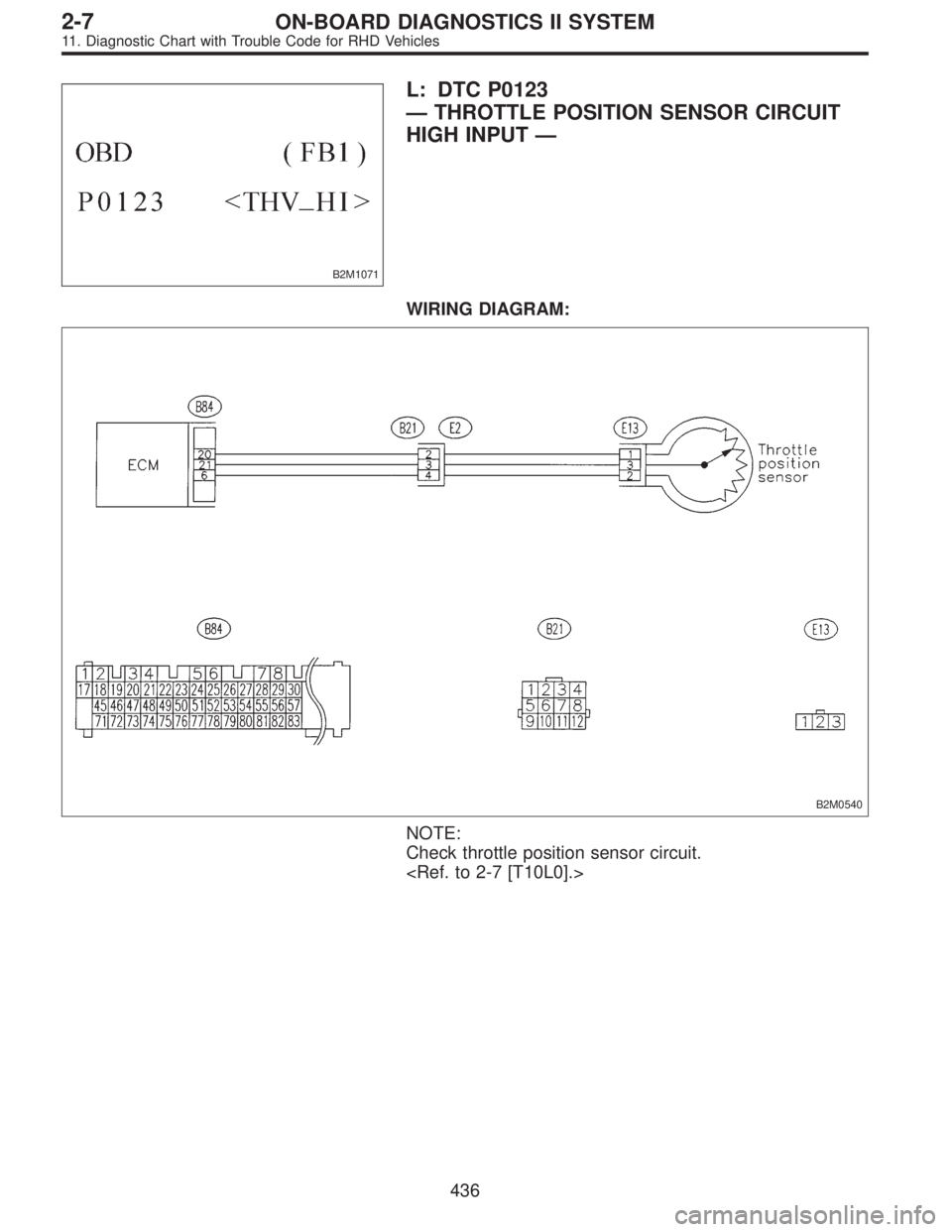

L: DTC P0123
—THROTTLE POSITION SENSOR CIRCUIT
HIGH INPUT—
WIRING DIAGRAM:
B2M0540
NOTE:
Check throttle position sensor circuit.
436
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2288 of 3342
OBD0191
M: DTC P0125
—INSUFFICIENT COOLANT TEMPERATURE
FOR CLOSED LOOP FUEL CONTROL—
WIRING DIAGRAM:
B2M0539
NOTE:
Check insufficient coolant temperature for closed loop fuel
control.
437
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2289 of 3342
OBD0199

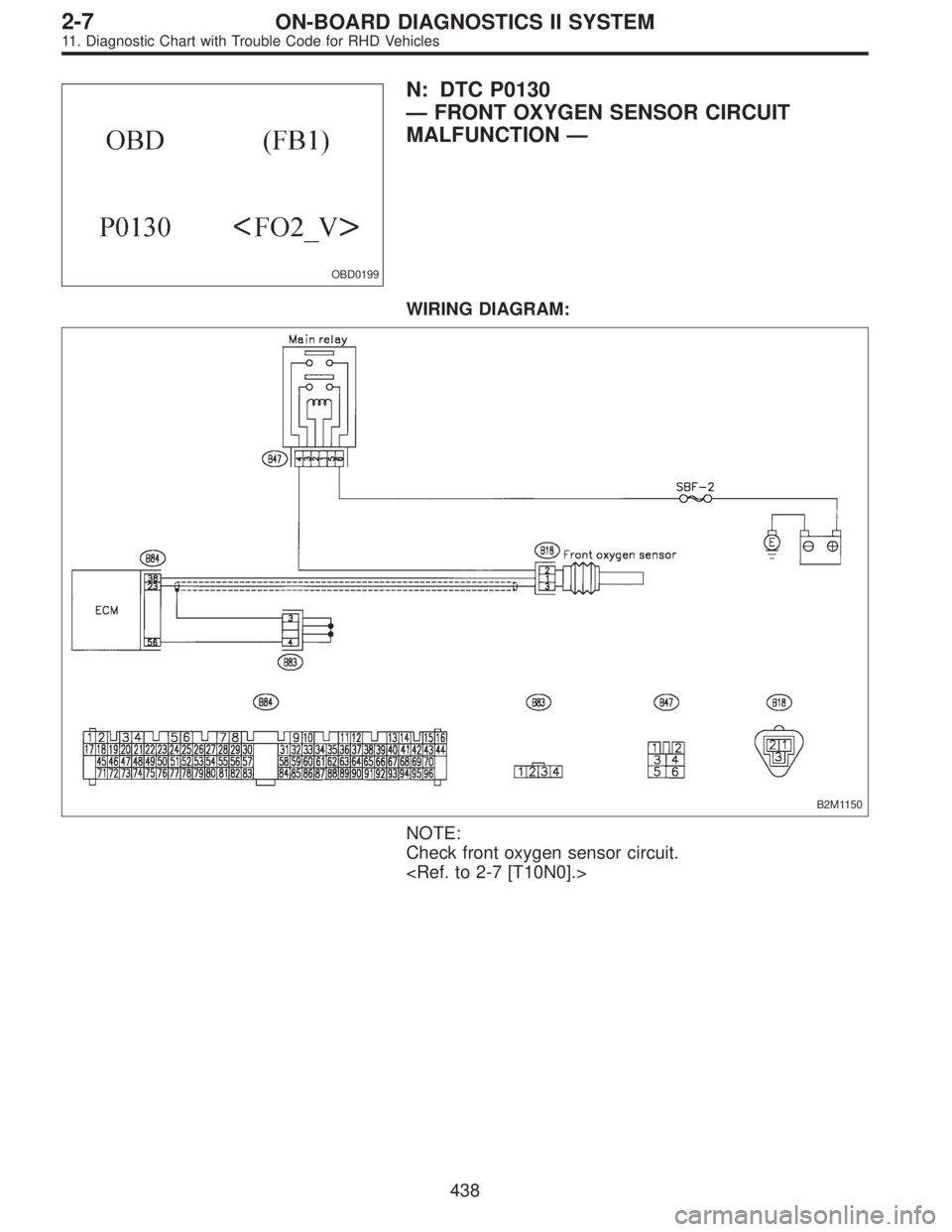

N: DTC P0130
—FRONT OXYGEN SENSOR CIRCUIT
MALFUNCTION—
WIRING DIAGRAM:
B2M1150
NOTE:
Check front oxygen sensor circuit.
438
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
Page 2290 of 3342
OBD0209

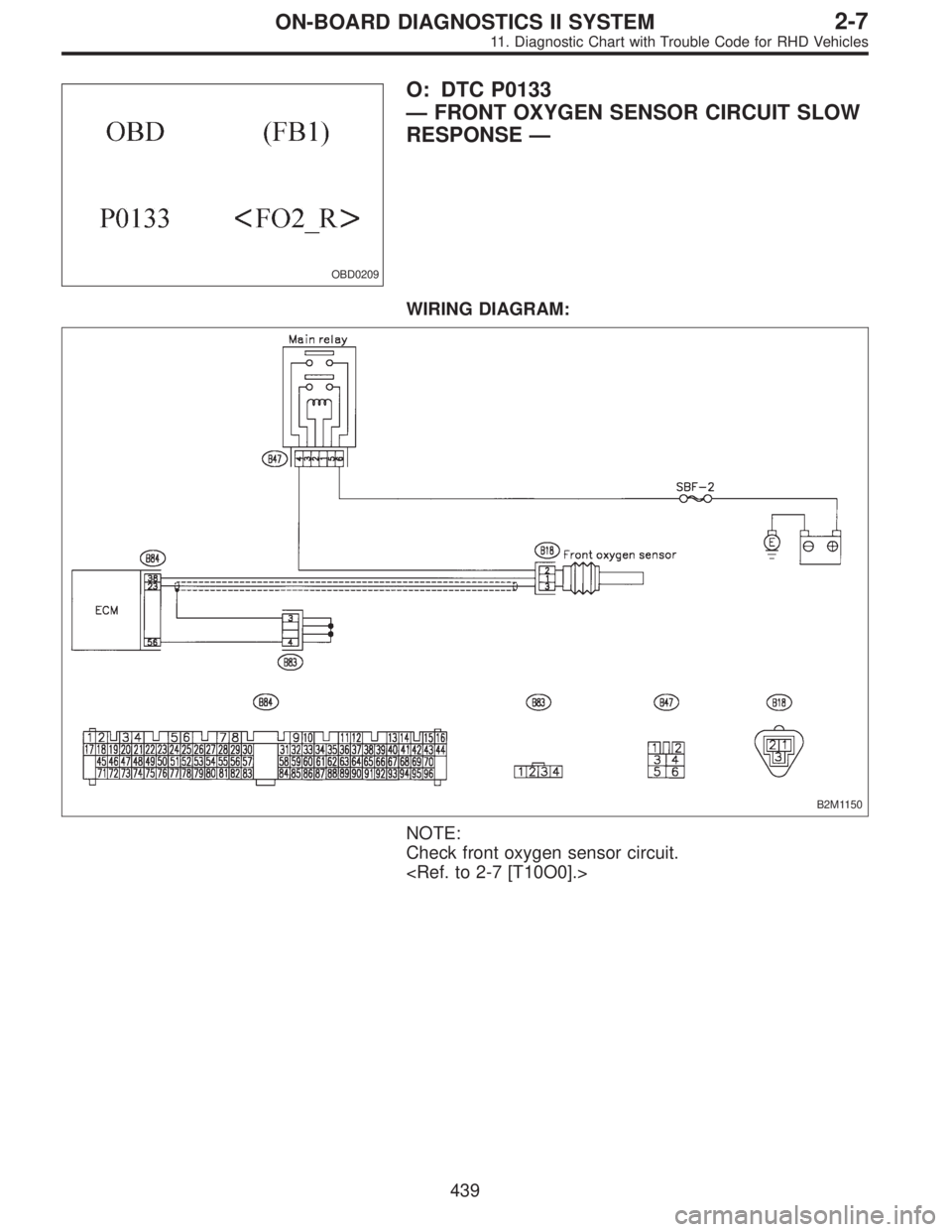

O: DTC P0133
—FRONT OXYGEN SENSOR CIRCUIT SLOW
RESPONSE—
WIRING DIAGRAM:
B2M1150
NOTE:
Check front oxygen sensor circuit.
439
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
