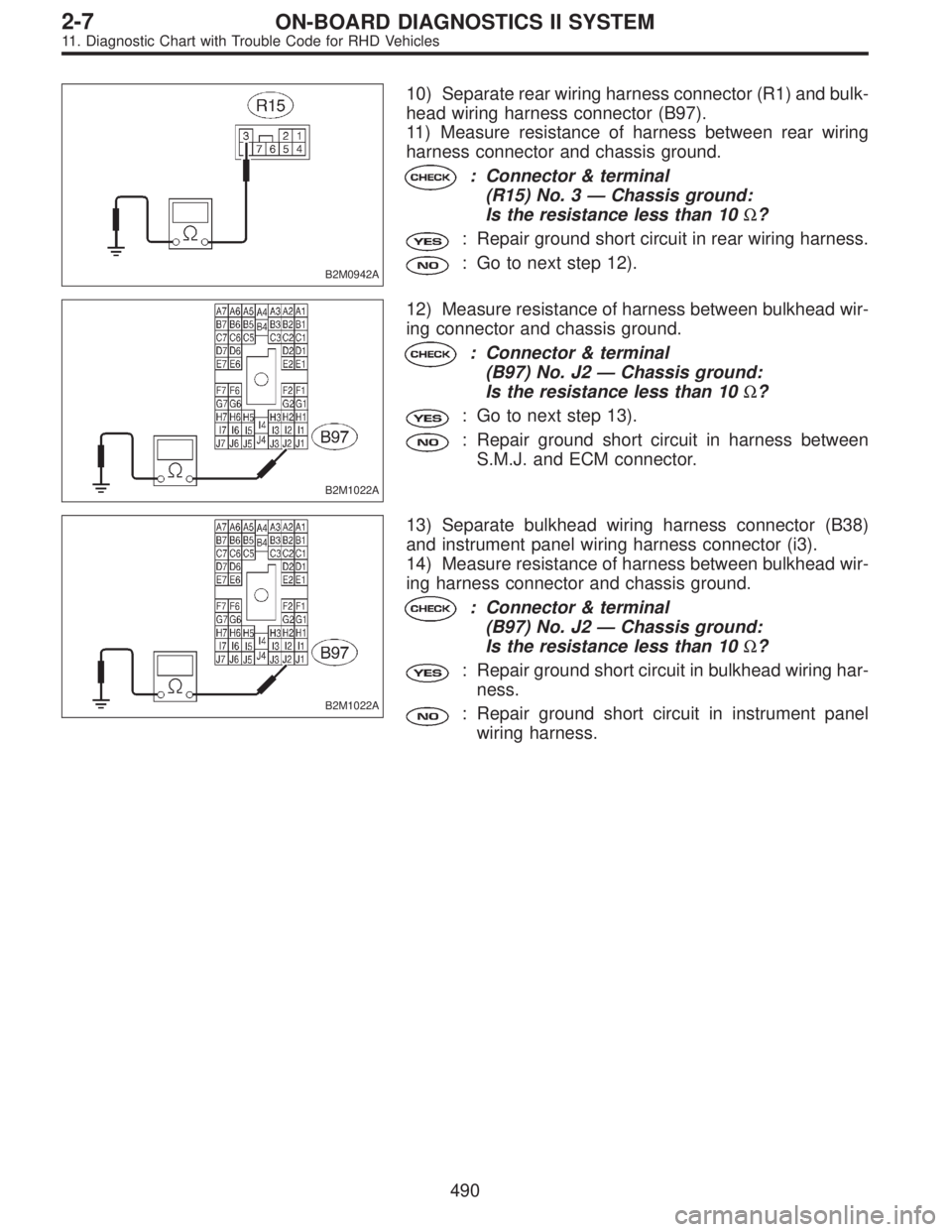

10) Separate rear wiring harness connector (R1) and bulk-
head wiring harness connector (B97).
11) Measure resistance of harness between rear wiring
harness connector and chassis ground.
: Connector & terminal
(R15) No. 3—Chassis ground:
Is the resistance less than 10Ω?
: Repair ground short circuit in rear wiring harness.
: Go to next step 12).
B2M1022A
12) Measure resistance of harness between bulkhead wir-
ing connector and chassis ground.
: Connector & terminal
(B97) No. J2—Chassis ground:
Is the resistance less than 10Ω?
: Go to next step 13).
: Repair ground short circuit in harness between
S.M.J. and ECM connector.
B2M1022A
13) Separate bulkhead wiring harness connector (B38)
and instrument panel wiring harness connector (i3).
14) Measure resistance of harness between bulkhead wir-
ing harness connector and chassis ground.
: Connector & terminal
(B97) No. J2—Chassis ground:
Is the resistance less than 10Ω?
: Repair ground short circuit in bulkhead wiring har-
ness.
: Repair ground short circuit in instrument panel
wiring harness.
490
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B6M0121
11AZ5CHECK HARNESS BETWEEN COMBINA-
TION METER AND FUEL PUMP CONNEC-
TOR.
1) Connect connector to fuel pump.
2) Pull out combination meter from instrument panel. to 6-2 [W13A1].>
3) Disconnect connector from combination meter.
B2M0945A
4) Measure resistance of harness between combination
meter connector and chassis ground.
: Connector & terminal
(i10) No. 3—Chassis ground:
Is the resistance less than 200Ω?
: Go to step11AZ6.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between combination meter con-
nector and junction A on rear wiring harness

Poor contact in coupling connectors (i3 and B97)
11AZ6
CHECK COMBINATION METER.
1) Disconnect speedometer cable from combination meter
and remove combination meter.
: Is the fuel meter installation screw tightened
securely?
: Go to next step 2).
: Tighten fuel meter installation screw securely.
2) Remove printed circuit plate assembly from combina-
tion meter assembly.
: Is there flaw or burning on printed circuit
plate assembly?
: Replace printed circuit plate assembly.
: Replace fuel meter assembly.
491
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1103

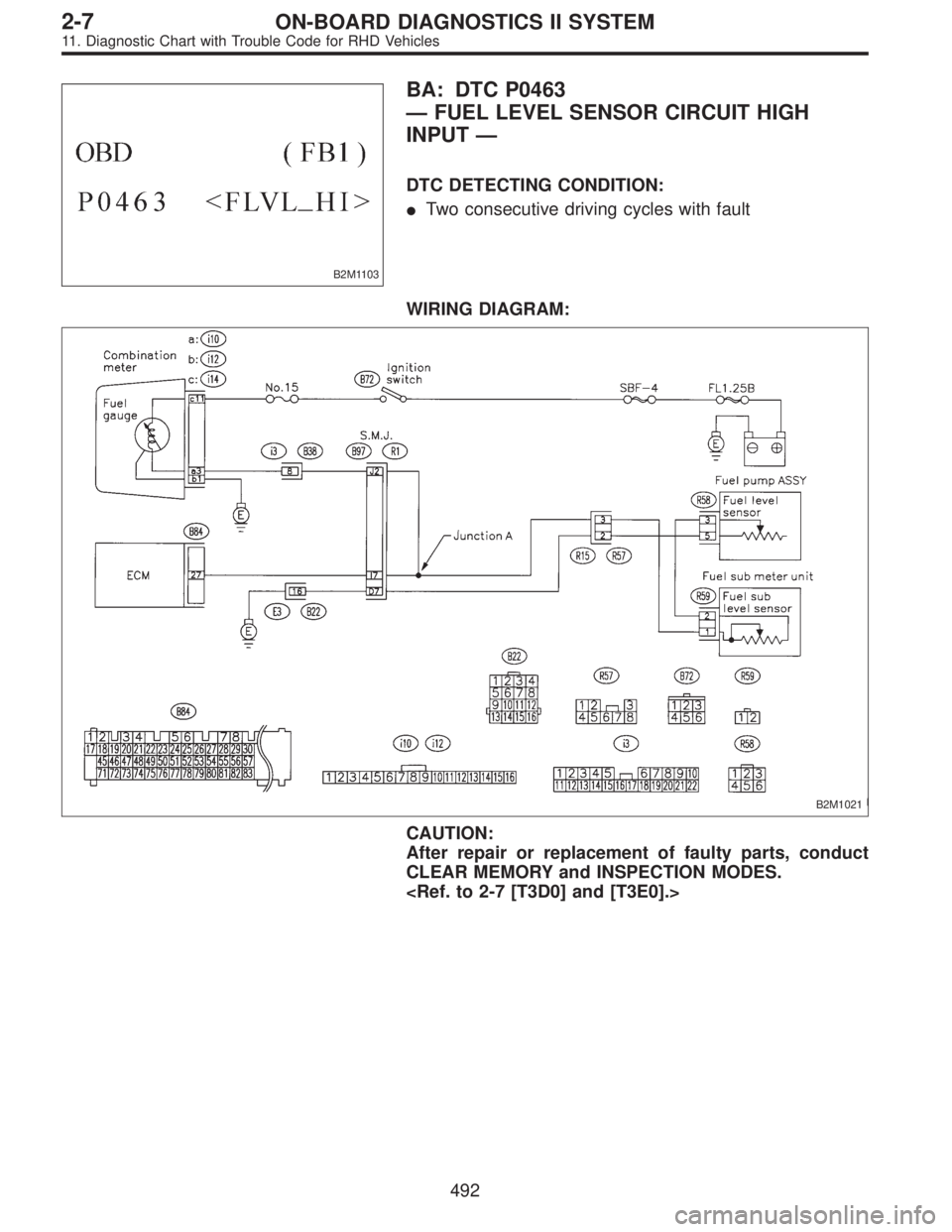

BA: DTC P0463
—FUEL LEVEL SENSOR CIRCUIT HIGH
INPUT—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
WIRING DIAGRAM:
B2M1021
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

492
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

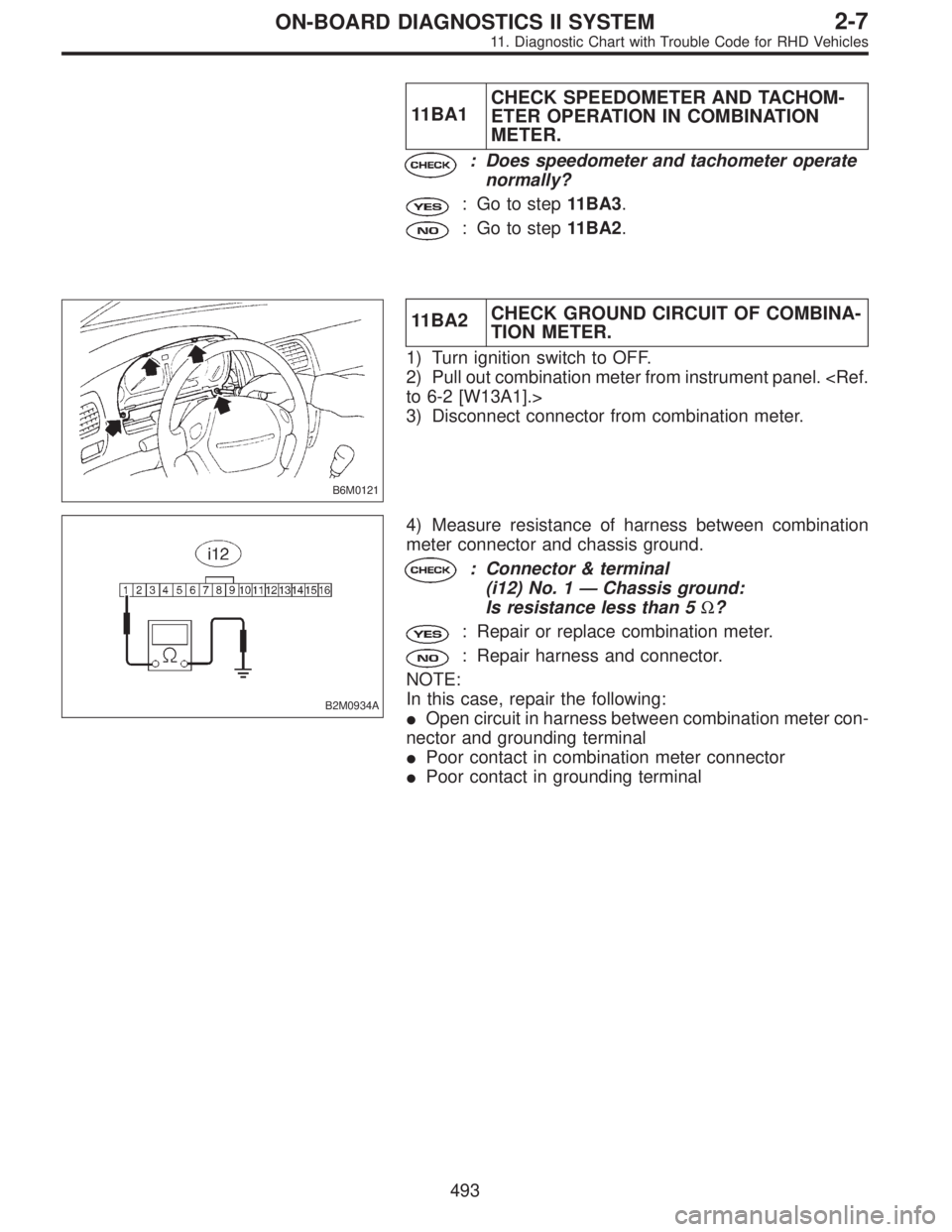

11BA1CHECK SPEEDOMETER AND TACHOM-
ETER OPERATION IN COMBINATION
METER.
: Does speedometer and tachometer operate
normally?
: Go to step11BA3.
: Go to step11BA2.
B6M0121
11BA2CHECK GROUND CIRCUIT OF COMBINA-
TION METER.
1) Turn ignition switch to OFF.
2) Pull out combination meter from instrument panel. to 6-2 [W13A1].>
3) Disconnect connector from combination meter.
B2M0934A
4) Measure resistance of harness between combination
meter connector and chassis ground.
: Connector & terminal
(i12) No. 1—Chassis ground:
Is resistance less than 5Ω?
: Repair or replace combination meter.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between combination meter con-
nector and grounding terminal

Poor contact in combination meter connector

Poor contact in grounding terminal
493
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

H2M1414B

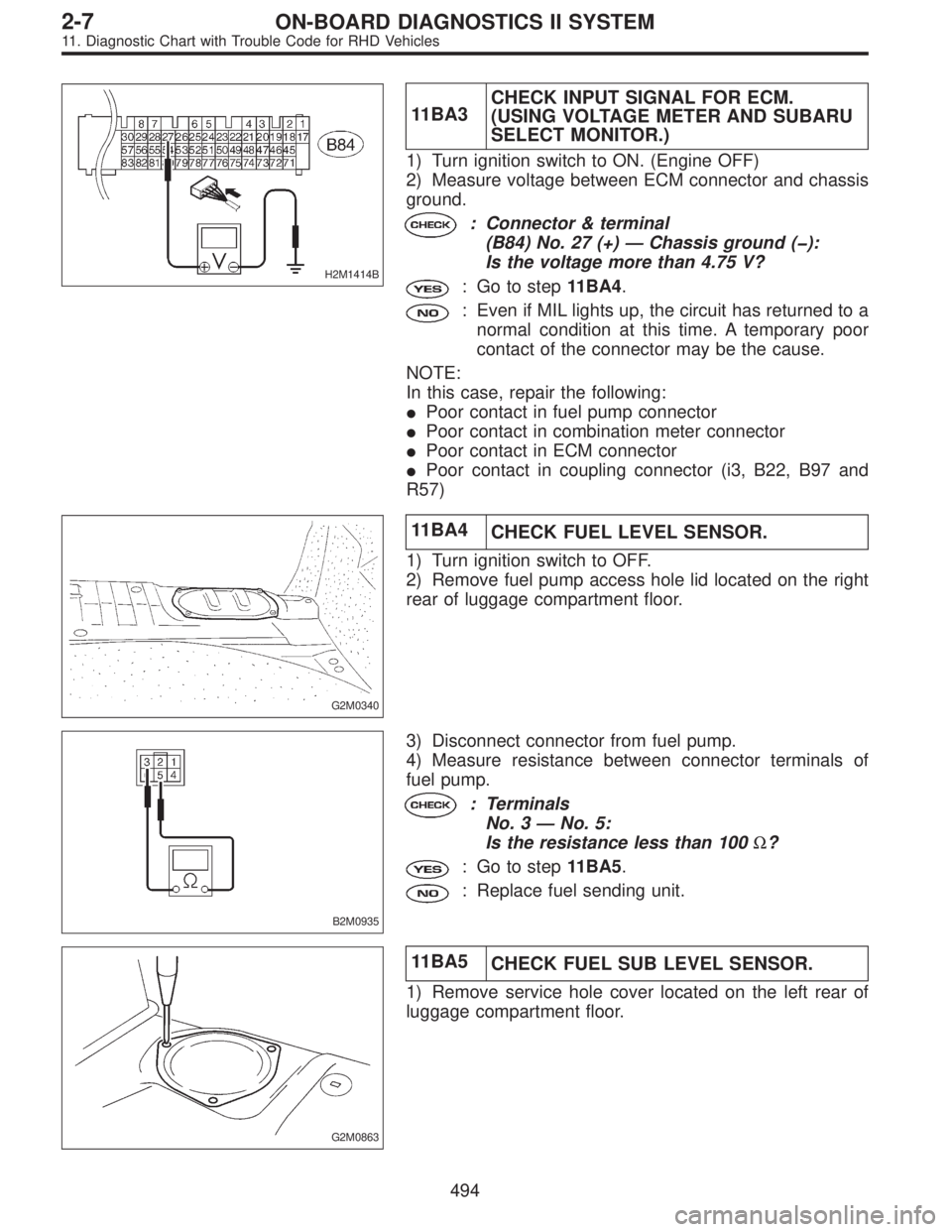

11BA3CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Turn ignition switch to ON. (Engine OFF)
2) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 27 (+)—Chassis ground ():
Is the voltage more than 4.75 V?
: Go to step11BA4.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. A temporary poor
contact of the connector may be the cause.
NOTE:
In this case, repair the following:

Poor contact in fuel pump connector

Poor contact in combination meter connector

Poor contact in ECM connector

Poor contact in coupling connector (i3, B22, B97 and
R57)
G2M0340
11BA4
CHECK FUEL LEVEL SENSOR.
1) Turn ignition switch to OFF.
2) Remove fuel pump access hole lid located on the right
rear of luggage compartment floor.
B2M0935
3) Disconnect connector from fuel pump.
4) Measure resistance between connector terminals of
fuel pump.
: Terminals
No. 3—No. 5:
Is the resistance less than 100Ω?
: Go to step11BA5.
: Replace fuel sending unit.
G2M0863
11BA5
CHECK FUEL SUB LEVEL SENSOR.
1) Remove service hole cover located on the left rear of
luggage compartment floor.
494
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M0936

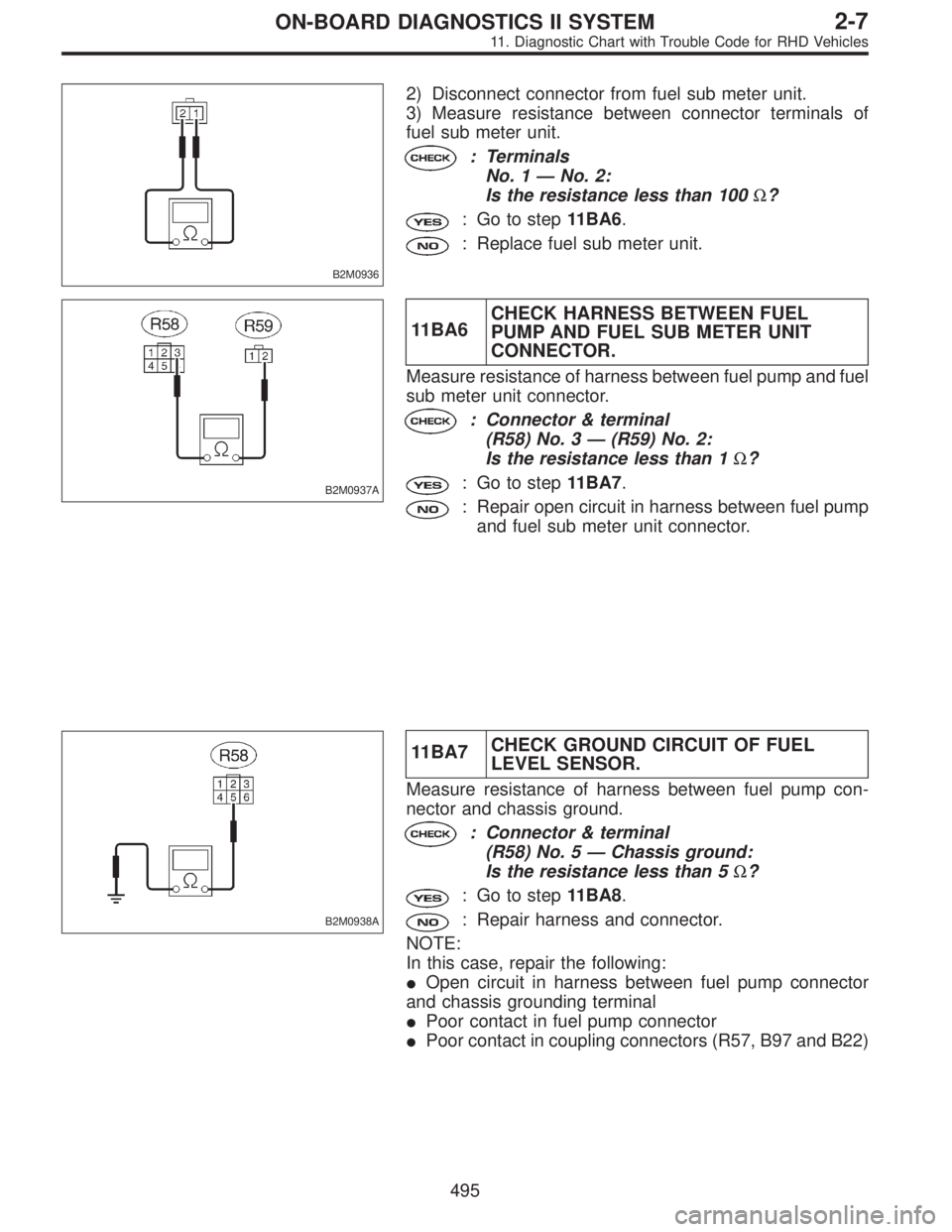

2) Disconnect connector from fuel sub meter unit.
3) Measure resistance between connector terminals of
fuel sub meter unit.
: Terminals
No. 1—No. 2:
Is the resistance less than 100Ω?
: Go to step11BA6.
: Replace fuel sub meter unit.
B2M0937A
11BA6CHECK HARNESS BETWEEN FUEL
PUMP AND FUEL SUB METER UNIT
CONNECTOR.
Measure resistance of harness between fuel pump and fuel
sub meter unit connector.
: Connector & terminal
(R58) No. 3—(R59) No. 2:
Is the resistance less than 1Ω?
: Go to step11BA7.
: Repair open circuit in harness between fuel pump
and fuel sub meter unit connector.
B2M0938A
11BA7CHECK GROUND CIRCUIT OF FUEL
LEVEL SENSOR.
Measure resistance of harness between fuel pump con-
nector and chassis ground.
: Connector & terminal
(R58) No. 5—Chassis ground:
Is the resistance less than 5Ω?
: Go to step11BA8.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between fuel pump connector
and chassis grounding terminal

Poor contact in fuel pump connector

Poor contact in coupling connectors (R57, B97 and B22)
495
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M0939A

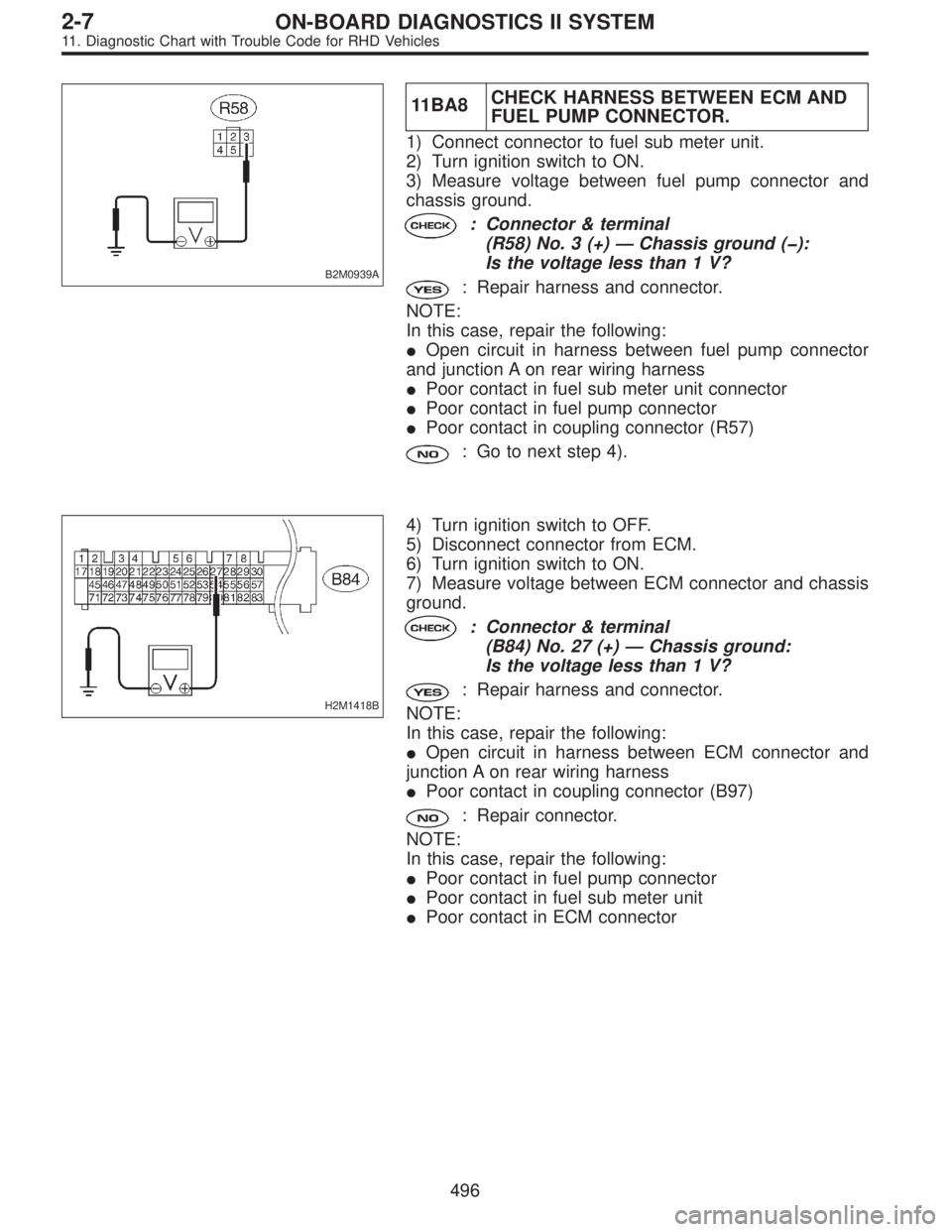

11BA8CHECK HARNESS BETWEEN ECM AND
FUEL PUMP CONNECTOR.
1) Connect connector to fuel sub meter unit.
2) Turn ignition switch to ON.
3) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 3 (+)—Chassis ground ():
Is the voltage less than 1 V?
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between fuel pump connector
and junction A on rear wiring harness

Poor contact in fuel sub meter unit connector

Poor contact in fuel pump connector

Poor contact in coupling connector (R57)
: Go to next step 4).
H2M1418B
4) Turn ignition switch to OFF.
5) Disconnect connector from ECM.
6) Turn ignition switch to ON.
7) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 27 (+)—Chassis ground:
Is the voltage less than 1 V?
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM connector and
junction A on rear wiring harness

Poor contact in coupling connector (B97)
: Repair connector.
NOTE:
In this case, repair the following:

Poor contact in fuel pump connector

Poor contact in fuel sub meter unit

Poor contact in ECM connector
496
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

OBD0340

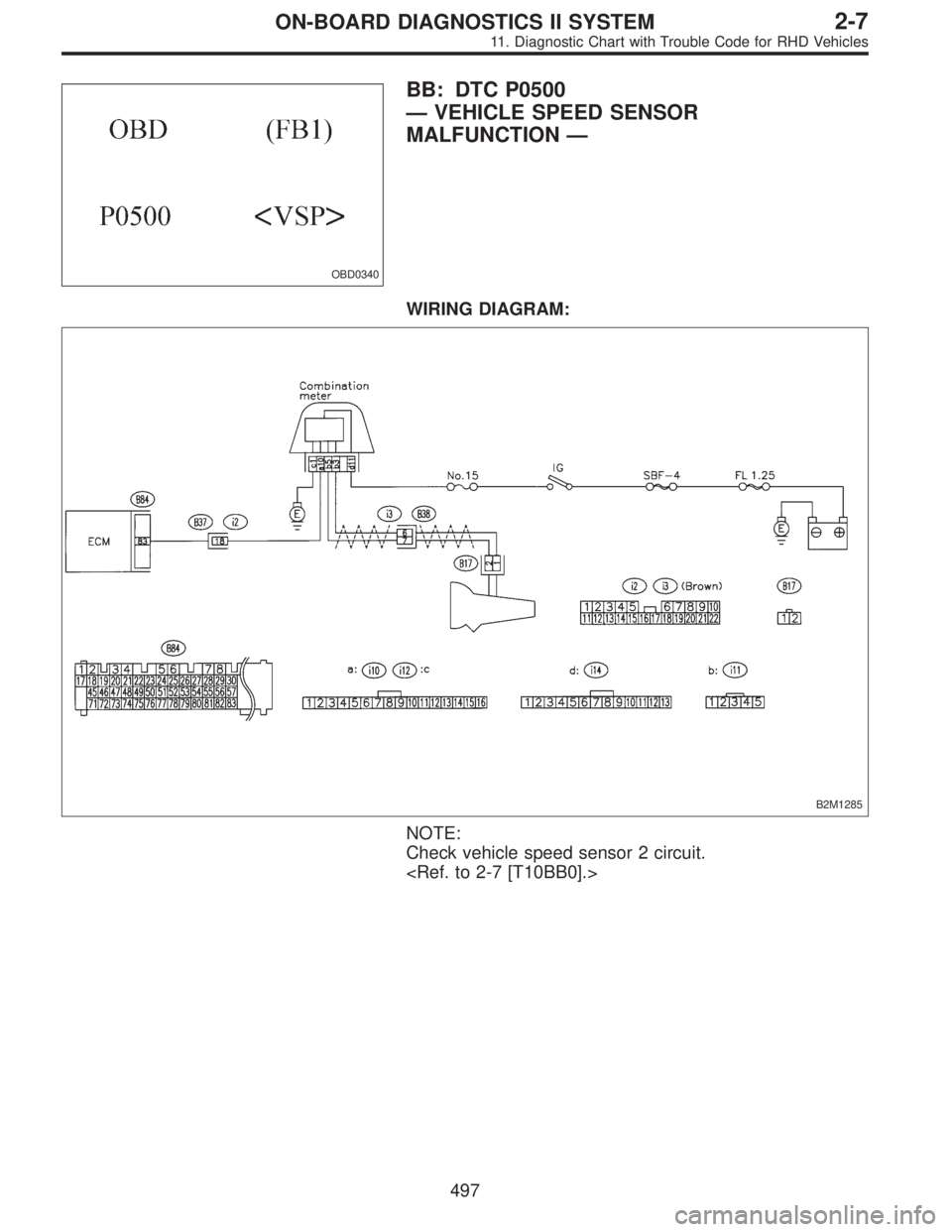

BB: DTC P0500
—VEHICLE SPEED SENSOR
MALFUNCTION—
WIRING DIAGRAM:
B2M1285
NOTE:
Check vehicle speed sensor 2 circuit.

497
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

OBD0358

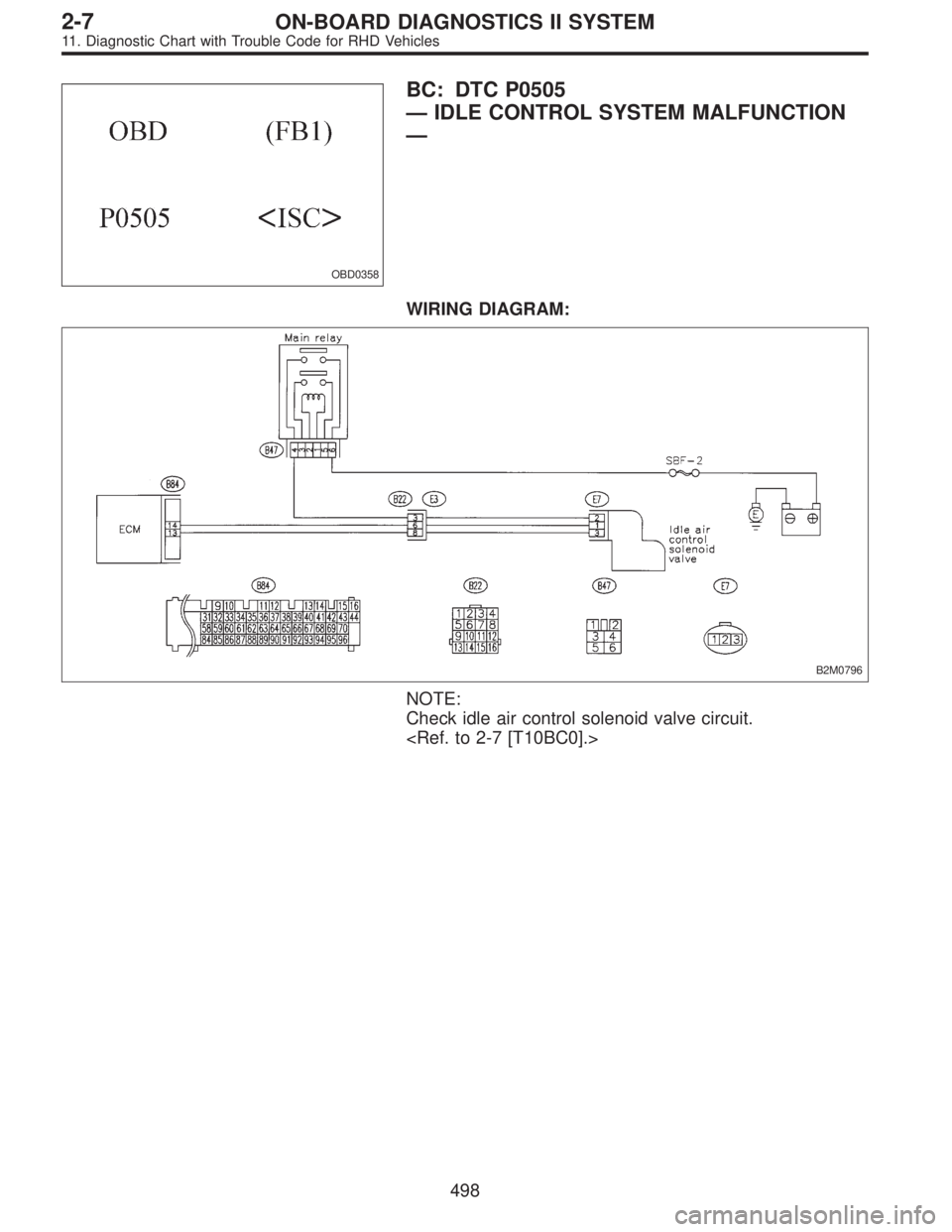

BC: DTC P0505
—IDLE CONTROL SYSTEM MALFUNCTION
—
WIRING DIAGRAM:
B2M0796
NOTE:
Check idle air control solenoid valve circuit.

498
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1104

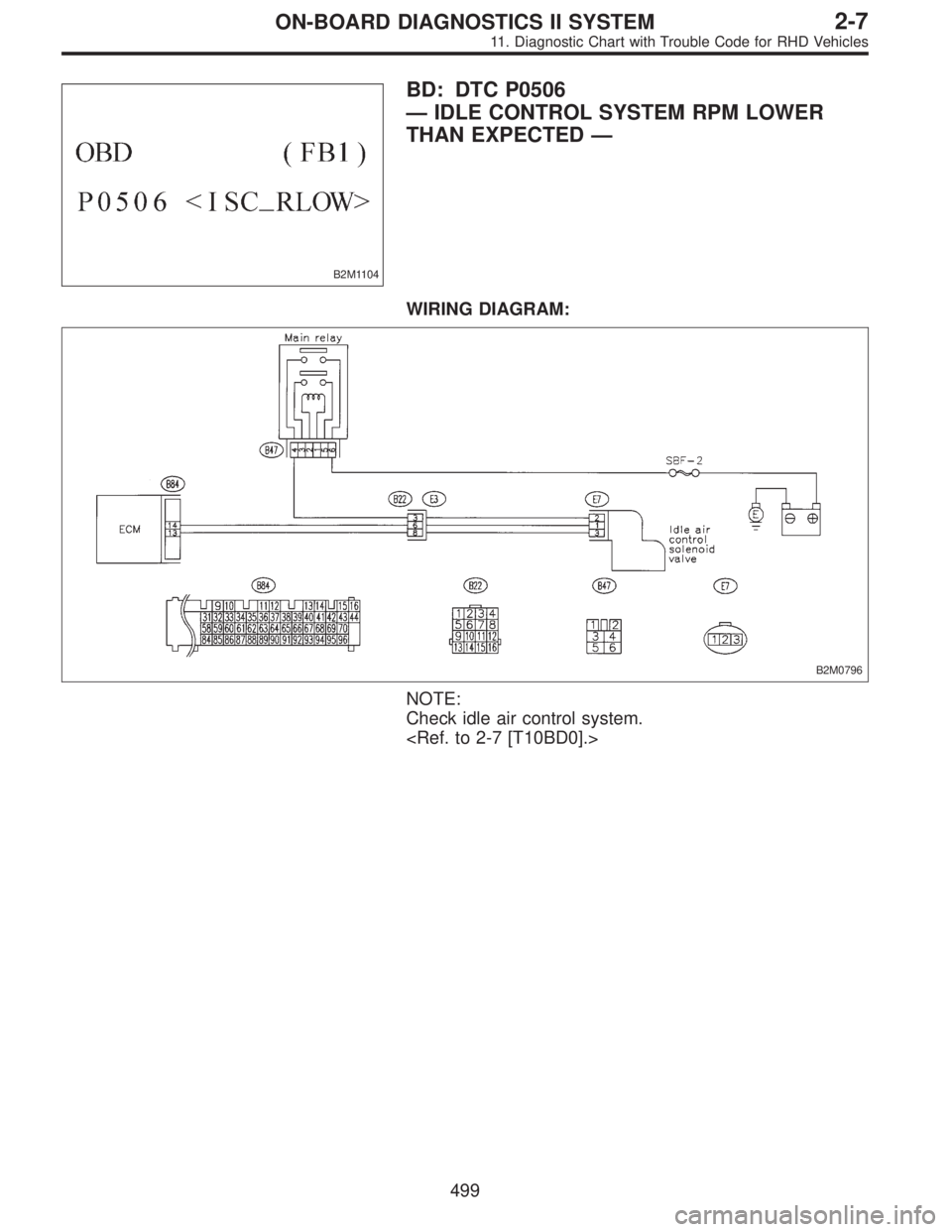

BD: DTC P0506
—IDLE CONTROL SYSTEM RPM LOWER
THAN EXPECTED—
WIRING DIAGRAM:
B2M0796
NOTE:
Check idle air control system.

499
2-7ON-BOARD DIAGNOSTICS II SYSTEM
