SUBARU LEGACY 1997 Service Repair Manual
Page 2361 of 3342

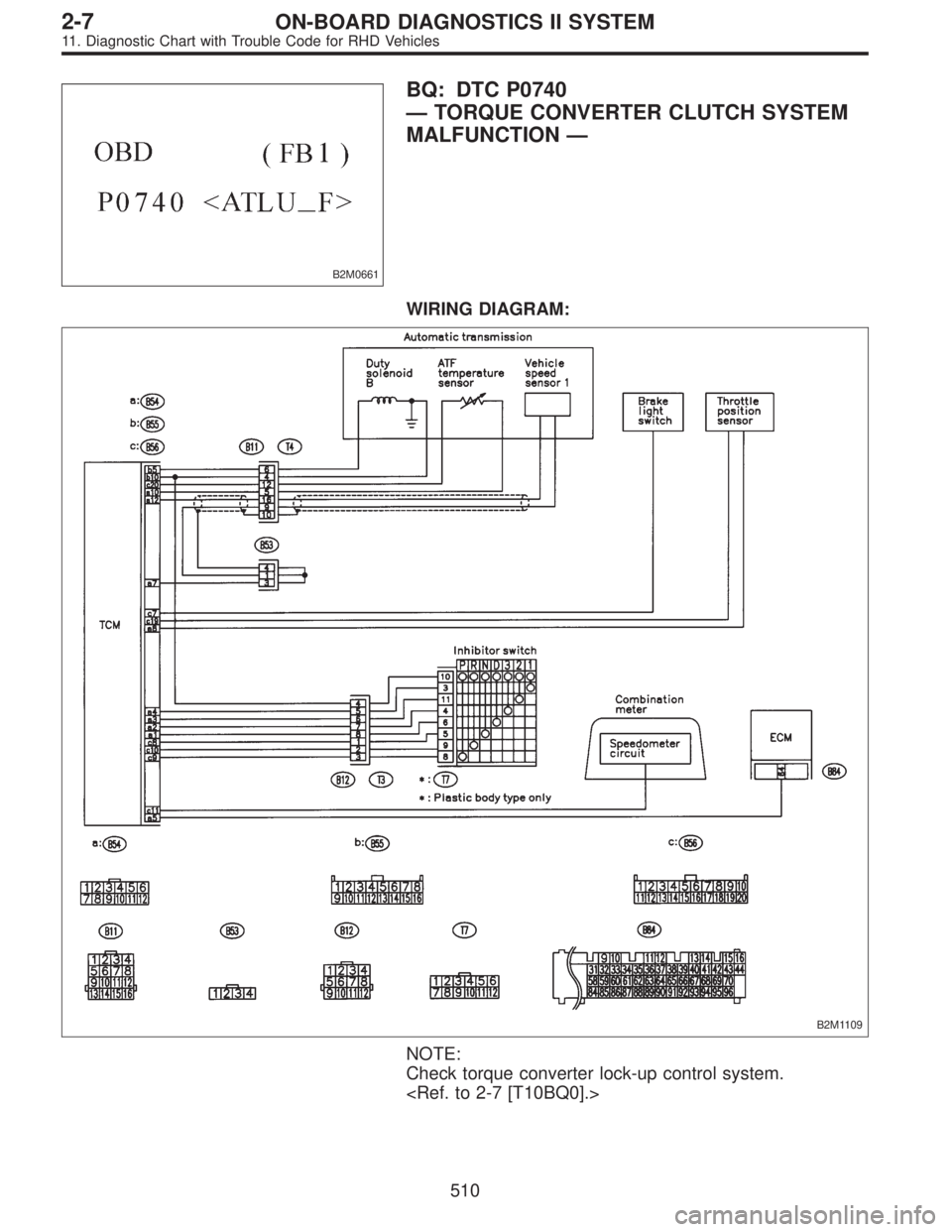

![SUBARU LEGACY 1997 Service Repair Manual B2M0661
BQ: DTC P0740
—TORQUE CONVERTER CLUTCH SYSTEM
MALFUNCTION—
WIRING DIAGRAM:
B2M1109
NOTE:
Check torque converter lock-up control system.
<Ref. to 2-7 [T10BQ0].>
510
2-7ON-BOARD DIAGNOSTICS](/img/17/57434/w960_57434-2360.png "SUBARU LEGACY 1997 Service Repair Manual B2M0661
BQ: DTC P0740
—TORQUE CONVERTER CLUTCH SYSTEM
MALFUNCTION—
WIRING DIAGRAM:
B2M1109
NOTE:
Check torque converter lock-up control system.
<Ref. to 2-7 [T10BQ0].>
510
2-7ON-BOARD DIAGNOSTICS")
Page 2362 of 3342

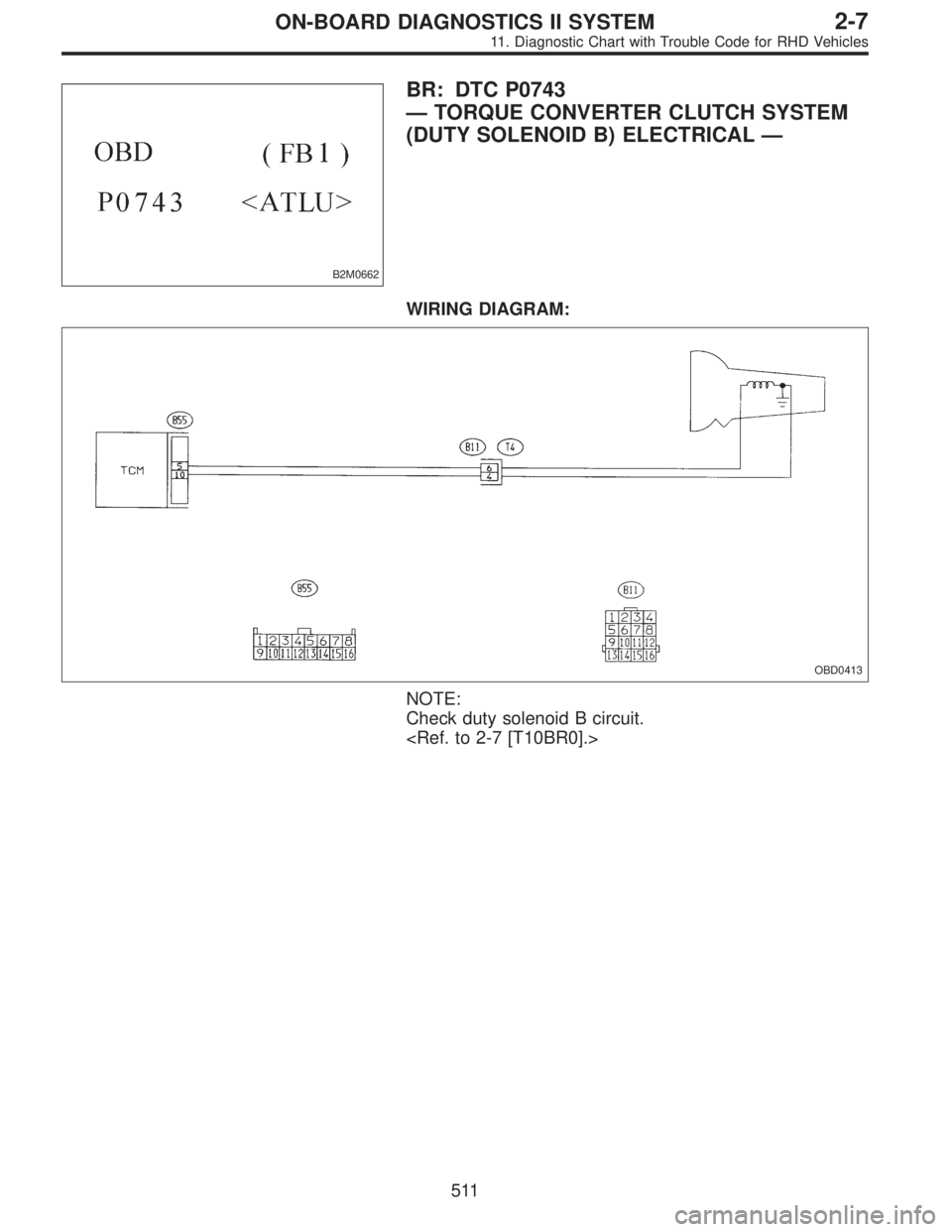

![SUBARU LEGACY 1997 Service Repair Manual B2M0662
BR: DTC P0743
—TORQUE CONVERTER CLUTCH SYSTEM
(DUTY SOLENOID B) ELECTRICAL—
WIRING DIAGRAM:
OBD0413
NOTE:
Check duty solenoid B circuit.
<Ref. to 2-7 [T10BR0].>
511
2-7ON-BOARD DIAGNOSTICS](/img/17/57434/w960_57434-2361.png "SUBARU LEGACY 1997 Service Repair Manual B2M0662
BR: DTC P0743
—TORQUE CONVERTER CLUTCH SYSTEM
(DUTY SOLENOID B) ELECTRICAL—
WIRING DIAGRAM:
OBD0413
NOTE:
Check duty solenoid B circuit.
<Ref. to 2-7 [T10BR0].>
511
2-7ON-BOARD DIAGNOSTICS")
Page 2363 of 3342

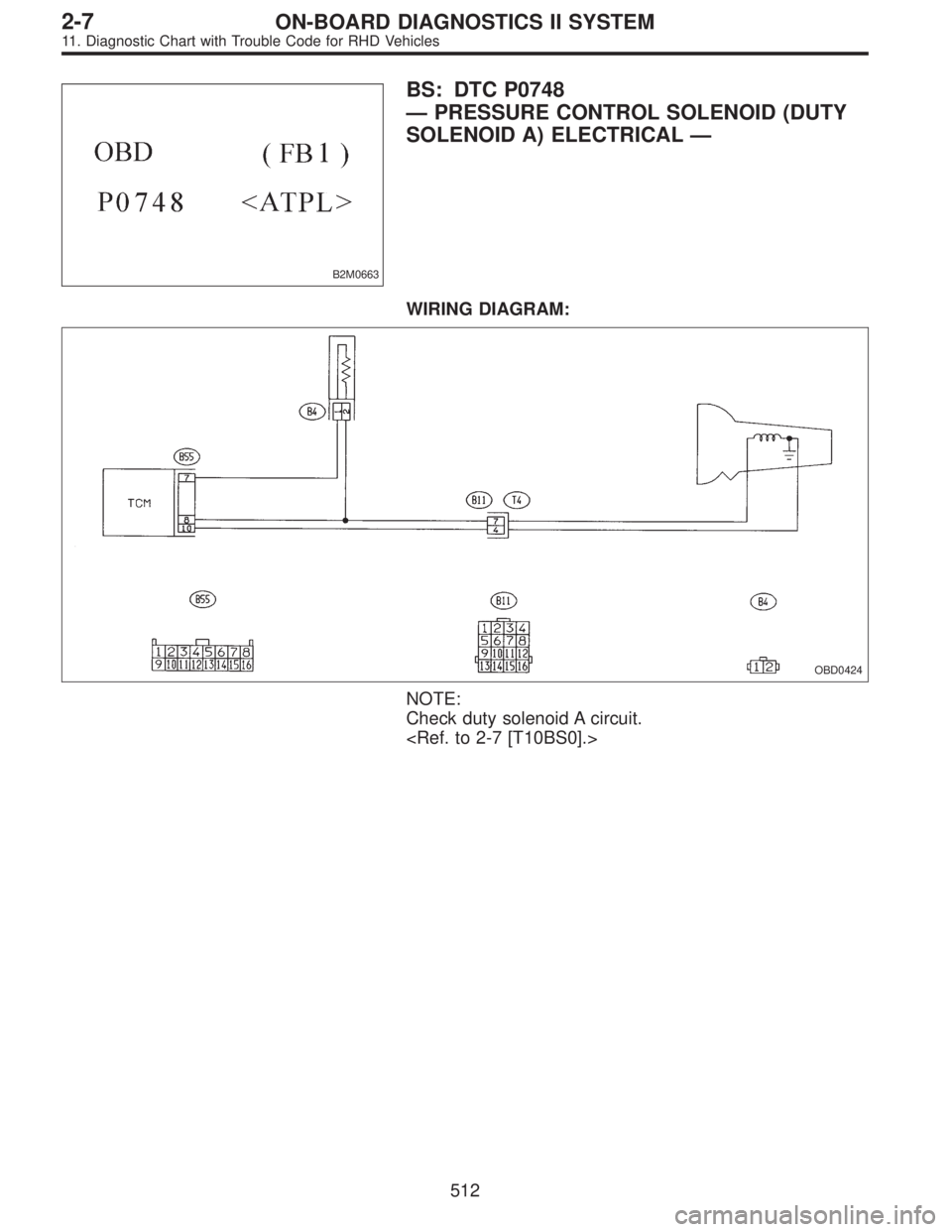

![SUBARU LEGACY 1997 Service Repair Manual B2M0663
BS: DTC P0748
—PRESSURE CONTROL SOLENOID (DUTY
SOLENOID A) ELECTRICAL—
WIRING DIAGRAM:
OBD0424
NOTE:
Check duty solenoid A circuit.
<Ref. to 2-7 [T10BS0].>
512
2-7ON-BOARD DIAGNOSTICS II S](/img/17/57434/w960_57434-2362.png "SUBARU LEGACY 1997 Service Repair Manual B2M0663
BS: DTC P0748
—PRESSURE CONTROL SOLENOID (DUTY
SOLENOID A) ELECTRICAL—
WIRING DIAGRAM:
OBD0424
NOTE:
Check duty solenoid A circuit.
<Ref. to 2-7 [T10BS0].>
512
2-7ON-BOARD DIAGNOSTICS II S")
Page 2364 of 3342

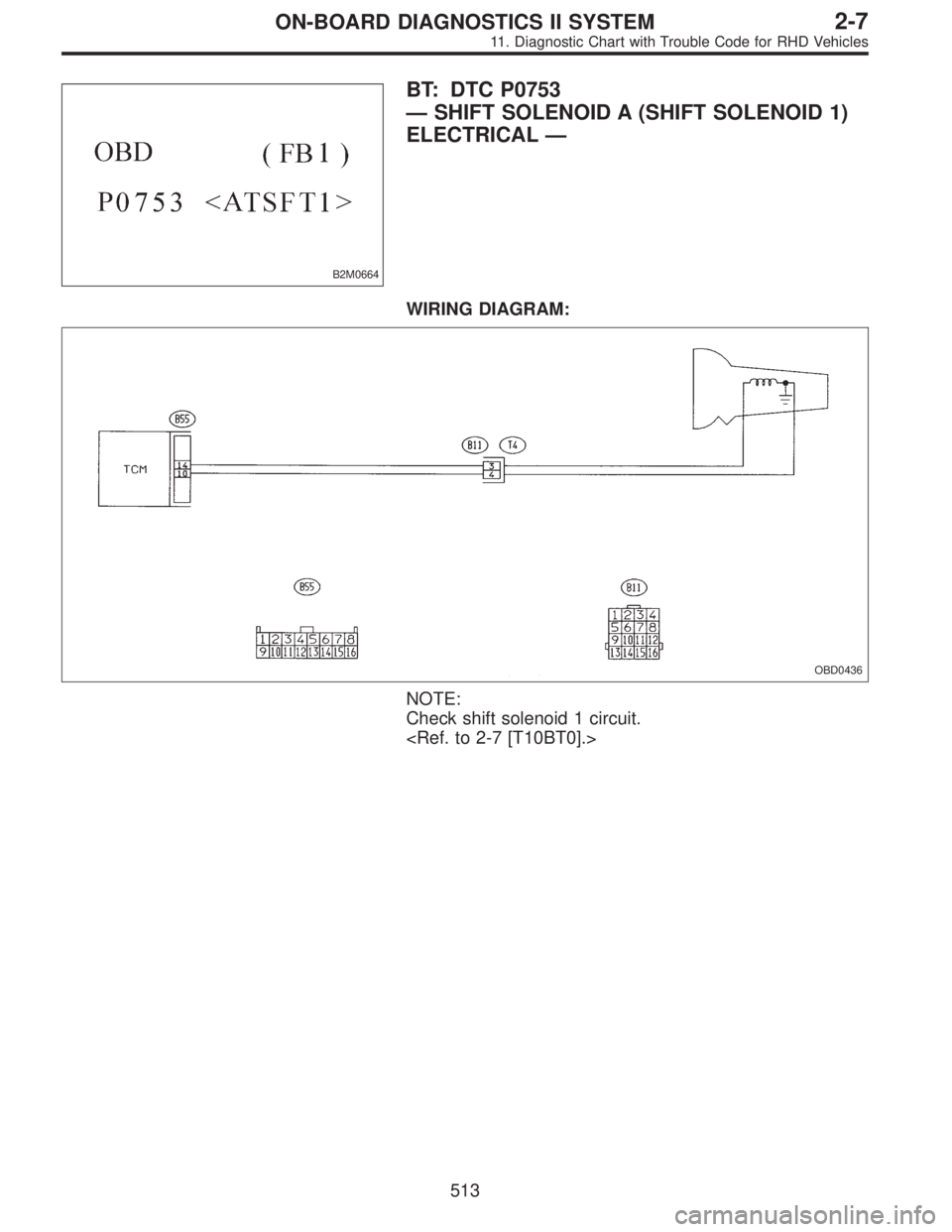

![SUBARU LEGACY 1997 Service Repair Manual B2M0664
BT: DTC P0753
—SHIFT SOLENOID A (SHIFT SOLENOID 1)
ELECTRICAL—
WIRING DIAGRAM:
OBD0436
NOTE:
Check shift solenoid 1 circuit.
<Ref. to 2-7 [T10BT0].>
513
2-7ON-BOARD DIAGNOSTICS II SYSTEM
1](/img/17/57434/w960_57434-2363.png "SUBARU LEGACY 1997 Service Repair Manual B2M0664
BT: DTC P0753
—SHIFT SOLENOID A (SHIFT SOLENOID 1)
ELECTRICAL—
WIRING DIAGRAM:
OBD0436
NOTE:
Check shift solenoid 1 circuit.
<Ref. to 2-7 [T10BT0].>
513
2-7ON-BOARD DIAGNOSTICS II SYSTEM
1")
Page 2365 of 3342

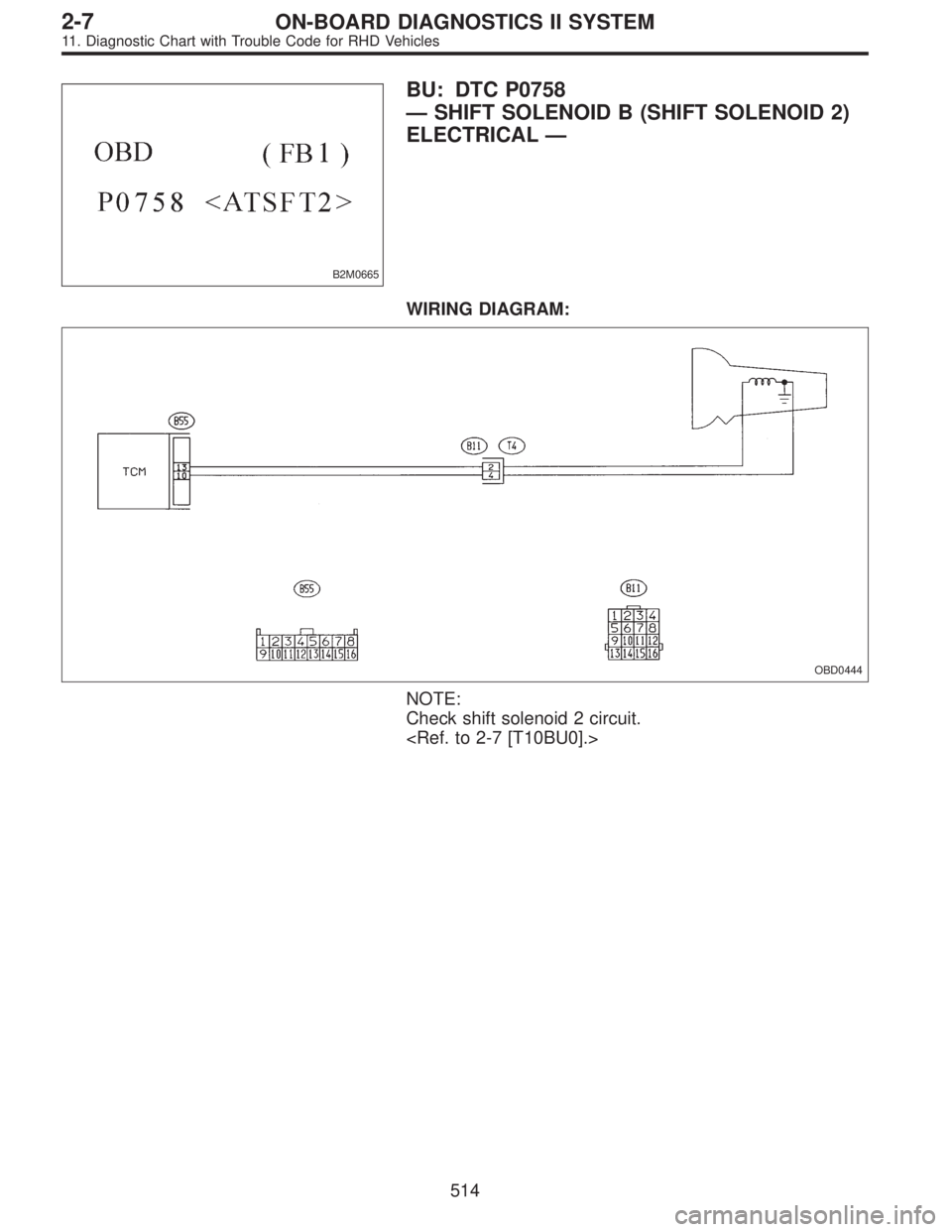

![SUBARU LEGACY 1997 Service Repair Manual B2M0665
BU: DTC P0758
—SHIFT SOLENOID B (SHIFT SOLENOID 2)
ELECTRICAL—
WIRING DIAGRAM:
OBD0444
NOTE:
Check shift solenoid 2 circuit.
<Ref. to 2-7 [T10BU0].>
514
2-7ON-BOARD DIAGNOSTICS II SYSTEM
1](/img/17/57434/w960_57434-2364.png "SUBARU LEGACY 1997 Service Repair Manual B2M0665
BU: DTC P0758
—SHIFT SOLENOID B (SHIFT SOLENOID 2)
ELECTRICAL—
WIRING DIAGRAM:
OBD0444
NOTE:
Check shift solenoid 2 circuit.
<Ref. to 2-7 [T10BU0].>
514
2-7ON-BOARD DIAGNOSTICS II SYSTEM
1")
Page 2366 of 3342

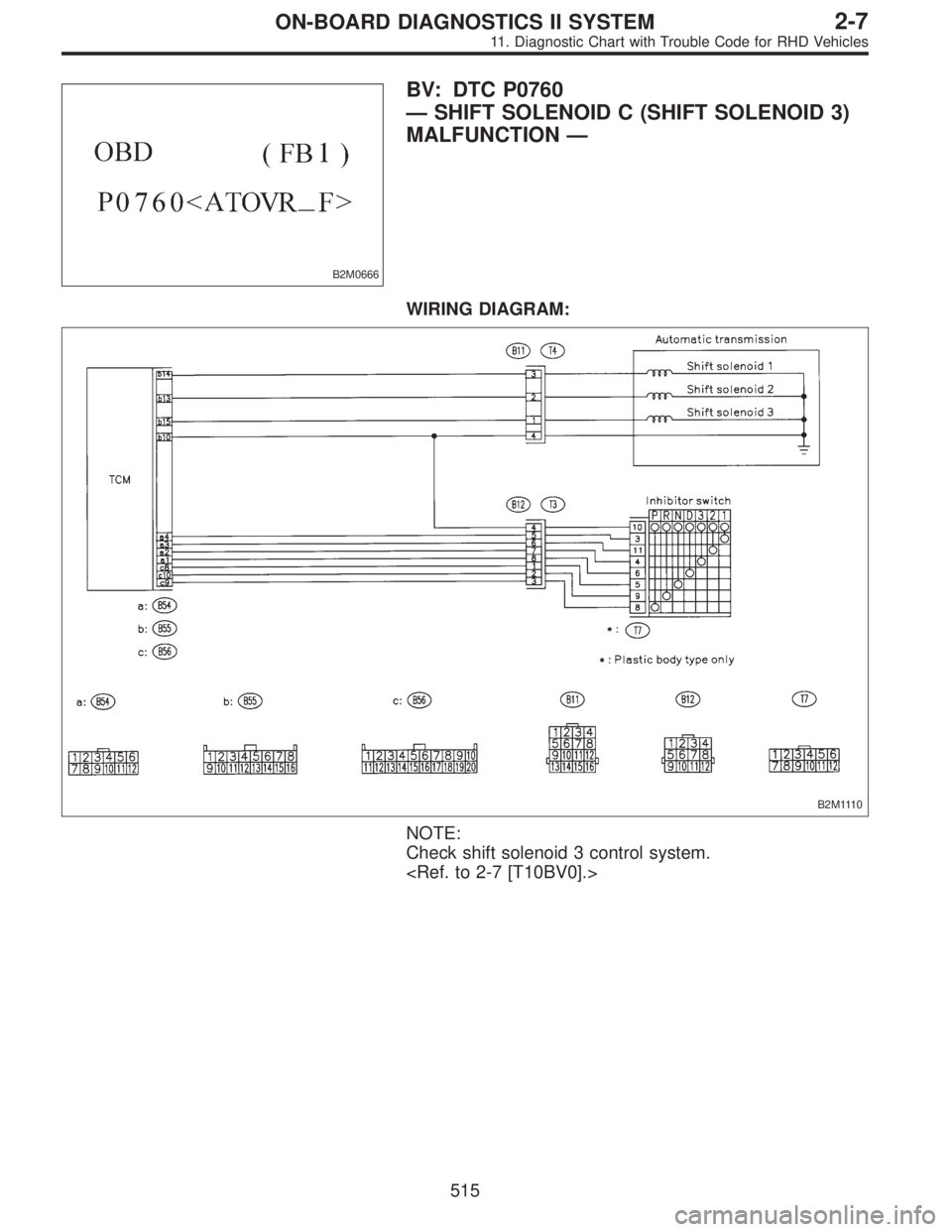

![SUBARU LEGACY 1997 Service Repair Manual B2M0666
BV: DTC P0760
—SHIFT SOLENOID C (SHIFT SOLENOID 3)
MALFUNCTION—
WIRING DIAGRAM:
B2M1110
NOTE:
Check shift solenoid 3 control system.
<Ref. to 2-7 [T10BV0].>
515
2-7ON-BOARD DIAGNOSTICS II](/img/17/57434/w960_57434-2365.png "SUBARU LEGACY 1997 Service Repair Manual B2M0666
BV: DTC P0760
—SHIFT SOLENOID C (SHIFT SOLENOID 3)
MALFUNCTION—
WIRING DIAGRAM:
B2M1110
NOTE:
Check shift solenoid 3 control system.
<Ref. to 2-7 [T10BV0].>
515
2-7ON-BOARD DIAGNOSTICS II")
Page 2367 of 3342
![SUBARU LEGACY 1997 Service Repair Manual B2M0667
BW: DTC P0763
—SHIFT SOLENOID C (SHIFT SOLENOID 3)
ELECTRICAL—
WIRING DIAGRAM:
OBD0452
NOTE:
Check shift solenoid 3 circuit.
<Ref. to 2-7 [T10BW0].>
516
2-7ON-BOARD DIAGNOSTICS II SYSTEM
1](/img/17/57434/w960_57434-2366.png "SUBARU LEGACY 1997 Service Repair Manual B2M0667
BW: DTC P0763
—SHIFT SOLENOID C (SHIFT SOLENOID 3)
ELECTRICAL—
WIRING DIAGRAM:
OBD0452
NOTE:
Check shift solenoid 3 circuit.
<Ref. to 2-7 [T10BW0].>
516
2-7ON-BOARD DIAGNOSTICS II SYSTEM
1")
Page 2368 of 3342

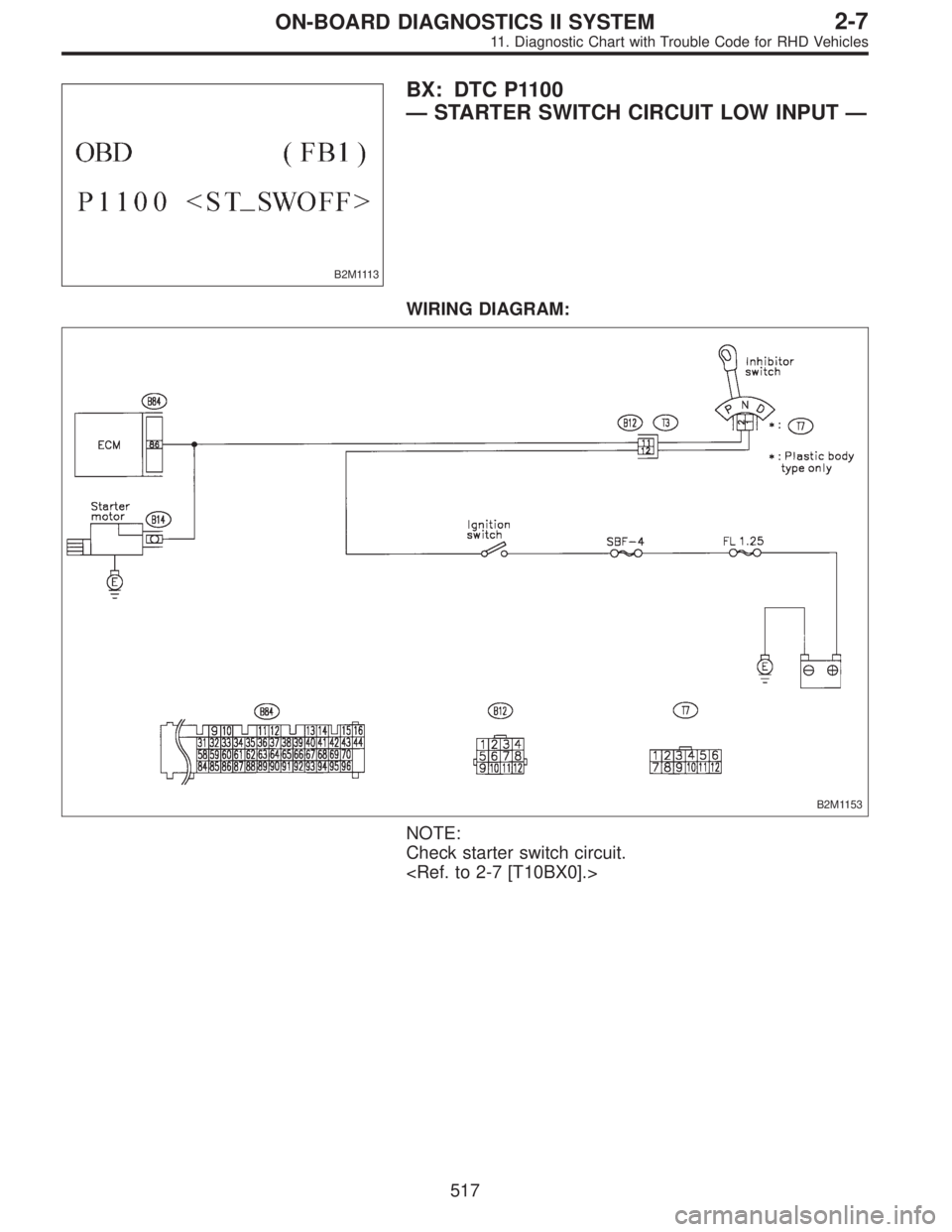

![SUBARU LEGACY 1997 Service Repair Manual B2M1113
BX: DTC P1100
—STARTER SWITCH CIRCUIT LOW INPUT—
WIRING DIAGRAM:
B2M1153
NOTE:
Check starter switch circuit.
<Ref. to 2-7 [T10BX0].>
517
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Ch](/img/17/57434/w960_57434-2367.png "SUBARU LEGACY 1997 Service Repair Manual B2M1113
BX: DTC P1100
—STARTER SWITCH CIRCUIT LOW INPUT—
WIRING DIAGRAM:
B2M1153
NOTE:
Check starter switch circuit.
<Ref. to 2-7 [T10BX0].>
517
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Ch")
Page 2369 of 3342

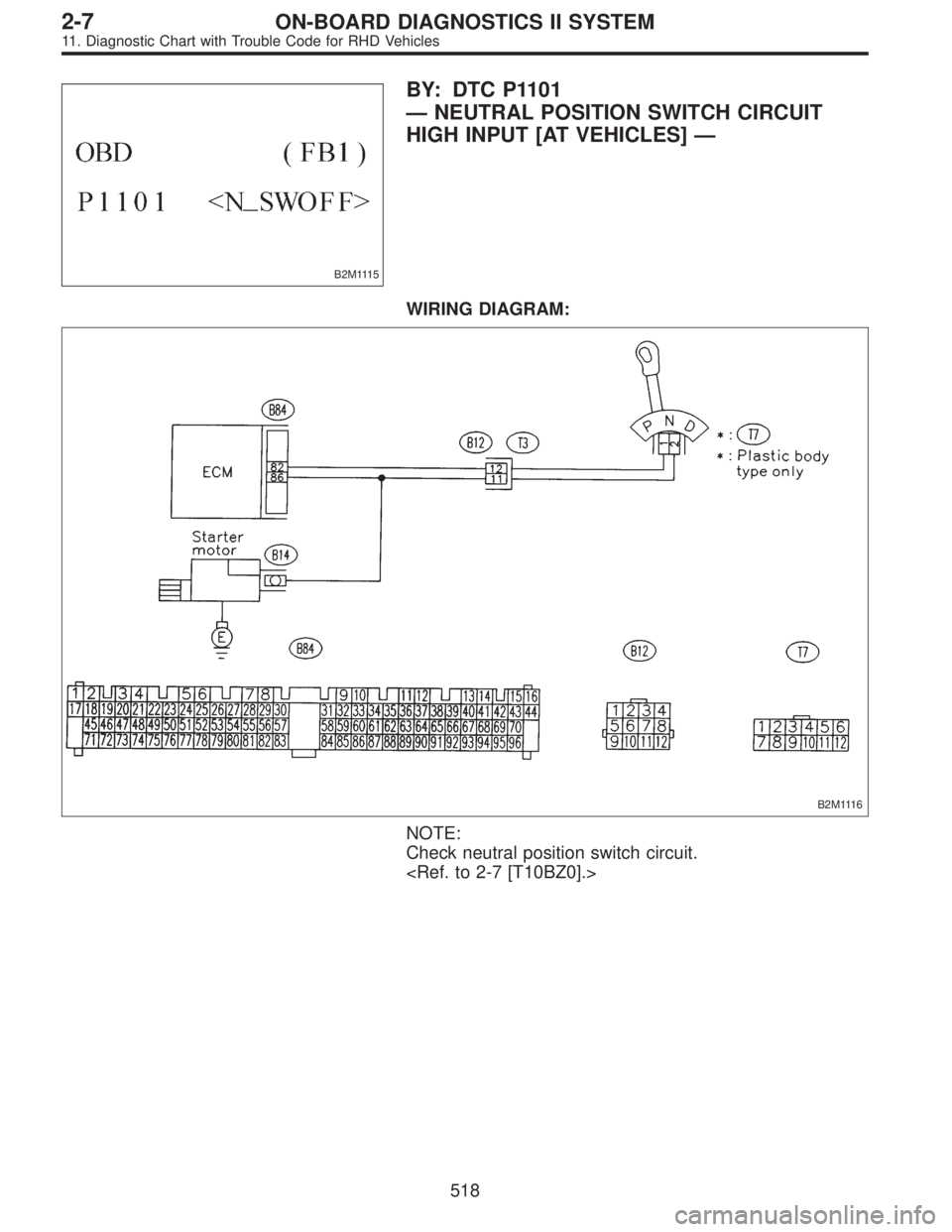

![SUBARU LEGACY 1997 Service Repair Manual B2M1115
BY: DTC P1101
—NEUTRAL POSITION SWITCH CIRCUIT
HIGH INPUT [AT VEHICLES]—
WIRING DIAGRAM:
B2M1116
NOTE:
Check neutral position switch circuit.
<Ref. to 2-7 [T10BZ0].>
518
2-7ON-BOARD DIAGNO](/img/17/57434/w960_57434-2368.png "SUBARU LEGACY 1997 Service Repair Manual B2M1115
BY: DTC P1101
—NEUTRAL POSITION SWITCH CIRCUIT
HIGH INPUT [AT VEHICLES]—
WIRING DIAGRAM:
B2M1116
NOTE:
Check neutral position switch circuit.
<Ref. to 2-7 [T10BZ0].>
518
2-7ON-BOARD DIAGNO")
Page 2370 of 3342

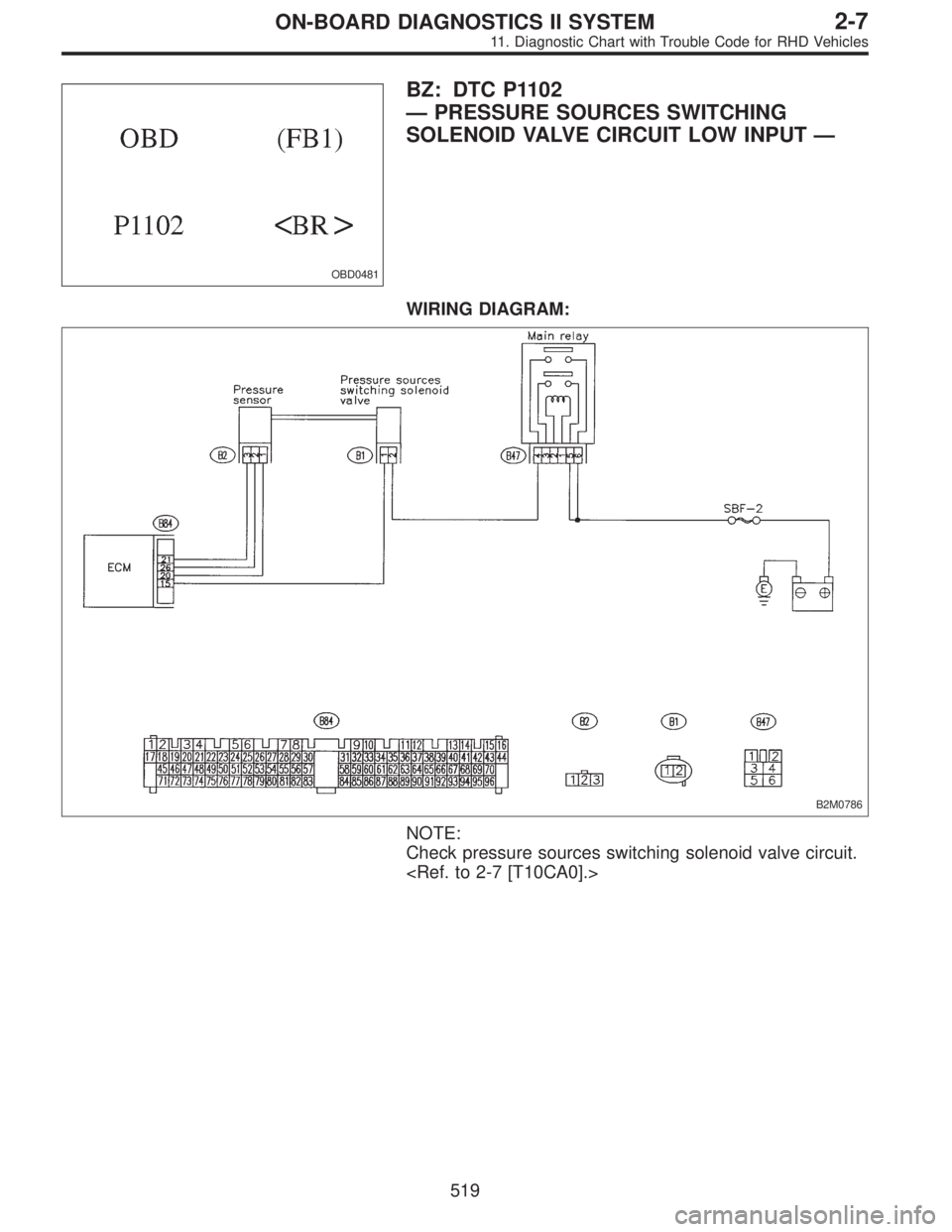

![SUBARU LEGACY 1997 Service Repair Manual OBD0481
BZ: DTC P1102
—PRESSURE SOURCES SWITCHING
SOLENOID VALVE CIRCUIT LOW INPUT—
WIRING DIAGRAM:
B2M0786
NOTE:
Check pressure sources switching solenoid valve circuit.
<Ref. to 2-7 [T10CA0].>
5](/img/17/57434/w960_57434-2369.png "SUBARU LEGACY 1997 Service Repair Manual OBD0481
BZ: DTC P1102
—PRESSURE SOURCES SWITCHING
SOLENOID VALVE CIRCUIT LOW INPUT—
WIRING DIAGRAM:
B2M0786
NOTE:
Check pressure sources switching solenoid valve circuit.
<Ref. to 2-7 [T10CA0].>
5")
