SUBARU LEGACY 1997 Service Repair Manual

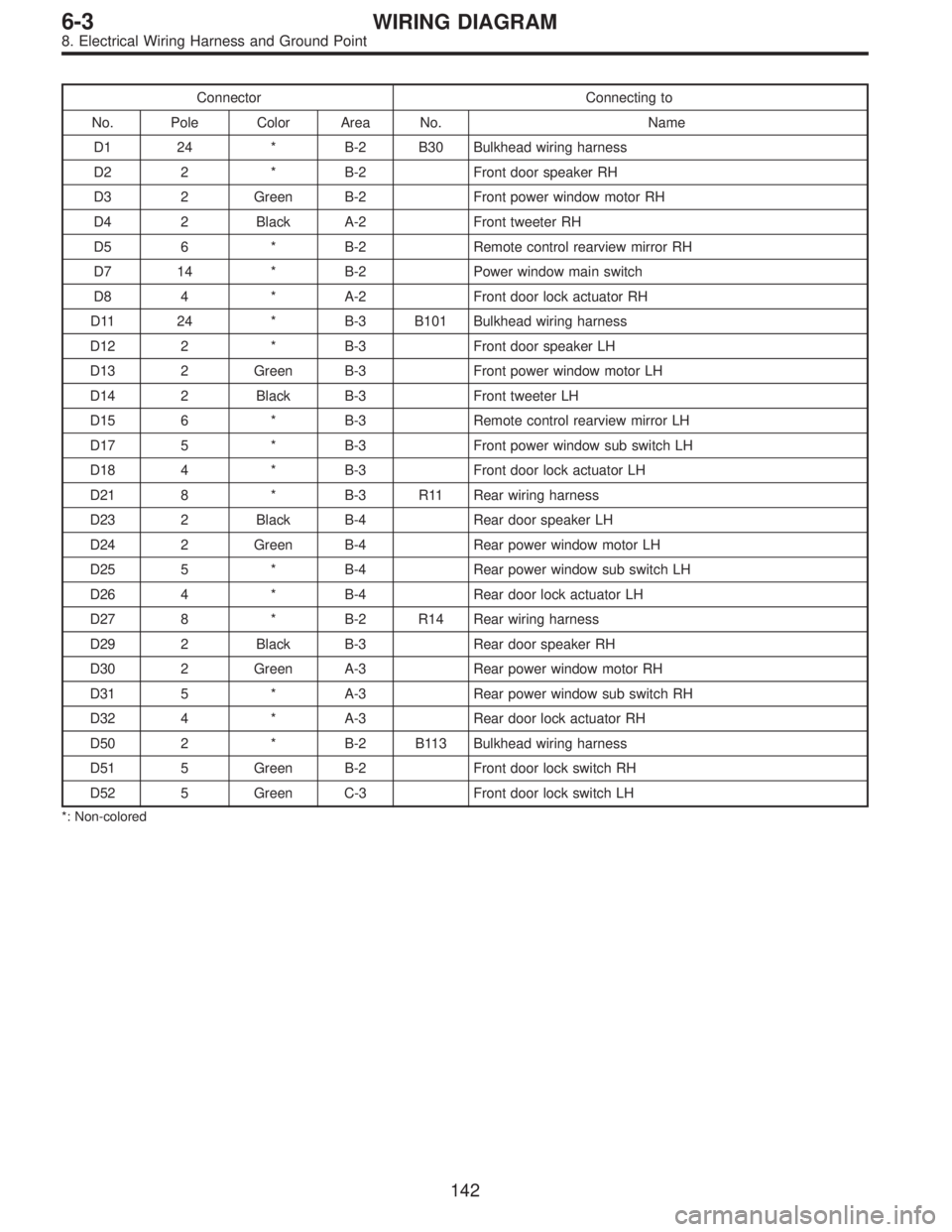

Connector Connecting to
No. Pole Color Area No. Name
D1 24 * B-2 B30 Bulkhead wiring harness
D2 2 * B-2 Front door speaker RH
D3 2 Green B-2 Front power window motor RH
D4 2 Black A-2 Front tweeter RH
D5 6 * B-2 Remote control rearview mirror RH
D7 14 * B-2 Power window main switch
D8 4 * A-2 Front door lock actuator RH
D11 24 * B-3 B101 Bulkhead wiring harness
D12 2 * B-3 Front door speaker LH
D13 2 Green B-3 Front power window motor LH
D14 2 Black B-3 Front tweeter LH
D15 6 * B-3 Remote control rearview mirror LH
D17 5 * B-3 Front power window sub switch LH
D18 4 * B-3 Front door lock actuator LH
D21 8 * B-3 R11 Rear wiring harness
D23 2 Black B-4 Rear door speaker LH
D24 2 Green B-4 Rear power window motor LH
D25 5 * B-4 Rear power window sub switch LH
D26 4 * B-4 Rear door lock actuator LH
D27 8 * B-2 R14 Rear wiring harness
D29 2 Black B-3 Rear door speaker RH
D30 2 Green A-3 Rear power window motor RH
D31 5 * A-3 Rear power window sub switch RH
D32 4 * A-3 Rear door lock actuator RH
D50 2 * B-2 B113 Bulkhead wiring harness
D51 5 Green B-2 Front door lock switch RH
D52 5 Green C-3 Front door lock switch LH
*: Non-colored
142
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

8. REAR END WIRING HARNESS AND GROUND POINT OF SEDAN
EPA0108
143
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

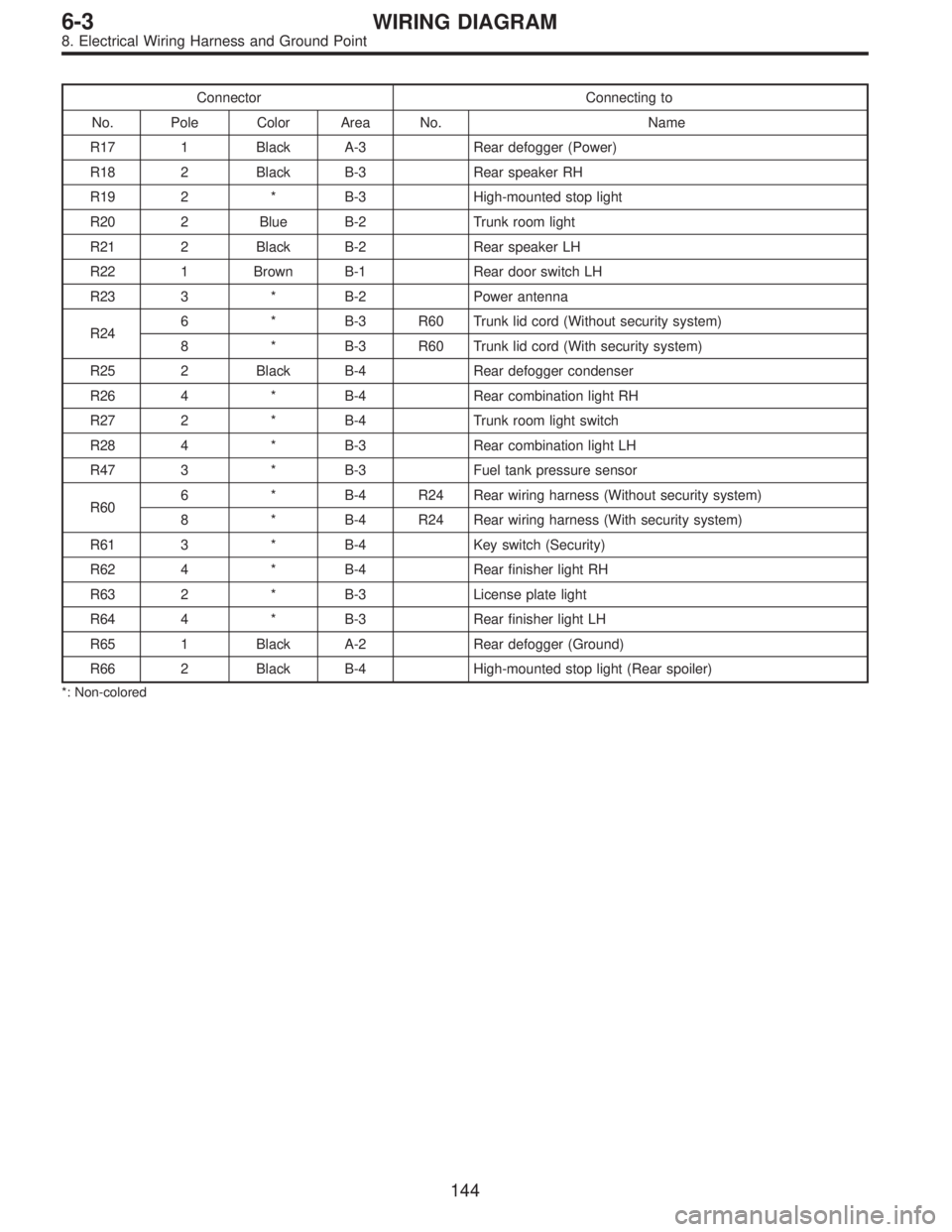

Connector Connecting to
No. Pole Color Area No. Name
R17 1 Black A-3 Rear defogger (Power)
R18 2 Black B-3 Rear speaker RH
R19 2 * B-3 High-mounted stop light
R20 2 Blue B-2 Trunk room light
R21 2 Black B-2 Rear speaker LH
R22 1 Brown B-1 Rear door switch LH
R23 3 * B-2 Power antenna
R246 * B-3 R60 Trunk lid cord (Without security system)
8 * B-3 R60 Trunk lid cord (With security system)
R25 2 Black B-4 Rear defogger condenser
R26 4 * B-4 Rear combination light RH
R27 2 * B-4 Trunk room light switch
R28 4 * B-3 Rear combination light LH
R47 3 * B-3 Fuel tank pressure sensor
R606 * B-4 R24 Rear wiring harness (Without security system)
8 * B-4 R24 Rear wiring harness (With security system)
R61 3 * B-4 Key switch (Security)
R62 4 * B-4 Rear finisher light RH
R63 2 * B-3 License plate light
R64 4 * B-3 Rear finisher light LH
R65 1 Black A-2 Rear defogger (Ground)
R66 2 Black B-4 High-mounted stop light (Rear spoiler)
*: Non-colored
144
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

9. REAR END WIRING HARNESS AND GROUND POINT OF WAGON

LHD model
B6M0694A
145
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

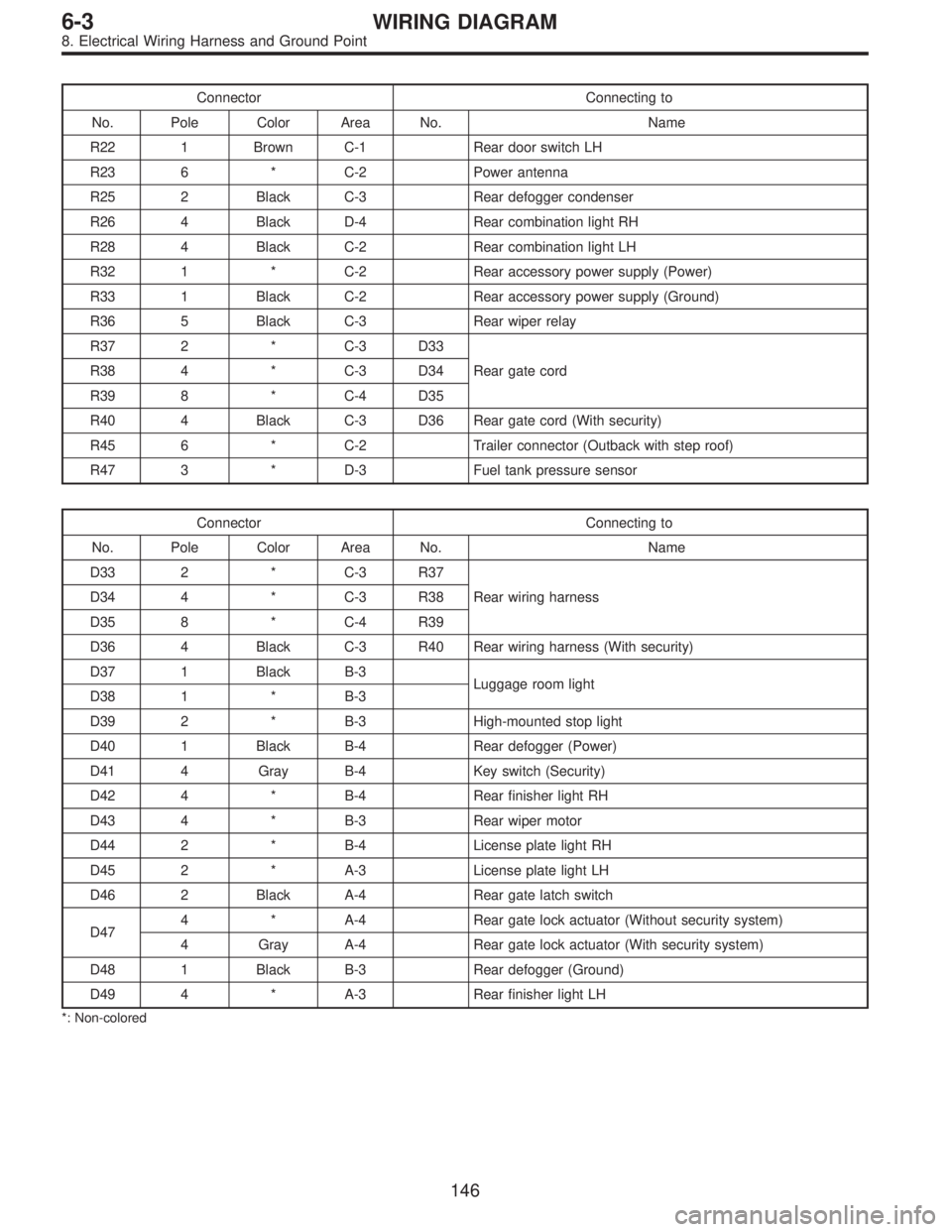

Connector Connecting to
No. Pole Color Area No. Name
R22 1 Brown C-1 Rear door switch LH
R23 6 * C-2 Power antenna
R25 2 Black C-3 Rear defogger condenser
R26 4 Black D-4 Rear combination light RH
R28 4 Black C-2 Rear combination light LH
R32 1 * C-2 Rear accessory power supply (Power)
R33 1 Black C-2 Rear accessory power supply (Ground)
R36 5 Black C-3 Rear wiper relay
R37 2 * C-3 D33
Rear gate cord R38 4 * C-3 D34
R39 8 * C-4 D35
R40 4 Black C-3 D36 Rear gate cord (With security)
R45 6 * C-2 Trailer connector (Outback with step roof)
R47 3 * D-3 Fuel tank pressure sensor
Connector Connecting to
No. Pole Color Area No. Name
D33 2 * C-3 R37
Rear wiring harness D34 4 * C-3 R38
D35 8 * C-4 R39
D36 4 Black C-3 R40 Rear wiring harness (With security)
D37 1 Black B-3
Luggage room light
D38 1 * B-3
D39 2 * B-3 High-mounted stop light
D40 1 Black B-4 Rear defogger (Power)
D41 4 Gray B-4 Key switch (Security)
D42 4 * B-4 Rear finisher light RH
D43 4 * B-3 Rear wiper motor
D44 2 * B-4 License plate light RH
D45 2 * A-3 License plate light LH
D46 2 Black A-4 Rear gate latch switch
D474 * A-4 Rear gate lock actuator (Without security system)
4 Gray A-4 Rear gate lock actuator (With security system)
D48 1 Black B-3 Rear defogger (Ground)
D49 4 * A-3 Rear finisher light LH
*: Non-colored
146
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

9. REAR END WIRING HARNESS AND GROUND POINT OF WAGON

RHD model
EPA0109
147
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

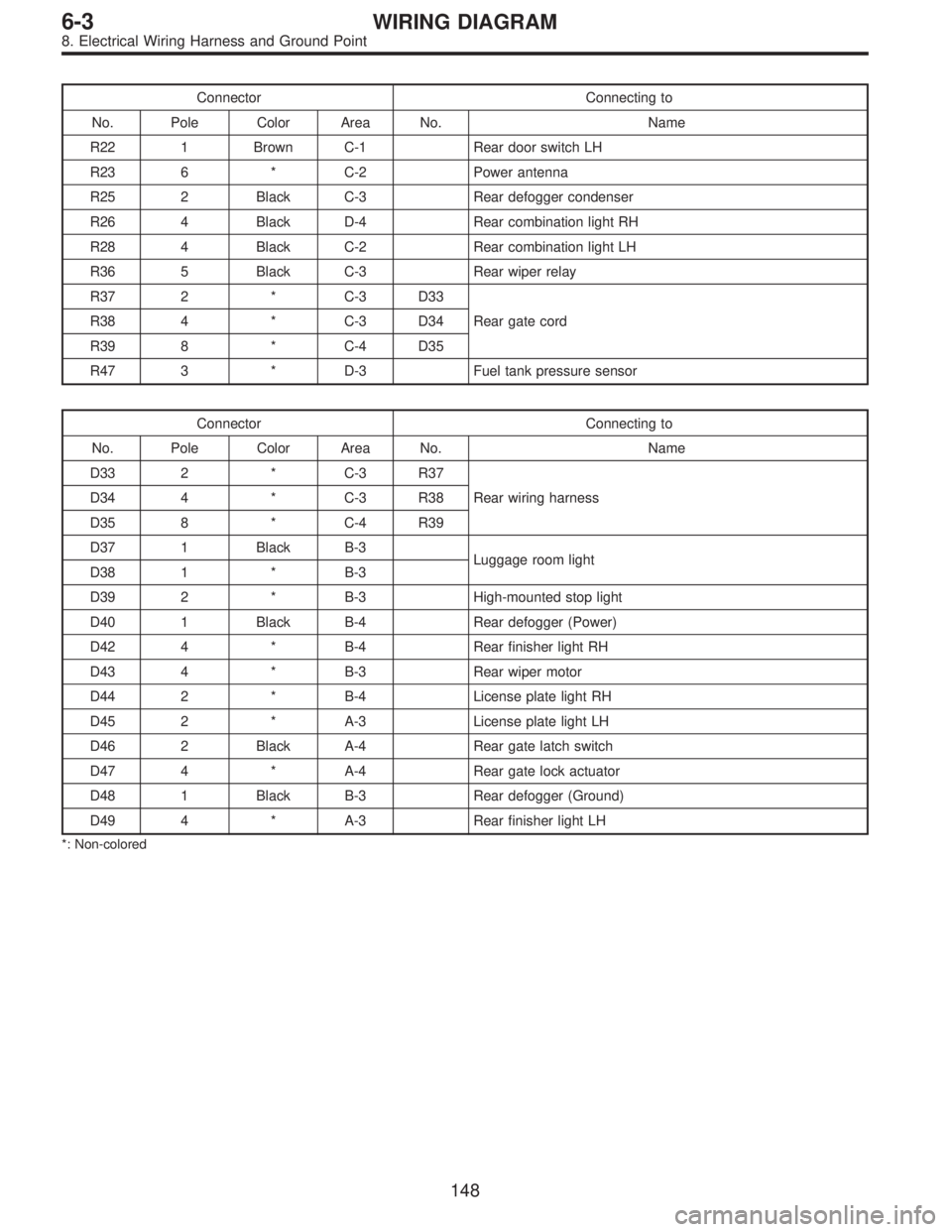

Connector Connecting to
No. Pole Color Area No. Name
R22 1 Brown C-1 Rear door switch LH
R23 6 * C-2 Power antenna
R25 2 Black C-3 Rear defogger condenser
R26 4 Black D-4 Rear combination light RH
R28 4 Black C-2 Rear combination light LH
R36 5 Black C-3 Rear wiper relay
R37 2 * C-3 D33
Rear gate cord R38 4 * C-3 D34
R39 8 * C-4 D35
R47 3 * D-3 Fuel tank pressure sensor
Connector Connecting to
No. Pole Color Area No. Name
D33 2 * C-3 R37
Rear wiring harness D34 4 * C-3 R38
D35 8 * C-4 R39
D37 1 Black B-3
Luggage room light
D38 1 * B-3
D39 2 * B-3 High-mounted stop light
D40 1 Black B-4 Rear defogger (Power)
D42 4 * B-4 Rear finisher light RH
D43 4 * B-3 Rear wiper motor
D44 2 * B-4 License plate light RH
D45 2 * A-3 License plate light LH
D46 2 Black A-4 Rear gate latch switch
D47 4 * A-4 Rear gate lock actuator
D48 1 Black B-3 Rear defogger (Ground)
D49 4 * A-3 Rear finisher light LH
*: Non-colored
148
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

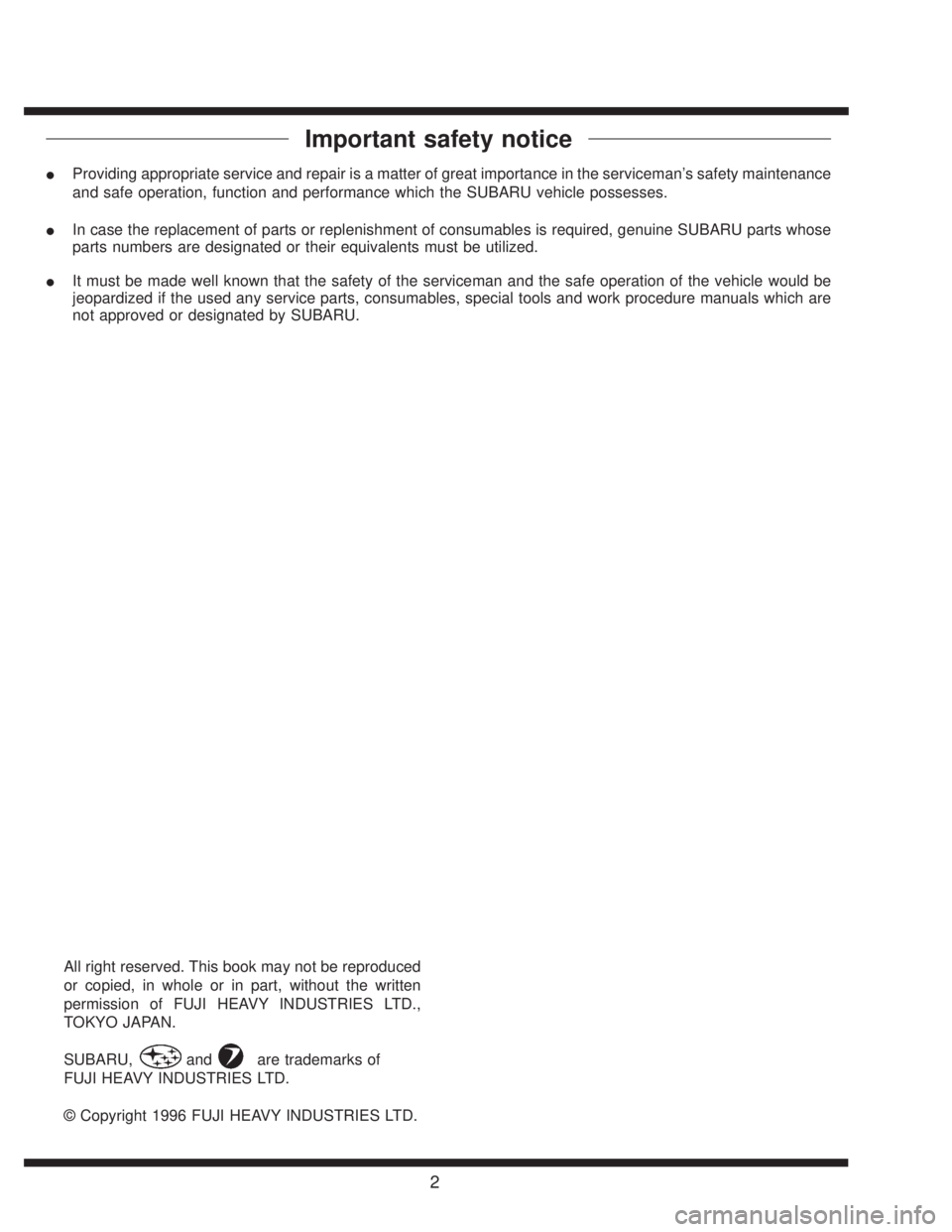

Important safety notice

Providing appropriate service and repair is a matter of great importance in the serviceman’s safety maintenance
and safe operation, function and performance which the SUBARU vehicle possesses.

In case the replacement of parts or replenishment of consumables is required, genuine SUBARU parts whose
parts numbers are designated or their equivalents must be utilized.

It must be made well known that the safety of the serviceman and the safe operation of the vehicle would be
jeopardized if the used any service parts, consumables, special tools and work procedure manuals which are
not approved or designated by SUBARU.
All right reserved. This book may not be reproduced
or copied, in whole or in part, without the written
permission of FUJI HEAVY INDUSTRIES LTD.,
TOKYO JAPAN.
SUBARU,
andare trademarks of
FUJI HEAVY INDUSTRIES LTD.
© Copyright 1996 FUJI HEAVY INDUSTRIES LTD.
2

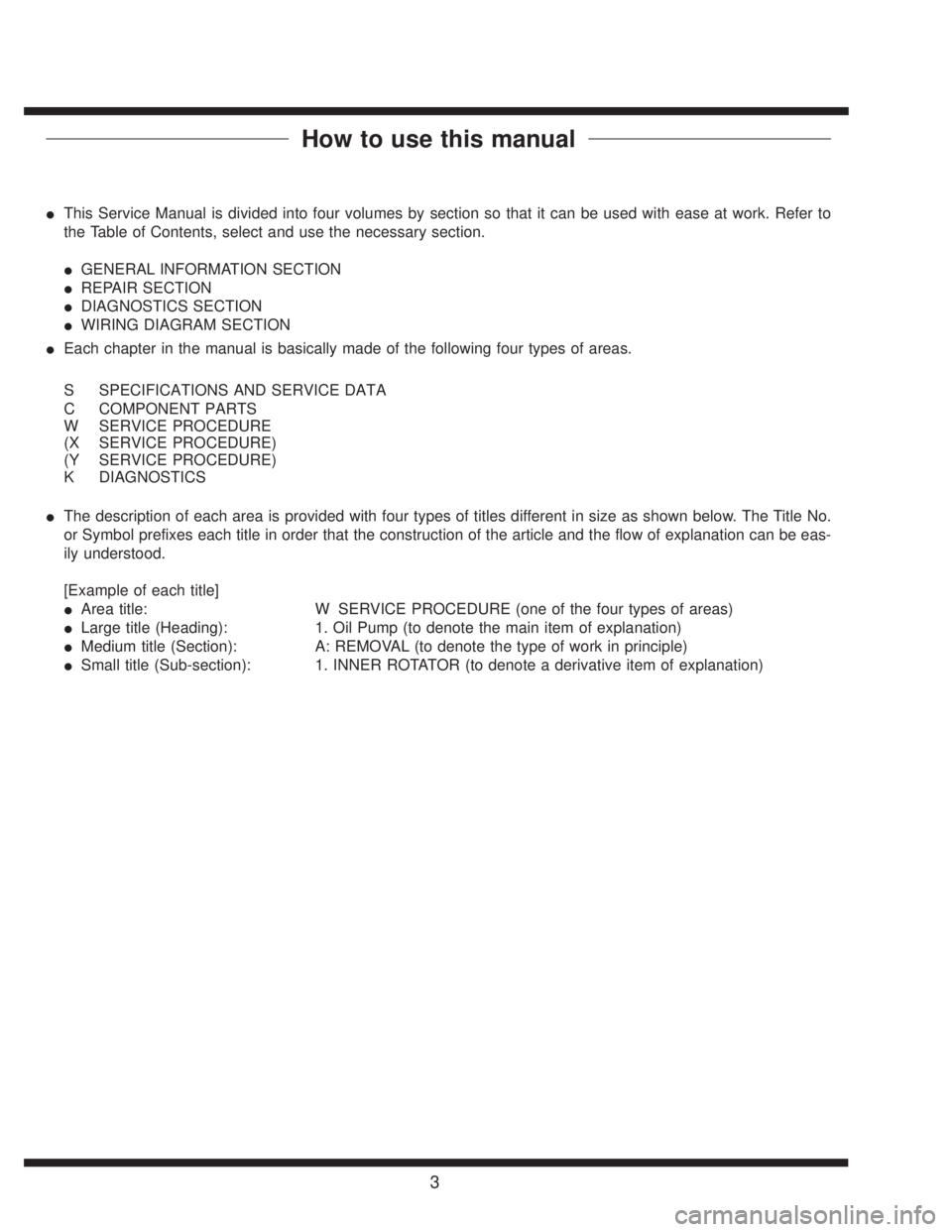

How to use this manual

This Service Manual is divided into four volumes by section so that it can be used with ease at work. Refer to
the Table of Contents, select and use the necessary section.

GENERAL INFORMATION SECTION

REPAIR SECTION

DIAGNOSTICS SECTION

WIRING DIAGRAM SECTION

Each chapter in the manual is basically made of the following four types of areas.
S SPECIFICATIONS AND SERVICE DATA
C COMPONENT PARTS
W SERVICE PROCEDURE
(X SERVICE PROCEDURE)
(Y SERVICE PROCEDURE)
K DIAGNOSTICS

The description of each area is provided with four types of titles different in size as shown below. The Title No.
or Symbol prefixes each title in order that the construction of the article and the flow of explanation can be eas-
ily understood.
[Example of each title]

Area title: W SERVICE PROCEDURE (one of the four types of areas)

Large title (Heading): 1. Oil Pump (to denote the main item of explanation)

Medium title (Section): A: REMOVAL (to denote the type of work in principle)

Small title (Sub-section): 1. INNER ROTATOR (to denote a derivative item of explanation)
3

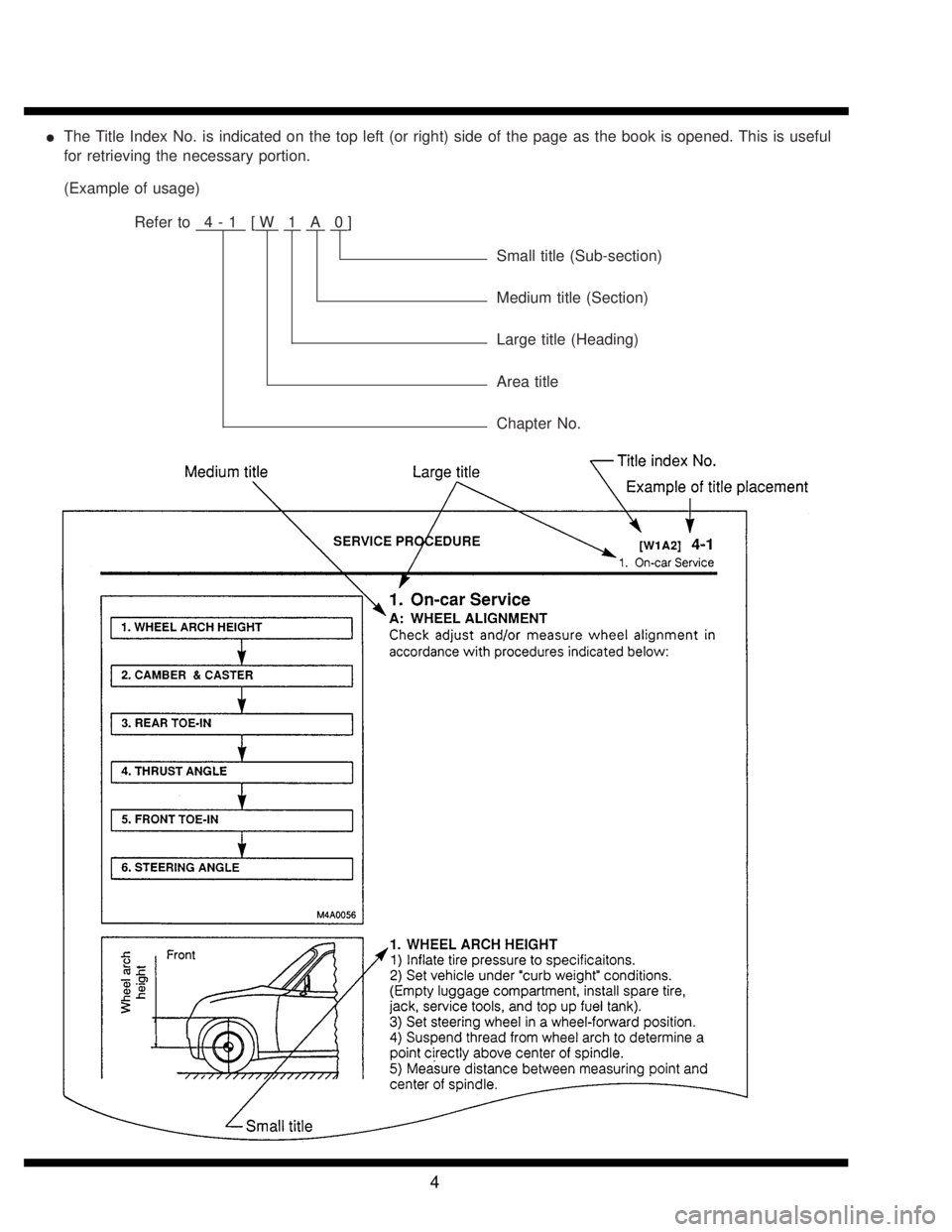

The Title Index No. is indicated on the top left (or right) side of the page as the book is opened. This is useful
for retrieving the necessary portion.
(Example of usage)
Refer to 4 - 1
[W1A0]
Small title (Sub-section)
Medium title (Section)
Large title (Heading)
Area title
Chapter No.
4
